DJI

Inspire 1 Raw Quadcopter with Zenmuse X5R 4K Camera and 3 Axis Gimbal with Dual Remote

$ 5,399.00 $ 6,998.00

Questions?
Email or Call us 805.480.4033

  Call for availability The DJI Inspire 1 Pro and Inspire 1 RAW are the smallest, easiest professional aerial filmmaking platforms in the world. They combine DJI’s unparalleled leadership in aerial technology with world-class M4/3 imaging capabilities. Whether you are a professional photographer or a Hollywood filmmaker, the Inspire 1 Pro and Inspire 1 RAW are ready to take your work to new heights.
inspire-1-pro,goapp

ZENMUSE X5 AND X5R

The Zenmuse X5 and X5R are among the smallest Micro 4/3 cameras ever made and the only M4/3 cameras designed specifically for aerial imaging. Both can capture ultra-clear 4K video at up to 30 frames per second and capture photos at 16 megapixels in Adobe DNG RAW. The Zenmuse X5R is also the first camera of this type able to shoot 4K raw video, making it perfect for professional filmmaking. As M4/3 cameras, you have a choice of lenses and also full wireless control over focus, aperture and more.

COMPREHENSIVE APP CONTROL

The DJI go app gives you an unprecedented level of control over your camera while you fly. Use the intuitive auto focus mode to compose the perfect shot and change everything from focus to shutter speed and aperture with the tap of a finger. Through the same app you also control how your Inspire flies, from auto take-off and landing, to fine tuning of your flying experience and even a set of intelligent flight modes.

  • inspire-1-pro,goapp
  • inspire-1-pro,goapp
  • inspire-1-pro,goapp
inspire-1-pro,goapp

POWER TO FLY

New propellers and motors designed with the Inspire 1 Pro and Inspire 1 RAW in mind keep the Inspire agile and fast. You can expect flight times of 15-18 minutes with Zenmuse X5 and 13-15 minutes with the Zenmuse X5R.

*Inspire 1 Pro: TB47 battery 15 mins ; TB48 battery 18 mins.Inspire 1 RAW: TB47 battery 13 mins ; TB48 battery 15 mins.
inspire-1-pro,goapp

COMPLETE CONTROL

Use the Inspire 1 Pro or Inspire 1 RAW just like you would a camera, with a shutter button for stills and a record button for video built into the remote control. It also features a jog dial that allows you to change camera settings quickly, and customizable buttons for you to personalize. Plug the DJI Focus into the remote control to extend its reach as far as the Inspire 1 Pro or Inspire 1 RAW flies.

inspire-1-pro,goapp

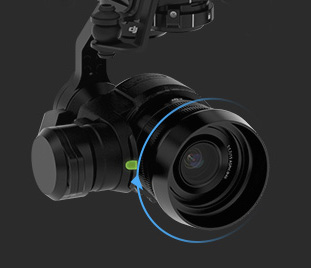

REMOTE FOCUS

Take control of your focus for the first time, and combine it with aperture control for another layer of creative freedom. Do you want to start on a shallow depth-of-field of your subject and then bring the background into sight? With remote focus control you can, with a tap of the screen inside the DJI GO app. Using the DJI Focus, you can even turn a dial just like you would turn a lens allowing for even more refined control.

inspire-1-pro,goapp

\INTELLIGENT FLIGHT MODES

Various intelligent flight modes are available that help make some of the must difficult shots achievable by everyone. These include:

  • POINT OF INTEREST

    Select a location or object to focus on, and your Inspire 1 Pro and Inspire 1 RAW will continuously face it as you fly, or circle around it automatically.

  • WAYPOINTS

    Plan flight paths and your Inspire 1 Pro and Inspire 1 RAW will fly autonomously on your pre-set route, letting you focus on the camera.

  • COURSE LOCK

    By activating Course Lock, the controls will be set to relative to your aircraft's current path. This easy navigation allows you to fly in a set direction as you fly alongside moving objects or across scenes.

  • HOME LOCK

    Fix your controls to be relative to the Home Point. Easily pull back on the control stick to bring the aircraft back home, or push forward to fly farther away, no matter which way it is facing.



AIRCRAFT

Model T600
Weight  2870 g (Battery and propellers included, Zenmuse X5 excluded)
3400 g (Battery, propellers and Zenmuse X5 included)
Max Takeoff Weight 3500 g
Hovering Accuracy (P Mode) Vertical: 0.5 m
Horizontal: 2.5 m
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle 35°
Max Ascent Speed 5 m/s
Max Descent Speed 4 m/s
Max Speed 18 m/s (ATTI mode, no wind)
Max Service Ceiling Above Sea Level 4,500 m (Default altitude limit: 120 m above takeoff point)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approxi. 15 minutes
Motor Model DJI 3510H
Propeller Model DJI 1345T
Indoor Hovering Enabled by default
Operating Temperature 14° to 104° F (-10° to 40° C)
Diagonal Distance 559 mm

CHARGER

Model A14-100P1A
Voltage 26.3 V
Rated Power 100 W

BATTERY (OPTIONAL)

Name Intelligent Flight Battery
Model TB48
Capacity 5700 mAh
Voltage 22.2 V
Battery Type 6S LiPo High voltage battery
Energy 129.96 Wh
Net Weight 670 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Max Charging Power 180 W
Max Flight Time Approx. 18 minutes

DJI GO APP

Requirements iOS 8.0 (or later) and Android 4.1.2 (or later)
Supported Mobile Devices Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus.
Compatible with Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.
*Support for additional Android devices available as testing and development continues.

REMOTE CONTROLLER

Name C1
Operating Frequency 922.7~927.7 MHz (Japan Only)
5.725~5.825 GHz
2.400~2.483 GHz
Max Transmitting Distance FCC Compliant: 3.1 miles (5 km); CE Compliant: 2.1 miles (3.5 km)
(unobstructed, free of interference)
EIRP 10 dBm@900m MHz, 13 dBm@5.8 GHz, 20 dBm@2.4 GHz
Video Output Ports USB, Mini HDMI
Power Supply Built-in battery
Charging DJI charger
Dual User Capability Host-and-Slave connection
Mobile Device Holder Tablet or Smart Phone
Max Mobile Device Width 170mm
Output Power 9 W
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature  32° to 104° F (0° to 40° C)
Battery 6000 mAh 2S LiPo

BATTERY (STANDARD)

Name Intelligent Flight Battery
Model TB47
Capacity 4500 mAh
Voltage 22.2 V
Battery Type LiPo 6S High voltage battery
Energy 99.9 Wh
Net Weight 570 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Max Charging Power 180 W

VISION POSITIONING

Velocity Range < 8 m/s @altitude 6.56 feet (2 m)
Altitude Range 0.16 - 16.4 feet (5-500 cm)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Operating Range < 9.84 feet (300 cm)






Zenmuse X5R



General

Dimensions

136mm (W) x 125mm (H) x 131mm (D)



Weight (Standard Lens, Balancing Ring, Lens Hood, Micro SD Card Included)

583 g



Static Output Power

19.5W



Peak Output Power

25W



Operating Temperature

32° to 104° F (0° to 40° C)



Camera

Lens

Replaceable lens

M43 mount supporting auto-focus



Supported Lenses

DJI MFT 15mm f/1.7 ASPH

Panasonic Lumix 15mm f/1.7

Olympus M. ED 12mm f/2.0

Olympus M.Zuiko 17mm f/1.8 *

*Requires a balancing weight



Sensor

4/3-inch CMOS sensor



Effective Pixels

16M



Max Resolution

4608x3456



ISO Range

100~25600



Electronic Shutter Speed

8 to 1/8000 s



Field of View (FOV)

15mm/ f1.7:72°

12mm/ f2.0:84°



Still Photography Modes

Single shot

Burst shooting: 3/5/7 frames

Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias

Time-lapse (3/5/7/10/20/30/60 sec)



Video Resolution

UHD: 4096×2160 (24/25p); 3840×2160 (25/30p);

FHD: 1920×1080 (24/25/30/48/50/60p)

Max Video Bitrate

2.4Gbps (Average: 1.7 Gbps)

Supported File Formats

FAT32 / exFAT

Photo: JPEG, DNG

Video: MP4, MOV (MPEG-4/AVC/H.264F), JPEG-Lossless(RAW)



Supported Storage Devices

Class 10 or UHS-1 or above Micro SD cards with Max capacity of 64GB

SSD with Capacity of 512GB (ZENMUSE X5R)



Default Lens

Name

DJI MFT 15mm f/1.7 ASPH



Focal length

f=15 mm (35 mm film camera equivalent: 30 mm)



Aperture type

7 diaphragm blades/circular aperture diaphragm



Maximum aperture

F1.7



Minimum aperture value

F16



Lens construction

9 elements in 7 groups (3 aspherical elements)



In focus distance

0.2 m to ∞ (from the focus distance reference line)



Mount

Micro 4/3



Field of View (FOV)

72°



Max. diameter

Approx. 57.5 mm



Overall length

Approx. 36 mm



Mass

Approx. 115 g



Gimbal

Model

Zenmuse X5R



Angular Vibration Range

±0.02°



Mount

Detachable



Controllable Range

Pitch: -90° to +30°

Pan: ±320°



Max Controllable Speed

Pitch: 120°/s

Pan: 180°/s



What is the difference between the X3 and ZENMUSE X5 Series?

The biggest difference between them is in video recording capabilities, storage media, and workflow.
The ZENMUSE X5R shoots video in lossless format to preserve maximum detail and enable precise editing and post-processing, giving cinematographers full control over the look of their footage.
The ZENMUSE X5R has a removable 512GB SSD drive for storing the lossless video recorded. DJI CineLight is offered for processing lossless videos, enabling high-end filmmakers to easily adjust and output videos according to their own needs.



What’s the difference between ZENMUSE X5 and ZENMUSE X5R?

The biggest difference between them is in video recording capabilities, storage media, and workflow. The ZENMUSE X5R shoots video in lossless format to preserve maximum detail and enable precise editing and post-processing, giving cinematographers full control over the look of their footage.
The ZENMUSE X5R has an integrated 512GB SSD drive for storing the lossless video recorded. DJI has designed an editing software specifically for lossless videos, enabling high-end filmmakers to easily edit and process the videos according to their own needs.



What is the advantage of the ZENMUSE X5 Series, compared to other M4/3 cameras in the market?

The ZENMUSE X5 Series are the first M4/3 cameras designed specifically for aerial photography. The cameras come with an integrated 3-axis gimbal stabilization system, and are designed for use with the Inspire 1. The camera shoots 16 Megapixel photos and 4K video, and can be fully controlled via the new DJI GO app.

Can I use the ZENMUSE X5 Series separately as a stand-alone camera?

No. The ZENMUSE X5 Series cameras must be used together with the Inspire 1 or future supported DJI products.

Can I use the ZENMUSE X5 Series with Spreading Wings, Matrice 100 or other current flying platforms?

Currently, the ZENMUSE X5 Series is only compatible for use with the Inspire 1, but it will be suitable for more future supported DJI products.

What are the benefits of the M4/3 sensor?

The M4/3 sensor is eight times larger than the sensor in the ZENMUSE X3, enabling it to capture incredibly detailed images and videos, including UHD 4K, and gives it improved low-light performance. The M4/3 lens mount allows the use three lenses currently.

What is the M4/3 mount?

The M4/3 lens mount is the interface between the camera body and the attached M4/3 lens. Thanks to the standardized M4/3 mount, you can select three lenses currently. The size of M4/3 is between the size of super 35mm and super 16mm, and super 35 mm lenses can be added to the MFT mount which enables you to shoot high-quality aerial videos.

What lenses are compatible with the ZENMUSE X5 Series?

Currently, there are three prime lenses compatible with the X5: the Panasonic Lumix 15mm, Olympus M.Zuiko Digital 12mm and DJI MFT 15mm.

Why aren’t all MFT lenses compatible with the ZENMUSE X5 Series?

To ensure that the 3-axis gimbal’s movements are unrestricted, the lenses are required to fit the gimbal in terms of weight and size. Not all existing lenses fit these requirements, which is why not all MFT lenses are compatible with the ZENMUSE X5 Series.

What is the DJI GO App, and where can I download it?

DJI GO is an easy-to-use mobile application for iOS and Android devices for use together with DJI products. For more information please visit: http://www.dji.com/product/goapp

Which mobile devices are compatible with the app?

The iOS version of DJI GO (v2.1.0) requires devices with iOS 8.0 or later. Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus.
Android Version v2.0.2. Requires Android 4.1.2 or later. Compatible with Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Nubia Z7 mini, SONY Z3 EXPERIA, MI 3, MI PAD.



How do I install the ZENMUSE X5R on to the Inspire 1?

If you have an Inspire 1 with a ZENMUSE X3 installed, the mounting mechanism should be changed to the new one that's included with the ZENMUSE X5 series. The new mounting mechanism that's provided with ZENMUSE X5 Series are also backwards compatible with the Zenmuse X3 camera.

Why does the ZENMUSE X5R have an integrated SSD drive, but not the ZENMUSE X5?

Because the ZENMUSE X5R's footage captured is lossless and uncompressed, it requires a large amount of memory for storage. We offer a 512GB SSD with the ZENMUSE X5R for this reason.

Can I remove the lens hood when using my ZENMUSE X5 with the designated lenses?

It depends on the lens used. The 3-axis gimbal is sensitive to the weight of the mounted lens. When you are using an Olympus M.Zuiko Digital 12mm, the lens hood can be removed without disturbing the gimbal’s operations. However, if you are using a Panasonic Lumix 15mm or DJI MFT 15mm, the lens hood must be attached. For more detail, please go to the download page for official guidance.

Can DJI GO display my recorded photos and videos?

Yes, you can view your photos and videos by going to the Library in the DJI GO app.

Can I use DJI GO to edit my photos and videos?

Yes, you can go to the Library and find the video and photo editor.

How do I use auto focus on the ZENMUSE X5 Series?

To focus on a specific area, all you have to do is to tap on the screen of your mobile device just like the way you are using it on a smartphone.

What are the available exposure modes on the ZENMUSE X5 Series?

Auto, Aperture First, Shutter First, Manual, AE lock, AE Spot Metering, as well as AW Center Metering.

Can I zoom when using the ZENMUSE X5 Series?

No. The ZENMUSE X5 Series lenses currently available are fixed focal length lenses.
