ACSL SOTEN Thermal Package - Advanced Thermal Vision for Critical Operations
Precision Imaging for Professionals Who Rely on Thermal Data
The ACSL SOTEN Thermal Package delivers next-level aerial thermal capability in a secure, NDAA-compliant drone system. Whether you're conducting inspections, monitoring a perimeter, or responding to an emergency, this package combines radiometric thermal imaging with a durable, daylight-readable smart controller for on-the-fly tactical insights.
Designed for Real-Time Response

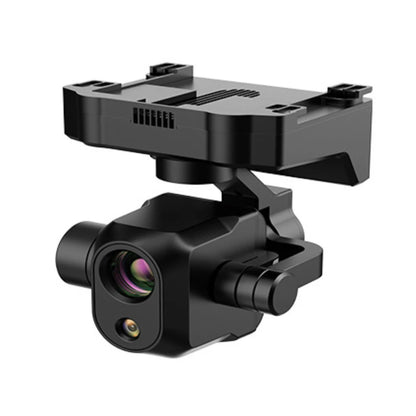

The FLIR Hadron 640R Thermal Camera provides 640 x 512 thermal resolution at 60Hz, ideal for detecting heat signatures and anomalies. Its integrated EO sensor captures 64MP photos and 4K video, all stabilized on a 3-axis gimbal. Combined with the rugged TENSO Smart Controller-IP43-rated and encrypted-this setup keeps you operational in rain, dust, and bright light without compromise.
Key Features
Built for operators who demand real-time thermal visibility, secure control, and multi-mission flexibility.
- FLIR Hadron 640R Thermal Camera: 640 x 512 resolution, 60Hz thermal video
- EO sensor: 64MP stills, 4K video, 67° HFOV
- Stabilized 3-axis gimbal for steady imaging in flight
- TENSO Smart Controller: 1080p 5" display, 1000 nits brightness, IP43 rated
- AES256 encryption between drone and controller
- LTE/WiFi connectivity with 2.5-mile operating range
- Real-time exposure adjustments and custom gimbal control
- FAA Remote ID compliant and ISO15408 secure architecture
- Payload bay enables swappable sensors with power on
- Compact 1.7 kg foldable drone with 25-minute endurance
Applications
Ideal for public safety, energy, and environmental professionals needing thermal insights:
- Search and rescue missions in low-visibility conditions
- Electrical substation and powerline heat diagnostics
- Tactical perimeter monitoring and law enforcement
- Roof and infrastructure inspections for thermal leaks
- Fire response and post-incident hotspot detection
- Thermal mapping in agriculture and conservation
Why Buy from Dronefly
At Dronefly, we know how critical real-time thermal imagery can be. That's why we help you integrate the ACSL SOTEN Thermal Package with expert support at every step. From activation and camera tuning to controller setup and flight planning, our team is on hand to ensure your success.
You'll gain more than a high-spec drone-you'll gain field-proven knowledge and fast, U.S.-based support tailored to the demands of your missions.
Deploy the ACSL SOTEN Thermal Package with Dronefly and get clarity where it matters most.
Specifications
- Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
- Height: Unfolded 153mm (including propellers)
- Weight: 1,720g (including standard camera and battery)
- Number of rotor blades: 4
- Intelligent battery: Lithium-ion battery 94Wh, 1 pc
- Operating frequency: 2.412 - 2.477 GHz
- Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
- Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
- Maximum pitch angle: 30°
- Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
- Maximum ascent speed: 3m/s
- Maximum descent speed: 2m/s
- Maximum takeoff weight: 2,000g
- Maximum speed (no wind): 15m/s
- Operational limit altitude: 2000m
- Maximum airspeed: 15m/s
- Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
- Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
- Ingress protection: IP43 (with camera, gimbal, and battery)
- GNSS: GPS + QZSS + GLONASS + SLAS
- Operating temperature: 0°C to 40°C
- Optional items: LTE Comms Module, Spare Battery
- Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
- Obstacle detection angle: 70° horizontal, 40° vertical
- Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
- Operating environment: Adequate lighting and clear texture
- Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
- Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
- Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
- Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles
- Remote Controller - Operating frequency: 2.412 to 2.477 GHz
- Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
- Remote Controller - Battery life: Up to 4 hours
- Remote Controller - Operating temperature: 0°C to 40°C
- Remote Controller - Security: AES encryption method
- Remote Controller - Multiple operations: Control can be transferred between two radio controllers
- Supported Mobile Devices - OS: Android™ 4.1 or higher
- Supported Mobile Devices - Terminal: USB Type-C
- Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
- Visible Camera - Effective pixels: 20 megapixels
- Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
- Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
- Visible Camera - Video method: MOV / H.264
- Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
- Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Visible Camera - Sensor size: 1 inch
- Visible Camera - Shutter system: Mechanical
- Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
- Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
- Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Visible Camera - Security: Data encryption can be enabled/disabled
- Camera Gimbal - Mechanism: 3-axis
- Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
- Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
- Camera Gimbal - Control accuracy: ±0.02°
- Camera Gimbal - Switching method: One-touch camera switching
- Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
- Infrared + Visible Camera - Temperature resolution: <60mK
- Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
- Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
- Infrared + Visible Camera - Video method: MOV / H.264
- Infrared + Visible Camera - Video quality: Full HD / HD
- Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled
In The Box
- 1x SOTEN Airframe
- 1x TENSO Smart Controller
- 1x Battery Charger
- 1x Triple Battery Charger
- 5x Smart Batteries
- 2x CW Propeller Set
- 2x CCW Propeller Set
- 1x Standard Payload
- 1x Thermal Payload (FLIR 640 × 512 Radiometric + 64 MP)
- 1x Hard Storage Case
