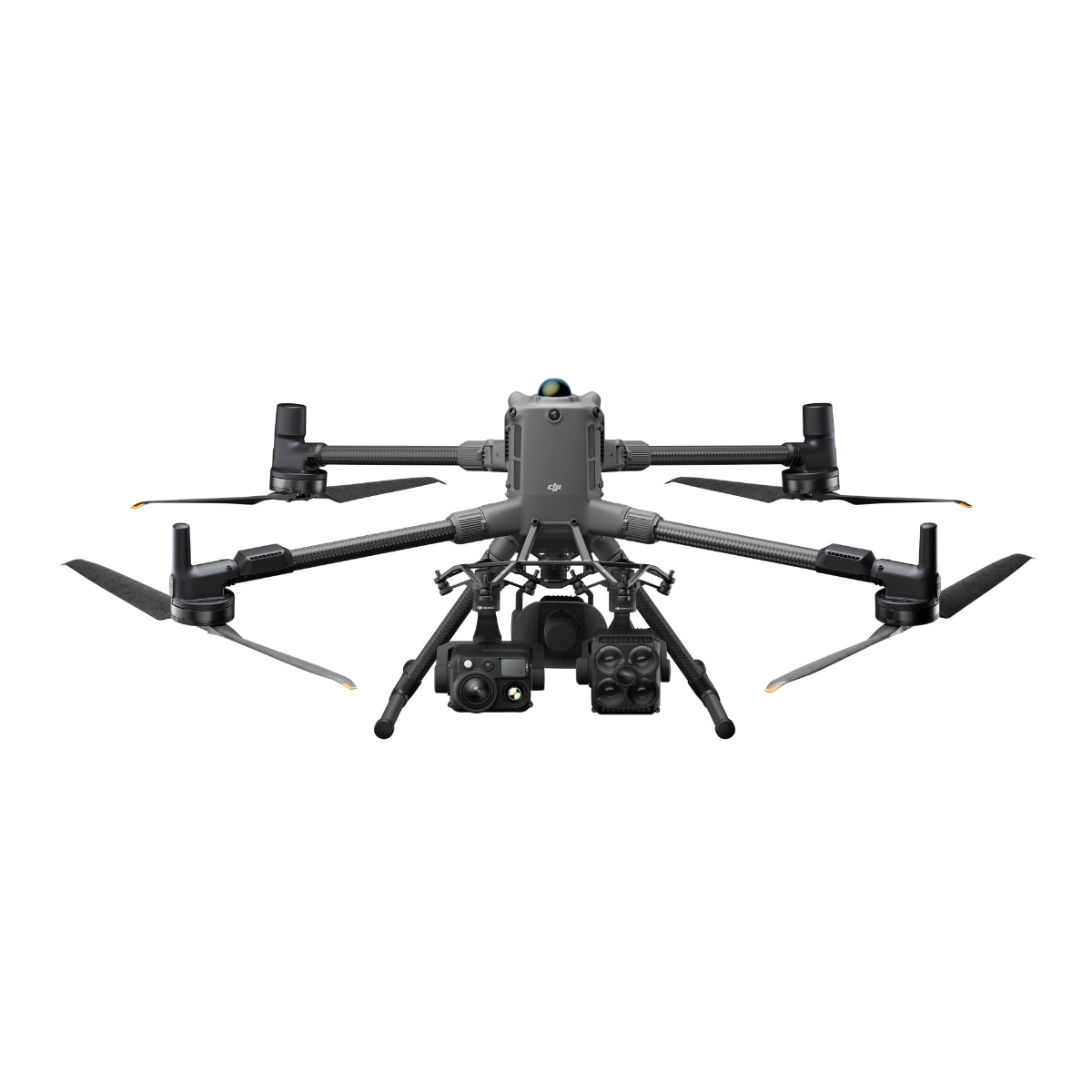

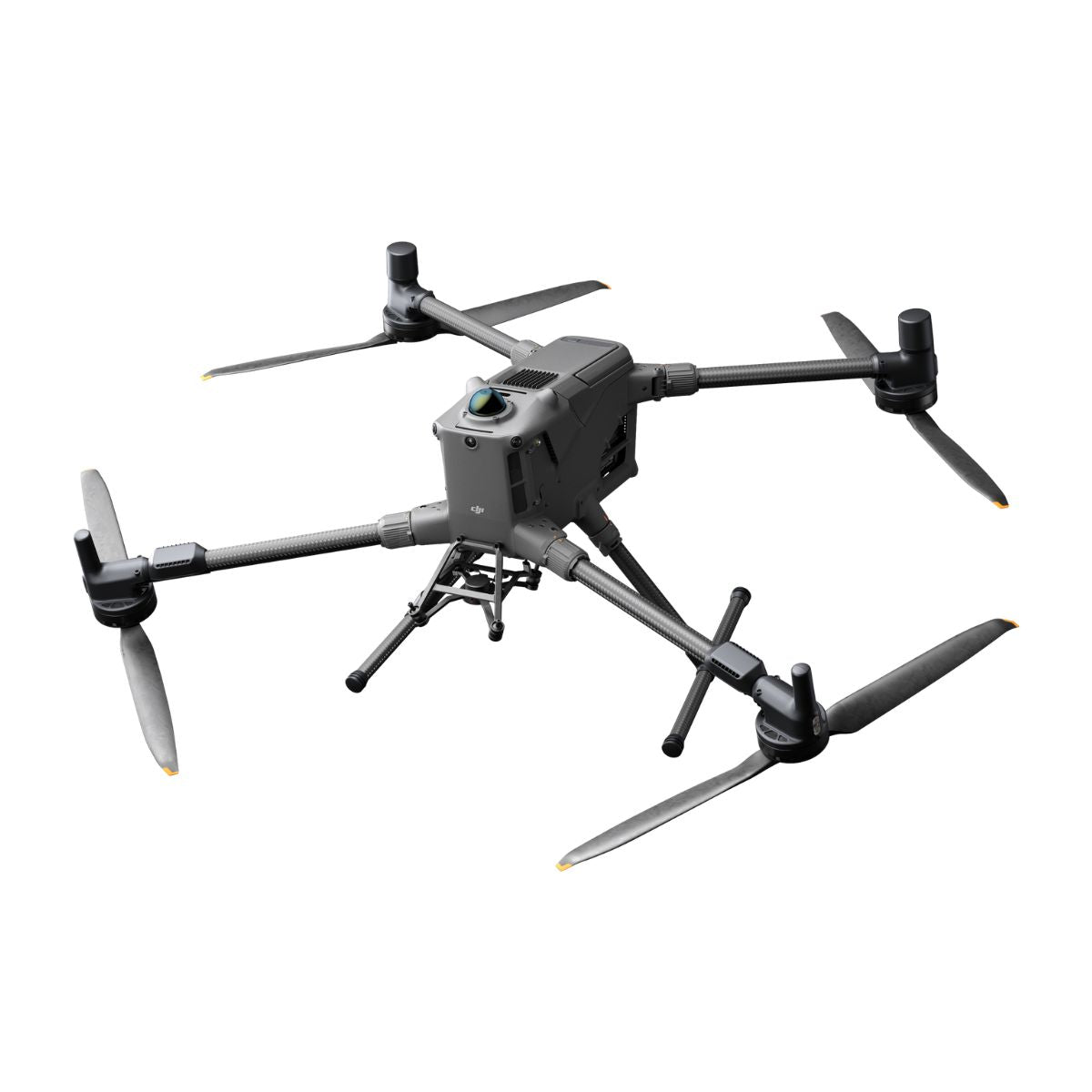

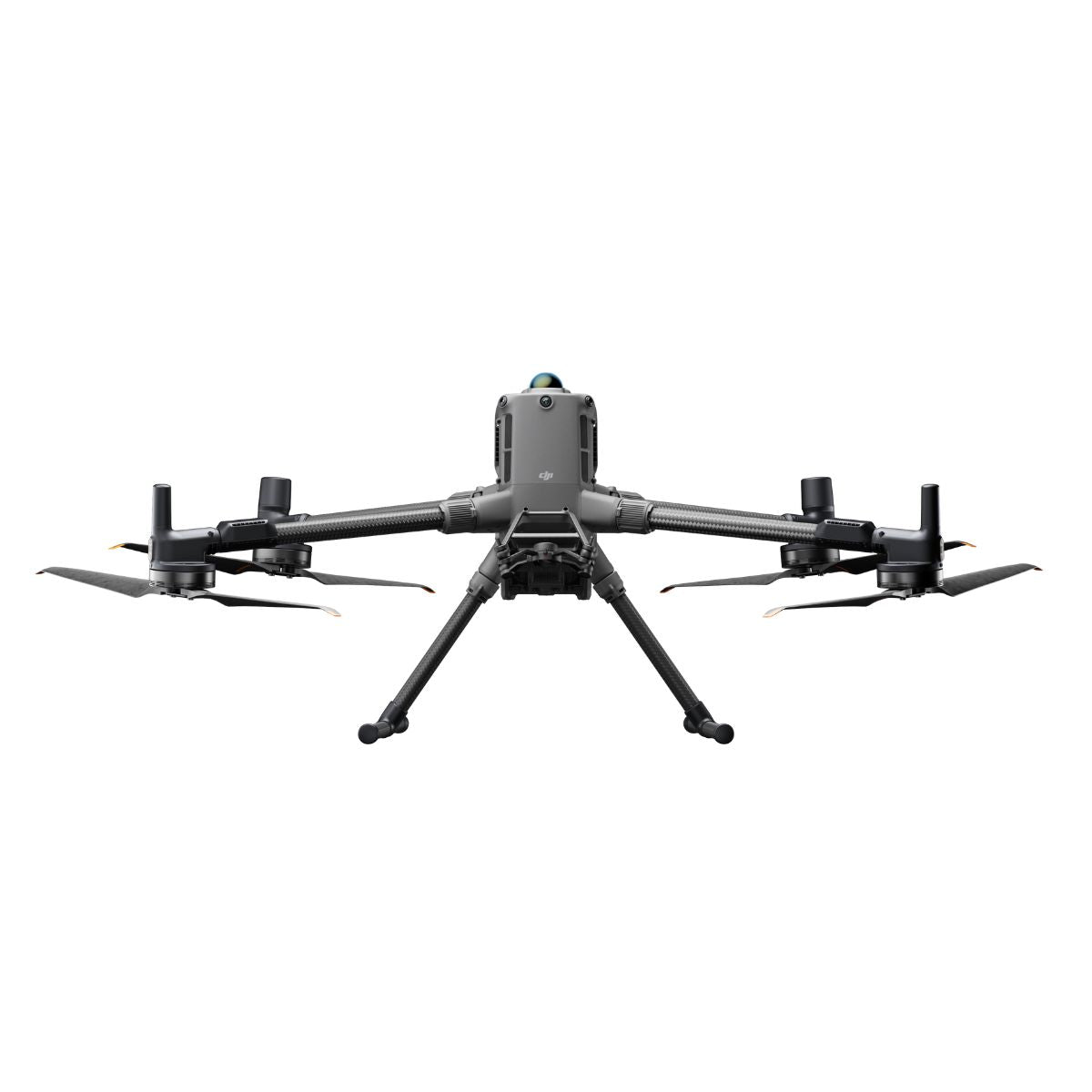

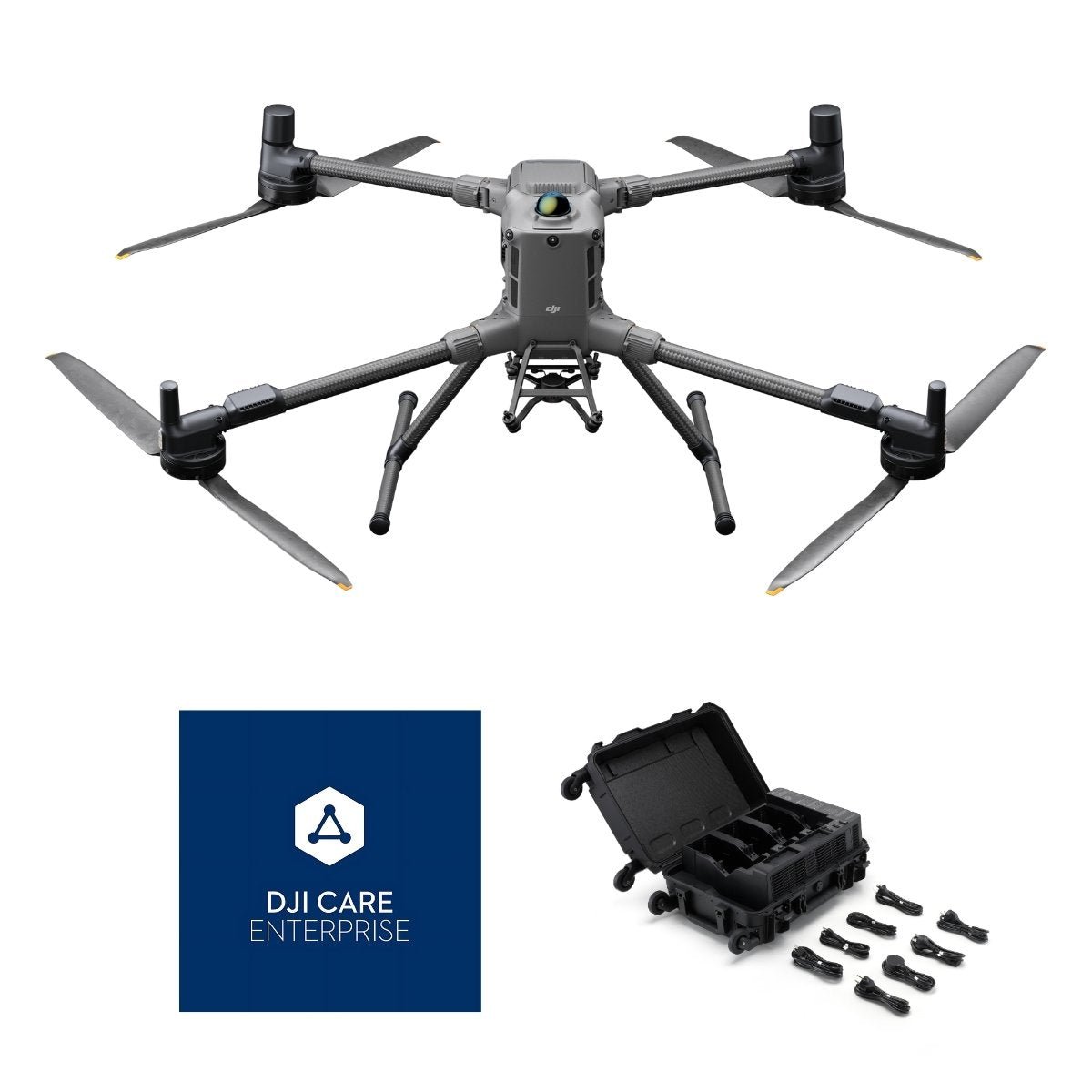

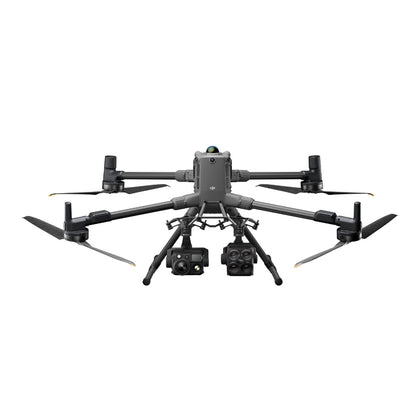

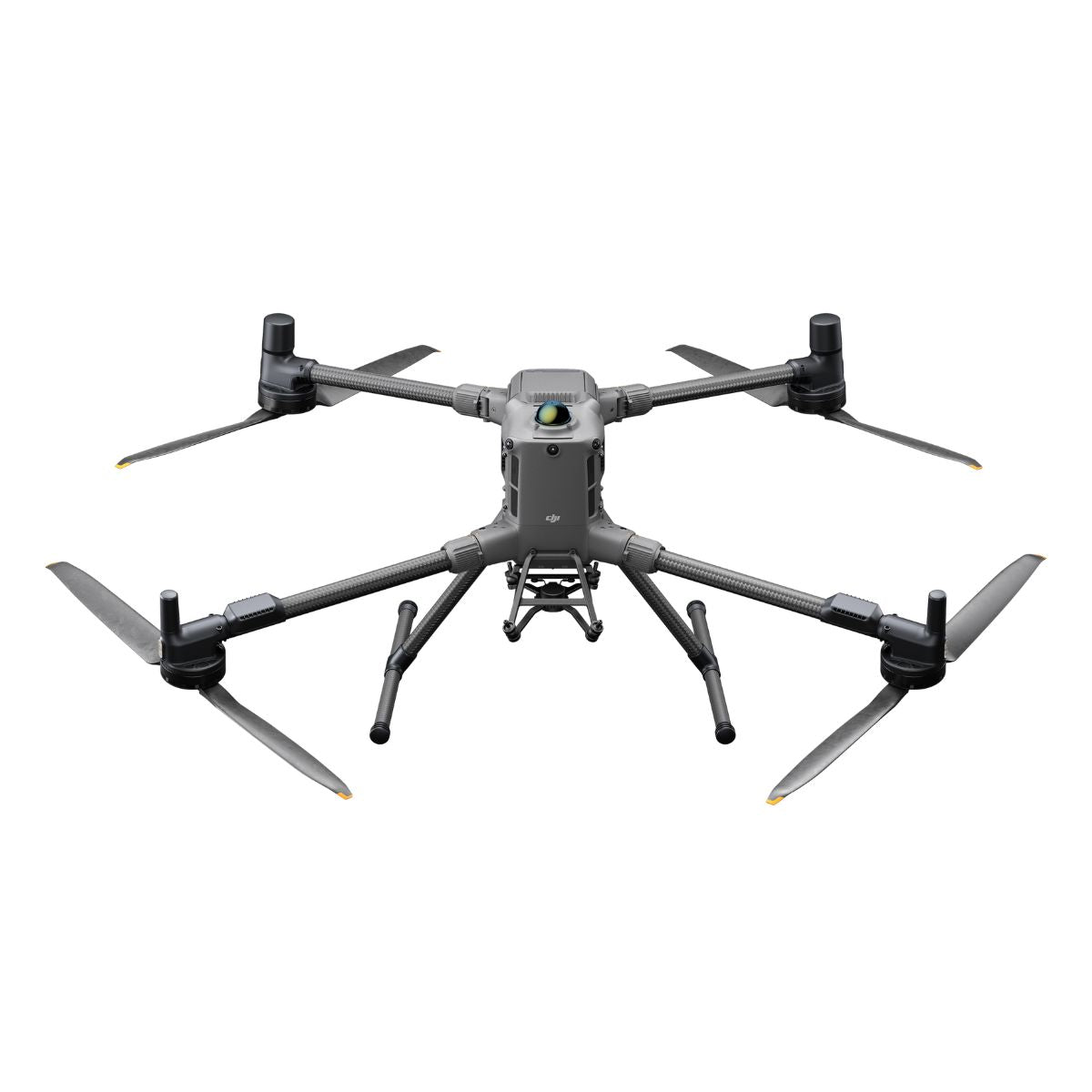

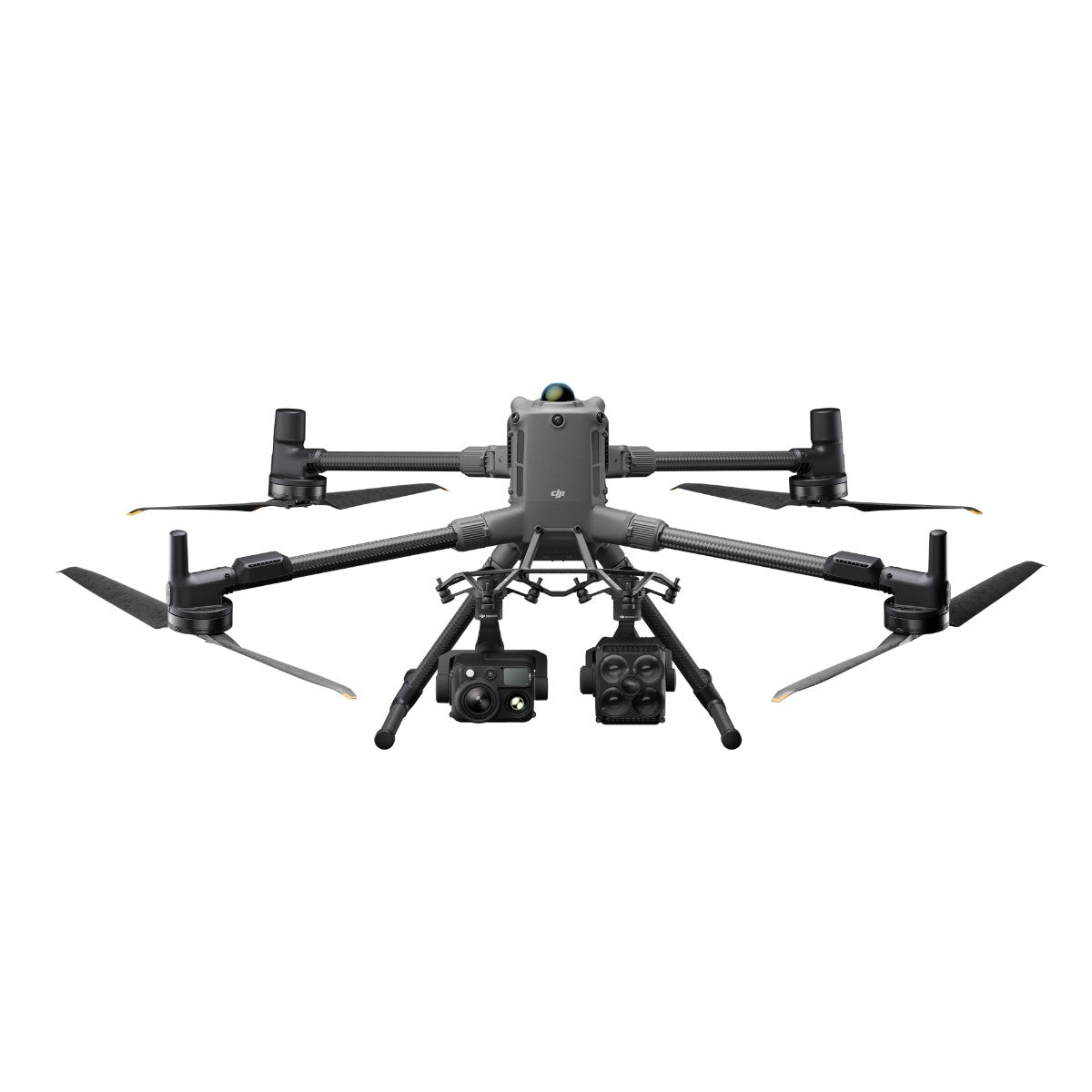

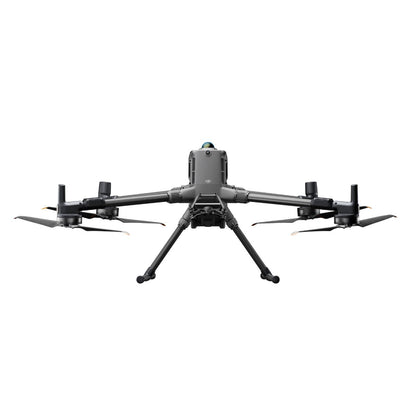

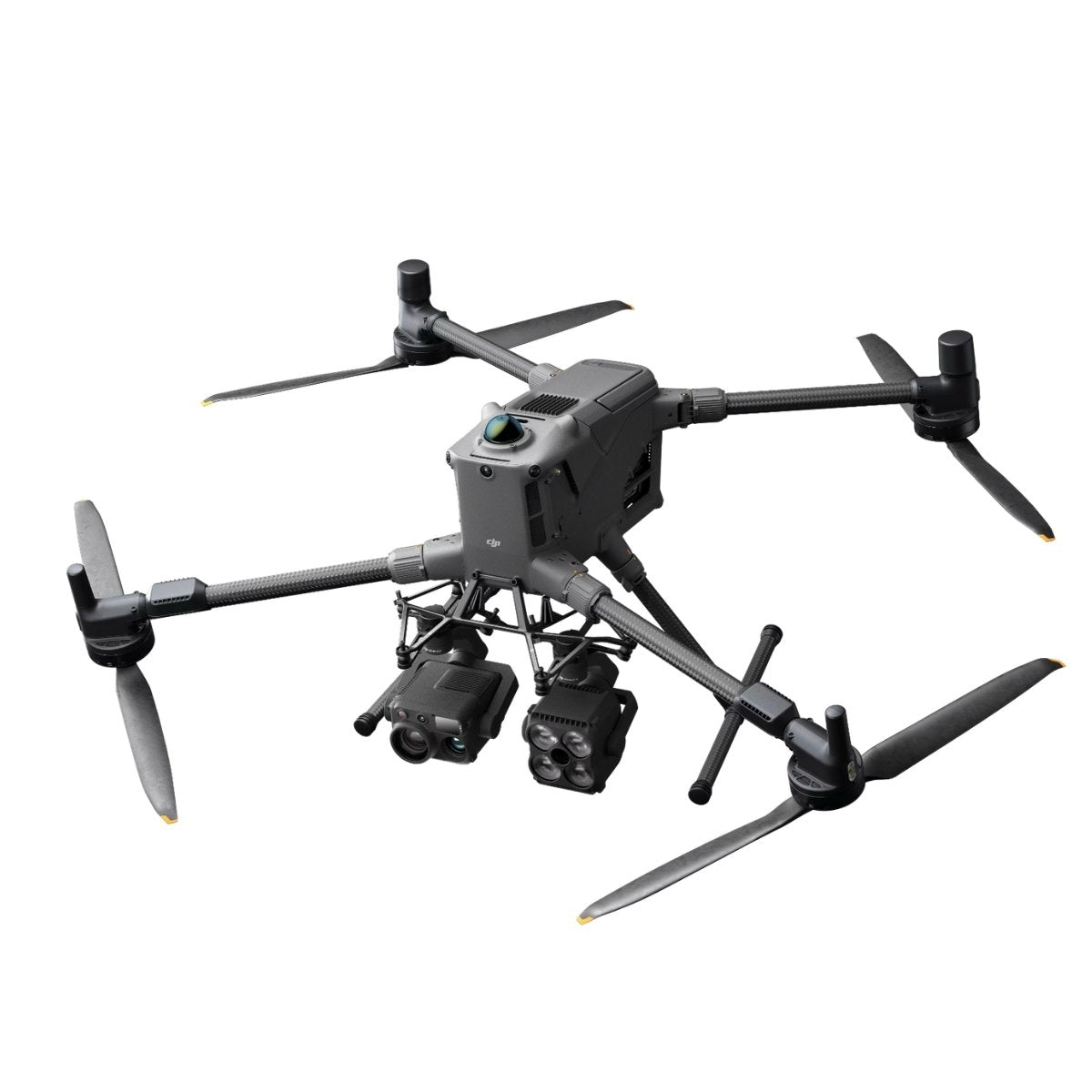

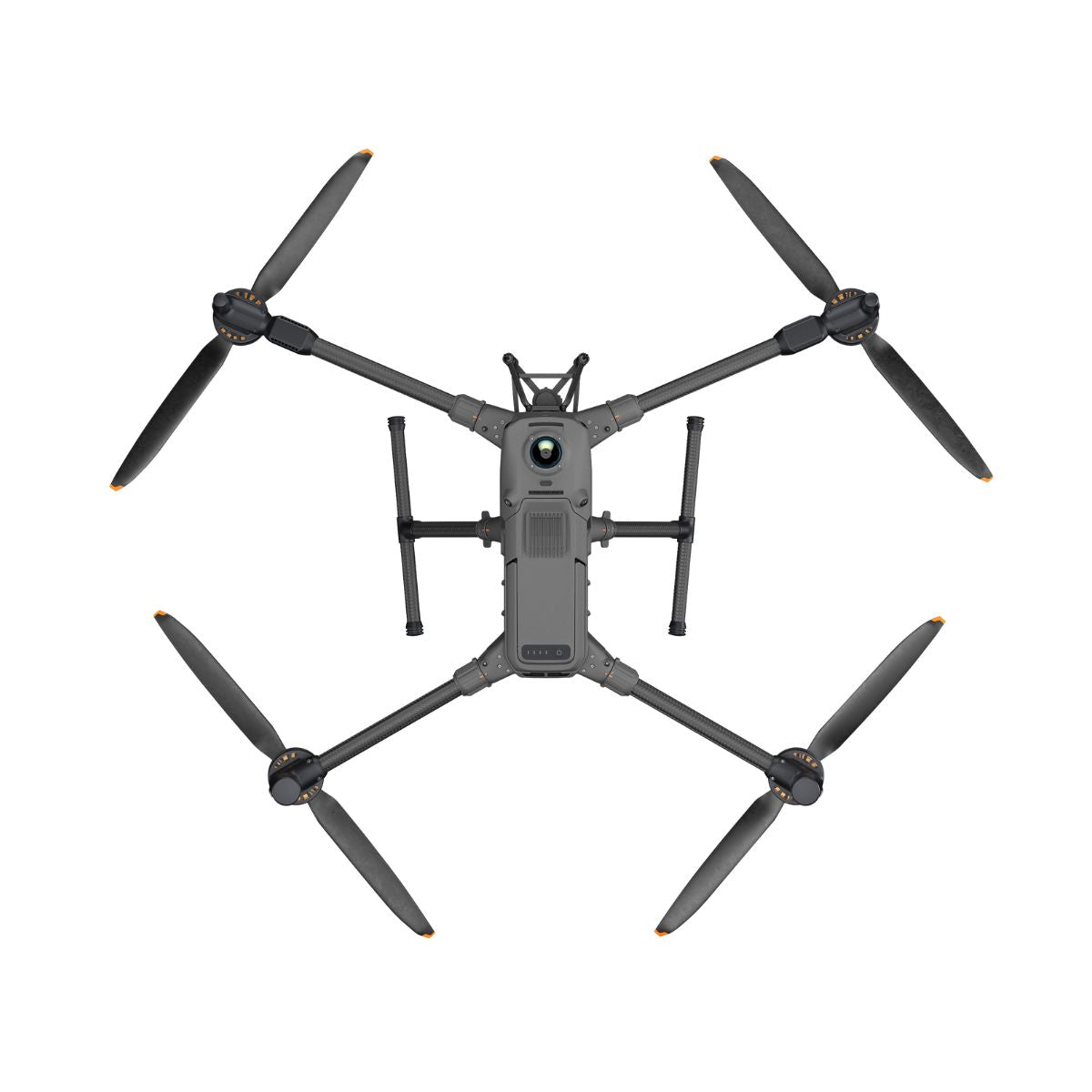

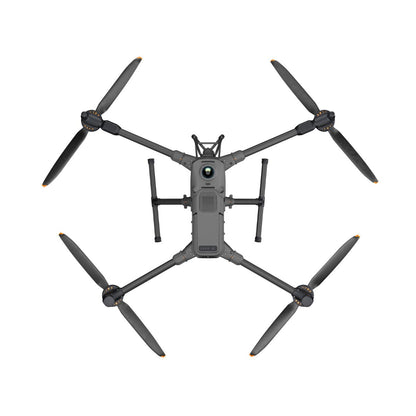

DJI Matrice 400 + BS100 Battery Station + Auto-Activated Care Enterprise Plus
Redefine What’s Possible in the Field
The DJI Matrice 400 is DJI’s most capable enterprise drone to date—engineered to go further, carry more, and navigate smarter. Now bundled with the BS100 Intelligent Battery Station and DJI Care Enterprise Plus (auto-activated), this field-ready solution is made for professionals who operate under pressure, in complex environments, and with zero margin for downtime.
From long-range transmission and pinpoint obstacle avoidance to rapid battery rotation and intelligent automation, the M400 gives field teams the tools to stay mission-ready—day or night, on land or sea. Fly longer. Charge faster. React sooner.
Built to Keep You Flying
The Matrice 400 stretches performance with a 59-minute forward-flight time, 6kg payload capacity, and a triple-layer sensing suite combining LiDAR, radar, and full-color low-light vision. The BS100 ensures your batteries keep up—charging three TB100 packs in just 45 minutes via Rapid Mode (220V), while Quiet Mode supports stealth operations near residential or sensitive areas.
With DJI Care Enterprise Plus auto-activated, you also get instant, no-hassle coverage the moment your drone takes off. No paperwork. No downtime. Just protection where and when you need it.
Key Features
- Flagship 59-minute flight time and 6kg payload capacity
- Rapid battery recharging: 3 × TB100s to 100% in 45 minutes (220V)
- Triple-layer obstacle sensing: LiDAR + mmWave radar + low-light vision
- IP55-rated for dust, rain, and tough environments
- -20 °C to 50 °C operating range for all-season missions
- 7 payload ports (dual gimbals, 4 × E-Port V2, underslung mount)
- O4 Enterprise transmission: 1080p/60fps, 40km (FCC), with dual 4G dongle support
- Auto-activated DJI Care Enterprise Plus: accident coverage, fast replacement
Compatible Payloads
The Matrice 400 supports a wide range of DJI and third-party payloads through its flexible mounting system and E-Port V2 ecosystem:
- Zenmuse H30 Series – 5-in-1 ISR sensor with wide, zoom, thermal, LRF, and NIR
- Zenmuse L2 LiDAR – 240k pts/s LiDAR + 4/3" RGB camera for point clouds and DTM
- Zenmuse P1 Photogrammetry – 45MP full-frame stills with 24mm, 35mm, and 50mm lens options
- Zenmuse Spotlight S1 – 32W long-range spotlight for low-light search and rescue
- Zenmuse Speaker V1 – 114dB loudspeaker for emergency communication and public announcements
- Manifold 3 – NVIDIA® 100 TOPS onboard processor for AI model deployment and smart autonomy
- Third-Party Payloads – UV sensors, multispectral cameras, gas detectors, facade cleaning devices
- Tethered Power Systems – Compatible with DJI TB100C and third-party aerial tether solutions
Built for Demanding Field Operations
The M400 performs where typical drones can’t. Whether it’s hovering over an energized powerline, landing on a moving ship deck, or navigating through GNSS-denied terrain, its sensor fusion and positioning algorithms deliver reliable centimeter-level control.
Flight modes like Smart AR Projection, Real-Time Terrain Follow, and Powerline AR reduce cognitive load on pilots, enabling safer, more consistent data capture. When paired with FlightHub 2, teams gain cloud-based collaboration, live telemetry, and remote operations management at scale.
Applications
- Public Safety & Emergency Response: Use thermal + visual payloads to detect victims, spotlight scenes, and deliver audio instructions in SAR and disaster zones.
- Infrastructure Inspection: Map and inspect powerlines, substations, bridges, and towers with LiDAR, photogrammetry, and real-time metadata overlays.
- Utility & Renewable Energy: Perform turbine inspections, corridor mapping, or panel surveys—day or night, rain or shine—with precise terrain-following and AR tools.
- Maritime Patrol: Take off and land from vessels in motion, relay live feeds to shore, and deploy loudspeakers or spotlights for offshore response.
- Mapping & Surveying: Generate high-density point clouds, 3D reconstructions, and consistent GSD using L2 or P1 payloads—even in complex topographies.
- Specialized & Tethered Ops: Run long-duration lighting or persistent overwatch using tethered batteries, onboard compute, or third-party payloads.
Why Buy from Dronefly
At Dronefly, we work hand-in-hand with frontline operators, engineers, and agencies to deliver solutions—not just drones. We help you choose the right payloads, configure your system, train your team, and stay compliant. Our enterprise support team is ready to assist with integration, maintenance, and operational scaling.
Every Matrice 400 bundle comes backed by expert guidance, technical onboarding, and personalized support for real-world conditions—not just lab specs.
Take Your Missions Further
Get in touch with our enterprise team to request a quote, schedule a flight demo, or explore bundle options tailored to your workflow.
Specifications
Aircraft
- Takeoff Weight (with propellers): Without Batteries: 5020 ± 20 g; With Batteries: 9740 ± 40 g
- Max Takeoff Weight: 15.8 kg
- Dimensions: Unfolded: 980×760×480 mm; Folded: 490×490×480 mm; Carrying Case: 779×363×528 mm
- Max Payload: 6 kg
- Propeller Size: 25 inches
- Diagonal Wheelbase: 1070 mm
- Max Ascent Speed: 10 m/s
- Max Descent Speed: 8 m/s
- Max Horizontal Speed: 25 m/s
- Max Takeoff Altitude: 7000 m
- Max Flight Time: 59 minutes
- Max Hover Time: 53 minutes
- Max Flight Distance: 49 km
- Max Wind Resistance: 12 m/s
- Max Yaw Angular Velocity: 100°/s
- Max Pitch Angle: 35°
- Operating Temperature: –20° to 50 °C
- GNSS: GPS + Galileo + BeiDou + GLONASS*
-
Hovering Accuracy:
- Vertical: ±0.1 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
- Horizontal: ±0.3 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
- RTK GNSS Accuracy: 1 cm + 1 ppm (H), 1.5 cm + 1 ppm (V)
- RTK Heading: Better than 2°
- ADS‑B In: Range: 20 km
- Internal Storage: N/A
- Ports: USB‑C Debug, E‑Port V2 ×4, Cellular Dongle 2 ×2
- Propeller Model: 2510F
- Beacon: Built-in
- Ingress Protection: IP55
Gimbal
- Max Payload (Single Connector): 1400 g
- Max Payload (Dual Connector): 950 g
- Max Payload (Third Connector): 3 kg (quick‑release), 6 kg (screw lock)
Sensing System
- Sensors: Omnidirectional binocular vision, LiDAR, infrared, mmWave radar
- Forward/Backward: Range: 0.4–21 m; Detection: 0.4–200 m; FOV: 90°×90°
- Lateral: Range: 0.6–21 m; Detection: 0.5–200 m; FOV: 90°×90°
- Downward: Range: 0.5–19 m; FOV: 160° front/rear, 105° sides
- Rotating LiDAR: Range: 0.5–100 m; FOV: 360°×58°
- Upper LiDAR (3D ToF): Range: 0.5–25 m; FOV: 60°×60°
- Infrared: Range: 0.3–8 m; FOV: 60°×60°
- mmWave Radar: Range: 36–50 m; FOV: ±45°
FPV Camera
- Resolution: 1080p
- Field of View: DFOV 150°, HFOV 139.6°, VFOV 95.3°
- Frame Rate: 30 fps
- Night Vision: Starlight-grade
Video Transmission
- System: DJI O4 Enterprise Enhanced
- Live View: 3‑channel 1080p/30fps
- Frequencies & Power: Multiple bands including 902–928 MHz, 2.4 GHz, and 5.8 GHz
- Max Distance: 40 km (FCC), 20 km (CE)
- Performance with Interference: 1.5–40 km depending on strength
- Max Download Speed: 80 Mbps
- Antennas: 8 WLAN, 2 sub2G, 4G ×4
- Other Features: Dual Control, Cellular Dongle support
Battery
- Model: TB100
- Capacity: 20254 mAh
- Voltage: 48.23 V
- Max Charging Voltage: 54.6 V
- Cell Type: Li-ion 13S
- Energy: 977 Wh
- Weight: 4720 ± 20 g
- Charging Temp: 5–45 °C
- Discharging Temp: –20–75 °C
- Heating: Onboard & Station Support
- Discharge Rate: 4C
- Max Charging Power: 2C
- Cycle Count: 400

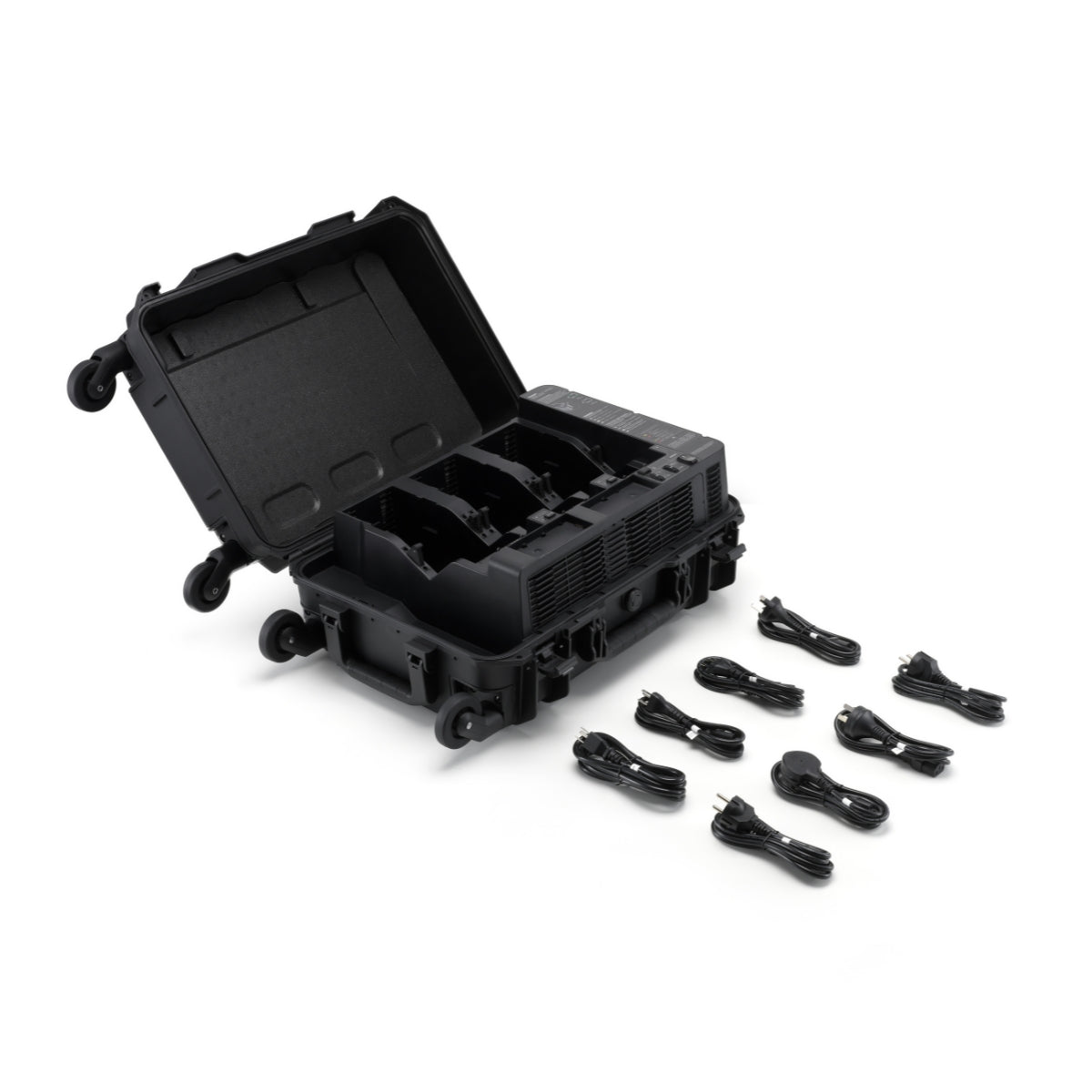

Battery Station
- Model: BS100
- Weight: 11.8 kg
- Dimensions: 605×410×250 mm
- Supported Batteries: TB100 / TB100C / WB37
- Operating Temperature: –20–40 °C
- Input: 100–240 V AC
-
Output:
- TB100: up to 2184 W
- WB37: 52 W
- USB‑C: up to 65 W
- Charging Channels: 3 TB100 & 2 WB37
- Modes: Ready‑to‑Fly, Standard, Fast, Silent
- Charging Time: 45–110 min depending on mode and voltage
Remote Controller (DJI RC Plus 2)
- Video Transmission: DJI O4 Enterprise Enhanced
- Max Distance: 40 km (FCC), 20 km (CE)
- Frequencies: Multiple bands
- Antennas: 2T4R dual‑band + sub2G 2T2R
- Wi‑Fi: 802.11 a/b/n/ac/ax, up to 1774.5 Mbps
- Bluetooth: 5.2
- Screen: 7.02″, 1920×1200, 1400 nits
- Battery: Internal (6500 mAh) + Optional External (4920 mAh)
- Runtime: 3.8 h (internal), 7 h (w/ external)
- Charging Time: ~2 h
- Storage: 8 GB RAM + 128 GB + microSD
- Ports: HDMI, SD, USB‑C (PD), USB‑A
- Weight: 1.15 kg
- Dimensions: 268×163×94.5 mm
- GNSS: GPS + Galileo + BeiDou
- OS: Android 11
Supported Accessories
- Zenmuse H30/H30T/L2/P1
- Zenmuse S1, V1
- Manifold 3
- DJI RC Plus 2 sub2G SDR
- Cellular Dongle 2
- D‑RTK 3 & 2
- X‑Port, E‑Port V2
- SkyPort V3 Adapter

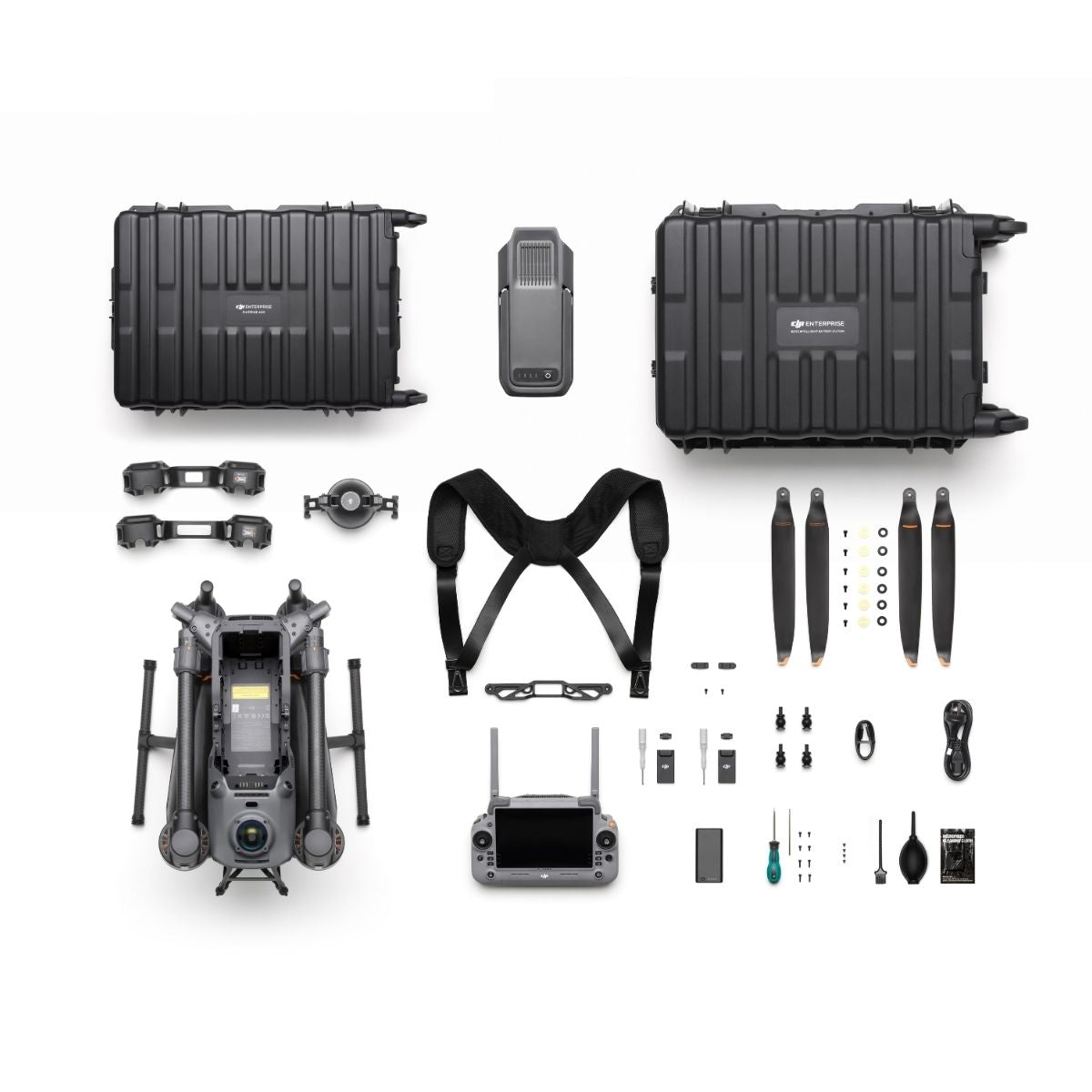

In the Box
- 1x Aircraft (with propeller holder)
- 1x Carrying Case
- 2x Propellers (Pair)
- 6x Propeller Washers and Screws
- 1x Remote Controller (with DJI RC Plus 2 sub2G SDR Module)
- 1x Power Cable
- 1x BS100 Intelligent Battery Station
- 1x Remote Controller Strap and Bracket (with two screws)
- 1x WB37 Intelligent Battery
- 2x Landing Gear
- 1x USB-C to USB-C Cable
- 1x Screws and Tool Set
- 1x Cleaning Tool Set
- 1x Rubber Port Covers and Screws
- 4x Gimbal Damper
- 1x Care Enterprise Plus for M400
- 1x Intelligent Flight Battery (purchased individually and shipped separately)
