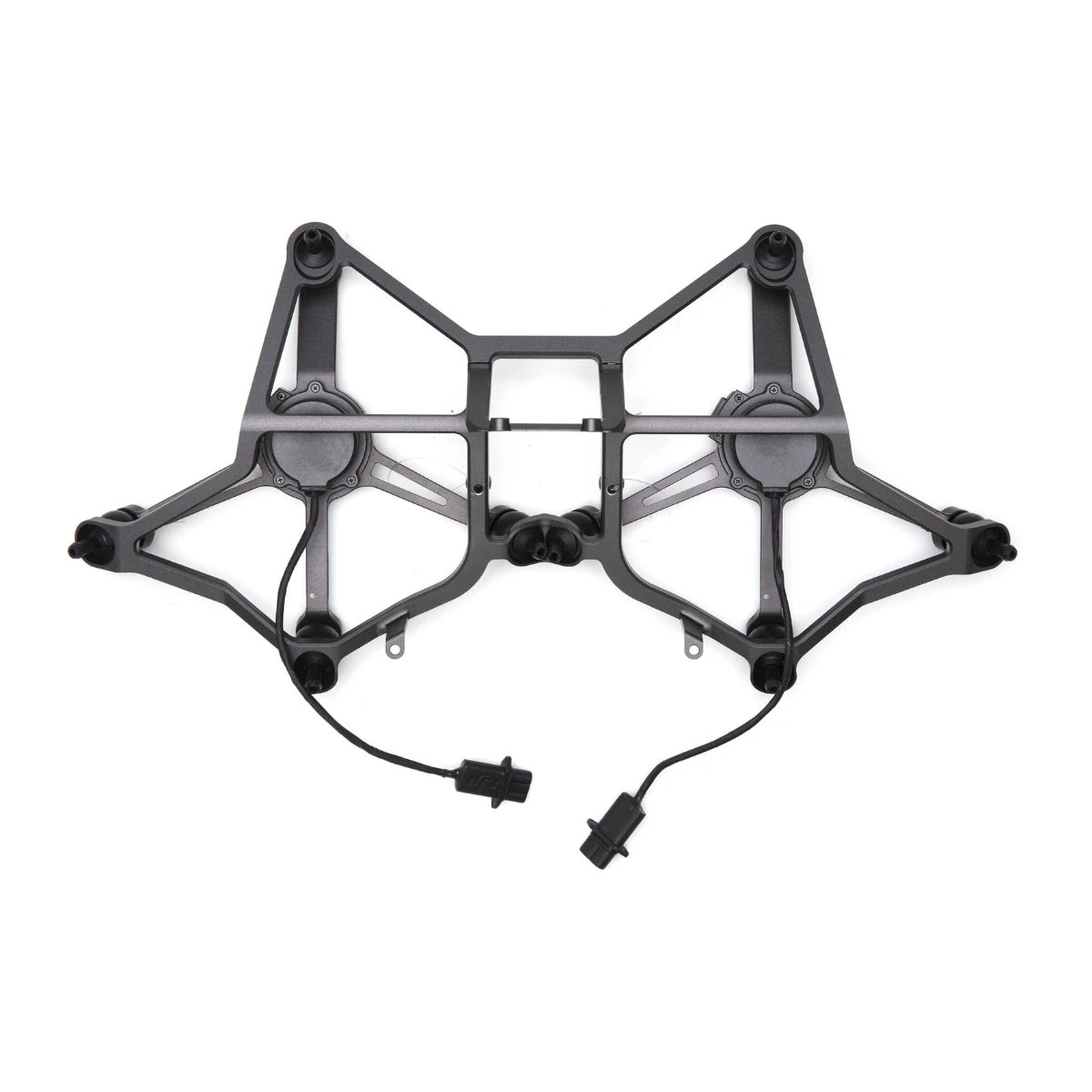

DJI Matrice 300/350 RTK Dual Gimbal Connector (Part No.10)

DJI Matrice 300/350 RTK Dual Gimbal Connector (Part No.10)

$255.00
$255.00
Sale Sold out
SKU S-DJI-M300-DGC MPN CP.EN.00000265.01 EAN 6958265125607
  • Side-by-side dual gimbal mounting for maximum multi-sensor operational versatility.
  • IP44-rated protection against dust and water splashes in the field.
  • Supports combined total payload capacity of 2.7 kg for enterprise missions.
  • Independent USB-C connectivity for professional PSDK and OSDK sensor integration.
  • Complete package includes assembly, 8 replacement dampers, and a toolkit.
  • Seamlessly compatible with the Matrice 300 RTK and Matrice 350 RTK.
  • High-performance damping system to ensure stable, vibration-free imaging data.
  • Mandatory port-specific mounting for thermal sensors such as the Zenmuse XT2.
  • Lightweight 0.4 kg assembly preserves aircraft flight time and agility.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 300/350 Dual Gimbal Connector: Industrial Multi-Sensor Mission Tool

The DJI Matrice 300/350 Dual Gimbal Connector is an essential accessory for enterprise operators who require advanced payload flexibility on their M300 or M350 RTK aircraft. This precision-engineered assembly mounts to the underside of the drone, providing two independent ports for stabilized sensors such as zoom, thermal, or mapping cameras. Built with an IP44 rating, it ensures that your multi-sensor missions can proceed in challenging environmental conditions. The connector features integrated USB-C interfaces that support both DJI and third-party SDK payloads, making it the standard for professional aerial surveying and public safety operations.

DJI Matrice 300 Dual Gimbal Connector overview

  • Multi-sensor support: enables simultaneous flight of two compatible payloads for expanded mission capabilities.
  • Environmental durability: features IP44 dust and splash resistance for operation in varied climates.
  • Integrated stabilization: utilizes a dedicated damping system with backup absorber balls for smooth footage.
  • Advanced connectivity: provides independent USB-C ports supporting both PSDK and OSDK protocols.
  • Robust capacity: supports a total combined payload weight on the aircraft of 2.7 kg.
  • Precise mounting: bottom-mounted configuration designed for secure attachment and clear sensor views.
  • Complete maintenance kit: includes the necessary assembly hardware and tools for field installation.
  • Multi-platform utility: fully compatible with both Matrice 300 RTK and Matrice 350 RTK series drones.

The DJI Matrice 300 Dual Gimbal Connector provides the structural and electronic foundation for sophisticated, multi-layered aerial inspections. It effectively solves the challenge of capturing complementary data by allowing a dual-sensor configuration that functions in perfect synchronization. This accessory ensures your mission results are comprehensive and delivered with the highest degree of operational efficiency.

As you look to advance your fleet's complexity, Dronefly offers the technical depth and inventory support to keep your operations moving forward. We specialize in providing the critical hardware links that allow your airframe to evolve into a multi-sensor powerhouse for mapping or inspection. Solidify your equipment roadmap and purchase your DJI Matrice 300 Dual Gimbal Connector through Dronefly.

  • Ingress Protection: Rated at IP44 (dust and splash resistant) when used with waterproof payloads.
  • Weight: The assembly itself weighs approximately 0.4 kg (0.88 lbs).
  • Payload Support: It can carry two compatible gimbals simultaneously, with a maximum total payload capacity on the drone of up to 2.7 kg.
  • Mounting Position: Bottom-mounted on the aircraft.
  • Connectivity: Each gimbal port connects independently via a USB-C interface to the aircraft, supporting both Payload SDK (PSDK) and Onboard SDK (OSDK).
  • 1x Dual Gimbal Connector
  • 8x Backup Absorber Balls
  • 1x Repair Toolkit
How is the dual gimbal connector installed on the drone?

To install the assembly, you must first remove the standard single downward connector by disconnecting its cable and removing four mounting screws. Then, place the dual connector in position, secure it with the eight provided screws, and connect both gimbal cables to their ports.

What kind of sensors can I use with this connector?

The connector is compatible with a variety of official DJI payloads, including the Zenmuse H20, H20T, XT2, and Z30. It also supports official third-party sensors developed via the DJI Payload SDK, allowing for highly specialized industrial equipment to be used.

How does the damping system affect image quality?

The damping system uses absorber balls to isolate the camera from airframe vibrations. If these dampers are worn or cracked, your footage may exhibit a jello effect, which can ruin data quality. Replacing these with the eight provided backup balls ensures your imagery remains sharp.

Can I update the firmware for both gimbals through the drone?

Yes, firmware updates for attached payloads are typically performed by mounting them to the aircraft and using the DJI Pilot app or DJI Assistant 2. Ensuring both gimbals have the latest firmware before flight is essential for maintaining system stability and sensor performance.

Is there a weight limit for each individual camera?

While the drone has a high total capacity, you must not exceed 930 g for any single gimbal damper position. This ensures that the stabilization system can effectively manage the mass of the sensor during flight maneuvers without causing errors or premature hardware wear.
