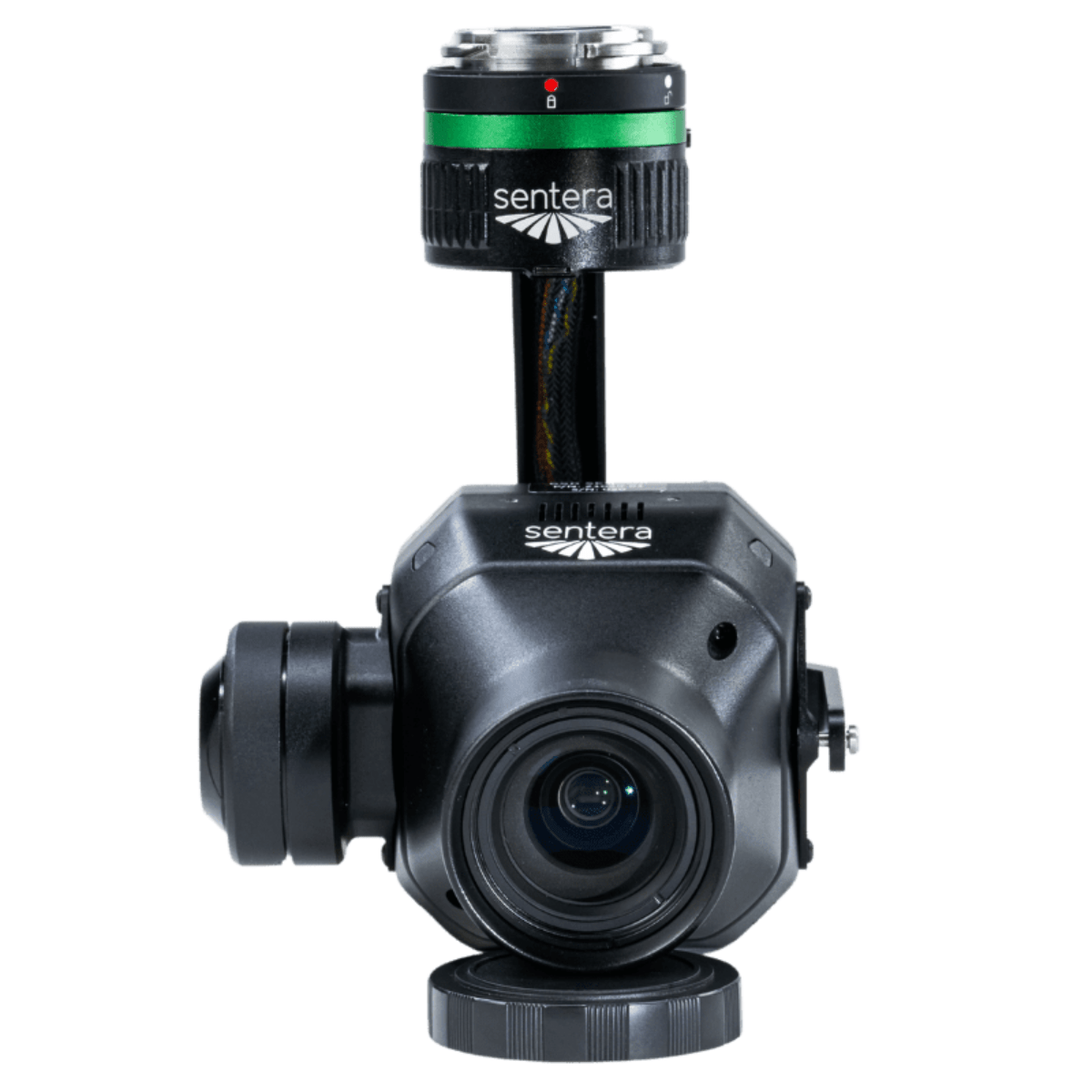

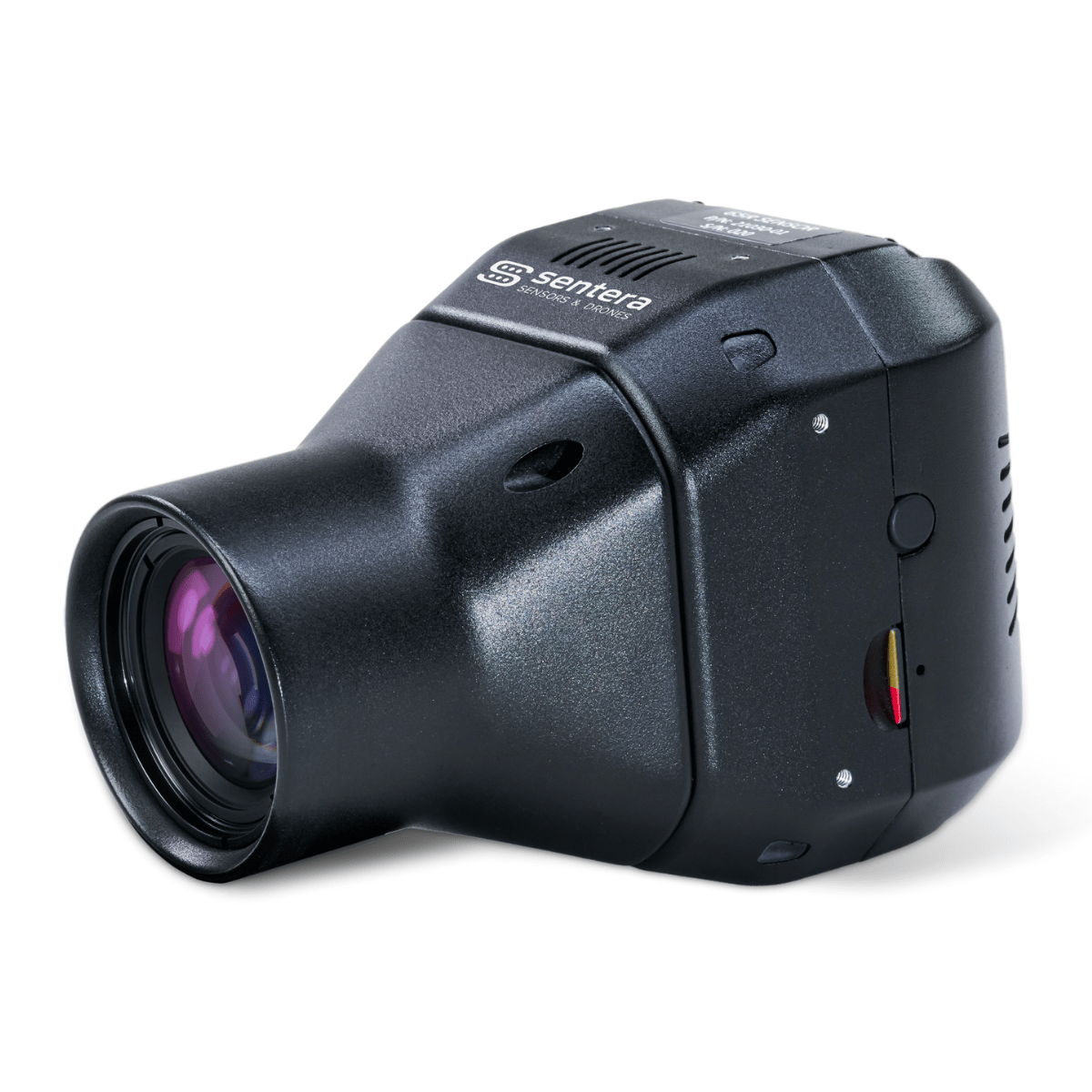

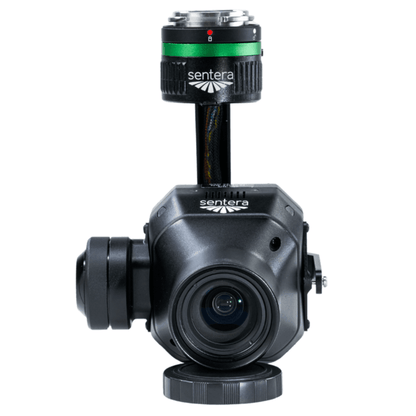

Sentera 65R Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400 (27MM, Skyport V2)

Sentera 65R Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400 (27mm, Skyport V2): High-detail RGB mapping with Skyport plug-and-play

The Sentera 65R Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400 (27mm, Skyport V2) is a high-resolution RGB mapping payload designed for enterprise aerial surveying and modeling. It combines a 65MP Gpixel GMAX3265 global-shutter sensor with 9344 × 7000 pixel capture and a 27mm lens to produce sharp, consistent imagery across large sites.

Skyport V2 integration supports plug-and-play deployment on supported Matrice platforms, while PPS timing, exposure pulses, and an integrated IMU enable repeatable capture workflows aligned to RTK-enabled operations.

Imaging features

• 65MP global-shutter sensor reduces distortion during aerial mapping runs
• 9344 × 7000 pixel capture increases ground coverage per image
• 0.45 cm per pixel GSD at 125 ft (38 m)
• 1.43 cm per pixel GSD at 400 ft (122 m)
• 27mm lens supports balanced coverage with fine detail capture
• 57.6° HFOV supports efficient mapping across broad project areas
• 3 fps capture rate supports consistent overlap at mission speeds
• 512 GB onboard PCIe NVMe supports high-volume data capture
• PPS input and exposure pulses support precise time alignment workflows

Detail capture engineered for mapping consistency

The 65R is designed to produce mapping imagery that holds up under motion and repeatable production schedules. Global-shutter capture minimizes rolling-shutter distortion, helping preserve geometry during photogrammetry processing. The 3.2 µm pixel size and 9344 × 7000 resolution provide dense detail for reconstruction and measurement tasks.

With a 27mm lens and a 57.6° horizontal field of view, it maintains a predictable footprint for area and corridor missions. Integrated IMU support, PPS timing, and exposure pulse outputs reinforce consistent capture sequencing.

Operational advantages for DJI Enterprise deployments

Skyport V2 integration streamlines aircraft setup by reducing custom wiring and minimizing integration time between missions. The 65R’s onboard 512 GB PCIe NVMe storage supports large capture volumes without frequent card swaps, improving throughput on multi-sortie days.

With 9–26 V input and 12 W typical power, integration planning remains predictable for enterprise fleets. At 330 g including lens, and compact physical dimensions of 2.50 × 2.48 × 4.19 in (6.35 × 6.30 × 10.64 cm), the payload fits professional DJI operations without unnecessary bulk.

Aircraft integration and connectivity

• Integrates via DJI Skyport V2 gimbal for plug-and-play deployment
• Compatible with DJI Matrice 300 RTK using Skyport V2 integration
• Compatible with DJI Matrice 350 RTK using Skyport V2 integration
• Designed for DJI Matrice 400 RTK enterprise payload workflows
• USB-C and Gigabit Ethernet support efficient data access and transfer
• UART and digital I/O support triggering and system coordination needs
• PPS input supports time synchronization for RTK-aligned capture

Field-ready mission applications

• Survey mapping: capture high-detail RGB imagery for reconstruction outputs
• Corridor mapping: support linear infrastructure documentation with consistent footprint
• Construction monitoring: generate repeatable orthomosaics for progress review
• Land planning: document parcels and sites for development workflows
• Environmental monitoring: support change detection across large landscapes
• Mining documentation: support site records and volumetric reference workflows
• Emergency response: capture detailed imagery for situational mapping products
• Asset management: maintain consistent imagery archives for operational planning
• Research mapping: standardize repeatable datasets for analysis and reporting

Engineered for enterprise-scale reliability

The 65R is built for professional aerial programs that value predictable integration, consistent capture, and scalable data handling. Skyport V2 connectivity supports repeatable deployment on supported Matrice platforms, while PPS, exposure pulses, and the integrated IMU reinforce consistent datasets across missions. Standard interfaces and onboard NVMe storage help teams maintain throughput without complicating field workflows.

The Sentera 65R Sensor Kit delivers high-detail RGB mapping with global-shutter capture and enterprise-ready integration for DJI fleets. It is designed for teams that need consistent results, efficient coverage, and dependable data handling across projects.
