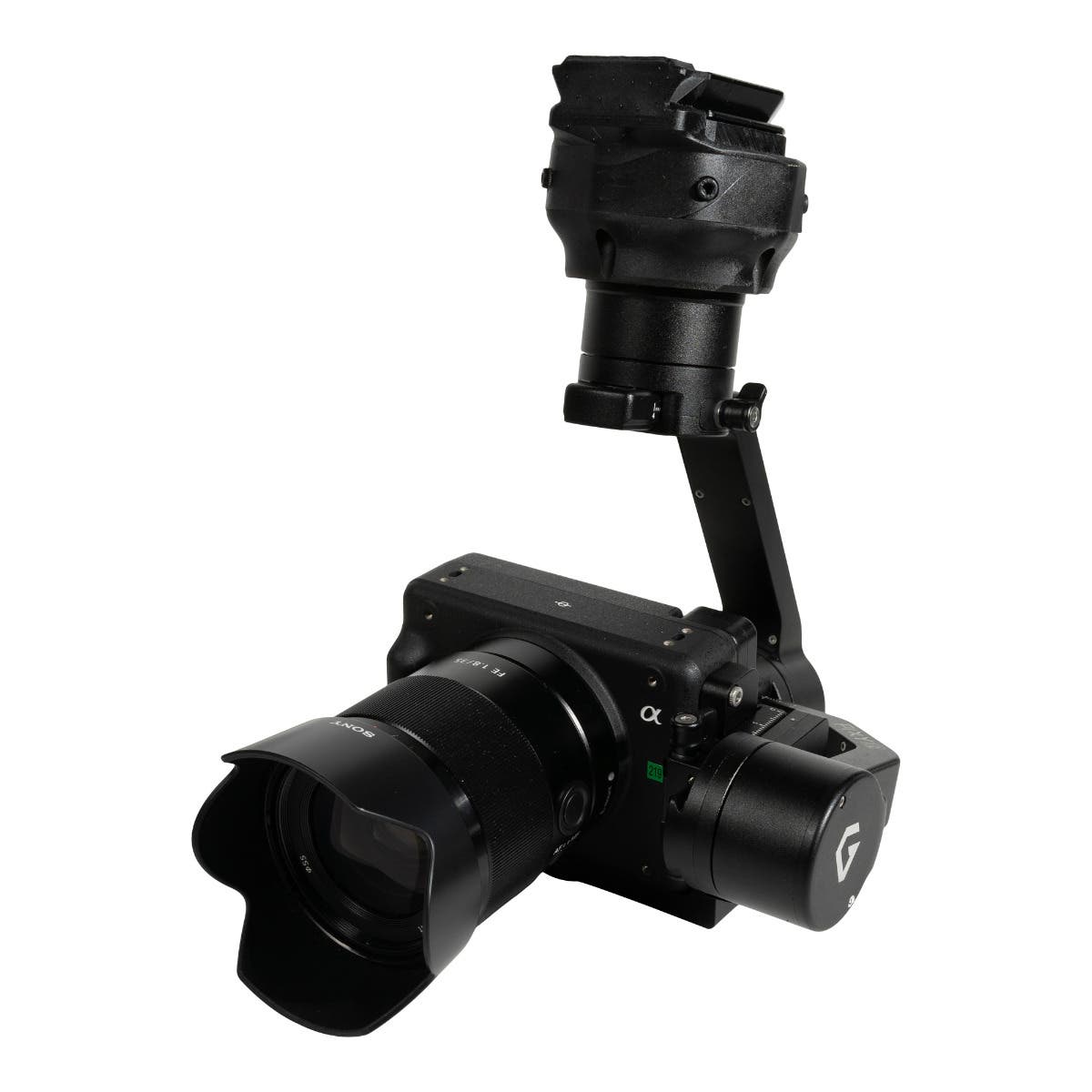

Inspired Flight Sony ILX-LR1 Payload for IF800

Inspired Flight Sony ILX-LR1 Payload for IF800: Full-frame imaging for scalable enterprise missions

The Inspired Flight Sony ILX-LR1 Payload for IF800 brings Sony’s industrial full-frame imaging platform to medium-lift aerial operations requiring precision and repeatability. Featuring a 61MP back-illuminated Exmor R CMOS sensor and the BIONZ XR processor, the ILX-LR1 delivers exceptional still imagery and UHD 4K video output. Its compact, viewfinder-less design, interchangeable Sony E-mount lens support, and external DC power input make it an effective imaging solution for mapping, inspection, and survey missions conducted on the IF800 aircraft.

Imaging capabilities

• 61MP full-frame sensor delivers high-detail aerial imagery
• BIONZ XR processor enables low-noise, wide-dynamic-range output
• Sony E-mount supports interchangeable professional lenses
• UHD 4K video recording supports inspection documentation
• Mechanical and electronic shutters provide exposure flexibility
• ISO 100–32000 adapts to changing light conditions
• Lightweight 243 g design supports efficient flight operations
• External DC power enables extended mission execution

Performance characteristics for professional operations

The ILX-LR1’s full-frame Exmor R CMOS sensor resolves fine surface features critical for inspection and photogrammetry workflows. The BIONZ XR engine supports realistic color reproduction, low-noise imaging, and broad dynamic range across ISO values from 100 to 32000. Mechanical and electronic shutter options ensure accurate exposure during motion, while 4:3 still capture aligns with mapping requirements. Interchangeable E-mount lenses allow operators to select focal lengths optimized for altitude and coverage.

Operational efficiency on the IF800 platform

At approximately 243 g (8.6 oz), the ILX-LR1 integrates cleanly with the IF800 without compromising payload capacity or endurance. Internal UHD 4K recording up to 59.94 fps supports detailed visual records, while micro-HDMI output enables live monitoring or external capture. Sony’s Camera Remote SDK enables full remote camera control, supporting synchronized data acquisition. External DC power removes battery change requirements, improving efficiency during longer survey and inspection flights.

Hardware and software compatibility

• Compatible with Inspired Flight IF800 aircraft
• Sony E-mount supports full-frame interchangeable lenses
• micro-HDMI output enables external monitoring solutions
• USB-C interface supports camera control and data transfer
• UHS-II SD card slot supports high-speed media

Mission-ready applications

• Mapping surveys: collect high-resolution imagery for analysis
• Infrastructure inspection: document assets with fine detail
• Construction oversight: maintain consistent aerial records
• Photogrammetry projects: support accurate 3D modeling
• Environmental monitoring: image defined geographic regions
• Asset management: build long-term inspection archives
• Research missions: acquire repeatable visual datasets
• Industrial analysis: identify defects and surface anomalies

Built for professional deployment

The ILX-LR1 Payload is designed for dependable integration into enterprise aerial workflows, combining standardized interfaces with SDK-based control. Its external power support and lightweight construction enable scalable operations across fleets. When paired with the IF800, it delivers consistent full-frame image quality for professional aerial data capture.
