Sniffer4D Nano 2 Plus: Standardize Airborne Gas Detection Across Your UAS Fleet

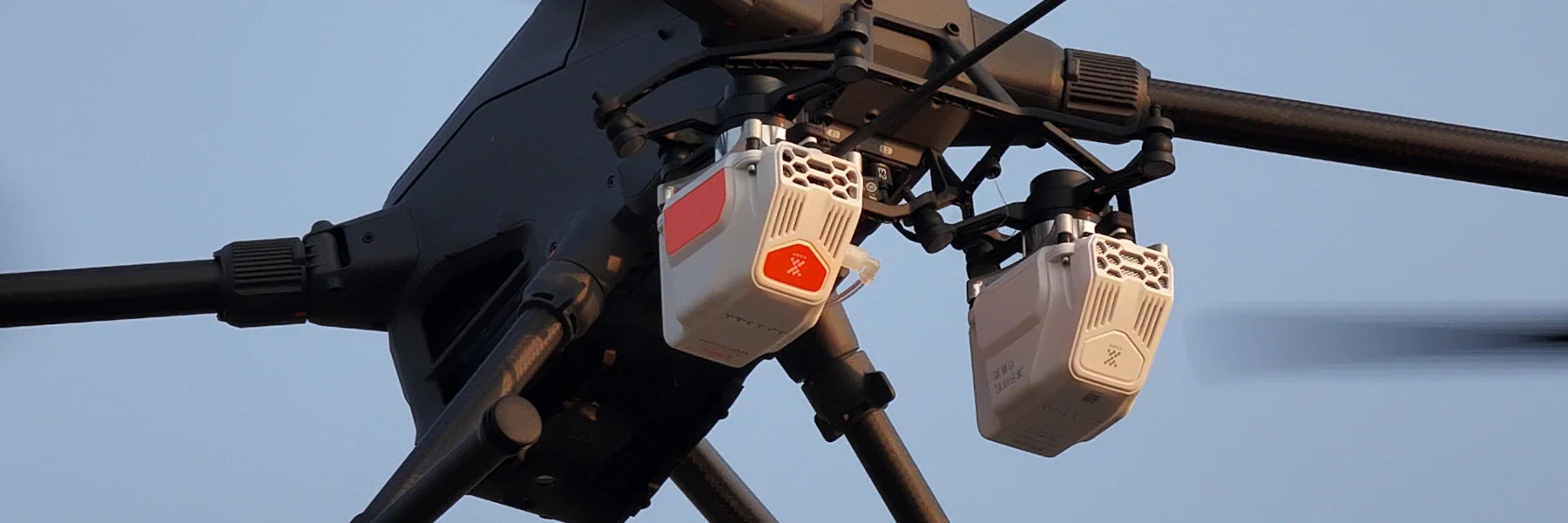

Sniffer4D Nano 2 Plus gives fleet programs a single modular gas detection architecture for the DJI Matrice 4 series, Matrice 400, Matrice 4E and 4T, and Matrice 350 and 300, built to standardize airborne hazard detection across every aircraft in a program. Two Base Unit configurations anchor the platform, extended through eleven interchangeable sensing modules spanning particulates, combustion gases, industrial gases, odor, and volatile organic compounds.
Programs choose between a Multi-Gas Base Unit with five reconfigurable slots or a standalone Methane Unit built around dedicated laser sensing, then standardize integration kits and connectivity accessories across the fleet. Because every configuration shares the same core hardware, scaling from a pipeline survey program to a multi-site HAZMAT response means adding modules, not qualifying new platforms.
Multi-Gas Base Unit and Methane Unit: Standardizing Your Fleet's Configuration

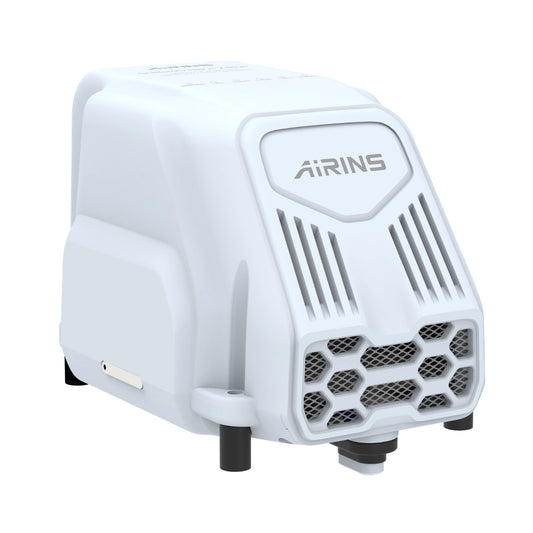

- Multi-Gas Base Unit: five internal module slots, senses up to six gas parameters simultaneously depending on module selection, native E-Port connection to the Matrice 4D and 4TD, extends to the Matrice 400, 4E and 4T, and 350 and 300 through separately sold integration kits.

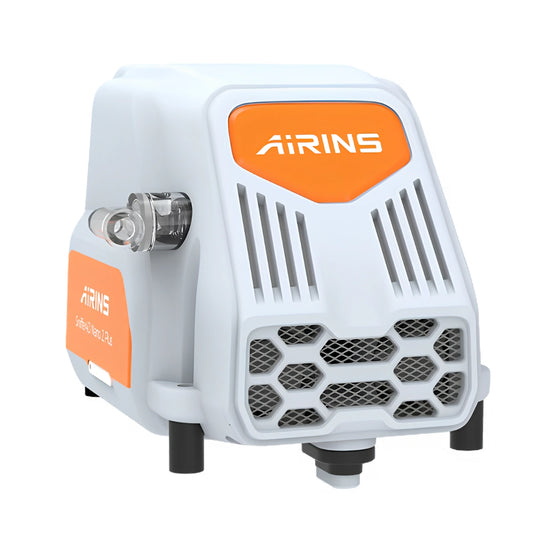

- Methane Unit: standalone Multi-Pass TDLAS configuration built for dedicated methane screening, 200 ppb limit of detection, contact-based sampling rather than remote sensing, cannot pair with other sensing modules in the same housing.
| Spec | ConfigurationMulti-Gas Base Unit | ConfigurationMethane Unit |
|---|---|---|
| Module Slots | 5 reconfigurable slots | Standalone, no additional slots |
| Detection Method | Varies by installed module | Multi-Pass TDLAS (laser) |
| Sensing Type | Contact and diffusion, module dependent | Contact based, not remote sensing |
| Limit of Detection | Varies by module (5 μg/m³ to 1 ppm) | 200 ppb |
| Combinable with Other Modules | Yes, up to 5 at once | No, standalone only |
| Native Airframe | Matrice 4D / 4TD | Matrice 4D / 4TD |
| Kit-Supported Airframes | Matrice 400, 4E/4T, 350/300 | Matrice 400, 4E/4T |
| Weight | ≤240 g | ≤240 g |
| IP Rating | IP55 | IP55 |
Scroll horizontally to view all columns on smaller screens.
Sniffer4D Nano 2 Plus Specifications for Fleet Wide Deployment
Every Base Unit configuration shares identical physical specifications across a fleet, which simplifies spare parts planning and crew training: housing smaller than 110 by 76 by 80 millimeters, weight of roughly 8.5 ounces (240 grams), an IP55 rating, and a built-in temperature, humidity, and pressure sensor active regardless of installed module. Power draws from the aircraft's E-Port directly or a 5 to 24 volt, 2 amp maximum external source, with USB-C limited to power delivery only.
Every unit includes a 32GB MicroSD card for local CSV logging, and encrypted 1Hz transmission paired with a 12-hour offline buffer keeps fleet wide data intact through connectivity gaps. Six status LEDs standardize diagnostics across every deployed unit, and swarm support lets one team monitor multiple aircraft from a single terminal.
Response times and detection limits shift by sensing module, from sub-3-second readings on TVOC and HCHO to roughly 2-minute warm-up on several electrochemical modules, a variance worth building into fleet wide flight procedures.
Base Unit Configurations and Sensing Module Lineup
Base Unit configurations:
- Multi-Gas Base Unit: five-slot configurable platform, standardize across a fleet needing multi-parameter flexibility.
- Methane Unit: fixed single-purpose MP-TDLAS platform, standardize across a fleet dedicated to methane screening.
Sensing modules (field-attachable, sold separately, see comparison table below for full specs):
- PM 1.0, 2.5, and 10 (Particulate Matter) Sensing Module: particulate coverage for general environmental programs.
- TSP/PM 100 (Total Suspended Particulates) Sensing Module: coarse particulate coverage, standalone build across all five slots.
- O3+NO2 (Ozone and Nitrogen Dioxide) Sensing Module: combined oxidant coverage, standardize alongside a NO2 module to isolate ozone.
- NO2 (Nitrogen Dioxide) Sensing Module: independent nitrogen dioxide coverage for HAZMAT and ship fuel programs.
- CO (Carbon Monoxide) Sensing Module: fast carbon monoxide coverage for HAZMAT response fleets.
- SO2 (Sulfur Dioxide) Sensing Module: sulfur dioxide coverage for HAZMAT and ship fuel programs.
- H2S (Hydrogen Sulfide) Sensing Module: hydrogen sulfide coverage for oil and gas leak programs.
- NH3 (Ammonia) Sensing Module: ammonia coverage for odor and HAZMAT programs.
- OU (Odor Unit) Sensing Module: general odor coverage across environmental monitoring fleets.
- TVOC (Total Volatile Organic Compounds) Sensing Module: fast VOC coverage for leak and HAZMAT programs.
- HCHO (Formaldehyde) Sensing Module: formaldehyde coverage with fast response across a fleet.
- Base Unit Top Surface Logo Customization: laser-engraved fleet branding, sold separately.
Integration Kits and Fleet Connectivity
Integration kits and connectivity:
- DJI Matrice 400 Integration Kit: mounting bracket and hardware for standardized M400 deployment, sold separately, with an extended sampling tube version for the Methane Unit.
- DJI Matrice 4E and 4T Integration Kit: mounting bracket, interface cable, and hardware for standardized M4E/4T deployment, sold separately, with a shorter sampling tube version for the Methane Unit.
- Global SIM Card with 2GB Cellular Data: 1-year validity with a same-cost top-up option, sold separately, for programs standardizing connectivity across every unit.
Sensing Module Comparison at a Glance
| Module | Principle | Range | Limit of Detection | Response Time |
|---|---|---|---|---|
| PM 1.0/2.5/10 (Particulate Matter) | Light scattering | 5–1,000 μg/m³ | 5 μg/m³ | <10 s |
| TSP/PM 100 (Total Suspended Particulates) | Light scattering | 30–3,000 μg/m³ | 50 μg/m³ | ≤10 s |
| O3+NO2 (Ozone and Nitrogen Dioxide) | Electrochemistry | 0–11 ppm | 10 ppb | <45 s |
| NO2 (Nitrogen Dioxide) | Electrochemistry | 0–11 ppm | 10 ppb | <60 s |
| CO (Carbon Monoxide) | Electrochemistry | 0–11 ppm | 0.05 ppm | <20 s |
| SO2 (Sulfur Dioxide) | Electrochemistry | 0–15 ppm | 0.03 ppm | <40 s |
| H2S (Hydrogen Sulfide) | Electrochemistry | 0–90 ppm | 0.03 ppm | <55 s |
| NH3 (Ammonia) | Electrochemistry | 0–100 ppm | 1 ppm | <50 s |
| OU (Odor Unit) | Electrochemistry | 0–10 ppm | 0.1 ppm | <30 s |
| TVOC (Total Volatile Organic Compounds) | Photoionization | 0–50 ppm | 0.02 ppm | <3 s |
| HCHO (Formaldehyde) | Solid state electrochemistry | 0–100 ppm | 1 ppm | <3 s |
Scroll horizontally to view all columns on smaller screens.
What Every Sniffer4D Nano 2 Plus Configuration Delivers Fleet Wide
- Light scattering, electrochemical, and photoionization sensors: broadest gas coverage standardized in one family.
- Field configurable slots: swap modules between missions without new hardware purchases.
- IP55 rated housing: rain safe operation across every deployed unit.
- Encrypted data retrieval: twelve hour offline buffer protects fleet wide mission data.
- Onboard 32GB storage: automatic CSV mission logs standardized across every unit.
- Swarm capable architecture: coordinate multiple deployed units from a single dashboard.
- Built-in weather sensor: environmental context recorded automatically on every flight.
- Mounting hardware included: native connection standardized across the Matrice 4D and 4TD.
- Separately sold integration kits: extend standardized deployment to three more airframes.
- AIRINS.ai included: perpetual license, no recurring fee across your fleet.
- Fast to moderate response times: matched to the urgency of each gas tracked.
Where Fleet Programs Deploy the Sniffer4D Nano 2 Plus
- Pipeline and facility inspection: screen distributed infrastructure networks for gas leaks.
- Landfill and waste site monitoring: standardize methane, odor, and particulate tracking across sites.
- HAZMAT response screening: flag hazardous concentrations before personnel commit to an area.
- Ambient and regional air quality monitoring: build pollutant maps across a territory.
- Industrial compliance surveys: document emissions across a manufacturing or chemical portfolio.
- Ship fuel sulfur monitoring: verify emissions compliance across a vessel exhaust program.
- Oil and gas leak detection: locate fugitive emissions across distributed infrastructure.
- Odor source investigation: trace complaints back to a source across multiple sites.
AIRINS.ai, DJI Pilot 2, and FlightHub 2 Integration for Fleet Operations
Every Sniffer4D Nano 2 Plus unit connects to the DJI ecosystem through DJI Pilot 2, which streams live sensor data and payload control from the DJI remote controller, and DJI FlightHub 2, which centralizes monitoring and control across a fleet, including an On-Premises version for programs with stricter data handling needs. Full DJI Payload SDK support underlies both integrations, so the Sniffer4D system operates as a native accessory across every airframe in a fleet rather than a bolted-on addition. AIRINS.ai ships included with every unit under a perpetual main-account license, covering point cloud, hex grid, and heatmap visualization, automated geofenced missions, PDF and DOCX reporting, and MQTT forwarding into third-party GIS or SCADA systems. Programs needing additional user access beyond the main account can add a separate sub-account, and fleets running multiple units can layer AIRINS.ai's swarm support on top of FlightHub 2's fleet-level control for one unified operational picture.
Standardizing Your Sniffer4D Nano 2 Plus Configuration Across a Fleet
- Start with your program's target gas list: standardize sensing modules to the parameters every mission requires before scaling Base Unit orders.
- Confirm airframe coverage across your fleet: native E-Port deployment covers the Matrice 4D and 4TD, while the Matrice 400, 4E and 4T, and 350 and 300 require a separately sold integration kit.
- Decide between combined and independent gas readings fleet wide: standardize the O3+NO2 and NO2 modules together where isolating ozone matters.
- Plan slot capacity across every unit: the Multi-Gas Base Unit holds up to five modules, while TSP/PM 100 and the Methane Unit each require a dedicated, standalone Base Unit.
- Budget for connectivity across the fleet: a Global SIM Card or existing SIM with cellular data is required for real-time transmission.
- Consider fleet branding needs: Top Surface Logo Customization is available for programs that want unit-level identification.
The Sniffer4D Nano 2 Plus platform gives fleet programs one hardware foundation for airborne gas and particulate detection instead of a different device per parameter across the fleet. Modular detection, encrypted data continuity, and included software let one architecture scale from a single aircraft to a full sensing program.
Dronefly supplies the full Sniffer4D Nano 2 Plus lineup, from Base Units through every sensing module and integration kit, ready to standardize across your fleet. As your dedicated drone partner, we help programs plan module and kit combinations that scale with the mission.
Order the Sniffer4D Nano 2 Plus lineup through Dronefly and equip your fleet with standardized gas detection.
Frequently Asked Questions
What's the difference between the Multi-Gas Base Unit and the Methane Unit across a fleet?
The Multi-Gas Base Unit has five reconfigurable slots and can standardize up to five sensing modules per aircraft, letting fleets combine parameters like particulate matter, CO, and NO2 on a single flight. The Methane Unit is a fixed, single-purpose configuration built around Multi-Pass TDLAS laser sensing, standardized entirely around methane and unable to accept any other module. Programs building multi-parameter capability should standardize on the Multi-Gas Base Unit, while programs dedicated to methane screening should standardize on the Methane Unit. Some fleets run both configurations side by side on platforms like the Matrice 400.
Can a fleet combine multiple sensing modules on one Base Unit?
Yes, on the Multi-Gas Base Unit, which holds up to five modules simultaneously across its five internal slots. Two configurations are exceptions worth standardizing around separately: the TSP/PM 100 module occupies all five slots as a standalone build, and the Methane Unit is a fixed configuration that cannot accept any other module. Dronefly can help you plan a standardized module combination across every unit in your fleet.
Which Matrice airframes does the Sniffer4D Nano 2 Plus support across a mixed fleet?
The platform connects natively to the DJI Matrice 4D and 4TD through the aircraft's E-Port, with mounting hardware included. The Matrice 400, Matrice 4E and 4T, and Matrice 350 and 300 are supported through separately sold integration kits built for each airframe. Dronefly can confirm kit compatibility for every aircraft type in your fleet before you order.
Does every unit in a fleet need its own SIM card?
Yes, since each unit's LTE connectivity requires its own SIM. Dronefly offers a Global SIM Card with 1-year validity and 2GB of cellular data per unit, with a same-cost top-up option for an additional 2GB. Fleets can also provide their own SIM cards if standardizing on an existing carrier data plan.
Is AIRINS.ai software included across every unit in a fleet?
Yes, every Sniffer4D Nano 2 Plus unit includes a perpetual main-account license for AIRINS.ai at no recurring cost, so fleets don't need to budget a per-unit software subscription. Programs needing additional user access beyond the main account can add a separate sub-account. This keeps software licensing standardized and predictable as a fleet scales.
