• AIRINS Sniffer4D NH3 Sensing Module
1 1

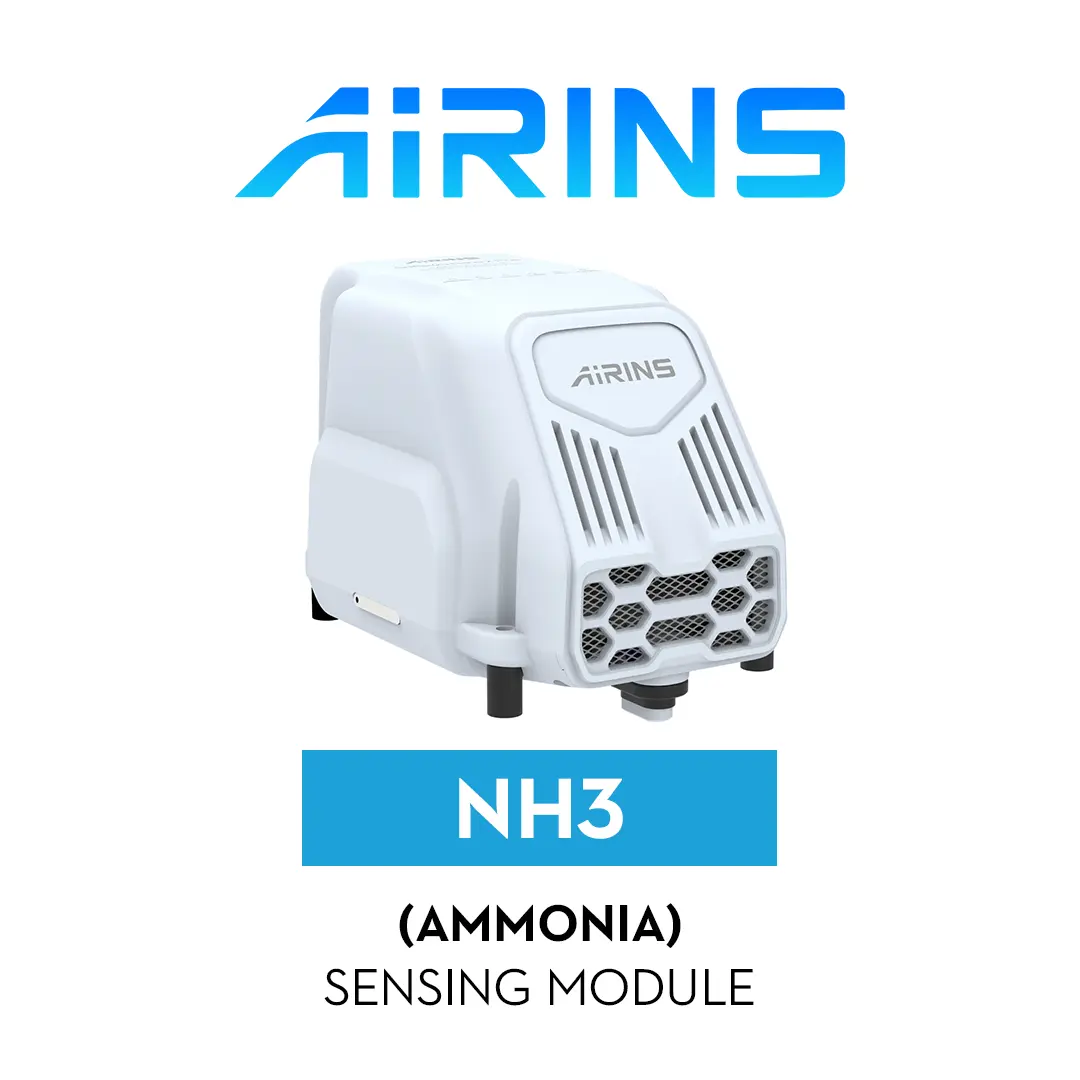

AIRINS Sniffer4D NH3 Sensing Module

AIRINS Sniffer4D NH3 Sensing Module

$2,192.00
$2,192.00
Sale Sold out
  • Electrochemical sensor measures ammonia concentration with high precision accuracy
  • One part per million limit catches low level ammonia events
  • Wide linear range covers trace levels through high concentration events
  • Sub fifty second response delivers readings during active flight operations
  • Fine resolution captures subtle shifts in ammonia gas concentration accurately
  • Twenty four month service life supports extended field deployment cycles
  • Industry leading drift keeps calibration accurate for years at a time
  • Wide temperature tolerance operates from negative forty to fifty degrees
  • Wide humidity range functions reliably up to ninety five percent
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Sniffer4D NH3 Sensing Module: Detect Ammonia for Odor Investigation and HAZMAT Response

The Sniffer4D NH3 Sensing Module holds the tightest sensitivity drift and widest environmental range in the Sniffer4D lineup, giving odor detection and HAZMAT teams an ammonia reading that stays accurate longer between calibrations. It installs into a single slot on the Sniffer4D Nano 2 Plus Base Unit.

Ammonia is one of the most common sources of reported odor complaints, and this module gives Base Unit operators a dedicated way to trace those complaints back to a source, installing alongside whatever other gases a mission requires. Its wide operating range also supports colder and more humid deployment conditions than most modules in the lineup.

Key Features and Benefits

  • Electrochemical sensing: measures ammonia concentration with high precision and accuracy.
  • 1 ppm detection limit: catches low level ammonia events across sites.
  • 100 ppm linear range: covers trace levels through high concentration events.
  • Under 50 second response: delivers readings across 0 to 50ppm range.
  • 0.1 ppm resolution: captures fine shifts in ammonia gas concentration.
  • 24 month service life: supports extended field deployment before replacement.
  • Industry leading drift: sensitivity drift under 3 percent per year.
  • Wide temperature range: operates reliably from -40 to 50 degrees Celsius.
  • Wide humidity range: functions up to 95 percent RH conditions.
  • Single slot install: adds NH3 sensing without claiming the full array.

The NH3 Sensing Module exists to give odor investigation and HAZMAT programs a dependable, long-lasting ammonia reading without frequent recalibration. Its wide temperature and humidity tolerance means it holds up across colder and more humid conditions than most other modules in the lineup.

DSLRPros configures every NH3 Sensing Module for accurate, long-lasting ammonia detection before it ships. Order the NH3 Sensing Module from DSLRPros and add odor and HAZMAT-ready ammonia detection to your next flight.

  • Detection principle: electrochemistry
  • Linear range: 0 to 100 ppm
  • Limit of detection: 1 ppm
  • Repeatability: <2% FS
  • Accuracy: ±5% FS — note: this is the first module in the batch with a separately listed accuracy spec (previous modules listed repeatability only, not a distinct accuracy figure); preserving as its own line rather than conflating with repeatability
  • Overall response time (t90): <50 seconds (0-50 ppm)
  • Display resolution: 0.1 ppm
  • On-chip proprietary individual difference compensation algorithms
  • Sensitivity drift: <3%/year (laboratory environment) — notably tighter than every other module drafted so far
  • Zero drift: <±2 ppm/year (laboratory environment) — note: expressed in ppm rather than ppb like other modules; preserving the source's unit exactly rather than converting
  • Estimated service life: >24 months
  • Operating temperature: -40 to 50°C — note: wider cold-end range than any module so far (others start at -30°C); may require zero-point readjustment due to changes in operating temperature or working environment
  • Operating humidity: 15 to 95% RH
  • 1x AIRINS Sniffer4D NH3 Sensing Module
What makes this module's drift specifications different from other Sniffer4D modules?

The NH3 module has a sensitivity drift under 3 percent per year, which is notably tighter than every other electrochemical gas module in the Sniffer4D lineup, some of which drift 10 to 40 percent per year. This means the module holds its calibration accuracy longer between service intervals. It's a genuine standout in the lineup rather than a typical spec.
