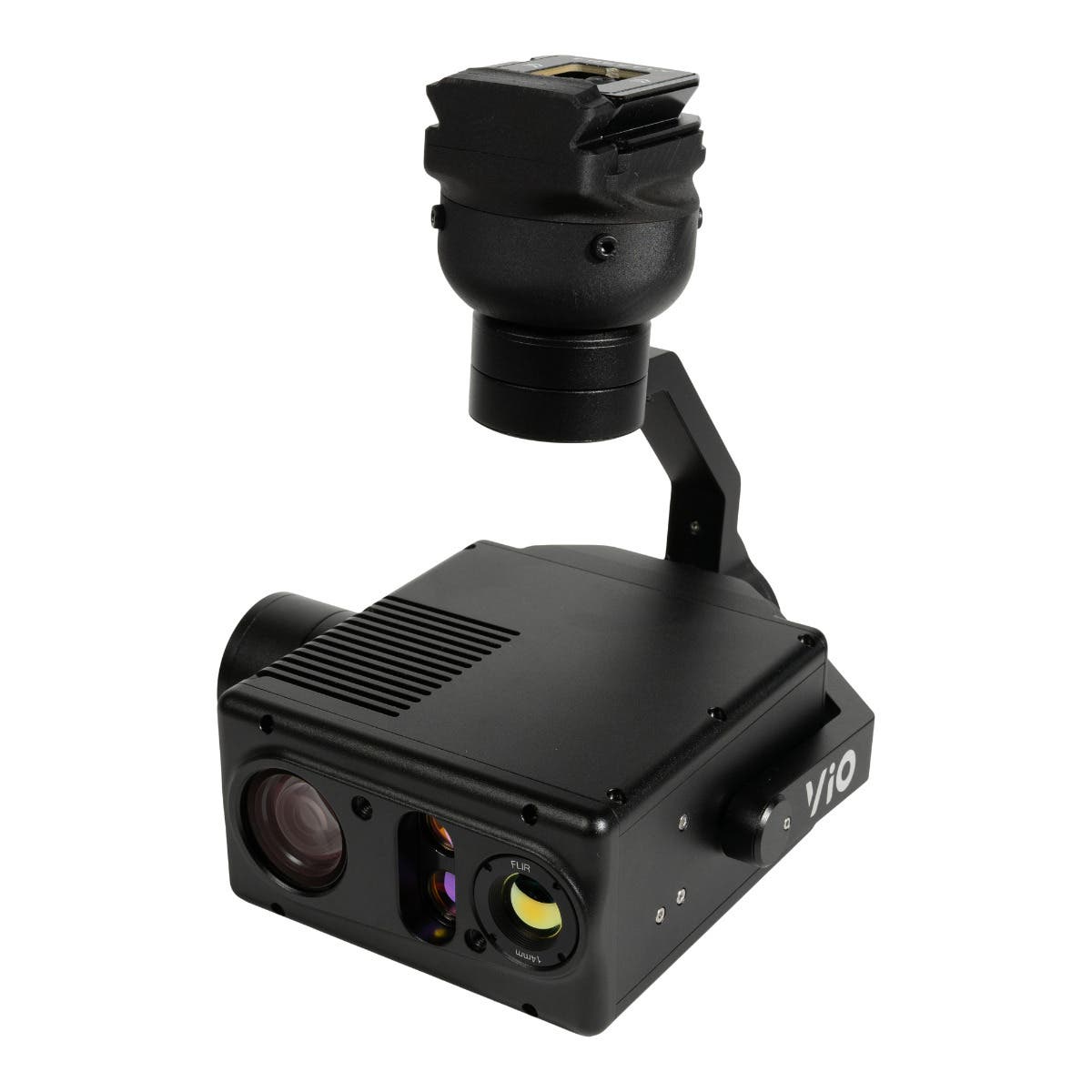

Inspired Flight Gremsy VIO Payload for IF800 & IF1200

Inspired Flight Gremsy VIO F1 Payload: Integrated EO/IR and laser sensing for professional UAV missions

The Inspired Flight Gremsy VIO F1 Payload is an integrated EO/IR sensing solution built for professional UAV missions requiring visual clarity, thermal insight, and precise distance measurement. Designed for industrial and public safety operations, it combines a stabilized 4K zoom camera, a 640 × 512 radiometric thermal sensor, and a long-range laser rangefinder in a compact form factor.

Fully compatible with Inspired Flight IF800 and IF1200 aircraft, the VIO F1 supports efficient multi-sensor data collection without the need for payload changes during missions.

Integrated multi-sensor payload capabilities

• 4K EO camera: captures high-resolution video at 30 fps.
• 20× optical zoom: enables detailed inspection from safe distances.
• 30× super resolution zoom: enhances clarity beyond optical limits.
• 640 × 512 thermal imaging: supports radiometric heat analysis.
• Thermal sensitivity: ≤50 mK NETD improves anomaly detection.
• Laser rangefinder: measures distances up to 7874 ft accurately.
• 3-axis stabilized gimbal: maintains stable imagery during flight.
• Lightweight integrated design: optimized for professional UAV use.

Performance characteristics for professional operations

The Gremsy VIO F1 is designed to deliver consistent performance during extended operations. Its EO camera uses an 8.51 MP sensor with a wide-to-telephoto focal range, allowing operators to adjust framing without repositioning the aircraft.

The thermal camera’s 60 Hz refresh rate supports smooth real-time monitoring, while radiometric output enables temperature-based assessments. The laser rangefinder provides distance measurements at multiple update rates, supporting both wide-area observation and closer inspection tasks.

Mission efficiency in real-world deployments

By integrating EO, thermal, and ranging sensors into a single payload, the VIO F1 improves mission efficiency for professional teams. Operators can quickly switch between visual, thermal, and distance-based observation without landing to change equipment. This reduces mission time and improves situational awareness. High gimbal stabilization and precise sensor alignment help ensure data consistency across inspection, response, and monitoring missions.

Hardware and software synchronization

• Inspired Flight IF800: supported enterprise UAV platform.
• Inspired Flight IF1200: supported heavy-lift UAV platform.
• Gremsy gimbal system: optimized for Inspired Flight integration.
• EO and thermal outputs: support inspection and monitoring workflows.
• Laser ranging data: supports distance-aware observation tasks.

Common field applications

• Utility inspections: inspect electrical and mechanical infrastructure safely.
• Industrial monitoring: detect thermal anomalies in equipment.
• Public safety operations: support situational awareness during incidents.
• Fire detection: identify hotspots using thermal imaging.
• Infrastructure surveys: observe bridges, towers, and facilities.
• Environmental monitoring: assess thermal patterns in natural areas.
• Security operations: maintain visual and thermal overwatch.
• Search missions: detect heat signatures and measure target distance.

Optimized for field deployment

The Gremsy VIO F1 is optimized for enterprise UAV programs that require compact, capable sensing solutions. Its compatibility with IF800 and IF1200 aircraft simplifies fleet planning, while integrated multi-sensor functionality reduces operational complexity. For teams seeking a single payload that delivers visual, thermal, and ranging capability, the VIO F1 provides dependable performance.

The Inspired Flight Gremsy VIO F1 Payload delivers integrated sensing for professional UAV missions. It is designed for organizations that rely on accurate situational data in the field.

Order from Dronefly today — the West Coast’s trusted enterprise UAV source.
