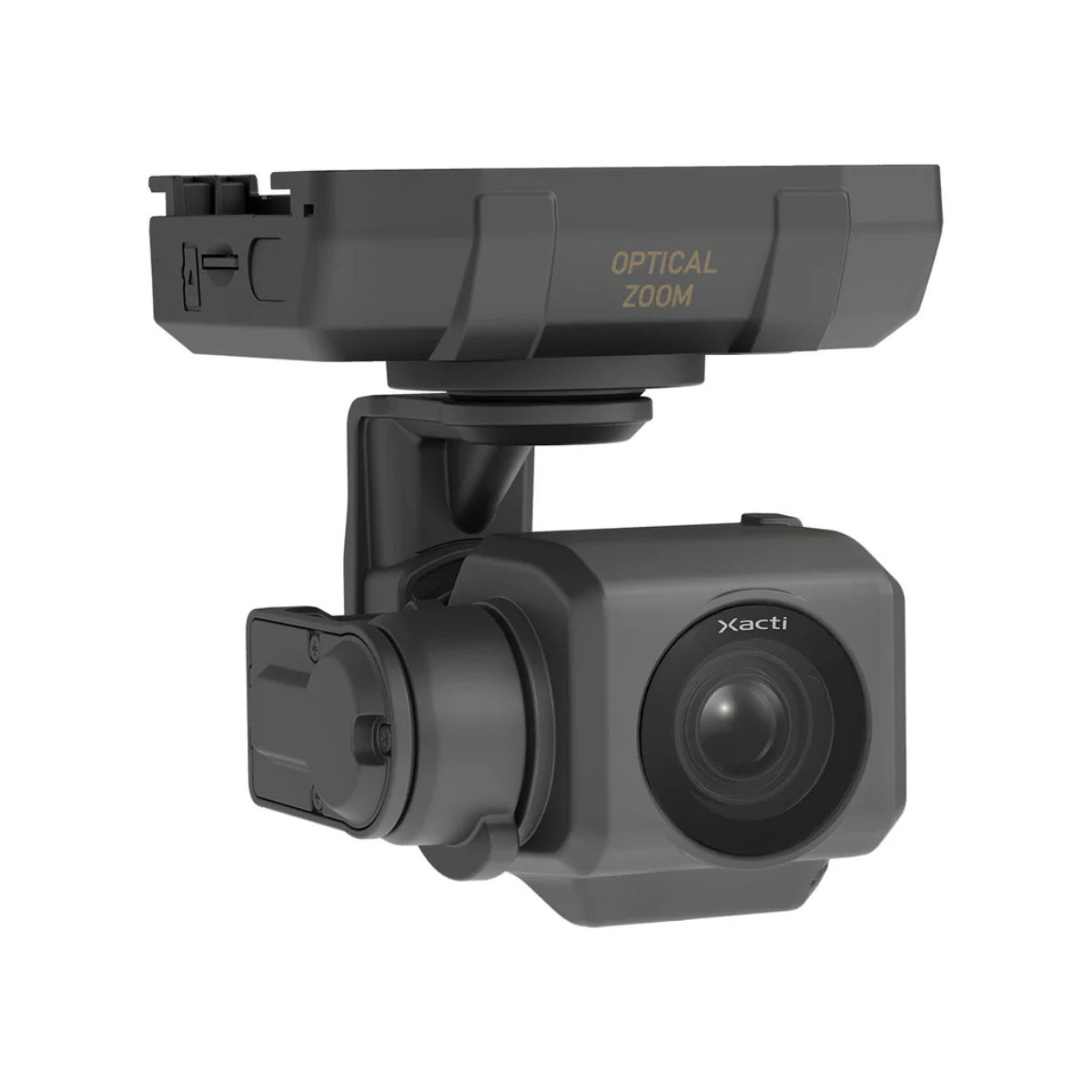

ACSL SOTEN Optical Zoom Camera - Precision Zoom for Secure Visual Missions
Built for Situational Awareness and Close-Up Clarity
The ACSL SOTEN Optical Zoom Camera is the ideal tool for professionals who need a secure, high-resolution zoom payload. With a total 25x zoom capability and support for real-time video transmission, it's a powerful upgrade for the NDAA-compliant ACSL SOTEN drone-giving operators detailed eyes in the sky for inspection, surveillance, and reconnaissance.
See More, Adapt Faster
The CX-GB400 Zoom Camera pairs a 20MP 1/2.3-inch sensor with optical and digital zoom for flexible imaging across large sites or focused targets. Whether you're scanning a structure from a safe distance or zooming in to inspect a specific fault, its 3-axis stabilized gimbal and mechanical shutter deliver clear, accurate imagery-even in motion. And with SOTEN's hot-swap bay, you can switch payloads in seconds to match mission requirements.
Key Features
Reliable long-range optics combined with secure design and responsive control.
-
2.5x optical + 10x digital zoom = 25x total zoom capability
-
20MP CMOS sensor, f/2.0 (wide) to f/3.0 (tele) aperture
-
4K video recording at 30p and full HD streaming support
-
Still capture in JPEG, DNG, or both formats
-
3-axis gimbal with fast pan/tilt and ultra-fine control
-
Hot-swappable payload compatibility with ACSL SOTEN
-
Secure microSD card storage (up to 512GB)
-
IP43 dust/water resistance when mounted
-
NDAA-compliant and ISO15408-aligned security features
Applications
Tailored for inspection, surveillance, and response teams across sectors:
-
Structural inspection of high-rise buildings, bridges, and towers
-
Security perimeter monitoring and zoom-in target identification
-
Critical asset condition reporting in oil, gas, and energy
-
Tactical reconnaissance and law enforcement observation
-
Broadcast and telecom antenna validation
-
Emergency operations requiring zoom detail from safe distance
Why Buy from Dronefly
Dronefly works directly with teams in public safety, utilities, and infrastructure to equip them with tools they can trust. From zoom calibration to secure data workflows, we make sure your ACSL SOTEN Optical Zoom Camera is fully configured, tested, and ready for the real world.
Upgrade your SOTEN with a professional-grade zoom payload from Dronefly and fly missions with unmatched clarity and control.
Specifications
- Image Sensor: 1/2.3-inch CMOS
- Effective Pixels: 20MP
- Lens FOV: HFOV 64°, VFOV 44°, DFOV 73° (Wide); HFOV 43°, VFOV 30°, DFOV 51° (Tele)
- Focal Length (35mm Equivalent): 28mm (Wide) / 18-45mm (Zoom)
- Aperture Range (F-Stop): Wide: f/2.0 / Tele: f/3.0
- Mechanical Shutter Speed: 8 sec - 1/2000 sec
- Electronic Shutter Speed: 8 sec - 1/8000 sec
- ISO Sensitivity: Auto, 100-6400
- Still Image Size: JPEG: 3600 × 2400 (9MP); DNG: 3616 × 2414 (9MP)
- Still Image Format: JPEG, DNG, JPEG+DNG
- Interval Shooting (Minimum Interval): JPEG: 2 sec; DNG: 5 sec
- Video Resolution & Frame Rate: 4K (3840 × 2160) / 30p
- Video Format: MOV / H.264
- Streaming (UVC Protocol): MJPEG Full HD / 30p
- Supported SD Cards: microSD (UHS Speed Class U3, Video Speed Class V30 or higher, up to 512GB)
- Dimensions (mm): 78W × 87H × 72D
- Weight: ~195g
- Dust & Water Resistance: JIS C 0920 IP4X (IP43 when mounted on SOTEN drone)
- Power Requirements: 12V, max power consumption 12W
- Operating Conditions: Temperature: 0°C - 40°C; Humidity: 10% - 90%
- Interfaces: USB (UVC / Control signals)
- Connection: 10-pin pogo connector
- Gimbal Control Axes: 3-axis stabilization (Pan, Tilt, Roll)
- Minimum Control Angle: ±0.02°
- Motion Range: Pan: ±90°; Tilt: -120° to +50°; Roll: ±30°
- Operational Motion Range: Pan: ±85°; Tilt: -115° to +45°
- Max Control Speed: Pan: 60°/s; Tilt & Roll: 100°/s
In The Box
- 1x ACSL SOTEN Optical Zoom Camera
