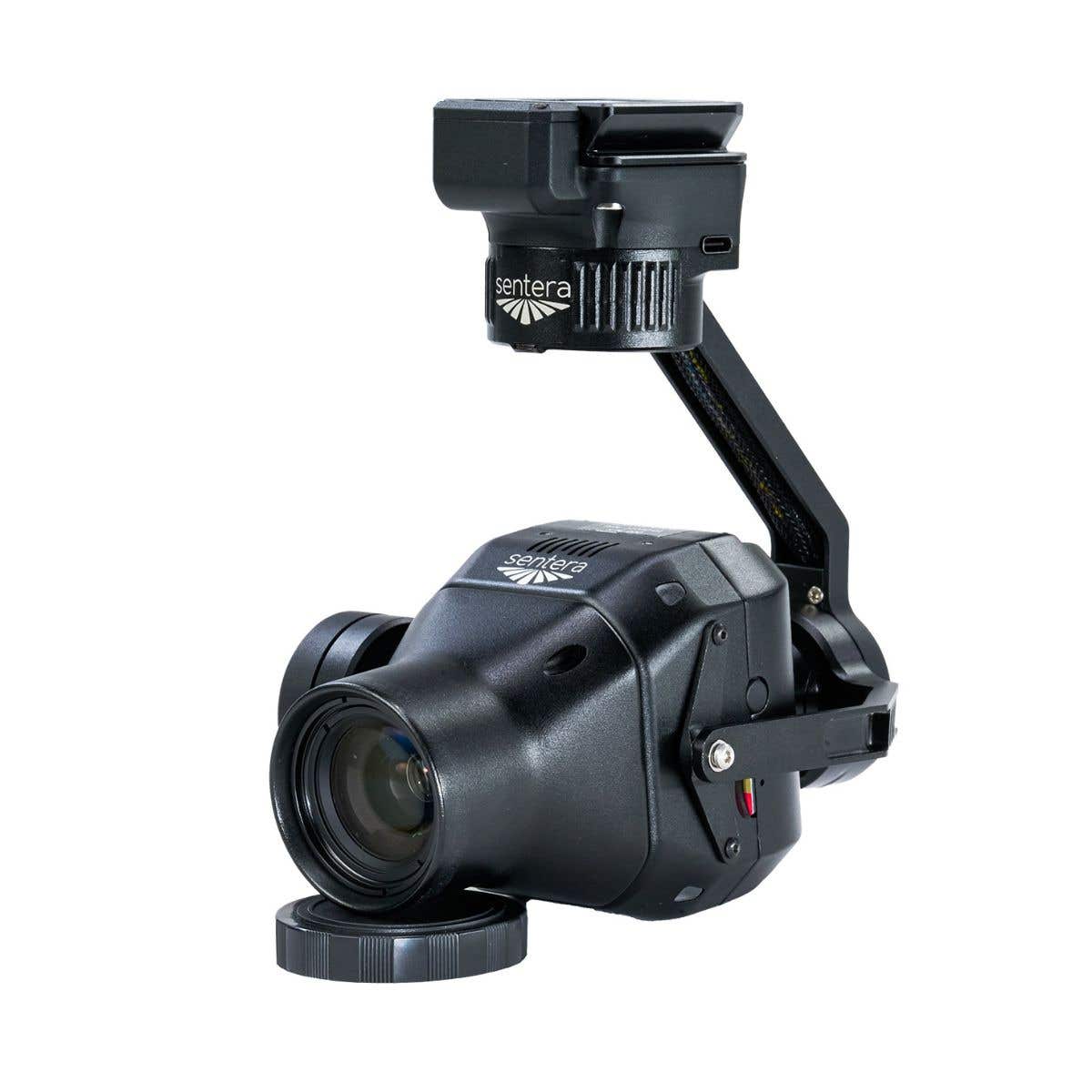

Inspired Flight Sentera 65R Payload for IF800 & IF1200

Inspired Flight Sentera 65R for IF800 & IF1200: High-accuracy RGB mapping built for large-scale missions

The Inspired Flight Sentera 65R for IF800 & IF1200 is an ultra-high-resolution RGB mapping sensor designed to accelerate aerial surveying and modeling workflows. Featuring a 65-megapixel Gipxel GMAX3265 global-shutter sensor with a native resolution of 9344 × 7000 pixels, the 65R captures more pixels per image to improve efficiency and accuracy. Purpose-built for drone and RTK integration, it combines fast capture rates, precise synchronization, and onboard NVMe storage to support demanding survey operations across Inspired Flight platforms.

High-resolution capture features

• 65-megapixel global-shutter sensor ensures distortion-free aerial imagery
• Native 9344 × 7000 resolution increases ground coverage per capture
• Ground sampling distance reaches 0.45 cm per pixel at 38 m
• Fast 3 fps capture rate minimizes total flight time
• 27 mm focal length balances resolution and coverage
• Integrated IMU supports synchronized image capture workflows
• PPS input enables accurate time and position alignment
• JPEG output optimized for efficient processing pipelines

Imaging accuracy and mapping reliability

Designed for accuracy-driven missions, the Sentera 65R emphasizes precision over creative imaging. A global shutter removes rolling-shutter distortion during motion, ensuring sharp, consistent imagery. Dense pixel coverage reduces the number of required flight lines, while integrated PPS synchronization and geo-tagging support reliable orthomosaics, digital surface models, and analytical outputs. The result is cleaner, more uniform datasets captured efficiently, even across expansive survey areas where accuracy and repeatability are critical.

Operational efficiency across IF platforms

With a weight of 330 g including lens and typical power consumption of 12 W, the 65R integrates efficiently with both IF800 and IF1200 aircraft. Internal 512 GB PCIe NVMe storage supports high-volume data capture without external media handling. Multiple interface options enable flexible system integration, while fast capture rates help teams complete missions with fewer flights and reduced operational overhead across large project areas.

Hardware and aircraft compatibility

• Compatible with Inspired Flight IF800 aircraft
• Compatible with Inspired Flight IF1200 aircraft
• IF1200 integration requires IF1200 Dovetail Kit 3.0 (sold separately)
• USB-C, Gigabit Ethernet, UART, and digital I/O supported
• Input and output pulses support capture and exposure synchronization

Mission-ready use cases

• Large-scale surveying: capture dense imagery efficiently across sites
• Topographic mapping: produce accurate orthomosaics and surface models
• Construction oversight: maintain consistent high-resolution visual records
• Environmental monitoring: image broad geographic regions reliably
• Infrastructure planning: support mapping-based decision workflows
• Agricultural analysis: collect detailed RGB datasets for assessment
• Land development: support modeling and measurement activities
• Research projects: acquire repeatable, high-accuracy imagery

Built for professional deployment

The Sentera 65R is engineered for dependable operation within enterprise aerial workflows. Integrated synchronization, standardized interfaces, and onboard storage simplify deployment across fleets and projects. When paired with IF800 or IF1200 aircraft, the sensor provides consistent, high-accuracy imagery suited for large-scale survey and mapping programs.

The Inspired Flight Sentera 65R for IF800 & IF1200 delivers dense, distortion-free imagery that reduces flight time while preserving survey accuracy. It is built for organizations that require reliable, repeatable data capture across large operational areas.
