Indoor Drones: Sensor-Stabilized UAVs for Confined Spaces and GPS-Denied Environments
Most enterprise UAV programs are built around outdoor platforms — and for good reason. But the missions that fall outside that coverage area are not edge cases. Confined space inspection, tactical reconnaissance in GPS-denied structures, and aerial intelligence inside enclosed industrial assets represent a growing share of professional UAV deployment requirements, and they require hardware that standard outdoor platforms cannot reliably provide. Indoor drones close that gap at the architecture level, substituting GPS with onboard sensing systems that derive stability and navigation from the physical environment rather than satellite signal.
Dronefly carries two platforms in this category. The Terra Xross 1 from TerraDrone is a Japan-made confined space inspection drone that generates real-time 3D LiDAR data alongside 4K video in industrial environments that cannot be safely accessed by personnel. The Vantage Robotics Trace is a USA-built nano UAV that delivers encrypted EO/thermal aerial intelligence in a 153 g hand-launched system deployable in 30 seconds. Both operate without GPS. The operational profiles they serve — structured inspection data collection versus rapid tactical ISR — are distinct enough that platform selection is typically straightforward once the mission type is defined.
GPS-Denied Stabilization: What the Technology Actually Does
The functional question for any indoor drone is how it replaces the spatial reference that GPS normally provides. Two primary approaches exist in current production platforms.
LiDAR-based stabilization continuously scans the surrounding environment, generating a dense point cloud that the flight controller uses as a real-time 3D map. The aircraft locates itself within that map and holds position relative to physical features — walls, ceilings, structural elements — rather than satellite coordinates. This approach produces high positional accuracy in complex enclosed environments and generates inspection-grade spatial data as a byproduct of normal flight. Visual position control uses downward-facing optical sensors and surface pattern recognition to maintain stable hover, supplemented by scene illumination in low-light conditions. It is lighter, faster to deploy, and suited to dynamic operational environments where data collection is not the primary output.
Understanding which approach fits a given mission is the starting point for platform selection.
Indoor Drone Platforms Available at Dronefly
Terra Xross 1 — TerraDrone

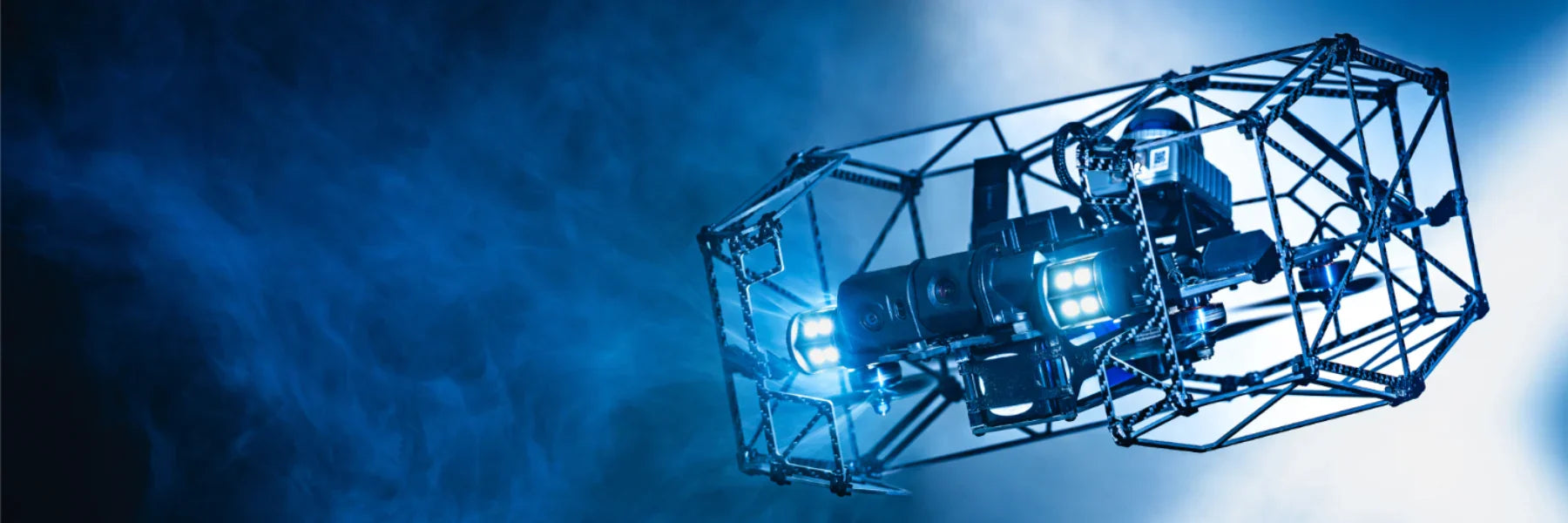

The Terra Xross 1 is purpose-built for the inspection missions that put conventional UAVs — and personnel — at the limits of what is safe or physically possible. Developed by TerraDrone and manufactured in Japan, it combines LiDAR-based GPS-free stabilization with an integrated 4K imaging system, 10,480-lumen LED illumination, and a full-surround protective cage in a compact 36 cm × 31 cm × 21 cm (14.2 in × 12.2 in × 8.3 in) airframe designed to fit through the access points that define confined space work.
The stabilization system — a Class 1 LiDAR scanning at 200,000 points per second — serves a dual function. It gives the flight controller the spatial reference needed to hold position without GPS, and it simultaneously generates the 3D point cloud data that Terra Xross Cloud uses to build spatially indexed inspection records. Still images and video captured during flight are linked directly to their corresponding point cloud positions, so reviewers can locate and assess findings in spatial context rather than working from an unstructured media archive. A supplementary visual odometry sensor adds a second stabilization layer for environments where surface conditions shift mid-flight. Tethering to an external power pack eliminates battery depletion as a flight termination risk for operations where access geometry permits.
- Weight: 1,800 g (3.97 lb) including battery
- Size: 36 cm × 31 cm × 21 cm (14.2 in × 12.2 in × 8.3 in)
- Flight time: 10 minutes battery-only; tethered power option available
- Max speed: 2.5 m/s (8.2 ft/s)
- Wind resistance: 3 m/s (9.8 ft/s)
- Operating temperature: 0°C–45°C (32°F–113°F)
- LiDAR: Class 1; 200,000 points/sec; 10 Hz frame rate; range 40 m (131 ft) @ 10% reflectivity / 70 m (230 ft) @ 80% reflectivity; 2 cm precision @ 10 m
- Integrated camera system: 1/1.7-inch 8MP; 4K (3840×2160); 180° tilt; auto mode
- Integrated LED lighting: 10,480 lumen maximum; dual arrays
- Communication: 2.4 GHz ISM; Terra Xross Range Extender available for obstructed environments
- Cloud platform: Terra Xross Cloud — links images and video to 3D LiDAR data; first year of Basic 500GB included with aircraft
- Accessories carried: spare battery, battery charger, motor set (4 pcs), propellers (1 set), replacement cage, Terra Xross Range Extender, Terra Xross Cloud Basic 500GB (after first year), Terra Xross Cloud Additional Storage (500GB)
Vantage Robotics Trace — Public Safety Bundle
The Vantage Robotics Trace occupies a different part of the operational spectrum. Where the Terra Xross 1 is optimized for slow, precise, data-intensive inspection work, the Trace is built for speed of deployment, covert observation, and encrypted tactical ISR in environments where platform size, acoustic signature, and data security are operational constraints as much as technical ones.
At 153 g, the Trace clears the FAA's intrinsically safe weight threshold. The complete tactical system — aircraft, Vision2 GCS, IP67 field case, and two batteries — weighs under 1,000 g and fits in a standard backpack. It deploys by hand in 30 seconds. At under 37 dBA at 25 m range and not visible at 30 ft against terrain, it operates without announcing its presence. The 2-axis stabilized Wisp EO/IR gimbal carries a 48MP electro-optical camera with an f/1.8 autofocus lens and 25× digital zoom alongside a 320×240 uncooled VOx IR thermal sensor — simultaneous EO and thermal capability without a payload swap. AES-256 encryption covers all communications and data storage, with no remote data transmission, satisfying the security requirements of federal, defense, and public safety programs. The aircraft is NDAA compliant with DoD Blue UAS pending status.
- Airframe weight: 153 g takeoff weight
- System weight: under 1,000 g with field case, 2 batteries, and Vision2 GCS
- Flight time: 36 minutes
- Top speed: 52 kph (32 mph)
- Wind resistance: up to 25 knots
- Operating temperature: -20°C–45°C (-4°F–113°F)
- Ingress protection: IP53 aircraft; IP67 field case
- Acoustic signature: under 37 dBA at 25 m
- LOS range: 6 km; NLOS: 500 m (30 dBi attenuation)
- EO camera: 48MP; f/1.8 autofocus; 25× digital zoom (67°–2.7° HFOV); 8,000 × 6,000 px stills; 1080p or 4K MPEG-4
- Thermal sensor: 320×240 uncooled VOx IR; 24° or 57° HFOV
- Gimbal: 2-axis stabilized; pitch -90° to +70°
- Security: AES-256 encryption on all communications and storage; no remote data transmission; NDAA compliant; DoD Blue UAS pending
- GCS compatibility: QGC, ATAK, WMI, RAC2; MAVLink and RAS-A compliant
- Controller compatibility: Vantage Vision 2, Kutta KTAC, S20 TE, Tomahawk Mimic or Grip GCS
Deployment Scenarios for Indoor and GPS-Denied UAV Operations
- Confined space inspection programs: storage tanks, pressure vessels, bridge deck voids, tunnel interiors, and permit-required confined spaces where drone-based pre-inspection reduces or eliminates manned entry
- Industrial asset inspection: enclosed machinery housings, process equipment interiors, ductwork, and generation equipment requiring documented visual and spatial data
- Tactical reconnaissance and pre-entry ISR: building clearing support, covert structure reconnaissance, and indoor situational awareness for law enforcement and defense operations
- Search and rescue in compromised structures: thermal and EO imaging to locate subjects in smoke-filled, dark, or structurally damaged interiors where personnel access is unsafe
- Government and defense GPS-denied operations: NDAA-compliant ISR in contested environments, underground facilities, and structures where satellite signal is unavailable or denied
- Critical infrastructure documentation: rapid post-incident interior assessment following fires, structural failures, or hazardous material events
Configuration and Platform Selection Guidance
Mission type is the primary selection driver for this category, and the two platforms diverge clearly enough that most deployment programs will point unambiguously to one or the other.
The Terra Xross 1 is the right platform when the mission output is structured inspection data — 3D point cloud records, spatially indexed imagery, and cloud-based team review through Terra Xross Cloud. Its LiDAR system, protective cage, and 4K imaging are optimized for slow, precise, close-proximity work in industrial confined spaces. The 10-minute battery flight time suits focused inspection sorties; tethered power extends operations for longer access windows. Replacement motors, propellers, and cage components are available separately to support planned maintenance schedules.
The Vantage Robotics Trace is the right platform when the mission requires speed, security, and combined EO/thermal imaging in a system small enough to carry without dedicated transport. Its 36-minute flight time, 6 km LOS range, and AES-256 encrypted communications suit extended observation sorties and tactical ISR deployments. NDAA compliance and DoD Blue UAS pending status make it the appropriate choice for federal, state, and local government procurement programs with compliance mandates. For cold-weather operations, the Trace's -20°C (-4°F) lower temperature rating extends its operational range beyond the Terra Xross 1's 0°C (32°F) floor.
Dronefly carries both platforms along with the full Terra Xross 1 accessory and replacement parts line and Terra Xross Cloud subscription options. Contact the Dronefly team to configure the right platform for your program, or order directly through the Dronefly store.
Frequently Asked Questions
What stabilization technology do indoor drones use in place of GPS?
The two platforms in this category use different approaches suited to their respective mission types. The Terra Xross 1 uses a Class 1 LiDAR system scanning at 200,000 points per second to build a continuous 3D map of its surroundings, which the flight controller uses as a positional reference in place of satellite coordinates. A supplementary visual odometry sensor adds a second layer of environmental awareness. The Vantage Robotics Trace uses downward-facing visual position sensors combined with an integrated scene illuminator to maintain stable hover in GPS-denied and low-light environments, without generating point cloud data as a byproduct.
How does the Terra Xross Cloud platform support inspection workflows?
Terra Xross Cloud is a cloud-based data management platform that links still images and video captured during each flight directly to the corresponding 3D LiDAR point cloud positions. This allows inspection teams to review findings in spatial context — locating a defect or anomaly within the 3D model of the inspected space — rather than working from an unstructured image archive. Data is accessible from multiple locations, supporting collaborative review between field operators, engineers, and client stakeholders. The first year of Terra Xross Cloud Basic 500GB is included with the aircraft; subscription charges apply from the second year onward, with additional 500GB storage increments available as inspection program volume grows.
What does the Vantage Robotics Trace's compliance status mean for procurement?
The Vantage Robotics Trace is NDAA compliant and carries DoD Blue UAS pending status — meaning the platform meets the procurement requirements for federal agencies, defense contractors, and state and local public safety programs that mandate component-level compliance certification. It is designed, sourced, and built in the USA, with AES-256 encryption on all communications and data storage and no remote data transmission. For organizations building a GPS-denied ISR capability under compliance-constrained procurement, the Trace satisfies those requirements in a platform that fits in a backpack and deploys in 30 seconds.
Which platform handles cold-weather operations better?
The Vantage Robotics Trace is rated for operation from -20°C to 45°C (-4°F to 113°F), giving it a broader low-end temperature range than the Terra Xross 1, which is rated from 0°C to 45°C (32°F to 113°F). For winter deployments in cold environments — outdoor pre-entry reconnaissance, northern climate infrastructure inspection, or cold-storage facility operations — the Trace's lower temperature floor provides operational continuity where the Terra Xross 1 reaches its rated limit. Both platforms share the same 45°C upper limit.
Can the Vantage Robotics Trace integrate with existing tactical systems?
Yes. The Trace supports MAVLink and RAS-A communication protocols and is compatible with QGC, ATAK, WMI, and RAC2 ground control software platforms. For teams already operating ATAK in the field, Trace integrates directly into the existing tactical data environment without additional middleware. Compatible ground control hardware includes the included Vantage Vision2 GCS as well as Kutta KTAC, S20 TE, and Tomahawk Mimic or Grip GCS systems. Automatic channel hopping on the 2.4 GHz ISM link maintains a stable connection in RF-congested environments, with multi-band radio frequency alternatives available for demanding signal environments.
