ACSL SOTEN Basic Bundle - Compact, Compliant, Mission-Ready
Ready for Every Mission

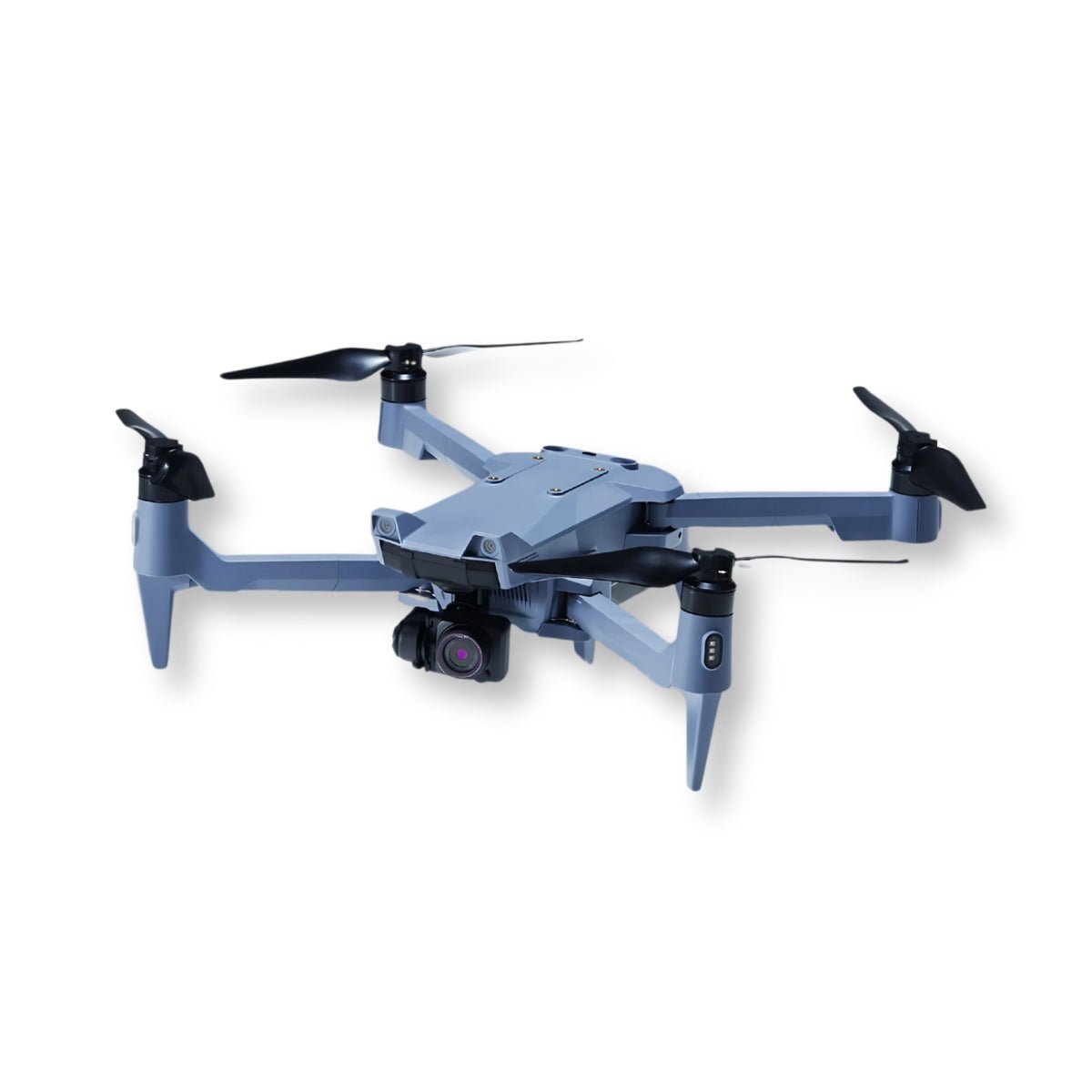

The ACSL SOTEN Basic Bundle is a go-anywhere aerial imaging solution for professionals in public safety, utilities, infrastructure, and more. Equipped with the ACSL SOTEN Standard Camera, this NDAA-compliant system delivers secure, high-quality imagery and the flexibility to scale with your needs.
High-Quality Imaging with Built-In Flexibility

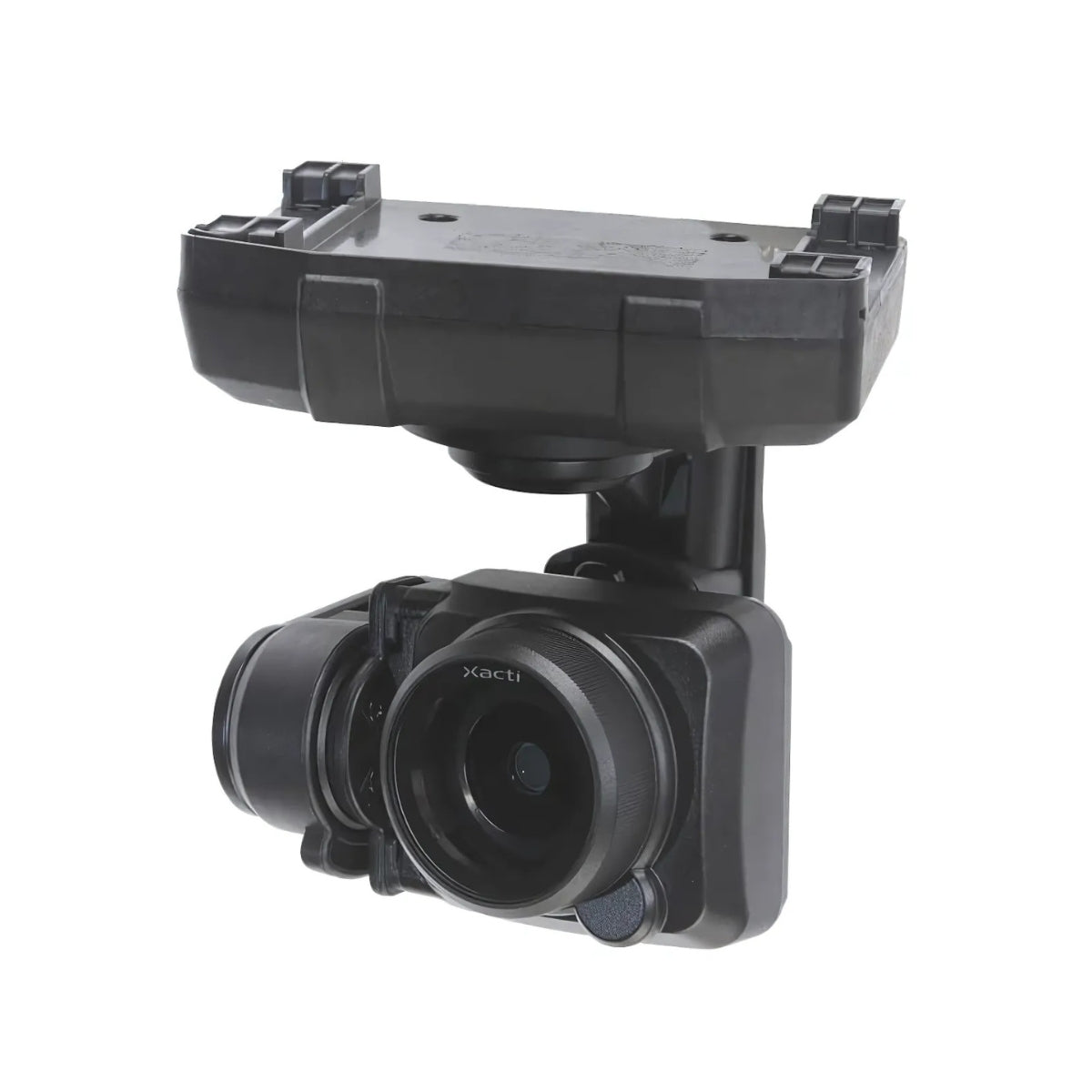

The Standard Camera features a 1" RGB sensor, 20MP still image capture, and a mechanical shutter-ideal for detailed inspections and general aerial documentation. The SOTEN's one-touch swappable camera bay lets you upgrade in seconds to thermal, zoom, or multispectral options, all while keeping your drone powered on. With optional encryption, your photo and video data stays protected from capture to storage.
Key Features
Each element of the SOTEN Basic Bundle is built for efficient operations and adaptable missions.
- Includes ACSL SOTEN Standard Camera (1" sensor, 20MP, mechanical shutter)
- NDAA and ISO15408-compliant for trusted U.S. deployment
- Swappable camera system supports upgrades without shutting down
- Optional encrypted photo/video storage on onboard memory
- IP43-rated for resistance to rain and dust
- LTE-enabled for BVLOS control over wide areas
- Remote ID ready for FAA-compliant flight out of the box
- Compact, foldable 1.7kg design deploys in under a minute
- 25-minute endurance and 33 MPH max speed
- Obstacle avoidance sensors for operational safety
Applications
Built to serve a wide range of industries and teams with mission-critical imaging.
- Power line and utility inspections
- Road, bridge, and rail infrastructure analysis
- Law enforcement and emergency response
- Facility perimeter and asset monitoring
- Construction and site documentation
- General-purpose aerial photography and mapping
Why Buy from Dronefly
Dronefly isn't just about the hardware-we focus on your full mission profile. From camera payload selection to airspace compliance, we walk you through the steps that matter. When you buy the ACSL SOTEN Basic Bundle from us, you're getting expert-driven onboarding, responsive support, and direct insight from professionals who've deployed drones across dozens of industries.
Whether you're launching your first aerial platform or expanding field coverage, Dronefly gives you a fast, secure, and scalable solution.
Equip your team with the ACSL SOTEN Basic Bundle from Dronefly-ready for whatever's next.
Specifications
- Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
- Height: Unfolded 153mm (including propellers)
- Weight: 1,720g (including standard camera and battery)
- Number of rotor blades: 4
- Intelligent battery: Lithium-ion battery 94Wh, 1 pc
- Operating frequency: 2.412 - 2.477 GHz
- Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
- Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
- Maximum pitch angle: 30°
- Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
- Maximum ascent speed: 3m/s
- Maximum descent speed: 2m/s
- Maximum takeoff weight: 2,000g
- Maximum speed (no wind): 15m/s
- Operational limit altitude: 2000m
- Maximum airspeed: 15m/s
- Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
- Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
- Ingress protection: IP43 (with camera, gimbal, and battery)
- GNSS: GPS + QZSS + GLONASS + SLAS
- Operating temperature: 0°C to 40°C
- Optional items: LTE Comms Module, Spare Battery
- Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
- Obstacle detection angle: 70° horizontal, 40° vertical
- Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
- Operating environment: Adequate lighting and clear texture
- Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
- Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
- Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
- Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles
- Remote Controller - Operating frequency: 2.412 to 2.477 GHz
- Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
- Remote Controller - Battery life: Up to 4 hours
- Remote Controller - Operating temperature: 0°C to 40°C
- Remote Controller - Security: AES encryption method
- Remote Controller - Multiple operations: Control can be transferred between two radio controllers
- Supported Mobile Devices - OS: Android™ 4.1 or higher
- Supported Mobile Devices - Terminal: USB Type-C
- Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
- Visible Camera - Effective pixels: 20 megapixels
- Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
- Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
- Visible Camera - Video method: MOV / H.264
- Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
- Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Visible Camera - Sensor size: 1 inch
- Visible Camera - Shutter system: Mechanical
- Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
- Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
- Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Visible Camera - Security: Data encryption can be enabled/disabled
- Camera Gimbal - Mechanism: 3-axis
- Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
- Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
- Camera Gimbal - Control accuracy: ±0.02°
- Camera Gimbal - Switching method: One-touch camera switching
- Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
- Infrared + Visible Camera - Temperature resolution: <60mK
- Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
- Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
- Infrared + Visible Camera - Video method: MOV / H.264
- Infrared + Visible Camera - Video quality: Full HD / HD
- Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled

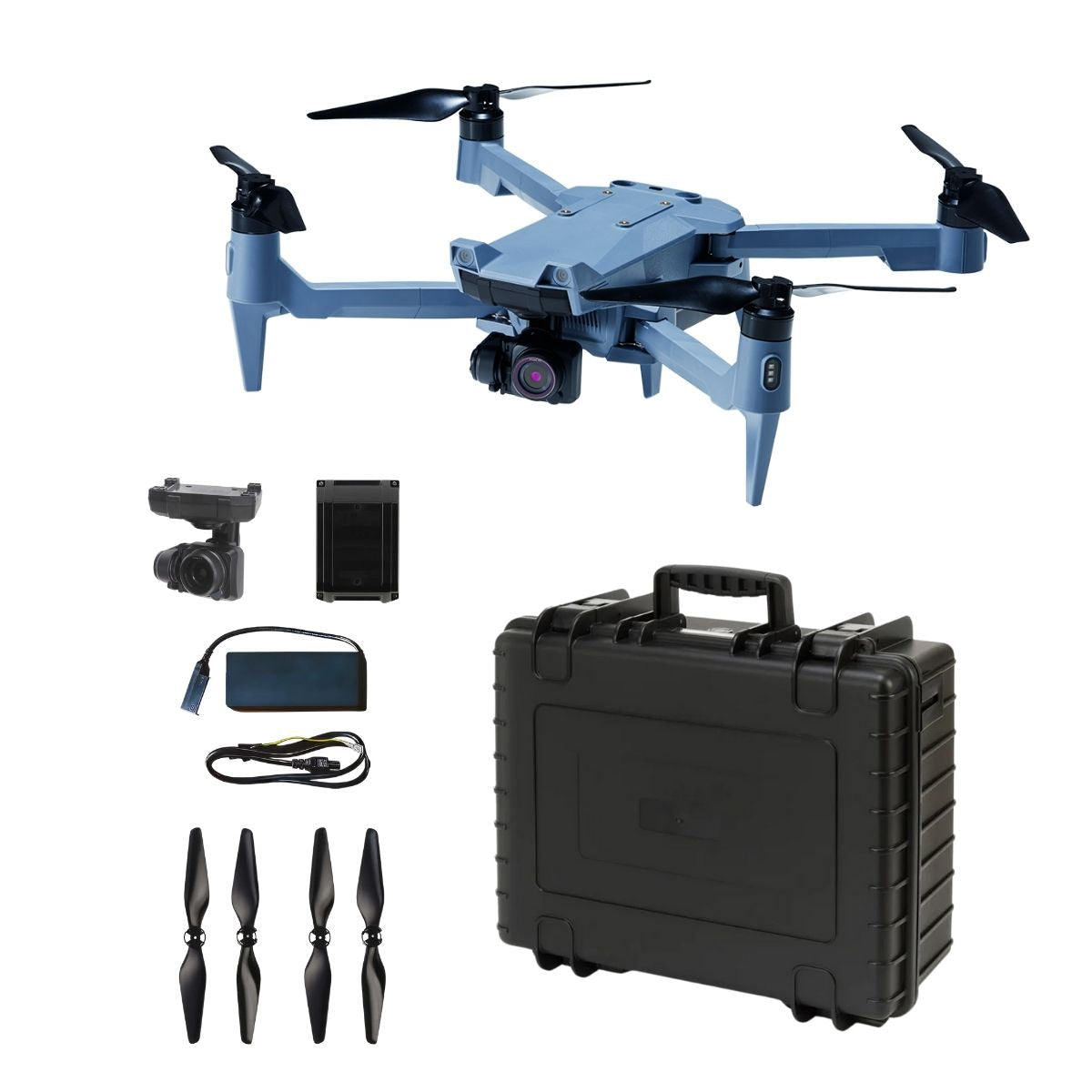

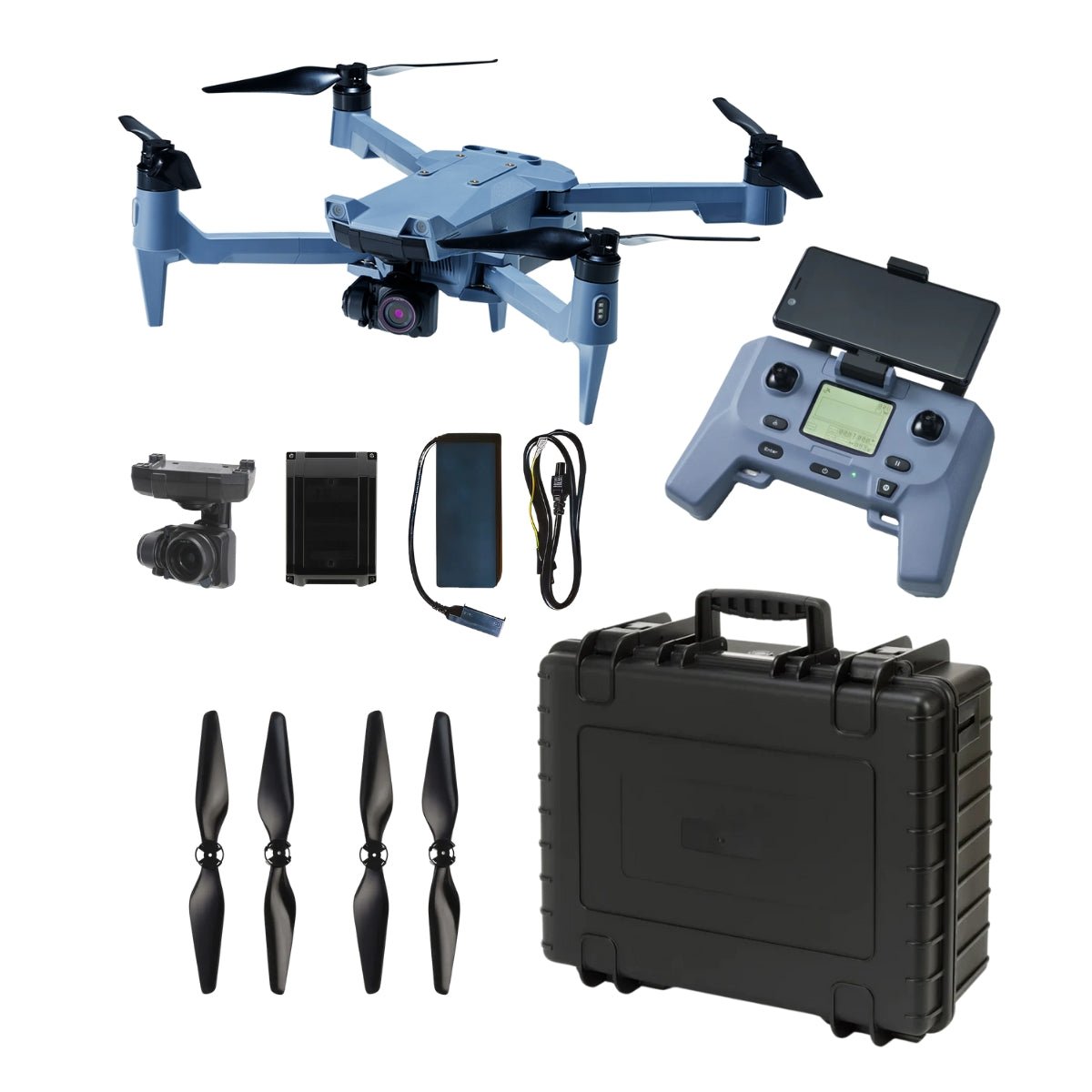

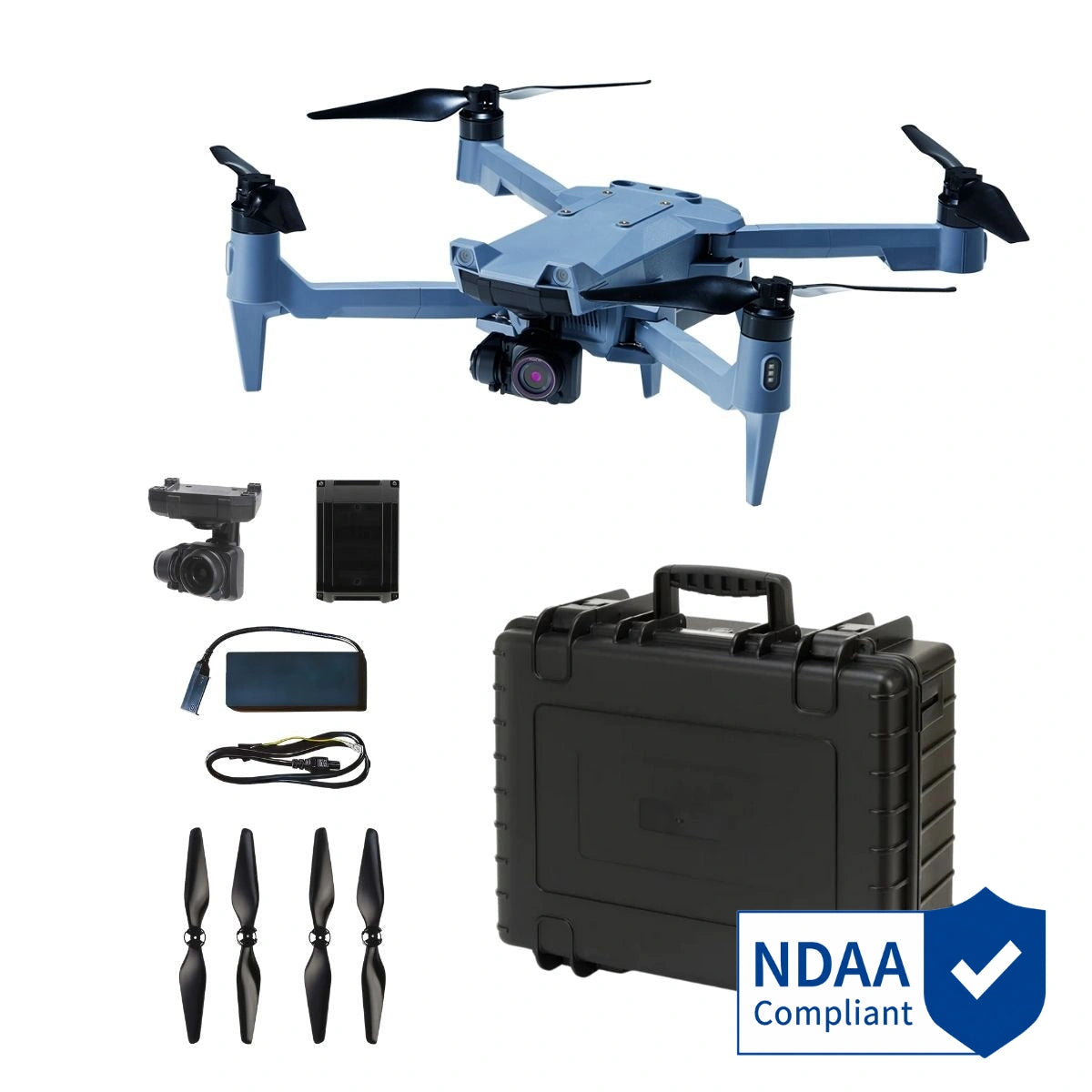

In The Box
- 1x SOTEN Airframe
- 1x Standard Remote Controller (smartphone not included)
- 1x Single Battery Charger
- 1x Smart Battery
- 1x CW Propeller set
- 1x CCW Propeller Set
- 1x Standard 20MP Camera
- 1x Hard Storage Case
