ACSL SOTEN Inspection Package - Clarity Where It Counts
Built for Infrastructure, Energy, and Industrial Teams
The ACSL SOTEN Inspection Package is a secure, NDAA-compliant drone system built to meet the demands of industrial and energy inspections. With the ACSL SOTEN Standard Camera and the rugged TENSO Smart Controller, this package gives you the image quality, control, and flexibility required to inspect complex assets with confidence.
Made for Field Efficiency
The 20MP camera delivers sharp, stable images-essential for inspecting fine detail on power lines, towers, or facility equipment. The TENSO Smart Controller provides bright-screen visibility in sunlight, secure AES256 communication, and long-range LTE control. Whether you're checking for corrosion, alignment, or installation errors, this system delivers the data to help you act fast and document thoroughly.
Key Features
Designed for professionals conducting visual inspections where quality, safety, and documentation are critical.
- ACSL SOTEN Standard Camera: 20MP, 1" RGB sensor, mechanical shutter

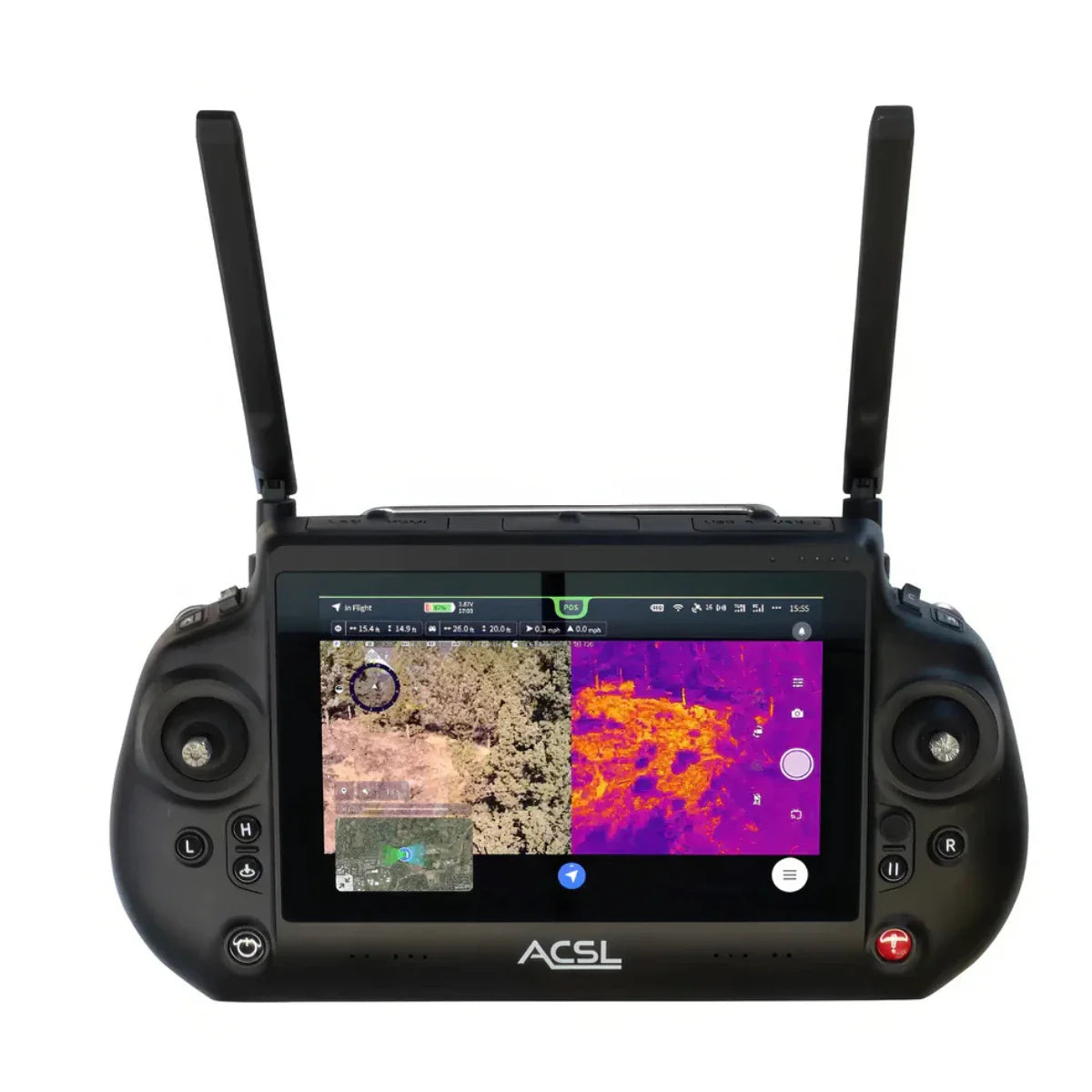

- TENSO Smart Controller with 5" daylight-readable HD display (IP43 rated)
- AES256 encryption ensures secure drone-control link
- LTE and WiFi compatibility with 2.5-mile flight range
- Exposure and gimbal controls help fine-tune every inspection shot
- Foldable drone (1.7 kg) with up to 25-minute battery life
- Hot-swappable camera bay allows sensor upgrades mid-operation
- FAA Remote ID compliant and ISO15408 certified
- IP43-rated airframe and controller withstand dust and splash conditions
Applications
Ideal for companies and agencies inspecting valuable or high-risk infrastructure:
- Utility line and transformer station checks
- Oil refinery and pipeline visual inspections
- Tower, antenna, and rooftop safety surveys
- Wind farm and solar array maintenance
- Structural monitoring of bridges, tunnels, and dams
- Construction and post-build verification flights
Why Buy from Dronefly
Dronefly specializes in helping technical teams get more value from aerial inspection. We provide expert configuration, training, and support for clients in utilities, energy, engineering, and infrastructure maintenance. When you buy the ACSL SOTEN Inspection Package, you're not left to figure it out-we make sure you're ready to fly, capture, and analyze from the first day.
With NDAA compliance, encrypted control, and dependable image quality, you're getting a solution trusted by professionals who operate in critical environments.
Deploy the ACSL SOTEN Inspection Package from Dronefly and bring accuracy and efficiency to your field operations.
Specifications
- Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
- Height: Unfolded 153mm (including propellers)
- Weight: 1,720g (including standard camera and battery)
- Number of rotor blades: 4
- Intelligent battery: Lithium-ion battery 94Wh, 1 pc
- Operating frequency: 2.412 - 2.477 GHz
- Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
- Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
- Maximum pitch angle: 30°
- Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
- Maximum ascent speed: 3m/s
- Maximum descent speed: 2m/s
- Maximum takeoff weight: 2,000g
- Maximum speed (no wind): 15m/s
- Operational limit altitude: 2000m
- Maximum airspeed: 15m/s
- Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
- Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
- Ingress protection: IP43 (with camera, gimbal, and battery)
- GNSS: GPS + QZSS + GLONASS + SLAS
- Operating temperature: 0°C to 40°C
- Optional items: LTE Comms Module, Spare Battery
- Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
- Obstacle detection angle: 70° horizontal, 40° vertical
- Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
- Operating environment: Adequate lighting and clear texture
- Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
- Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
- Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
- Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles
- Remote Controller - Operating frequency: 2.412 to 2.477 GHz
- Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
- Remote Controller - Battery life: Up to 4 hours
- Remote Controller - Operating temperature: 0°C to 40°C
- Remote Controller - Security: AES encryption method
- Remote Controller - Multiple operations: Control can be transferred between two radio controllers
- Supported Mobile Devices - OS: Android™ 4.1 or higher
- Supported Mobile Devices - Terminal: USB Type-C
- Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
- Visible Camera - Effective pixels: 20 megapixels
- Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
- Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
- Visible Camera - Video method: MOV / H.264
- Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
- Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Visible Camera - Sensor size: 1 inch
- Visible Camera - Shutter system: Mechanical
- Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
- Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
- Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Visible Camera - Security: Data encryption can be enabled/disabled
- Camera Gimbal - Mechanism: 3-axis
- Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
- Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
- Camera Gimbal - Control accuracy: ±0.02°
- Camera Gimbal - Switching method: One-touch camera switching
- Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
- Infrared + Visible Camera - Temperature resolution: <60mK
- Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
- Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
- Infrared + Visible Camera - Video method: MOV / H.264
- Infrared + Visible Camera - Video quality: Full HD / HD
- Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled

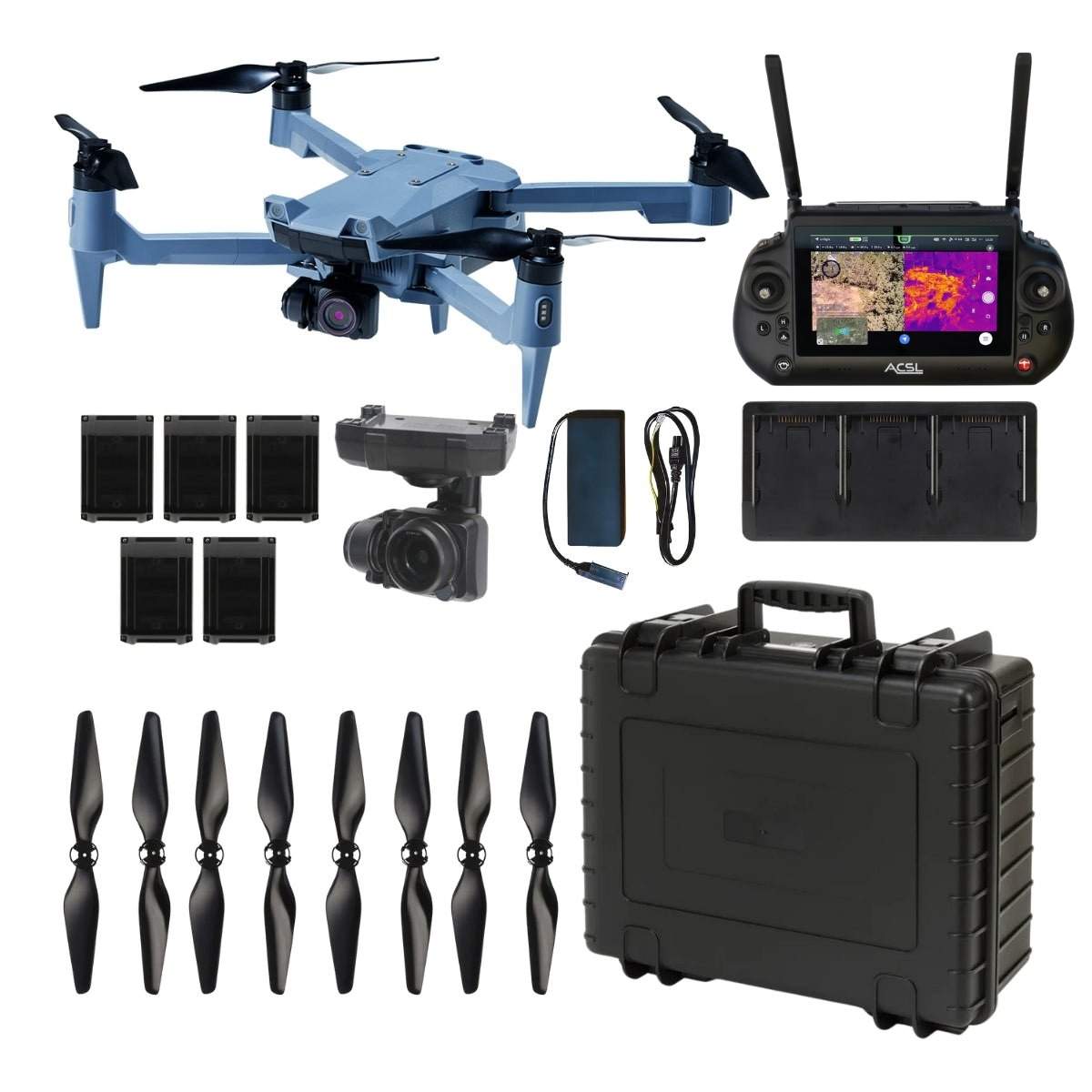

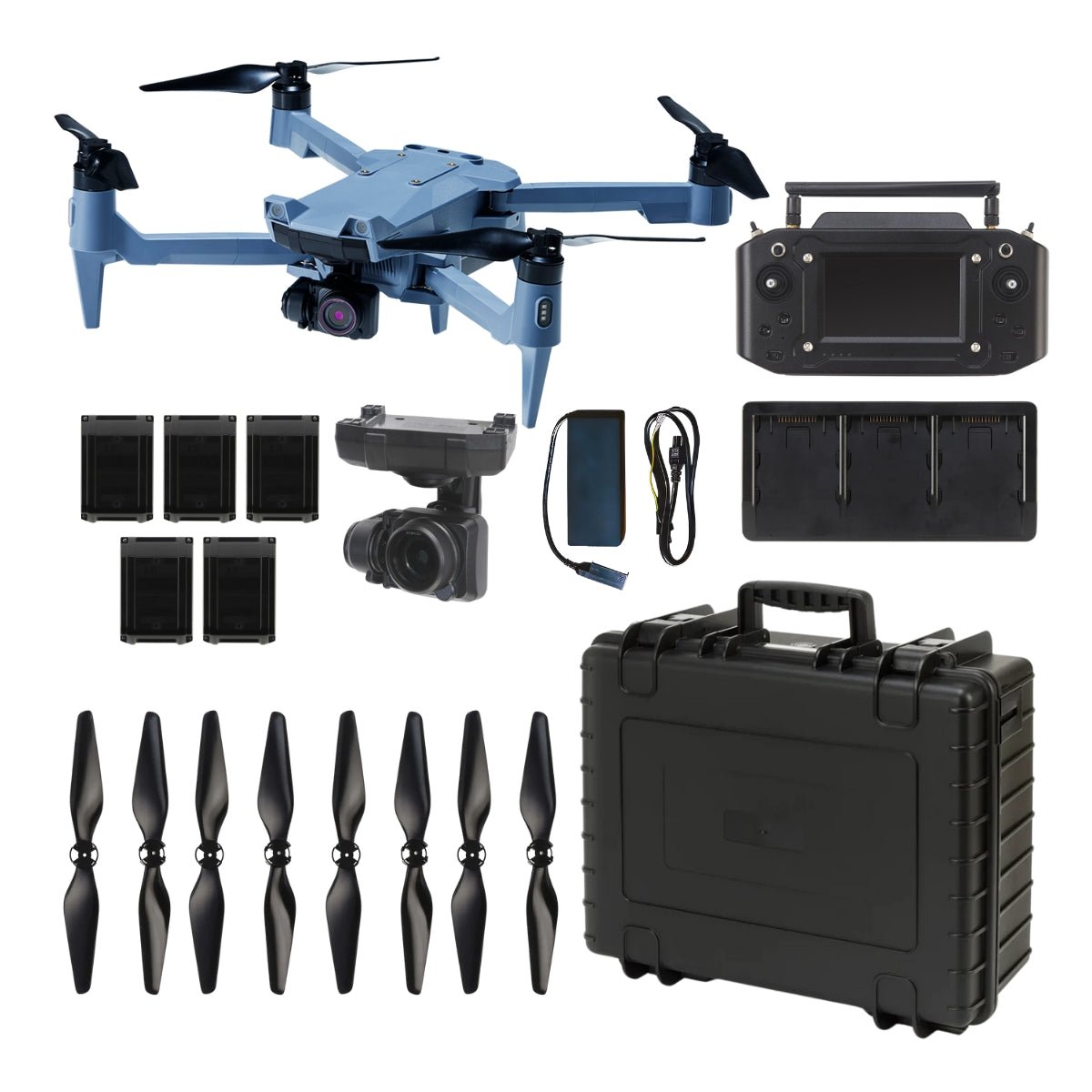

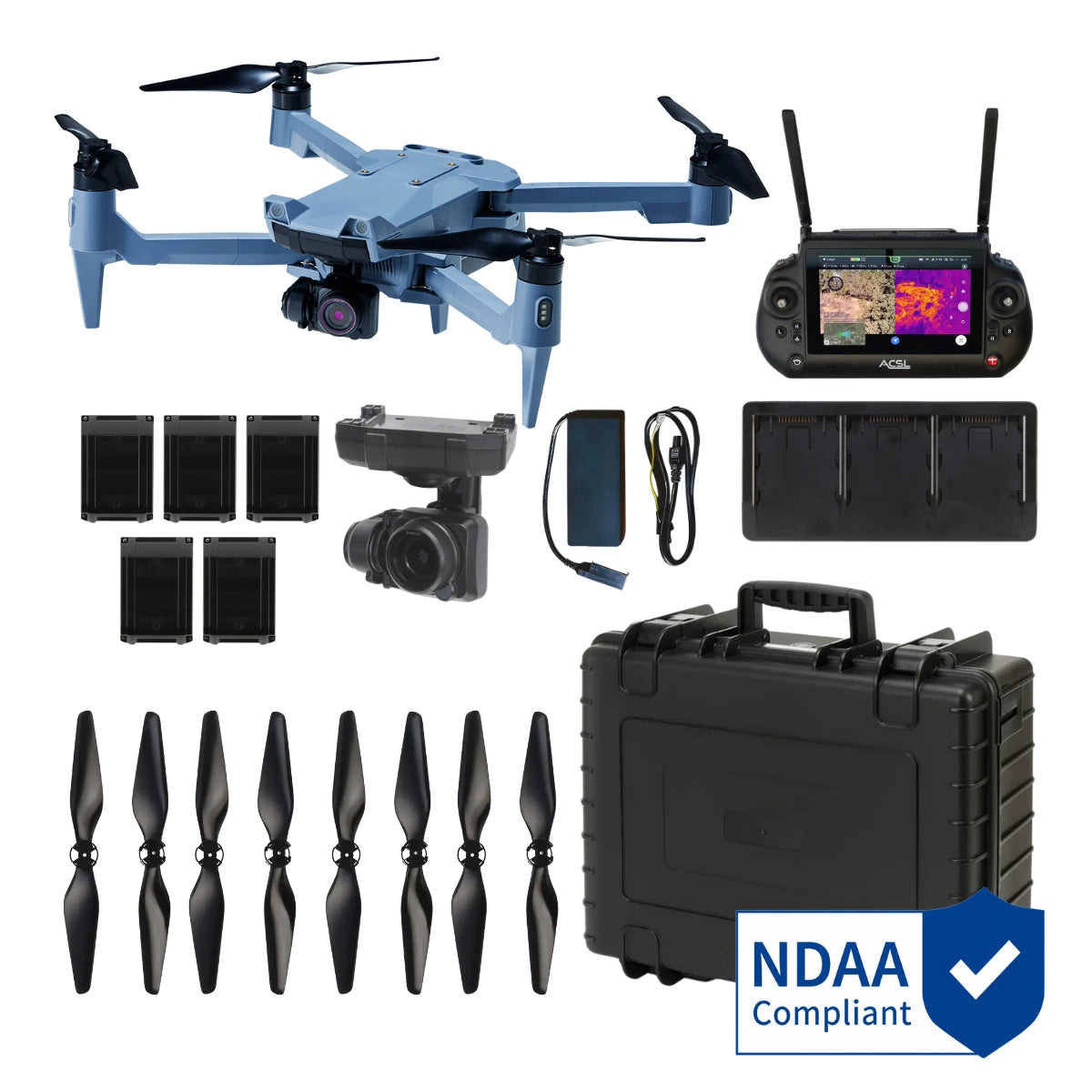

In The Box
- 1x SOTEN Airframe
- 1x TENSO Smart Controller
- 1x Battery Charger
- 1x Triple Battery Charger
- 5x Smart Batteries
- 2x CW Propeller Set
- 2x CCW Propeller Set
- 1x Standard 20MP Camera
- 1x Hard Storage Case
