DJI Dock 3 + 25 ft 14/3 Gauge Power Extension Cord (for DJ Dock)

DJI Dock 3 + 25 ft 14/3 Gauge Power Extension Cord (for DJ Dock)

$19,018.99
$19,018.99
Sale Sold out
SKU B-DJI-DOCK3 MPN CP.EN.00000590.01
  • Dock-only autonomous station for Matrice 4D series aircraft
  • Provides IP56 protection for weather and dust resistance
  • Operates from –30 °C to 50 °C in harsh conditions
  • Handles 12 m/s winds for safe launch and landing
  • Extends power reach with 25-ft 14/3 gauge cord
  • Supports up to 800 W system power draw
  • Accepts 100–240 V AC input for global compatibility
  • Features reinforced insulation for field durability
  • Serves industrial and security operations reliably
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Reliable autonomous docking with flexible power placement

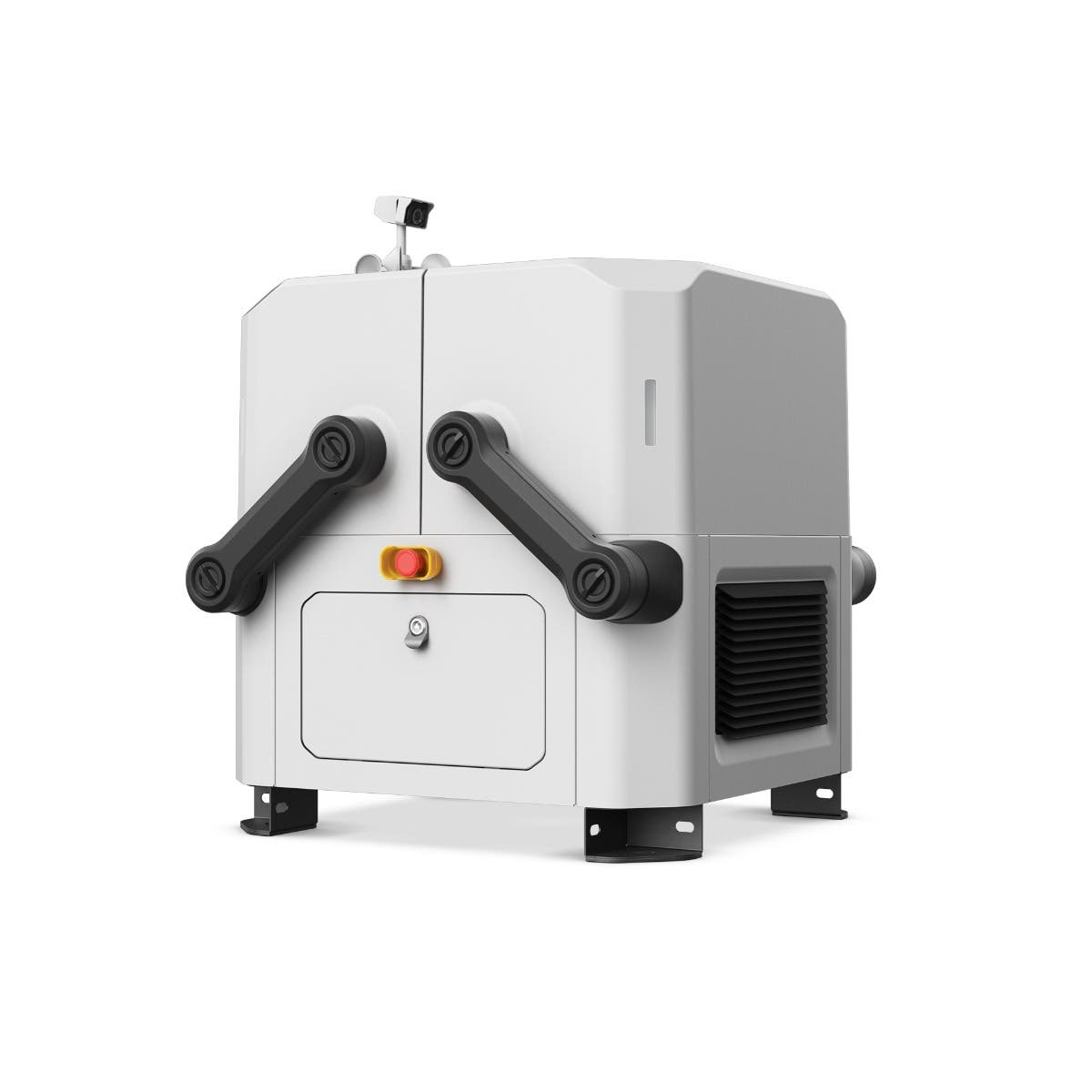

The DJI Dock 3 is an autonomous charging and deployment station for DJI Matrice 4D series aircraft (drone not included), engineered for continuous industrial and remote operations.

Paired with a 25-foot 14/3-gauge power extension cord, this configuration ensures stable power delivery even when sources are offset from the dock's location.

With IP56 protection and temperature tolerance from -30 °C to 50 °C, the Dock 3 maintains mission readiness in challenging environments.

Key features and benefits

  • Automates Matrice 4D series launch and charging (drone not included)
  • Provides IP56 protection against dust and water exposure
  • Operates reliably from -30 °C to 50 °C in extreme conditions
  • Accepts 100-240 V AC input (50/60 Hz) for global use
  • Supports up to 800 W system load for consistent power
  • Extends reach to distant power sources (25-ft cord)
  • Minimizes voltage drop with heavy-duty 14/3 gauge design
  • Resists moisture and abrasion with reinforced insulation
  • Simplifies installation and maintenance with modular layout
  • Integrates seamlessly with Matrice 4D series aircraft

Flexible power reach for complex installations

Supporting 100-240 V AC (50/60 Hz) and up to 800 W load, the Dock 3 manages charging, thermal control, and data communications through its integrated power system.

The 25-ft extension cord preserves voltage stability over distance, allowing safe placement of electrical outlets in protected zones.

Modular construction and self-maintenance features maximize uptime and reduce manual intervention in long-term deployments.

Built for field durability and operational continuity

Designed for utility, security, and inspection missions, this bundle offers dependable power and hardware resilience.

The 14/3-gauge cable's reinforced insulation prevents voltage drop and abrasion damage, while the Dock 3's sealed housing protects against rain, dust, and temperature shock.

Together, they create a secure, autonomous base for Matrice 4D series aircraft-streamlining aerial data acquisition with minimal on-site maintenance.

Applications and use cases

  • Monitors bridges, towers, and industrial infrastructure
  • Conducts automated patrols for remote facilities
  • Gathers environmental data in forest and coastal zones
  • Performs pipeline and powerline inspections autonomously
  • Automates construction mapping and progress documentation
  • Oversees transport routes such as highways and railways
  • Launches rapid aerial surveys for emergency response
  • Captures agricultural data through scheduled flights
  • Enhances security with perimeter surveillance missions
  • Supports smart city integration for real-time monitoring

This bundle provides rugged hardware and reliable power extension for long-term autonomous deployments. The DJI Dock 3 and 25-ft 14/3 cord ensure full functionality even when power access is limited, supporting continuous enterprise missions.

Dronefly delivers authorized sales and technical support for DJI Dock 3 systems. Buy today to enhance your fleet with autonomous operational capability.

General

  • Product Name: DJI Dock 3
  • Total Weight: 55 kg (without aircraft)
    The actual product weight may vary due to differences in batch materials and external factors.
  • Dimensions:

    Dock Cover Opened: 1760×745×485 mm (L×W×H)
    Dock Cover Closed: 640×745×770 mm (L×W×H)

    All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm).
  • Input Voltage: 100-240 V (AC), 50/60 Hz
  • Input Power: Max 800 W
  • Operating Temperature: -30° to 50° C (-22° to 122° F)
  • Ingress Protection Rating: IP56
  • Number of Drones Accommodated: 1
  • Max Allowable Landing Wind Speed: 12 m/s
  • Max Operating Altitude: 4500 m
  • Receiving Frequency of RTK Base Station Satellite:

    GPS: L1 C/A, L2, L5
    BeiDou: B1l, B2l, B3l, B2a, B2b, B1C
    GLONASS: F1, F2
    Galileo: E1, E5a, E5b, E6
    QZSS: L1, L2, L5

  • Positioning Accuracy of RTK Base Station:

    Horizontal: 1 cm + 1 ppm (RMS)
    Vertical: 2 cm + 1 ppm (RMS)

Charging Performance

  • Output Voltage: 35 V DC
  • Charging Time: 27 minutes
    The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.

Video Transmission

  • Operating Frequency:

    2.400-2.4835 GHz
    5.150-5.250 GHz (CE: 5.170-5.250 GHz)
    5.725-5.850 GHz

    The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.
  • Antenna: Built-in 9 antennas, 2T4R, supports intelligent switching
  • Transmitter Power (EIRP):

    2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
    5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE)
    5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)

Air Conditioning System

  • Operating Voltage: 48 V DC
  • Air Conditioning Type: Compressor-based air conditioning

Backup Battery

  • Battery Capacity: 12 Ah
  • Output Voltage: 12 V
  • Battery Type: Lead-acid battery
  • Battery Life: > 4 hours
    Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.

Network Access

  • Ethernet Access: 10/100/1000Mbps adaptive Ethernet port
  • 4G Access: Requires DJI Cellular Dongle 2
    Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.

Sensors

  • Wind Speed Sensor: Supported
  • Rainfall Sensor: Supported
  • Ambient Temperature Sensor: Supported
  • Water Immersion Sensor: Supported
  • In-Cabin Temperature Sensor: Supported
  • In-Cabin Humidity Sensor: Supported

Security Camera (External)

  • Resolution: 1920×1080
  • Field of View (FOV): 151°
  • Auxiliary Light: Auxiliary White Light

Security Camera (Internal)

  • Resolution: 1920×1080
  • FOV: 151°
  • Auxiliary Light: Auxiliary White Light

Lightning Protection

  • AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements
  • Ethernet Port: 10 kA (Itotal), meets EN/IEC 61643-21 Category C protection level requirements

Supported Software

  • Applications: DJI Enterprise app (used with Android phones for deployment and commissioning)
  • Cloud Platform:

    FlightHub 2
    FlightHub 2 On-Premises Version
    FlightHub 2 FlightHub Sync
    DJI Cloud API

Expansion Capability

  • Edge Computing: Supports data communication with external switches
  • 1x Dock Body (incl. Ground Wire)
  • 1x Wind Speed Gauge Module
  • 4x Expansion Bolt
  • 1x Ethernet Cable Connector
  • 1x Power Cable Connector
  • 1x Wire Ferrule
  • 1x Screws and Tools
  • 1x Manuals
  • 1x 25 ft 14/3 Gauge Power Extension Cord (for DJ Dock)
What are the key upgrades of Dock 3 compared to the Dock 2?

The DJI Dock 3 is an upgraded version of the DJI Dock 2 with the following major improvements:

  • Ingress protection rating improved to IP56.
  • Operating temperature range expanded (−30 °C to +50 °C) in the Dock.
  • Upgraded video-transmission system (O4+ Enterprise) and faster mission readiness.
  • Support for vehicle-mounted deployment.
  • Additional accessory support (e.g., the D-RTK 3 Relay Fixed Deployment version) for more flexible site selection.
How many drones can one DJI Dock 3 accommodate?

It is specified to accommodate one drone at a time.

How long does it take for the drone battery to charge when using the DJI Dock 3?

When charging a Matrice 4D Series battery via the Dock 3:

  • In Standard Mode: approx. 37 minutes from 15% to full.
  • In Ready-to-Fly Mode: approx. 27 minutes from 15% to 95%.
Can DJI Dock 3 be deployed on a vehicle?

Yes. Dock 3 is the first of DJI's docks to support vehicle-mounted deployment, enabling mobile operations.

What’s the operating environment (temperature, ingress protection) of DJI Dock 3?

The Dock 3 supports an operating temperature range from -30 °C to +50 °C (-22 °F to +122 °F) and an ingress protection rating of IP56.

Which drones are compatible with DJI Dock 3?

DJI Matrice 4D or Matrice 4TD.

Are Dock 3 and Matrice 4D Series weatherproof?

Yes, both Dock 3 and the Matrice 4D/4TD are IP55-rated and tested for industrial environments. This means they are protected from dust and low-pressure water jets, such as rain and sprinklers. However, they are not waterproof and cannot be submerged in water.
