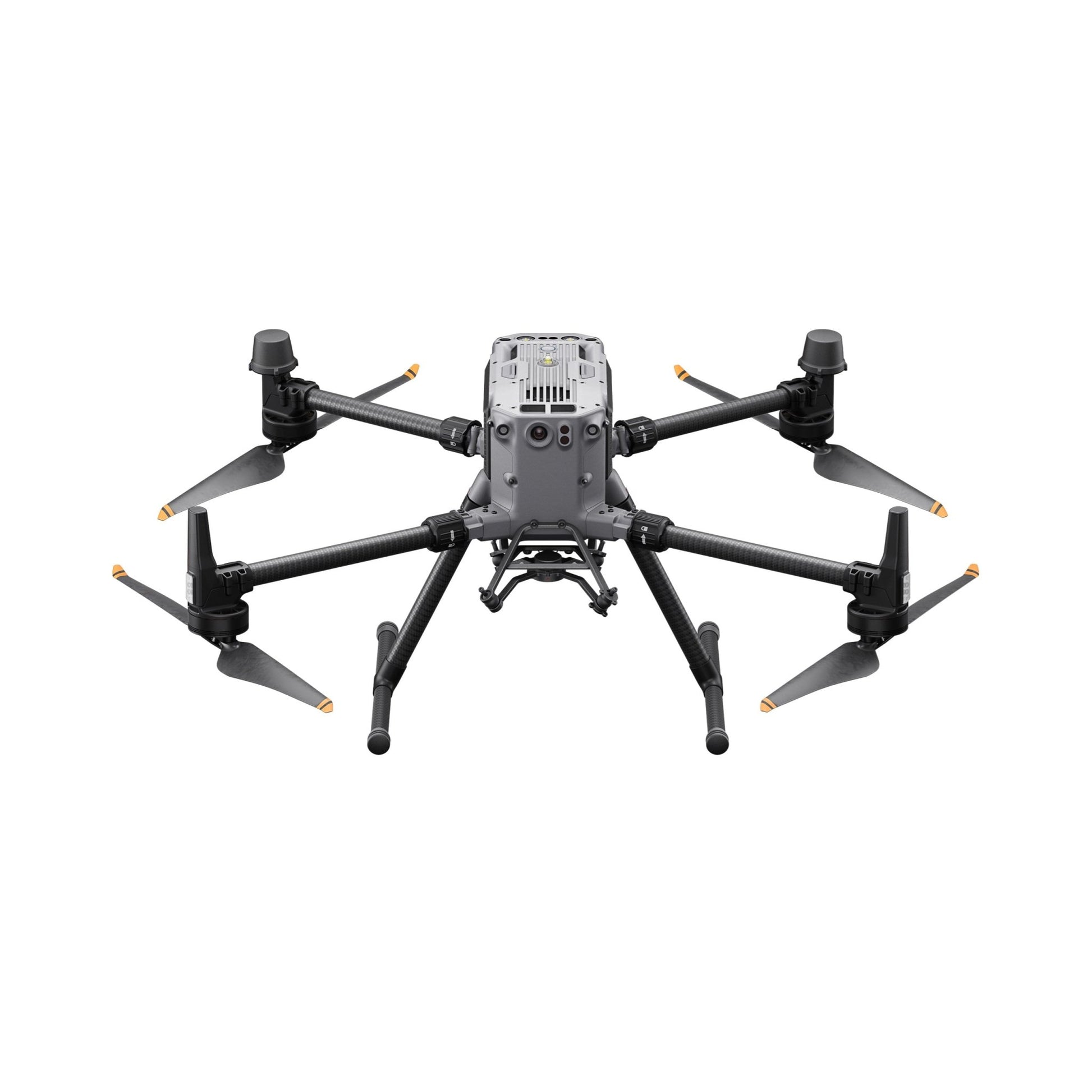

DJI Matrice 350 RTK with BS65 Battery Station

DJI Matrice 350 RTK with BS65 Battery Station

$12,828.00
$12,828.00
Sale Sold out
  • Does not include DJI Care Enterprise plan
  • DJI M350 RTK drone with advanced RTK system
  • IP55 weather sealing for harsh environments
  • 20 km OcuSync 3 Enterprise range
  • Supports LiDAR, multispectral, and zoom payloads
  • DJI BS65 charger optimizes battery logistics
  • Triple video channel 1080p transmission
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 350 RTK with BS65 Battery Station

The DJI Matrice 350 RTK offers industrial-grade performance and adaptability, making it an essential asset for modern drone professionals. Whether executing topographic surveys or responding to critical incidents, the M350 RTK's enhanced safety, precision, and transmission range provide confidence in every mission.

This Dronefly package includes the DJI Matrice 350 RTK aircraft and DJI BS65 Intelligent Battery Station, offering everything needed to operate efficiently and safely in the field. Built to support extended aerial missions with maximum uptime and situational awareness.

Built for Extended Aerial Demands

Featuring a powerful propulsion system, advanced flight control, and IP55-rated durability, the DJI Matrice 350 RTK excels in diverse operational environments.

With support for the latest DJI Enterprise payloads, triple-channel video transmission, and onboard RTK for ultra-precise positioning, this platform is ready for mission-critical operations.

The BS65 Battery Station simplifies fleet energy logistics, allowing fast turnaround and optimized power cycles.

Key Features

  • 55 minutes of maximum airtime per flight
  • IP55-rated ruggedness for field deployment
  • OcuSync 3 Enterprise with triple 1080p feeds
  • Real-time RTK positioning with centimeter accuracy
  • BS65 Battery Station enables efficient charging
  • Integrated health management for batteries
  • Compatible with wide payload ecosystem

Applications

  • Topographic and construction site mapping
  • Bridge, road, and utility structure inspections
  • First responder and search-and-rescue deployment
  • Energy infrastructure and pipeline monitoring
  • Coastal and agricultural environmental surveys
  • Large-area photogrammetry and modeling

Equip your team with the DJI Matrice 350 RTK bundle from Dronefly and be ready for any mission. Order today to stay ahead in the field.

Aircraft

  • Dimensions (unfolded, without propellers): 810×670×430 mm (L×W×H)
  • Dimensions (folded, with propellers): 430×420×430 mm (L×W×H)
  • Diagonal Wheelbase: 895 mm
  • Weight (with single downward gimbal):

    Without batteries: Approx. 3.77 kg
    With two TB65 batteries: Approx. 6.47 kg

  • Single Gimbal Damper's Max Payload: 960 g
  • Max Takeoff Weight: 9.2 kg
  • Operating Frequency:

    2.4000-2.4835 GHz
    5.150-5.250 GHz (CE: 5.170-5.250 GHz)
    5.725-5.850 GHz
    Note: 5.1GHz and 5.8GHz frequency bands are prohibited in some countries/regions.

  • Transmitter Power (EIRP):

    2.4000-2.4835 GHz:

    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)


    5.150-5.250 GHz (CE: 5.170-5.250 GHz): < 23 dBm (CE)
    5.725-5.850 GHz:

    < 33 dBm (FCC/SRRC)
    < 14 dBm (CE)



  • Hovering Accuracy (with moderate or no wind):

    Vertical:

    ±0.1 m (with vision positioning)
    ±0.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)


    Horizontal:

    ±0.3 m (with vision positioning)
    ±1.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)



  • RTK Positioning Accuracy (RTK FIX):

    1 cm + 1 ppm (horizontal)
    1.5 cm + 1 ppm (vertical)

  • Max Angular Velocity:

    Pitch: 300°/s
    Yaw: 100°/s

  • Max Pitch Angle: 30°

    In N mode with forward vision system enabled: 25°

  • Max Ascent Speed: 6 m/s
  • Max Descent Speed (vertical): 5 m/s
  • Max Tilted Descent Speed: 7 m/s
  • Max Horizontal Speed: 23 m/s
  • Max Flight Altitude:

    5000 m (with 2110s propellers and takeoff weight ≤ 7.4 kg)
    7000 m (with 2112 High-Altitude Low-Noise Propellers and takeoff weight ≤ 7.2 kg)

  • Max Wind Speed Resistance: 12 m/s
  • Max Flight Time: 55 minutes (tested with Matrice 350 RTK flying at approx. 8 m/s in a windless environment)
  • Supported DJI Gimbals: Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, Zenmuse L1
  • Supported Gimbal Configurations:

    Single downward gimbal
    Single upward gimbal
    Dual downward gimbals
    Single downward gimbal + single upward gimbal
    Dual downward gimbals + single upward gimbal

  • Ingress Protection Rating: IP55 (rating may decrease due to product wear)
  • Global Navigation Satellite System: GPS + GLONASS + BeiDou + Galileo
  • Operating Temperature: -20° to 50° C (-4° to 122° F)

Remote Controller

  • Screen: 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
  • Weight:

    Approx. 1.25 kg (without WB37 battery)
    Approx. 1.42 kg (with WB37 battery)

  • Global Navigation Satellite System: GPS + Galileo + BeiDou
  • Built-in Battery:

    Type: Li-ion (6500 mAh@7.2 V)
    Charging Type: Battery station or USB-C fast charger (max power 65 W, max voltage 20 V)
    Charging Time: 2 hours
    Chemical System: LiNiCoAlO2

  • External Battery (WB37 Intelligent Battery):

    Capacity: 4920 mAh
    Voltage: 7.6 V
    Type: Li-ion
    Energy: 37.39 Wh
    Chemical System: LiCoO2

  • Ingress Protection Rating: IP54
  • Operating Time:

    Built-in Battery: approx. 3.3 hours
    Built-in Battery + External Battery: approx. 6 hours

  • Operating Temperature: -20° to 50° C (-4° to 122° F)
  • Operating Frequency:

    2.4000-2.4835 GHz
    5.725-5.850 GHz

  • Transmitter Power (EIRP):

    2.4000-2.4835 GHz:

    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)


    5.725-5.850 GHz:

    < 33 dBm (FCC)
    < 14 dBm (CE)
    < 23 dBm (SRRC)



  • Wi-Fi Protocol: Wi-Fi 6
  • Wi-Fi Operating Frequency:

    2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz

  • Bluetooth Protocol: Bluetooth 5.1
  • Bluetooth Operating Frequency: 2.4000-2.4835 GHz

Video Transmission

  • Video Transmission System: DJI O3 Enterprise Transmission
  • Antenna: 4 video transmission antennas, 2T4R
  • Max Transmission Distance (unobstructed, free of interference):

    20 km (FCC)
    8 km (CE/SRRC/MIC)

  • Max Transmission Distance (with interference):

    Low Interference, Obstructed by Buildings: 0-0.5 km
    Low Interference, Obstructed by Trees: 0.5-3 km
    Strong Interference, Unobstructed: 1.5-3 km (urban landscape)
    Medium Interference, Unobstructed: 3-9 km (suburban landscape)
    Low Interference, Unobstructed: 9-20 km (suburb/seaside)

Vision System

  • Obstacle Sensing Range:

    Forward/Backward/Left/Right: 0.7-40 m
    Upward/Downward: 0.6-30 m

  • FOV:

    Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
    Left/Right/Upward: 75° (horizontal), 60° (vertical)

  • Operating Environment: Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System

  • Obstacle Sensing Range: 0.1-8 m
  • FOV: 30° (±15°)
  • Operating Environment: Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light

  • Effective Illumination Distance: 5 m
  • Illumination Type: 60 Hz, solid glow

FPV Camera

  • Resolution: 1080p
  • FOV: 142°
  • Frame Rate: 30fps

Intelligent Flight Battery

  • Model: TB65
  • Capacity: 5880 mAh
  • Voltage: 44.76 V
  • Type: Li-ion
  • Energy: 263.2 Wh
  • Weight: Approx. 1.35 kg
  • Operating Temperature: -20° to 50° C (-4° to 122° F)
  • Ideal Storage Temperature: 22° to 30° C (71.6° to 86° F)
  • Charging Temperature: -20° to 40° C (-4° to 104° F)
  • Charging Time (with 220V power supply):

    Fully charge two TB65 Intelligent Flight Batteries in approx. 60 minutes
    Charge two TB65 Intelligent Flight Batteries from 20% to 90% in approx. 30 minutes

Intelligent Battery Station

  • Dimensions: 580×358×254 mm (L×W×H)
  • Net Weight: Approx. 8.98 kg
  • Compatible Stored Items:

    Eight TB65 Intelligent Flight Batteries
    Four WB37 Intelligent Batteries

  • Input Voltage:

    100-120 VAC, 50-60 Hz
    220-240 VAC, 50-60 Hz

  • Max Input Power:

    1070 W

  • Output Power:

    100-120 V: 750 W
    220-240 V: 992 W

  • Operating Temperature: -20° to 40° C (-4° to 104° F)
  • 1x Matrice 350 Aircraft
  • 1x DJI RC Plus
  • 1x WB37 Intelligent Battery

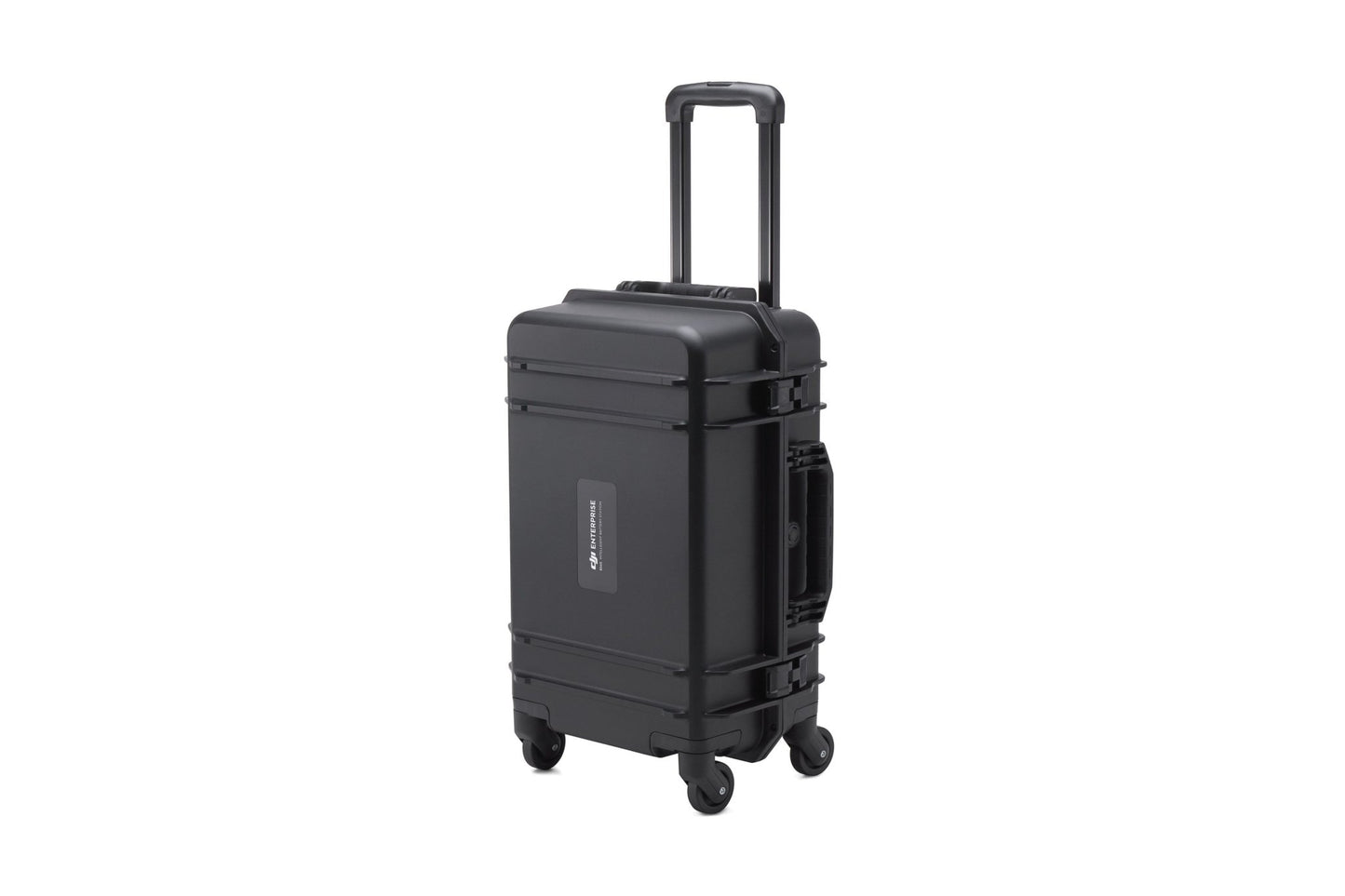

  • 1x Carrying Case
  • 2x Landing Gear
  • 1x Matrice 350 RTK 2110s Propellers (Pair)
  • 1x Screws and Tools
  • 1x Cleaning Tools
  • 1x Spare Gimbal Damper
  • 1x Rubber Port Cover (Set)
  • 1x Screws and Tools
  • 1x DJI BS65 Battery Station
Can the Matrice 350 RTK batteries be hot-swapped?

Yes. The TB65 dual-battery system allows hot-swapping without powering off the aircraft.

What is the maximum payload capacity of the Matrice 350 RTK drone?

The drone can carry up to 2.7 kg and supports multiple payload configurations.

How do I set up/use Matrice 350 RTK?

To set up and use the Matrice 350 RTK:

  1. Unbox and Assemble: Attach propellers, landing gear, and any payloads according to the included manual.
  2. Power Up: Install and charge the battery. Ensure the remote controller and firmware are updated.
  3. Calibration: Calibrate the compass, IMU, and RTK modules as instructed for optimal accuracy.
  4. Flight Settings: Use the DJI Pilot app to configure flight parameters, safety settings, and mission plans.
  5. Test Flight: Conduct a test flight in an open area before starting your operations.

Refer to the official DJI Matrice 350 RTK user manual or consult online tutorials for detailed step-by-step instructions.

What materials are used in the Matrice 350 RTK?

The Matrice 350 RTK is built with high-grade composite materials for durability and a lightweight aluminum frame for optimized weight-to-strength performance. Its weather-sealed design protects internal components, allowing for use in diverse environmental conditions. Payloads and attachments are constructed from aerospace-grade materials to ensure long-lasting reliability.

What is the ingress protection (IP) rating of the M350 RTK?

The M350 RTK has an IP55 rating, which provides protection against moderate dust ingress and water exposure.
*Note: The IP rating may diminish over time due to normal wear and tear. Avoid operating the drone in rain exceeding 100 mm/24 hours.

How many batteries can the BS65 Intelligent Battery Station charge at the same time?

The BS65 Intelligent Battery Station is capable of storing up to eight TB65 Intelligent Flight Batteries and four WB37 Intelligent Batteries. It can charge two TB65 batteries and one WB37 battery simultaneously. Batteries with the highest remaining charge are prioritized for charging first, followed by those with lower levels.
