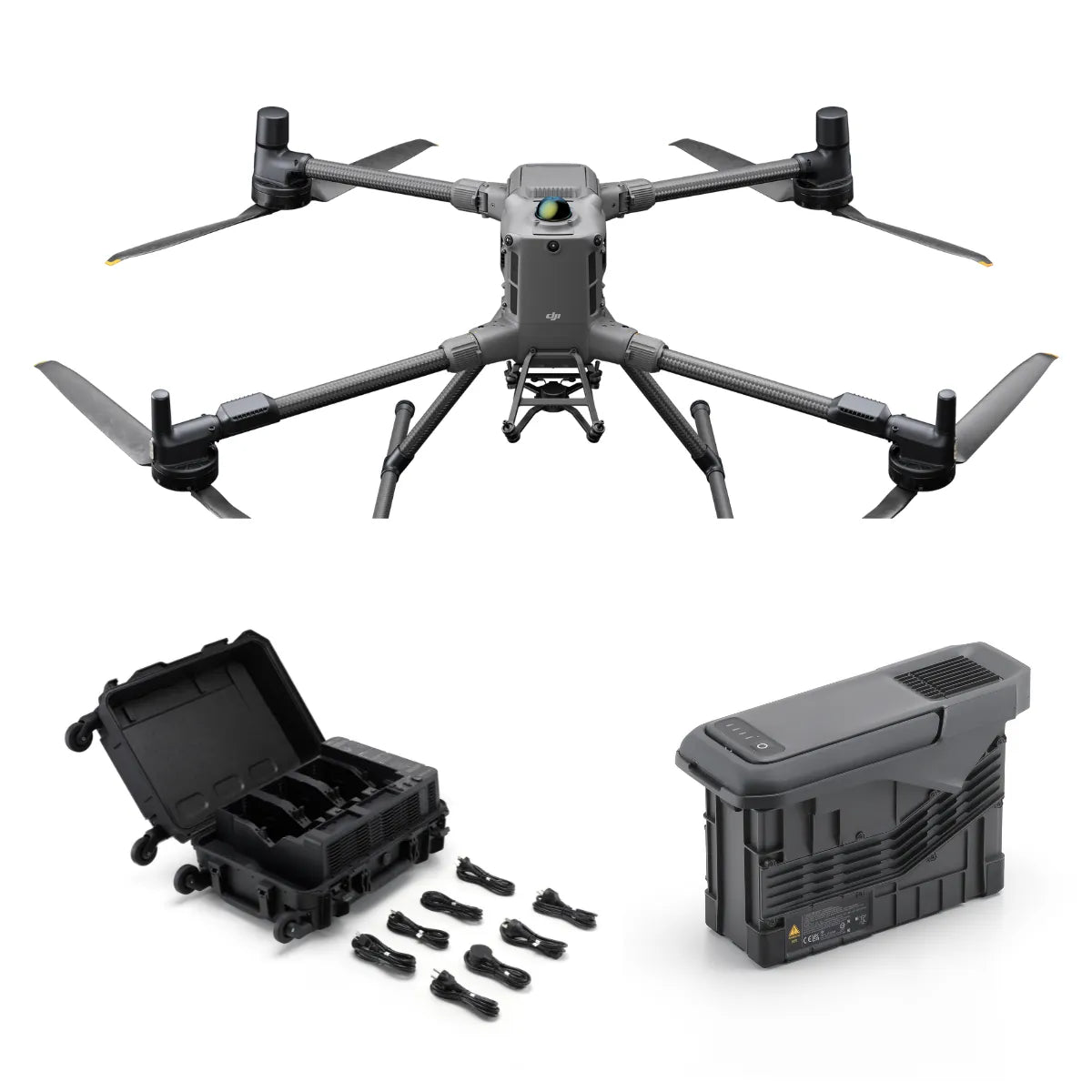

DJI Matrice 400 with BS100 Battery Station + TB100 Intelligent Flight Battery

DJI Matrice 400 with BS100 Battery Station + TB100 Intelligent Flight Battery

$14,294.00
$14,294.00
Sale Sold out
SKU B-DJI-M400 MPN CP.EN.00000667.02
  • DJI’s newest enterprise flagship: 59-minute flight, 6kg payload, 7-port support
  • BS100 charges 3 × TB100s in 45 minutes; supports quiet and auto-discharge modes
  • Full-color low-light obstacle sensing with LiDAR + radar + fisheye cameras
  • Compatible with H30, L2, P1, spotlight, speaker, tethered battery, and more
  • Real-time terrain following, AR overlays, AI detection, and ship-based landings
  • Ideal for SAR, utilities, mapping, inspections, and multi-drone operations
  • Supports DJI RC Plus 2, FlightHub 2, Terra, Modify, and open development ecosystem
  • Includes BS100 Intelligent Battery Station and 1 TB100 Intelligent Flight Battery
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Redefine What’s Possible in the Field

The DJI Matrice 400 is DJI’s most capable enterprise drone to date—engineered to go further, carry more, and navigate smarter.

Now bundled with the BS100 Intelligent Battery Station and one TB100 Intelligent Flight Battery, this field-ready solution is made for professionals who operate under pressure, in complex environments, and with zero margin for downtime.

From long-range transmission and pinpoint obstacle avoidance to rapid battery rotation and intelligent automation, the M400 gives field teams the tools to stay mission-ready—day or night, on land or sea. Fly longer. Charge faster. React sooner.

Bundle Highlights

  • Flagship drone with 59-minute flight time and 6kg payload capacity
  • Rapid battery recharging: 3 × TB100s to 100% in 45 minutes (220V)
  • Triple-layer obstacle sensing: LiDAR + mmWave radar + low-light vision
  • IP55-rated for dust, rain, and tough environments
  • -20 °C to 50 °C operating range for all-season missions
  • 7 payload ports (dual gimbals, 4 × E-Port V2, underslung mount)
  • O4 Enterprise transmission: 1080p/60fps, 40km (FCC), with dual 4G dongle support

Built to Keep You Flying

The Matrice 400 stretches performance with a 59-minute forward-flight time, 6kg payload capacity, and a triple-layer sensing suite combining LiDAR, radar, and full-color low-light vision.

The BS100 ensures your batteries keep up—charging three TB100 packs in just 45 minutes via Rapid Mode (220V), while Quiet Mode supports stealth operations near residential or sensitive areas.

Compatible Payloads

The Matrice 400 supports a wide range of DJI and third-party payloads through its flexible mounting system and E-Port V2 ecosystem, including:

  • Zenmuse H30 Series – 5-in-1 ISR sensor with wide, zoom, thermal, LRF, and NIR
  • Zenmuse L2 LiDAR – 240k pts/s LiDAR + 4/3" RGB camera for point clouds and DTM
  • Zenmuse P1 Photogrammetry – 45MP full-frame stills with 24mm, 35mm, and 50mm lens options
  • Zenmuse Spotlight S1 – 32W long-range spotlight for low-light search and rescue
DJI Matrice 400 flying at night with spotlight and camera payload
  • Zenmuse Speaker V1 – 114dB loudspeaker for emergency communication and public announcements
  • Manifold 3 – NVIDIA® 100 TOPS onboard processor for AI model deployment and smart autonomy
  • Third-Party Payloads – UV sensors, multispectral cameras, gas detectors, facade cleaning devices
  • Tethered Power Systems – Compatible with DJI TB100C and third-party aerial tether solutions

Built for Demanding Field Operations

The M400 performs where typical drones can’t. Whether it’s hovering over an energized powerline, landing on a moving ship deck, or navigating through GNSS-denied terrain, its sensor fusion and positioning algorithms deliver reliable centimeter-level control.

Flight modes like Smart AR Projection, Real-Time Terrain Follow, and Powerline AR reduce cognitive load on pilots, enabling safer, more consistent data capture. When paired with FlightHub 2, teams gain cloud-based collaboration, live telemetry, and remote operations management at scale.

DJI Matrice 400 being flown in rugged environment

Applications

  • Public Safety & Emergency Response: Use thermal + visual payloads to detect victims, spotlight scenes, and deliver audio instructions in SAR and disaster zones.
  • Infrastructure Inspection: Map and inspect powerlines, substations, bridges, and towers with LiDAR, photogrammetry, and real-time metadata overlays.
  • Utility & Renewable Energy: Perform turbine inspections, corridor mapping, or panel surveys—day or night, rain or shine—with precise terrain-following and AR tools.
  • Maritime Patrol: Take off and land from vessels in motion, relay live feeds to shore, and deploy loudspeakers or spotlights for offshore response.
  • Mapping & Surveying: Generate high-density point clouds, 3D reconstructions, and consistent GSD using L2 or P1 payloads—even in complex topographies.
  • Specialized & Tethered Ops: Run long-duration lighting or persistent overwatch using tethered batteries, onboard compute, or third-party payloads.

Take Your Missions Further

At Dronefly, we work hand-in-hand with frontline operators, engineers, and agencies to deliver solutions—not just drones. We help you choose the right payloads, configure your system, train your team, and stay compliant. Our enterprise support team is ready to assist with integration, maintenance, and operational scaling.

Every Matrice 400 bundle comes backed by expert guidance, technical onboarding, and personalized support for real-world conditions—not just lab specs.

Get in touch with our enterprise team to request a quote, schedule a flight demo, or explore bundle options tailored to your workflow.

Aircraft

  • Takeoff Weight (with propellers): Without Batteries: 5020 ± 20 g; With Batteries: 9740 ± 40 g
  • Max Takeoff Weight: 15.8 kg
  • Dimensions: Unfolded: 980×760×480 mm; Folded: 490×490×480 mm; Carrying Case: 779×363×528 mm
  • Max Payload: 6 kg
  • Propeller Size: 25 inches
  • Diagonal Wheelbase: 1070 mm
  • Max Ascent Speed: 10 m/s
  • Max Descent Speed: 8 m/s
  • Max Horizontal Speed: 25 m/s
  • Max Takeoff Altitude: 7000 m
  • Max Flight Time: 59 minutes
  • Max Hover Time: 53 minutes
  • Max Flight Distance: 49 km
  • Max Wind Resistance: 12 m/s
  • Max Yaw Angular Velocity: 100°/s
  • Max Pitch Angle: 35°
  • Operating Temperature: –20° to 50 °C
  • GNSS: GPS + Galileo + BeiDou + GLONASS*
  • Hovering Accuracy:

    Vertical: ±0.1 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
    Horizontal: ±0.3 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)

  • RTK GNSS Accuracy: 1 cm + 1 ppm (H), 1.5 cm + 1 ppm (V)
  • RTK Heading: Better than 2°
  • ADS‑B In: Range: 20 km
  • Internal Storage: N/A
  • Ports: USB‑C Debug, E‑Port V2 ×4, Cellular Dongle 2 ×2
  • Propeller Model: 2510F
  • Beacon: Built-in
  • Ingress Protection: IP55

Gimbal

  • Max Payload (Single Connector): 1400 g
  • Max Payload (Dual Connector): 950 g
  • Max Payload (Third Connector): 3 kg (quick‑release), 6 kg (screw lock)

Sensing System

  • Sensors: Omnidirectional binocular vision, LiDAR, infrared, mmWave radar
  • Forward/Backward: Range: 0.4–21 m; Detection: 0.4–200 m; FOV: 90°×90°
  • Lateral: Range: 0.6–21 m; Detection: 0.5–200 m; FOV: 90°×90°
  • Downward: Range: 0.5–19 m; FOV: 160° front/rear, 105° sides
  • Rotating LiDAR: Range: 0.5–100 m; FOV: 360°×58°
  • Upper LiDAR (3D ToF): Range: 0.5–25 m; FOV: 60°×60°
  • Infrared: Range: 0.3–8 m; FOV: 60°×60°
  • mmWave Radar: Range: 36–50 m; FOV: ±45°

FPV Camera

  • Resolution: 1080p
  • Field of View: DFOV 150°, HFOV 139.6°, VFOV 95.3°
  • Frame Rate: 30 fps
  • Night Vision: Starlight-grade

Video Transmission

  • System: DJI O4 Enterprise Enhanced
  • Live View: 3‑channel 1080p/30fps
  • Frequencies & Power: Multiple bands including 902–928 MHz, 2.4 GHz, and 5.8 GHz
  • Max Distance: 40 km (FCC), 20 km (CE)
  • Performance with Interference: 1.5–40 km depending on strength
  • Max Download Speed: 80 Mbps
  • Antennas: 8 WLAN, 2 sub2G, 4G ×4
  • Other Features: Dual Control, Cellular Dongle support

Battery

  • Model: TB100
  • Capacity: 20254 mAh
  • Voltage: 48.23 V
  • Max Charging Voltage: 54.6 V
  • Cell Type: Li-ion 13S
  • Energy: 977 Wh
  • Weight: 4720 ± 20 g
  • Charging Temp: 5–45 °C
  • Discharging Temp: –20–75 °C
  • Heating: Onboard & Station Support
  • Discharge Rate: 4C
  • Max Charging Power: 2C
  • Cycle Count: 400

Battery Station

  • Model: BS100
  • Weight: 11.8 kg
  • Dimensions: 605×410×250 mm
  • Supported Batteries: TB100 / TB100C / WB37
  • Operating Temperature: –20–40 °C
  • Input: 100–240 V AC
  • Output:

    TB100: up to 2184 W
    WB37: 52 W
    USB‑C: up to 65 W

  • Charging Channels: 3 TB100 & 2 WB37
  • Modes: Ready‑to‑Fly, Standard, Fast, Silent
  • Charging Time: 45–110 min depending on mode and voltage

Remote Controller (DJI RC Plus 2)

  • Video Transmission: DJI O4 Enterprise Enhanced
  • Max Distance: 40 km (FCC), 20 km (CE)
  • Frequencies: Multiple bands
  • Antennas: 2T4R dual‑band + sub2G 2T2R
  • Wi‑Fi: 802.11 a/b/n/ac/ax, up to 1774.5 Mbps
  • Bluetooth: 5.2
  • Screen: 7.02″, 1920×1200, 1400 nits
  • Battery: Internal (6500 mAh) + Optional External (4920 mAh)
  • Runtime: 3.8 h (internal), 7 h (w/ external)
  • Charging Time: ~2 h
  • Storage: 8 GB RAM + 128 GB + microSD
  • Ports: HDMI, SD, USB‑C (PD), USB‑A
  • Weight: 1.15 kg
  • Dimensions: 268×163×94.5 mm
  • GNSS: GPS + Galileo + BeiDou
  • OS: Android 11

Supported Accessories

  • Zenmuse H30/H30T/L2/P1
  • Zenmuse S1, V1
  • Manifold 3
  • DJI RC Plus 2 sub2G SDR
  • Cellular Dongle 2
  • D‑RTK 3 & 2
  • X‑Port, E‑Port V2
  • SkyPort V3 Adapter
  • 1x Aircraft (with propeller holder)
  • 1x Carrying Case
  • 2x Propellers (Pair)
  • 6x Propeller Washers and Screws
  • 1x Remote Controller (with DJI RC Plus 2 sub2G SDR Module)
  • 1x Power Cable
  • 1x BS100 Intelligent Battery Station
  • 1x TB100 Intelligent Flight Battery
  • 1x Remote Controller Strap and Bracket (with two screws)
  • 1x WB37 Intelligent Battery
  • 2x Landing Gear
  • 1x USB-C to USB-C Cable
  • 1x Screws and Tool Set
  • 1x Cleaning Tool Set
  • 1x Rubber Port Covers and Screws
  • 4x Gimbal Damper
Does the Matrice 400 support RTK or network RTK services?

Yes, it supports network RTK services; and those services are bound to the remote controller, not the aircraft.

Can the Matrice 400 perform precise mapping without Ground Control Points (GCPs)?

No. The telephoto camera cannot support mapping without GCPs; only the wide-angle camera in another model (Matrice 4E) does.

What firmware, software or apps does the Matrice 400 support?

It supports the DJI Pilot 2 app, Payload SDK, Mobile SDK, and Cloud API for enterprise integrations.

What remote controllers are compatible with the Matrice 400?

It supports the DJI RC Plus 2 Enterprise Edition (standard) and the DJI RC Plus 2 Enterprise Enhanced Edition (sold separately).

Is the Matrice 400 weather-resistant and suitable for harsh environments?

It has an ingress protection rating of IP55 and is built for enterprise environments, though it is not waterproof and should not be flown in heavy rain.

What is the maximum payload capacity of the Matrice 400?

It supports a payload of up to 6 kg when using the third gimbal connector (or combined gimbals/non-DJI payloads must not exceed 6 kg).
