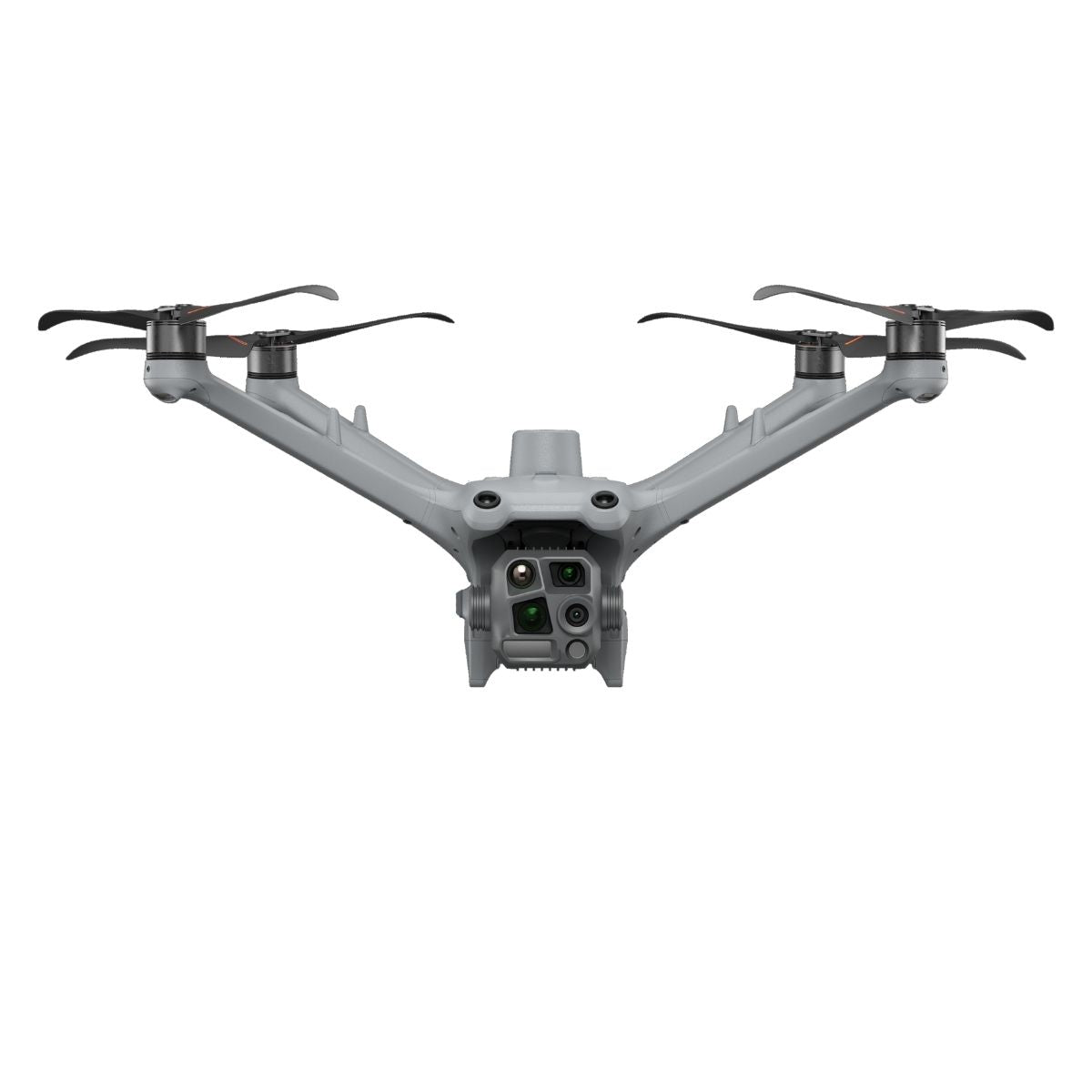

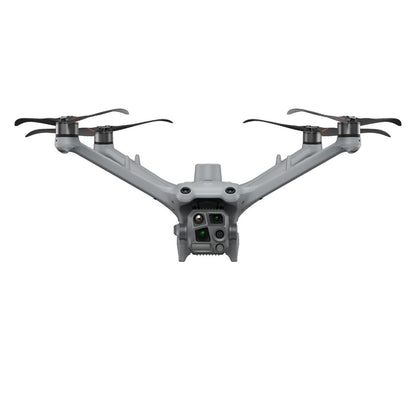

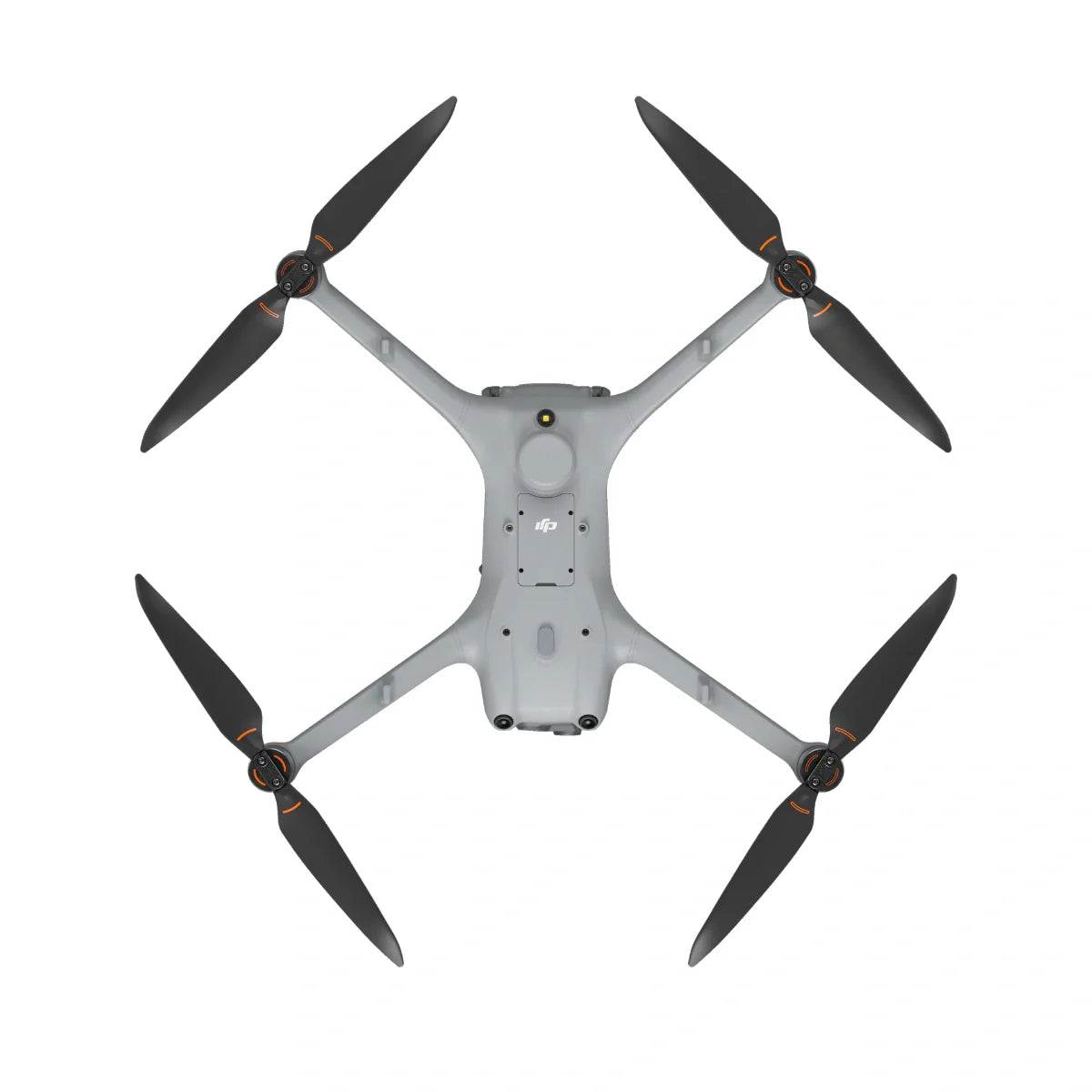

• DJI Matrice 4TD drone

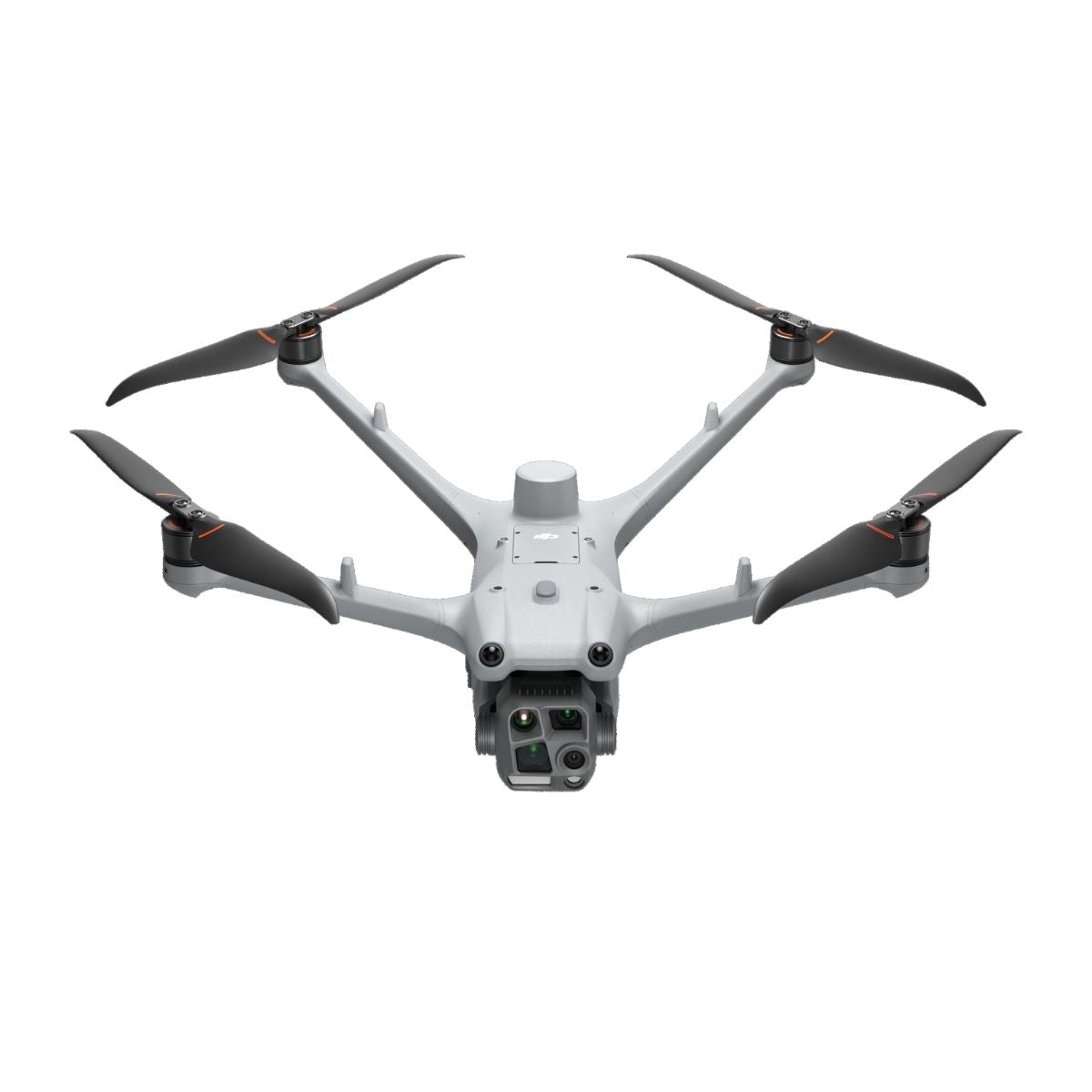

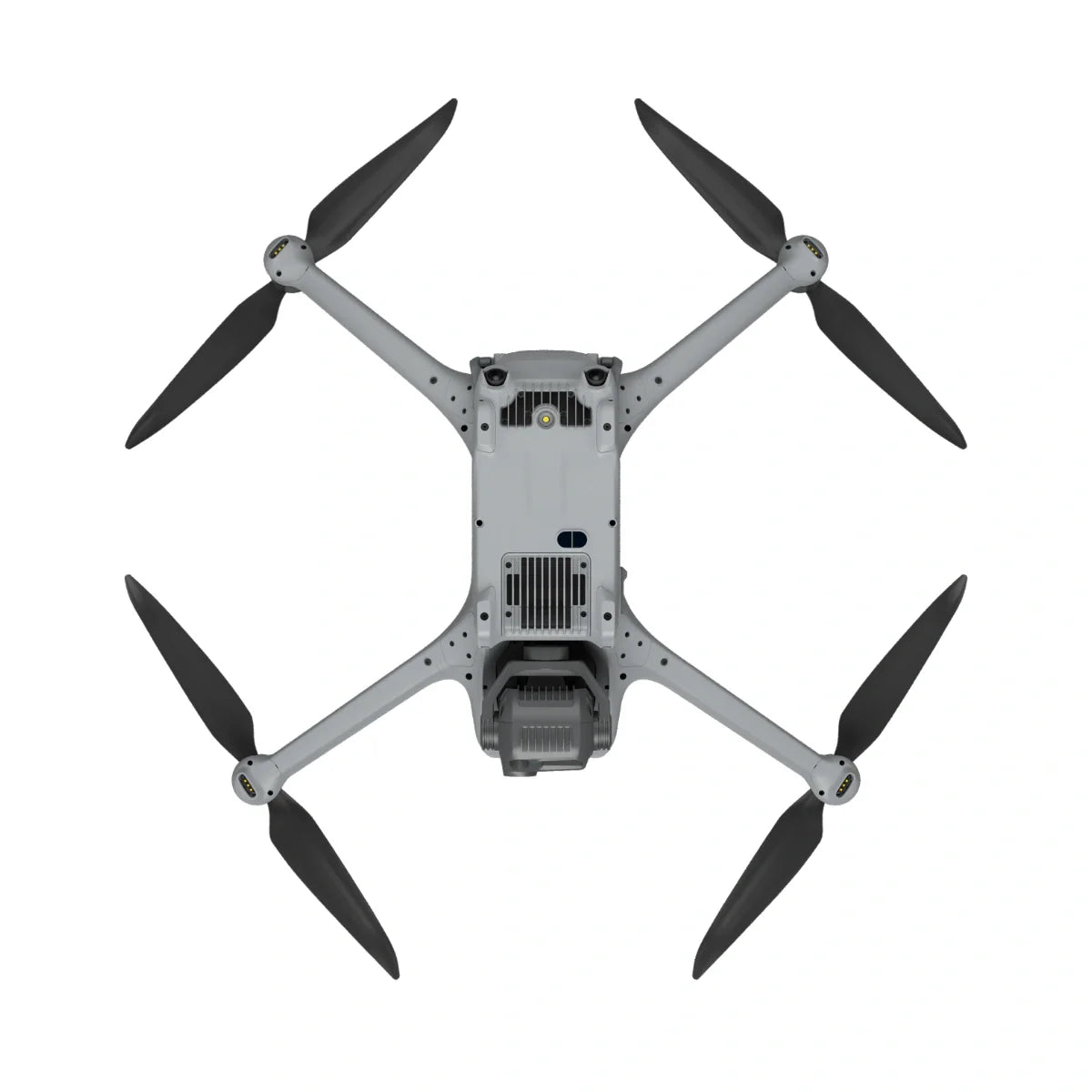

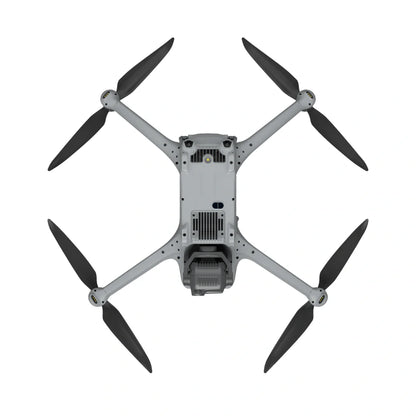

  • DJI Matrice 4TD
  • DJI Matrice 4TD multisensor gimbal camera
1 5

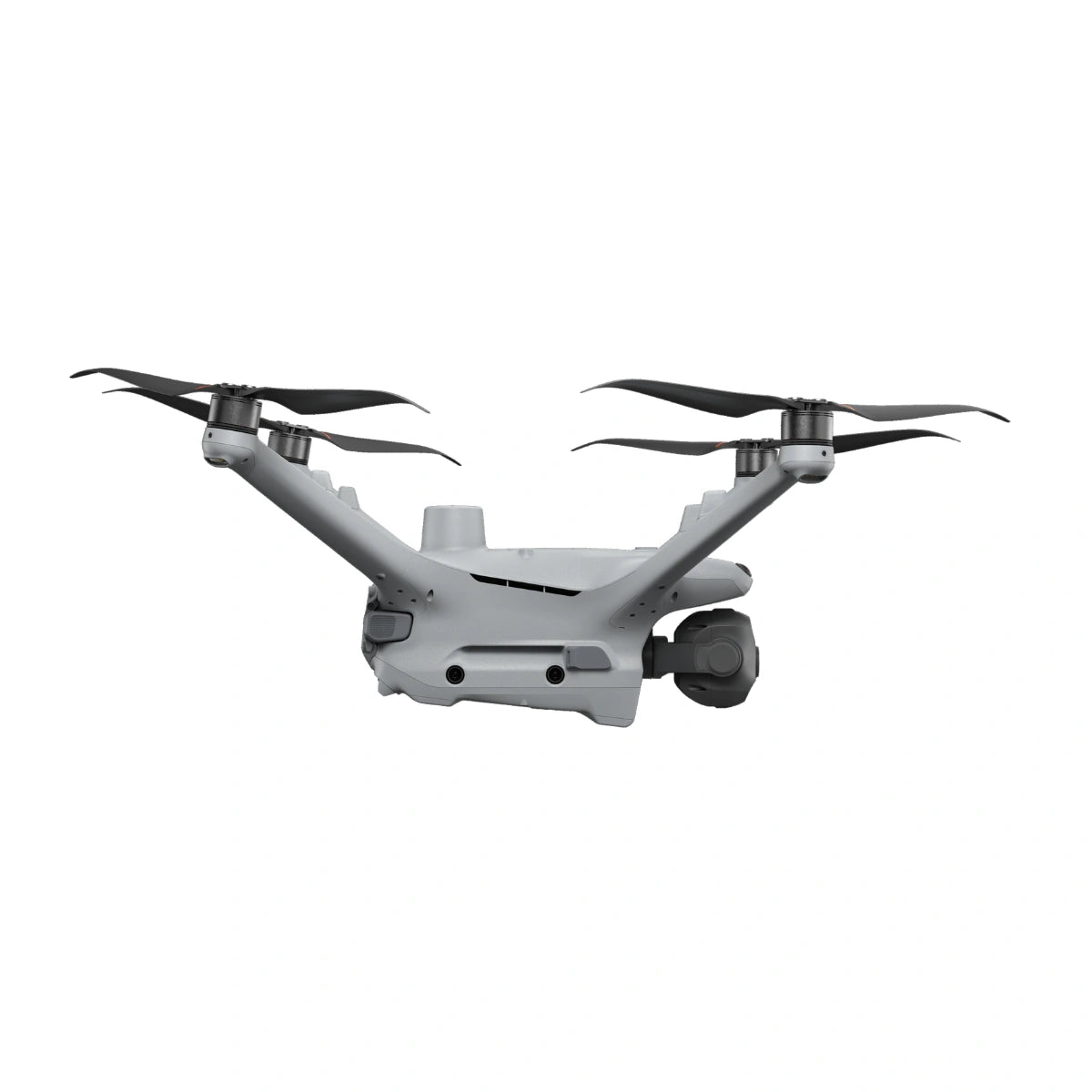

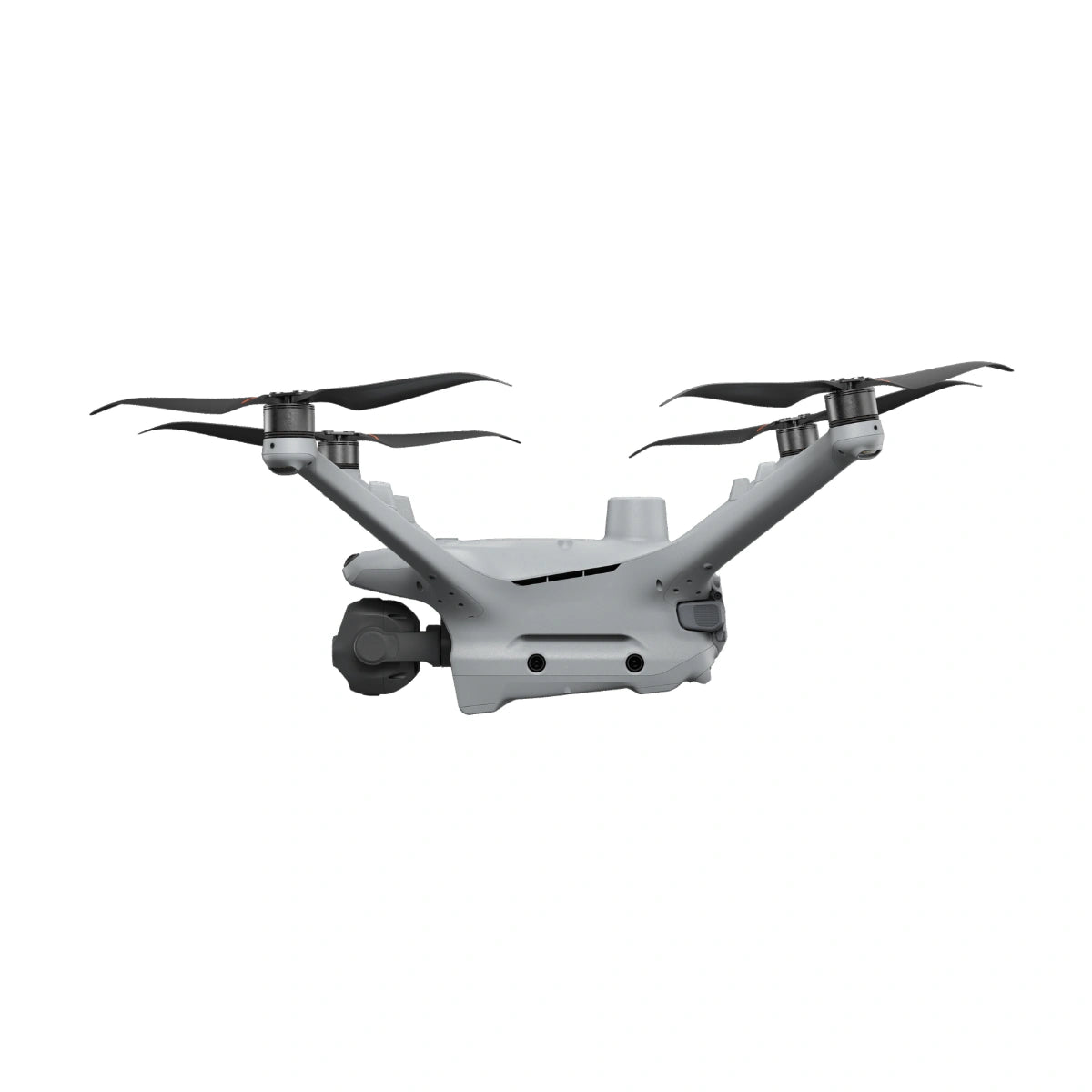

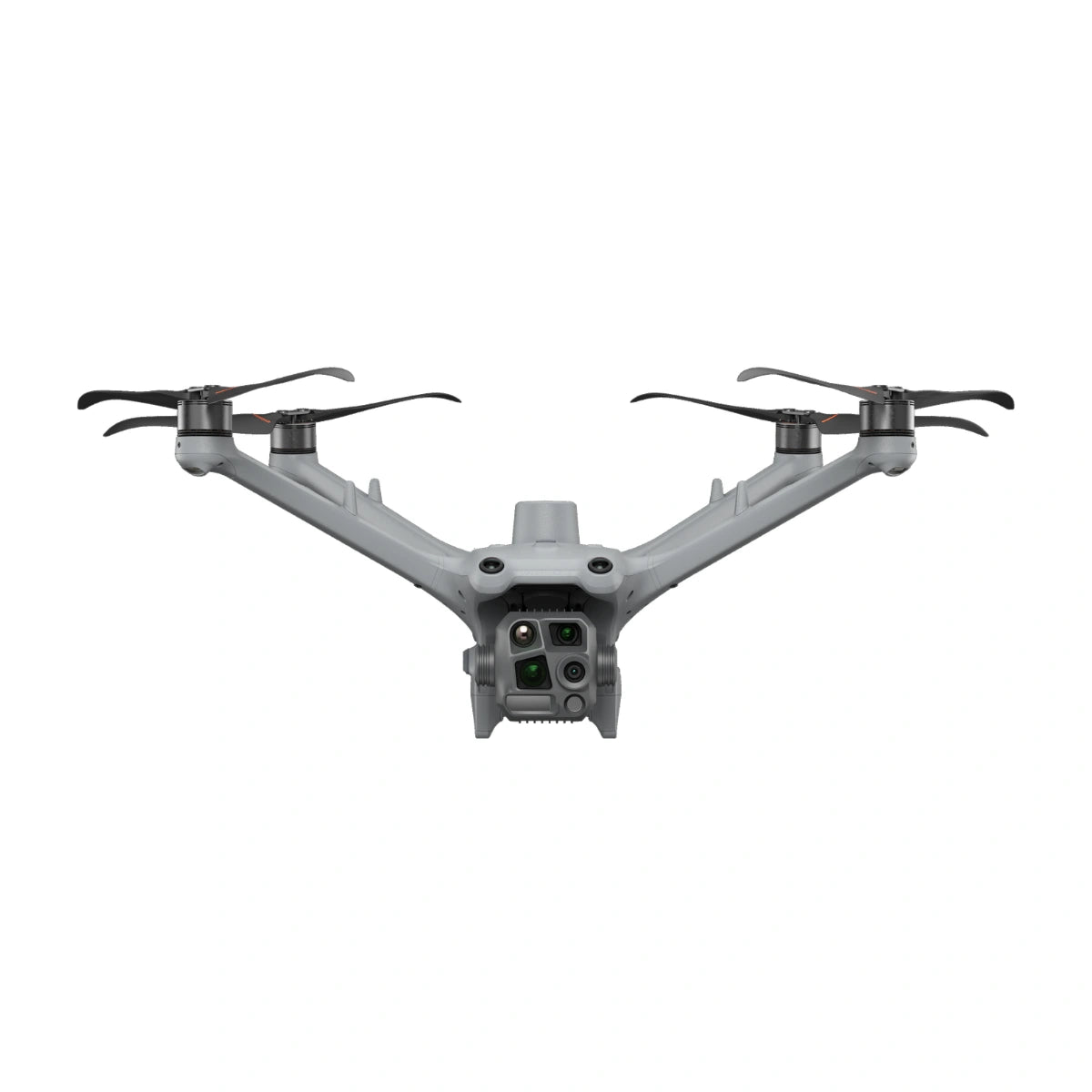

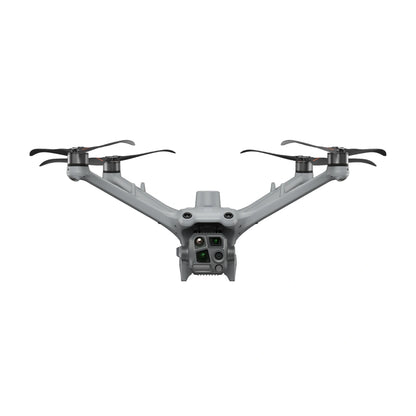

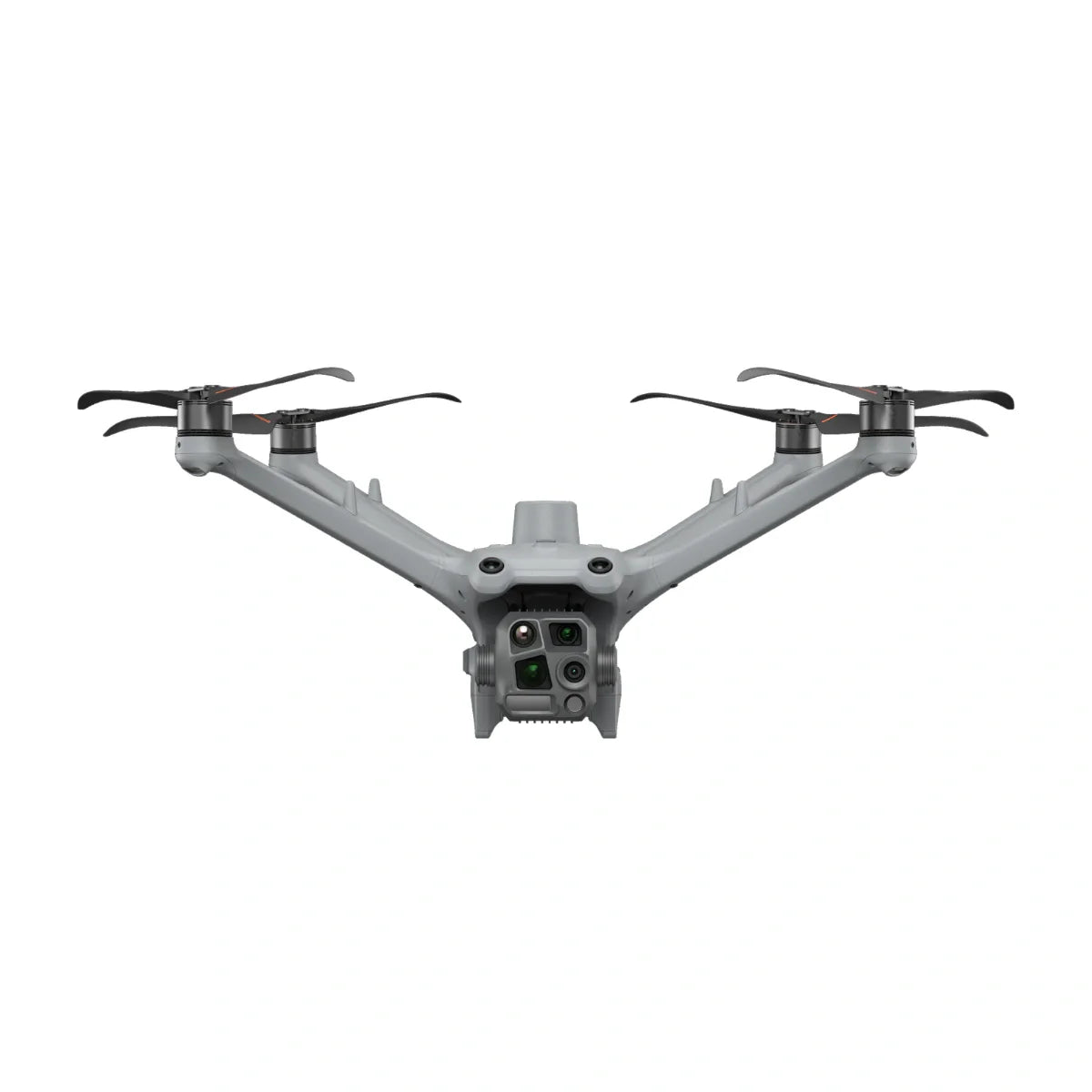

DJI Matrice 4TD with RC Plus 2 Enhanced Controller (Standalone Unit)

DJI Matrice 4TD with RC Plus 2 Enhanced Controller (Standalone Unit)

$9,899.00
$9,899.00
Sale Sold out
SKU S-DJI-M4TD-STN MPN CP.EN.00000663.01
  • Triple 48 MP cameras support flexible visual inspection ranges
  • Thermal video outputs 640 × 512 or 1280 × 1024
  • Thermal still photos support Single and Timed modes
  • Up to 47 minutes flight time supports extended missions
  • Wire detection identifies 12 mm obstacles during flight
  • 80° upward gimbal tilt enables overhead inspections
  • IP55-rated airframe operates reliably in harsh environments
  • RC Plus 2 controller provides rugged field operation
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 4TD with RC Plus 2 Enhanced Controller: thermal visibility for critical missions

The DJI Matrice 4TD is designed for professionals who require dependable aerial visibility in demanding environments. Built for public safety, inspection, and remote operations, the platform combines visual imaging, thermal sensing, long endurance, and environmental protection into a single enterprise aircraft.

This standalone configuration includes the RC Plus 2 Enhanced Controller, offering a rugged control solution optimized for field use across weather-exposed and low-visibility scenarios.

Key features

  • Triple 48 MP cameras support flexible visual inspection distances.
  • Infrared thermal video outputs 640 × 512 or 1280 × 1024.
  • Thermal still photos support Single and Timed capture modes.
  • Normal and UHR Infrared Image modes supported for thermal imaging.
  • Maximum flight time reaches up to 47 minutes per sortie.
  • Wire detection supports safer flight near utilities and structures.
  • Upward gimbal tilt enables overhead inspection perspectives.
  • IP55-rated aircraft supports operation in adverse weather conditions.

Flexible thermal imaging for video and still capture

The Matrice 4TD integrates three 48 MP visual cameras with an infrared thermal camera to support observation across wide-area monitoring, mid-range inspection, and telephoto assessment. The thermal system outputs 640 × 512 video at 30 fps during standard operation, with support for 1280 × 1024 video at 30 fps when the Ultra-High Resolution Infrared Image function is enabled and Night Scene mode is disabled.

For still imagery, both Single and Timed thermal capture modes are supported in Normal and UHR Infrared Image modes.

Built for endurance, safety, and harsh environments

With a maximum flight time of up to 47 minutes, the Matrice 4TD supports extended mission durations. Its obstacle sensing system is specified to detect 12 mm wires at speeds up to 15 m/s, supporting safer operations near infrastructure.

The 80° upward gimbal tilt enables inspection of overhead assets, while the IP55-rated airframe allows continued operation in rain, fog, and dusty conditions commonly encountered during field deployments.

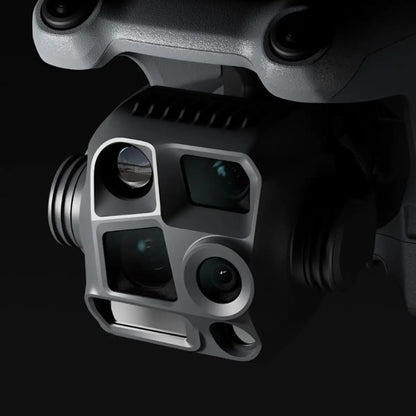

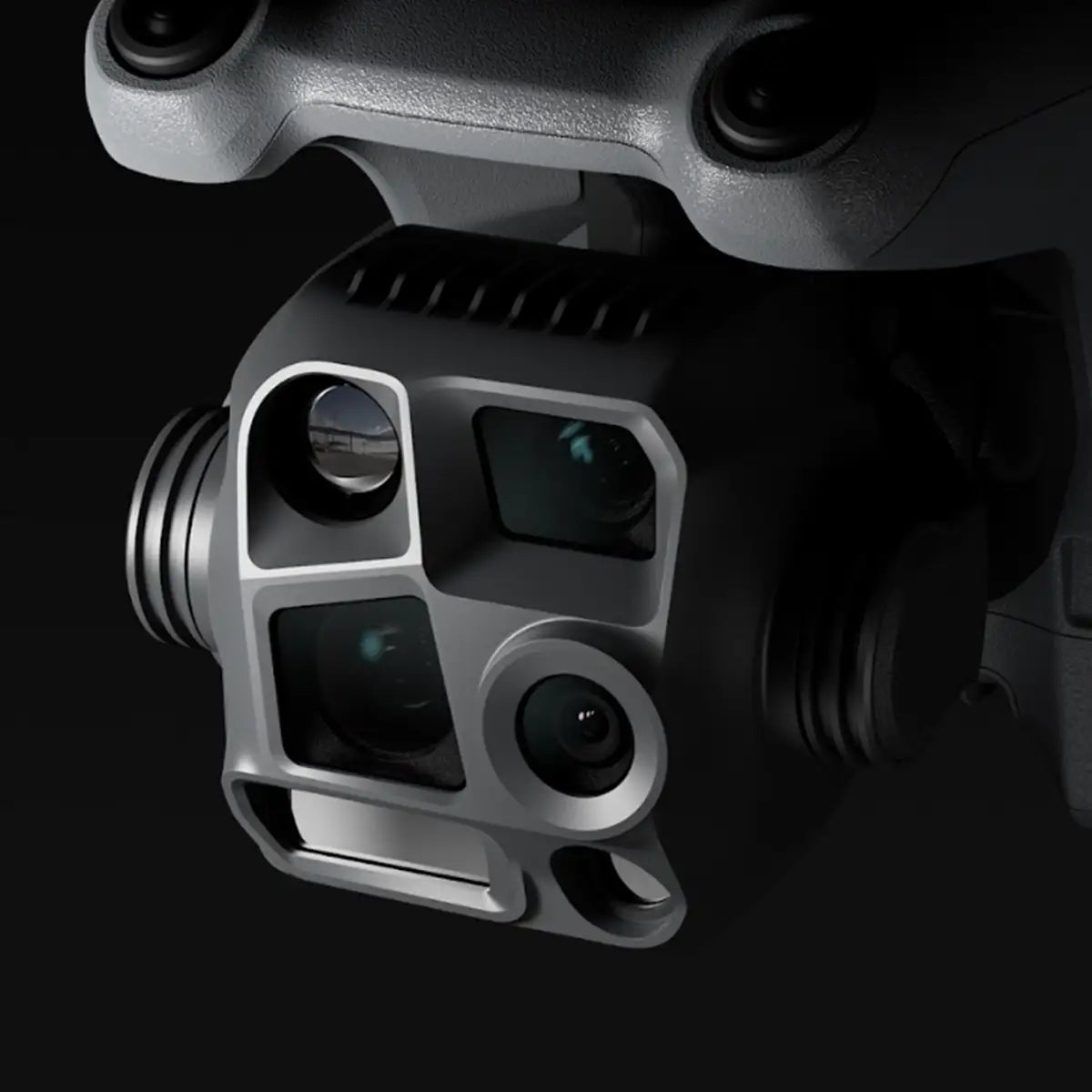

DJI Matrice 4TD camera system

Applications

  • Electrical infrastructure inspections, even in tight corridors
  • SAR and disaster recovery operations in low-visibility conditions
  • Remote area mapping and orthophoto creation with terrain following
  • Public facility and structural documentation for maintenance
  • Industrial and solar field thermal assessments

Engineered for enterprise deployment

The Matrice 4TD is engineered for consistent performance where environmental exposure, limited visibility, and mission duration are critical factors. Its integrated sensor suite simplifies deployment while expanding operational capability. Combined with DJI’s enterprise control systems, it supports reliable performance across high-stakes operational scenarios.

The DJI Matrice 4TD with RC Plus 2 Enhanced Controller delivers thermal insight, telephoto reach, and all-weather reliability for professional teams.
Order from Dronefly today — the West Coast’s trusted enterprise UAV source.

    • Model: Matrice 4TD
    • Number of Rotors: 4
    • Configuration: Drone with Camera
    • Edition: Standard
    • FAA Registration: Required for Non-Commercial Use
    • Features: Camera Included
    • Kit Style: Base
    • Skill Level: Enterprise
    • Color: White
    • Maximum Flight Time: 54 minutes
    • Takeoff Weight: Up to 4.6 lbs (2.0 kg)
    • Max Ascent Speed: 6 m/s (Normal), 10 m/s (Sport)
    • Max Descent Speed: 6 m/s (Normal), 8 m/s (Sport)
    • Max Horizontal Speed:

      Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways
      Sport Mode: 21 m/s forward, 19 m/s backward, 15 m/s sideways

    • Max Wind Resistance: 12 m/s
    • Max Takeoff Altitude: 21325 ft (6500 m)
    • Max Hover Time: 47 minutes
    • Max Pitch Angle: 25° (Normal), 30° (Sport)
    • Max Flight Distance: 43 km
    • Max Angular Velocity: 200°/s
    • GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS
    • Hovering Accuracy:

      Vertical: ±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
      Horizontal: ±0.3 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)

    • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    • Ingress Protection Rating: IP55
    • Recommended microSD Cards:

      U3/Class 10/V30 or above (exFAT format)
      Lexar 1066x: 64GB to 512GB
      Kingston Canvas Go! Plus: 64GB to 512GB

    • Remote Controller: RC Plus 2 Enterprise
    • RC Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    • Camera Still Resolution:

      Wide-Angle: 20 MP
      Medium Tele: 12/48 MP
      Tele: 12/48 MP

    • Video Resolution: 4K: 3840×2160@30fps, FHD: 1920×1080@30fps
    • Image Sensor:

      Wide: 1/1.3" CMOS, 48 MP
      Medium Tele: 1/1.3" CMOS, 48 MP
      Tele: 1/1.5" CMOS, 48 MP

    • Lens:

      Wide: 82° FOV, 24 mm, f/1.7, Focus: 1 m-∞
      Medium Tele: 35° FOV, 70 mm, f/2.8, Focus: 3 m-∞
      Tele: 15° FOV, 168 mm, f/2.8, Focus: 3 m-∞

    • Digital Zoom: Tele Camera: 16x (112x hybrid)
    • ISO Range: Up to 409600 (Tele: 819200)
    • Shutter Speed: 2 - 1/8000 s
    • Still Photo Modes: Single, Timed, Smart Capture, Panorama
    • Photo Format: JPEG
    • Video Format: MP4 (H.264)
    • Max Video Bitrate: H.264: 60 Mbps, H.265: 40 Mbps
    • File System: exFAT
    • Gimbal:

      3-axis mechanical (tilt, roll, pan)
      Controllable Tilt: -90° to +90°
      Angular Vibration: ±0.005°

    • Sensing System: Omnidirectional binocular vision + 3D infrared
    • Obstacle Detection:

      Forward/Backward: 0.5-20 m
      Lateral: 0.5-16 m
      Upward: 0.5-20 m
    • Downward: 0.5-16 m

    • Video Transmission: DJI O4+ Enterprise
    • Live View: 720p/30fps or 1080p/30fps
    • Frequencies: 2.4GHz / 5.1GHz / 5.8GHz
    • Max Transmission Distance:

      FCC: 25 km
      CE/SRRC/MIC: 12 km
      With interference: 1.5-25 km

    • Latency: 100 ms (aircraft to dock, dependent on network)
    • Battery:

      Capacity: 6768 mAh
      Voltage: 22.14 V
      Type: LiNiMnCoO2
      Energy: 149.9 Wh
      Quantity: 1

    • Dimensions: 37.77 × 41.62 × 21.25 cm (no propellers)
    • Weight: Approx. 1.85 kg (4.07 lbs)

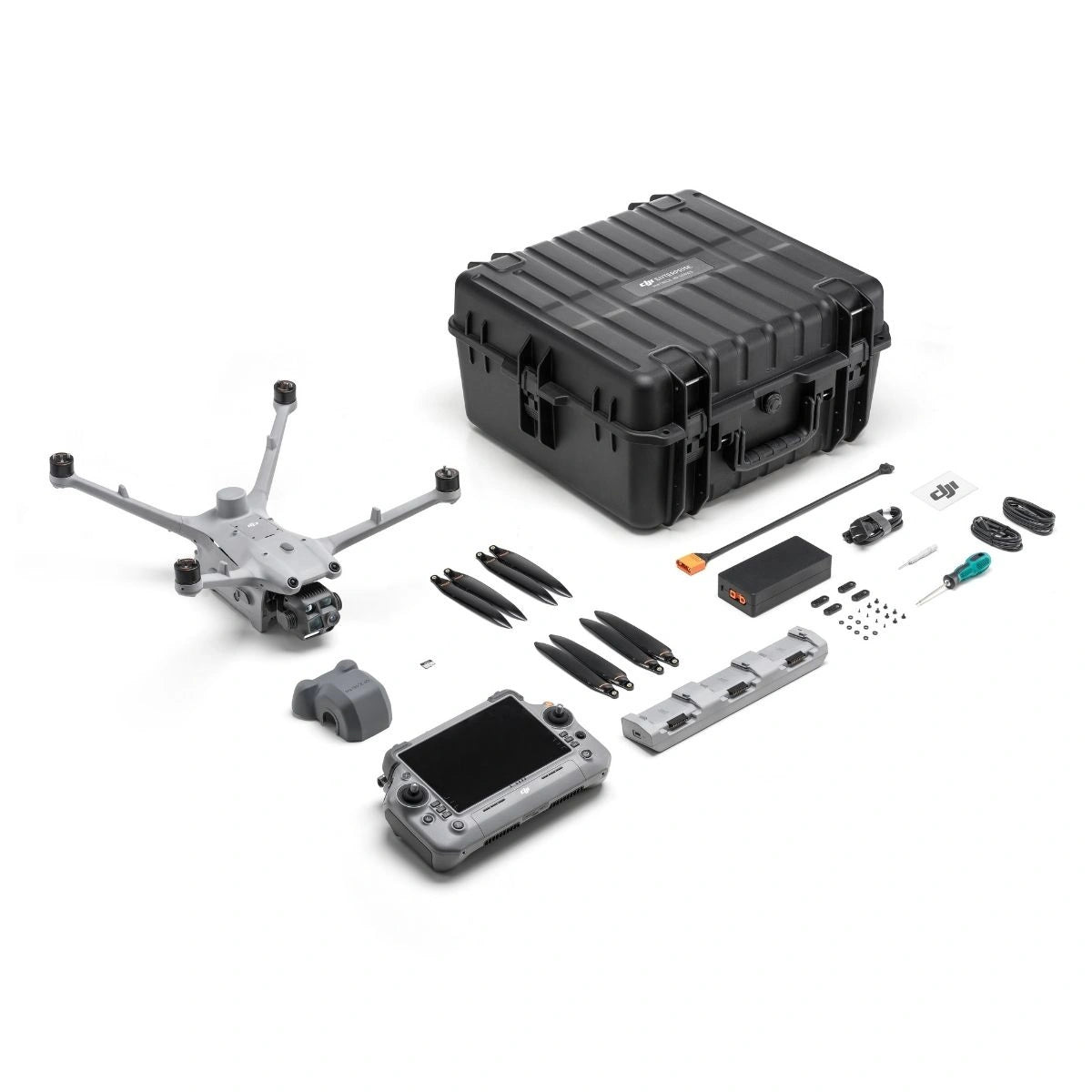

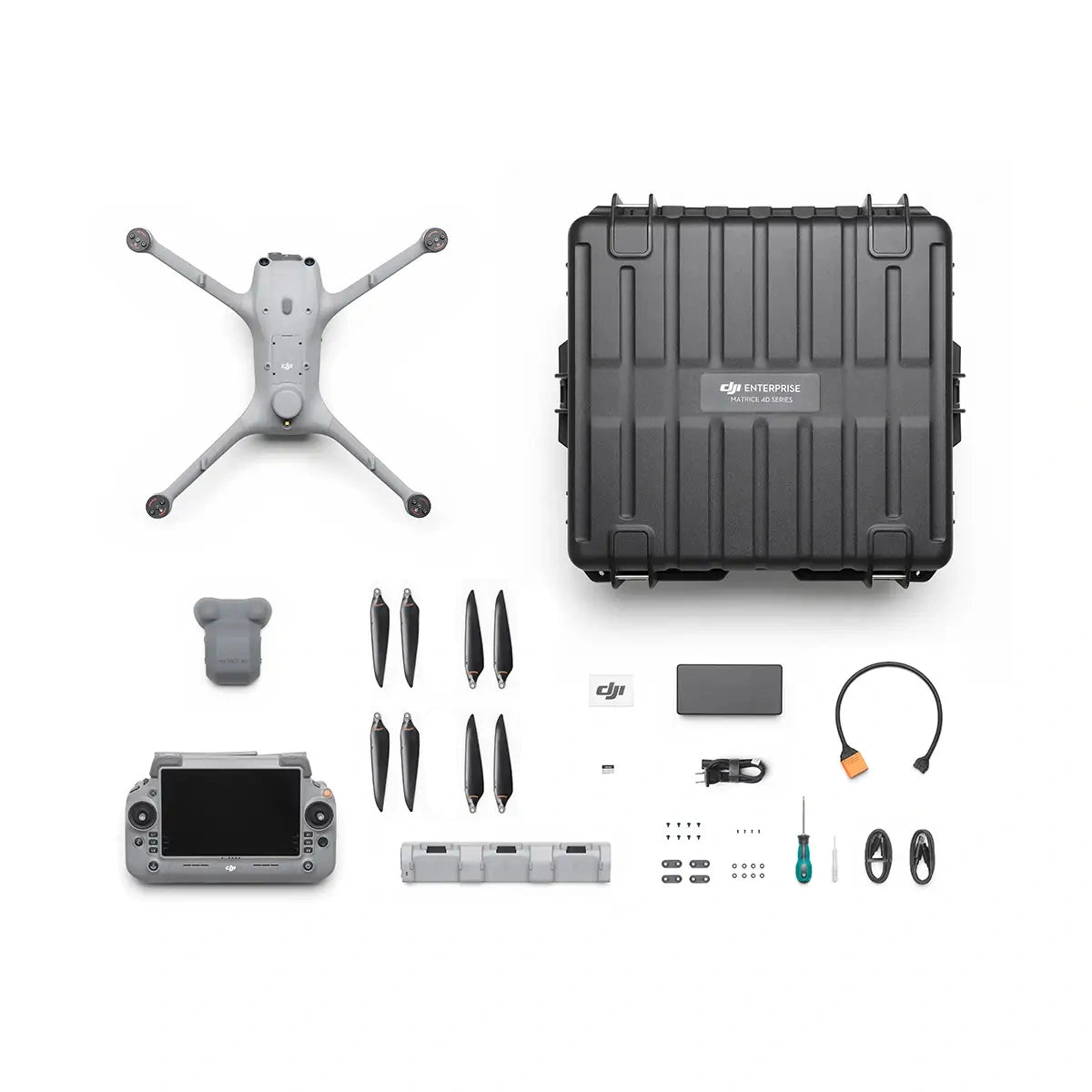

    • 1x DJI Matrice 4TD Aircraft
    • 1x DJI RC Plus 2 Enterprise Controller
    • 1x DJI Matrice 4 Series 240W Charging Hub
    • 1x DJI 240W USB-C Power Adapter
    • 1x set DJI Matrice 4TD Propellers
    • 1x USB-C to USB-C Cable
    • 1x USB-A to USB-C Cable
    • 1x Gimbal Cover
    • Screwdriver & Screws
    • 1x microSD Card 64GB
    • 1x DJI Matrice 4TD Hard Case
    Are Dock 3 and Matrice 4D Series weatherproof?

    Yes, both Dock 3 and the Matrice 4D/4TD are IP55-rated and tested for industrial environments. This means they are protected from dust and low-pressure water jets, such as rain and sprinklers. However, they are not waterproof and cannot be submerged in water.

    Can the DJI Matrice 4D Series drones fly fully autonomously?

    Yes. When used with DJI Dock 3 and once installed and connected to DJI FlightHub 2, DJI Matrice 4D/4TD can perform pre-programmed missions autonomously.

    What remote controllers are compatible with Matrice 4D Series drones?
    • DJI RC Plus 2 Enterprise Remote Controller
    • DJI RC Plus 2 Enterprise Enhanced Version
    What is the primary use case for Matrice 4D vs Matrice 4TD?

    Matrice 4D: Best suited for high-precision mapping, surveying, and infrastructure tasks where high-res visible cameras and laser range measurement matter.

    Matrice 4TD: Best for inspections, search and rescue, thermal monitoring etc., thanks to the added thermal camera and near-infrared light support.

    What’s the main difference between the Matrice 4D and Matrice 4TD?

    The key difference is in the sensor/camera configuration:

    • The Matrice 4D is optimized for high-precision mapping with a 4/3” 20 MP wide-angle camera plus medium-tele and tele cameras.
    • The Matrice 4TD swaps in a thermal-imaging camera (infrared) in addition to a 48 MP wide-angle (1/1.3” CMOS) and the same medium tele and tele cameras, making it more oriented to inspections, search/rescue, thermal tasks.
    What is the IP rating of the Matrice 4D Series?

    Both Matrice 4D and Matrice 4TD are rated IP55 for dust and water resistance. This means the aircraft is designed to operate in rainy and dusty conditions.
