DJI Mavic 3 Thermal

DJI Mavic 3 Thermal

$6,155.00
$6,155.00
Sale Sold out
SKU S-DJI-M3T MPN CP.EN.00000414.01 EAN 6941565944191
  • Does not include DJI Care Enterprise plan
  • Compact and portable thermal drone at only 920g
  • 61° DFOV and 640 × 512 px thermal camera
  • Equivalent Focal Length: 24mm, 48MP
  • 56x hybrid zoom
  • 45-minute maximum flight time
  • DJI O3 Enterprise image transmission
  • Omnidirectional obstacle avoidance
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Mavic 3T: Multi-Sensor Capabilities for Field Professionals

The DJI Mavic 3 Thermal is equipped with a mechanical shutter, 56x zoom camera, and a 640×512 px thermal sensor, enhancing capabilities in mapping, surveying, and thermal imaging operations.

It is engineered for extended missions and supports a range of use cases, including night operations, search and rescue, infrastructure inspection, and fire response, due to its integrated thermal imaging functionality.

Mavic 3 Thermal at night

Portability and Operational Efficiency

With a weight of approximately 920 g, the DJI Mavic 3 Thermal is among the lightest and most compact enterprise drones currently available. It supports rapid deployment and can be handled with one hand.

The drone is powered by batteries optimized for endurance. A full charge enables up to 45 minutes of flight time, allowing coverage of up to 2 square kilometers per mission.

Post-flight, the aircraft can be charged directly at 88W or via a 100W charging hub for faster battery replenishment.

Enhanced Mapping and Surveying Capabilities in Low-Light Conditions

The Mavic 3 Thermal shares the same telephoto camera as the Mavic 3 Enterprise—a 48 MP camera with a 1/2" CMOS sensor—paired with a thermal camera featuring a 61° Display Field of View (DFOV), a 40 mm equivalent focal length, and a resolution of 640×512 px.

This configuration is tailored for applications in firefighting, search and rescue, inspection, and nighttime operations.

The thermal camera supports point and area temperature measurements, high-temperature alerts, adjustable color palettes, and isotherms to assist in identifying heat sources and making time-sensitive decisions.

The system enables 28x continuous digital zoom and supports split-screen display for side-by-side comparison between thermal and zoom imagery.

Reliable Image Transmission

Equipped with DJI O3 Enterprise Transmission, the Mavic 3 Thermal supports a maximum control range of up to 15 km, enhancing signal stability during flight.

The drone also delivers live video transmission at 1080p resolution and 30 frames per second. Transmission distance reflects the system’s signal strength and stability under optimal conditions.

Integrated Flight Safety Systems

The Mavic 3 Thermal incorporates multiple safety systems designed to reduce operational risk. DJI AirSense captures ADS-B signals from nearby crewed aircraft to provide situational awareness to drone pilots.

Six omnidirectional fish-eye sensors support the DJI APAS 5.0 system, enabling obstacle detection and navigation assistance without blind spots.

For information on custom DJI Mavic 3T bundles or guidance on integrating the platform into your organization’s workflow, contact our drone specialists at (877) 299-1075.

Aircraft

  • Weight (with propellers, without accessories): DJI Mavic 3E: 915 g | DJI Mavic 3T: 920 g
  • Max Takeoff Weight: DJI Mavic 3E: 1,050 g | DJI Mavic 3T: 1,050 g
  • Dimensions: Folded (without propellers): 221×96.3×90.3 mm (L×W×H) | Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
  • Diagonal Distance: 1 mm
  • Max Ascent Speed: 6 m/s (Normal Mode) | 8 m/s (Sport Mode)
  • Max Descent Speed: 6 m/s (Normal Mode) | 6 m/s (Sport Mode)
  • Max Flight Speed (at sea level, no wind): 15 m/s (Normal Mode) | Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
  • Max Wind Speed Resistance: 12 m/s
  • Max Take-off Altitude Above Sea Level: 6000 m (without payload)
  • Max Flight Time (no wind): 45 mins
  • Max Hover Time (no wind): 38 mins
  • Max Flight Distance: 32 km
  • Max Tilt Angle: 30° (Normal Mode) | 35° (Sport Mode)
  • Max Angular Velocity: 200°/s
  • GNSS: GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
  • Hovering Accuracy: Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) | Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)
  • Internal Storage: N/A
  • Motor Model: 2008
  • Propeller Model: 9453F Propellers for Enterprise
  • Beacon: Built into the aircraft

Wide Camera

  • Sensor: DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP | DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
  • Lens: DJI Mavic 3E: FOV: 84°; Format Equivalent: 24 mm; Aperture: f/2.8-f/11; Focus: 1 m to ∞ | DJI Mavic 3T: FOV: 84°; Format Equivalent: 24 mm; Aperture: f/2.8; Focus: 1 m to ∞
  • ISO Range: DJI Mavic 3E: 100-6400 | DJI Mavic 3T: 100-25600
  • Shutter Speed: DJI Mavic 3E: Electronic Shutter: 8-1/8000 s; Mechanical Shutter: 8-1/2000 s | DJI Mavic 3T: Electronic Shutter: 8-1/8000 s; Max Image Size; DJI Mavic 3E: 5280×3956; DJI Mavic 3T: 8000×6000
  • Still Photography Modes: DJI Mavic 3E: Single: 20 MP; Timed: 20 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; JPEG+RAW: 3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 20 MP; Panorama: 20 MP (raw image) | DJI Mavic 3T:
  • Single: 12 MP/48 MP; Timed: 12 MP/48 MP; JPEG: 2/3/5/7/10/15/20/30/60 s*; Panorama: 12 MP (raw image); 100 MP (stitched image); Smart Low-light Shooting: 12 MP | * Shooting 48MP photo does not support 2s interval
  • Video Resolution:264 | 4K: 3840×2160@30fps | FHD: 1920×1080@30fps
  • Bitrate: DJI Mavic 3E: 4K: 130 Mbps; FHD: 70 Mbps | DJI Mavic 3T: 4K: 85 Mbps; FHD: 30 Mbps
  • Supported File Formats: exFAT
  • Photo Format: DJI Mavic 3E: JPEG/DNG (RAW) | DJI Mavic 3T: JPEG
  • Video Format: MP4 (MPEG-4 AVC/H.264)

Tele Camera

  • Sensor: 1/2-inch CMOS, Effective pixels: 12 MP
  • Lens: FOV: 15° | Format Equivalent: 162 mm | Aperture: f/4.4 | Focus: 3 m to ∞
  • ISO Range: DJI Mavic 3E: 100-6400 | DJI Mavic 3T: 100-25600
  • Shutter Speed: Electronic Shutter: 8-1/8000 s
  • Max Image Size: 4000×3000
  • Photo Format: JPEG
  • Video Format: MP4 (MPEG-4 AVC/H.264)
  • Still Photography Modes: DJI Mavic 3E: Single: 12 MP; Timed: 12 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 12 MP | DJI Mavic 3T:
  • Single: 12 MP; Timed: 12 MP; JPEG: 2/3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 12 MP
  • Video Resolution: H.264 | 4K: 3840×2160@30fps | FHD: 1920×1080@30fps
  • Bitrate: DJI Mavic 3E: 4K: 130 Mbps; FHD: 70 Mbps | DJI Mavic 3T: 4K: 85 Mbps; FHD: 30 Mbps
  • Digital Zoom: 8x (56x hybrid zoom)

Thermal Camera

  • Thermal Imager: Uncooled VOx Microbolometer
  • Pixel Pitch: 12 μm
  • Frame Rate: 30 Hz
  • Lens: DFOV: 61° | Format Equivalent: 40 mm | Aperture: f/1.0 | Focus: 5 m to ∞
  • Sensitivity: ≤50 mk@F1.1
  • Temperature Measurement Method: Spot Meter, Area Measurement
  • Temperature Measurement Range: -20° to 150° C (-4° to 302° F, High Gain Mode) | 0° to 500° C (32° to 932° F, Low Gain Mode)
  • Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
  • Photo Format: JPEG (8-bit) | R-JPEG (16-bit)
  • Video Resolution: 640×512@30fps
  • Bitrate: 6 Mbps
  • Video Format: MP4 (MPEG-4 AVC/H.264)
  • Still Photography Modes: DJI Mavic 3T: Single: 640×512; Timed: 640×512; JPEG: 2/3/5/7/10/15/20/30/60 s
  • Digital Zoom: 28x
  • Infrared Wavelength: 8-14 μm
  • Infrared Temperature Measurement Accuracy: ±2° C or ±2% (using the larger value)

Gimbal

  • Stabilization: 3-axis (tilt, roll, pan)
  • Mechanical Range: DJI Mavic 3E: Tilt: -135° to 100°; Roll: -45° to 45°; Pan: -27° to 27° | DJI Mavic 3T: Tilt: -135° to 45°; Roll: -45° to 45°; Pan: -27° to 27°
  • Controllable Range: Tilt: -90° to 35° | Pan: Not controllable
  • Max Control Speed (tilt): 100°/s
  • Angular Vibration Range: ±0.007°

Sensing

  • Type: Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
  • Forward: Measurement Range: 0.5-20 m| Detection Range: 0.5-200 m | Effective Sensing Speed: Flight Speed ≤15 m/s| FOV: Horizontal 90°, Vertical 103°
  • Backward: Measurement Range: 0.5-16 m | Effective Sensing Speed: Flight Speed ≤12 m/s | FOV: Horizontal 90°, Vertical 103°
  • Lateral: Measurement Range: 0.5-25 m | Effective Sensing Speed: Flight Speed ≤15 m/s | FOV: Horizontal 90°, Vertical 85°
  • Upward: Measurement Range: 0.2-10 m | Effective Sensing Speed: Flight Speed ≤6 m/s | FOV: Front and Back 100°, Left and Right 90°
  • Downward: Measurement Range: 0.3-18 m | Effective Sensing Speed: Flight Speed ≤6 m/s | FOV: Front and Back 130°, Left and Right 160°
  • Operating Environment: Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15) | Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)

Video Transmission

  • Video Transmission System: DJI O3 Enterprise Transmission
  • Live View Quality: Remote Controller: 1080p/30fps
  • Operating Frequency:400-2.4835 GHz | 5.725-5.850 GHz
  • Max Transmission Distance (unobstructed, free of interference): DJI Mavic 3E: FCC: 15 km; CE: 8 km; SRRC: 8 km; MIC: 8 km | DJI Mavic 3T: FCC: 15 km; CE: 8 km; SRRC: 8 km; MIC: 8 km
  • Max Transmission Distance (Obstructed): Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC) | Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) | Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
  • Max Download Speed: 15 MB/s (with DJI RC Pro Enterprise)
  • Latency (depending on environmental conditions and mobile device): 200 ms
  • Antenna: 4 Antennas, 2T4R
  • Transmission Power (EIRP): 4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)

DJI RC Pro Enterprise

  • Video Transmission System: DJI O3 Enterprise Transmission
  • Max Transmission Distance (unobstructed, free of interference): FCC: 15 km | CE/SRRC/MIC: 8 km
  • Video Transmission Operating Frequency:400-2.4835 GHz | 5.725-5.850 GHz
  • Antenna: 4 Antennas, 2T4R
  • Video Transmission Transmitter Power (EIRP):4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
  • Wi-Fi Protocol:11 a/b/g/n/ac/ax | Support 2×2 MIMO Wi-Fi
  • Wi-Fi Operating Frequency:400-2.4835 GHz | 5.150-5.250 GHz | 5.725-5.850 GHz
  • Wi-Fi Transmitter Power (EIRP):4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) | 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
  • Bluetooth Protocol: Bluetooth 5.1
  • Bluetooth Operating Frequency: 400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP): < 10 dBm
  • Screen Resolution: 1920×1080
  • Screen Size:5 inches
  • Screen: 60 fps
  • Brightness: 1,000 nits
  • Touchscreen Control: 10-point multi-touch
  • Battery: Li-ion (5000 mAh @ 7.2 V)
  • Charging Type: Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
  • Rated Power: 12 W
  • Storage Capacity: Internal Storage (ROM): 64 GB | Supports a microSD card for expanded capacity.
  • Charging Time: 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V) | Approx. 2 hours (with a USB charger at 12 V) | Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
  • Operating Time: 3 hours
  • Video Output Port: Mini-HDMI port
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)
  • Storage Temperature: -30° to 60° C (-22° to 140° F) (within one month) | -30° to 45° C (-22° to 113° F) (one to three months) | -30° to 35° C (-22° to 95° F) (three to six months) | -30° to 25° C (-22° to 77° F) (more than six months)
  • Charging Temperature: 5° to 40° C (41° to 104° F)
  • Supported DJI Aircraft: DJI Mavic 3E | DJI Mavic 3T
  • GNSS: GPS+Galileo+GLONASS
  • Dimensions: Antennas folded and controller sticks unmounted: 183.27×137.41×47.6 mm (L×W×H) | Antennas unfolded and controller sticks mounted: 183.27×203.35×59.84 mm (L×W×H)
  • Weight: 680 g
  • Model: RM510B

Storage

  • Supported Memory Cards: Aircraft: U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
  • Recommended microSD Cards: Remote Controller: SanDisk Extreme PRO 64GB V30 A2 microSDXC; SanDisk High Endurance 64GB V30 microSDXC; SanDisk Extreme 128GB V30 A2 microSDXC; SanDisk Extreme 256GB V30 A2 microSDXC; SanDisk Extreme 512GB V30 A2 microSDXC; Lexar 667x 64GB V30 A2 microSDXC; Lexar High-Endurance 64GB V30 microSDXC; Lexar High-Endurance 128GB V30 microSDXC; Lexar 667x 256GB V30 A2 microSDXC; Lexar 512GB V30 A2 microSDXC; Samsung EVO Plus 64GB V30 microSDXC; Samsung EVO Plus 128GB V30 microSDXC; Samsung EVO Plus 256GB V30 microSDXC; Samsung EVO Plus 512GB V30 microSDXC; Kingston Canvas Go! Plus 128GB V30 A2 microSDXC; Kingston Canvas React Plus 128GB V90 A1 microSDXC | Aircraft: SanDisk Extreme 32GB V30 A1 microSDHC; SanDisk Extreme PRO 32GB V30 A1 microSDHC; SanDisk Extreme 512GB V30 A2 microSDXC; Lexar 1066x 64GB V30 A2 microSDXC; Kingston Canvas Go! Plus 64GB V30 A2 microSDXC; Kingston Canvas React Plus 64GB V90 A1 microSDXC; Kingston Canvas Go! Plus 128GB V30 A2 microSDXC; Kingston Canvas React Plus 128GB V90 A1 microSDXC; Kingston Canvas React Plus 256GB V90 A2 microSDXC; Samsung PRO Plus 256GB V30 A2 microSDXC

Battery

  • Capacity: 5000 mAh
  • Standard Voltage:4 V
  • Max Charging Voltage:6 V
  • Type: LiPo 4S
  • Chemical System: LiCoO2
  • Energy: 77 Wh
  • Weight:5 g
  • Charging Temperature: 5° to 40° C (41° to 104° F)

Charger

  • Input: 100-240 V (AC Power), 50-60 Hz, 2.5 A
  • Output Power: 100 W
  • Output: 100 W (total) | When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.

Charging Hub

  • Input: USB-C: 5-20 V, 5.0 A
  • Output: Battery Port: 12-17.6 V, 8.0 A
  • Rated Power: 100 W
  • Charging Type: Three batteries charged in sequence
  • Charging Temperature Range: 5° to 40° C (41° to 104° F)

RTK Module

  • Dimensions:2×40.2×66.2 mm (L×W×H)
  • Weight: 24±2 g
  • Interface: USB-C
  • Power: 1.2 W
  • RTK Positioning Accuracy: RTK Fix: Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm

Speaker

  • Dimensions:1×82.0×54.7 mm (L×W×H)
  • Weight: 85±2 g
  • Interface: USB-C
  • Rated Power: 3 W
  • Max Volume: 110 dB @ 1 m
  • Effective Broadcast Distance: 100 m @ 70 dB
  • Bit Rate: 16 Kbps/32 Kbps
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)

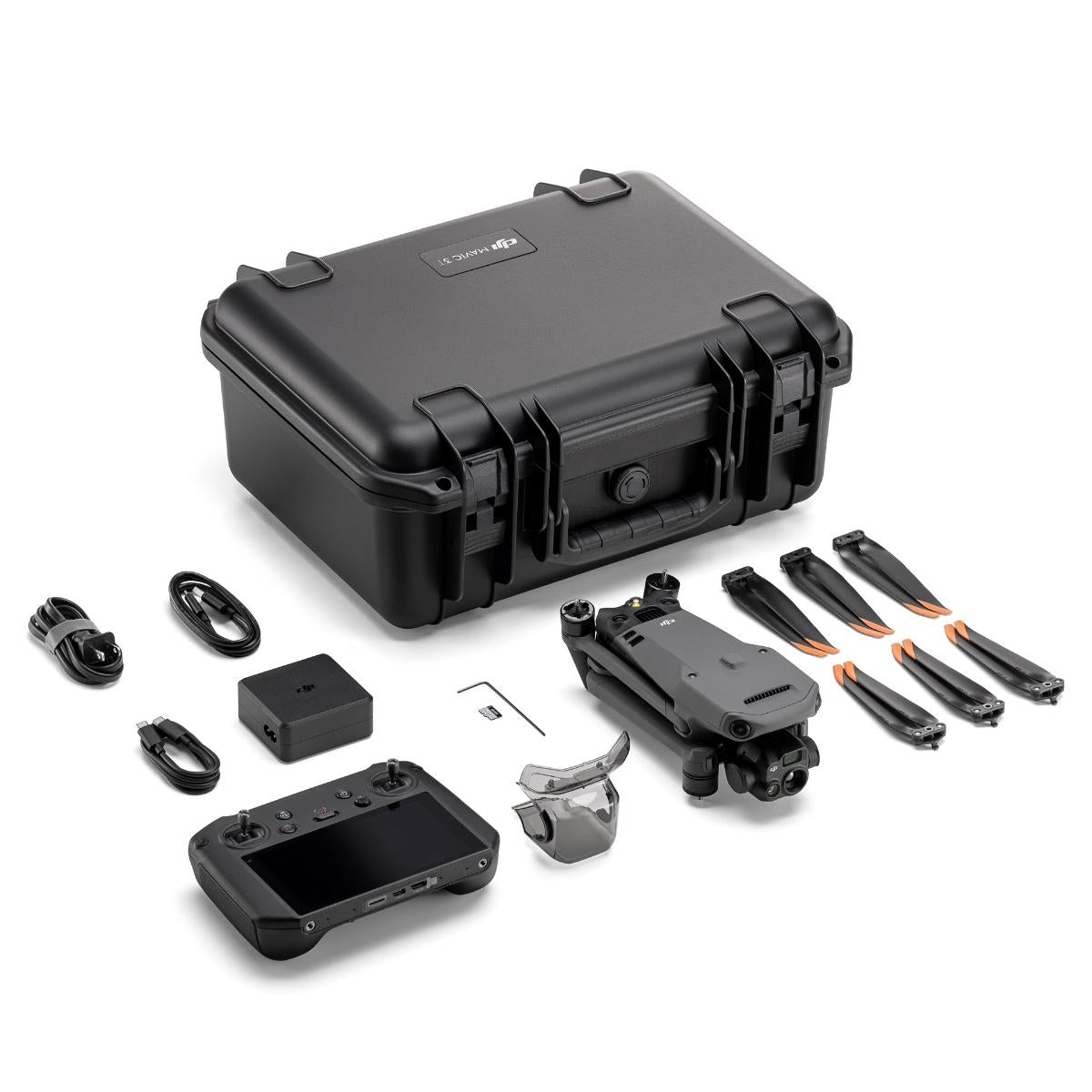

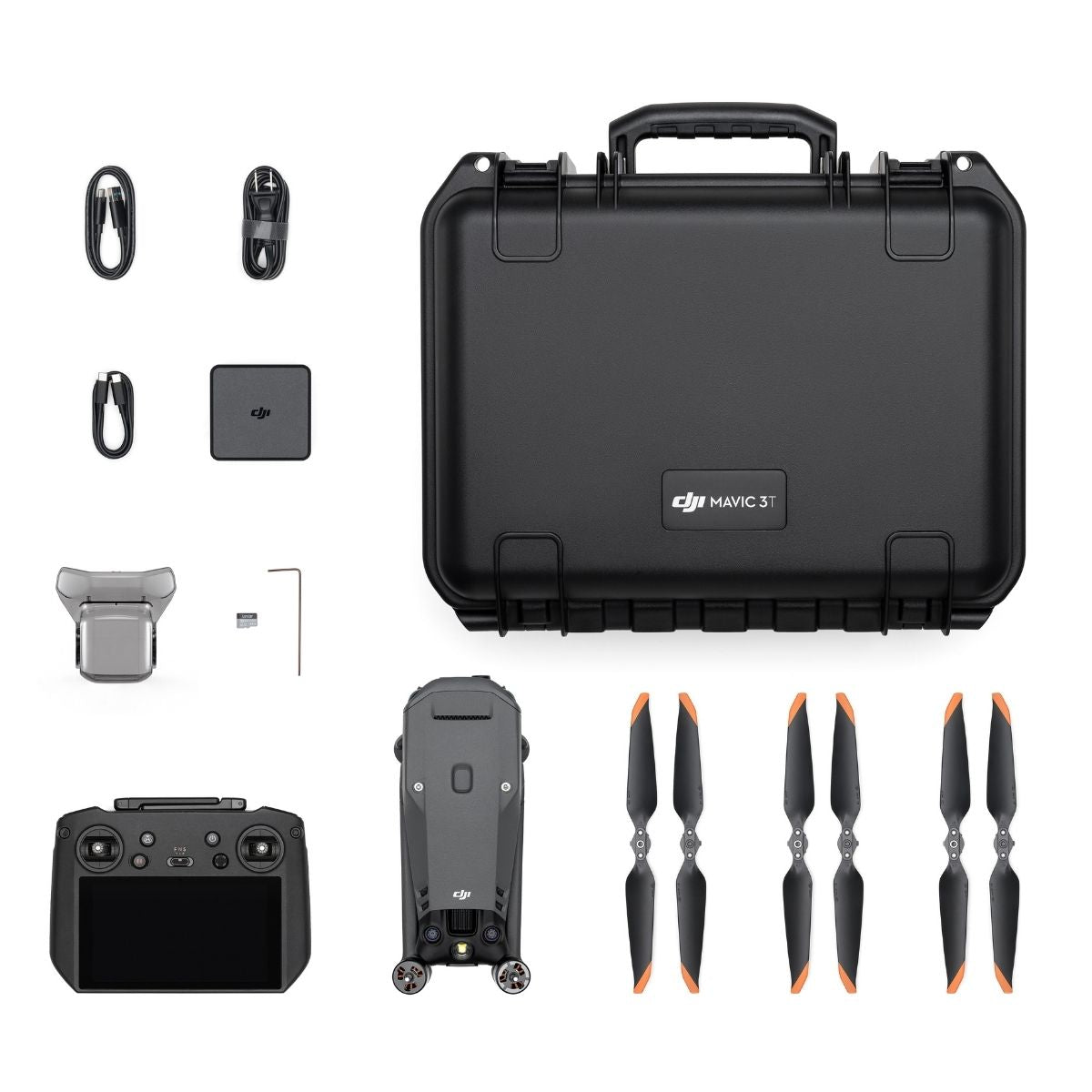

  • 1x Mavic 3T Aircraft
  • 1x Mavic 3 Intelligent Flight Battery
  • 1x microSD Card 64GB
  • 1x Gimbal Protector
  • 3x Mavic 3 Enterprise Series Propellers (Pair)
  • 1x RC Pro Enterprise
  • 1x Screwdriver
  • 1x USB-C Power Adapter (100W)
  • 1x 100W Power Adaptor AC Cable
  • 1x USB-C Cable
  • 1x USB-C to USB-C Cable
  • 1x Protector Case
What should users know about legal/regulatory classification for the Mavic 3 Enterprise Series?

The aircraft weight (915 g) and take-off weight (~1,050 g) mean you must check local regulations (e.g., in the EU, UAS classes C2/C1) when operating. Be sure to comply with region-specific drone regulations.

How long does it take to charge the Mavic 3 Enterprise Series battery?
  • Using the DJI USB-C Power Adapter (100W) + Battery Charging Hub (100W): around 1 h 10 min.
  • Direct charging via the adapter: about 1 h 20 min.
What’s the difference between the DJI Mavic 3E and Mavic 3T?

The Mavic 3E is built for mapping and visual inspection. The Mavic 3T includes a thermal camera for search and rescue, firefighting, and utility monitoring.

Is the Mavic 3 Enterprise Series compliant with FAA Remote ID requirements in the U.S.?

Yes. Any drone operating in controlled U.S. airspace or under Part 107 must comply with FAA Remote ID rules (broadcast or network-based). As a commercial operator, you should check the firmware status of the Mavic 3E/3T and confirm Remote ID compliance.
