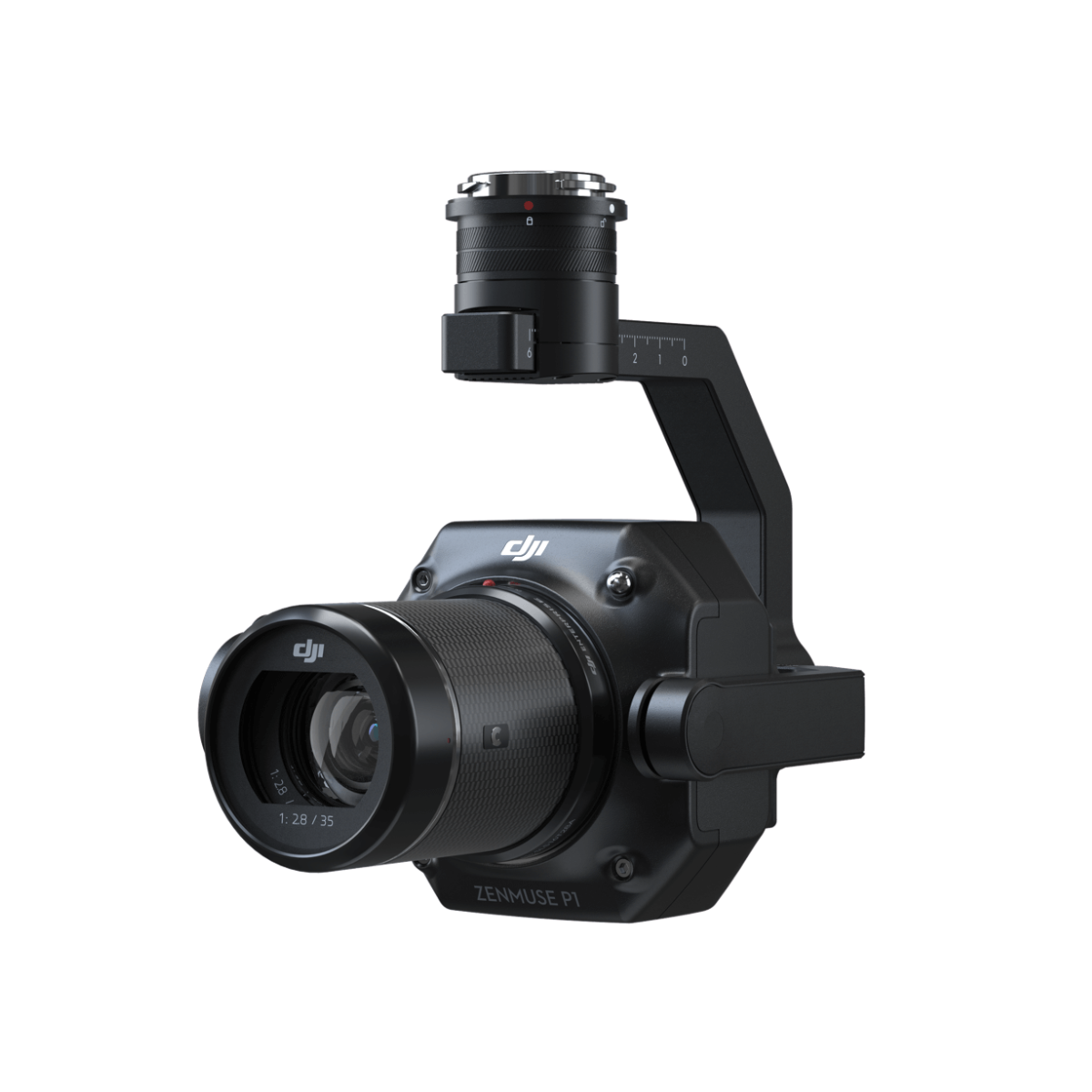

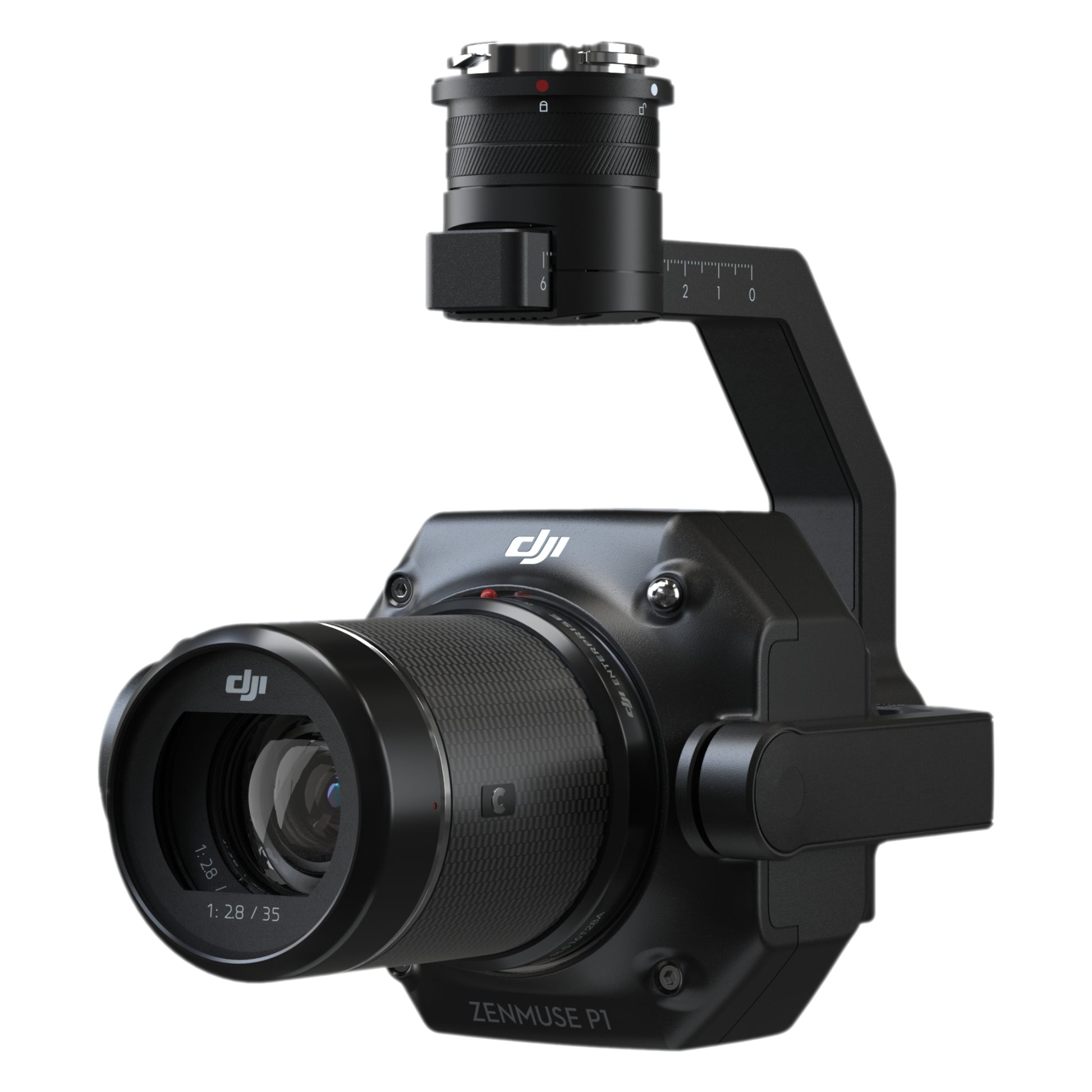

DJI Zenmuse P1 with Dronefly Care Plus: Full-Frame Photogrammetry with Enterprise Coverage
The DJI Zenmuse P1 redefines aerial photogrammetry by combining a 45 MP full-frame sensor, mechanical global shutter, and TimeSync synchronization into one efficient payload. Designed for large-scale mapping, inspection, and geospatial data acquisition, it delivers survey-grade accuracy with high efficiency. With support for DJI DL lenses and sub-3 cm horizontal accuracy without ground control points, the P1 is a trusted tool for professionals in engineering, construction, and surveying. Bundled with Dronefly Care Plus, it includes 13 months of extended protection against damage and internal faults-keeping your operations productive and protected.
Precision Data Capture for Professional Mapping
The Zenmuse P1's 45 MP full-frame sensor and 0.7-second minimum capture interval make it capable of covering up to 3 km² per flight when paired with a DJI Matrice 300, 350, or 400 RTK aircraft. The mechanical global shutter (1/2000 s) prevents motion distortion during high-speed passes, while the integrated TimeSync 2.0 system aligns image metadata with positioning and IMU data for precise georeferencing. Supporting DJI DL 24 mm, 35 mm, and 50 mm lenses, the P1 adapts to varied mapping scales and mission types. Its IP4X-rated housing and wide temperature range ensure dependable operation in rugged field environments.
Coverage You Can Rely On
Dronefly Care Plus extends DJI's manufacturer warranty with 13 months of enterprise-grade protection. It covers one replacement for a qualifying incident and provides full repair support for pilot error, collisions, drops, water exposure, and internal malfunctions. Claims are filed within seven days of an incident and managed through Dronefly's enterprise service network for quick turnaround. Exclusions include misuse, theft, and operation outside official DJI specifications. This coverage keeps professional crews airborne and minimizes downtime during critical projects.
Key Features and Benefits
- Comes with Dronefly Care Plus: 13-month coverage with one full replacement for covered damage
- 45 MP full-frame sensor for survey-grade data quality
- Mechanical global shutter (1/2000 s) eliminates motion distortion
- TimeSync 2.0 ensures precise geotagging and flight data correlation
- Interchangeable DJI DL 24 mm, 35 mm, and 50 mm lenses
- 0.7 s minimum photo interval for efficient area coverage
- Up to 3 km² mapping capability per flight (under optimal conditions)
- IP4X rating for dust protection and outdoor durability
- Operating range from -20 °C to 50 °C for field reliability
- Compatible with DJI Matrice 300 RTK, 350 RTK, and 400 aircraft
Applications and Use Cases
- Aerial surveying and 3D mapping for engineering and infrastructure
- Corridor mapping: roads, railways, pipelines, and powerlines
- Construction progress and volume measurement
- Urban and cadastral mapping for planning and land management
- Mining and quarry volumetrics
- Environmental and terrain monitoring
- Disaster assessment and recovery mapping
- Agricultural land use and irrigation planning
- Industrial inspection with photogrammetric precision
- Heritage and archaeological site modeling
The DJI Zenmuse P1 with Dronefly Care Plus delivers the precision, speed, and reliability enterprise professionals demand. Built for scalable mapping and modeling, it pairs proven imaging performance with extended coverage for total operational confidence.
Dronefly is an authorized DJI Enterprise dealer offering comprehensive solutions, integration, and post-sale support for professional UAS programs. Purchase your Zenmuse P1 with Dronefly Care Plus today and equip your team with industry-leading aerial imaging protection.
Specifications
General
- Product Name: Zenmuse P1
- Dimensions: 198×166×129 mm
- Weight: Approx. 787 g
- Power: 13 W
- IP Rating: IP4X
- Supported Aircraft: Matrice 300 RTK
- Operating Temperature Range: -20° to 50° C (-4° to 122° F)
- Storage Temperature Range: -20° to 60° C (-4° to 140° F)
- Absolute Accuracy: Horizontal: 3 cm, Vertical: 5 cm *(Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.)
Camera
- Sensor: Sensor size (Still): 35.9×24 mm (Full frame) ; Sensor size (Max video recording area): 34×19 mm ; Effective Pixels: 45MP ; Pixel size: 4.4 μm
- Supported Lenses: DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° ; DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° ; DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°
- Supported SD Cards: SD: UHS-1 rating or above; Max capacity: 128 GB
- Storage Files: Photo / GNSS Raw Observation Data/ Image Log File
- Photo Size: 3:2 (8192×5460)
- Operation Modes: Capture, Record, Playback
- Minimum photo interval: 0.7 s
- Shutter Speed: Mechanical Shutter Speed: 1/2000-1/8 s ; Electronic Shutter Speed: 1/8000-8 s
- Aperture Range: f/2.8-f/16
- ISO Range: Photo: 100-25600 ; Video: 100-3200
Video
- Video Format: MP4
- Video Resolution: 16:9 (3840×2160)
- Frame Rate: 60fps
Gimbal
- Stabilized System: 3-axis (tilt, roll, pan)
- Angular Vibration Range: 0.01°
- Mount: Detachable DJI SKYPORT
- Mechanical Range: Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320°
In the Box
- 1x Zenmuse P1
- 1x DJI Terra Mapping Software (free trial for 6 months)
- 1x 35mm Lens with Sensor
- 1x DSLRPros Care Plus (Zenmuse P1)
