Freefly Astro Max Aircraft

Freefly Astro Max Aircraft

$22,995.00
$22,995.00
Sale Sold out
SKU S-FF-ASTRO-MAX MPN 950-00186
  • Compact enterprise drone platform with 3 kg maximum payload capacity
  • Up to 43 minutes of flight time under no-payload conditions
  • 7010 motors and 21-inch propellers for stable, efficient performance
  • Dual SL8 Air batteries provide extended flight duration and redundancy
  • Foldable carbon-fiber arms allow fast transport and deployment
  • Smart Dovetail system enables quick payload swaps in the field
  • RTK-ready GPS ensures survey-grade precision for mapping operations
  • Pilot Pro controller offers secure control and telemetry feedback
  • Open payload ecosystem supports LiDAR, mapping, and thermal sensors
  • Designed and assembled in the USA for enterprise reliability
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

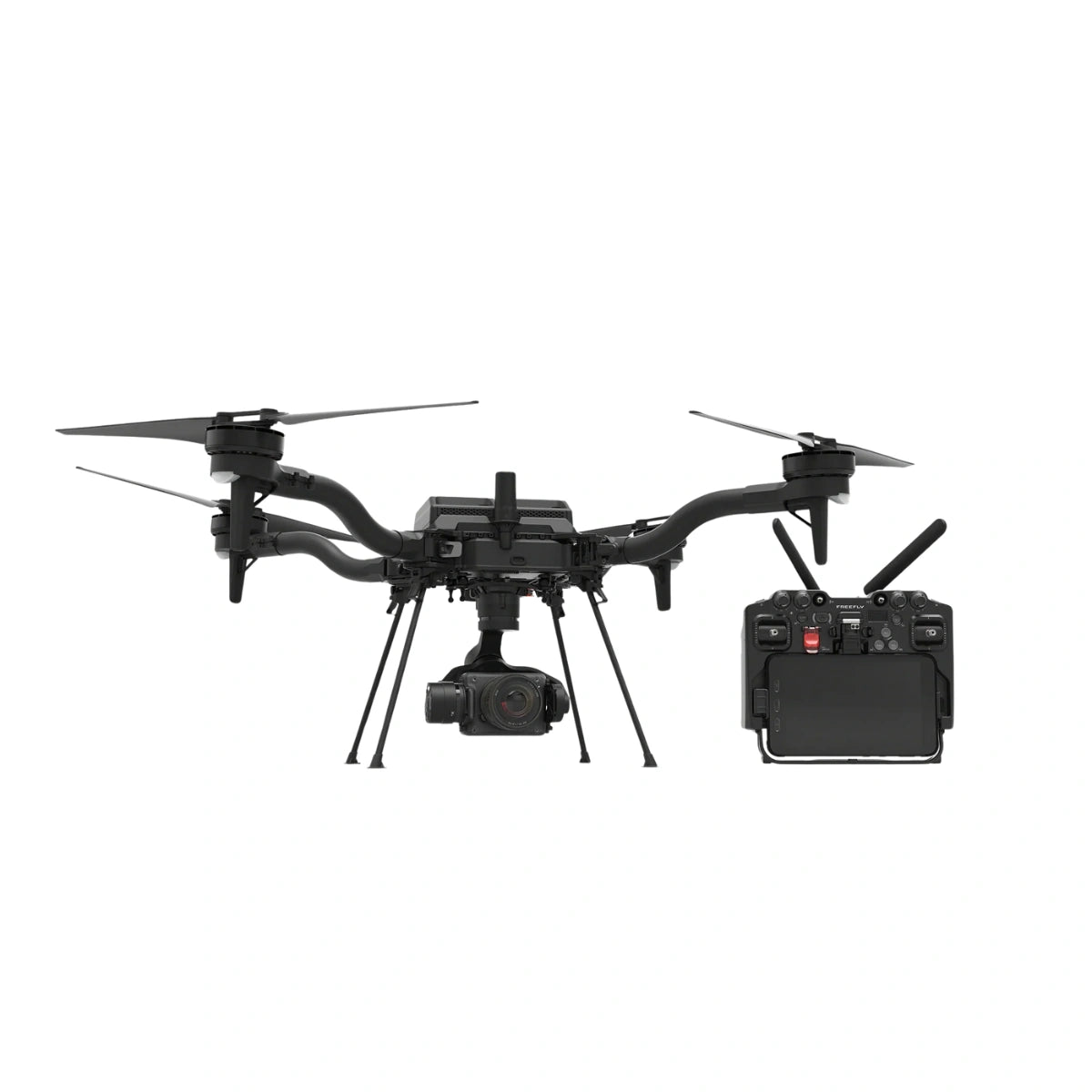

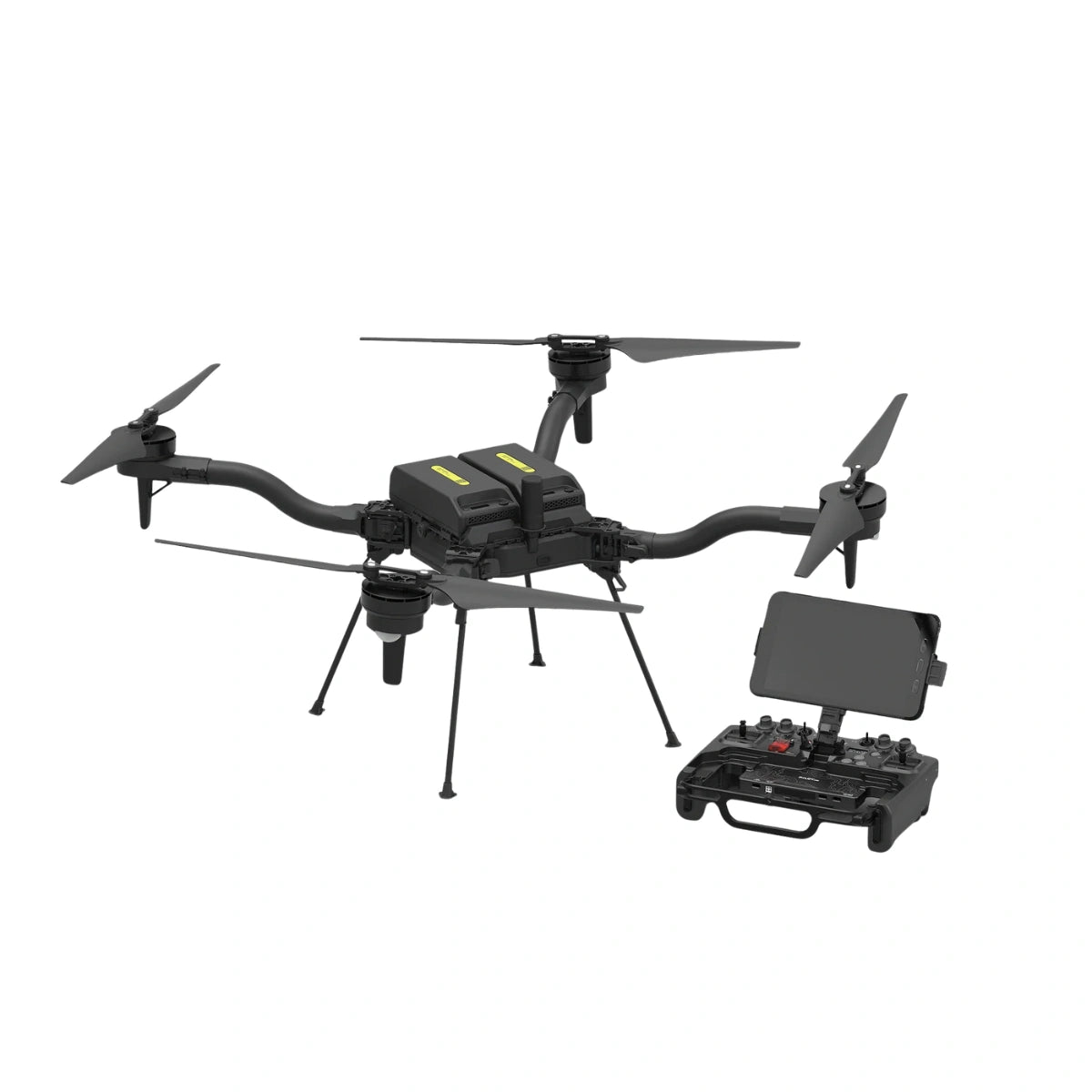

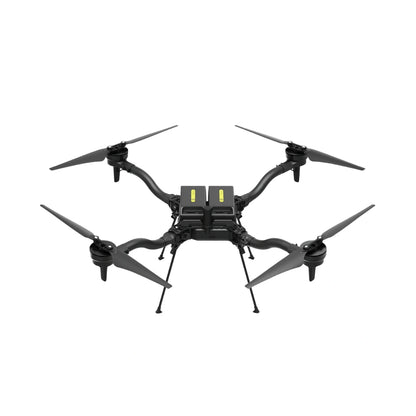

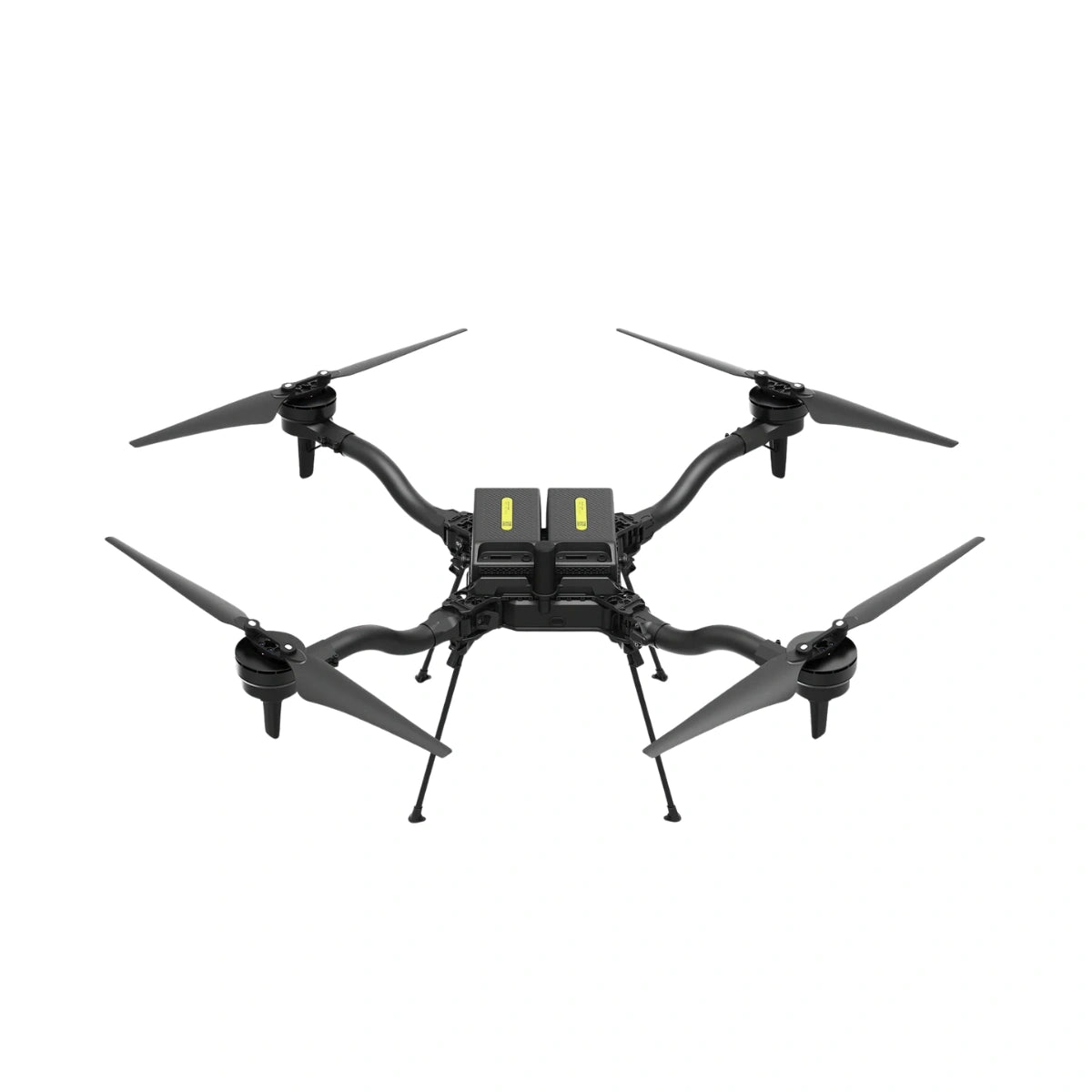

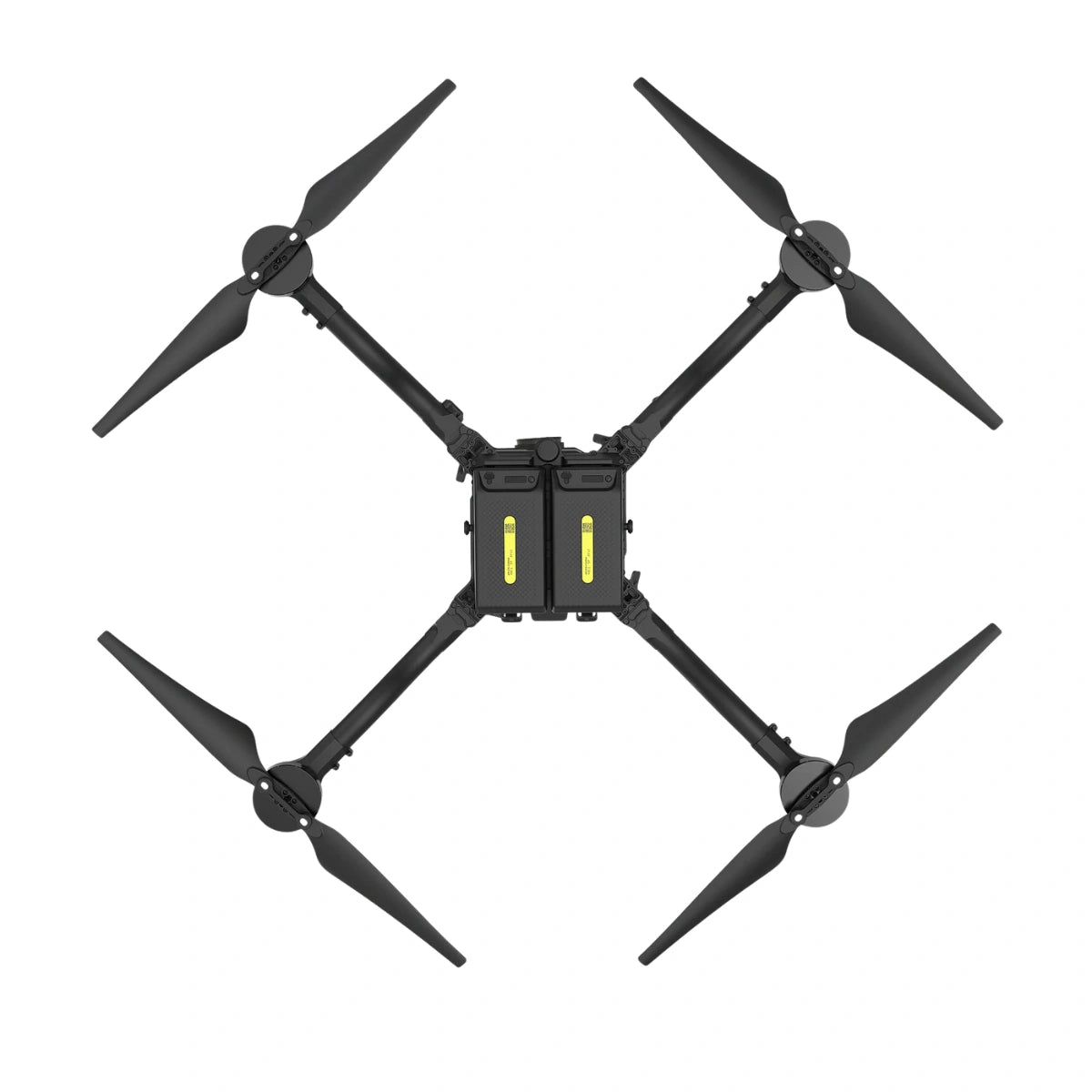

Freefly Astro Max Aircraft: Compact industrial drone for enterprise operations

The Freefly Astro Max is an industrial-grade aerial platform designed for enterprise users who require a compact yet powerful drone for data collection and inspection. With a maximum payload of 3 kg and up to 43 minutes of flight time with no payload, it combines performance, endurance, and transport efficiency in one integrated system. Built on Freefly's advanced flight platform, it delivers precision and reliability in a compact, foldable design ready for field deployment.

Built for power and adaptability

Driven by 7010 motors and 21-inch propellers, the Astro Max offers increased thrust, stability, and efficiency. Its foldable carbon-fiber arms reduce size for quick transport and setup in tight field conditions. The Smart Dovetail payload system enables fast, tool-free swapping of sensors including mapping cameras, thermal imagers, and LiDAR payloads to match mission needs.

Dependable, accurate, and ready for the field

With RTK-ready positioning and dual Freefly SL8 Air smart batteries, the Astro Max supports long-duration, high-precision operations. Its Pilot Pro controller provides real-time telemetry and responsive handling for professional missions. From industrial inspections to mapping and creative applications, the Astro Max is built to perform reliably in demanding environments.

Key Features and Benefits

  • 7010 motor system: Efficient and powerful for smooth flight performance
  • 3 kg payload capacity: Supports professional LiDAR and imaging equipment
  • 43 minutes flight time (no payload): Long-duration missions with minimal downtime
  • Foldable carbon-fiber frame: Portable and durable for field transport
  • Smart Dovetail interface: Quick-release sensor integration system
  • RTK-ready GPS: Centimeter-level data accuracy
  • Dual SL8 Air battery support: Enhanced power redundancy and endurance
  • Pilot Pro controller: Reliable telemetry and mission feedback
  • Rugged carry case: Protects drone in transit and storage
  • Modular payload support: Compatible with mapping and inspection sensors

Applications and Use Cases

  • Survey and mapping missions: RTK-accurate data collection and analysis
  • Infrastructure inspection: Visual and thermal inspection of assets
  • Construction and progress tracking: Document project status with precision
  • LiDAR data acquisition: Capture dense 3D environmental models
  • Public safety and search operations: Provide real-time situational awareness
  • Environmental research: Monitor terrain and natural resources remotely
  • Industrial monitoring: Assess equipment and utilities safely from the air
  • Aerial media production: Capture smooth, professional footage

The Freefly Astro Max is a compact, enterprise-grade solution that delivers industrial-level performance for precision mapping and inspection missions. It's engineered for professionals who require portability without sacrificing capability.

Dronefly provides expert integration, configuration, and technical support for the Astro Max, ensuring your team stays mission-ready. Order today to enhance your enterprise operations with a trusted industrial platform.

Astro Max

  • Up to 43 minutes flight time
  • 31 minutes with LR1 Payload
  • 20 minutes with max payload (3kg)
  • See Wiki for additional details
  • 3kg max payload
  • Booms fold up to ½ the diameter
  • Pre-installed Astro Isolator for quick-release powered payload attachment
  • Alternate payload attachments sold separately: Integrator Vibration Isolator (non-electronic), Freefly Smart Dovetail Kit (hard mount), Astro Max Isolator (50A & 70A options for payloads over 1.5 KG / 3.3 lbs)

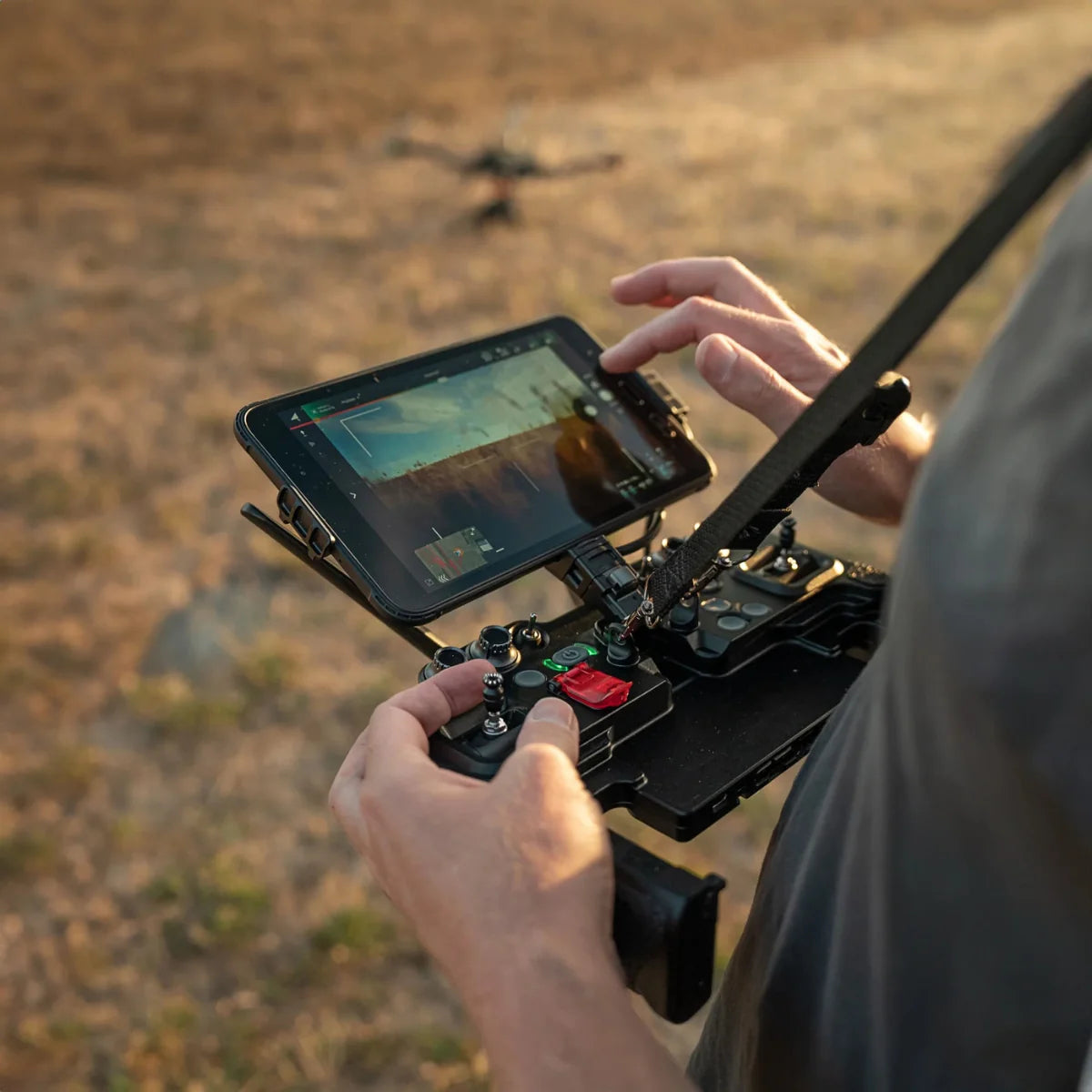

Pilot Pro Controller

  • High resolution rockers for precise camera / gimbal control
  • Configured with robust long-range radio hardware: Herelink 1.1 Radio (2.4 GHz)
  • Internal battery with external power inputs to support hot-swapping for maximum uptime
  • Emergency kill-switch
  • Discreet physical buttons for all key user actions
  • Includes custom configured, pre-installed 8" Samsung Galaxy Tablet Active5 tablet
  • Realtime drone and gimbal speed limits
  • Custom padded neck strap

Astro Compact Travel Case

  • Holds everything needed to fly Astro
  • Astro with 2 SL8 batteries* installed and legs folded
  • Pilot Pro radio controller
  • LR1 Payload (sold separately)
  • Pair of SL8 Chargers
  • Set of spare props (1 each CW & CCW)
  • Basic tools
  • Custom cut foam, tested to protect against drops from 1 meter
  • Submersible and dust tight (MIL-STD 810G)
  • Airline checkable
  • SKB Rolling Case - 3i-2217-10
  • Case dimensions: 24.52" x 19.5" x 12.22" / 62.28 x 49.53 x 31.04 cm
  • Weight of Astro in case: As shipped/checked (no SL8s): 36.16 lbs / 16.40 kg; Full kit (with two SL8s*): 40.66 lbs / 18.44 kg

Batteries

  • SL8-Air Batteries*
  • Astro uses two SL8-Air batteries per flight
  • Voltage: 21.6 V (6S)
  • Capacity: 7.3 Ah, 157 Wh
  • Weight: 2.25 lbs
  • Chemistry: Lithium-Ion
  • Auxiliary output: USB-C Power Delivery

Chargers

  • SL8 Fast Charger*
  • One charger charges one Freefly SL8-Air battery at a time
  • Approximate charge time for one SL8-Air battery, from 0%: 90 mins
  • Input: 100 / 240 VAC
  • Output: 200 Watts
  • Supplied with North America power cable (NEMA 1-15 ungrounded, Type A)
  • Power cable is replaceable (IEC320 connector)
  • Designed and Assembled in USA

*Batteries and chargers needed for flight not included, sold separately.

  • 1x Astro Max (with folding landing gear, high efficiency props, and Astro Isolator)*
  • 1x Astro compact travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • Spare parts:
  • 1x Extra Proptector
  • 4x Spare isolator balls
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x Samsung Active Tab (pre-configured and installed into controller)
  • 1x Herelink 1.1 RF (2.4 GHz)
  • 1x Custom padded neck strap
What is the maximum flight time of the Freefly Astro Max?

The aircraft offers up to 43 minutes of flight time with no payload.

How much payload can the Astro Max carry?

It supports payloads of up to 3 kg (6.6 lb) at maximum take-off weight.

What is the base weight of the Astro Max aircraft?

Its empty weight is 3,523 g (7.77 lb) excluding batteries and payload.

What motors and propellers does the Astro Max use?

It uses 7010 motors paired with 21-inch propellers for greater thrust and efficiency.

Does the Astro Max fold for easier transport?

Yes, its carbon-fiber arms fold to half its flight diameter for compact storage and mobility.

What batteries power the Astro Max?

It runs on dual Freefly SL8 Air smart batteries for long endurance and redundancy.

What payloads are compatible with the Astro Max?

It supports professional payloads including LiDAR, thermal, and mapping sensors via its Smart Dovetail interface.
