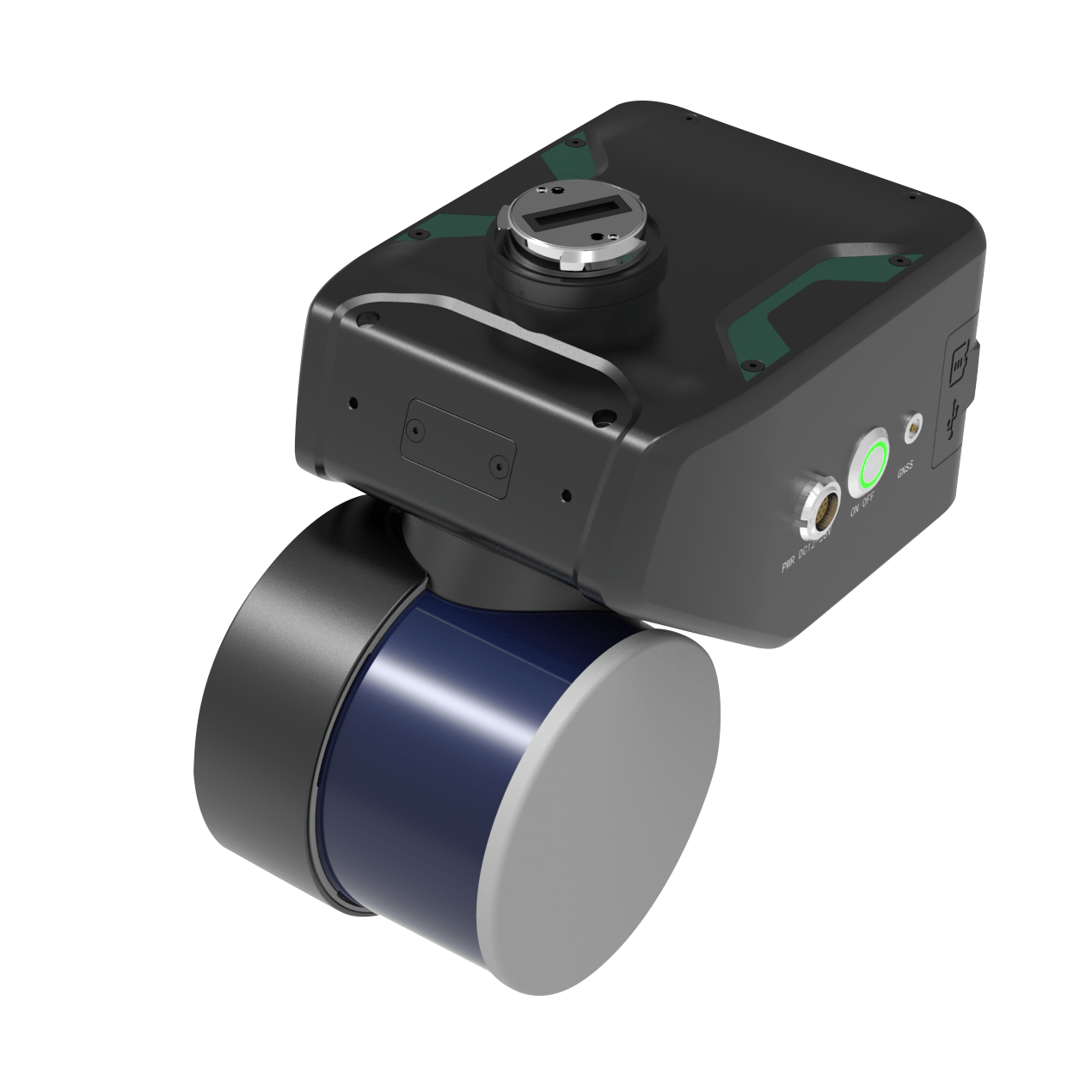

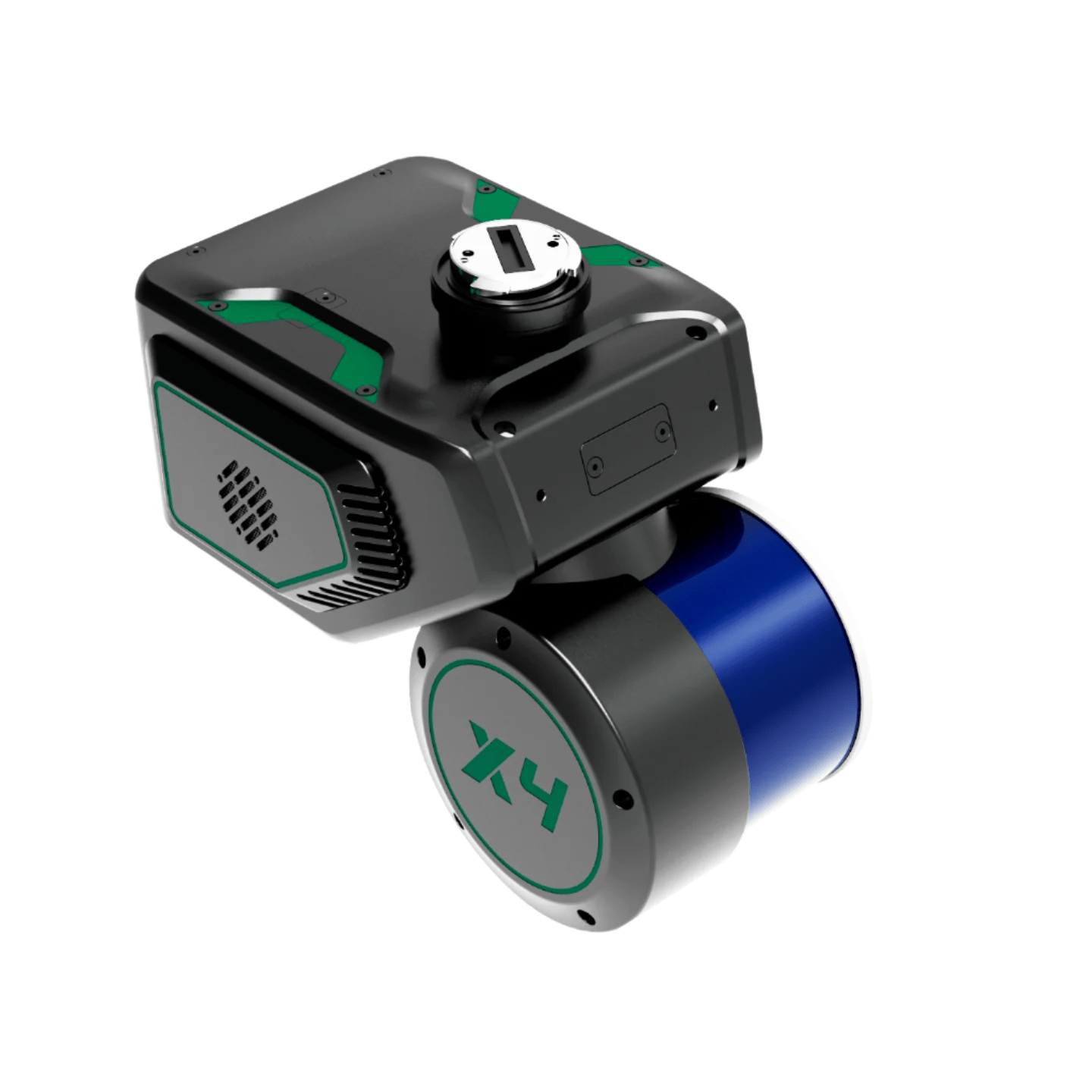

GreenValley LiAir X4 Airborne Laser Scanning Unit

GreenValley LiAir X4: Autonomous LiDAR for High-Precision Mapping and Inspection

The GreenValley LiAir X4 is a lightweight, high-performance UAV LiDAR system built for professionals demanding reliable 3D data acquisition in the field. Engineered for autonomous operation, it combines a 32-line rotary laser scanner, a 26MP RGB camera, advanced inertial navigation, and SLAM integration for handheld missions. Whether mounted on a DJI M300/M350 RTK or used on the ground, the LiAir X4 delivers centimeter-level accuracy, dense point clouds, and intelligent flight planning-all in a compact, user-friendly design.

Designed for Powerline and Terrain Inspections

The X4's advanced AirPilot algorithm allows for intelligent autonomous flight, automatically identifying and crossing power line intersections, avoiding tree obstacles, and following rugged terrain using live DEM generation. Real-time tower logging, pole photography, and RGB imaging streamline inspections, while antenna-free GNSS integration with DJI drones simplifies setup. With full 360° x 270° scan coverage, this system excels in dense or difficult-to-reach corridors.

Maximum Flexibility, Minimum Downtime

LiAir X4's handheld SLAM capability ensures high-precision data capture even in GNSS-denied environments like under canopy, tunnels, or urban zones. Weighing only 1.44 kg (or 1.9 kg with the panoramic camera), it's designed for quick, plug-and-play deployment. Operators can view RGB point clouds in real time, choose from three display modes, and rely on long runtimes for extended operations. Its compatibility with multiple UAV platforms and robust software suite make it an ideal choice for full-spectrum inspection needs.

Key Features and Benefits

• Integrated 32-Line Laser Scanner: Provides dense point cloud and wide-angle coverage
• Autonomous Obstacle Avoidance: Smart flight adjustments for safe data capture
• Real-Time DEM Flight Control: Adjusts altitude for terrain-following missions
• Handheld Scanning Mode: SLAM-enabled scanning in GNSS-denied environments
• RGB + True-Color Point Cloud: Enhanced field interpretation and post-processing
• 26MP APS-C Sensor: Captures clear, geo-tagged imagery for modeling
• Compact and Lightweight: Optimized for ease of use and fast deployment
• Panoramic Camera Option: Adds 3D texture capture for high-fidelity 3DGS models

Applications and Use Cases

• Powerline Corridor Scanning: Automated tower crossing and conductor imaging
• Terrain Surveying: Capture in steep, irregular, or hard-to-access environments
• Urban 3D Mapping: High-density scanning in infrastructure-rich zones
• Forestry Analysis: Vegetation modeling for biomass and growth studies
• Interior Mapping: Scans tunnels, buildings, or underground spaces with SLAM

Why Buy from Dronefly

Dronefly delivers more than drones-we provide complete UAV program solutions. As a trusted GreenValley dealer with one of the largest West Coast inventories, we help you evaluate your mission goals, budget, and timeline to deploy systems like the LiAir X4 with confidence. Our ongoing customer support and upgrade paths ensure your investment stays productive for years. Reach out today to consult with our UAV experts.

Specifications

• System
  • Detection Range
    • 80 m @ 10% reflectivity
    • 200 m @ 54% reflectivity
    • 300 m @ 90% reflectivity
  • System Accuracy (Vertical): <5 cm @ 100 m
  • Typical Flight Speed: 5-10 m/s
  • Storage: 256 GB TF Card + 512 GB Internal SSD
  • Weight: 1.44 kg
  • Dimensions: 210×120×183 mm
  • Voltage: 12-28 V
  • Power Consumption: 31 W
  • Operating Temperature: -20 to 50 °C
  • Storage Temperature: -30 to 60 °C
• LiDAR Sensor Parameters
  • Wavelength: 905 nm
  • Number of Channels: 32
  • Laser Class: Class 1
  • FOV: 360° (Horizontal) × 40.3° (Vertical)
  • Scan Rate: 1,920,000 pts/s (Triple Return)
  • Number of Returns: 3
• Inertial Navigation System
  • GNSS: GPS, GLONASS, Galileo, BDS
  • Azimuth Accuracy: 0.038°
  • Attitude Accuracy: 0.008°
  • IMU Data Frequency: 200 Hz
• Camera Parameters
  • Pixels: 26 MP
  • Focal Length: 16 mm / 24 mm (Equiv. Focal Length)
  • Image Resolution: 6252 × 4168
• Software
  • Control Software: GreenValley
  • Pre-Processing: LiGeoreference
  • Post-Processing: LiDAR360 / LiPowerline (Optional)
• Handheld Accessories
  • System Parameters
    • Handheld Size: 241.3 × 119.8 × 378.8 mm (Standard)
    • Handheld Size: 222.9 × 119.8 × 515.5 mm (Panoramic Camera)
    • Battery Box Size: 134 × 64.6 × 167 mm
    • Handheld Weight: 1.7 kg (Standard, excluding battery)
    • Handheld Weight: 1.9 kg (Panoramic Camera, excluding battery)
    • Panoramic Camera Pixel: 12 MP × 2
    • Panoramic Camera FPV: H190° × V190°
    • Voltage: 15.2 V
    • Battery Capacity: 5870 mAh
    • Antenna: HX-CH7609A
    • Protection Level: IP54
    • Working Time of One Battery Block: 2.5 h
• Maximum Continuous Operation Time
  • Maximum: 55 min
• Mapping Method
  • Mapping Principle: SLAM, PPK-SLAM
  • Real-Time Calculation: Not Supported
• Data Results
  • Absolute Accuracy: <5 cm
  • Point Cloud Thickness: <2 cm
  • Point Cloud Format: LAS, LiData

In The Box

• 1x GreenValley LiAir X4 Airborne Laser Scanning Unit
