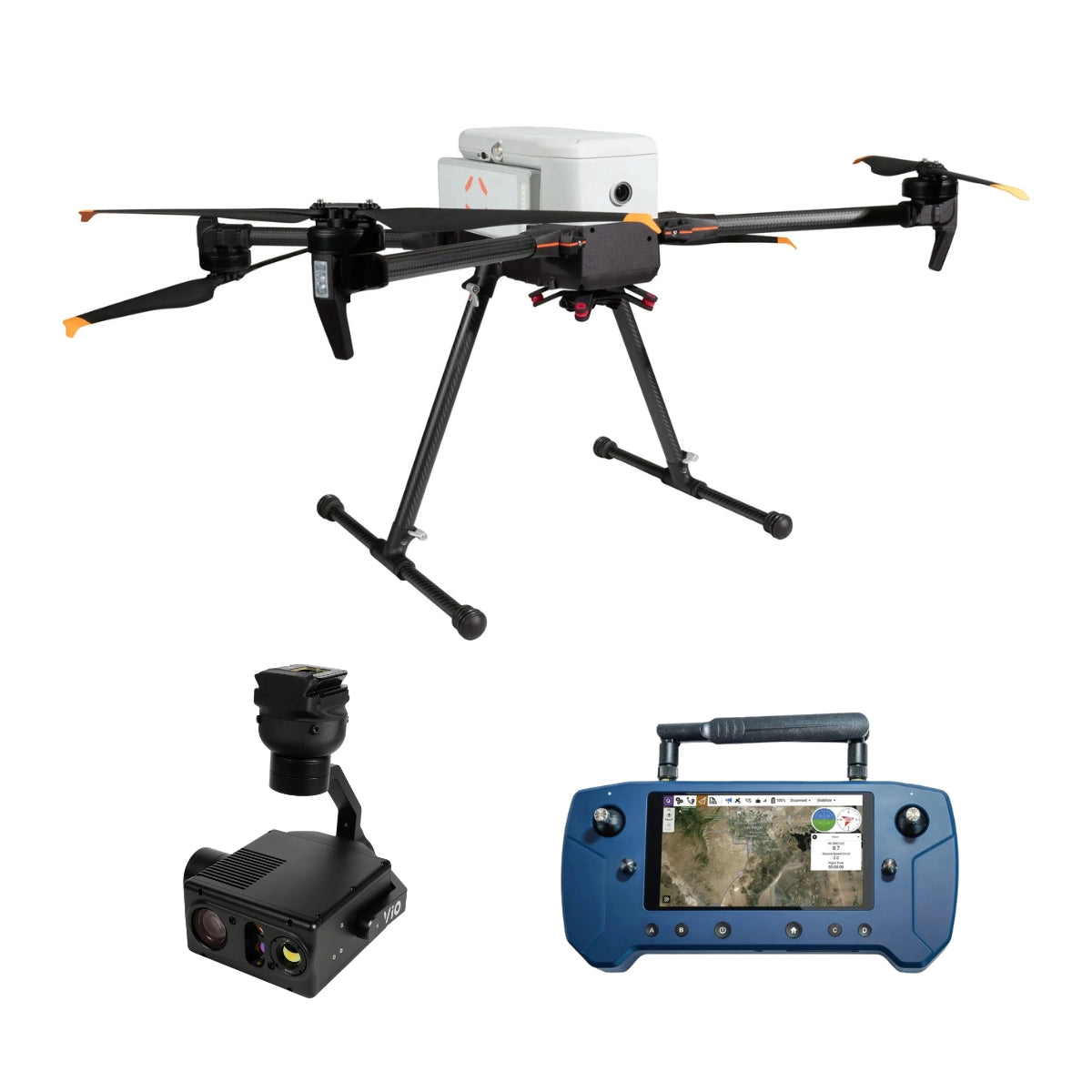

Inspired Flight IF800 with Blue Herelink + Gremsy VIO Bundle

Inspired Flight IF800 with Blue Herelink + Gremsy VIO Bundle

$29,950.00
$29,950.00
Sale Sold out
  • Up to 54 minutes of flight time for extended operations without downtime
  • Handles payloads up to 6.6 lbs, supporting a wide range of sensors and tools
  • 4K zoom and 640×512 thermal imaging for crisp visual and thermal data capture
  • Gremsy VIO features a 2400-meter rangefinder, optical/thermal zoom, and onboard AI for smart data processing
  • Compact, foldable airframe packs easily into a tough transport case for field mobility
  • Blue Herelink controller delivers secure HD video and precise mission control in real time
  • Fully equipped kit includes a rugged case, two smart batteries, and a charger—ready to deploy
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

IF800 Tomcat with Blue Herelink + Gremsy VIO: Built for Demanding Missions

The Inspired Flight IF800 Tomcat paired with the Blue Herelink controller and Gremsy VIO F1 sets a new bar for professional UAV operations.

From rugged terrain mapping to remote infrastructure checks and rapid emergency response, this bundle delivers a tough, intelligent, and portable UAV solution.

Bundle Overview

  • US-made, NDAA-compliant, and Blue UAS-listed drone
  • Up to 54 minutes in the air for maximum coverage
  • 6.6 lb payload capacity for heavy-duty sensors
  • Hot-swappable batteries-fly longer, work faster
  • 49 mph top speed to cover more ground quickly
  • Compact, foldable frame for easy transport and field deployment
  • Blue Herelink for HD video downlink and precise mission control
  • Gremsy VIO F1 payload with 4K zoom sensor and 640x512 resolution thermal imaging

Get up to 54 minutes of air time, lift up to 6.6 pounds of advanced sensors, and swap smart batteries on the fly-this platform is made for teams who can't afford downtime.

The IF800 Tomcat is a trusted medium-lift quadcopter, and the Gremsy VIO F1 packs powerful dual sensors with thermal and 4K zoom, driven by onboard AI for smarter data capture.

This isn't just a drone-it's a mission-ready data collector that performs when conditions get tough.

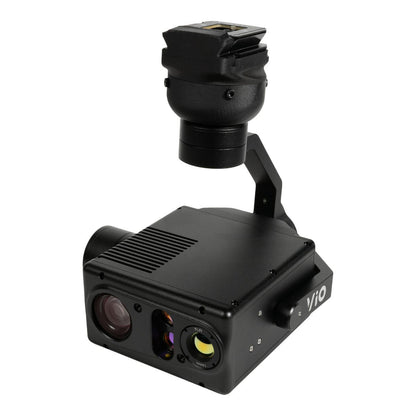

Imaging Powerhouse

  • Gremsy VIO F1 with 4K zoom sensor
  • Radiometric thermal (640x512, 30fps)
  • 8.5 MP stills at 3840x2160
  • 4K video recording for clear situational insight
  • Integrated laser rangefinder-up to 2400 meters
  • Dual-mode zoom (thermal + optical)
  • AI features: auto zoom, object tracking, and onboard data processing via NVIDIA Jetson Xavier NX

NDAA-Compliant and Blue UAS-Approved

As an NDAA-compliant and Blue UAS-listed drone, the IF800 offers users a major strategic advantage: it’s engineered to meet federal security requirements from day one.

All key components are sourced from approved suppliers, greatly reducing cybersecurity risks and ensuring long-term parts availability. Agencies and enterprises operating in regulated sectors benefit from peace of mind knowing the aircraft aligns with U.S. defense and security standards.

Its presence on the Blue UAS Cleared List also accelerates deployment across government and enterprise missions. Procurement teams can adopt the IF800 without lengthy waivers or compatibility concerns.

For organizations that demand both compliance and performance, the IF800 provides a future-proof solution built for secure, scalable operations.

Best Use Cases

  • Defense & Security: surveillance, recon, overwatch
  • Infrastructure Inspection: power lines, pipelines, telecom
  • Precision Mapping & Survey: high-res aerial data
  • Public Safety: search & rescue, rapid response

Dronefly brings deep industry experience, tailored advice, and top-tier support. We help first responders, engineers, and defense pros choose reliable UAV solutions that deliver results in the real world. When uptime and mission success matter, Dronefly has your back.

Performance

  • Max Ascent Speed: 5 m/s
  • Max Descent Speed: 3 m/s
  • Max Air Speed: 22 m/s
  • Max Wind Resistance: 10 m/s, 12 m/s gusts
  • Max Tilt Angle: 30°
  • Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
  • Operating Temperature: -20°C ~ 45°C
  • Operating Humidity: IP43 5% ~ 99%

Physical Features

  • Diagonal Size (propeller center to center): 905 mm
  • Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm
  • Folded Size (stow, WxLxH): 36 x 44 x 20 cm
  • Empty Weight (w/o batteries): 4.2 kg
  • Weight w/ Batteries: 8.5 kg
  • Max Gross Takeoff Weight: 11.5 kg
  • Max Payload Capacity: 3.0 kg
  • Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm
  • Transport Case Weight (w/ aircraft & GCS): 18 kg

Flight Stack

  • Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
  • GNSS / Compass: Dual CubePilot Here4 Blue
  • Downward Ground Sensor: LightWare SF000/B
  • Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
  • Payload Interface: IF800 Universal Payload Interface
  • Operating Software: Copter by Ardupilot

Flight Modes

  • Position Hold: Automatically holds altitude and position, manually change position
  • Loiter: Holds altitude and position, precision manual movements using GPS
  • Auto: Executes pre-defined waypoint mission
  • RTL: Auto returns to takeoff location and lands
  • Land: Auto land while maintaining horizontal position
  • Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
  • 1x IF800 Quadcopter

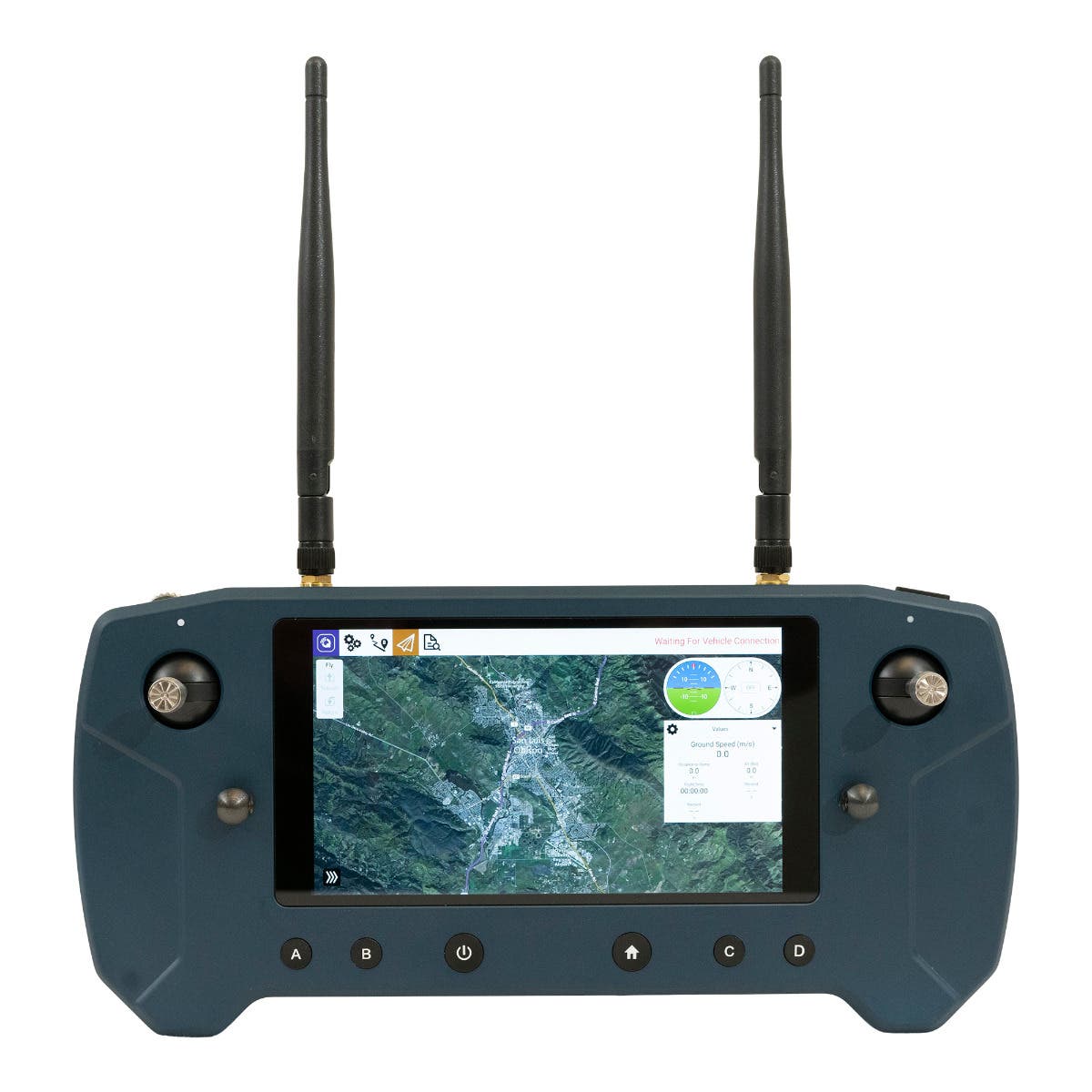

  • 1x Blue Herelink Ground Control Station
  • 1x Rugged Transport Case
  • 2s Drone Batteries
  • 1x Charger Set
  • 1x Inspired Flight Gremsy VIO Payload for IF800
What support and maintenance services are available for the Gremsy VIO F1 and IF800 Tomcat?

Both Inspired Flight and Gremsy offer comprehensive customer support, including firmware updates, troubleshooting assistance, and repair services to keep your equipment operating at peak performance.

Can the IF800 Tomcat and Gremsy VIO F1 be used for public safety or search-and-rescue missions?

Yes, this combination is ideal for public safety and search-and-rescue operations. The thermal imaging capabilities allow for locating individuals or heat-emitting objects in low-visibility environments, such as at night or during adverse weather conditions.

What sensors and cameras are optimized for the IF800 Tomcat with the Gremsy VIO F1?

The IF800 Tomcat integrates seamlessly with the Gremsy VIO F1 and supports FLIR Vue thermal cameras, multispectral sensors, and RGB cameras, making it adaptable for various mission requirements.

How does the Gremsy VIO F1 improve thermal imaging capabilities for the IF800 Tomcat?

The Gremsy VIO F1 provides stable, high-resolution thermal imagery, ensuring accurate temperature readings and detailed heat maps, even during dynamic flight conditions.

What industries benefit most from the IF800 Tomcat and Gremsy VIO F1 integration?

Industries such as energy and utilities, agriculture, public safety, and environmental monitoring benefit greatly from the combined precision and imaging capabilities of the IF800 Tomcat and Gremsy VIO F1.

How is the Gremsy VIO F1 installed on a drone like the IF800 Tomcat?

The Gremsy VIO F1 is installed using its quick-release mounting system, ensuring a secure and straightforward attachment. Simply follow the user manual for proper setup to ensure optimal gimbal performance.

What are the maximum payload capacity and flight time for the IF800 Tomcat when using the Gremsy VIO F1?

The IF800 Tomcat can support payloads up to 6.6 lbs (3 kg) and offers a maximum flight time of up to 40 minutes, depending on the payload weight and environmental factors.

What industries benefit most from the IF800 Tomcat and Gremsy VIO F1 integration?

Industries such as energy and utilities, agriculture, public safety, and environmental monitoring benefit greatly from the combined precision and imaging capabilities of the IF800 Tomcat and Gremsy VIO F1.

What are the maximum payload capacity and flight time for the IF800 Tomcat when using the Gremsy VIO F1?

The IF800 Tomcat can support payloads up to 6.6 lbs (3 kg) and offers a maximum flight time of up to 40 minutes, depending on the payload weight and environmental factors.
