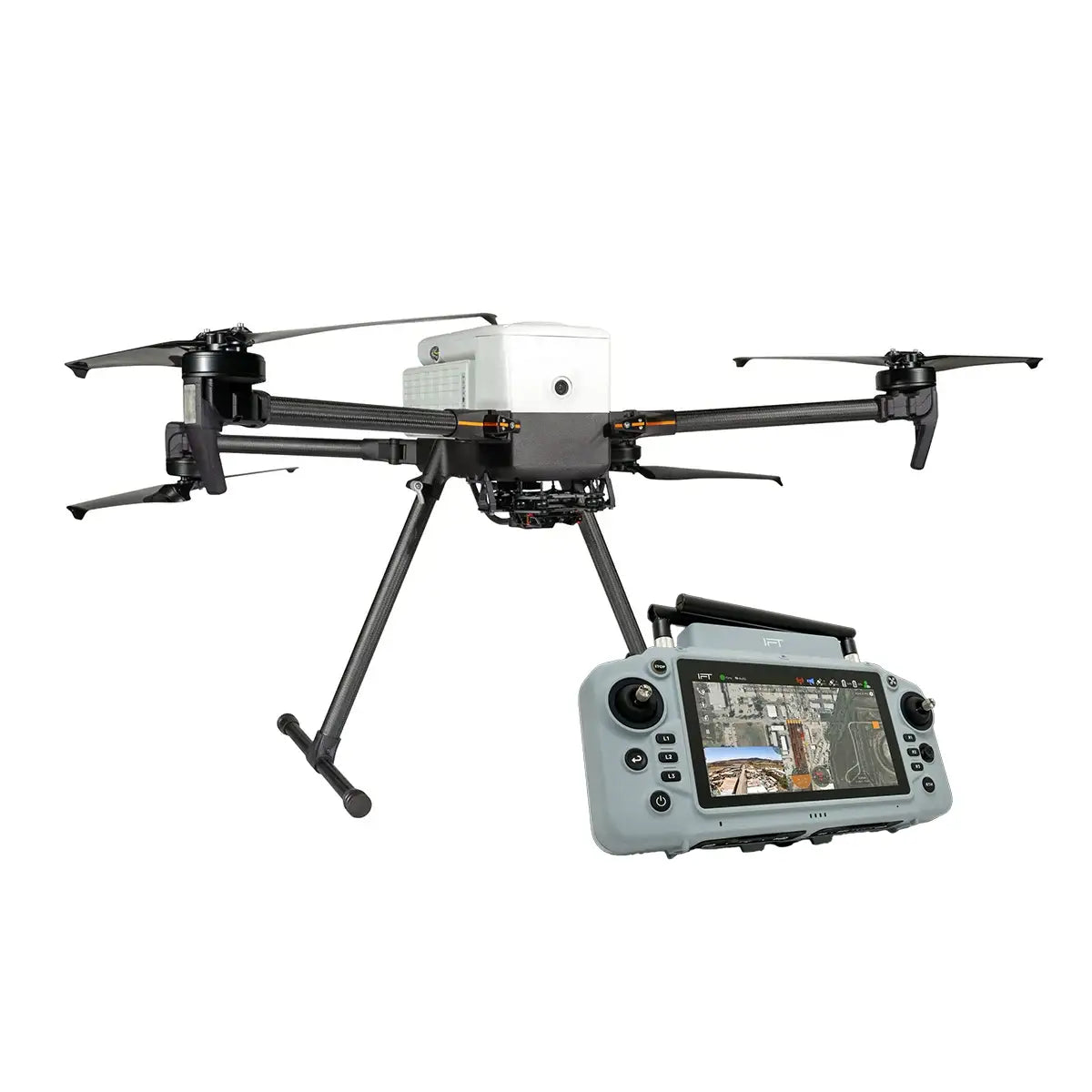

Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station

Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station

$29,500.00
$29,500.00
Sale Sold out
  • NDAA-compliant, American-made quadcopter system
  • Max flight time: 54 minutes; max speed: 49 mph
  • Payload capacity up to 6.6 lbs (optical, EO/IR, LiDAR ready)
  • Wind resistance up to 23 knots for reliable performance
  • GS-ONE Ground Control Station with 7" 2,000-nit touchscreen
  • IP55 enclosure with hot-swappable battery and 6-mile range
  • Designed for defense, mapping, utilities, and public safety
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Mission-ready NDAA-compliant aerial platform

The Inspired Flight IF800 Tomcat paired with the GS-ONE Ground Control Station is engineered for professionals who demand reliability, precision, and adaptability in the field.

Built to meet NDAA compliance, this American-made system provides the performance and flexibility required for critical missions across defense, mapping, utilities, and public safety.

High-performance flight capabilities

The IF800 is a robust quadcopter designed for maximum efficiency in challenging environments.

  • Endurance: Up to 54 minutes of continuous flight per mission.
  • Speed & stability: Maximum airspeed of 49 mph with wind resistance up to 23 knots.
  • Payload power: Supports payloads up to 6.6 lbs (3.0 kg) for optical, EO/IR, and LiDAR sensors.

  • Pre-configured options: Mission-specific payloads ensure rapid deployment.

Field-proven ground control station

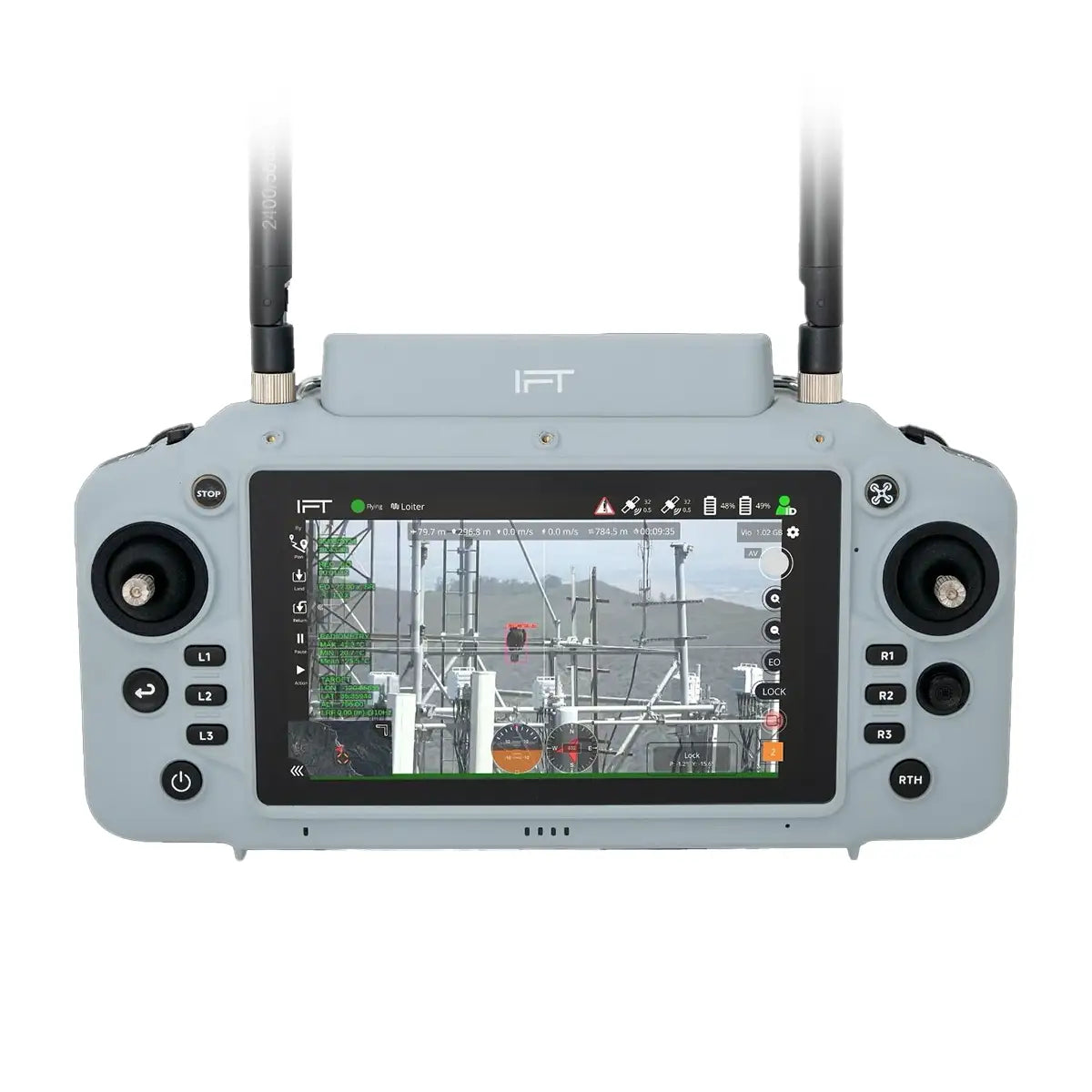

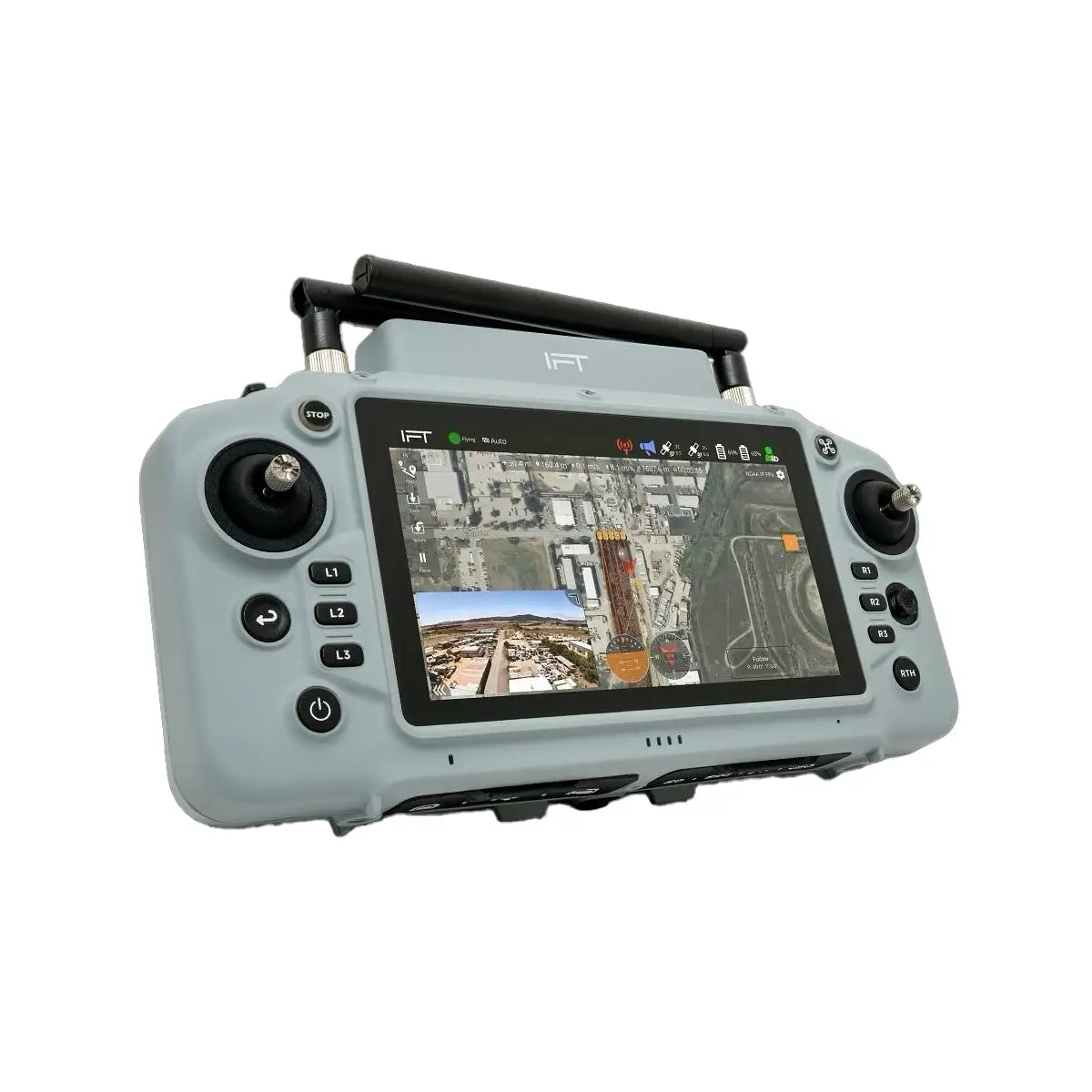

The GS-ONE enhances operational efficiency with rugged, pilot-friendly features:

  • Bright & clear interface: 7-inch, 2,000-nit touchscreen for direct sunlight visibility.
  • All-weather reliability: IP55-rated design protects against dust and water spray.
  • Uninterrupted operations: Hot-swappable batteries allow up to 5 hours of runtime.
  • Extended reach: Maintain control and data transmission up to 6 miles.

NDAA-Compliant and Blue UAS-Approved

As an NDAA-compliant and Blue UAS-listed drone, the IF800 offers users a major strategic advantage: it’s engineered to meet federal security requirements from day one.

All key components are sourced from approved suppliers, greatly reducing cybersecurity risks and ensuring long-term parts availability.

Agencies and enterprises operating in regulated sectors benefit from peace of mind knowing the aircraft aligns with U.S. defense and security standards.

Its presence on the Blue UAS Cleared List also accelerates deployment across government and enterprise missions. Procurement teams can adopt the IF800 without lengthy waivers or compatibility concerns.

Real-world applications

The IF800 + GS-ONE combo adapts seamlessly across industries and missions:

  • Defense & security: Tactical surveillance and rapid-response missions.
  • Mapping & surveying: High-resolution data capture for terrain and construction projects.
  • Utilities & infrastructure: Streamlined inspection of power lines, pipelines, and assets.
  • Emergency response: Enhanced situational awareness in SAR and disaster relief.

The Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station is more than a drone-it's a mission-ready aerial system designed to boost productivity and reliability in demanding fields.

With powerful performance, intuitive controls, and rugged construction, this combo delivers the tools professionals need to operate with confidence.

Performance

  • Max Ascent Speed: 5 m/s
  • Max Descent Speed: 3 m/s
  • Max Air Speed: 22 m/s
  • Max Wind Resistance: 10 m/s, 12 m/s gusts
  • Max Tilt Angle: 30°
  • Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
  • Operating Temperature: -20°C ~ 45°C
  • Operating Humidity: IP43 5% ~ 99%

Physical Features

  • Diagonal Size (propeller center to center): 905 mm
  • Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm
  • Folded Size (stow, WxLxH): 36 x 44 x 20 cm
  • Empty Weight (w/o batteries): 4.2 kg
  • Weight w/ Batteries: 8.5 kg
  • Max Gross Takeoff Weight: 11.5 kg
  • Max Payload Capacity: 3.0 kg
  • Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm
  • Transport Case Weight (w/ aircraft & GCS): 18 kg

Flight Stack

  • Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
  • GNSS / Compass: Dual CubePilot Here4 Blue
  • Downward Ground Sensor: LightWare SF000/B
  • Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
  • Payload Interface: IF800 Universal Payload Interface
  • Operating Software: Copter by Ardupilot

Flight Modes

  • Position Hold: Automatically holds altitude and position, manually change position
  • Loiter: Holds altitude and position, precision manual movements using GPS
  • Auto: Executes pre-defined waypoint mission
  • RTL: Auto returns to takeoff location and lands
  • Land: Auto land while maintaining horizontal position
  • Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
  • 1x Inspired Flight IF800 Quadcopter
  • 1x GS-ONE Ground Control Station
What’s the difference between the Inspired Flight IF800 and IF1200A?

The IF1200A is engineered for heavy-lift missions, offering higher payload capacity and longer endurance, making it suitable for large-scale mapping and utility projects. The IF800 is a versatile, mid-sized platform, ideal for urban missions and applications where a balance of portability and payload capability is essential.

Can I use third-party cameras and sensors with the IF800?

Yes, through its universal payload interface.

Can the IF800 operate in the rain?

It has an IP43 rating, meaning it’s resistant to light rain and dust, but not fully waterproof.

Does this IF800 bundle come with a controller?

Yes.

What kind of payloads can the IF800 carry?

The IF800 supports a wide range of enterprise payloads, including EO/IR sensors, LiDAR, mapping cameras, and custom tools up to ~1.5 kg.

Is the IF800 NDAA-compliant and Blue UAS approved?

Yes. It meets all NDAA requirements and is listed on the official DoD Blue UAS Cleared List, making it eligible for federal use and grant-funded programs.
