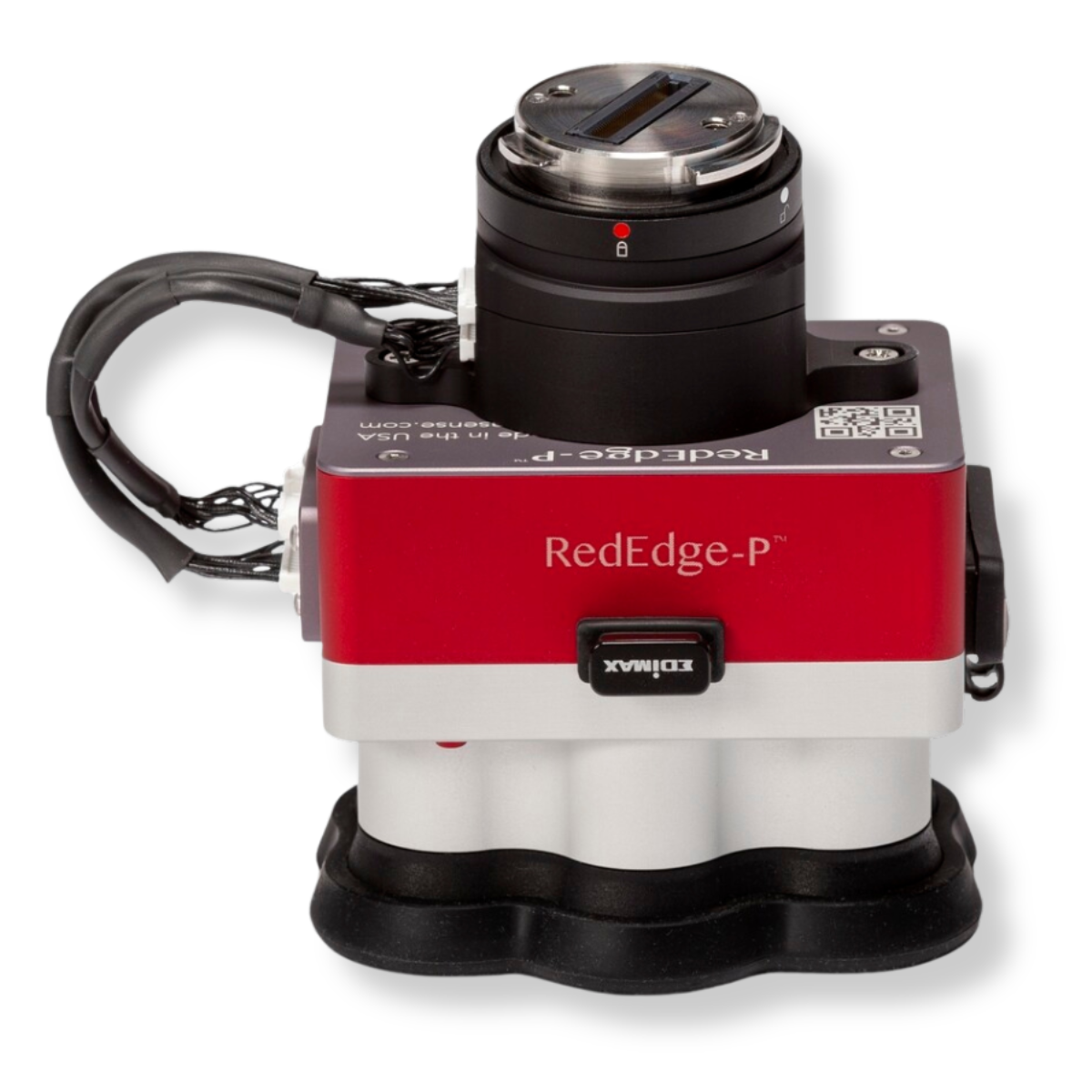

Micasense RedEdge-P with Skyport Kit

MicaSense RedEdge-P + Skyport Kit: Multispectral and Panchromatic Payload

This bundle combines the MicaSense RedEdge-P sensor with the RedEdge-P Skyport Kit, creating a complete imaging solution for DJI SkyPort drones such as the Matrice 300 RTK and 350 RTK. RedEdge-P captures five multispectral bands plus a high-resolution panchromatic channel, producing pan-sharpened imagery at 2 cm GSD and multispectral outputs at ~5 cm GSD (120 m altitude). With direct SkyPort compatibility, the bundle installs quickly and delivers radiometrically calibrated data in every flight.

Multispectral Imaging with Enhanced Detail

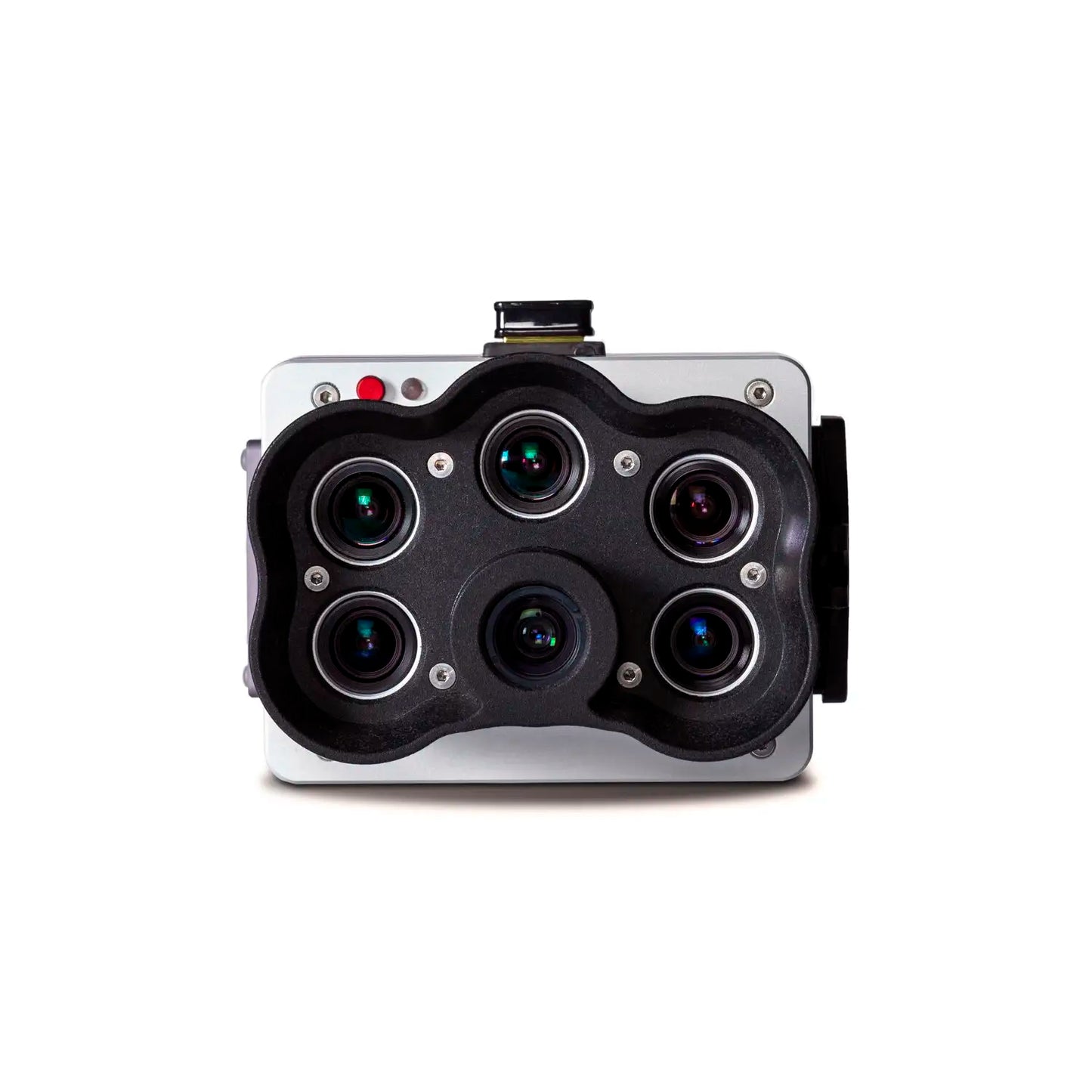

RedEdge-P expands the proven RedEdge platform by adding a dedicated panchromatic imager for improved spatial resolution. This enables pan-sharpened, high-clarity outputs suitable for detailed crop analysis and research. Capturing up to two frames per second, the sensor supports efficient coverage of large areas while preserving band alignment. The Skyport Kit ensures seamless integration with DJI enterprise drones, providing secure mounting and reliable data transfer without additional modifications.

Built for Precision Agriculture and Research

Lightweight, low-power, and IP4X dust-resistant, RedEdge-P is engineered for demanding field environments. Its connectivity suite-Serial, Ethernet, GPIO, and WiFi-offers broad integration flexibility. CFexpress storage ensures fast data transfer between missions. With included DLS 2 and CRP2 tools, radiometric consistency is maintained across flights, making the system ideal for long-term monitoring and experimental trials.

Key Features and Benefits

• Bundle includes RedEdge-P sensor and RedEdge-P Skyport Kit
• Multispectral capture: Blue, Green, Red, Red Edge, NIR
• Panchromatic imager: 2 cm GSD at 120 m altitude
• Multispectral resolution: ~5 cm GSD at 120 m altitude
• Pan-sharpened outputs: enhanced spatial clarity for crop analysis
• Capture rate: up to 2 frames per second
• Removable CFexpress media for efficient data handling
• Integration interfaces: Serial, Ethernet, GPIO, WiFi
• Radiometric calibration with DLS 2 + CRP2 included
• IP4X dust protection for rugged field deployment

Applications and Use Cases

• Crop vigor assessment: generate NDVI and advanced vegetation indices
• Irrigation optimization: detect canopy stress linked to water shortage
• Pest and disease monitoring: identify issues before visual symptoms appear
• Plant mapping and counting: improve agronomy and yield modeling
• Crop phenotyping: monitor small-scale trait differences across plots
• Yield forecasting: integrate multispectral indices with predictive models
• Habitat monitoring: assess vegetation stress across environments
• Research programs: repeatable datasets for multi-season trials

The RedEdge-P + Skyport Kit simplifies multispectral data collection by combining high-resolution pan-sharpened outputs with native DJI integration. This bundle ensures consistent, accurate results while reducing mission complexity.

Dronefly supports your deployment with integration guidance, calibration services, and technical expertise. Contact us today to order your RedEdge-P + Skyport Kit and prepare your DJI Matrice platform for advanced agricultural imaging.

Specifications

• Weight
  • 745 g / 26.2 oz (includes two sensors, mounting hardware, DLS2, and cable)
• Dimensions
  • 13.2 × 8.8 × 9.67 cm (5.1 × 3.1 × 3.5 in)
• Sensor Resolution
  • RGB Sensor: 5.1 MP global shutter (2464 × 2056 pixels)
  • Multispectral Sensor: 1.6 MP per band (1456 × 1088 pixels)
• Ground Sample Distance (GSD) @ 120 m / ~400 ft AGL
  • Multispectral: 7.7 cm/pixel
  • Panchromatic: 3.98 cm/pixel
• Field of View (FOV)
  • Multispectral: 50° HFOV × 38° VFOV
  • Panchromatic: 44° HFOV × 38° VFOV
• Capture Rate
  • Up to 3 raw DNG images per second
• Storage Medium
  • High-speed CFexpress card
• Interfaces
  • Frame signals
  • Host virtual button
  • USB 2.0 (WiFi)
  • Serial
  • 10/100/1000 Ethernet
• Power Requirements
  • Input Voltage: 7.0 V - 25.2 V
  • Power Consumption:
    • Standby: 11 W
    • Average: 14 W
    • Peak: 20 W
• Environmental Protection
  • IP4X dust ingress rating
• Spectral Bands Available
  • Select 10 out of 15 bands, including:
    • Coastal Blue (444 nm)
    • Blue (475 nm)
    • Green (531 nm, 550 nm, 560 nm)
    • Yellow (570 nm)
    • Red (650 nm, 668 nm, 678 nm)
    • Red Edge (705 nm, 717 nm, 740 nm)
    • Near-Infrared (754 nm, 842 nm)

In The Box

• 1x Micasense RedEdge-P
• 1x MicaSense Skyport Kit for RedEdge Series
