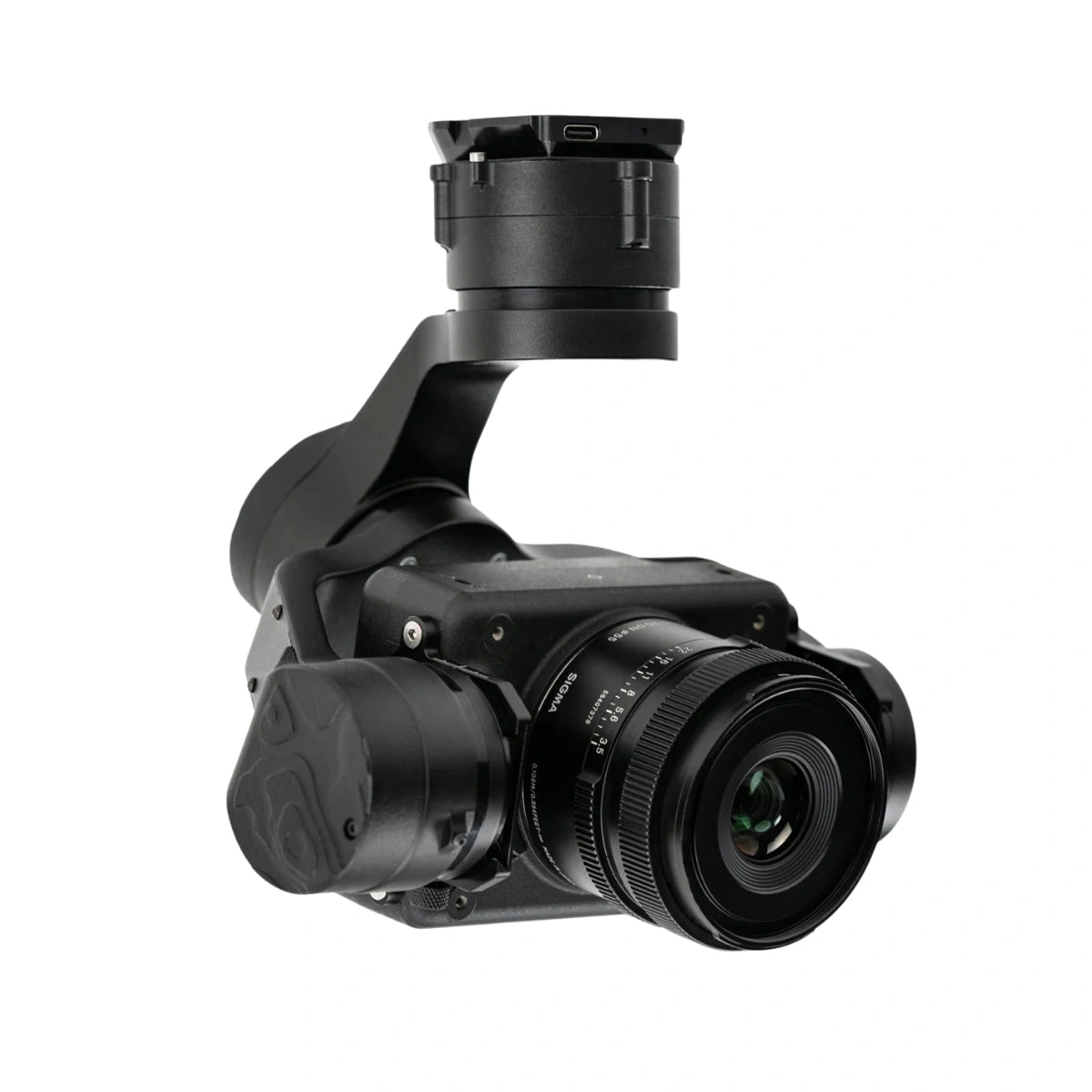

Sony ILX-LR1 61 MP Camera with Sigma 24 mm f/3.5 Mapping Lens for Astro Max

Sony ILX-LR1 61 MP Camera with Sigma 24 mm f/3.5 Mapping Lens for Astro Max

$8,745.00
$8,745.00
Sale Sold out
SKU S-FF-SONY-ILX-LR1 MPN 950-00147
  • 61 MP full-frame sensor for enterprise mapping missions
  • Includes Sigma 24 mm f/3.5 lens for sharp, accurate imaging
  • Designed and assembled in the USA (NDAA compliant)
  • 970 g payload weight optimized for Astro flight balance
  • Smart Dovetail mount ensures quick setup and data link
  • Works with Astro and Astro Max drone systems
  • Typical 28–34 minute flight duration on dual SL8 batteries
  • Compact hard case included for payload and lens storage
  • Delivers survey-grade imagery for mapping and inspection
  • Backed by Dronefly enterprise support and expertise
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Sony ILX-LR1 61 MP Camera with Sigma 24 mm f/3.5 Mapping Lens: Professional mapping payload for Astro enterprise operations

The Sony ILX-LR1 Mapping Payload delivers high-accuracy imaging for enterprise mapping, surveying, and infrastructure inspection missions. Featuring a 61 MP full-frame sensor and Sigma 24 mm f/3.5 lens, it captures high-fidelity imagery optimized for 3D modeling and orthomosaic production. Designed and assembled in the USA using NDAA-compliant components, this payload integrates seamlessly with Freefly Astro series aircraft for precise and efficient data collection.

Precision imaging for mapping and data collection

The ILX-LR1 camera offers 61 MP resolution and a full-frame Exmor R sensor that delivers outstanding detail and dynamic range for professional mapping applications. Combined with the Sigma 24 mm f/3.5 lens, it produces sharp, color-accurate images from edge to edge. Weighing just 970 g, the payload is optimized for Astro's flight balance and typically achieves 28-34 minutes of endurance on dual SL8 batteries.

Integrated for Astro workflow and field efficiency

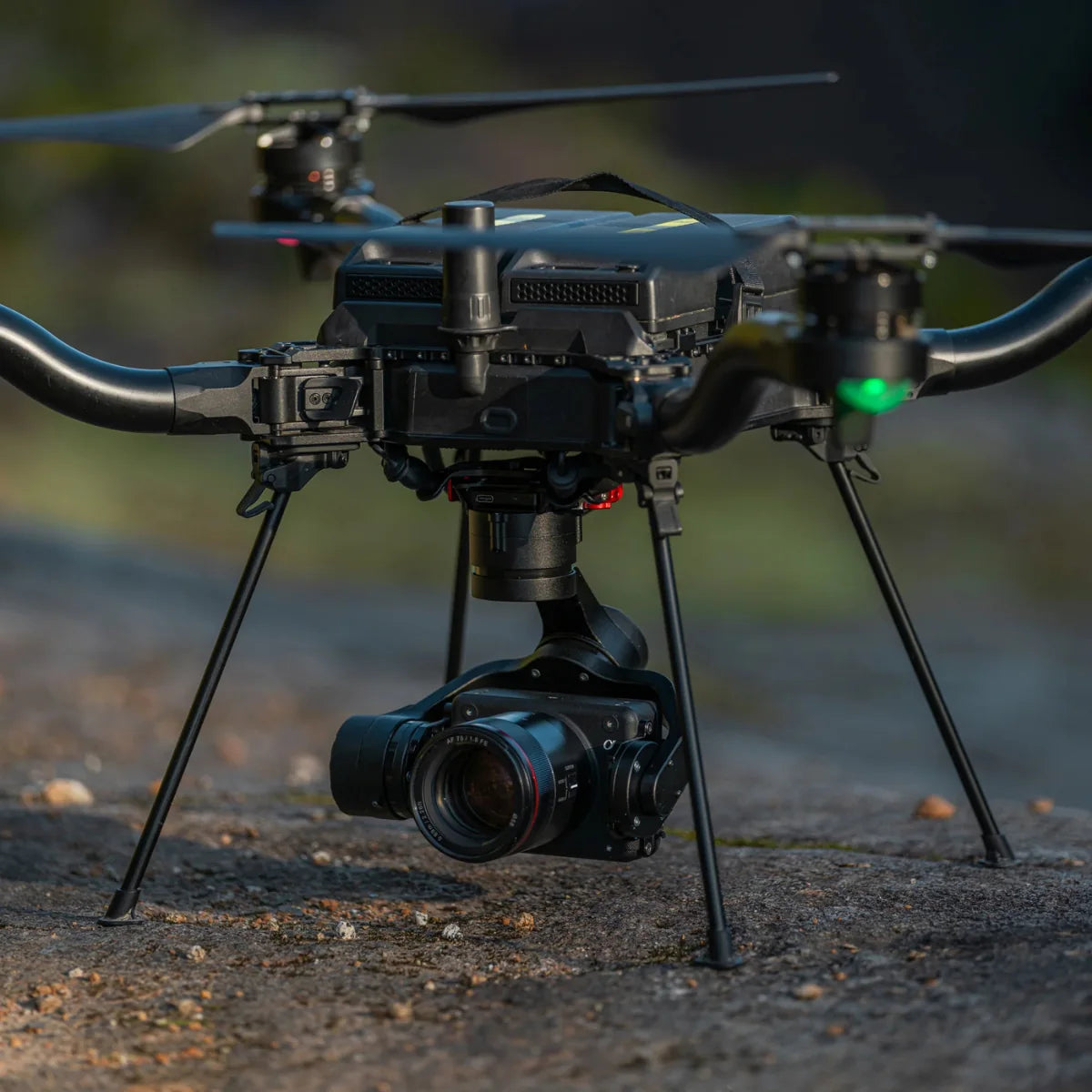

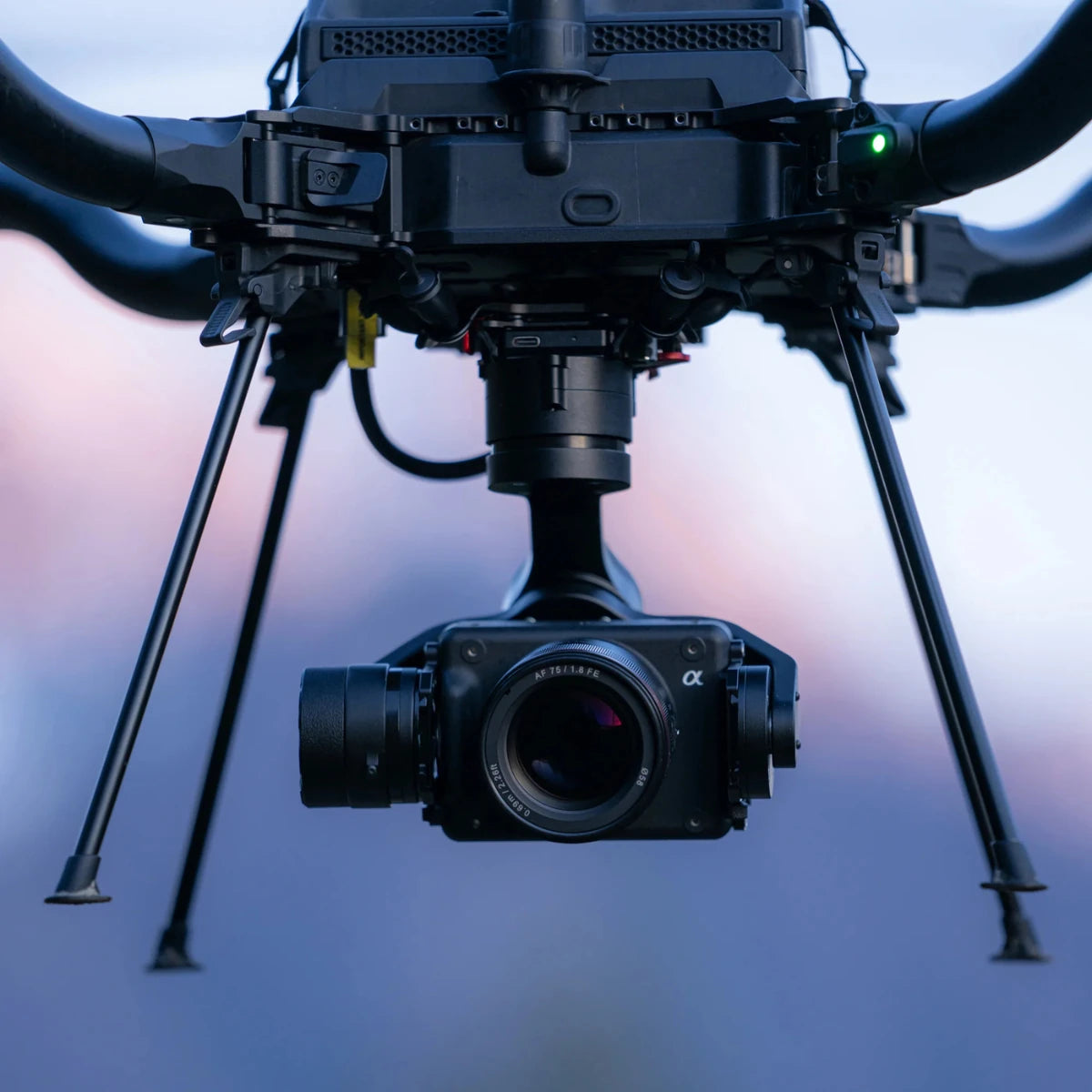

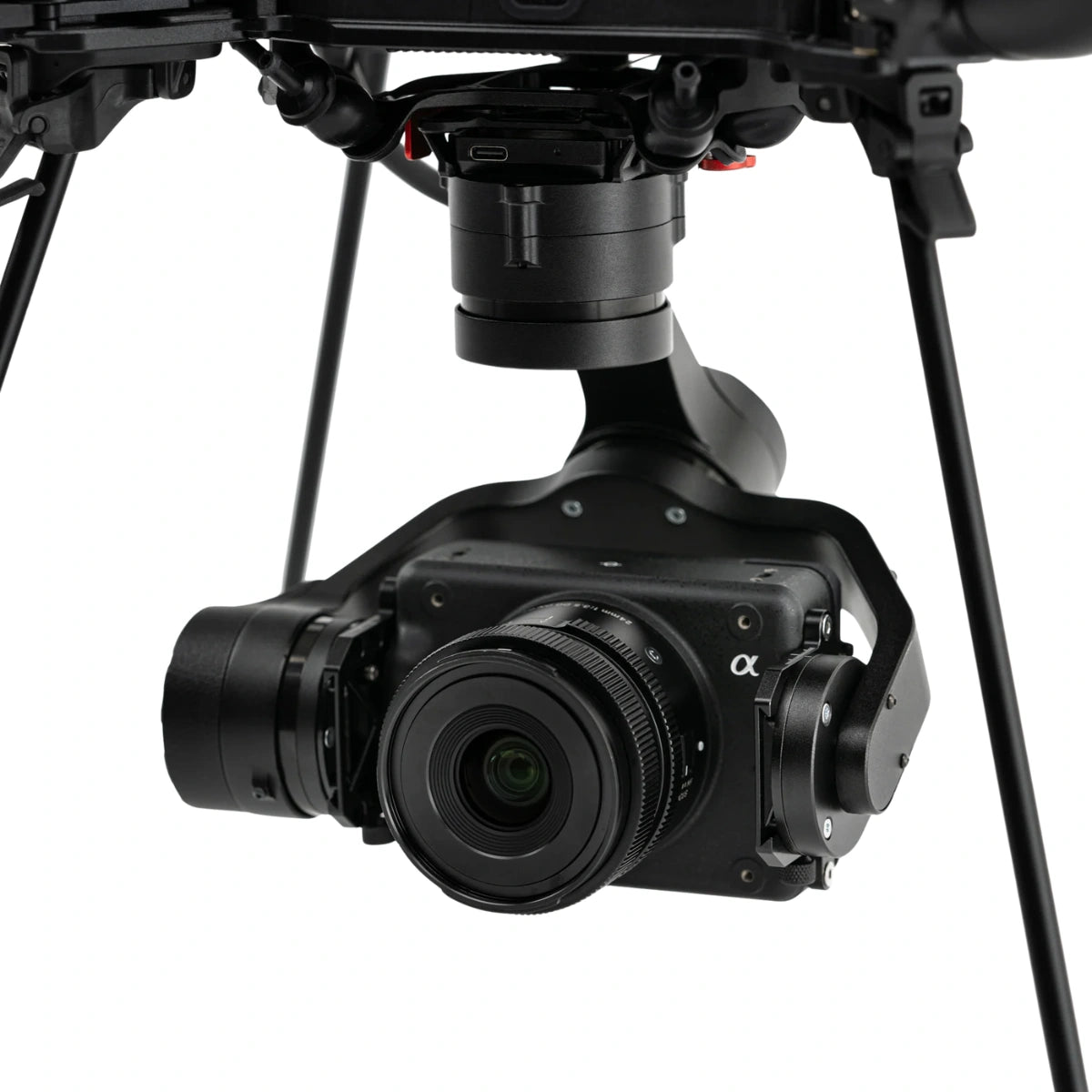

The LR1 Payload mounts via Freefly's Smart Dovetail system for instant electrical and data connectivity. Operators can trigger image capture directly from the Pilot Pro controller and receive real-time status feedback. It ships in a compact hard case for secure transport, complete with a Sigma lens and space for additional optics.

Key Features and Benefits

  • 61 MP full-frame sensor for survey-grade imagery
  • Sigma 24 mm f/3.5 lens for crisp edge-to-edge focus
  • 970 g payload weight optimized for Astro series flight
  • Designed and assembled in the USA with NDAA compliance
  • Smart Dovetail interface for seamless mount and data integration
  • 9,504 × 6,336 pixel resolution for high-accuracy mapping

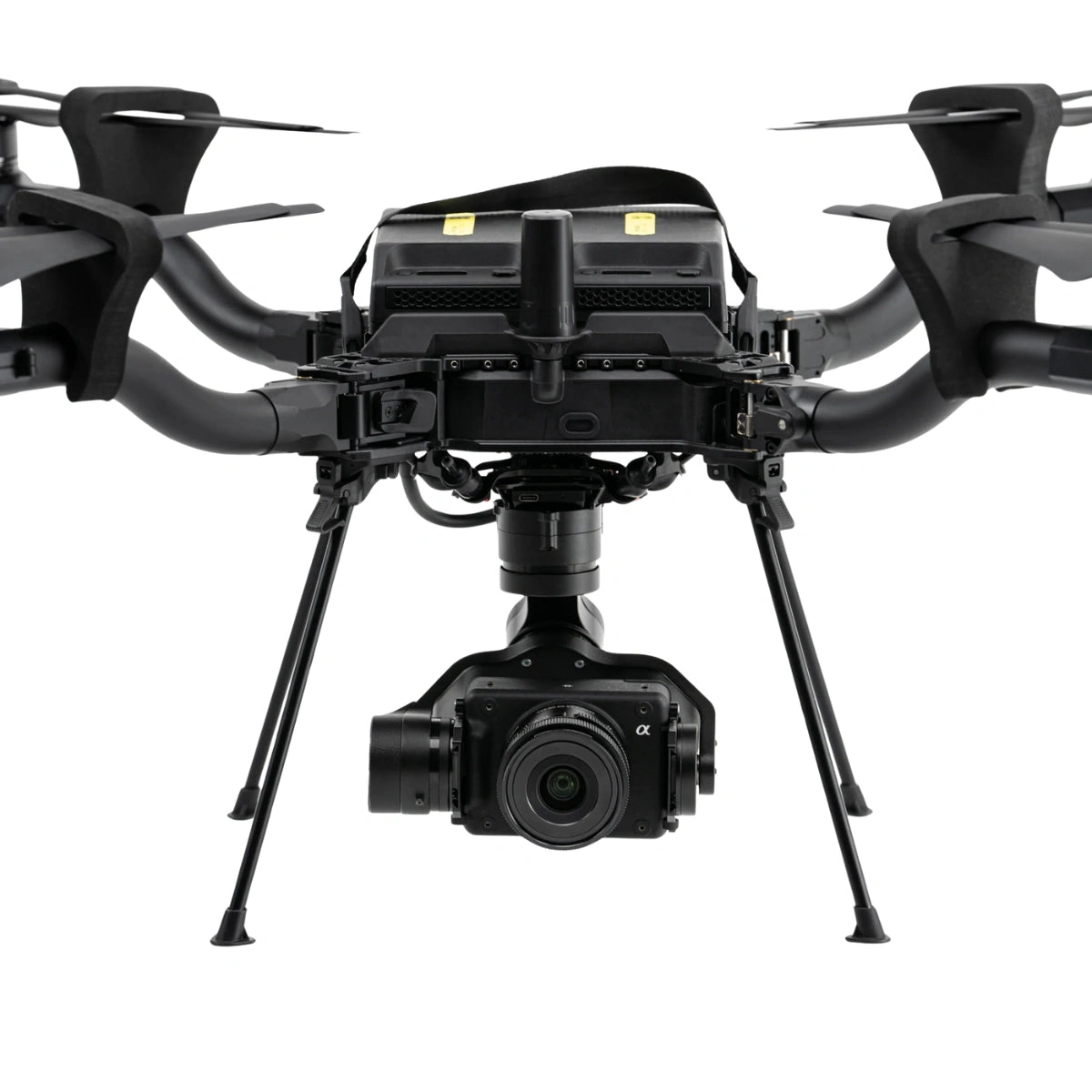

  • Compatible with Astro and Astro Max aircraft systems
  • Typical 28-34 minute flight time per dual battery set
  • Compact travel case for lens and payload protection
  • Fully supported by Freefly and Dronefly technical teams

Applications and Use Cases

  • Aerial mapping and surveying for infrastructure and urban planning
  • Construction documentation and progress tracking missions
  • Environmental and resource management analysis
  • Powerline and pipeline inspection with precision imaging
  • Emergency response and public safety mapping operations
  • Research and development requiring high-resolution terrain models
  • Agricultural monitoring and field survey applications

The Sony ILX-LR1 Mapping Payload offers professional image quality and secure integration for Freefly Astro operators worldwide. It's a trusted solution for survey-grade data collection and enterprise inspection missions.

Dronefly provides authorized Freefly payloads, system integration, and mission support for enterprise operators. Order today to equip your Astro with a fully certified 61 MP mapping payload.

  • Ships in rugged travel case with room for 2 additional lenses
  • SKB 3L-1209-4B-E with custom insert
  • Exterior: 13.125" x 11.375" x 5.5" / 33.34 x 28.89 x 13.97 cm

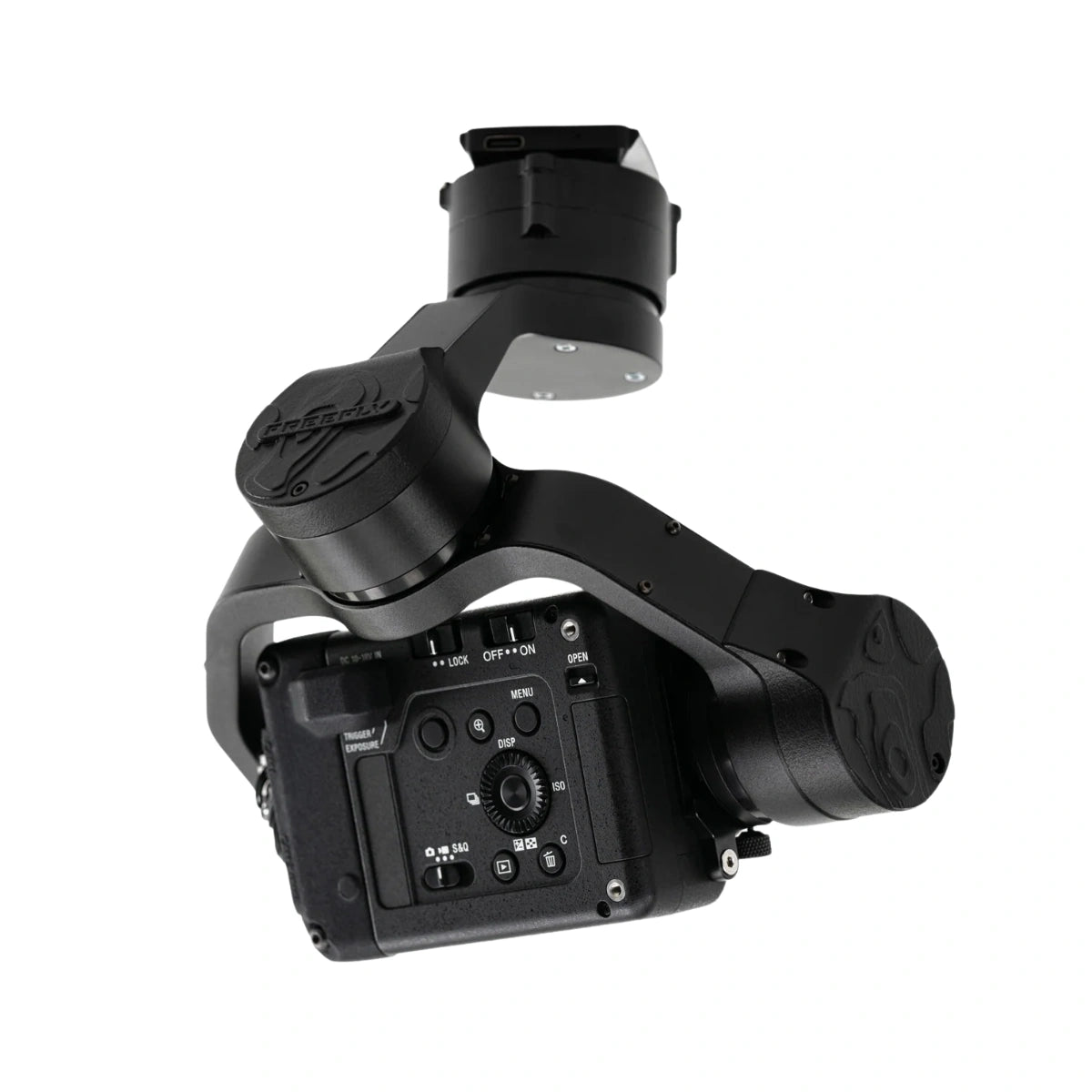

  • Freefly Gimbal with Smart Dovetail Quick-Release
  • Sony ILX-LR1 camera body installed in gimbal (61 megapixel resolution)
  • Sigma 24mm f3.5 mapping lens (p/n 404965)
  • Lightweight at only 970 g / 34.2 oz
  • Camera and gimbal control from pilot controller (not included with payload, Pilot Pro controller ships with every new Astro)
  • Typical Astro flights with Mapping Payload are 28–34 minutes (depending on speed / conditions / lens), per pair of batteries
  • Three expansion ports for additional cameras, sensors, or power
  • Payload is designed and assembled in USA. NDAA and DIU Blue approved.
  • 1x Sony ILX-LR1 camera (pre-installed in gimbal)
  • 1x Sigma 24mm f3.5 mapping lens (p/n 404965)
  • 1x Travel case
  • 1x Freefly mapping gimbal
  • 1x USB-C thumb drive
What sensor does the Sony ILX-LR1 use?

It uses a 61 MP full-frame Exmor R CMOS sensor for ultra-detailed images.

Which lens comes with the payload?

The payload includes a Sigma 24 mm f/3.5 mapping lens.

What drones is it compatible with?

It is designed for Freefly Astro and Astro Max aircraft using the Smart Dovetail mount.

What is the total payload weight?

Approximately 970 g (34.2 oz) including lens and gimbal.

Is the ILX-LR1 Payload NDAA compliant?

Yes. It is designed and assembled in the USA with NDAA-compliant components.

What flight time can be expected on Astro with this payload?

Typically between 28 and 34 minutes per charge set, depending on mission profile.
