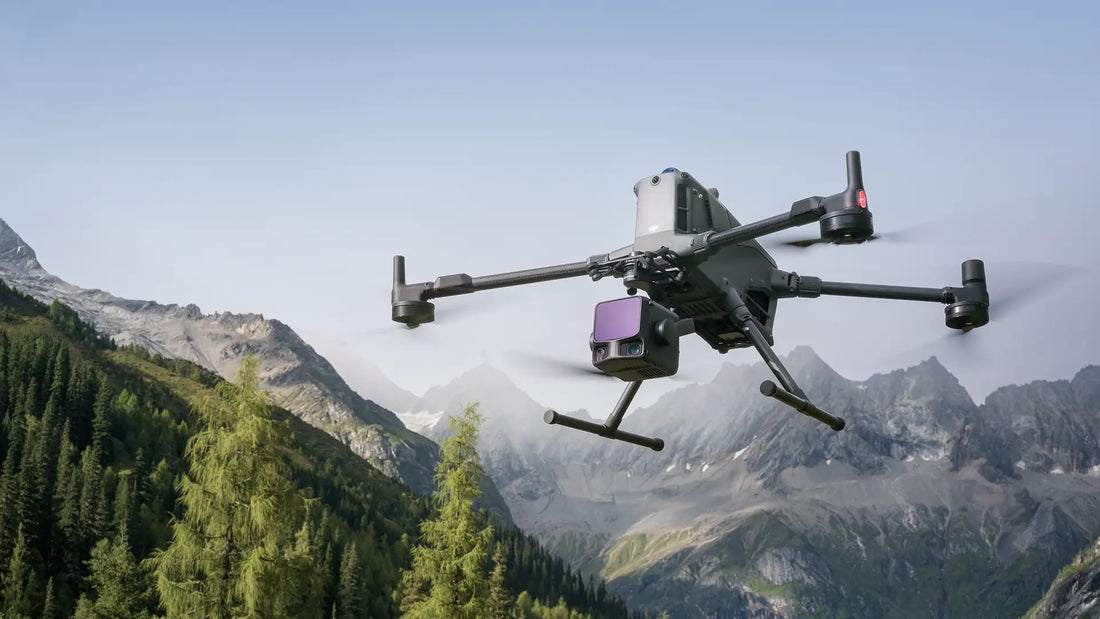

DJI Zenmuse L3 Launch: A New Era for Aerial LiDAR and Surveying

The next generation of aerial mapping has arrived. DJI’s Zenmuse L3 LiDAR payload is now available at Dronefly, bringing enterprise surveyors, engineers, and inspectors a long-awaited leap in precision and efficiency.

For years, DJI’s Zenmuse series has been the backbone of drone mapping—from the pioneering L1 to the refined L2. The new Zenmuse L3 doubles the detection range, delivers sharper RGB imagery, and streamlines workflows for even the most complex topographic and infrastructure projects. Mounted on the DJI Matrice 400 RTK, this payload is built to capture centimeter-grade results at industrial scale.

What sets the L3 apart isn’t just raw power. It’s the system’s ability to do more, faster, and with better integration. DJI has bridged the gap between airborne precision and field usability, offering an end-to-end LiDAR mapping workflow that’s ready for surveying, environmental, and engineering missions from day one.

What Is the DJI Zenmuse L3?

The DJI Zenmuse L3 is a high-performance aerial LiDAR and RGB mapping payload designed for the Matrice 400 platform. It’s built for professionals who need to capture dense, accurate point clouds and true-color imagery in a single flight. At its core, it combines a 1535 nm long-range LiDAR sensor with dual 100-megapixel Micro Four Thirds RGB cameras, enabling both photogrammetric and LiDAR data collection simultaneously.

Unlike previous generations, the L3’s sensor can detect objects up to 950 meters away, even in low-reflectivity or bright light conditions. Its sampling rate scales from 100 kHz to 2 MHz, providing exceptional data density for everything from corridor mapping to forestry surveys. The system achieves 3 cm vertical and 4 cm horizontal accuracy at 120 meters, making it ideal for projects requiring 1:500 or 1:1000 mapping scales.

Key highlights include:

• 1535 nm LiDAR wavelength: Greater range, improved eye safety, and better vegetation penetration.
• Dual 100 MP RGB cameras: Expansive 107° field of view and color accuracy for rich point cloud colorization.
• 16 returns per pulse: Captures multiple elevation layers, critical for forested or uneven terrain.
• Three scanning modes: Linear, Star-Shaped, and Non-Repetitive for flexible data acquisition.
• 3-axis stabilized gimbal: Ensures steady, blur-free imaging at high speeds or oblique angles.
• End-to-end software integration: Fully compatible with DJI Terra, DJI Modify, and FlightHub 2, enabling automated processing and cloud-based collaboration.

The Zenmuse L3 isn’t just a payload. It’s a complete geospatial data system. From flight planning to 3D model output, every step has been optimized for precision, reliability, and time savings in the field.

How the Zenmuse L3 Advances DJI’s LiDAR Line

DJI’s Zenmuse series has steadily evolved from an innovative concept to a global standard in drone-based mapping. Each generation has solved a critical limitation of the one before it—greater precision, faster workflows, and better integration with enterprise platforms. The Zenmuse L3 continues that trajectory. It’s not just a refinement of the L2; it’s a re-engineering of how LiDAR and RGB data are captured, fused, and delivered.

The Journey from Zenmuse L1 to L3

When DJI entered the LiDAR space with the Zenmuse L1, it made drone-based surveying more accessible to field teams. The L1 proved that a single payload could capture accurate topographic data without ground-intensive setups. The L2 refined that concept—improving accuracy, sampling rate, and real-time visualization for serious survey work.

Now, the Zenmuse L3 represents a generational leap. Its long-range 1535 nm laser, dual 100-megapixel RGB cameras, and up to 16 returns per pulse make it the most powerful airborne LiDAR sensor DJI has ever produced. Where the L1 and L2 were breakthroughs, the L3 is a benchmark, extending DJI’s reach into professional mapping, infrastructure, and digital twin production at scale.

The upgrade isn’t incremental. It’s strategic. The L3 nearly doubles the detection range of the L2, enhances vegetation penetration, and expands altitude flexibility to 500 meters. Combined with new scan modes and faster data throughput, the result is a payload that performs just as well on complex corridor mapping as it does on wide-area topographic surveys.

Zenmuse L1 vs L2 vs L3

Understanding the progression from the original L1 to the latest L3 shows how rapidly DJI has refined its LiDAR technology. Each generation reflects a deliberate step toward higher accuracy, longer range, and faster data capture.

The table below outlines how these three payloads compare in the areas that matter most to survey and inspection professionals (range, data density, imaging power, and system integration).

Feature	Zenmuse L1	Zenmuse L2	Zenmuse L3
LiDAR Wavelength	905 nm	905 nm	1535 nm
Max Detection Range	~450 m	450 m (50% reflectivity)	950 m (10% reflectivity)
Sampling Rate	240 kHz	240 kHz	100 kHz–2 MHz adjustable
Returns per Pulse	3	5	16
RGB Camera	20 MP	20 MP	Dual 100 MP
System Accuracy	±5 cm / ±5 cm	±4 cm / ±5 cm	±3 cm / ±4 cm
Altitude	~120 m	150 m	Up to 500 m
Compatible Drones	M300 RTK	M300, M350 RTK	M400 RTK
Scan Modes	Repetitive	Repetitive, Non-Repetitive	Linear, Star-Shaped, Non-Repetitive

This progression shows DJI’s focus on range, data density, and imaging power. By moving from single-camera payloads to a dual-sensor system and doubling effective coverage, the L3 achieves both operational efficiency and data quality improvements that survey teams can measure immediately in the field.

Inside the Technology

The Zenmuse L3’s technical foundation is designed for professionals who care about precision, not just hardware specs. Every subsystem (from LiDAR emitter to gimbal stabilization) works together to generate accurate, colorized point clouds faster and with less manual intervention.

Each component of the L3 is engineered for a specific purpose—range, data density, and imaging precision all working in sync to improve every pass of a mission. That performance starts with its LiDAR system.

So fow far can the Zenmuse L3 detect objects?

LiDAR System and Range

The L3’s 1535 nm laser represents a major shift from the 905 nm wavelength used in earlier models. This longer wavelength offers better eye safety, higher detection efficiency, and superior penetration through semi-obstructed environments such as forests or urban clutter. Its maximum range of 950 meters allows mapping of large or elevated sites in a single flight pass, cutting field time by as much as 40 percent on corridor and terrain missions.

Dual RGB Cameras and Image Quality

The L3 is equipped with two 100-megapixel Micro Four Thirds RGB cameras, each calibrated for photogrammetry-grade accuracy. The combined 107-degree field of view allows wide-area capture with minimal overlap, producing detailed, true-color orthophotos and enhanced visualizations of LiDAR data. For 3D reconstruction and inspection, the dual-camera setup ensures uniform colorization across every layer of the point cloud.

Scanning Modes and Multiple Returns

Three scanning patterns give operators control over data density and efficiency. Linear mode supports corridor mapping and infrastructure inspection, Star-Shaped mode improves coverage uniformity for open areas, and Non-Repetitive mode captures variable sampling angles to minimize data gaps. The sensor’s 16 returns per pulse capture multiple elevation layers simultaneously—critical for distinguishing between canopy, understory, and ground surfaces in vegetation-heavy zones.

Integration and Workflow

As with all enterprise payloads, DJI optimized the L3 for full ecosystem compatibility. It integrates directly with DJI Terra for LiDAR and RGB processing, DJI Modify for post-processing and point cloud editing, and FlightHub 2 for mission management and collaboration. This ecosystem eliminates the need for third-party software, giving survey and inspection teams a true end-to-end data workflow that transitions smoothly from flight to deliverable.

What Makes the Zenmuse L3 Different From the L2?

The Zenmuse L3 builds directly on the foundation of the L2 but delivers measurable gains in range, efficiency, and data fidelity. For professional survey teams working under time and accuracy constraints, the difference between these two payloads can define the overall profitability of a project.

Zenmuse L2 vs Zenmuse L3

While both payloads deliver survey-grade precision, the Zenmuse L3 raises the bar in every measurable way: range, sampling rate, imaging, and efficiency.

The table below outlines the most significant differences between the L2 and L3, highlighting how DJI’s newest payload expands operational capability for demanding mapping and inspection missions.

Feature	Zenmuse L2	Zenmuse L3
Detection Range	Up to 450 m (50% reflectivity, 0 klx)	Up to 950 m (10% reflectivity, 100 klx)
Altitude	Optimal 120–150 m	Practical up to 500 m
LiDAR Returns	Up to 5	Up to 16
Sampling Rate	240 kHz	100 kHz–2 MHz adjustable
Scan Modes	Repetitive, Non-Repetitive	Linear, Star-Shaped, Non-Repetitive
System Accuracy	±4 cm Vertical / ±5 cm Horizontal	±3–4 cm Vertical / ±3–5 cm Horizontal
LiDAR Wavelength	905 nm	1535 nm
RGB Camera	Single 20 MP, 4/3 CMOS	Dual 100 MP Micro Four Thirds
FOV (LiDAR / RGB)	70° / 84°	80° / 107°
Flight Speed	Optimal 15 m/s	Optimal 17 m/s, Max 25 m/s
Weight	905 ±5 g	1.6 kg
Compatible Drones	M300 RTK, M350 RTK	M400 RTK

The L3 doubles the detection range of the L2 while increasing return capacity more than threefold. Its dual 100-megapixel cameras and 107° field of view allow wider, sharper, and truer color capture. With higher flight speeds and improved point density, the L3 handles corridor mapping, dense forestry, and high-altitude terrain with remarkable efficiency.

Where the L2 is suited for traditional land surveys, the L3 targets advanced mapping operations that involve complex surfaces, urban assets, or vegetation-heavy terrain. At the same time, accuracy remains consistent, giving surveyors sub-five-centimeter precision even at greater altitudes.

When Upgrading from L2 to L3 Is Cost-Justified

For many organizations, deciding whether to upgrade from the Zenmuse L2 to the L3 comes down to scale, complexity, and operational value. While the L2 remains capable for conventional jobs, the L3 justifies its higher cost in projects that demand speed, precision, and high data density.

Projects with Extensive or Challenging Terrain

Surveying vast or difficult landscapes (mountainous regions, forest corridors, or long utility lines) demands longer range and altitude flexibility. The L3’s 950-meter detection range and 16 returns per pulse make it ideal for corridor mapping, powerline inspection, and large-scale topography, reducing flight hours and post-processing time.

Strict Accuracy or Regulatory Requirements

Some contracts require sub-four-centimeter vertical accuracy or strict compliance with government or engineering standards. The L3 achieves this consistency even at higher altitudes, producing true survey-grade data that meets mapping standards at 1:500 and 1:1000 scales.

Time-Critical or High-Volume Workflows

Teams working multiple sites or fast turnaround projects gain significant time savings. The L3 can maintain 17 m/s optimal speed without loss of accuracy, meaning more coverage per flight and less downtime between missions.

Richer Colorized Point Clouds

The L3’s dual 100-megapixel RGB cameras produce sharper, better-balanced color imagery for orthophotos and 3D visualization. For teams that rely on colorized point clouds for modeling or inspection, this feature eliminates the need for separate mapping flights.

Financial Considerations

Although the L3 requires a higher upfront investment, the long-term savings become evident through reduced labor, fewer flights, and quicker data delivery. For firms regularly handling large or vegetation-dense projects, the L3 pays for itself through productivity gains within months of deployment.

When the L2 Still Makes Sense

The L2 remains cost-effective for smaller, open-terrain projects or where budgets are limited. For routine cadastral or construction mapping at lower altitudes, its performance remains reliable. But for operations scaling into hundreds of acres, with strict accuracy demands or vegetation coverage, the L3’s advantages quickly outweigh its cost.

How Zenmuse L3 Compares to Competitors

The Zenmuse L3 arrives at a time when high-end drone LiDAR systems are becoming increasingly specialized. Competing sensors from YellowScan, RIEGL, and ROCK Robotic dominate different segments of the market, but DJI’s approach with the L3 is different. It blends professional-grade performance with the seamless workflow of a unified ecosystem.

Zenmuse L3 vs Leading Competitors

DJI’s Zenmuse L3 enters a competitive market dominated by long-established LiDAR manufacturers. While several systems claim survey-grade accuracy, few deliver the same blend of range, imaging quality, and ecosystem integration that DJI has achieved here.

The comparison below highlights how the L3 stacks up against other top-tier payloads in 2025—balancing performance, workflow efficiency, and value for enterprise users.

Feature	DJI Zenmuse L3	YellowScan Ultra 3	RIEGL VUX-1LR	ROCK R3 Pro
Max Detection Range	950 m (10% reflectivity)	300 m	1500 m	~420 m
LiDAR Returns	Up to 16	32 lasers, multi-return	Multi-echo (~15+)	Up to 3
Accuracy	3 cm vertical / 4 cm horizontal	~3 cm precision	<1.5 cm typical	~4 cm
RGB Integration	Dual 100 MP RGB cameras	Optional, lower-res	None (external payload)	Integrated 24 MP camera
Flight Efficiency	Up to 100 km²/day	Moderate coverage	Platform-dependent	~180 acres/hour
Form Factor	1.6 kg (for Matrice 400)	~2.3 kg	~3.5 kg	~1.5 kg
Workflow Integration	DJI Terra, Modify, FlightHub 2	Third-party software	External workflow, high complexity	ROCK Cloud
Typical Use Cases	Survey, forestry, inspection, 3D modeling	Forestry, terrain, archaeology	Corridor, highway, large infrastructure	Survey, utilities, mining
Price Tier	Premium / high	Premium / high	Highest (industrial)	Mid-to-premium

In the current LiDAR landscape, every leading system brings its own strengths. Some prioritize raw precision, others focus on scan density or ease of integration. The following breakdown shows how DJI’s Zenmuse L3 compares to its closest competitors and where it delivers the strongest overall value.

• DJI Zenmuse L3: Balances range, precision, RGB fidelity, and workflow efficiency. Offers near–survey-grade data quality in a compact, lightweight form factor with full DJI ecosystem compatibility.
• YellowScan Ultra 3: Excels in dense forestry and under-canopy mapping with multiple lasers and a 360° field of view for higher returns density, but has a shorter range and heavier setup.
• RIEGL VUX-1LR: Delivers unmatched range and sub-centimeter accuracy, setting the industry standard for long-corridor and infrastructure mapping, though it demands larger platforms and higher investment.
• ROCK Robotic R3 Pro: Provides solid mid-tier performance with streamlined cloud processing through ROCK Cloud but lacks the extended range and high-end RGB imaging of the L3.

When platform simplicity, RGB colorization, and operational efficiency are key, the Zenmuse L3 stands out as the most practical choice. It bridges the gap between heavy industrial LiDAR systems and agile, field-ready drone mapping tools.

Who the Zenmuse L3 Is Built For: Real-World Applications and Industries

The Zenmuse L3 isn’t a one-size-fits-all sensor. It’s engineered for professionals tackling large-scale, high-stakes mapping and inspection work. Its advanced LiDAR system, long range, and true-color imaging give teams the flexibility to handle diverse missions without switching payloads.

Who Uses It

• Surveying Firms: Companies managing large land areas, corridor surveys, and cadastral projects requiring sub-5 cm accuracy rely on the L3 for faster turnarounds and consistent precision.
• Utilities and Infrastructure Operators: Powerline, railway, dam, and pipeline inspectors use the L3’s range and 16-return scanning to detect vegetation encroachment, verify clearances, and build detailed asset models.
• Forestry and Environmental Researchers: The L3’s deep penetration through dense canopy supports biomass estimation, terrain mapping, and ecological monitoring that previously required time-intensive ground surveys.
• Construction and Urban Planners: Engineering and AEC teams use the L3 to create colorized 3D models, monitor progress, and generate as-built documentation across large development sites.
• Disaster Response and Emergency Services: Agencies deploy the L3 for rapid 3D reconstruction after floods, landslides, or earthquakes—critical for damage assessment and operational coordination.

Key Applications

• Topographic Mapping: Produces digital elevation models and large-scale terrain maps at survey-grade accuracy while covering up to 100 km² per day.
• Corridor Mapping and Powerline Inspection: The Linear scan mode maintains precise data capture along narrow assets, ideal for infrastructure maintenance.
• Forestry and Environmental Monitoring: Multi-return LiDAR supports canopy-through-ground modeling for forest inventory and environmental impact studies.
• Urban and Construction Modeling: Wide-angle RGB imaging enables façade mapping, BIM integration, and city-scale digital twin generation.
• Emergency Response: Enables rapid terrain and damage assessment with dense 3D data for reconstruction and planning.

Field Examples

Transmission line operators have already begun using the Zenmuse L3 for high-speed, high-altitude powerline inspections, capturing hundreds of kilometers per deployment with full colorized point clouds. Forestry departments leverage its penetration power to modernize forest inventories and track ecosystem health with less on-site labor. Engineering and construction firms cite its 100 km²/day coverage and high fidelity as game-changing for time-sensitive infrastructure projects.

Where the Zenmuse L3 Takes Surveying Next

Survey teams will feel the L3’s impact first in capture speed and data completeness. One-pass RGB and LiDAR becomes standard on many sites, which cuts repeat flights and shortens the handoff to processing. Longer detection range means fewer legs on corridor work.

Multi-return density improves bare-earth under vegetation. That shows up as cleaner DEMs and fewer patches to fix in QA. Because Terra, Modify, and FlightHub 2 live in the same ecosystem, planning, processing, and collaboration get simpler for mixed crews, not just LiDAR specialists. None of this is theoretical. It’s what the L3’s specification and software stack already enable. The result is obvious. More area in less time. Better colorized point clouds. Fewer places for projects to slip.

Industries with the Highest ROI from Zenmuse L3 Deployment

The industries that see the strongest return on investment from the Zenmuse L3 are those that depend on high-precision spatial data captured at scale. These organizations benefit from the payload’s ability to gather dense, accurate, colorized point clouds in a fraction of the time required by ground-based or legacy aerial methods.

Industries, ROI Drivers, and Key Benefits

Industry Sector	ROI Drivers	Key Benefits
Surveying & Mapping	Speed, scale, accuracy, unified workflow	Up to 100 km²/day, sub-5 cm accuracy
Utilities & Infrastructure	Large asset coverage, safety, compliance	Long range, vegetation penetration, defect analysis
Forestry & Environmental	Under-canopy modeling, multi-return density	16 LiDAR returns, Star-Shaped scan, detailed DEMs
Mining & Construction	Earthwork tracking, volumetrics, project documentation	Accurate site models and as-builts with fewer flights
Public Sector & Disaster Management	Rapid response, risk reduction, scene documentation	Fast 3D data capture, minimal field presence

Why These Industries Benefit Most

• Workflow Integration: The L3 works seamlessly with DJI Terra, Modify, and FlightHub 2—reducing software costs and shortening the processing chain from raw capture to deliverable models.
• Precision at Scale: Its combination of range, accuracy, and data density enables professionals to meet survey-grade requirements even at higher altitudes or in dense vegetation.
• Simultaneous LiDAR and RGB: Dual 100 MP cameras deliver true-color point clouds in a single mission, eliminating redundant flights and cutting labor costs.

For organizations operating across these sectors, the L3’s efficiency, safety improvements, and deliverable quality create measurable financial gains. The ability to complete more missions, with fewer resources and higher accuracy, turns every flight into a direct return on investment.

Technical Specifications Summary

The Zenmuse L3 delivers exceptional capability within a compact payload optimized for the DJI Matrice 400 RTK. Each component (LiDAR, RGB cameras, gimbal, and onboard processing) contributes to a tightly integrated system designed for professional mapping and inspection.

Zenmuse L3 Technical Specifications

Dimensions	192 × 162 × 202 mm
Weight	1.6 kg (without connector)
LiDAR Wavelength	1535 nm
Maximum Detection Range	950 m (10% reflectivity, 100 klx)
System Accuracy	±3 cm vertical / ±4 cm horizontal @ 120 m
Sampling Rate	100 kHz–2 MHz adjustable
Returns per Pulse	Up to 16
RGB Sensors	Dual 100 MP Micro Four Thirds CMOS
Field of View (RGB)	107°
Working Altitude	Up to 500 m
Mapping Speed	15–17 m/s optimal, 25 m/s max
Scanning Modes	Linear, Star-Shaped, Non-Repetitive
Compatible Drone	DJI Matrice 400 RTK
Software Integration	DJI Terra, Modify, FlightHub 2
Output Options	3D point clouds, orthophotos, 3D meshes, Gaussian splatting, DEMs

In practical terms, these specifications allow operators to map large areas or narrow infrastructure corridors faster, with greater consistency, and without switching between payloads. Its dual-camera system and advanced laser architecture redefine what’s achievable within a sub-2 kg airborne sensor.
