Autel EVO Max 4T XE

Autel EVO Max 4T XE

$8,999.00
$8,999.00
Sale Sold out
SKU S-AR-MAX4T-XE-BUN MPN 102003216
  • 4K 10x optical zoom with 8K HD video transmission
  • 720° all-weather obstacle avoidance with multi-sensor fusion
  • A-Mesh technology for robust multi-device networking
  • 42-minute maximum flight time with hot-swappable battery
  • 15-kilometer HD video transmission for real-time visibility
  • SLAM technology for high-precision indoor and outdoor navigation
  • IP43-rated weather resistance for reliable operation in harsh conditions
  • Autonomous flight with precision return-to-home capability
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max 4T XE: Industrial-grade drone with advanced imaging capabilities

The Autel EVO Max 4T XE is a revolutionary industrial-grade drone designed to empower professionals across various industries with advanced imaging, reliable flight autonomy, and unparalleled connectivity.

Unlike consumer drones, the EVO Max 4T XE offers a suite of specialized features tailored for demanding applications, including search and rescue, infrastructure inspections, and public safety operations.

By integrating Autel Autonomy's autonomous flight technology, this drone performs complex flight maneuvers, avoids obstacles with precision, and adapts to diverse environmental challenges.

The result is a robust and versatile aerial solution that optimizes efficiency, safety, and performance, allowing users to achieve mission-critical goals from the air.

Advanced Autonomous Navigation and Obstacle Avoidance

  • Autonomous Path Planning: Effortlessly navigate complex environments with global path planning and 3D scene reconstruction.
  • 360° Obstacle Avoidance: Equipped with a dual fisheye and millimeter-wave radar for 720° sensing, offering complete all-weather obstacle avoidance.
  • Reliable Return-to-Home: Safely return to the launch point, even in signal-interference zones, ensuring mission continuity and data security.

Industry-Leading Imaging Capabilities

  • FusionLight Camera System: Features a 4K 10x continuous optical zoom camera, ultra-sensitive wide-angle camera, thermal imaging, and a laser rangefinder.
  • 8K HD Video Transmission: Experience ultra-high-definition video transmission for real-time decision-making and enhanced situational awareness.
  • 160x Hybrid Zoom Capability: Capture intricate details from great distances with clarity, ideal for inspections and surveillance.
  • Wide Thermal Operating Range: Thermal camera measures temperatures between -4 °F and 1022 °F, ideal for emergency and industrial applications.

Unmatched Connectivity with A-Mesh Technology

  • A-Mesh Networking: Supports autonomous networking between drones and ground terminals, enabling extended, flexible operation across large areas.
  • Multi-Device Integration: Maintain robust connections in complex, obstructed environments and collaborate with other drones seamlessly.
  • 15-Kilometer HD Video Transmission: Delivers real-time, high-definition visuals to ground operators over long distances.

Professional-Grade Applications for Every Mission

Industrial Inspections and Maintenance

  • Power Line & Infrastructure: Conduct efficient inspections in remote locations, capturing high-resolution data for analysis and preventive maintenance.
  • Mining & Construction Sites: Survey large areas with detailed imaging and identify operational hazards promptly.

Emergency Response and Public Safety

  • Search & Rescue: Use thermal imaging to locate individuals in adverse conditions, even in challenging terrains and weather.
  • Law Enforcement & Surveillance: Conduct covert operations with advanced zoom capabilities, ensuring high-quality evidence collection from safe distances.

The Autel EVO Max 4T XE isn't just a drone; it's a high-performance tool crafted to redefine standards in industrial operations and critical missions. With its unmatched imaging capabilities, autonomous navigation, and robust connectivity, it's designed to empower professionals to work safer, faster, and more effectively.

Whether you're conducting detailed inspections, managing emergency response, or overseeing large-scale infrastructure, the EVO Max 4T XE is the reliable choice for aerial excellence. Discover the full potential of this advanced drone technology at Dronefly today and elevate your mission to new heights.

Aircraft

  • Weight (battery & propellers included): 1640 g (3.62 lbs, ABX40 battery, Fusion 4T gimbal, propellers)
  • Maximum take-off mass: 1999 g (4.41 lbs)
  • Maximum take-off mass for C2 certification (EU): 1890 g (4.17 lbs)
  • Dimensions unfolded (incl. propellers): 562 × 651 × 147 mm
  • Dimensions unfolded (excl. propellers): 318 × 400 × 147 mm
  • Dimensions folded (excl. propellers): 257 × 145 × 131 mm
  • Diagonal wheelbase: 466 mm (1.53 ft)
  • Propeller dimension: 11 inches
  • Propeller weight: 10.5 g
  • Maximum propeller rotational speed: 8000 RPM
  • Maximum ascent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 8 m/s
  • Maximum descent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 6 m/s
  • Maximum horizontal speed (windless): Slow 3 m/s, Smooth 10 m/s, Standard 15 m/s forward/back, 10 m/s sidewards, Ludicrous 23 m/s forward, 18 m/s backward, 20 m/s sidewards
  • Maximum service ceiling: 4000 m (ABX40), 3000 m (ABX41)
  • Maximum flight altitude limit (in app): 800 m (2625 ft)
  • Maximum flight time (windless): 42 minutes
  • Maximum hovering time (windless): 38 minutes
  • Maximum wind resistance: 12 m/s (27 mph)
  • Ingress protection rating: IP43 (custom service)
  • Maximum tilt angle: Slow 10°, Smooth 30°, Standard 30°, Ludicrous 36°
  • Maximum angular velocity: Pitch 300°/s, Heading 120°/s
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Internal storage: 128 GB (64 GB available depending on firmware)
  • GNSS system: GPS, Galileo, BeiDou, GLONASS

Wi-Fi & Connectivity

  • Wi-Fi frequencies: 2.400–2.476 GHz, 2.400–2.4835 GHz, 5.15–5.25 GHz, 5.17–5.25 GHz (DE), 5.725–5.829 GHz, 5.725–5.850 GHz
  • Wi-Fi protocol: 802.11a/b/g/n/ac/ax, supports 2×2 MIMO
  • Wi-Fi EIRP: 2.4G ≤30 dBm (FCC), ≤20 dBm (CE/SRRC/UKCA), ≤12.14 dBm (MIC)
  • 5.2G ≤30 dBm (FCC), ≤23 dBm (CE/UKCA)
  • 5.8G ≤30 dBm (FCC/SRRC), ≤14 dBm (CE/UKCA)
  • Hovering accuracy vertical: ±0.1 m (vision), ±0.5 m (GNSS)
  • Hovering accuracy horizontal: ±0.3 m (vision), ±0.5 m (GNSS)

Gimbal

  • Mechanical range 4T XE: Pitch -135° to 45°, Yaw -45° to 45°, Roll -45° to 45°
  • Mechanical range 4N: Pitch -135° to 45°, Yaw -50° to 50°, Roll -45° to 45°
  • Controllable pitch range: -90° to 30°
  • Stabilization: 3-axis mechanical (pitch, yaw, roll)
  • Max pitch control speed: 100°/s
  • Angular vibration range: < 0.005°

EVO Max 4T XE Zoom Camera

  • Sensor: 1/2" CMOS, 48 MP
  • Lens: 11.8–43.3 mm, 64–234 mm equivalent, f/2.8–f/4.8
  • Focusing distance: 5 m to ∞
  • ISO (auto): 100–6400
  • Shutter speed: 1/8 s ~ 1/10000 s
  • Optical zoom: 2.7–10×, up to 160× hybrid zoom
  • Photo resolution: JPG 4000×3000, 8192×6144; DNG 4000×3000
  • Video resolution: 4000×3000 30P

EVO Max 4T XE Thermal Camera

  • Sensor: Uncooled VOx Microbolometer
  • FOV: 61°
  • Focal length: 9.1 mm, f/1.0
  • Temperature accuracy: ±2°C or ±2%
  • Video resolution: 640 × 512 30P
  • Photo size: 640 × 512
  • Measurement modes: Center, spot, rectangular
  • Temperature ranges: -20°C to 150°C, 0°C to 550°C
  • Palettes: White Hot, Black Hot, Ironbow, Rainbow

Laser Rangefinder

  • Wavelength: 905 nm
  • Accuracy: ±(1 m + D×0.15%)
  • Range: 5–1200 m

Wide-Angle Camera

  • Sensor: 1/1.28" CMOS, 50 MP
  • Lens: DFOV 85°, 4.5 mm (23 mm equivalent), f/1.9
  • ISO: Photo 100–6400, Video up to 64000
  • Shutter: Photo 0.5 s ~ 1/8000 s, Video 1/30 s ~ 1/8000 s
  • Video resolution: 4000×3000 30P
  • Photo resolution: 4000×3000 or 8000×6000

Image Transmission

  • Frequencies: 900M, 2.4G, 5.2G, 5.8G (region-dependent)
  • Max transmission distance FCC: 15 km
  • Max transmission distance CE: 8 km
  • Controller: Autel Smart Controller V3
  • EIRP 900M: ≤30 dBm
  • EIRP 2.4G: ≤30 dBm (FCC/ISED), ≤20 dBm (CE/SRRC)
  • EIRP 5.8G: ≤30 dBm (FCC/SRRC), ≤14 dBm (CE)

Millimeter-Wave Radar System

  • Operating frequencies: 60–64 GHz, 24.0–24.25 GHz
  • EIRP: 60G ≤20 dBm, 24G ≤20 mW
  • Sensing range (60G): Up 0.3–20 m, Down 0.15–80 m, Forward/Backward 0.3–50 m
  • Sensing range (24G): Down 0.8–12 m
  • FOV: Horizontal ±60°/±22°, Vertical ±30°/±20°

Visual Obstacle Sensing

  • Forward: 0.5–31 m
  • Backward: 0.5–25 m
  • Sideward: 0.5–26 m
  • Upward: 0.2–26 m
  • Downward: 0.3–23 m
  • FOV forward/backward: 60° H, 80° V
  • FOV upward/downward: 180° sideward, 120° forward/backward

Autel Smart Controller V3

  • Display: 7.9 inches, 2000 nits, 2048×1536, 60 Hz
  • Battery: 5800 mAh, 11.55 V, 67 Wh
  • Operating time: 2.5 hr (max brightness), 4.0 hr (50%)
  • Charging time: 120 minutes
  • Max transmission distance: 15 km (FCC), 8 km (CE)
  • IP rating: IP43
  • Internal storage: 128 GB
  • Operating temperature: -20°C to 40°C
  • Wi-Fi: 802.11a/b/g/n/ac, 2×2 MIMO
  • Wi-Fi frequencies: 2.4G & 5.8G

Smart Battery

  • Dimensions: 158.4 × 74.3 × 50.7 mm
  • Operating temperature: -20°C to 50°C
  • ABX40 capacity: 8070 mAh, 14.88 V, 120 Wh, 520 g
  • ABX41 capacity: 9248 mAh, 14.76 V, 136.5 Wh, 533 g
  • Battery type: LiPo 4S
  • Charging temperature: 5°C to 45°C
  • Hot swappable: Supported

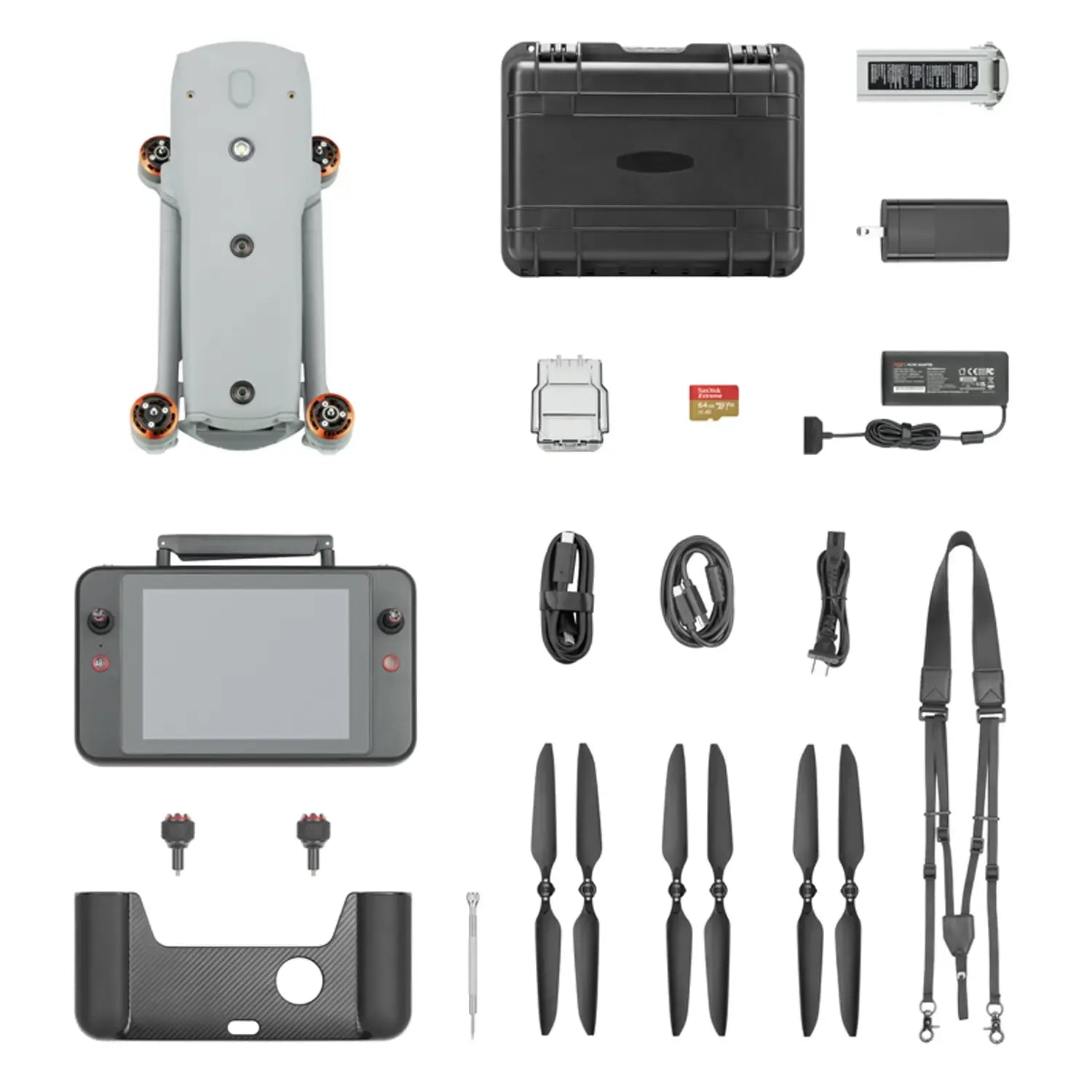

  • 1x Autel EVO Max 4 Aircraft
  • 1x Autel EVO Max 4T XE Camera/Gimbal
  • 1x Autel EVO Max 4 Series Intelligent Flight Battery
  • 1x Autel EVO Max 4 Series Gimbal Cover
  • 1x Autel EVO Max 4 Series Battery Charger & Power Cable
  • 3x Autel EVO Max 4 Series Propellers (Pair) x3 (3-CW/3-CCW)
  • 1x Autel Smart Controller V3
  • 1x Autel Smart Controller Lanyard
  • 1x Autel Smart Controller Cover
  • 1x Autel Smart Controller Joysticks (Spare Pair) x1
  • 1x Autel RC Charger
  • 1x Autel RC Charging Cable
  • 1x Autel EVO Max 4 Series Rugged Case
  • 1x 64GB MicroSD Card
  • 1x Screwdriver
  • 1x Data Cable
  • 1x Manual
  • 1x Quick Start Guide
  • 1x Packing List
  • 1x Limited 1-Year Manufacturer Warranty
Does the Autel EVO Max 4T XE support long-duration flight operations?

Yes. The Autel EVO Max 4T XE has a maximum flight time of 42 minutes and a maximum hovering time of 38 minutes in windless conditions.

What camera systems are included on the Autel EVO Max 4T XE?

The EVO Max 4T XE includes a 48 MP zoom camera (1/2" CMOS), a 50 MP wide-angle camera (1/1.28" CMOS), a 640×512 thermal camera with multiple temperature ranges, and a laser rangefinder with an effective range of 5–1200 m.

What is the ingress protection rating of the Autel EVO Max 4T XE?

The aircraft carries an IP43 (custom service) rating, offering limited water and particle protection suitable for controlled outdoor environments.

How well can the Autel EVO Max 4T XE handle wind and altitude?

The EVO Max 4T XE withstands 12 m/s wind resistance and has a maximum service ceiling of 4000 m with the ABX40 battery (3000 m with ABX41).

What obstacle sensing systems does the Autel EVO Max 4T XE use?

It uses a millimeter-wave radar system (60–64 GHz and 24.0–24.25 GHz) with sensing ranges up to 80 m downward and 50 m forward/backward, along with a visual obstacle sensing system that detects obstacles from 0.2–31 m depending on direction.
