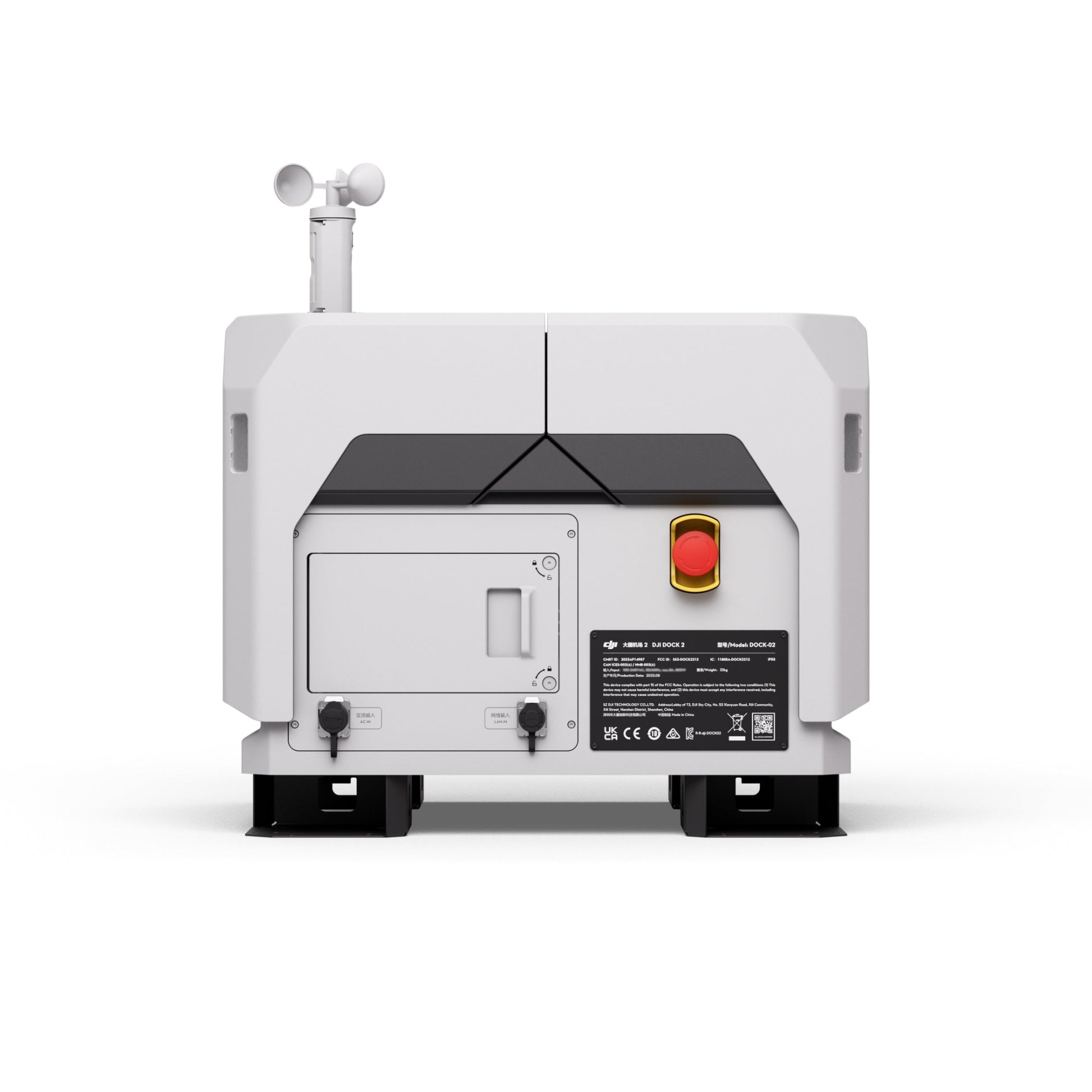

DJI Dock 2

DJI Dock 2

$10,731.01
$10,731.01
Sale Sold out
SKU S-DJI-DOCK2 MPN CP.EN.00000510.01 EAN 6941565974853
  • Compact automated dock for Matrice 3D and 3TD aircraft
  • IP55-rated enclosure for outdoor deployment
  • Rapid 45-second takeoff sequence supported
  • 32-minute recharge from 20% to 90%
  • Environmental sensors monitor rain, wind, and cabin conditions
  • Dual 151° fisheye monitoring cameras included
  • Backup battery supports up to five hours of operation
  • FlightHub 2 cloud workflows supported
  • DJI Cloud API enables third-party platform integrations
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Dock 2: IP55 automated dock for Matrice 3D and Matrice 3TD operations

DJI Dock 2 is an automated docking station built to support repeatable remote operations with DJI Matrice 3D and DJI Matrice 3TD aircraft. The system emphasizes simpler deployment through a compact design while supporting cloud-based operational control and oversight through DJI FlightHub 2. Dock 2 includes integrated environmental monitoring sensors and dual fisheye security cameras to help operators understand on-site conditions without travel. With IP55 protection and a built-in backup battery specified for over five hours of operation, Dock 2 supports resilient remote workflows across demanding environments.

DJI Dock 2 features at a glance

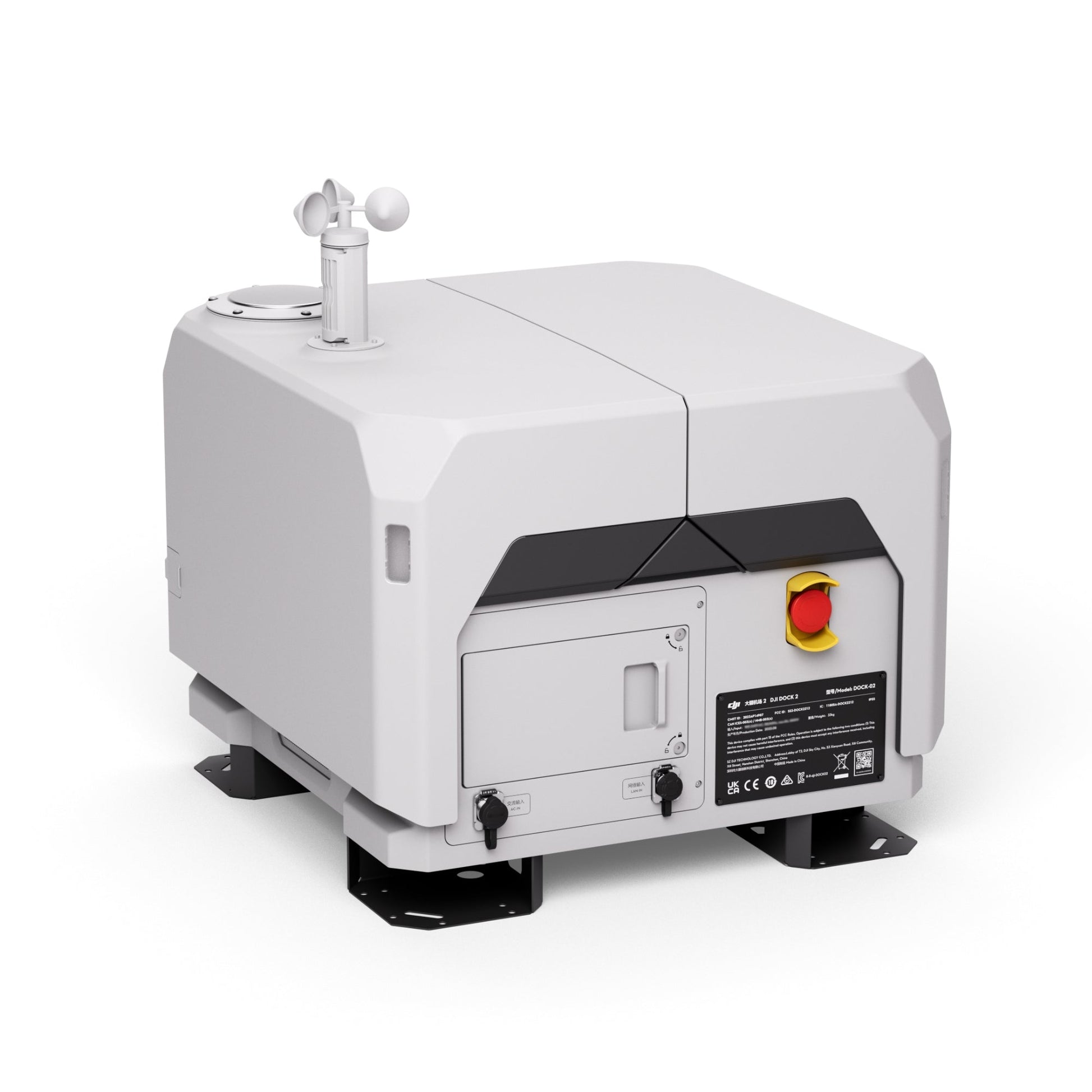

  • Compact redesign: 75% smaller and 68% lighter than predecessor.
  • IP55 protection: Supports outdoor deployment under harsh environmental conditions.
  • Dual RTK antennas: Supports accurate RTH without RTK convergence wait.
  • Rapid takeoff: Propeller inspection and takeoff in 45 seconds.
  • Fast recharge: 20% to 90% charging in 32 minutes.
  • Dual monitoring cameras: 151° FOV internal and external fisheye views.
  • Environmental sensors: Wind, rain, temperature, immersion, cabin humidity monitoring.
  • Backup battery: Supports over five hours of independent dock operation.

Environmental monitoring sensors and backup power for operational continuity

DJI Dock 2 is designed for extended outdoor operation with an IP55 ingress protection rating and an integrated environmental monitoring system. Supported sensors include wind speed, rainfall, ambient temperature, water immersion detection, and in-cabin temperature and humidity measurement. These inputs support better remote decision-making and operational awareness when sites are unattended. For resilience, Dock 2 includes a built-in backup battery specified for over five hours of independent operation under defined conditions, helping maintain continuity long enough to support aircraft recovery during unexpected power disruptions.

Fast-cycle automated sorties with rapid launch and defined charging performance

Dock 2 supports high-tempo operations by minimizing turnaround time between missions. DJI specifies quick takeoff capability in as short as 45 seconds, helping remote teams respond quickly to operational demands. Dock charging performance is specified as 32 minutes from 20% to 90% with the aircraft powered off at 77°F (25°C), supporting consecutive sorties without manual intervention. Remote monitoring is enabled through internal and external cameras, while FlightHub 2 tools support modeling, route editing, FlyTo task planning, and operational troubleshooting through alert notifications.

Platform and software compatibility

  • Supported aircraft: DJI Matrice 3D and DJI Matrice 3TD.
  • Commissioning workflow: DJI Pilot 2 via DJI RC Pro Enterprise.
  • Default cloud control: DJI FlightHub 2 supported by default.
  • Third-party platforms: Supported via DJI Cloud API integration access.
  • Network access: 10/100/1000 Mbps adaptive Ethernet supported.
  • Video transmission: O3 Enterprise dock video transmission supported.
  • Optional 4G link: DJI Cellular Dongle 2 supported where available.

Automated mission types supported by Dock 2 deployments

  • Security operations: Schedule patrols with remote camera and dock monitoring.
  • Inspection programs: Automate recurring inspections with consistent route execution.
  • Construction documentation: Capture routine progress imagery with minimal staffing.
  • Emergency response: Launch quickly for remote situational awareness collection.
  • Remote site monitoring: Reduce travel through persistent dock-based availability.
  • Weather-aware operations: Use environmental sensors to inform mission timing.
  • After-hours oversight: Maintain automated readiness outside staffed work windows.
  • Incident troubleshooting: Use notifications to trace task failures and emergencies.

Designed for enterprise integration

DJI Dock 2 supports enterprise operations that require scalable remote oversight and predictable service planning. A published six-month maintenance interval helps standardize upkeep schedules across multiple deployed sites. DJI Dock 2 supports DJI FlightHub 2 by default and can connect to third-party cloud platforms through DJI Cloud API, enabling structured integration into broader operational systems. Built-in monitoring cameras and environmental sensors further support remote governance, reducing unnecessary site visits while improving operational confidence and repeatability.

DJI Dock 2 provides a compact, IP55-rated foundation for automated remote drone operations with consistent launch and charging performance. It supports enterprise teams aiming to reduce on-site staffing while maintaining structured, repeatable mission execution.

Dronefly provides enterprise Dock deployment guidance, integration support, and technical expertise for DJI remote operations programs. Order from Dronefly today — the West Coast’s trusted enterprise UAV source.

Dock – General

  • Product name: DJI Dock 2
  • Total weight: 34 kg (without aircraft)
  • Actual product weight may vary due to batch materials and external factors

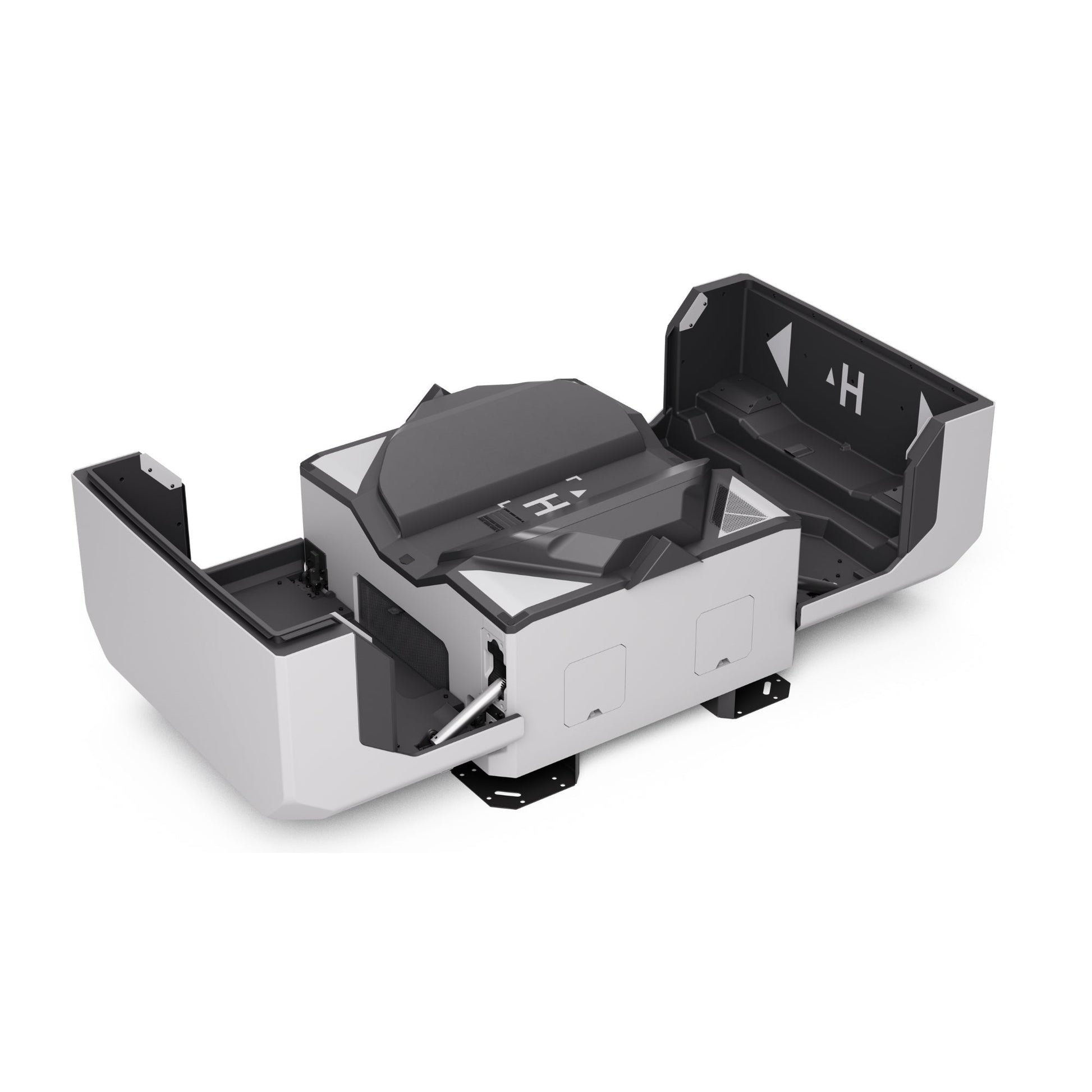

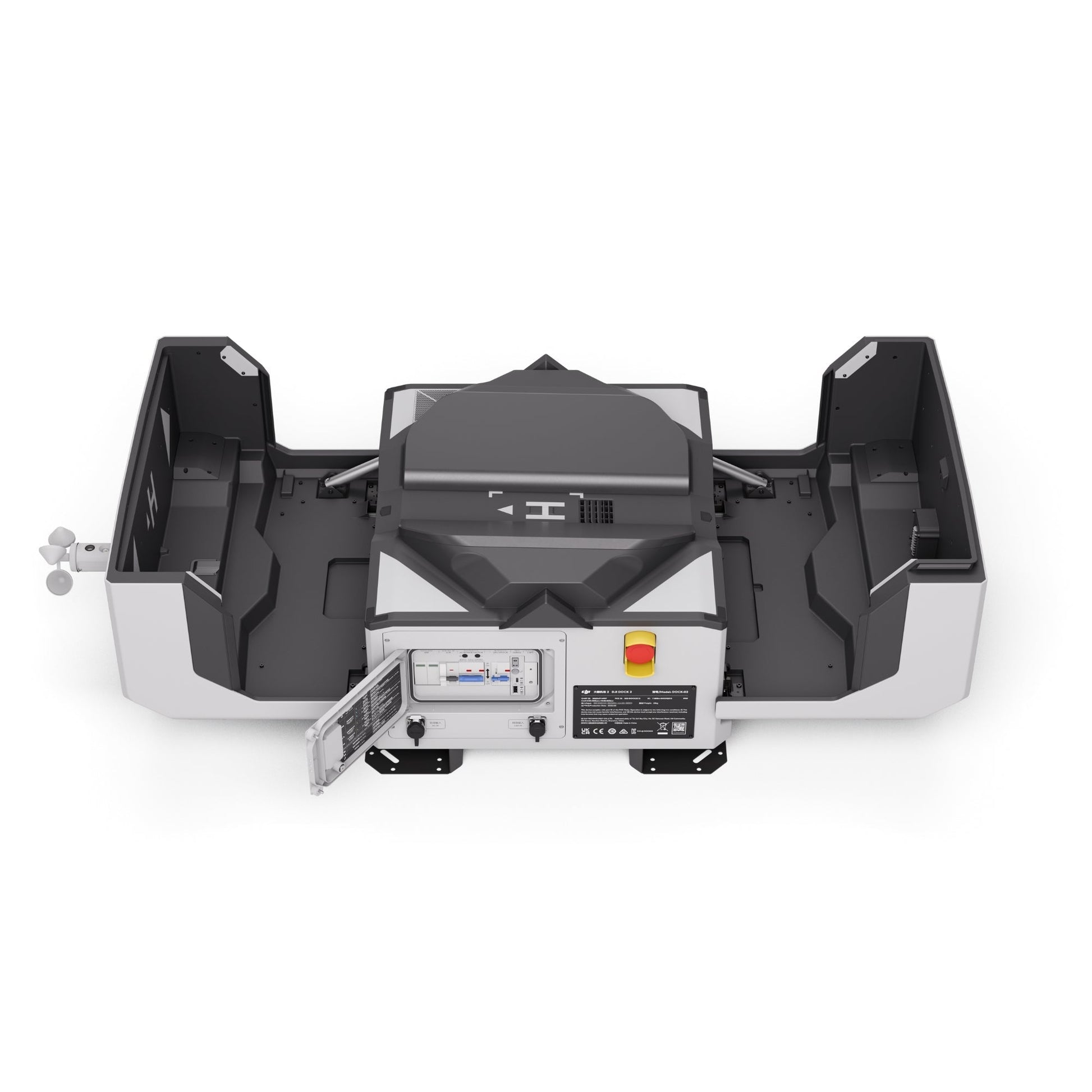

  • Dimensions (cover opened): 1228 × 583 × 412 mm (L × W × H)
  • Dimensions (cover closed): 570 × 583 × 465 mm (L × W × H)
  • Dimensions exclude wind speed gauge height of 145 mm
  • Dimensions include mounting base bracket height of 55 mm
  • Input voltage: 100–240 V AC, 50/60 Hz
  • Input power: Max 1000 W
  • Operating temperature: -25° to 45° C (-13° to 113° F)
  • Below -20° C the dock enters standby and aircraft cannot perform flight tasks
  • Ingress protection rating: IP55
  • Number of drones accommodated: 1
  • Maximum allowable landing wind speed: 8 m/s
  • Maximum operating altitude: 4000 m

Dock – RTK Base Station

  • GPS: L1 C/A, L2
  • BeiDou-2: B1I, B2I, B3I
  • BeiDou-3: B1I, B3I
  • GLONASS: L1, L2
  • Galileo: E1, E5B
  • RTK horizontal positioning accuracy: 1 cm + 1 ppm (RMS)
  • RTK vertical positioning accuracy: 2 cm + 1 ppm (RMS)

Dock – Charging Performance

  • Charging output voltage: 28 V DC
  • Charging time: 32 minutes
  • Measured charging aircraft from 20% to 90% at 25° C (77° F)

Dock – Video Transmission

  • Video transmission system: O3 Enterprise
  • Operating frequency: 2.4000–2.4835 GHz
  • Operating frequency: 5.725–5.850 GHz
  • Built-in antennas: 4 antennas, 2T4R
  • Supports intelligent antenna switching
  • Transmitter power 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • Transmitter power 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC)

Dock – Air Conditioning System

  • Operating voltage: 28 V DC
  • Air conditioning type: TEC air conditioning

Dock – Backup Battery

  • Battery capacity: 12 Ah
  • Output voltage: 12 V
  • Battery type: Lead-acid battery
  • Battery life: Greater than 5 hours
  • Measured at 25° C (77° F) with fully charged battery
  • Backup battery does not support charging, air conditioning, or heating after outage

Dock – Network Access

  • Ethernet port: 10/100/1000 Mbps adaptive

Dock – Sensors

  • Wind speed sensor supported
  • Rainfall sensor supported
  • Ambient temperature sensor supported
  • Water immersion sensor supported
  • In-cabin temperature sensor supported
  • In-cabin humidity sensor supported

Dock – Security Cameras

  • External camera resolution: 1920 × 1080
  • External camera field of view: 151°
  • External auxiliary light: White light
  • Internal camera resolution: 1920 × 1080
  • Internal camera field of view: 151°
  • Internal auxiliary light: White light

Dock – Lightning Protection

  • AC power port: 20 kA, EN 61643-11 Type 2, IEC 61643-1 Class II
  • Ethernet port: 10 kA, EN/IEC 61643-21 Category C

Dock – Supported Software

  • DJI Pilot 2 via DJI RC Pro Enterprise for deployment and commissioning
  • DJI FlightHub 2 supported by default
  • Third-party cloud platforms supported via DJI Cloud API

Dock – Expansion Capability

  • Open protocol: DJI Cloud API
  • Edge computing via external switch communication supported

Aircraft – General

  • Weight: 1410 g including battery, propellers, and microSD card
  • Maximum takeoff weight: 1610 g
  • Dimensions: 335 × 398 × 153 mm (without propellers)
  • Diagonal wheelbase: 463.2 mm
  • Left-right wheelbase: 359.9 mm
  • Front-rear wheelbase: 291.4 mm
  • Maximum ascent speed: 6 m/s (Normal), 8 m/s (Sport)
  • Maximum descent speed: 6 m/s (Normal and Sport)
  • Maximum horizontal speed (Normal): 15 m/s forward, 12 m/s backward, 10 m/s sideways
  • Maximum horizontal speed (Sport): 21 m/s forward, 18 m/s backward, 16 m/s sideways
  • Wind resistance: 12 m/s during operation, 8 m/s during takeoff and landing
  • Maximum takeoff altitude: 4000 m
  • Maximum flight time: 50 minutes under test conditions
  • Maximum hovering time: 40 minutes
  • Maximum operating radius: 10 km
  • Maximum flight distance: 43 km
  • Maximum pitch angle: 25° (Normal and Sport)
  • Maximum angular velocity: 250°/s
  • GNSS: GPS, Galileo, BeiDou, GLONASS (RTK required for GLONASS)
  • Operating temperature: -20° to 45° C (-4° to 113° F)
  • Ingress protection rating: IP54
  • Motor model: 2607
  • Propeller model: 1149 foldable
  • RTK module integrated
  • Beacon integrated

Aircraft – Wide-Angle Camera

  • Matrice 3D sensor: 4/3 CMOS, 20 MP
  • Matrice 3TD sensor: 1/1.32-inch CMOS, 48 MP
  • Wide camera lens defogging supported
  • Matrice 3D ISO: 100–6400
  • Matrice 3TD ISO: 100–25600
  • Maximum image size 3D: 5280 × 3956
  • Maximum image size 3TD: 8064 × 6048
  • Video: H.264, 4K@30fps, FHD@30fps

Aircraft – Tele Camera

  • Sensor: 1/2-inch CMOS, 12 MP
  • FOV: 15°
  • Format equivalent: 162 mm
  • Digital zoom: 8× (56× hybrid)

Aircraft – Infrared Camera (3TD)

  • Uncooled VOx microbolometer
  • Resolution: 640 × 512 or 1280 × 1024 (UHR mode)
  • Thermal sensitivity: ≤50 mK
  • Temperature range: -20° to 150° C (High), 0° to 500° C (Low)
  • Infrared wavelength: 8–14 μm
  • Temperature accuracy: ±2° C or ±2%
  • Do not expose IR lens to sun, laser, or extreme heat sources

Aircraft – Gimbal

  • 3-axis mechanical gimbal
  • Tilt range: -135° to +45°
  • Roll range: -45° to +45°
  • Pan range: -27° to +27°
  • Angular vibration range: ±0.005°

Aircraft – Obstacle Sensing

  • Six-directional obstacle sensing supported
  • Upper rear blind spot of 10°
  • Effective sensing depends on lighting and surface texture

Aircraft – Video Transmission

  • Transmission system: DJI O3 Enterprise
  • Live view up to 1080p@30fps
  • Maximum transmission distance (FCC): 15 km
  • Measured in unobstructed, interference-free environments
  • Latency aircraft to dock: approx. 110–150 ms

Aircraft – Storage

  • Supported microSD cards: U3 / V30 or above
  • Supports exFAT file system

Aircraft – Battery

  • Capacity: 7811 mAh
  • Voltage: 14.76 V
  • Energy: 115.2 Wh
  • Battery type: Li-ion 4S
  • Cycle life: 400 cycles

Aircraft – Charging

  • Power adapter input: 100–240 V AC
  • Power adapter output: 100 W
  • Charging base supports one battery at a time
  • Charging temperature: 5° to 40° C
  • 1x Dock 2 Body
  • 1x Wind Speed Gauge Module
  • 4x Expansion Bolts
  • 1x Ethernet Cable Connector
  • 1x Power Cable Connector
  • 6x Wire Ferrules
  • Screws and Tools
What is the DJI Dock used for?

The DJI Dock 2 is an advanced, automated drone station designed for 24/7 autonomous operations. Built to withstand challenging environments, it is rugged, reliable, and functions seamlessly in day or night, rain or shine conditions.

The Dock 2 serves as a home base for the DJI Matrice 30 series drones, allowing them to:

  • Land, recharge, and take off automatically between missions.
  • Execute pre-programmed tasks using DJI FlightHub 2, the centralized drone operations software.
  • Monitor environmental conditions with built-in sensors for rainfall, wind speed, and temperature to ensure safe operations.

By integrating real-time data from onboard sensors and online weather forecasting, DJI Dock 2 can proactively warn operators or terminate flights to mitigate risks.

What is the difference between DJI Dock 1 and DJI Dock 2?

The DJI Dock 2 offers significant improvements over its predecessor, the Dock 1:

  • Compact and Lightweight: Dock 2 is 75% smaller and 68% lighter, making it easier to transport and install with just two people. This reduces both labor and installation costs.
  • Enhanced Durability: Dock 2 maintains an IP55 rating for exterior protection and IP67 protection for core internal components, ensuring better performance under harsh weather conditions.
What is a drone docking station?

A drone docking station, like the DJI Dock 2, is an automated base that allows drones to:

  • Take off and land autonomously.
  • Recharge batteries between missions.

These stations are typically used for battery-powered multirotor or eVTOL drones in applications such as inspections, mapping, and surveillance, offering streamlined workflows for repetitive operations.

What drones are compatible with the DJI Dock 2?

The DJI Dock 2 is exclusively compatible with the DJI Matrice 30 series drones, ensuring optimal performance and seamless integration with its advanced features.

What is the IP rating of the DJI Dock 2?

The DJI Dock 2 is rated:

  • IP55 for exterior protection, ensuring resistance to dust and low-pressure water.
  • IP67 for core internal components, meaning they remain waterproof even when the Dock’s doors are open during rain.

This robust protection makes the Dock 2 ideal for operation in diverse and demanding environmental conditions.

What are the available Dock-Supported Software for DJI Dock 2?

DJI Dock 2 is integrated with DJI FlightHub 2, the all-in-one drone operations management platform. FlightHub 2 allows users to program and automate missions, monitor real-time drone activity, and access weather data. Additional software integrations include DJI Terra for mapping and DJI Pilot 2 for direct control of flight operations, ensuring seamless planning, execution, and post-mission analysis.

How does the DJI Dock 2 handle adverse weather conditions?

With an IP55 dust and water resistance rating, the Dock 2 can operate steadily in harsh climates and environments. It also integrates sensors to monitor real-time weather changes, providing timely warnings or terminating flight tasks to reduce risks.

What is the charging time for drones using the DJI Dock 2?

The Dock 2 charges the aircraft from 20% to 90% in just 32 minutes, ensuring efficient power management for consecutive operations.

What maintenance is required for the DJI Dock 2?

Due to its high level of protection and reliability, the Dock 2 requires maintenance approximately every six months, effectively controlling human resource costs.

How is the DJI Dock 2 monitored and controlled?

Operators can monitor and control the Dock 2 remotely via DJI FlightHub 2 or third-party cloud platforms. The Dock 2 features internal and external cameras for real-time display, allowing observation of weather conditions, environmental circumstances, and aircraft operations.
