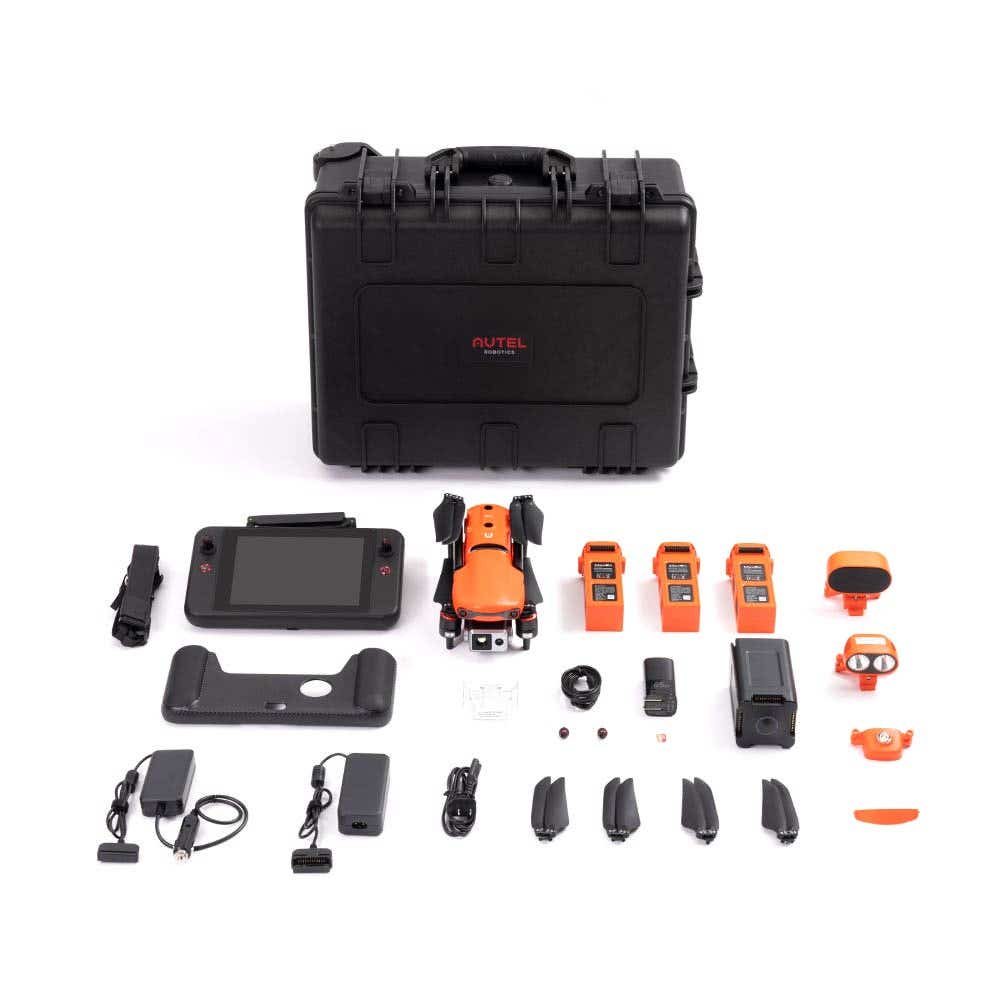

  • Autel EVO II Dual 640T Enterprise Bundle V3, drone, controller, batteries, accessories, and rugged case laid out
1 7

Autel EVO II Dual 640T Enterprise Bundle V3

Autel EVO II Dual 640T Enterprise Bundle V3

$5,299.00
$5,299.00
Sale Sold out
SKU S-AR-E2DT-EB-V3 MPN 102001516 UPC 889520204439
  • Dual-sensor system captures thermal and 50-megapixel RGB data.
  • Picture-in-picture blends thermal and visual views seamlessly.
  • Ten thermal palettes support inspection and public safety missions.
  • 38-minute maximum flight time under ideal conditions.
  • SkyLink 2.0 provides extended range and stable communication.
  • Full obstacle avoidance uses nineteen onboard sensor groups.
  • Smart Controller V3 offers a bright 7.9-inch display.
  • Enterprise toolkit includes spotlight, speaker, and strobe light.
  • Foldable airframe enables fast deployment in field conditions.
  • Rugged case keeps the aircraft protected during transport.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO II Dual 640T Enterprise Bundle V3: Thermal Drone Kit Ready for Field Deployment

The Autel EVO II Dual 640T Enterprise Bundle V3 is a complete thermal drone package built around a folding aircraft with a 640×512 radiometric thermal sensor and a 50 MP RYYB visual camera. Order one for a single response vehicle or several to equip a regional fleet, and every kit arrives configured the same way, with a trio of batteries, the Smart Controller V3, three field accessories, and protective cases. Maximum flight time is 38 minutes in no wind, and the aircraft can hover for 33 minutes. Crews keep thermal and visual views on one 3-axis gimbal, which removes payload swaps from the workflow.

Because each bundle is configured identically, agencies and contractors can train once and use the same checklist across vehicles. The 4K/60 visual camera supports documentation, while radiometric thermal readings run between -4°F and 302°F (-20°C and 150°C) in high gain. The spotlight, loudspeaker, and strobe expand what one flight can accomplish at night or around people. RTK positioning and Live Deck 2 are optional add-ons, sold separately, for teams that want more precise placement or larger-screen sharing. Planning around one SKU also keeps purchasing straightforward for departments with approval steps.

Key Features and Benefits

  • Thermal Sensor: 640×512 radiometric imaging through a 13 mm lens
  • Visual Camera: 50 MP RYYB sensor recording 4K at 60 fps
  • Low-Light Capture: Moonlight Algorithm 2.0 supports dim scene visual footage
  • Maximum Endurance: Up to 38 minutes aloft in no-wind conditions
  • Hover Time: 33 minutes of hover capability per fully charged battery
  • Obstacle Sensing: 19 sensor groups cover all directions around the aircraft
  • Subject Tracking: Dynamic Track 2.1 handles as many as 64 objects
  • Tri-Band Link: SkyLink 2.0 connects the aircraft and controller wirelessly
  • Field Controller: Smart Controller V3 included, with a 7.9-inch, 2000-nit screen
  • Airspace Awareness: ADS-B receiver picks up broadcasts from crewed aircraft

Imaging, Gimbal, and Airframe Details

Gimbal tilt on the 3-axis mount runs from -90° to +30°. The thermal lens is 13 mm, giving a 33°×26° view, ten palettes, and picture-in-picture, and it zooms digitally to 16x. The 50 MP camera also zooms to 16x digitally, 4x of it lossless. The airframe comes in at 2.67 lb (1209 g) including propellers and battery, and folds to 9.1×5.1×4.3 in (230×130×108 mm). Autel lists a service ceiling of 16,404 ft (5000 m) and wind resistance of 23.9 mph (10.7 m/s). The aircraft supports SD cards up to 256 GB, and the included card is 64 GB.

Compatibility and System Integration

  • 1 EVO II Dual 640T aircraft, SD card, gimbal cover, battery, propellers (included)
  • 1 Smart Controller V3 with 5800 mAh internal battery (included)
  • 3 batteries in total, including 2 spares per bundle (included)
  • 2 spare propellers plus 1 spare pair of control sticks (included)
  • 1 each of spotlight, loudspeaker, and strobe accessories (included)
  • Battery, car, multi, and RC chargers, one of each (included)
  • 1 protector case, 1 extended port cover, 1 RC protective case (included)

Applications and Use Cases

  • Roof and facade scans that expose insulation gaps and heat loss
  • Nighttime search and rescue with thermal imaging and spotlight support
  • Law enforcement and fire department overwatch, tracking, and aerial situational awareness
  • Solar farm and power equipment checks for hot spots and faults
  • Public address announcements from the air using the included loudspeaker
  • Fleet standardization for agencies deploying identical kits across multiple vehicles
  • Single-unit pilot programs that evaluate thermal drones before wider rollout

Buying thermal capability usually means chasing batteries, lights, chargers, and cases from several sources. This bundle collapses that list into one purchase, whether you are outfitting one team or twenty. Standard contents also simplify spares planning, training, and repeat orders as a program grows.

Dronefly serves single-unit buyers and growing fleets alike. Choose this bundle to start flying thermal missions with the batteries, accessories, and controller already in the box. Buy direct from Dronefly and put your crew in the air.

Aircraft

  • Takeoff weight (EVO II Pro Enterprise): 2.45 lbs (1110 g)
  • Takeoff weight (EVO II Dual 640T Enterprise): 2.51 lbs (1136.5 g)
  • Diagonal length: 16.8 in (427 mm)
  • Size (folded): 245 × 130 × 111 mm
  • Size (unfolded): 506 × 620 × 111 mm
  • Max service ceiling altitude: 4.3 miles (7000 m) MSL
  • Max ascent speed: 18 mph (8 m/s) Ludicrous
  • Max descent speed: 9 mph (4 m/s) Ludicrous
  • Max level flight speed: 45 mph (20 m/s) Ludicrous
  • Max angular velocity: 120°/s
  • Max tilt angle: 33° Ludicrous
  • Max flight time: 42 min (no wind, no accessories)
  • Max hovering time (strobe): 38 min
  • Max hovering time (spotlight): 29 min
  • Max hovering time (loudspeaker): 34 min
  • Max hovering time (RTK): 36 min
  • Operating temperature: 14°F to 104°F (−10°C to 40°C)
  • Max wind resistance: 39–46 mph (17–20 m/s)

Operating Frequency

  • 2.400–2.4835 GHz
  • 5.725–5.850 GHz

Hovering Accuracy

  • RTK: Vertical ±0.1 m; Horizontal ±0.1 m
  • Visual: Vertical ±0.1 m; Horizontal ±0.3 m
  • GPS: Vertical ±0.5 m; Horizontal ±1.5 m

Storage

  • Internal storage: 8 GB
  • SD card support: Up to 256 GB (UHS-3 or Class 10)

Gimbal

  • Type: 3-axis stabilization
  • Mechanical range: Tilt −135° to +45°; Pan −100° to +100°
  • Controllable range: Tilt −90° to +30°; Pan −90° to +90°
  • Max tilt speed: 300°/s
  • Angular vibration: ±0.005°

Remote Controller & Image Transmission

  • Operating frequency: 902–928 MHz (FCC); 2.400–2.4835 GHz; 5.725–5.850 GHz (non-Japan); 5.650–5.755 GHz (Japan)
  • Transmission power: FCC ≤33 dBm; CE ≤20 dBm @2.4G and ≤14 dBm @5.8G; SRRC ≤20 dBm @2.4G and ≤33 dBm @5.8G/5.7G
  • Max transmission distance: 15 km (FCC); 8 km (CE)
  • Display resolution: 2048 × 1536 @ 60 fps
  • Battery: 5800 mAh
  • Operating time: ~3 hr (max brightness); ~4.5 hr (50% brightness)
  • Charging time: 90 min
  • Internal storage: 128 GB ROM

Sensing System

  • Type: Omnidirectional

Forward Sensors

  • Range: 0.5–18 m
  • Effective speed: <12 m/s
  • FOV: Horizontal 60°, Vertical 80°

Backward Sensors

  • Range: 0.5–16 m
  • Effective speed: <12 m/s
  • FOV: Horizontal 60°, Vertical 80°

Upward Sensors

  • Range: 0.5–10 m
  • Effective speed: <5 m/s
  • FOV: Horizontal 65°, Vertical 50°

Downward Sensors

  • Range: 0.5–10 m
  • Effective speed: <5 m/s
  • FOV: Horizontal 100°, Vertical 80°

Left/Right Sensors

  • Range: 0.5–10 m
  • Effective speed: <5 m/s
  • FOV: Horizontal 65°, Vertical 50°

Operating Environment Requirements

  • Forward/Backward/Sides: Clear patterns, lux >15
  • Upward: Diffuse reflective surfaces >20%
  • Downward: Clear patterns + lux >15, diffuse reflective surfaces >20%
  • 1x Aircraft (including battery, propellers, gimbal cover, and 32G SD Card)
  • 1x Autel Smart Controller V3 (sticks included)
  • 2x Spare batteries
  • 2x Spare propellers (pair)
  • 1x Battery charger + power cable
  • 1x Car charger
  • 1x Multi-charger
  • 1x RC charger
  • 1x RC charging cable
  • 1x RC lanyard
  • 1x RC protective case
  • 1x Spare control stick (pair)
  • 1x Loudspeaker
  • 1x Spotlight
  • 1x Strobe
  • 1x Extended port cover
  • 1x Protector case
  • 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
Does the drone capture thermal and visual data at the same time?

Yes. Picture-in-Picture allows simultaneous thermal and RGB imaging, helping users interpret temperature details alongside visual context.

What is the thermal resolution?

The thermal camera records at 640 × 512 resolution and includes measurement tools such as region analysis, spot meter, alarms, and isotherms.

What accessories are included?

The Enterprise Bundle contains the Smart Controller V3, spotlight, speaker, strobe, charging accessories, propellers, and a rugged protective case.

How long can the drone fly?

In ideal no-wind conditions, the system can reach up to approximately 38 minutes of flight time, depending on mission load and environment.

Is this bundle suitable for emergency operations?

Yes. With its thermal tools, RGB imaging, spotlight, speaker, and strobe, it supports search operations, communication tasks, and nighttime missions.

What comes in the Autel EVO II Dual 640T Enterprise Bundle V3 box?

Each bundle ships with 1 aircraft, 1 Smart Controller V3, and 3 batteries in all, which is the aircraft battery plus 2 spares. Spare parts include 2 propellers and 1 control stick pair. The three field accessories (spotlight, loudspeaker, and strobe) are in the box, and so are the SD card and gimbal cover. Charging gear is an RC charger, RC charging cable, multi-charger, car charger, and battery charger, while an RC lanyard, extended port cover, protector case, RC protective case, and manuals finish the list. The RTK module is not included.
