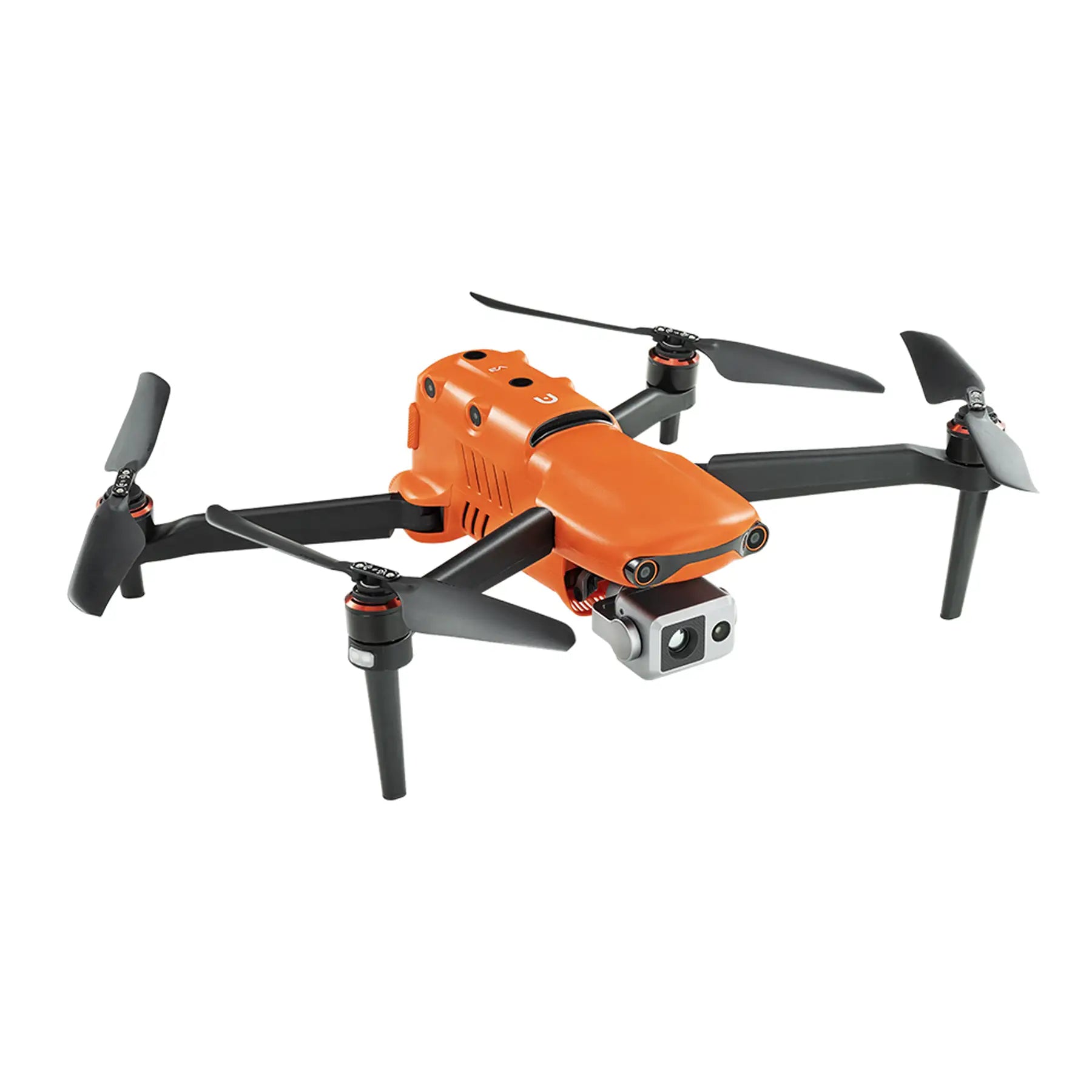

Autel EVO II Dual 640T Rugged Bundle V3 – Built Tough for Unmatched Thermal Imaging
One of the most compact and advanced thermal drones in the market today is the Autel EVO Dual 640T. And it just got better with the release of its third version, a UAV that still carries the best about its predecessor while reemerging with significant upgrades that will surely help you better with your aerial imaging and surveying missions.
Unleashing Advanced Capabilities: What Sets the EVO II Dual 640T Apart
The dual-cam advantage

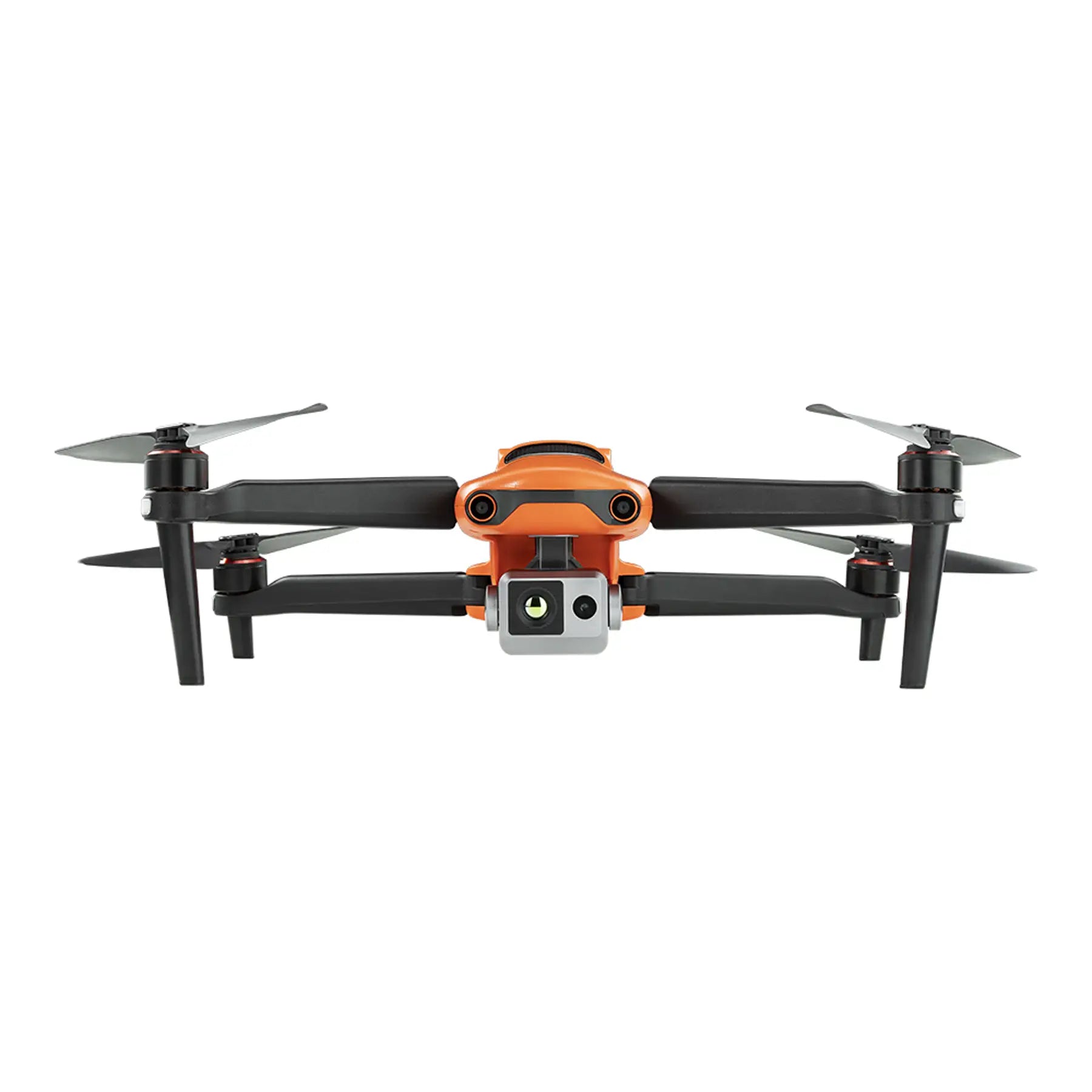

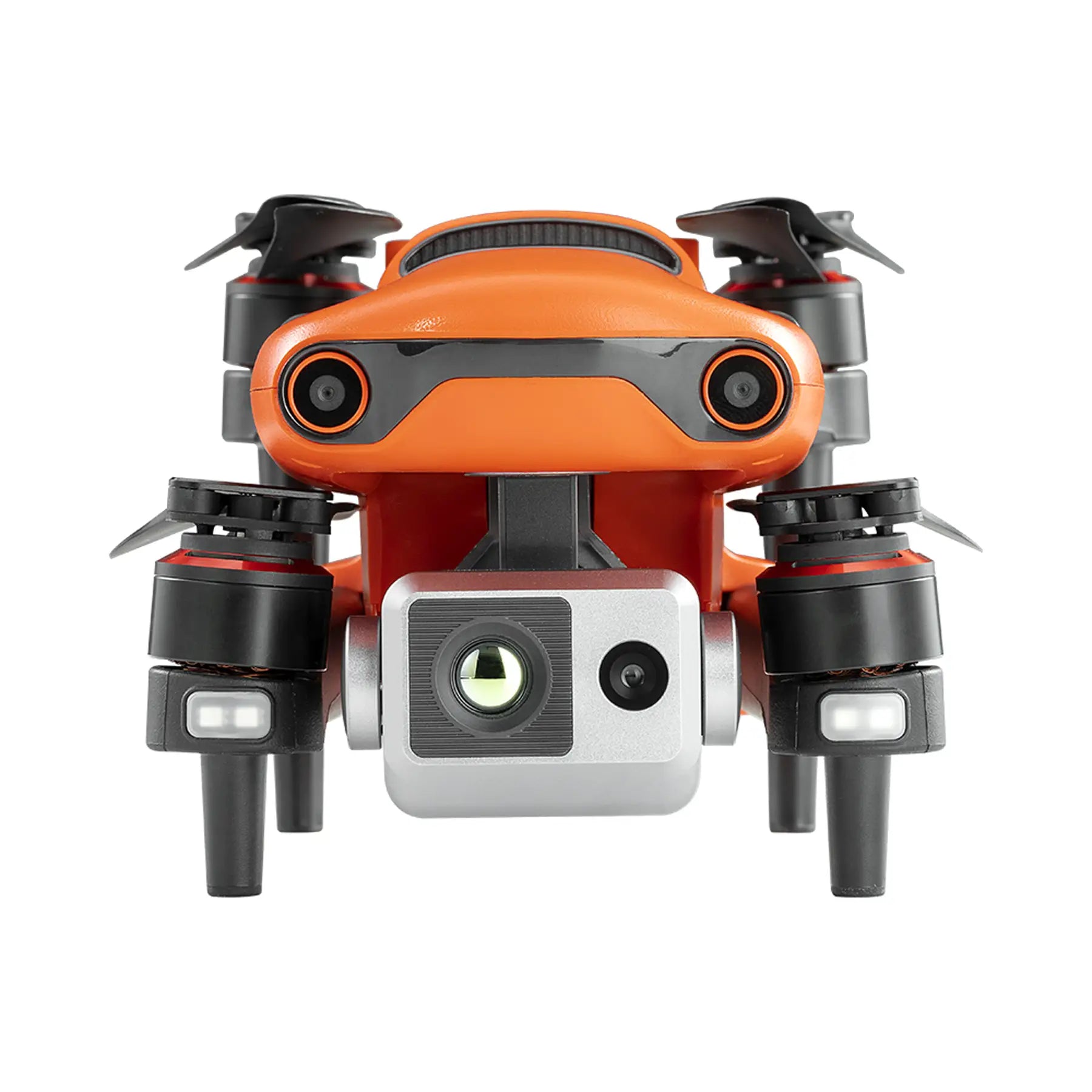

The EVO II Dual 640T V3 features 2 cameras that give you the ability to carry out different kinds of missions with just one powerful drone.
- 640T thermal camera: 640*512 30Hz HD thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom. Now you'll find it easy to observe distant targets.
The system uses a new image processing algorithm which helps make thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.
- 50-MP ultra-sensitive visual camera: The visual camera installed in the drone features a unique RYYB sensor with Moonlight Algorithm 2.0. This improves the camera's 50 megapixels by giving users more information for better forensics and analysis even in low-light situations.
In low light, it is possible to detect, recognize, and categorize individuals and proceed with confidence. And with a mix of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for quick and precise tracking, you'll never lose sight of your targets.
With the aid of a combination of visual and thermal images captured by these dual cameras, you can swiftly understand data and make important decisions.
Whether it’s casual overhead photography, area surveying, line inspection, locating of hotspots, search and rescue, or crowd monitoring, this drone has got you covered.
SkyLink 2.0 Transmission
With Autel's brand-new SkyLink 2.0 Video Transmission technology, your Autel EVO II Dual 640T V3 may go up to 15 kilometers. Even better, your flight can stretch to a maximum of 40 minutes thanks to the powerful battery that comes with the package.
Within one kilometer, get crucial information with QHD video. In addition, you benefit from tri-band communication and frequency hopping for maximum anti-interference capability. With triple band frequency hopping, the preinstalled SkyLink 2.0 also increases anti-interference capabilities.
Safety system
The drone has 19 sets of sensors, including 12 visual sensors, the primary camera, ultrasonography, IMUs, and other sensors. three-dimensional maps may be built and real-time path planning is made possible. All these make flying safe for your peace of mind. Accessories like Autel EVO II Dual/640T Gimbal Guard available for additional protection.
Easy and smart control
This Autel EVO II Dual 640T V3 comes with the Smart Controller SE, an RC that features an 8-core processor and a 6.4-inch OLED touch screen for HD picture transmission.
The modified Android operating system offers more freedom with third-party apps, and an IP43 grade assures functioning in all weather conditions.
For organizations, especially those that do inspection, surveying, and public safety missions, that want a dependable and feature-rich drone, the Autel EVO II Dual 640T V3 is a great option.
Versatile Performance: Where the EVO II Dual 640T Excels
-
Powerline Inspections: Enhances safety and reduces costs by streamlining the inspection workflow.
-
Firefighting: The Autel drone aids in locating hotspots, provides aerial overwatch, and can potentially shorten response times during firefighting operations.
-
Security operations: Useful for overwatch, forensics, accident reconstruction, and crowd monitoring, aiding in comprehensive security management.
-
Search and rescue: Assists in identifying subjects, reducing response times, and optimizing the search area through effective mission planning.
-
Chemical plant inspections: Improves inspection efficiency and work safety while lowering operational costs.
-
Solar panel inspections: Facilitates the inspection process and aids in identifying defects or faulty hardware using its thermal imaging capabilities.
Why Buy From Dronefly?
When you purchase from Dronefly, you get so much more than first class quality drone parts:
- Expert support: get any questions you have regarding your drone and accessories answered by our drone experts.
- Fast, reliable shipping: we get your drone parts to you quickly and efficiently, with streamlined shipping options.
- Authorized Dealer: Dronefly is an authorized reseller for leading drone brands, ensuring you're always going to be purchasing authentic, high-quality products with manufacturer warranties.
Specifications
Aircraft
- Takeoff weight: 1150 g
- Max takeoff weight: 2000 g

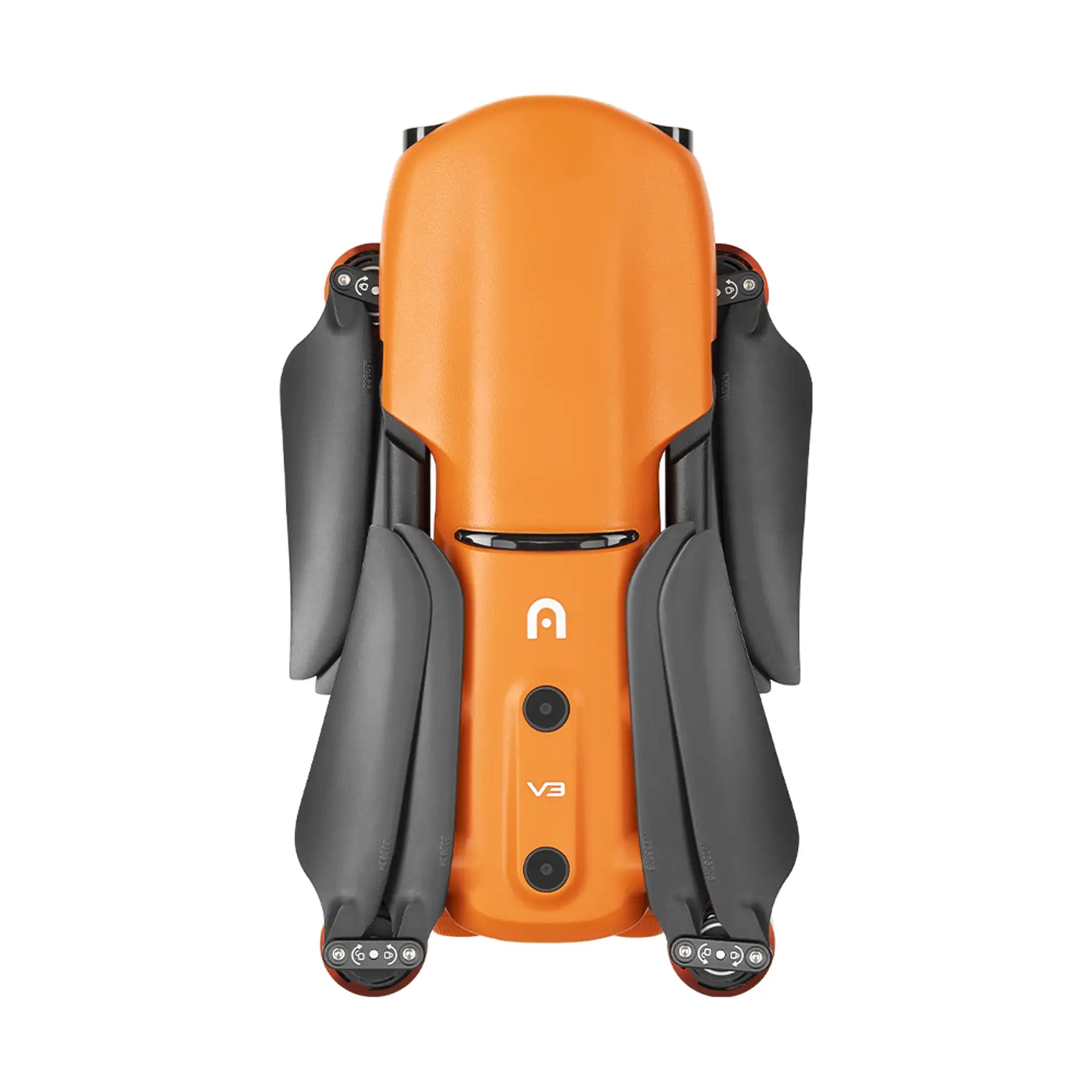

- Size (L×W×H): 230×130×108mm (folded), 457×558×108mm (unfolded)
- Wheelbase: 397 mm
- Maximum service ceiling altitude: 7000 m
- Max ascent speed: 8 m/s (Ludicrous)
- Max descent speed: 4 m/s (Ludicrous)
- Max horizontal flight speed: 20 m/s (Ludicrous)
- Max flight distance (no wind): 22 km
- Max angular velocity: 120°/s
- Max tilt angle: 33° (Ludicrous)
- Max flight time (no wind): 38 min
- Max hovering time (no wind): 33 min
- Operating temperature range: -10℃ ~ 40℃
- Maximum resistance to wind: Level 8
- Operating frequency: 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)
-
Transmission power:
- 900M: FCC/ISED: ≤31dBm
- 2.4G: FCC/ISED: ≤32dBm, SRRC/CE/MIC/RCM: ≤20dBm
- 5.8G (non-Japan) ; 5.7G (Japan): FCC/ISED/SRRC/MIC: ≤33dBm, CE/RCM: ≤14dBm
-
Hovering accuracy:
- Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally)
- Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
- GNSS: GPS/Beidou/Glonass/Gallieo
- Internal storage: 8GB
- SD storage: max. support 256GB (UHS-3 or Class 10)
Gimbal
- Gimbal: 3-axis stabilization
- Mechanical range: Tilt: -135° to +45°; Pan: -100° to +100°
- Controllable rotation range: Tilt: -90° to +30°; Pan: -90° to +90°
- Max control speed (Tilt): 300°/s
- Angular Vibration Range: ±0.005°
Remote controller and image transmission
- Operating frequency: 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)
-
Transmission power:
- FCC: ≤33dBm
- CE: ≤20dBm@2.4G, ≤14dBm@5.8G
- SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
- Max Transmission Distance (unobstructed, free of interference): FCC: 15km, CE: 8km
- Display screen: 2048x1536 60fps
- Battery: 5800mAh
- Operating time: ~3 hours (Max. Brightness), ~4.5 hours (50% Brightness)
- Charging time: 120 minutes
- Internal Storage: ROM 128GB
Sensing system
- Sensing system type: Omnidirectional sensing system
- Forward: Accurate measurement range: 0.5-18 m, Effective sensing speed: <12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°
- Backward: Accurate measurement range: 0.5-16 m, Effective sensing speed: <12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°
- Upward: Accurate measurement range: 0.5-10 m, Effective sensing speed: <5m/s, Viewing angle: Horizontal: 65°, Vertical: 50°
- Downward: Accurate measurement range: 0.5-10 m, Effective sensing speed: <5m/s, Viewing angle: horizontal: 100°, vertical: 80°
- Left and right: Accurate measurement range: 0.5-10 m, Effective sensing speed: <5m/s, Viewing angle: horizontal: 65°, vertical: 50°
-
Operating Environment:
- Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15)
- Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
- Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Thermal camera
- Sensor: Uncooled VOx Microbolometer
- Lens: FOV H33°V26°, Focal length 13mm
- Zoom: 1-16x
- Sensor resolution: 640×512
- Pixel size: 12μm
- Wavelength range: 8 - 14μm
- Temperature range: High gain mode: -20° to +150°, Low gain mode: 0° to +550°
- Temperature measurement accuracy: ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
- Accurate temperature measurement distance: 2-20 meters
- Video resolution: 640×512@30fps
- Video format: MOV / MP4 (Support H.264/H.265)
- Camera resolution: Infrared mode: 640×512, Picture-in-picture mode: 1920×1080, 1280×720
- Photo mode: Single shot, Burst shooting: 3/5 frames, 3 is the default, Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
- Photo format: JPG (with irg file)
Visible light camera
- Sensor: 1/2 inch CMOS; 48M effective pixels
- Lens: FOV: 79°, 35 mm format equivalent focal length: 25.6 mm, Aperture: f/1.8, Focus range: 0.5 m to infinity (with auto focus)
- ISO range: Video: 100-64000, Photos: 100-6400
- Shutter speed: Photo mode: 1/8000 ~ 8s, Other: 1/8000 ~ 1/frame rates
- Zoom: 1-16x (up to 4x lossless zoom)
- Photo mode: Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
- Maximum photo size: 8192×6144(4:3), 4096×3072(4:3), 3840×2160(16:9)
- Image Format: JPG (default) / DNG / JPG+DNG
- Video format: MOV / MP4
- Video resolution: 3840×2160P60/P50/P48/P30/P25/P24, 2720×1528P60/P50/P48/P30/P25/P24, 1920×1080P60/P50/P48/P30/P25/P24
- Max bitrate: 120Mbps
- Supported file system: FAT32/exFAT
Battery
- Capacity: 7100 mAh
- Voltage: 11.55 V
- Battery type: LiPo 3S
- Energy: 82 Wh
- Weight: 365 g
- Charging temperature range: 5℃ to 45℃
- Storage temperature and humidity: -10~30℃, 65±20%RH
- Recommended storage temperature: 22-28℃
- Max charging power: 93W
- Charging time: 90 minutes
Charger
- Input: 100-240 V, 50/60 Hz, 1.5A
- Output: 13.2 V ⎓ 5 A, 5V⎓3A, 9V⎓2A, 12V⎓1.5A
- Voltage: 13.2±0.1V
- Rated power: 66W
Multi-Charger
- Voltage: 13.2 V
- Charging temperature range: 5℃ to 45℃

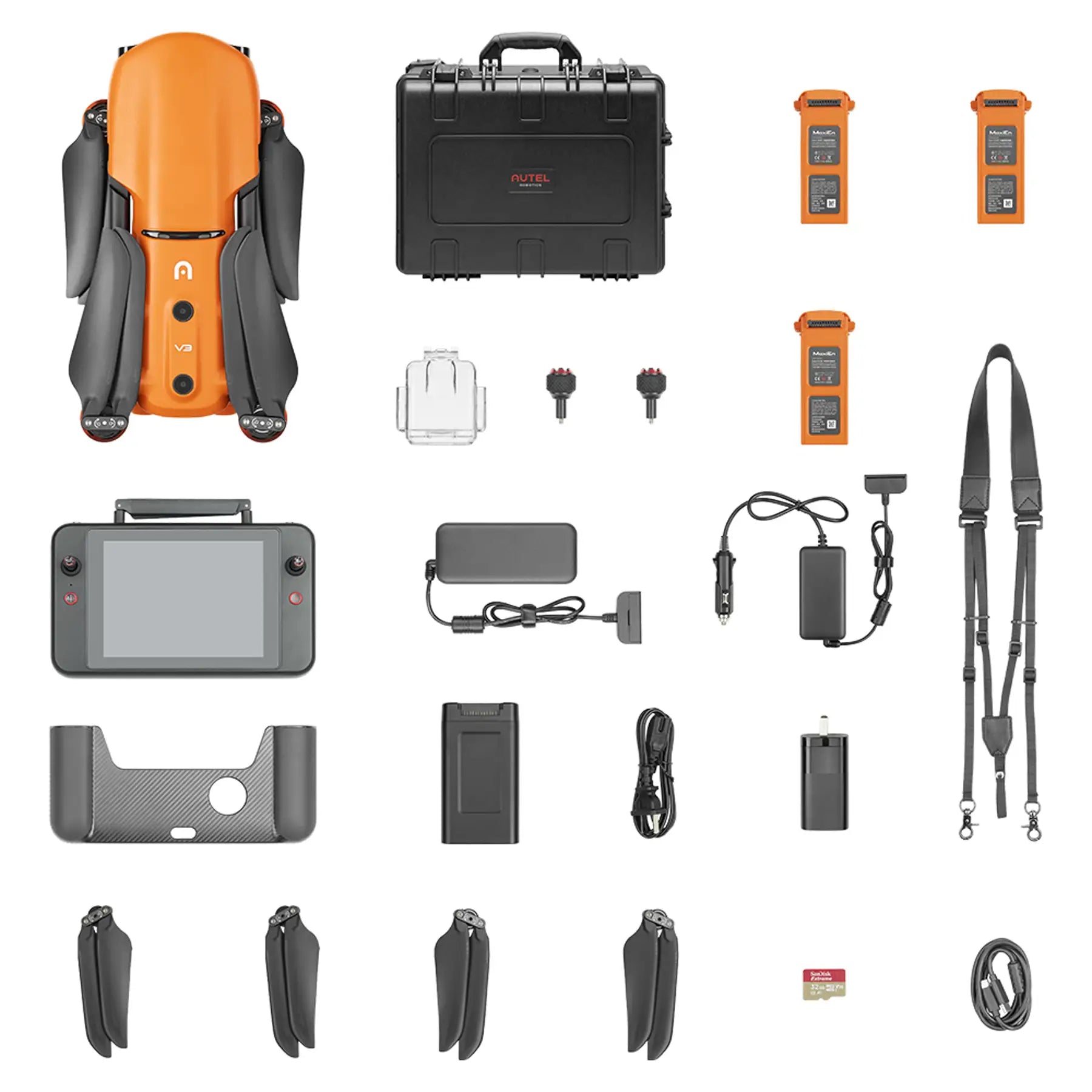

In the Box
- 1x Aircraft (including battery, propellers, gimbal cover, and 32G SD Card)
- 1x Remote Controller (sticks included)
- 2x Spare batteries
- 2x Spare propellers (pair)
- 1x Battery charger + power cable
- 1X Car charger
- 1x Multi-charger
- 1x RC charger
- 1x RC charging cable
- 1x RC lanyard
- 1x RC protective case
- 1x Spare control stick (pair)

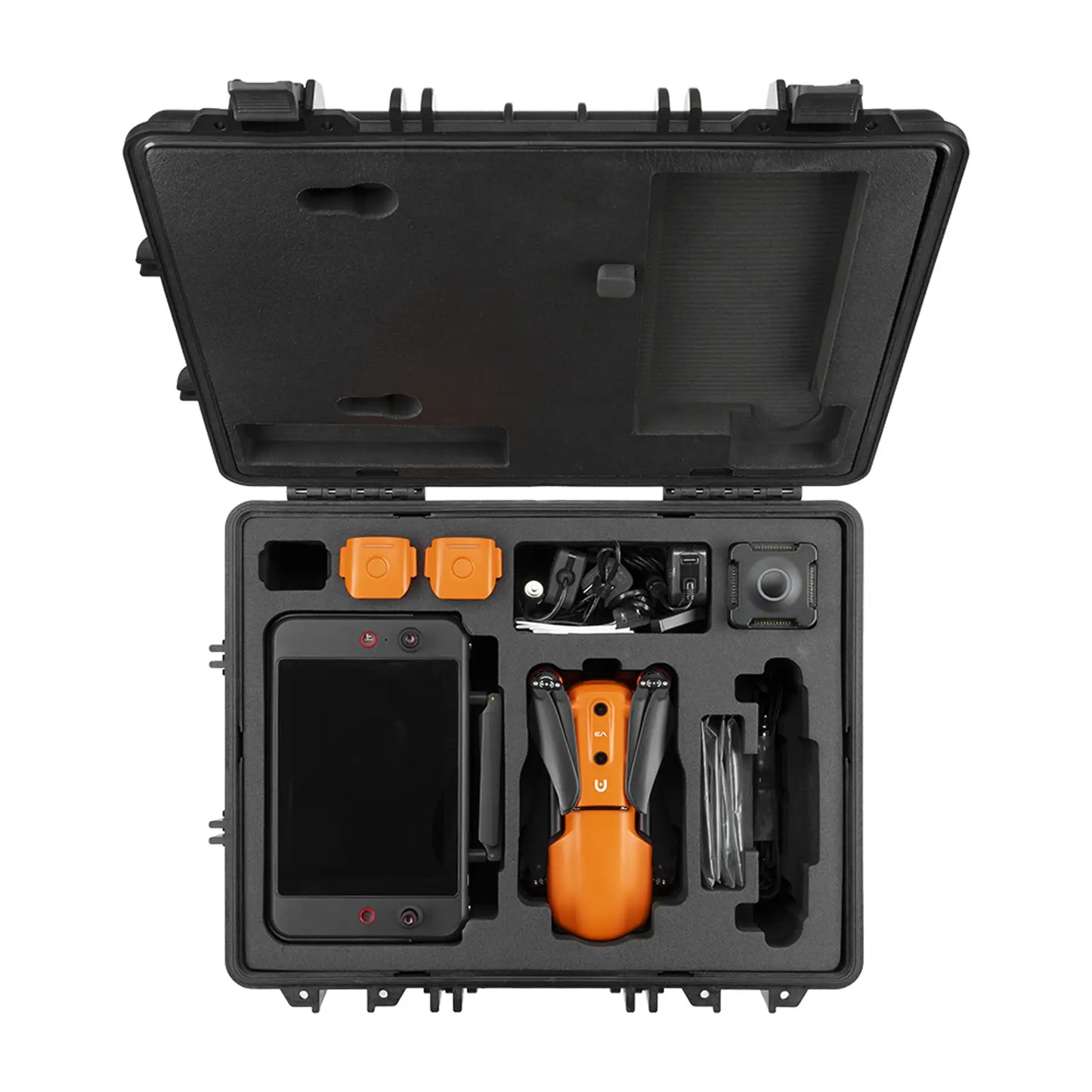

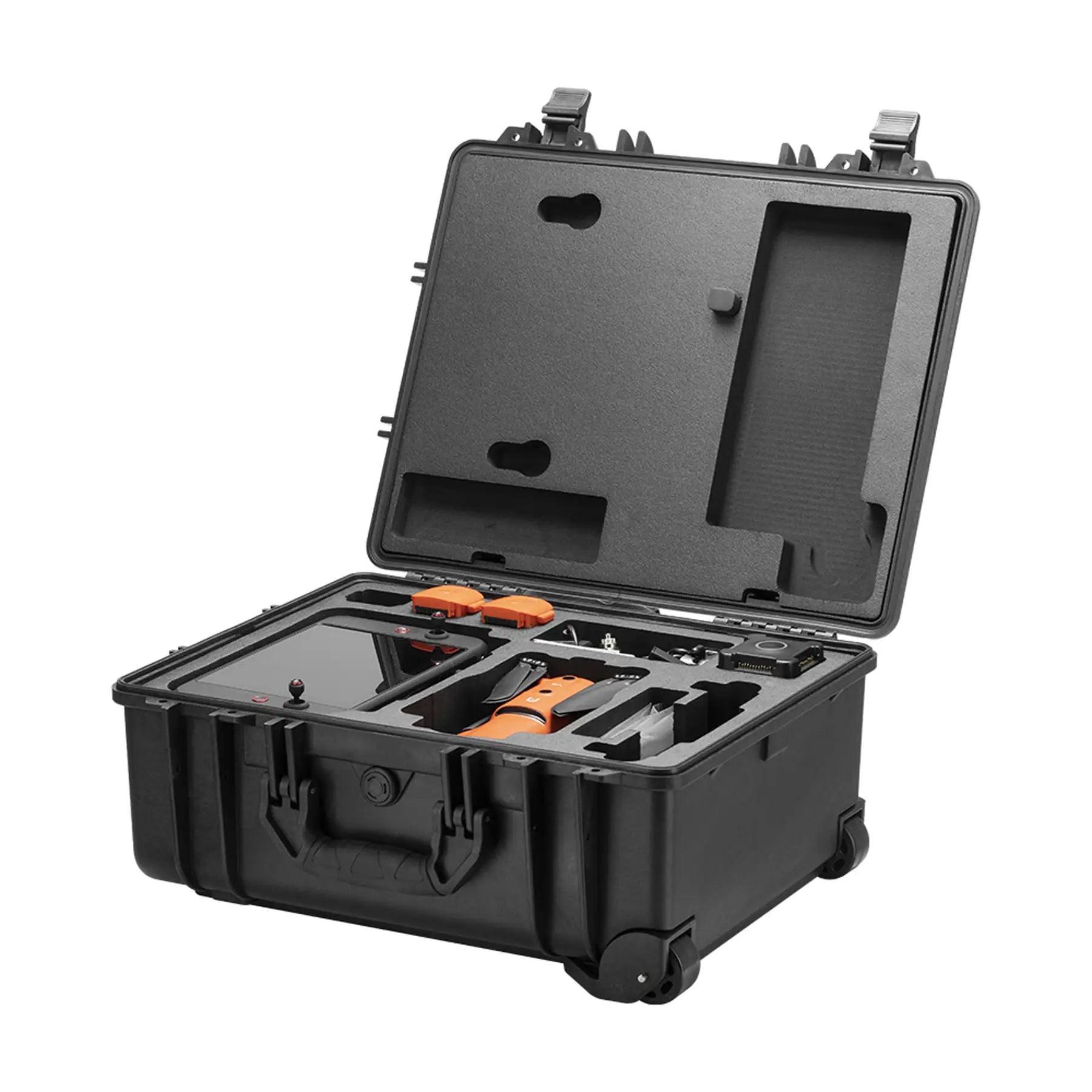

- 1x Protector case
- 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
