Autel Live Deck 2: Secure Multi-Device Streaming for EVO II V3
The Autel Live Deck 2 is a portable video receiver that streams EVO II V3 drone footage to multiple devices in real time. Delivering 1080p/60fps with low latency, it ensures mission teams - from field operators to supervisors - share the same live view without delay. With tri-band transmission, rugged IP43 protection, and 5 hours of runtime, Live Deck 2 is purpose-built for professional workflows that depend on uninterrupted visibility.
Clear and Reliable Connectivity
Live Deck 2 leverages Autel's SkyLink 2.0 with automatic switching across 900 MHz, 2.4 GHz, and 5.8 GHz for stable performance. Transmission reaches up to 12 km in optimal line-of-sight conditions, providing coverage for wide-area missions. HDMI, Ethernet, and WiFi outputs support simultaneous viewing on command center monitors, laptops, and up to four smartphones - giving everyone in the operation the same situational awareness as the pilot.
Built for the Demands of the Field
Weighing less than 1 lb, Live Deck 2 is compact yet durable. Its 6200 mAh Li-Po battery powers 5 hours of operation, while IP43 protection defends against dust and light rain. Foldable antennas make transport simple, and its closed-loop architecture keeps video secure without relying on internet connections or external servers. From -10 °C to 40 °C, it's ready for use in a wide range of environments.
Key Features and Benefits
- Full HD 1080p/60fps live video streaming
- Automatic tri-band switching: 900 MHz, 2.4 GHz, 5.8 GHz
- Maximum 12 km transmission distance in ideal conditions
- HDMI, Ethernet, and WiFi outputs for multiple devices
- Supports simultaneous streaming to four smartphones
- 5-hour runtime powered by integrated 6200 mAh Li-Po battery
- Lightweight 424.5 g build with foldable antennas
- IP43 rating protects against dust and water spray
- Operates between -10 °C and 40 °C
- Compatible with EVO II V3 drone lineup
Applications and Use Cases
- Law enforcement: provide live situational awareness to command posts
- Emergency response: stream aerial visuals across multiple teams
- Surveying and mapping: verify flight coverage instantly
- Construction: deliver site updates directly to supervisors
- Utilities and infrastructure: share inspection video with off-site engineers
- Public safety: extend real-time video to multiple ground units
- Media and broadcasting: integrate drone feeds into live production systems
- Industrial inspections: connect specialists to live visuals remotely
The Autel Live Deck 2 is a compact, reliable solution for extending EVO II V3 feeds to multiple devices, ensuring your mission teams stay connected and informed.
Dronefly backs your investment with expert advice, authorized Autel support, and strong post-sale service. Shop with us today to bring Live Deck 2 into your operations.
pecifications
-
Compatibility
- EVO II Pro V3
- EVO II Dual 640T V3
- EVO II RTK Series V3
- EVO II Enterprise Series V3
-
Weight
- 424.5 g
-
Dimensions
- Antennas Folded: 152 × 111 × 23.2 mm
- Antennas Unfolded: 223.9 × 152 × 23.3 mm
-
Ingress Protection
- IP43
-
Operating Frequency
- 902–928 MHz (FCC)
- 2.400–2.4835 GHz
- 5.725–5.850 GHz (Non-Japan)
- 5.650–5.755 GHz (Japan Only)
-
Transmitter Power (EIRP)
- 900 MHz: FCC ≤ 33 dBm
- 2.4 GHz:
- CC/NCC ≤ 33 dBm
- CE/MIC/SRRC/KC ≤ 20 dBm
- 5.8 GHz / 5.7 GHz:
- FCC/SRRC/NCC ≤ 33 dBm
- KC ≤ 20 dBm
- CE ≤ 14 dBm
-
Max Transmission Distance
- 12 km (unobstructed, free of interference)
-
Operating Time
- 5 hours
-
Operating Current/Voltage
- 1.3 A / 3.85 V (not connected to smartphone)
-
Battery
- Type: Li-Po
- Capacity: 6200 mAh
-
Rated Power
- 5 W
-
Operating Temperature
- 14°F to 104°F (−10°C to 40°C)
-
Operating Humidity
- 95% RH
-
Ports
- HDMI: 1080p @ 60 fps
- Ethernet: 100M

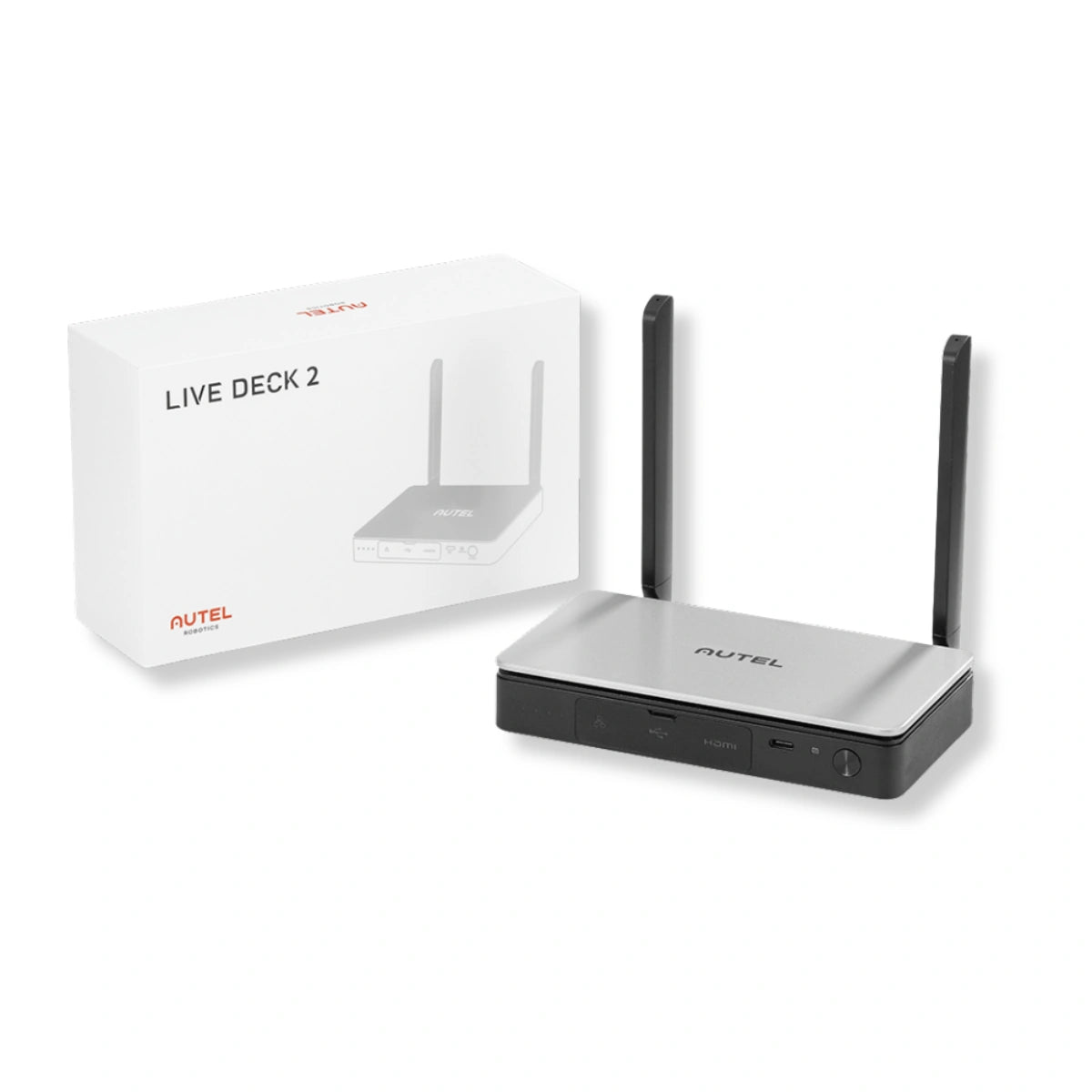

In The Box
- 1x Live Deck 2
- 2x Pair of SMA threaded antennas
