Inspired Flight IF800 NAV RTK Base Station
Built for Pros Who Demand Geospatial Accuracy
The Inspired Flight NAV RTK Base Station ensures your drone captures data with the accuracy professionals expect. Designed for full compatibility with the IF800 TOMCAT and IF1200 drones, this RTK solution creates a stable, high-precision GNSS reference point, delivering real-time correction signals to your drone's onboard GPS modules. It's the difference between general estimates and pinpoint certainty.
Reliable, Field-Ready, and Effortlessly Precise
In the world of high-stakes mapping and inspections, there's no room for uncertainty. That's why the NAV RTK Base Station was built tough, field-portable, and fast to deploy. Whether on a construction site or a remote survey location, it locks in positioning stability and ensures your data stands up to real-world scrutiny.
Key Features
- Delivers RTK correction data for centimeter-level accuracy
- Fully compatible with IF800 TOMCAT and IF1200 drones
- Maintains a fixed GNSS reference signal during operations
- Rugged, lightweight, and designed for field deployment
- Tripod-ready for secure and stable setup
- Reliable link to drone's Dual GPS modules ensures uninterrupted correction
Professional Applications
- Surveying large or complex terrains
- Photogrammetry and 3D site modeling
- Infrastructure inspections and construction site planning
- Volume calculations and earthwork analysis
- Accurate geotagging for post-processing workflows
Why Buy from Dronefly
Dronefly is more than a seller-we're your UAV solutions partner. When you purchase from us, you gain access to expert guidance, configuration support, and industry-leading customer service. Our team understands real-world fieldwork and provides everything you need to get results from your equipment, starting day one.
The Accuracy Advantage is Yours
Deploy the NAV RTK Base Station with your IF800 or IF1200 system and turn every flight into a data-driven mission. When results matter, precision isn't optional-it's standard.
Specifications
-
GNSS:
- Constellations: GPS, BeiDou, Galileo
- Bands: GPS (L1, L5), BeiDou (B1, B2), Galileo (E1, E5a)
- Module: U-Blox F9P
- Receiver Type: Multi-band GNSS High Precision Receiver
- Time Pulse Signal Frequency: 0.25 Hz to 19 MHz (configurable)
- Velocity Accuracy: 0.05 m/s
- Dynamic Heading Accuracy: 0.3°
- Horizontal Position Accuracy: 0.01 m + 1 ppm CEP
- Vertical Position Accuracy: 0.01 m + 1 ppm R50
- Phase Center Accuracy: ±2 mm
-
Electrical:
- Connection Type: USB-C (10ft USB-A to USB-C Cable Included)
- Supply Voltage: 5V
-
Mechanical:
- Size: 170 mm x 170 mm x 90 mm
- Weight: 618 grams
- Tripod Mounting: ⅝"-11 UNC (⅜"-16 / ¼"-20 Adapters Included)
-
Operating Conditions:
- Temperature Range: -40°C to 70°C
- IP Rating: IP43

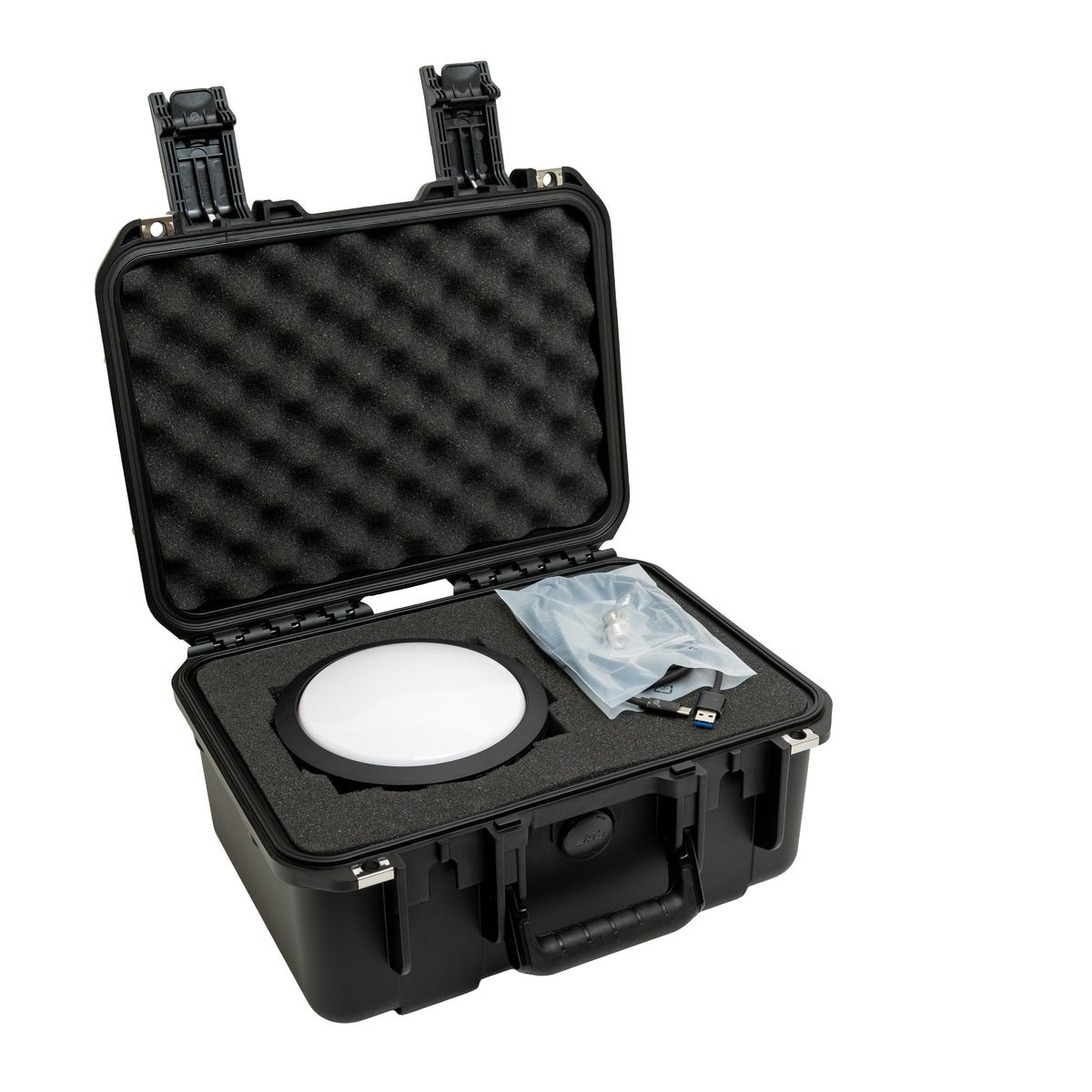

In The Box
- 1x NAV RTK BASE Unit
- 1x 10 ft USB-A to USB-C Cable
- 1x 5/8"-11 to 3/8"-16 Adapter
- 1x 5/8"-11 to 1/4"-20 Adapter
