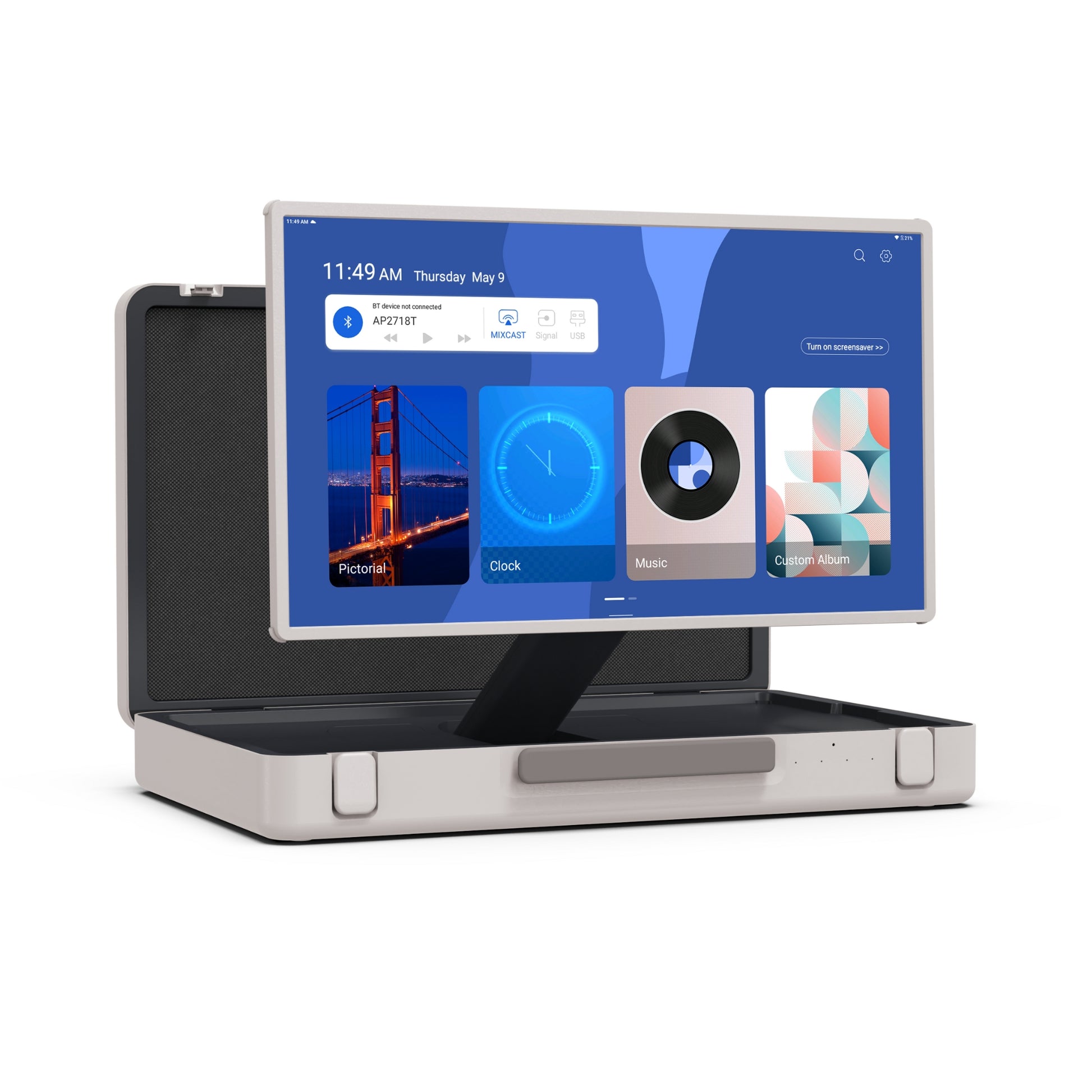

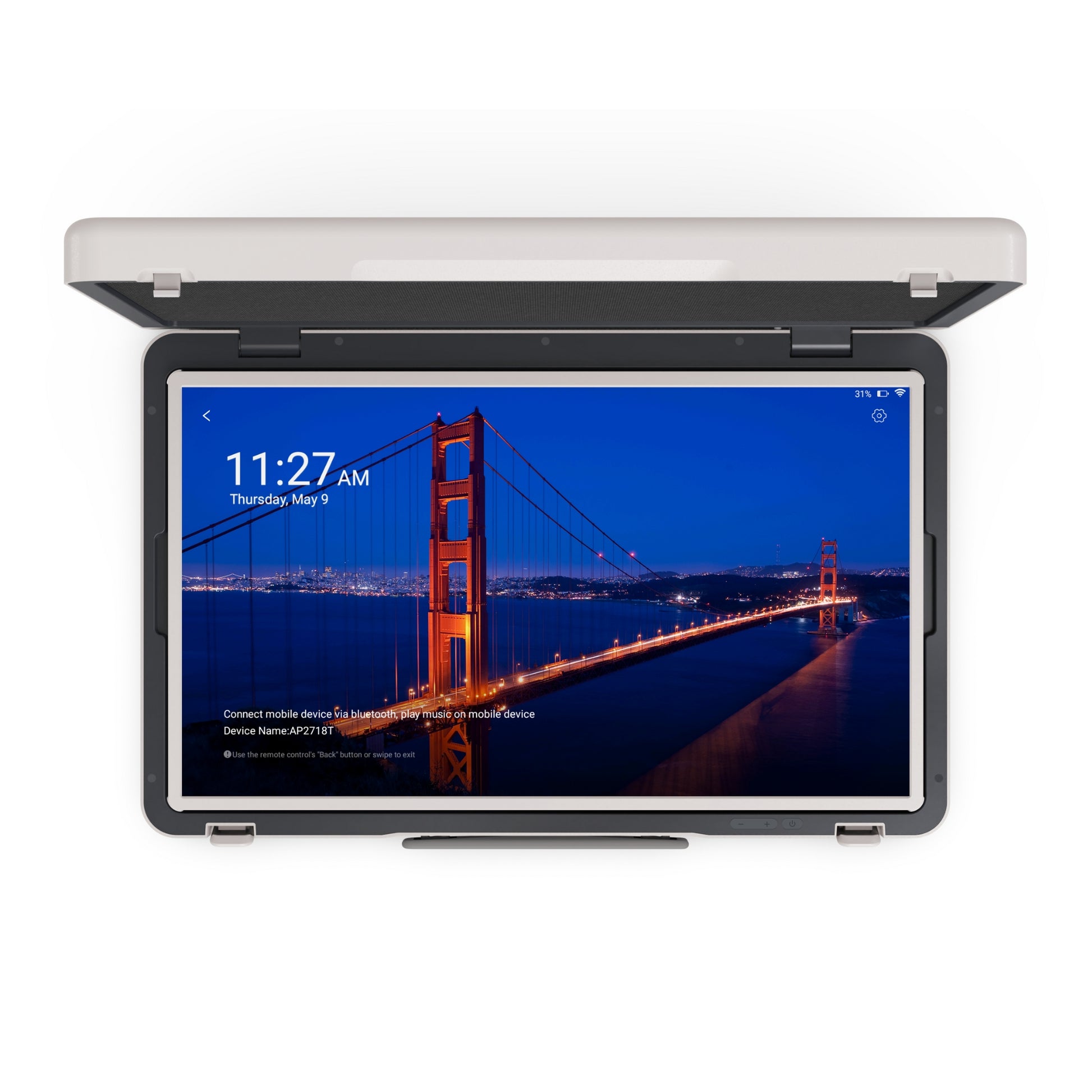

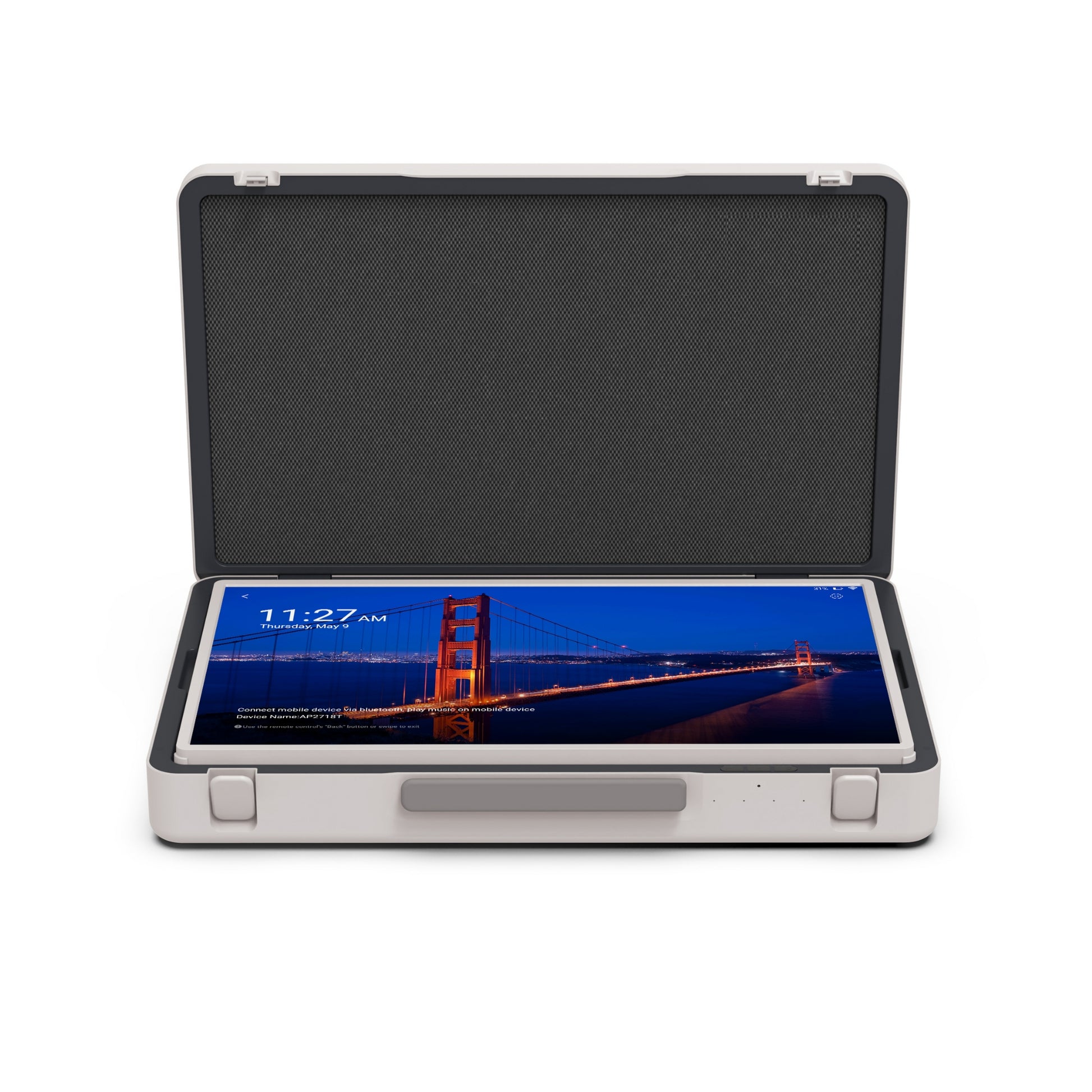

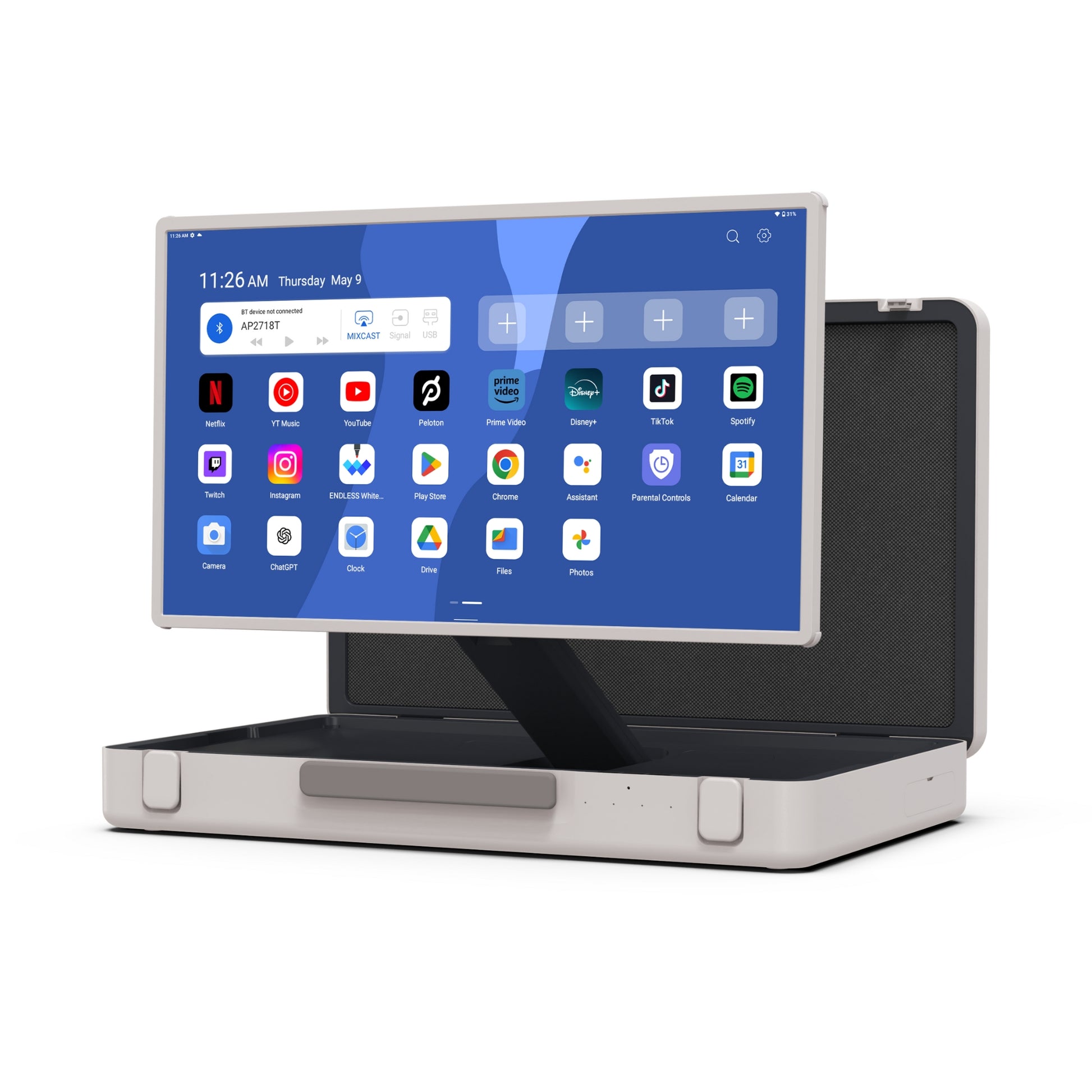

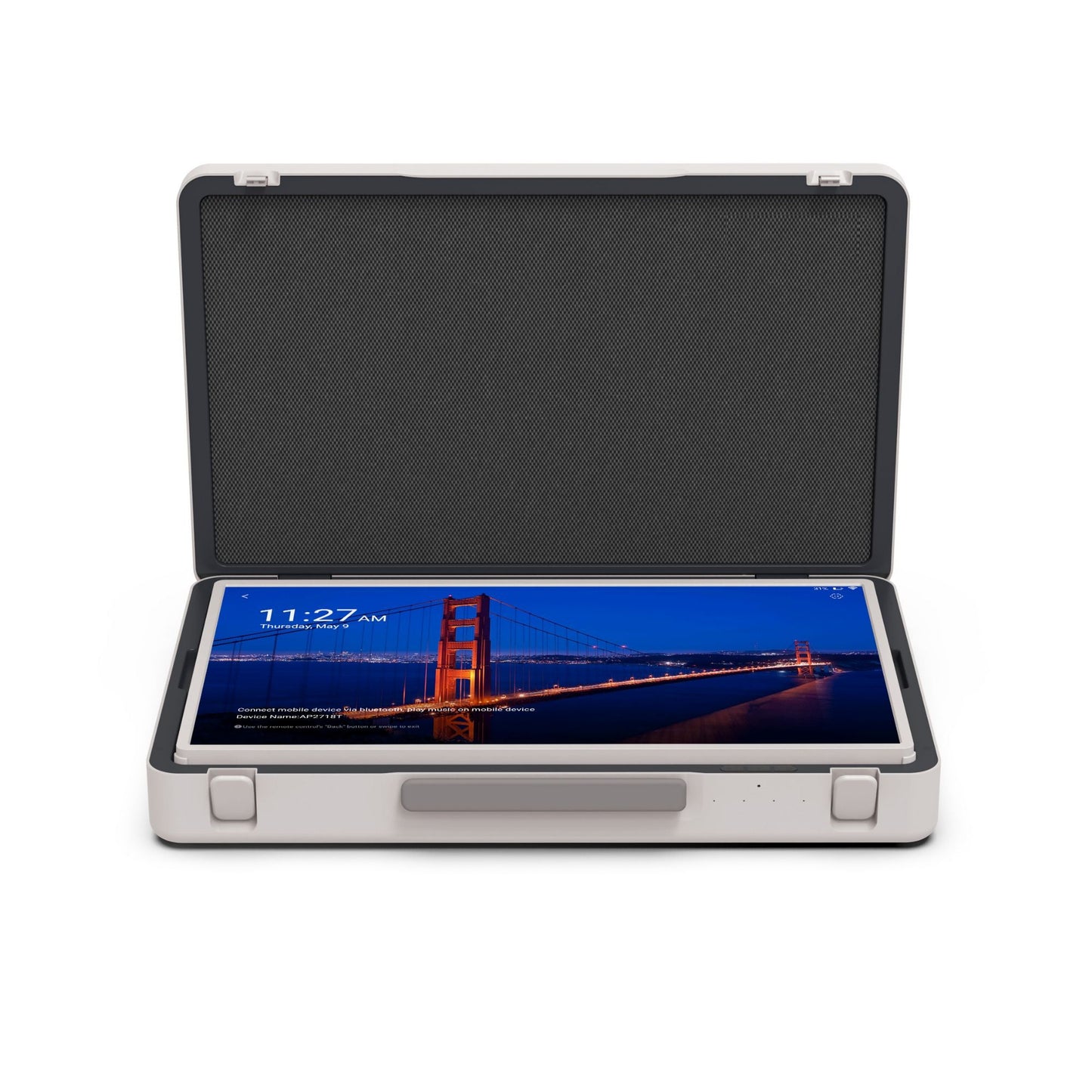

Dronefly 27" Mobile Display Suitcase

Dronefly 27" Mobile Display Suitcase

$999.00
$999.00
Sale Sold out
SKU S-27DISSUIT-CASE MPN AP2718T
  • 27-inch IPS display supports clear UAV video and data visualization
  • 450 nits brightness ensures outdoor visibility during operations
  • 1000:1 contrast improves detail in aerial imagery and video
  • 10-point touchscreen supports responsive control and interaction
  • RK3588 processor enables Android-based UAV applications and workflows
  • 8GB RAM supports multitasking across mission-critical applications
  • 128GB storage stores UAV data and media locally
  • 5–6 hour battery supports extended portable UAV deployment
  • Multi-port inputs support HDMI, USB-C, and DisplayPort connectivity
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Portable UAV Display and Android Workstation for Field Operations

The Dronefly Mobile Display Suitcase (27") is a portable UAV display and computing system designed to support field operations requiring real-time monitoring and data handling. It features a 27-inch IPS touchscreen with 450 nits brightness and a 1000:1 contrast ratio, providing clear visibility for drone feeds and mission data.

Running on Android 12 with an RK3588 processor, 8GB RAM, and 128GB storage, it enables application-based workflows and media processing directly on the device.

With integrated battery power, multiple input ports, and a rugged suitcase design, it supports mobile deployment across UAV operations.

Key Features and Benefits

  • 27-inch display: 1920 × 1080 resolution supports detailed UAV monitoring
  • 450 nits brightness: maintains visibility in outdoor and field conditions
  • 1000:1 contrast: enhances clarity for aerial imagery and video feeds
  • 10-point touchscreen: enables responsive interaction with UAV applications
  • RK3588 processor: supports Android-based UAV software and workflows
  • 8GB RAM: enables smooth multitasking during field operations
  • 128GB storage: stores media files and mission data locally
  • 5–6 hour battery: supports portable UAV operations without external power
  • Multi-port connectivity: supports HDMI, USB-C, and DisplayPort inputs

The system integrates display, computing, and power into a single unit, allowing operators to deploy quickly without additional hardware. It supports both live monitoring and post-flight data review within the same platform.

With Dronefly, you get reliable UAV equipment designed for real-world deployment. Order the Dronefly Mobile Display Suitcase today.

Display

  • Screen size: 27-inch
  • Panel type: IPS
  • Resolution: 1920 × 1080
  • Number of colors: 16.7 million
  • Color gamut: 72% NTSC
  • Viewing angle: 89° (R/L), 89° (U/D)
  • Display mode: Normally black
  • Contrast ratio: 1000:1
  • Response time: 6 ms (GtG)
  • Backlight: LED
  • Brightness: 450 nits
  • Aspect ratio: 16:9
  • Touchscreen: In-cell, 10-point touch
  • Touch interface: HID-USB

Processor

  • CPU: RK3588 (Quad-core Cortex-A55 + Quad-core Cortex-A76)
  • RAM: 8 GB
  • Storage: 128 GB
  • Operating system: Android 12

Size and Weight

  • Dimensions: 669 × 420 × 115.3 mm
  • Shipping dimensions: 765 × 568 × 180 mm
  • Weight (unpackaged): 13.8 kg
  • Weight (packaged): 16.1 kg

Power and Battery

  • Battery type: 18650 lithium-ion
  • Battery capacity: 14.4 V / 6800 mAh
  • Battery life: 5–6 hours
  • AC input: 100–240 V

Wireless

  • Wi-Fi: IEEE 802.11 b/g/n/a/ac/ax
  • Bluetooth: 5.2

I/O Ports

  • USB-C: Full function (no charging)
  • DisplayPort input: Supports PD fast charge (5V/3A, 9V/3A, 12V/3A, 15V/3A)
  • USB-A: USB 3.0 host
  • HDMI: Supports up to 3840 × 2160
  • AC power input: Socket
  • Rocker switch: Battery control
  • Storage box: ×3

Media Format

  • Video: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, AV1 (up to 8K@60fps)
  • Audio: MP3, WMA, AAC, WAV, OGG
  • Photo: JPEG, PNG, GIF

Audio and Sensors

  • Speakers: 0.75" tweeter ×2, 2.5" woofer ×2
  • Microphone: 4 built-in microphones with noise reduction

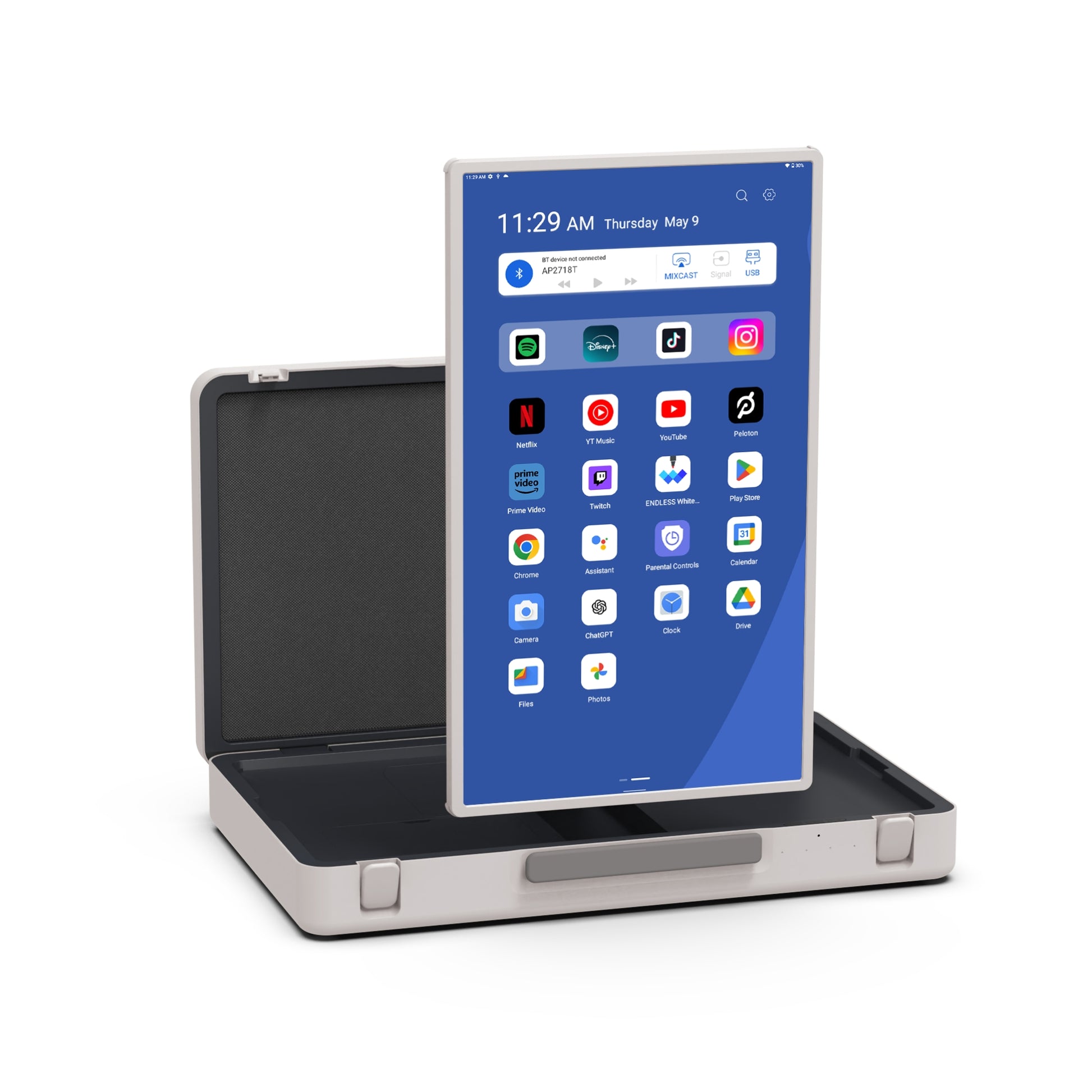

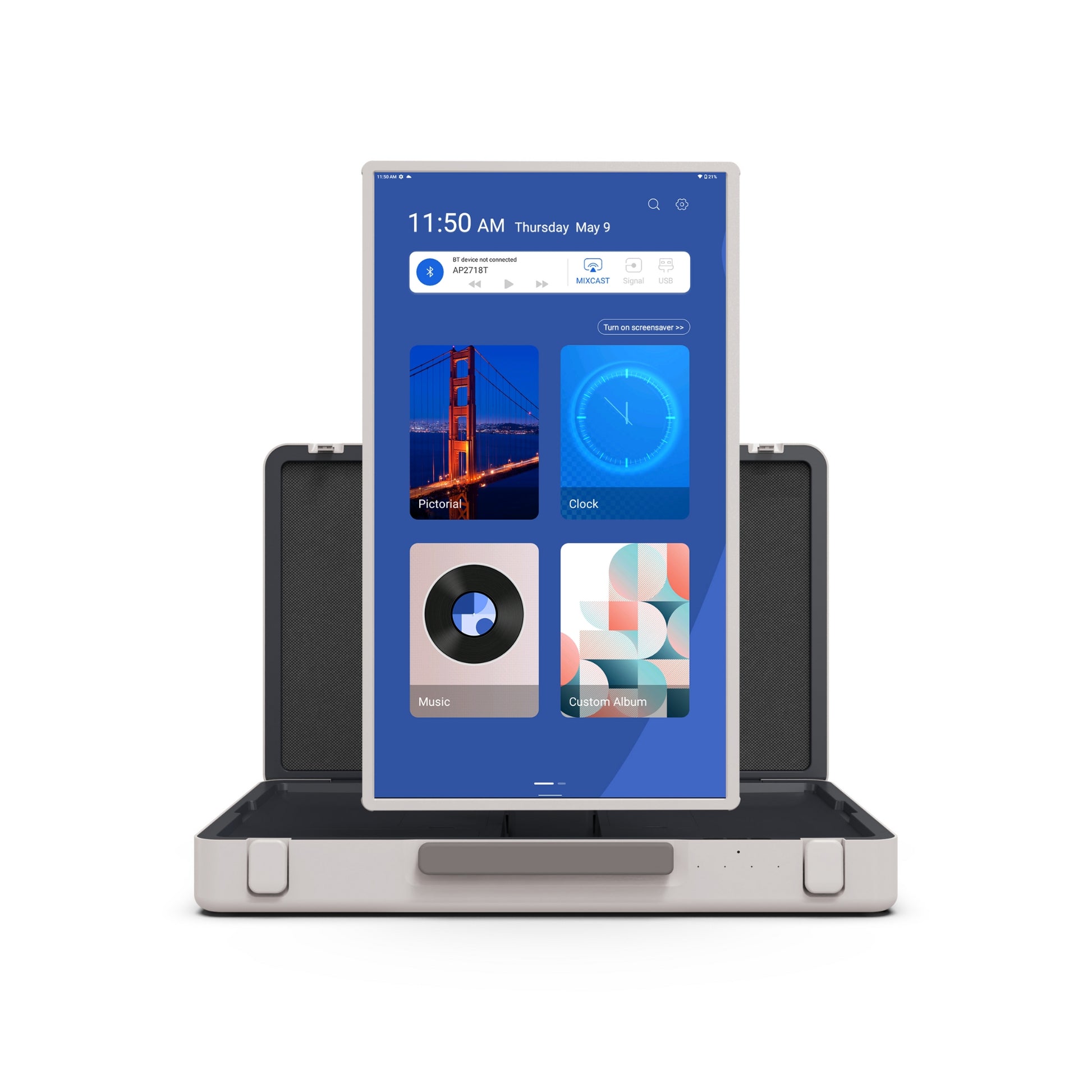

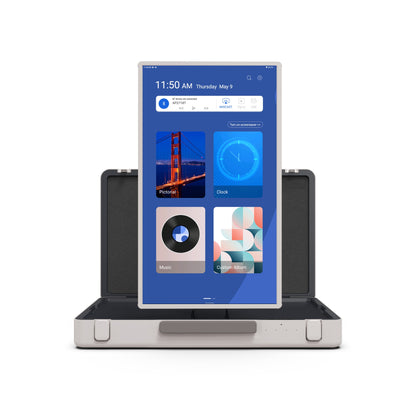

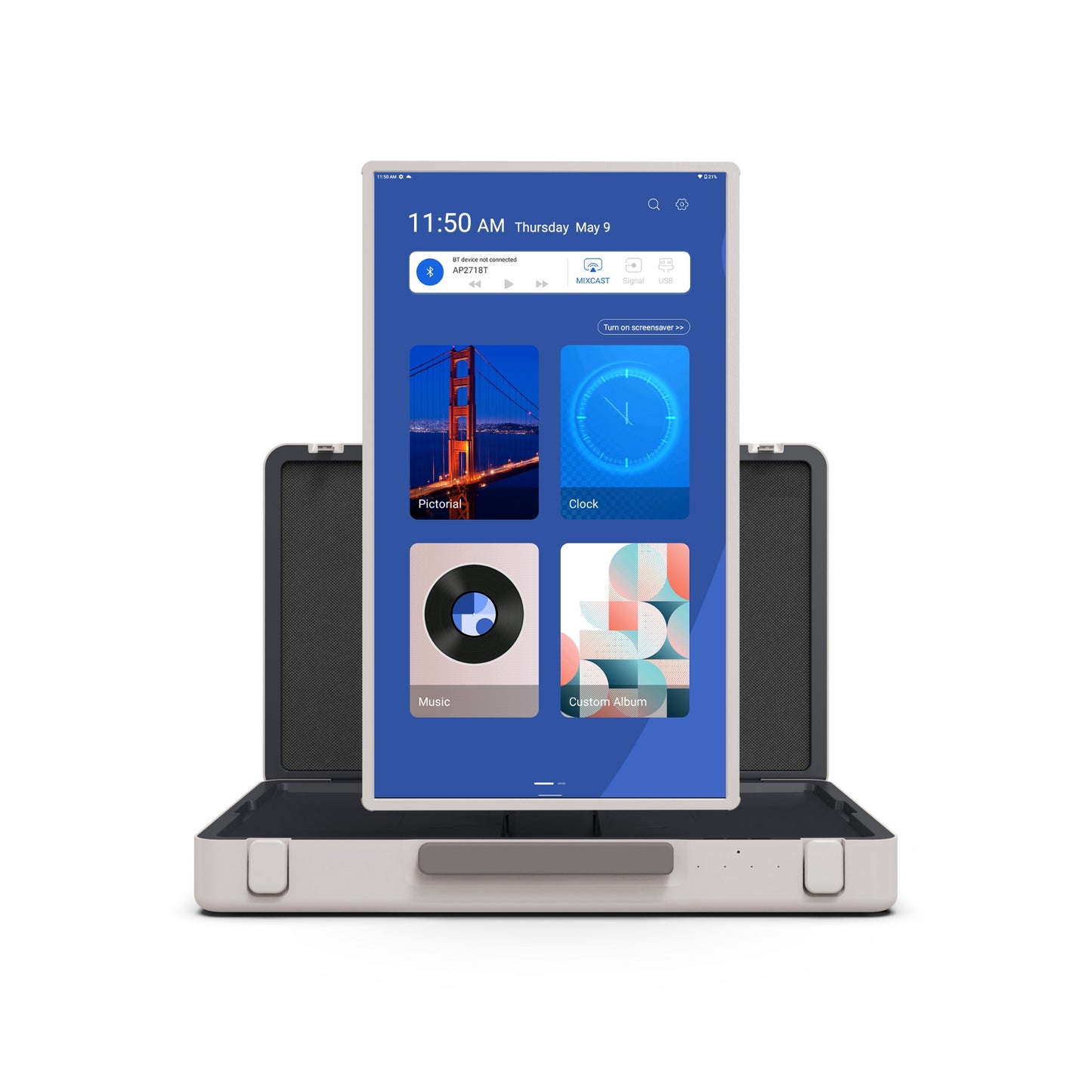

  • Gravity sensor: Supports 90° rotation

Controls and Indicators

  • Buttons: Power, Volume +, Volume -
  • LED indicators: Blue (>15%), Green (charging/full), Red (≤15%)
  • Sleep mode: Lid closure sleep, wake on open

Physical Adjustments

  • Tilt (landscape): +3° forward, -90° backward
  • Tilt (portrait): +3° forward, -40° backward
  • Rotation: 0–90°
  • Height adjustment: 200 mm

Environmental

  • Operating temperature: 0°C to 45°C
  • Storage temperature: -20°C to 60°C
  • Operating humidity: 20–80% RH
  • Storage humidity: 10–95% RH

Other

  • Color: Warm grey
  • OSD language: Multilingual (Chinese, English)
  • 1x Dronefly 27" Mobile Display Suitcase
  • 1x 1.5 meters AC Cable
  • 1x 0.8 meters Bluetooth Remote Control
  • 1x USB-C Cable
  • 1x User Manual
What is the Dronefly Mobile Display Suitcase used for?

It is used as a portable display and processing system for UAV operations. It allows operators to monitor live feeds and run applications in the field. This supports efficient workflows.

Is the Dronefly Mobile Display Suitcase suitable for outdoor use?

Yes, it features 450 nits brightness for improved outdoor visibility. The IPS display and contrast ratio enhance clarity. This makes it suitable for field conditions.

Can the Dronefly Mobile Display Suitcase run applications?

Yes, it runs on Android 12 with an RK3588 processor. It includes 8GB RAM and 128GB storage. This allows it to handle UAV software and media processing.

What connectivity options are available on the Dronefly Mobile Display Suitcase?

It supports USB-C, HDMI, and DisplayPort inputs. This allows connection to multiple devices. It is designed for flexible integration.

How portable is the Dronefly Mobile Display Suitcase?

It features a suitcase-style design with a built-in battery. It provides 5 to 6 hours of operation. This makes it suitable for mobile deployment.
