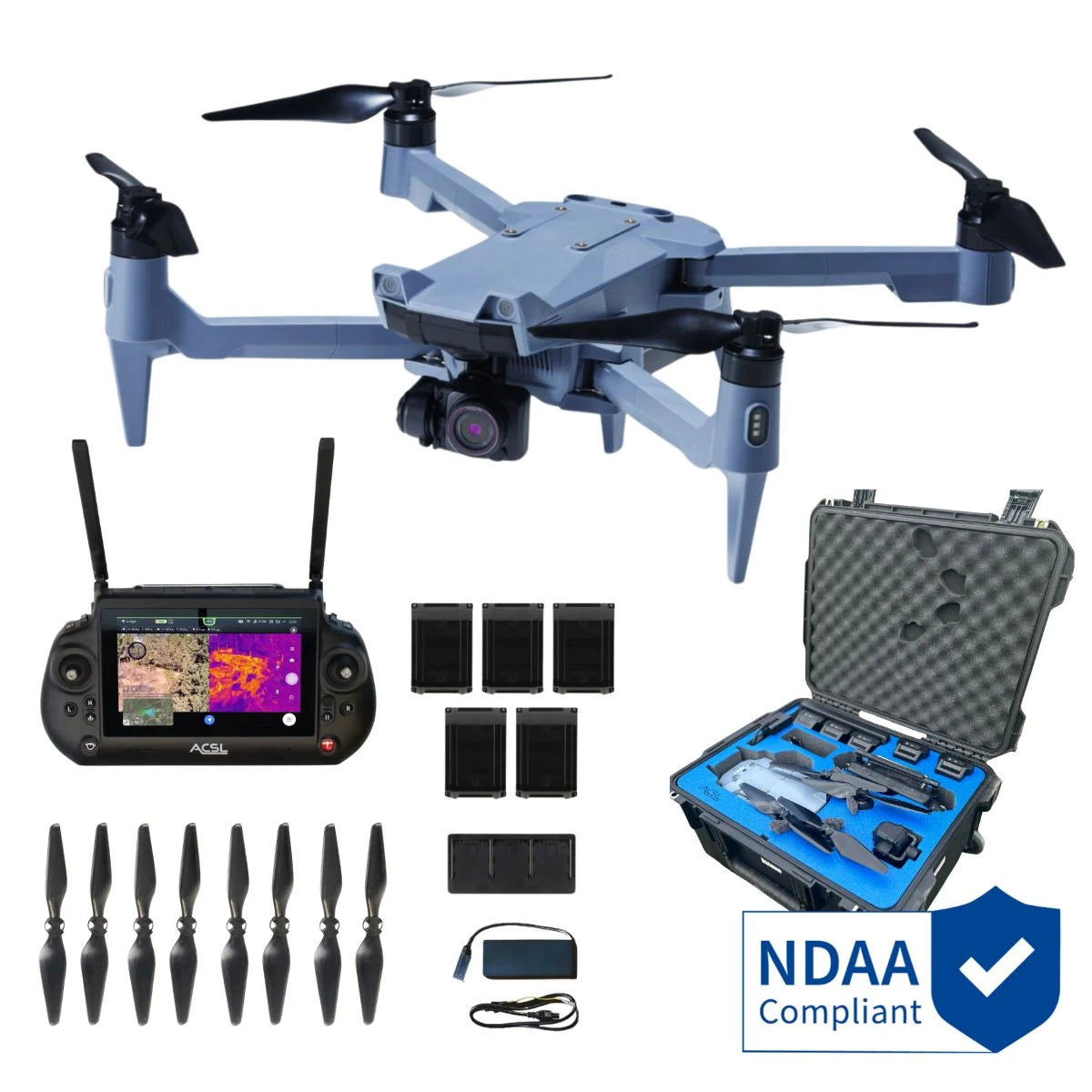

ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Hard Case

ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Hard Case

$17,215.00
$17,215.00
Sale Sold out
SKU S-SOTEN-RD-INSP-BUN-PLUS MPN SOTEN-RD-INSP-BUN-PLUS
  • NDAA-compliant airframe and TAITEN controller for regulated program deployment
  • Dual-band Fides-Link with AES-256 encryption across all communications
  • Five smart batteries and triple charging hub for multi-sortie field sessions
  • Wheeled hard-shell case with custom foam for organized rapid deployment
  • One-touch swappable cameras support visible, thermal, zoom, and multispectral missions
  • Seven-inch 1500-nit TAITEN display with 8-hour runtime for all-day operations
  • IP43-rated foldable airframe built for varied outdoor inspection environments
  • Up to three controllers per aircraft for crew-based inspection configurations
  • Offline maps and optional LTE support for disconnected field operations
  • Multi-direction obstacle sensing protects the aircraft during active missions
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Hard Case: Japan-Built NDAA-Compliant UAS for Structured Inspection Programs

Enterprise inspection programs demand platforms that arrive ready to work. The ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Case is a fully integrated small UAS package built around Japan's NDAA-compliant SOTEN airframe, configured from the ground up for teams that operate on schedule and in compliance.

 The bundle ships with the TAITEN Smart Controller, five smart batteries, a triple charging hub, and a wheeled hard-shell case with custom blue foam interior that organizes every component for fast, repeatable deployment across utility corridors, critical infrastructure sites, and urban inspection environments.

Key Features and Benefits

  • NDAA compliance: aircraft and TAITEN controller both satisfy federal procurement requirements.
  • Fides-Link dual-band: 2.4 GHz and 5.8 GHz encrypted link supports resilient multi-environment operations.
  • Swappable payload system: one-touch camera exchange enables multi-sensor missions from one airframe.
  • IP43 protection: airframe withstands rain, dust, and particulates across varied inspection environments.
  • Five-battery complement: supports extended multi-sortie field sessions without returning to base.
  • TAITEN Smart Controller: 7-inch 1500-nit display, Android 13, and 8-hour runtime for all-day operations.
  • AES-256 encryption: communications and optional on-media data storage are cryptographically secured.
  • Multi-controller support: up to three TAITEN units pair to one aircraft for crew-based operation models.
  • Rapid deployment case: wheeled hard-shell case with custom foam organizes full bundle for field transport.
  • LTE capability: optional module supports closed-network and remote tele-operation workflows.

The SOTEN platform is designed for programs where data integrity and platform security are non-negotiable. An IP43-rated foldable airframe, AES-256 encrypted ACSL Fides-Link communications, and a security architecture grounded in ISO/IEC 15408 principles give fleet managers a system they can deploy across regulated and sensitive environments without additional security review.

The one-touch swappable camera system, anchored in this bundle by the 20MP CX-GB100 with 1-inch sensor and mechanical shutter, allows sensor reconfiguration between sorties without aircraft downtime.

Dual-band 2.4 GHz and 5.8 GHz connectivity, multi-direction obstacle sensing, and GNSS coverage across GPS, GLONASS, QZSS, and SLAS sub-meter augmentation round out a platform built for consistent, accountable field performance.

Fleet-Ready Capability Built Around Operational Consistency

The SOTEN is engineered to perform predictably across repeated deployments, which is what enterprise inspection programs actually require. At 1,720g including camera and battery, the foldable airframe moves easily between sites without dedicated logistics.

The CX-GB100 delivers 20MP stills and 4K video at 30fps, stabilized by a 3-axis gimbal with 0.02-degree control accuracy, giving data teams consistent image geometry across sorties. The TAITEN Smart Controller pairs with up to two additional controllers per aircraft, supporting dedicated payload operator configurations for teams running structured inspection workflows.

Optional LTE connectivity and offline map support through ACSL TAKEOFF keep autonomous mission capability intact even in disconnected field environments. For program managers building repeatable inspection cadences, the SOTEN gives you a platform that behaves the same way every time it leaves the case.

Compatibility and System Integration

  • CX-GB100 standard camera: included 1-inch 20MP payload with mechanical shutter and 4K capture.
  • SAMO high-resolution thermal camera: optional NDAA-compliant EO/IR payload with 640x512 Boson sensor (sold separately).
  • CX-GB400 optical zoom camera: optional 2.5x optical with up to 25x combined zoom capability (sold separately).
  • CX-GB300 multispectral camera: optional 1-inch 20MP payload with RGB TIFF 16-bit output (sold separately).
  • ACSL TAKEOFF app: pre-installed on TAITEN for integrated flight, gimbal, and autonomous mission control.
  • ACSL Fides-Link: dual-band AES-256 encrypted control and video link with 6-plus mile unobstructed range.
  • Optional LTE module: enables remote and closed-network tele-operations for BVLOS-capable programs (sold separately).
  • Offline maps: ACSL TAKEOFF supports cached map data for mission planning without internet connectivity.

Applications and Use Cases

  • Utility corridor inspection: audit powerlines, substations, and energy infrastructure across program schedules.
  • Critical infrastructure monitoring: conduct repeatable visual documentation of bridges, towers, and facilities.
  • Industrial site inspection: access elevated or confined assets safely without scaffolding or manned entry.
  • Public safety deployment: support evidence collection, scene documentation, and aerial overwatch operations.
  • Compliance documentation: generate consistent 20MP still records aligned to regulatory reporting requirements.
  • Disaster assessment: deploy the bundled system rapidly for post-event aerial damage documentation.
  • Multi-sensor data collection: reconfigure between visible, thermal, zoom, and multispectral payloads per sortie.
  • Operator training programs: run dual or triple-controller configurations to develop structured crew proficiency.

The ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Case is built for programs that need more than a drone. It is a deployable inspection system with a defined sensor, a proven controller, and five sorties of battery capacity organized into a case that rolls from a vehicle to a launch point in a single trip.

For fleet integrators and program managers who measure performance in consistent data output and zero compliance gaps, this bundle delivers the operational foundation to make that standard achievable.

Dronefly specializes in matching enterprise UAS platforms to the programs that rely on them. As a premier West Coast UAV dealer with deep experience across utility, infrastructure, and public safety inspection verticals,

Dronefly provides the application knowledge and integration support to help your team get the most out of the SOTEN ecosystem from day one. Order now or contact Dronefly today to configure the right inspection platform for your program.

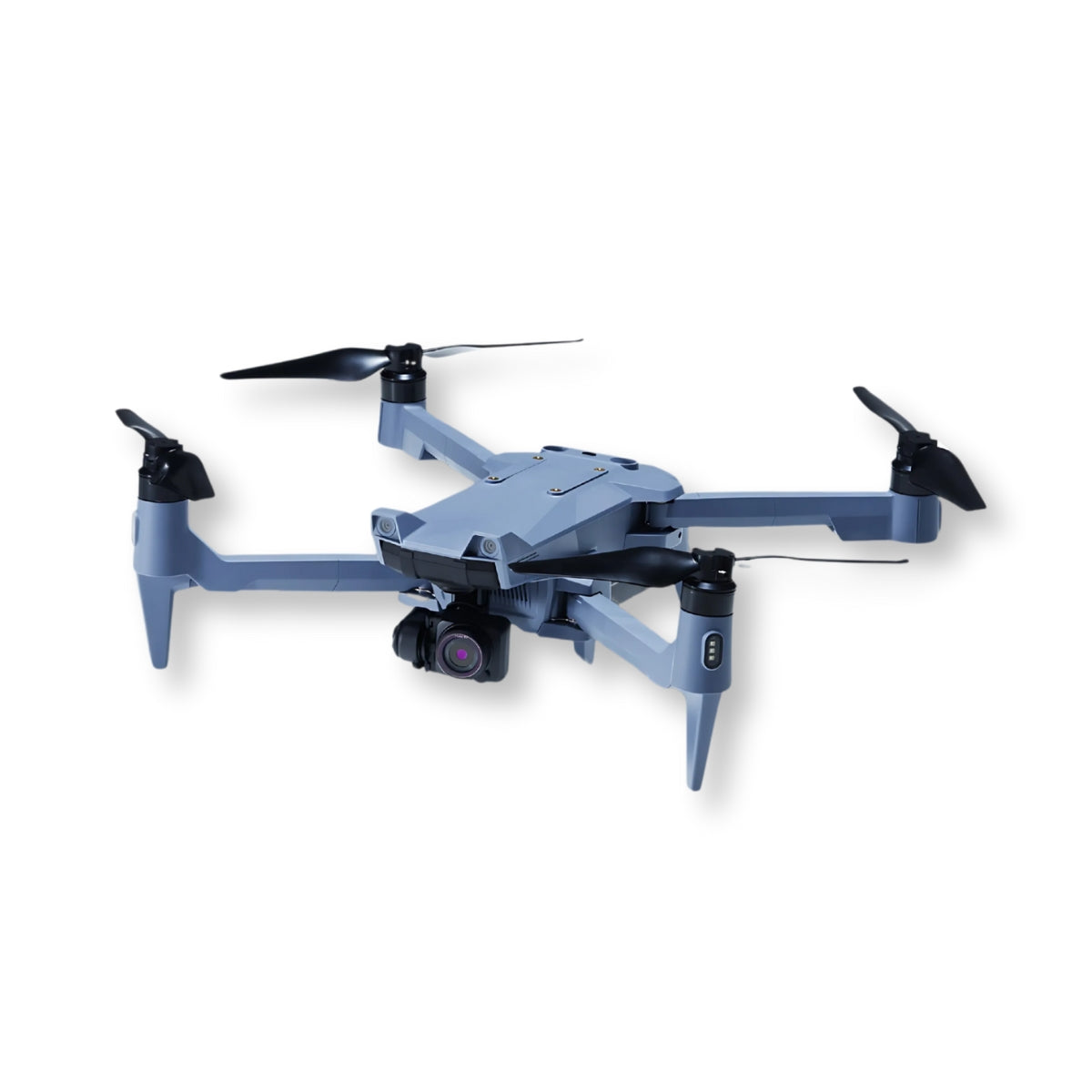

Aircraft

  • Form factor: Compact, foldable quadrotor
  • Dimensions (unfolded): 637mm × 560mm (including propellers)
  • Dimensions (folded): 162mm × 363mm
  • Height (unfolded): 153mm (including propellers)
  • Weight: 1,720g (including standard camera and battery)
  • Max takeoff weight: 2,000g
  • Rotors: 4
  • IP rating: IP43 (with camera, gimbal, and battery installed)
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Operational altitude limit: 2,000m (6,562 ft)
  • Max speed (no wind): 15 m/s (33 mph)
  • Max ascent speed: 3 m/s
  • Max descent speed: 2 m/s
  • Max pitch angle: 30°
  • Angular velocity: Pitch 80°/s, Yaw 45°/s
  • Max flight time: 25 min (with standard camera, 8 m/s wind); 29 min (without camera, 8 m/s wind)
  • Operating frequency: 2.412–2.477 GHz (aircraft radio); dual-band 2.4 GHz + 5.8 GHz via TAITEN/Fides-Link
  • GNSS: GPS + QZSS + GLONASS + SLAS (Michibiki sub-meter augmentation)
  • Hovering accuracy (vision positioning): Vertical ±0.1m, Horizontal ±0.3m
  • Hovering accuracy (GNSS): Vertical ±0.5m, Horizontal ±1.5m
  • Security architecture: Based on ISO/IEC 15408 principles; AES-256 encrypted communications; optional in-flight data encryption on media; optional Japanese cloud data management
  • NDAA compliance: Yes (aircraft)
  • Remote ID: Compliant
  • DIU Blue UAS: Not currently listed
  • LTE: Optional module for remote/BVLOS operations and closed-network control
  • Offline maps: Supported via ACSL TAKEOFF app
  • Multi-controller support: Up to 3 controllers per aircraft (instructor/payload/handoff)
  • Country of manufacture: Japan (major parts domestic or from highly reliable overseas sources)

Vision / Obstacle Avoidance System

  • Forward obstacle detection range: 10m
  • Up obstacle detection range: 5m
  • Down obstacle detection range: 5m
  • Detection angle: 70° horizontal, 40° vertical
  • Detection frequency: 10 Hz (forward, up, down)
  • Operating environment: Adequate lighting and clear texture required

Infrared Sensor (obstacle avoidance)

  • Up detection range: 2m
  • Down detection range: 12m
  • Up detection angle: 27°
  • Down detection angle: 2°
  • Detection frequency: Up 50 Hz, Down 50 Hz
  • Operating environment: Large, diffuse, or reflective obstacles

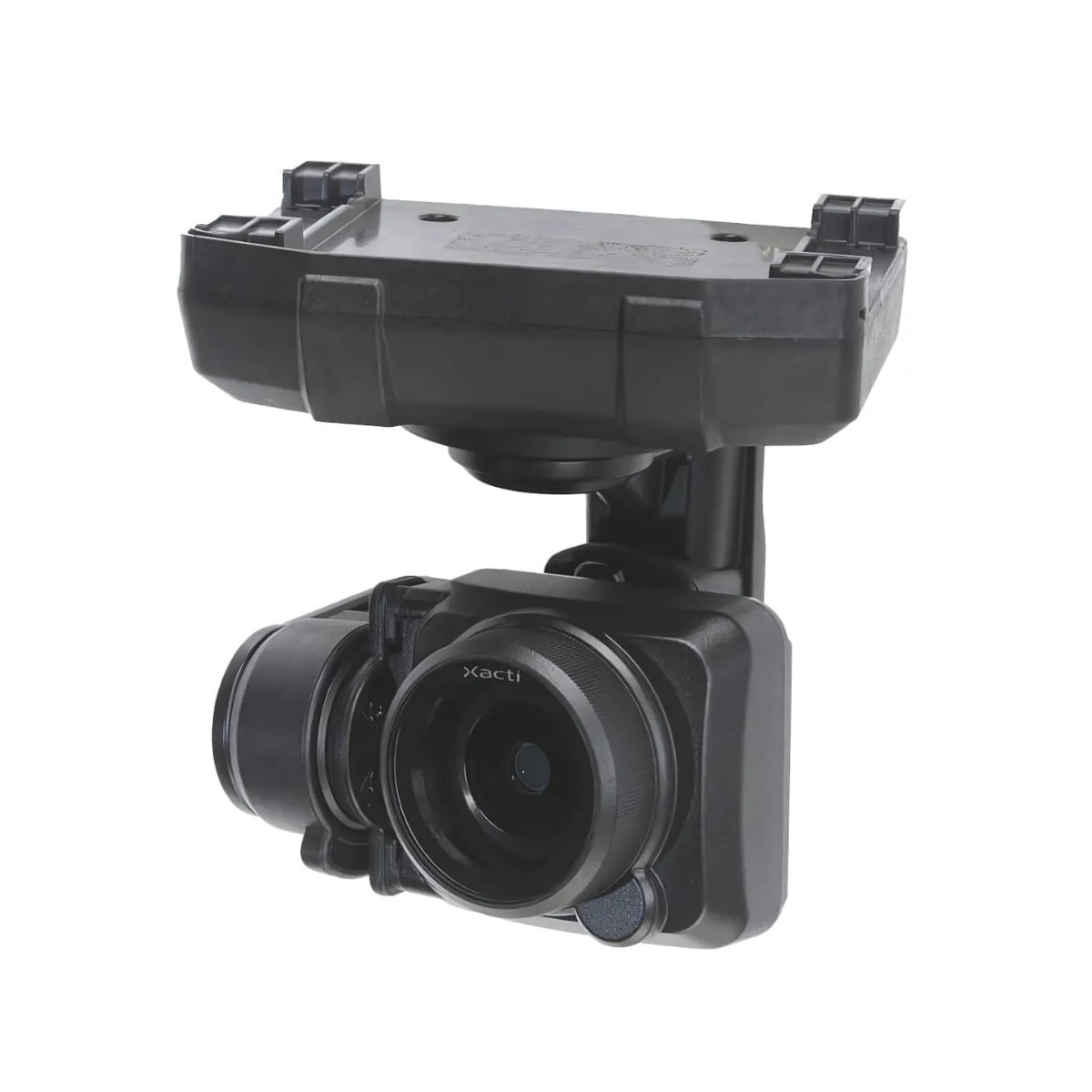

Standard Camera — CX-GB100

  • Sensor size: 1-inch
  • Effective pixels: 20 megapixels
  • Shutter: Mechanical
  • Still image formats: JPEG / DNG / JPEG+DNG
  • Still image resolution options: 20MP / 15MP / 10MP
  • Compression: Superfine / Fine / Normal
  • Video formats: MOV / H.264
  • Video quality: 4K 30fps; 2.7K 60/30fps; Full HD 120/60/30fps; HD 60/30fps; nHD 240/120/60/30fps
  • Video recording time: Up to 60 min; auto-split options
  • Recording media: microSD, UHS U3 or V30 / Video V30
  • Focus modes: Single AF / Continuous AF / MF; Multi AF / Spot AF area
  • Exposure compensation: -2EV to +2EV (1/3EV steps)
  • Data encryption: Optional; can be enabled/disabled on recording media

Camera Gimbal

  • Axes: 3-axis
  • Pan range: ±85°
  • Tilt range: -115° to +45°
  • Max speed: Pan 60°/s; Tilt and Roll 100°/s
  • Control accuracy: ±0.02°
  • Switching method: One-touch camera switching (drone can remain powered on)

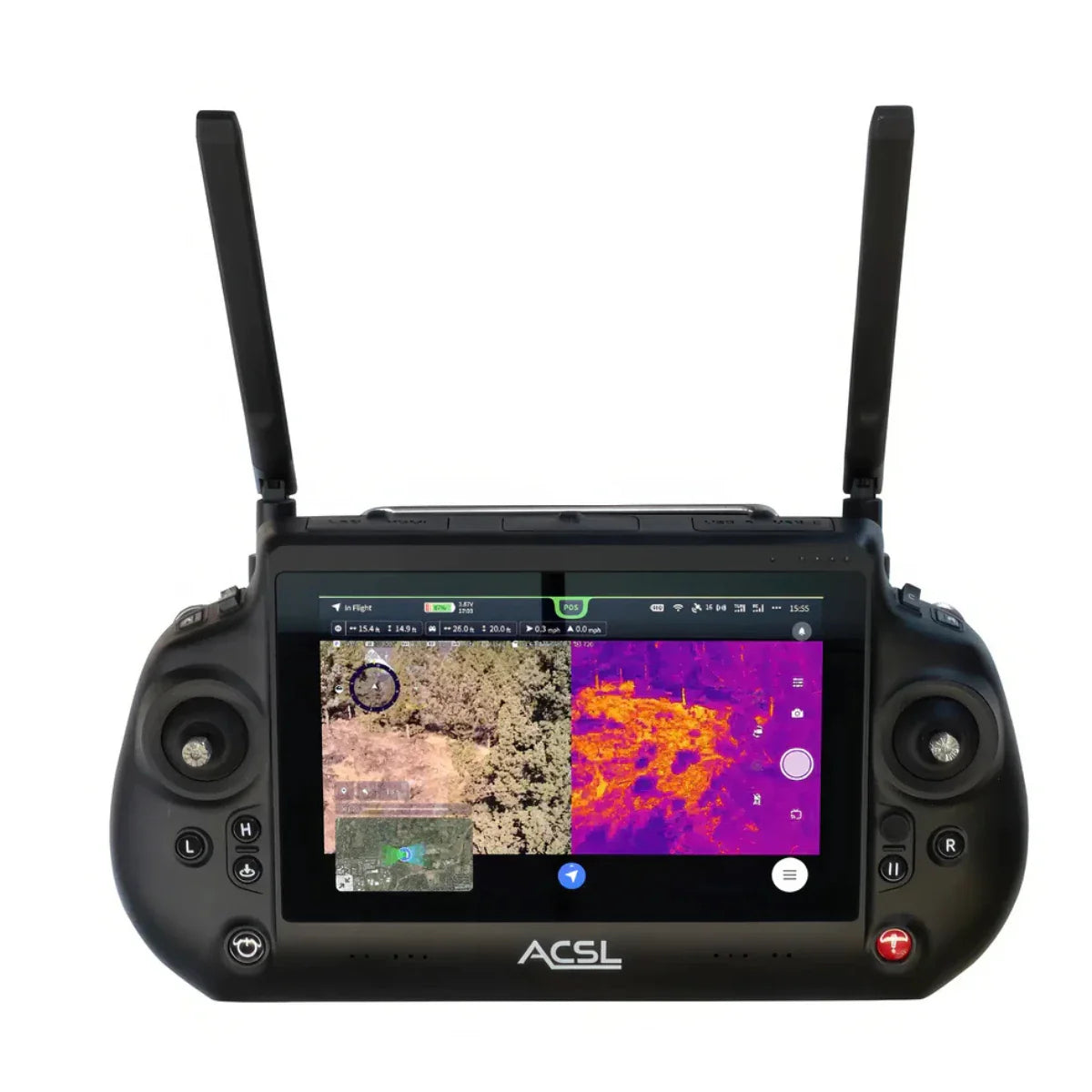

TAITEN Smart Controller

  • Display: 7-inch, 1200×1920 resolution, 1500 nits brightness (daylight readable)
  • Operating system: Android 13
  • App: ACSL TAKEOFF (pre-installed)
  • Link system: ACSL Fides-Link
  • Operating bands: Dual-band 2.4 GHz + 5.8 GHz
  • Encryption: AES-256
  • Range: 6+ miles / ~10 km (unobstructed, low interference; varies with regulations and environment)
  • Wi-Fi: Supported
  • Runtime: Up to 8 hours
  • Power: USB-C charging and power input
  • IP rating: IP54
  • Operating temp: -20°C to 60°C (-4°F to 140°F)
  • Storage temp: -20°C to 50°C (-4°F to 122°F)
  • Charging temp: 0°C to 45°C (32°F to 113°F)
  • Multi-controller pairing: Up to 3 controllers per aircraft
  • Controls: 2-axis sticks; 2× gimbal wheels; 3-state mode switch (AUT/POS/MAN); Go-Home, Land, Emergency, Power buttons
  • Customizable inputs: 3-state switch, 8 buttons, 2 wheels, 5-way hat
  • I/O: HDMI out, USB-C, USB-A 2.0, microSD, Ethernet, 3.5mm audio, tripod mount
  • Sensors: GNSS module, ambient light sensor (auto-brightness), microphone, vibration motor, connection LED, battery LED
  • Physical: Approx. 10.6 × 6.5 × 2.7 in; ~3.2 lb (~1.45 kg)
  • NDAA compliance: Yes
  • Remote ID: Compliant

Battery

  • Type: Lithium-ion
  • Capacity: 94 Wh
  • Quantity in bundle: 5 smart batteries

Compliance Summary

  • NDAA: Yes (aircraft + TAITEN controller)
  • Remote ID: Compliant
  • DIU Blue UAS: Not currently listed
  • Link security: AES-256 via ACSL Fides-Link, dual-band

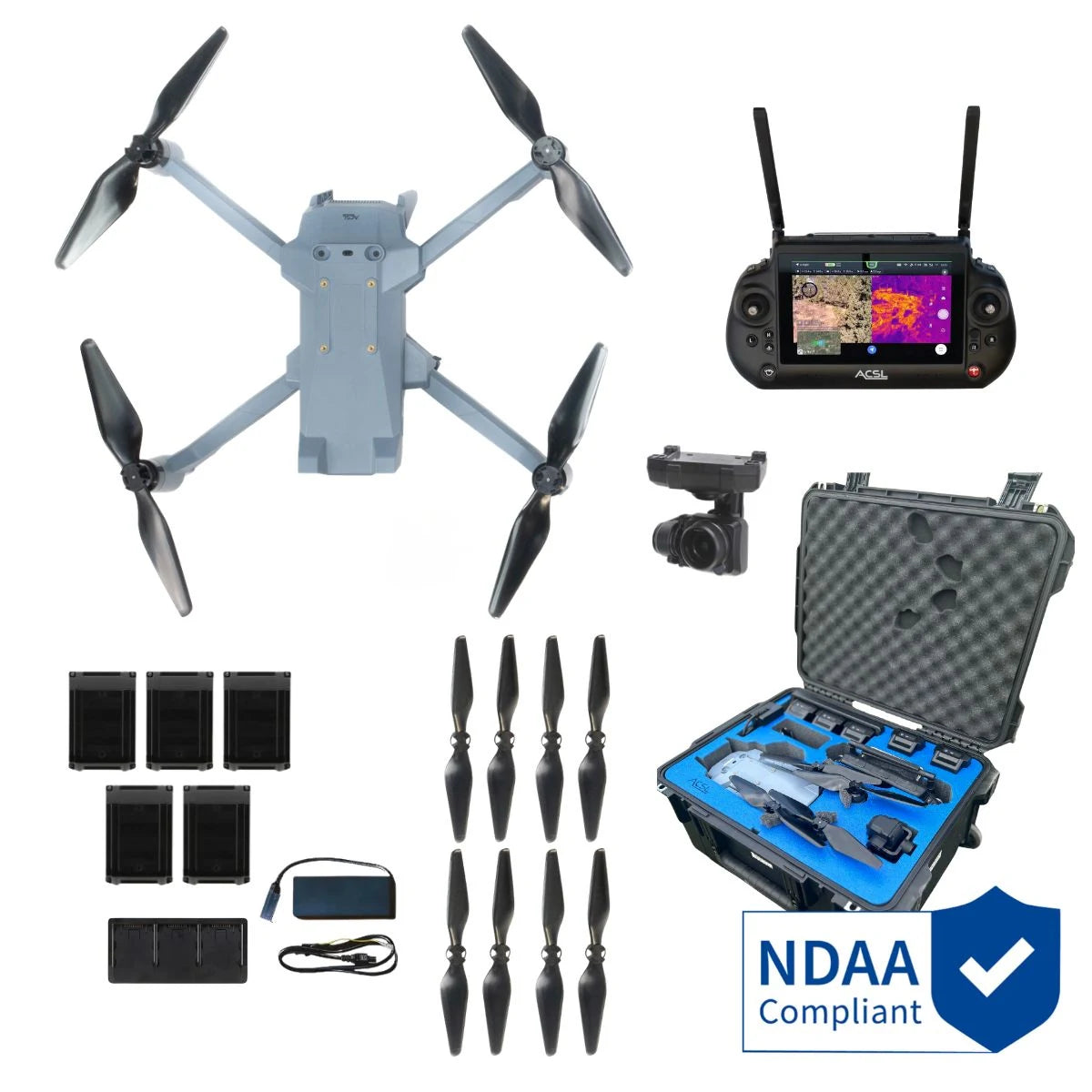

  • 1× SOTEN Dual-Band Airframe
  • 1× TAITEN Smart Controller
  • 1× Standard 20MP Camera (CX-GB100)
  • 1× Battery Charger
  • 1× Triple Battery Charger
  • 5× Smart Batteries
  • 2× CW Propeller Sets
  • 2× CCW Propeller Sets
  • 1× Rapid Deployment Case
What does the ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Hard Case include?

The bundle includes the SOTEN dual-band airframe, TAITEN Smart Controller, the standard 20MP CX-GB100 camera, a single battery charger, a triple battery charging hub, five smart batteries, two CW and two CCW propeller sets, and a wheeled hard-shell rapid deployment case with custom blue foam interior. The case pre-organizes all components for consistent and repeatable field deployment across inspection programs.

How does the SOTEN platform address data security requirements for enterprise programs?

The SOTEN is built around a security architecture based on ISO/IEC 15408 principles. All communications through ACSL Fides-Link are protected with AES-256 encryption. Operators can also enable optional encryption for data recorded directly to the onboard microSD card, and data can optionally be managed through Japanese cloud infrastructure. Both the aircraft and TAITEN controller are NDAA-compliant, supporting deployment in federally regulated procurement environments.

How does the rapid deployment case support inspection program logistics?

The rapid deployment case is a wheeled hard-shell case with a telescoping handle, integrated wheels, and a custom blue foam interior pre-cut to hold the full bundle. It allows the complete SOTEN system including the airframe, controller, camera, batteries, and propellers to be transported and organized in a single unit. Teams can move from vehicle to launch point in one trip, reducing setup time and keeping components protected during transport.

Can the SOTEN support multi-operator crew configurations?

Yes. Up to three TAITEN Smart Controllers can be paired to a single SOTEN aircraft simultaneously. This supports instructor and student configurations for training programs, as well as dedicated pilot and payload operator setups for structured inspection workflows. Each additional TAITEN controller is sold separately.

How does the SOTEN's one-touch payload system support multi-mission program deployment?

The SOTEN's gimbal uses a one-touch swap mechanism that allows operators to exchange payloads in the field without tools or extended reconfiguration time. The platform supports four camera configurations: the included 20 MP 1-inch mechanical shutter standard camera, the SAMO Thermal/Optical Payload with Teledyne FLIR Hadron 640R thermal sensor and 64 MP visible camera, a Multispectral Camera capturing three spectral bands, and an Optical Zoom Camera with 25× total zoom. This means a single SOTEN airframe can cover mapping, thermal inspection, agricultural monitoring, and detailed zoom documentation across different missions without requiring a separate aircraft for each application.

Does the ACSL SOTEN Standard Camera include a mechanical shutter?

Yes. A mechanical shutter is included to reduce motion distortion during flight.

Can the ACSL SOTEN Standard Camera be swapped with other SOTEN payloads?

Yes. It is part of the SOTEN hot-swappable payload system.

Does the ACSL SOTEN Standard Camera support 4K video recording?

Yes. The camera records video at up to 3840 × 2160 resolution at 30 fps.

What aircraft is the ACSL SOTEN Standard Camera designed for?

The ACSL SOTEN Standard Camera is designed exclusively for the ACSL SOTEN drone platform.

Is the ACSL SOTEN NDAA-compliant?

Yes.
