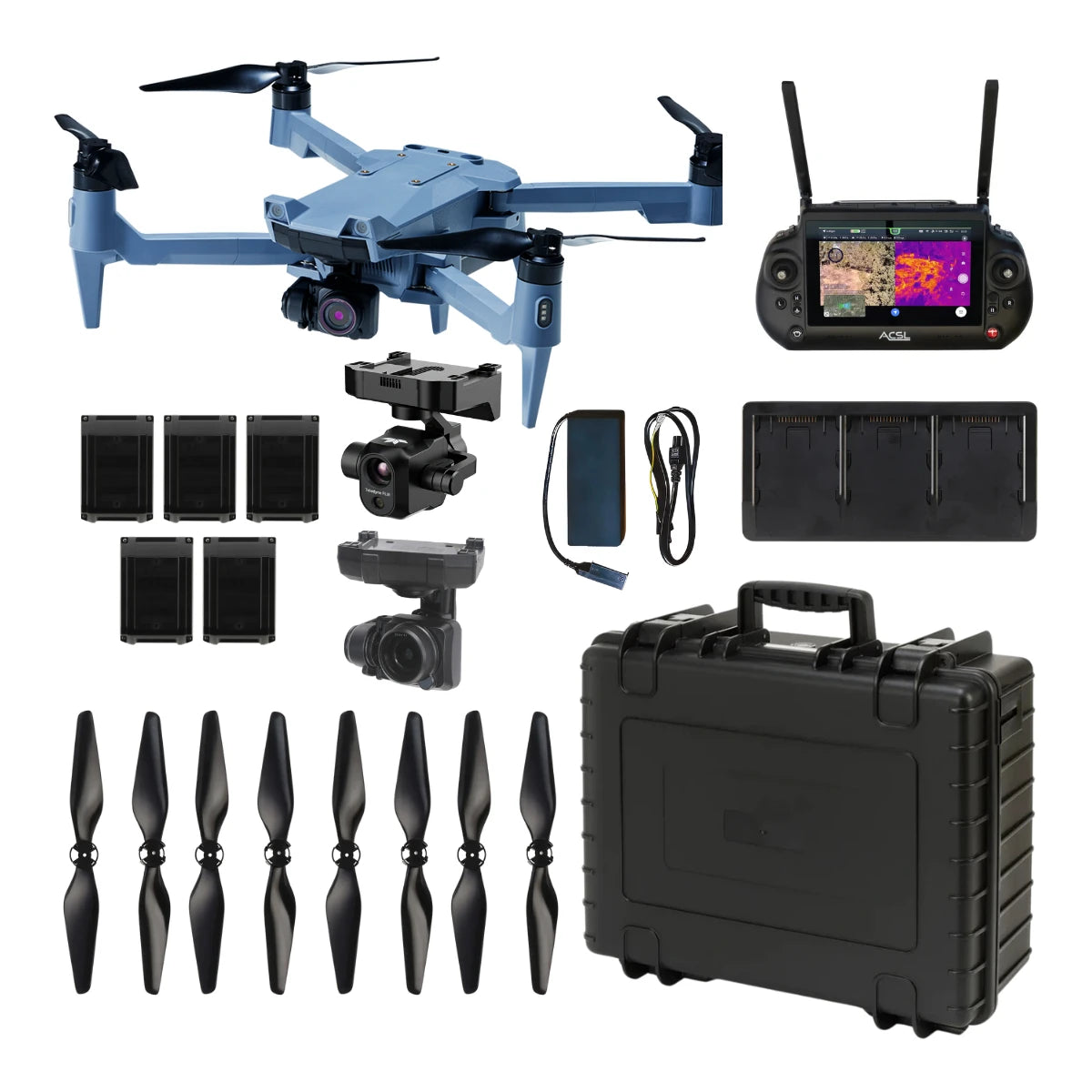

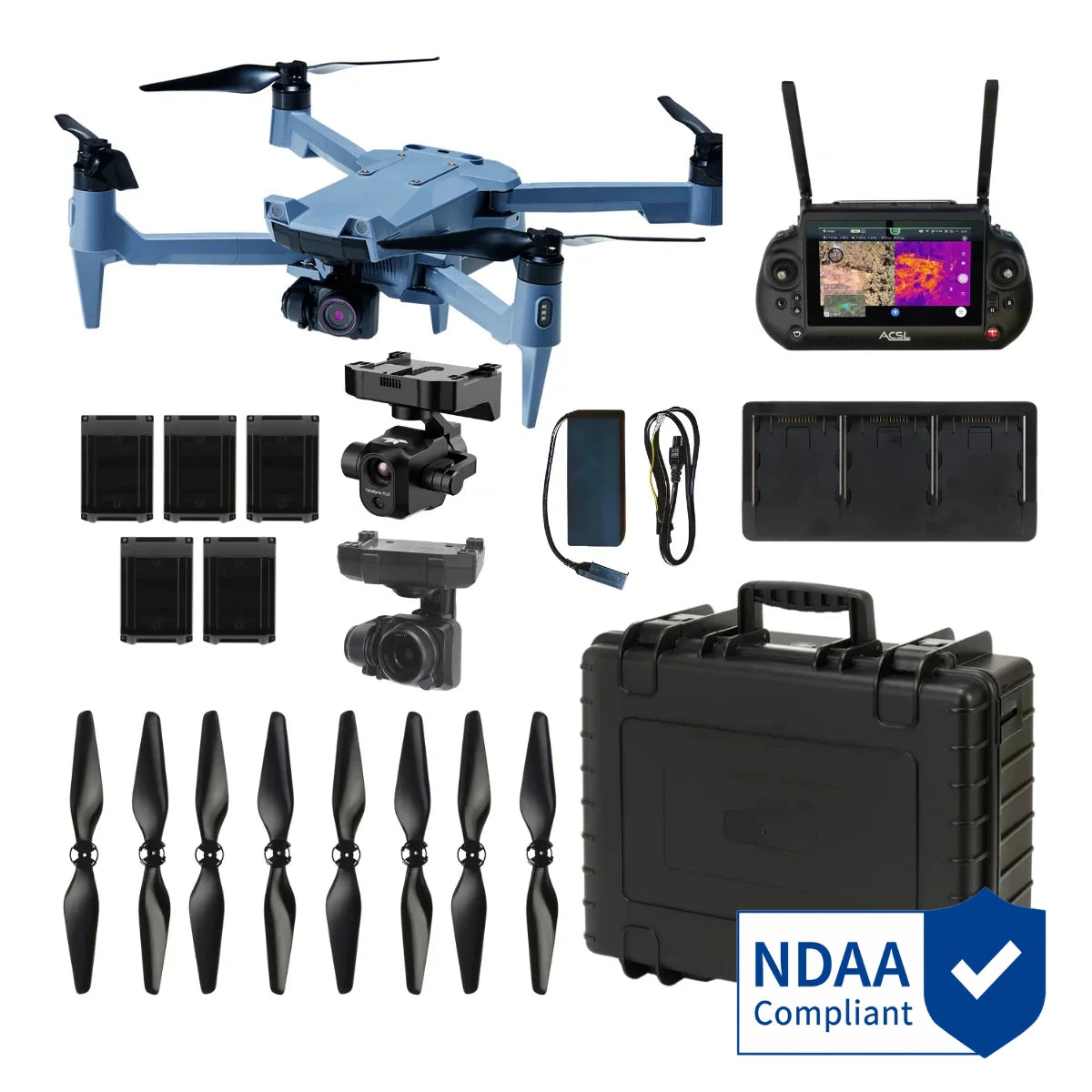

ACSL SOTEN Thermal Package with TAITEN Smart Controller & SAMO Payload: Flexible Thermal and Visible Imaging
The ACSL SOTEN Thermal Package with TAITEN Smart Controller provides professionals with both a 20MP visible camera and the NDAA-compliant SAMO Thermal Payload, offering mission-specific flexibility in a secure, foldable platform.
Compact and IP43-rated, SOTEN ensures encrypted dual-band connectivity, while the TAITEN Smart Controller adds a 7″ daylight-readable display, IP54 ruggedness, and up to 8 hours of runtime.
Backed by Dronefly's trusted expertise and post-sale support, this package is designed for inspection, utilities, and public safety teams operating in challenging environments.
Key Features and Benefits
NDAA-compliant system with AES-256 encrypted Fides-Link comms
Includes 20MP visible camera with 1″ sensor and mechanical shutter
Includes SAMO Thermal Payload: 640×512 radiometric thermal + 64 MP visible
Thermal sensitivity <20 mK, accuracy ±5 °C for reliable detection
Compact, foldable 1.7 kg aircraft with IP43-rated durability
One-touch swappable payload system for mission flexibility
Up to 8-hour runtime, USB-C extendable power, Android 13 integration
Dual-band 2.4/5.8 GHz radios with reliable connectivity
FAA Remote ID compliant and ISO/IEC 15408 secure architecture
Two Payloads, One Secure Platform
The included 20MP visible camera captures high-resolution, survey-grade imagery with a 1″ sensor and mechanical shutter.
For thermal missions, the SAMO payload powered by Teledyne FLIR Hadron 640R provides 640×512 radiometric thermal imaging with <20 mK sensitivity and ±5 °C accuracy, plus a 64 MP visible sensor for clear context.
Operators can swap between payloads in seconds, enabling them to adapt quickly to inspections, emergency response, or environmental monitoring.
The TAITEN Smart Controller integrates ACSL's TAKEOFF app on Android 13, delivering responsive control, HDMI output, and resilient links via dual-band 2.4/5.8 GHz radios.
Optional LTE and offline maps expand capabilities for BVLOS and disconnected environments. With five included smart batteries and a rugged case, teams can rely on extended, secure operations wherever the mission takes them.
Applications and Use Cases
Utility inspections: Identify faults in lines, substations, and pipelines
Public safety: Thermal and visible imaging for SAR and law enforcement
Fire response: Locate hotspots and monitor fire progression in real time
Infrastructure surveys: Inspect bridges, towers, and industrial facilities
Environmental monitoring: Track anomalies across sensitive ecosystems
Construction documentation: Record site progress with visible and thermal data
Disaster response: Deliver situational awareness in crisis conditions
Multi-operator workflows: Support pilot, payload, and training operations
The ACSL SOTEN Thermal Package with TAITEN Smart Controller & SAMO Payload delivers both thermal and visible imaging in one secure, mission-ready system.
Designed for survey, inspection, and public safety professionals, it ensures accurate data capture and dependable performance in the field.
Dronefly provides end-to-end service and expert support to help you maximize your ACSL system's capabilities. Contact Dronefly today to add the SOTEN Thermal Package to your operations.
Aircraft
Dimensions:
Unfolded: 637 × 560 mm (including propellers)
Folded: 162 × 363 mm
Height (Unfolded): 153 mm
Weight: 1,720 g (with standard camera and battery)
Rotor Blades: 4
Battery: Lithium-ion, 94 Wh
Operating Frequency: Dual-band 2.4 GHz + 5.8 GHz
Hovering Accuracy:
Vision: Vertical ±0.1 m, Horizontal ±0.3 m
GNSS: Vertical ±0.5 m, Horizontal ±1.5 m
Max Pitch Angle: 30°
Max Angular Velocity: Pitch 80°/s, Yaw 45°/s
Max Ascent Speed: 3 m/s
Max Descent Speed: 2 m/s
Max Takeoff Weight: 2,000 g
Max Speed (No Wind): 15 m/s
Operational Altitude Limit: 2,000 m
Max Flight Time:
With camera: 25 min (wind 8 m/s)
Without camera: 29 min (wind 8 m/s)
The SOTEN is deployed for infrastructure inspection, mapping, agriculture, and public safety—anywhere modular payload flexibility is key.
What kind of payload/camera options does SOTEN support?
SOTEN supports a one-touch swappable camera system: standard RGB (20 MP, 4K video), multispectral camera, optical zoom camera, and EO/IR combination cameras.
Is SOTEN designed for bad weather?
While SOTEN has IP43 resistance (light water spray / dust), it is not fully rain-proof. Flying in rain or heavy wind is not recommended; the IP43 rating helps with unexpected exposure to spray but does not mean full all-weather use.
Where is the SOTEN made?
ACSL SOTEN is made in Japan.
Can the SOTEN fly BVLOS?
Yes, the platform supports LTE and encrypted telemetry links designed for BVLOS readiness, subject to FAA waiver approval.
Is the ACSL SOTEN NDAA-compliant?
Yes.
