• ACSL TAITEN
1 1

ACSL TAITEN Smart Controller

ACSL TAITEN Smart Controller

$3,500.00
$3,500.00
Sale Sold out
SKU S-SOTEN-TAITEN MPN AC-SCRC7-01-ASKU
  • NDAA-compliant controller for ACSL SOTEN drones
  • 7″ 1500-nit daylight display, 1200 × 1920 resolution
  • IP54 rugged build for dust, splash, and field resistance
  • Dual-band 2.4/5.8 GHz radios with AES-256 encryption
  • 8-hour runtime with USB-C extendable charging
  • Customizable controls for precision mission management
  • HDMI, USB-C, USB-A, Ethernet, microSD, and audio ports
  • Integrated GNSS, auto-brightness sensor, mic, and tactile indicators
  • Pair up to 3 controllers per aircraft for team operations
  • Runs Android 13 with ACSL TAKEOFF app integration
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

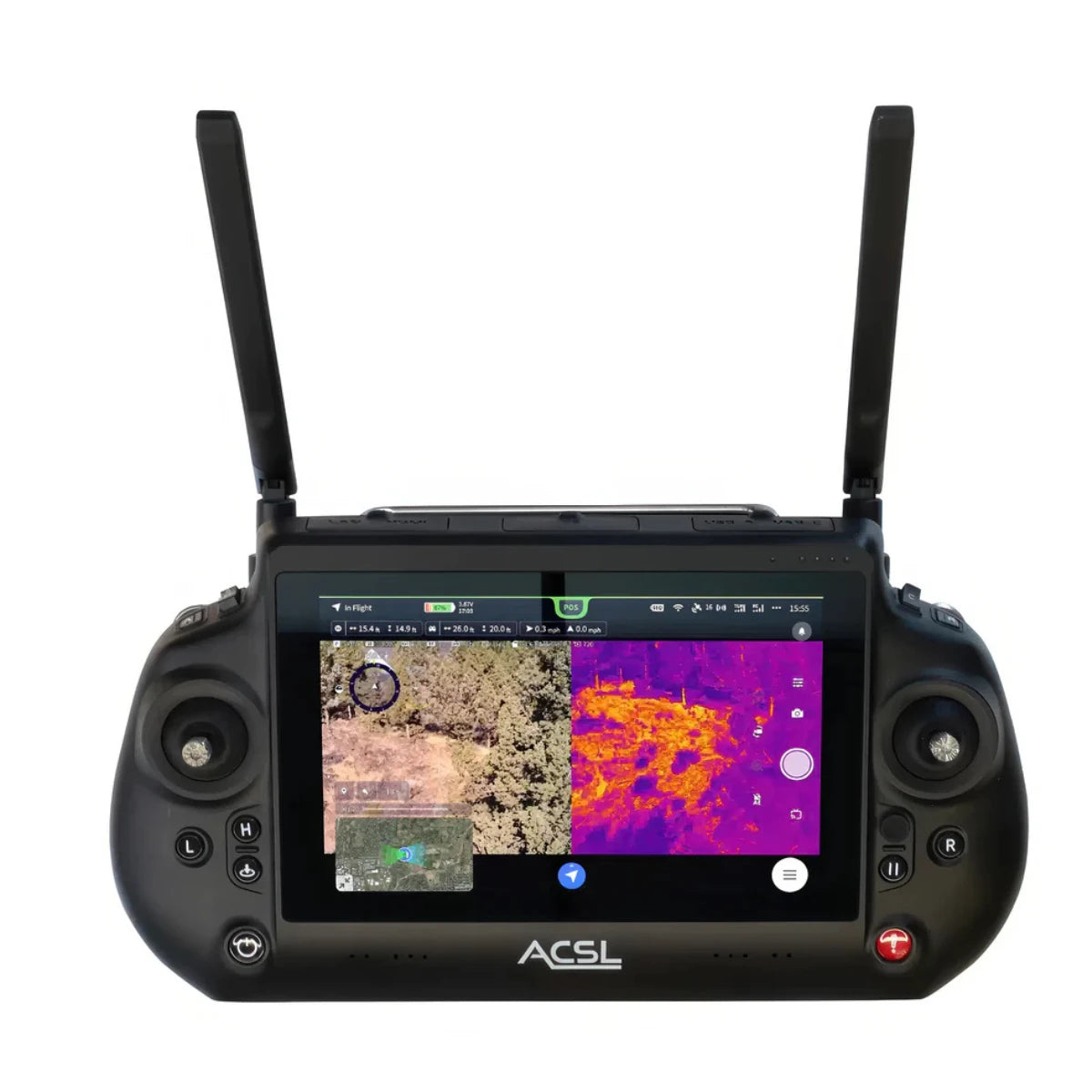

ACSL TAITEN Smart Controller: Secure, Field-Ready Control for SOTEN

The ACSL TAITEN Smart Controller is the NDAA-compliant command station engineered for ACSL SOTEN drones. Featuring a 7″ daylight-readable display with 1500 nits brightness, IP54 ruggedness, and dual-band encrypted connectivity, TAITEN ensures secure and reliable performance in inspection, utility, and public safety workflows.

Built for extended missions, it delivers up to 8 hours of runtime and supports multi-operator configurations, making it a versatile ground control solution.

Key Features and Benefits

  • NDAA-compliant ground station purpose-built for SOTEN
  • 7″ daylight display with 1500 nits and 1200 × 1920 resolution
  • IP54 ruggedness: withstands dust, splashes, and harsh conditions
  • Dual-band 2.4/5.8 GHz radios with AES-256 encrypted links
  • 8-hour runtime extendable via USB-C charging
  • Customizable controls with 3-state switch, 8 buttons, 2 wheels, and 5-way hat
  • HDMI, USB-C, USB-A, Ethernet, microSD, and audio I/O options
  • Integrated GNSS, light sensor, mic, vibration motor, and LED indicators
  • Multi-operator support: pair up to 3 controllers per aircraft
  • Runs Android 13 with ACSL TAKEOFF app integration

Bright, Responsive, and Customizable

TAITEN's 1200 × 1920 panel remains visible in full sun, while its upgraded compute platform and ACSL TAKEOFF app integration provide responsive control of flight, gimbal, and payloads. Customizable inputs-including wheels, switches, and buttons-allow operators to adapt the controller to their workflow, ensuring precision handling in complex missions.

Secure Connectivity and Rugged Build

With dual-band 2.4/5.8 GHz radios and AES-256 encrypted Fides-Link, TAITEN maintains resilient links with an unobstructed range of 6+ miles where permitted. Its IP54-rated chassis resists dust and splashes, while ergonomic design supports long handheld use.

Operators can pair up to three controllers per aircraft, enabling instructor-pilot, payload-operator, and team training workflows.

Applications and Use Cases

  • Survey operations: Bright display for mapping in sunny field conditions
  • Inspection teams: Secure communication for gimbal and payload control
  • Public safety: Rugged, long-runtime control for critical missions
  • Utilities: Reliable operation for corridor and site inspections
  • Training: Multi-operator pairing for instructor and payload workflows
  • Disaster response: Resilient dual-band links in dynamic environments

The ACSL TAITEN Smart Controller provides secure, NDAA-compliant command for SOTEN drones, balancing a rugged build with advanced connectivity and long endurance. Designed for professional workflows, it supports operators in delivering precise, reliable aerial data.

Dronefly provides expert support and trusted service to ensure your ACSL system operates at its best. Contact Dronefly today to add TAITEN to your fleet.

Display

  • Size: 7 in
  • Resolution: 1200 × 1920
  • Brightness: 1500 nits

Radio & Links

  • Operating Bands: 2.4 GHz + 5.8 GHz
  • Range: 6+ miles (unobstructed, low-interference)
  • Wireless: Wi-Fi
  • Encryption: AES-256
  • Radio: ACSL Fides-Link
  • Pairing: Up to 3 controllers to 1 aircraft

Power & Runtime

  • Operating Time: Up to 8 hours (extendable via USB-C power)
  • Charging/Power: USB-C

Environmental

  • IP Rating: IP54
  • Operating Temperature: 68–140 °F (20–60 °C)
  • Storage Temperature: 68–122 °F (20–50 °C)
  • Charging Temperature: 32–113 °F (0–45 °C)

Controls & UX

  • Primary Controls: 2-axis sticks; 2× camera gimbal wheels; 3-state mode switch (AUT/POS/MAN); Go-Home; Land; Emergency; Power
  • Customizable Inputs: 3-state switch; 8 buttons; 2 wheels; 5-way hat
  • Indicators: Connection LED; Battery LED; Vibration motor
  • Sensors: GNSS module; Light sensor (auto-brightness); Microphone

Interfaces

  • Ports: USB-C; USB-A 2.0; HDMI; microSD; Ethernet; 3.5 mm audio; Tripod mount
  • Video Out: HDMI

System

  • Operating System: Android 13
  • App: ACSL TAKEOFF (integrated)
  • Remote ID: Compliant
  • NDAA: Yes

Physical

  • Dimensions: 10.6 × 6.5 × 2.7 in
  • Weight: ≈3.2 lb
  • 1x ACSL TAITEN Smart Controller
What operating system and flight app does the ACSL TAITEN Smart Controller use?

The ACSL TAITEN Smart Controller runs on Android 13 and comes integrated with the ACSL TAKEOFF application, providing low-latency flight feedback and full control of SOTEN aircraft, gimbals, and payloads.

Is the ACSL TAITEN Smart Controller rugged enough for field operations?

Yes. The ACSL TAITEN Smart Controller is rated IP54 for ingress protection, meaning it resists dust and splashes and is designed to withstand demanding outdoor and industrial field conditions.

What connectivity and I/O ports are available on the ACSL TAITEN Smart Controller?

The ACSL TAITEN Smart Controller includes USB-C, USB-A, HDMI, Ethernet, microSD, and a 3.5 mm audio port, supporting video output, data transfer, external storage, and accessory integration.

Does the ACSL TAITEN Smart Controller support secure long-range communications?

Yes. The ACSL TAITEN Smart Controller uses ACSL Fides-Link with dual-band 2.4 GHz and 5.8 GHz radios and AES-256 encryption, supporting secure links up to 6+ miles in low-interference environments where permitted.

What onboard sensors and indicators are built into the ACSL TAITEN Smart Controller?

The ACSL TAITEN Smart Controller includes an integrated GNSS module, ambient light sensor for auto-brightness, microphone, vibration motor, and LED indicators for connection and battery status.
