Anzu Raptor T with RTK Module, Speaker, & Charging Hub (Used)

Anzu Raptor T with RTK Module, Speaker, & Charging Hub (Used)

$7,999.00
$8,099.00 $7,999.00
Sale Sold out
SKU S-NB-RAPTOR-T MPN RAPTORT01
  • Pairs 640×512 radiometric thermal with a 56x hybrid zoom
  • Flies as long as 45 minutes per battery
  • Adds RTK positioning, no ground control points required
  • Includes a loudspeaker for speaking to people below
  • Arrives packed in a hard case fitted with foam
  • Recharges up to three batteries through the included hub
  • Detects obstacles around the aircraft using wide-angle lenses
  • Sells used, with no active Anzu Care plan
  • Routes Air Control data through Aloft’s US-based servers
  • Weighs only 2.03 lb (920 g) for easy carrying
Request Info / Quote ☎︎ 1 (805) 480-4033

View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Anzu Raptor T Bundle (Used): Thermal Drone Kit Built for Fast Field Deployment

The Anzu Raptor T with RTK Module, Speaker, and Charging Hub (Used) is a complete thermal drone kit, built around a folding quadcopter with a 640×512 radiometric camera and a rated flight time of 45 minutes on each battery. Start a thermal program for one response team with this used unit, or add it to a fleet as another thermal aircraft, since it arrives with a hard case, controller, and accessories. Anzu Care is not active on it. At 2.03 lb (920 g), the aircraft measures 3.8×3.6×8.7 in (96.3×90.3×221.0 mm) when folded and travels in the case with its controller. The controller carries its own 5.5-inch touchscreen.

Thermal work starts with radiometric measurement of every pixel, a diagonal field of view of 61°, and hybrid zoom up to 56x for spotting detail from a distance. Wide-angle lenses mounted around the aircraft deliver omnidirectional obstacle avoidance. The included RTK module supports mapping without ground control points, and the loudspeaker adds a way to speak to people on the ground. Because one hub handles as many as three batteries, teams can plan longer shifts, and the hard case keeps the whole kit together for transport and storage.

Key Features and Benefits

  • Radiometric Imaging: 640×512 thermal data with temperature at each pixel
  • Long Zoom: 56x hybrid zoom plus split-screen display on the controller
  • Dim Conditions: A dedicated low-light camera mode for darker work environments
  • Endurance: Rated at 45 minutes aloft on each charged battery
  • All-Round Sensing: Lenses on all sides provide omnidirectional obstacle avoidance
  • Survey Precision: Included RTK module enables accuracy without ground control points
  • Ground Audio: Peak output hits 110 dB at 3.3 feet (1 m)
  • Battery Hub: Hub supports charging for as many as three batteries
  • Data Hosting: Aloft's US-based servers host data from Air Control
  • Unit Status: Anzu's one-year Care plan no longer applies here

Airframe, Gimbal, and Power Details

The aircraft tops out at 47 mph (75.6 km/h), handles winds of 26 mph (42 km/h), and can launch from altitudes as high as 3.7 mi (6 km). Operating temperatures span 14°F through 104°F (-10°C through 40°C). Its three-axis gimbal tilts between -90° and 35°, and recordings go to cards of up to 512 GB. Power comes from a flight battery rated at 5000 mAh and 77 Wh, while the controller adds a 1000-nit display. Anzu lists no IP rating and applies no geofencing, so the pilot is responsible for airspace compliance and for flying within the published limits.

Compatibility and System Integration

  • One used Raptor T thermal aircraft, 3-axis gimbal, 1 battery (included)
  • 1 Raptor handheld controller with built-in 5.5-inch 1920×1080 touchscreen (included)
  • 1 charging hub, 1 charger, and 1 power cable (included)
  • 1 loudspeaker accessory secured by two thumbscrews on top (included)
  • 1 RTK module mounting on top for precision mapping (included)

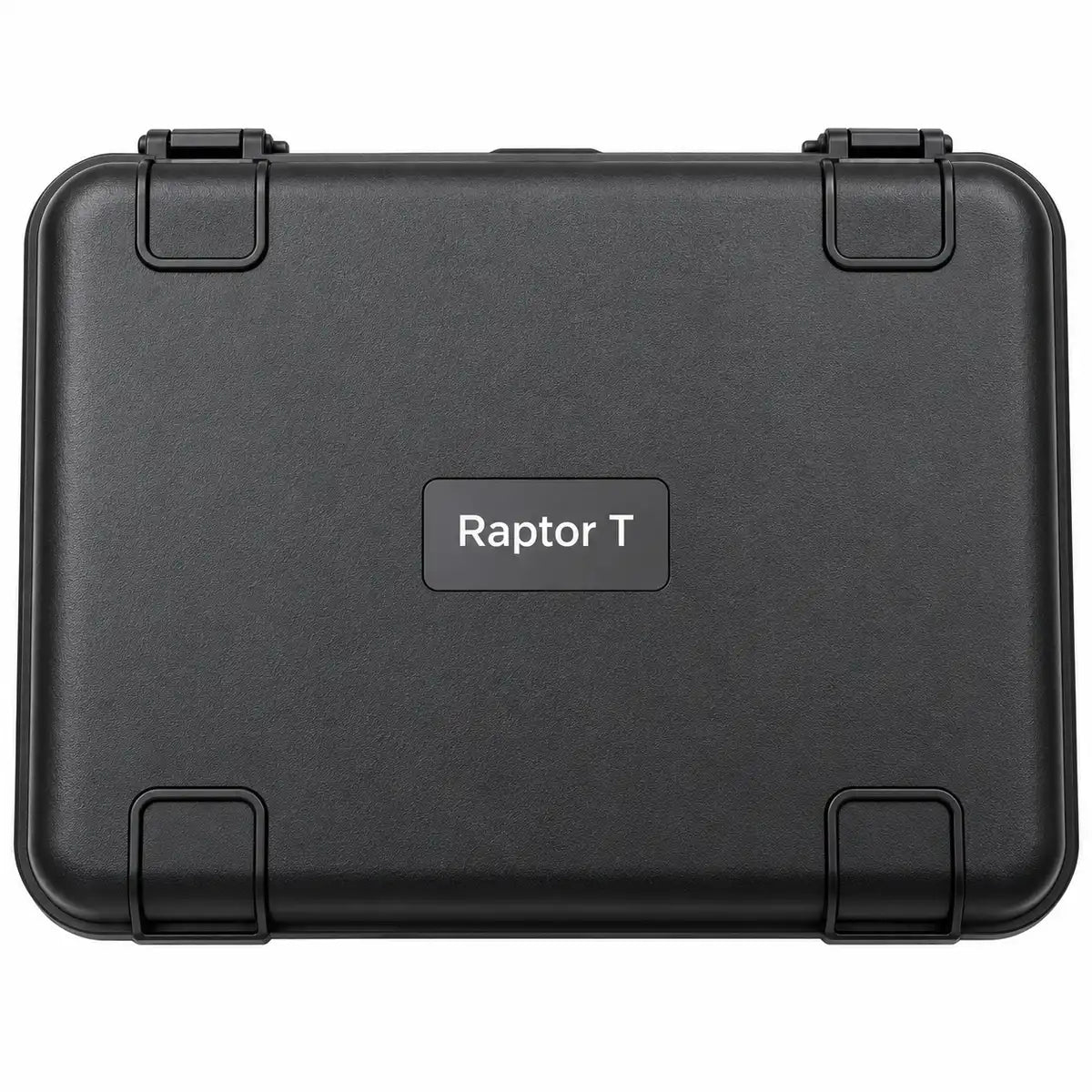

  • 1 hard case lined with foam for the aircraft and accessories (included)
  • Up to 512 GB microSD card for recording (sold separately)

Applications and Use Cases

  • Building envelope and rooftop inspections where heat loss patterns matter
  • Search and rescue crews locating people in darkness or dense terrain
  • Fire and police units that need quick aerial thermal views
  • Survey and mapping teams capturing RTK-supported site data without ground control points
  • Energy and utility crews checking lines and equipment for abnormal heat
  • Fleet managers adding a thermal aircraft to an existing drone program
  • First-time thermal buyers starting a program with one complete kit

Adding thermal capability usually means chasing batteries, lights, chargers, and cases from several sources. This used bundle collapses that list into one purchase, whether it equips a single pilot or adds a thermal aircraft to a larger program. The hard case, hub, charger, controller, speaker, and RTK module all travel together, and the unit is sold without Anzu Care.

Dronefly puts enterprise thermal capability within reach of single-unit buyers and growing fleets. Choose this used Raptor T bundle to start thermal inspection, public safety, or mapping work with the accessories already in the case. Buy direct from Dronefly and get your team flying.

Aircraft

  • Weight: 2.03 lb (920 g)
  • Maximum takeoff weight: 2.3 lb (1050 g)
  • Folded size: 3.8×3.6×8.7 in (96.3×90.3×221.0 mm)
  • Unfolded size: 11.1×4.2×13.7 in (283.0×107.7×347.5 mm)
  • Satellite systems: GPS, GLONASS, BeiDou, Galileo
  • Remote ID: yes
  • IP rating: none
  • Geofencing: none enabled

Flight performance

  • Flight time: up to 45 minutes
  • Hover time: 38 minutes
  • Maximum speed: 47 mph (75.6 km/h)
  • Wind resistance: 26 mph (42 km/h)
  • Maximum takeoff altitude: 3.7 mi (6 km)
  • Operating temperature: 14°F to 104°F (-10°C to 40°C)

Imaging

  • Thermal camera: 640×512 radiometric, temperature measured at every pixel
  • Thermal field of view: 61° diagonal
  • Thermal equivalent focal length: 40 mm
  • Zoom: 56x hybrid zoom, with split-screen zoom
  • Low-light camera mode
  • Gimbal: 3-axis, tilt range -90° to 35°
  • Recording: microSD up to 512 GB

Sensing

  • Obstacle avoidance: omnidirectional, wide-angle lenses on every side

Controller

  • Built-in 5.5-inch 1920×1080 touchscreen
  • Display brightness: 1000 nits
  • Built-in battery: 5000 mAh

Flight battery

  • Capacity: 5000 mAh / 77 Wh
  • Weight: 11.8 oz (335.5 g)

Accessories

  • Charging hub: charges up to 3 Raptor flight batteries, full recharge from empty in about 1 hour 36 minutes
  • Loudspeaker: 3 oz, 110 dB at 3.3 ft (1 m), 70 dB at up to 328 ft (100 m), mounts with two thumbscrews
  • RTK module: mounts on top with two thumbscrews, positioning without ground control points

Software and data

  • Air Control app, powered by Aloft
  • All data hosted on US-based servers
  • Aloft is ISO 27001 and SOC 2 Type II certified

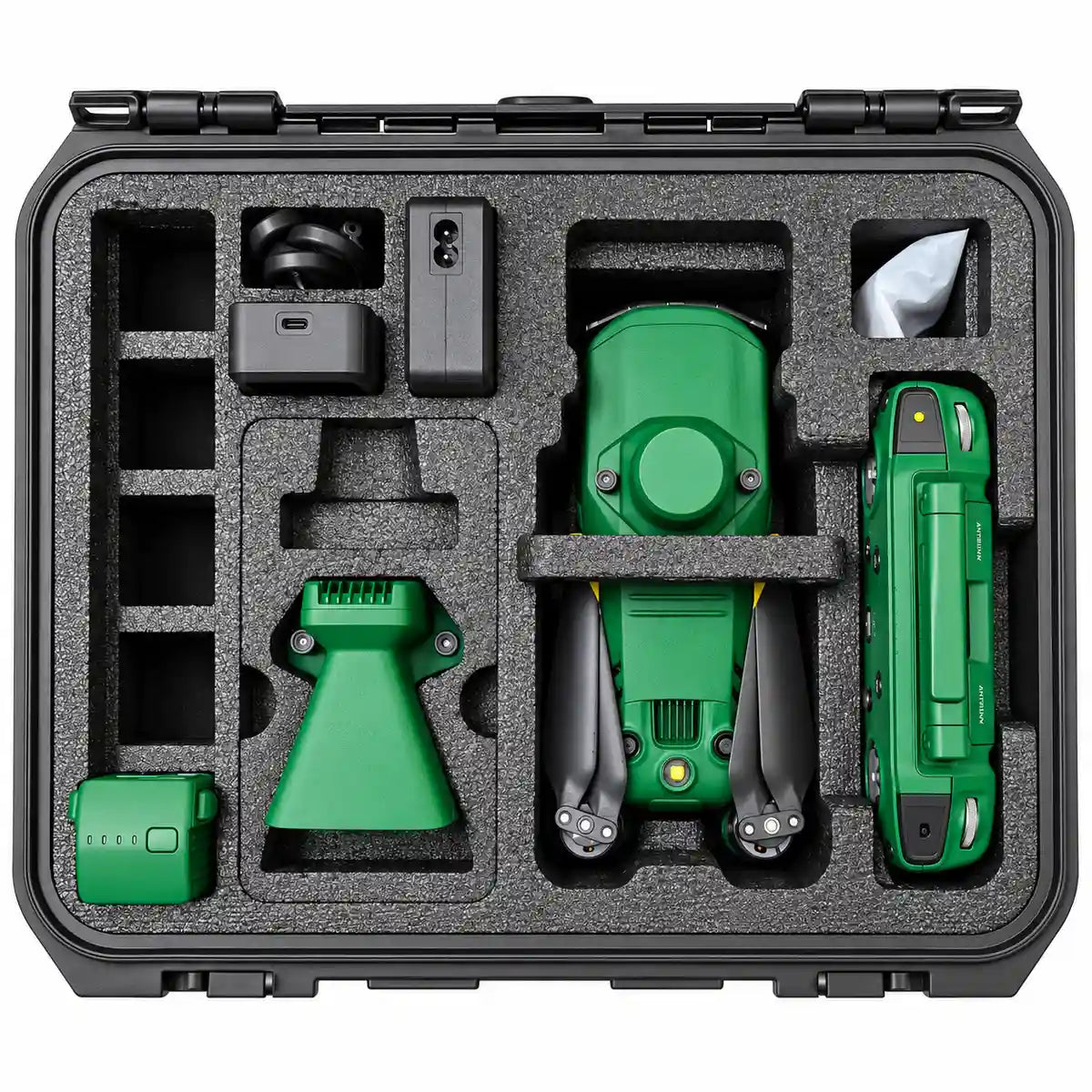

  • 1 Raptor T aircraft with thermal imaging and 3-axis gimbal
  • 1 flight battery
  • 1 handheld controller with built-in 5.5-inch touchscreen
  • 1 battery charging hub
  • 1 charger and 1 power cable
  • 1 loudspeaker
  • 1 RTK module
  • 1 hard case with custom foam inserts
What does the Anzu Raptor T bundle include?

Each bundle contains one Raptor T aircraft with thermal imaging, one flight battery, and one handheld controller with a built-in screen. The loudspeaker, RTK module, and a charging hub with its charger and power cable come in the same box. The case is foam-fitted, and a year of Anzu Care is part of the package. Recording media is sold separately, since the aircraft needs a microSD card.

Is the Raptor T NDAA compliant?

Anzu discloses that the thermal sensor in the Raptor T is sourced from China and may fall outside NDAA parameters. Blue UAS eligibility is off the table because the aircraft is built in Southeast Asia, and Green UAS is not an immediate goal for Anzu. Anzu adds that alternative sourcing could be explored. Anyone buying for a program with NDAA requirements should verify eligibility first.

What do the speaker and RTK module add?

The speaker is a 3 oz accessory. Measured at 3.3 feet (1 m), maximum output is 110 dB, and it still reaches 70 dB out to 328 ft (100 m). Separately, the RTK module enables positioning that does not depend on ground control points, and each accessory attaches to the top of the aircraft using two thumbscrews.

Is this Raptor T bundle new or used?

Dronefly lists this bundle as a used unit. The one-year Anzu Care plan sold with new units is not active on this one, and none comes with the purchase. The RTK module, speaker, hub, charger, and hard case are included as listed. Ask Dronefly about the unit before you order.
