• Autel EVO II Pro 6K V3 Gimbal Camera
1 1

Autel EVO II Pro 6K V3 Gimbal Camera

Autel EVO II Pro 6K V3 Gimbal Camera

$789.00
$789.00
Sale Sold out
SKU S-AR-E2-6KG-V3 MPN EVO2-PAYLOAD-6K-V3
  • Replacement gimbal camera for Autel EVO II Pro 6K
  • Matched 1-inch sensor preserves 20MP output consistency
  • Captures 6K video at up to 30fps
  • Adjustable aperture spans f/2.8 through f/11
  • Digital zoom extends to 16x with lossless option
  • Night mode reaches ISO44000 for low-light sensing
  • Three-axis gimbal delivers stable imaging integration
  • Shutter speed ranges from 1/8000s to 8s
  • Captures JPG, DNG, or combined format output
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

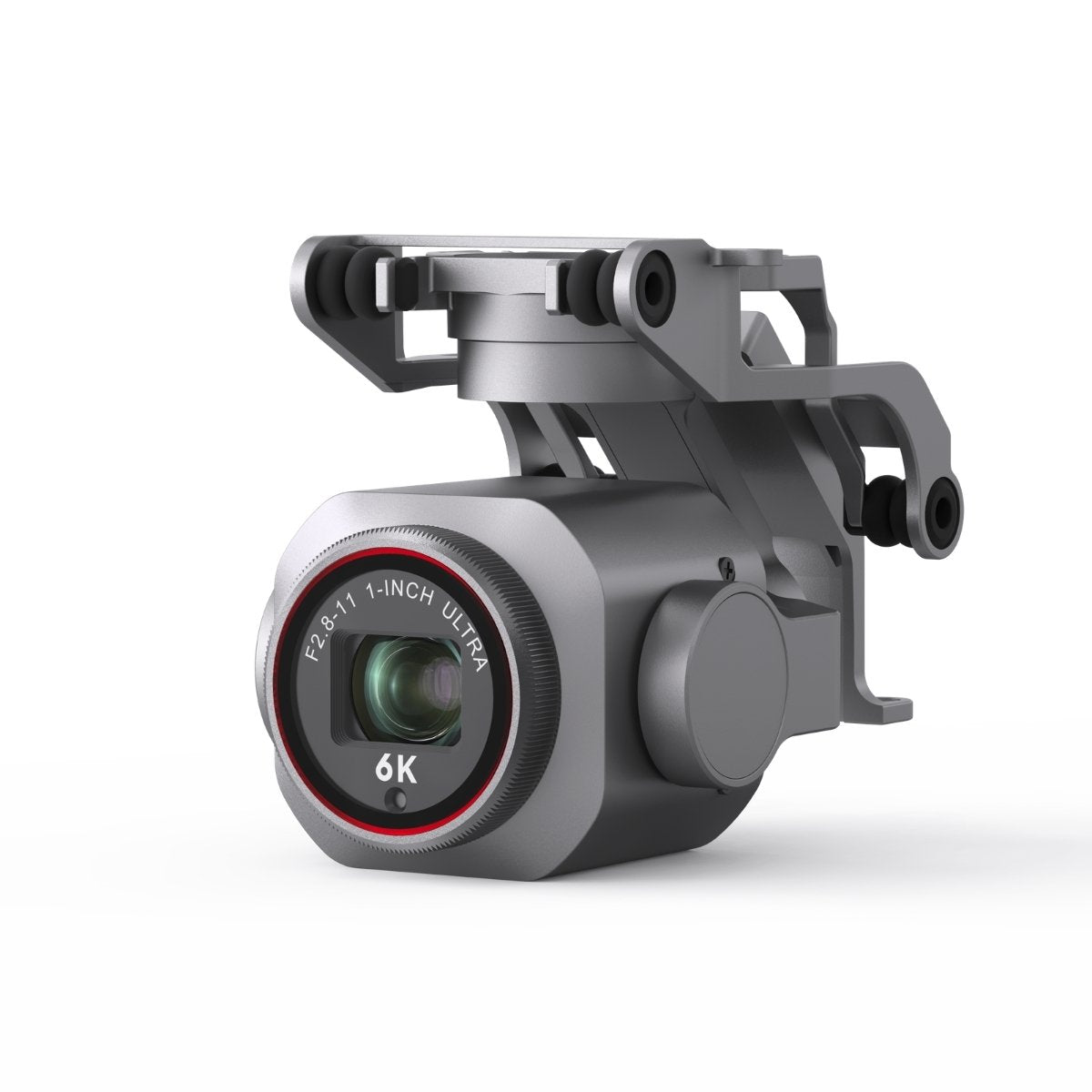

The Autel EVO II Pro 6K V3 Gimbal Camera is a replacement gimbal camera designed specifically for the Autel EVO II Pro 6K V3 aircraft. It restores the drone's original imaging capabilities after camera or gimbal damage, allowing operators to replace only the camera module instead of the entire aircraft.

Equipped with the same 1-inch CMOS sensor, 20MP resolution, and 6K video performance as the factory-installed camera, this replacement module delivers consistent image quality across inspections, mapping, and public safety operations.

Its direct-fit design maintains the original camera specifications, enabling organizations to preserve standardized imaging performance throughout their EVO II Pro 6K V3 missions.

Performance Features:

  • 1-inch CMOS sensor: captures detailed 20MP images with proven low-light performance.
  • 6K video recording: supports up to 5472x3076 resolution at 30fps.
  • Adjustable aperture: f/2.8 to f/11 adapts exposure across changing conditions.
  • 16x digital zoom: provides up to 3x lossless zoom capability.
  • Night scene mode: reaches ISO44000 for improved low-light image capture.
  • Three-axis stabilization: produces smooth, stable footage during demanding flight operations.
  • Flexible shutter speeds: range from 1/8000 second to 8 seconds.
  • Multiple file formats: supports JPG, DNG, and JPG plus DNG capture.
  • V3 compatibility: designed exclusively for the Autel EVO II Pro 6K V3.
  • 120Mbps bitrate: preserves image detail for high-quality recorded footage.

Replacing a damaged camera with the correct factory-matched module helps maintain consistent image quality and extends the service life of your aircraft. This replacement restores original camera performance without changing the imaging characteristics of your EVO II Pro 6K V3.

Dronefly supplies genuine replacement components to help operators keep their EVO II Pro 6K V3 aircraft mission ready. Order the Autel EVO II Pro 6K V3 Gimbal Camera from Dronefly to reduce downtime and restore factory imaging performance.

Camera

  • Sensor: 1-inch CMOS, 20MP
  • Lens: FOV 82°; 35mm equivalent focal length 29mm; Aperture f/2.8–f/11; Focus range 0.5m to infinity
  • ISO range: Video ISO100–ISO6400; Photo ISO100–ISO6400; Night scene mode: max video ISO44000
  • Shutter speed: Photo mode 1/8000–8 sec; Others 1/8000–1/frame rate sec
  • Zoom: 1–16x (up to 3x lossless)
  • Photo shooting modes: Single (default), Burst, AEB continuous, Time lapse, HDR
  • Max photo size: 5472×3648 (3:2); 5472×3076 (16:9); 3840×2160 (16:9)
  • Image format: JPG (default) / DNG / JPG+DNG
  • Video resolution/frame rates: 5472×3076 P30/P25/P24; 3840×2160 P60/P50/P48/P30/P25/P24; 2720×1528 P60/P50/P48/P30/P25/P24; 1920×1080 P120/P60/P50/P48/P30/P25/P24
  • Video format: MP4/MOV (H.264, H.265)
  • Max bitrate: 120Mbps
  • Supported file system: FAT32/exFAT

Gimbal

  • Stabilization: Three-axis
  • Mechanical range: Tilt −135° to +45°; Pan −100° to +100°
  • Controllable rotation range: Tilt −90° to +30°; Pan −90° to +90°
  • Max control speed (tilt): 300°/s
  • Angular vibration range: ±0.005°
  • 1x Autel EVO II Pro 6K V3 Gimbal Camera
