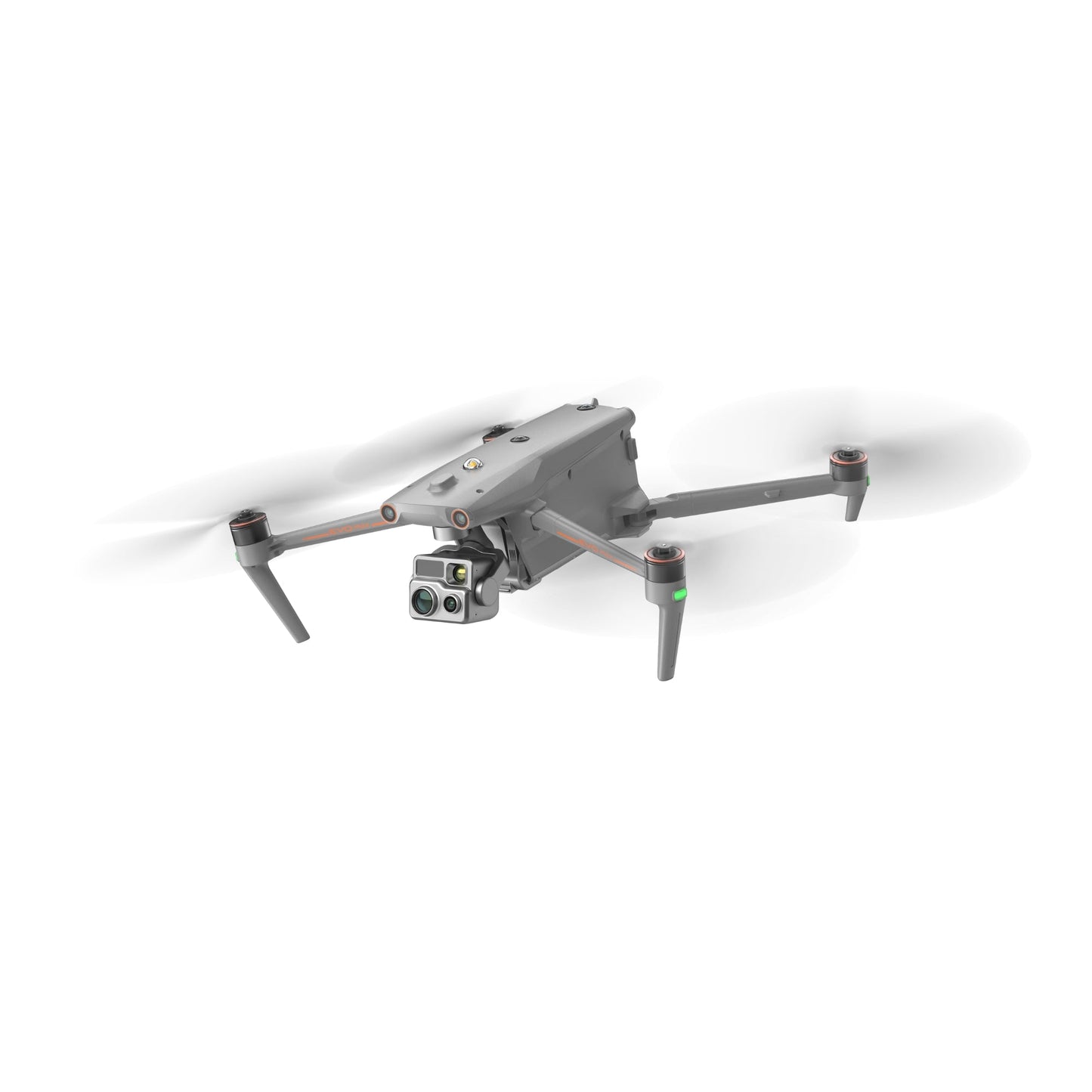

  • Autel drone flying with propellers spinning
1 10

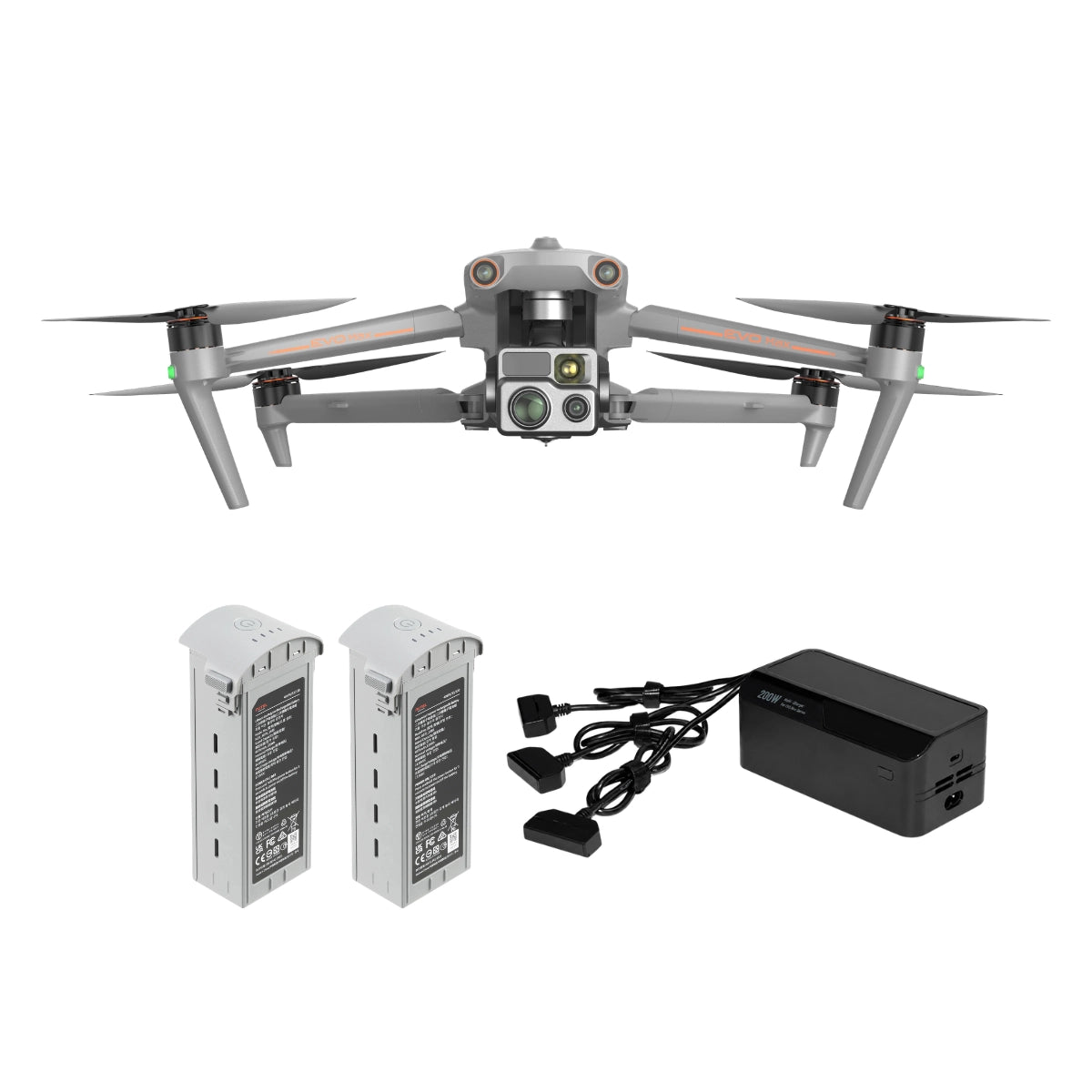

Autel EVO MAX 4T XE (Max Power Bundle) Promotion

Autel EVO MAX 4T XE (Max Power Bundle) Promotion

$5,699.00
$9,782.00 $5,699.00
Sale Sold out
SKU B-AR-MAX-4T-XE-PROMO MPN 102003290
  • Promotion adds two bonus batteries and a multi-charger.
  • 720° obstacle avoidance via fisheye vision and radar.
  • SkyLink 3.0 delivers a 12.4-mile transmission range.
  • Three batteries support extended multi-site program rotations.
  • Multi-charger recharges multiple batteries for continuous fleet use.
  • Quad-sensor FusionLight payload combines zoom, thermal, and rangefinder.
  • A-Mesh 1.0 connects aircraft and ground terminals freely.
  • IP43 rated for dust and light rain field conditions.
  • Operates reliably across the full -20°F to 122°F range.
  • Hot-swappable batteries support continuous multi-aircraft program operations.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max 4T XE Max Power Bundle: Bonus Batteries and Charger Included with This Promotion

The Autel EVO Max 4T XE is an enterprise inspection platform built around Autel Autonomy's autonomous flight technology, delivering global path planning, 3D scene reconstruction, and reliable return-to-home capability across complex, signal-degraded environments.

A binocular fisheye vision and millimeter-wave radar sensor fusion system provides 720° all-round obstacle sensing, supporting all-weather operation for programs that cannot pause for marginal conditions.

Key Features and Benefits

  • 720° obstacle avoidance: binocular fisheye vision and millimeter-wave radar enable all-weather sensing.
  • SkyLink 3.0 transmission: 12.4-mile range sustains command links across long-distance program deployments.
  • A-Mesh 1.0 networking: connects multiple aircraft and ground terminals without centralized network infrastructure.
  • Triple-battery bundle: three 120Wh batteries support extended multi-site inspection rotations per program.
  • Multi-charger included: recharges multiple batteries simultaneously to sustain continuous fleet operations.
  • Quad-sensor payload: 10x optical zoom, wide-angle, thermal, and laser rangefinder in one gimbal.
  • High-precision visual navigation: SLAM-based positioning maintains stability in GPS-denied environments.
  • Hot-swappable batteries: field-replaceable packs support uninterrupted multi-aircraft program operations.
  • IP43 ingress protection: rated for sustained operation in light rain and dusty field conditions.
  • Wide operating range: functions across -20°F to 122°F for year-round program deployment.

The Max Power Bundle adds two additional EVO Max Smart Flight Batteries and an EVO Max Series Multi-Charger to the standard EVO Max 4T XE package, extending field rotation capacity from one battery to three.

Combined with the FusionLight 4T XE payload's 10x optical zoom, wide-angle, thermal, and laser rangefinder sensors, this bundle is built for fleet programs running inspection, surveying, and public safety missions at scale.

A Platform Built to Scale Across Inspection Programs

Enterprise inspection programs depend on three things working together: sensor accuracy, all-weather reliability, and minimal downtime between missions. The EVO Max 4T XE addresses all three within a single airframe. Its quad-sensor FusionLight payload captures zoom, wide-angle, thermal, and laser rangefinder data in one deployment, eliminating the need to swap payloads between mission types.

A-Mesh 1.0 networking extends this further by allowing multiple aircraft and ground terminals to connect freely across long distances, obstacles, and no-network areas, supporting collaborative multi-aircraft operations at program scale. The Max Power Bundle's three-battery rotation and included multi-charger remove the most common constraint on extended fleet deployments: waiting on a single battery to recharge between flights.

Compatibility and System Integration

  • Autel Smart Controller V3: integrated controller for flight operation and live FusionLight camera feed (included).
  • EVO Max 4 Series Intelligent Flight Battery: standard battery included with the base aircraft bundle (included).
  • EVO Max Smart Flight Battery: two additional 120Wh batteries included as part of the Max Power Bundle promotion (included).
  • EVO Max Series Multi-Charger: simultaneous multi-battery charging unit included with this promotion (included).
  • EVO Max 4 Series Rugged Case: protective transport case for the full aircraft and accessory kit (included).
  • 64GB MicroSD Card: onboard storage for FusionLight camera data capture (included).
  • FusionLight 4T XE camera payload: 10x zoom, wide-angle, thermal, and laser rangefinder gimbal (included).
  • Autel SkyLink 3.0: proprietary transmission protocol supporting 12.4-mile operational range (included).
  • Autel Robotics Care plans: optional extended warranty and service coverage (sold separately).
  • A-Mesh compatible devices: additional drones or ground terminals for mesh network expansion (sold separately).

Applications and Use Cases

  • Enterprise inspection programs: thermal and zoom cameras identify infrastructure faults without de-energizing equipment.
  • Emergency response fleets: thermal imaging locates subjects in low-visibility or nighttime conditions.
  • Law enforcement agencies: long transmission range supports situational awareness from a safe distance.
  • Geographical survey operations: laser rangefinder and zoom camera capture precise distance and terrain data.
  • Firefighting and rescue programs: thermal imaging identifies hotspots through smoke for tactical decisions.
  • Multi-site inspection contractors: triple-battery rotation sustains crews across consecutive program deployments.
  • Remote area operations: A-Mesh networking maintains control links in mountainous or no-network areas.

The EVO Max 4T XE Max Power Bundle is built for enterprise programs that need accuracy, all-weather reliability, and minimal downtime across distributed inspection and public safety operations. Its quad-sensor payload, A-Mesh scalability, and triple-battery endurance make it a dependable platform for fleet-level deployment.

Dronefly brings years of UAS industry experience to every customer relationship, with deep expertise in enterprise integration, payload configuration, and program-level fleet support. When you source the Autel EVO Max 4T XE Max Power Bundle through Dronefly, you gain a solutions partner invested in the long-term performance of your inspection program.

Configure your system and order today at Dronefly.

Aircraft

  • Weight (battery & propellers included): 1640 g (3.62 lbs, ABX40 battery, Fusion 4T gimbal, propellers)
  • Maximum take-off mass: 1999 g (4.41 lbs)
  • Maximum take-off mass for C2 certification (EU): 1890 g (4.17 lbs)
  • Dimensions unfolded (incl. propellers): 562 × 651 × 147 mm
  • Dimensions unfolded (excl. propellers): 318 × 400 × 147 mm
  • Dimensions folded (excl. propellers): 257 × 145 × 131 mm
  • Diagonal wheelbase: 466 mm (1.53 ft)
  • Propeller dimension: 11 inches
  • Propeller weight: 10.5 g
  • Maximum propeller rotational speed: 8000 RPM
  • Maximum ascent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 8 m/s
  • Maximum descent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 6 m/s
  • Maximum horizontal speed (windless): Slow 3 m/s, Smooth 10 m/s, Standard 15 m/s forward/back, 10 m/s sidewards, Ludicrous 23 m/s forward, 18 m/s backward, 20 m/s sidewards
  • Maximum service ceiling: 4000 m (ABX40), 3000 m (ABX41)
  • Maximum flight altitude limit (in app): 800 m (2625 ft)
  • Maximum flight time (windless): 42 minutes
  • Maximum hovering time (windless): 38 minutes
  • Maximum wind resistance: 12 m/s (27 mph)
  • Ingress protection rating: IP43 (custom service)
  • Maximum tilt angle: Slow 10°, Smooth 30°, Standard 30°, Ludicrous 36°
  • Maximum angular velocity: Pitch 300°/s, Heading 120°/s
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Internal storage: 128 GB (64 GB available depending on firmware)
  • GNSS system: GPS, Galileo, BeiDou, GLONASS

Wi-Fi & Connectivity

  • Wi-Fi frequencies: 2.400–2.476 GHz, 2.400–2.4835 GHz, 5.15–5.25 GHz, 5.17–5.25 GHz (DE), 5.725–5.829 GHz, 5.725–5.850 GHz
  • Wi-Fi protocol: 802.11a/b/g/n/ac/ax, supports 2×2 MIMO
  • Wi-Fi EIRP: 2.4G ≤30 dBm (FCC), ≤20 dBm (CE/SRRC/UKCA), ≤12.14 dBm (MIC)
  • 5.2G ≤30 dBm (FCC), ≤23 dBm (CE/UKCA)
  • 5.8G ≤30 dBm (FCC/SRRC), ≤14 dBm (CE/UKCA)
  • Hovering accuracy vertical: ±0.1 m (vision), ±0.5 m (GNSS)
  • Hovering accuracy horizontal: ±0.3 m (vision), ±0.5 m (GNSS)

Gimbal

  • Mechanical range 4T XE: Pitch -135° to 45°, Yaw -45° to 45°, Roll -45° to 45°
  • Mechanical range 4N: Pitch -135° to 45°, Yaw -50° to 50°, Roll -45° to 45°
  • Controllable pitch range: -90° to 30°
  • Stabilization: 3-axis mechanical (pitch, yaw, roll)
  • Max pitch control speed: 100°/s
  • Angular vibration range: < 0.005°

EVO Max 4T XE Zoom Camera

  • Sensor: 1/2" CMOS, 48 MP
  • Lens: 11.8–43.3 mm, 64–234 mm equivalent, f/2.8–f/4.8
  • Focusing distance: 5 m to ∞
  • ISO (auto): 100–6400
  • Shutter speed: 1/8 s ~ 1/10000 s
  • Optical zoom: 2.7–10×, up to 160× hybrid zoom
  • Photo resolution: JPG 4000×3000, 8192×6144; DNG 4000×3000
  • Video resolution: 4000×3000 30P

EVO Max 4T XE Thermal Camera

  • Sensor: Uncooled VOx Microbolometer
  • FOV: 61°
  • Focal length: 9.1 mm, f/1.0
  • Temperature accuracy: ±2°C or ±2%
  • Video resolution: 640 × 512 30P
  • Photo size: 640 × 512
  • Measurement modes: Center, spot, rectangular
  • Temperature ranges: -20°C to 150°C, 0°C to 550°C
  • Palettes: White Hot, Black Hot, Ironbow, Rainbow

Laser Rangefinder

  • Wavelength: 905 nm
  • Accuracy: ±(1 m + D×0.15%)
  • Range: 5–1200 m

Wide-Angle Camera

  • Sensor: 1/1.28" CMOS, 50 MP
  • Lens: DFOV 85°, 4.5 mm (23 mm equivalent), f/1.9
  • ISO: Photo 100–6400, Video up to 64000
  • Shutter: Photo 0.5 s ~ 1/8000 s, Video 1/30 s ~ 1/8000 s
  • Video resolution: 4000×3000 30P
  • Photo resolution: 4000×3000 or 8000×6000

Image Transmission

  • Frequencies: 900M, 2.4G, 5.2G, 5.8G (region-dependent)
  • Max transmission distance FCC: 15 km
  • Max transmission distance CE: 8 km
  • Controller: Autel Smart Controller V3
  • EIRP 900M: ≤30 dBm
  • EIRP 2.4G: ≤30 dBm (FCC/ISED), ≤20 dBm (CE/SRRC)
  • EIRP 5.8G: ≤30 dBm (FCC/SRRC), ≤14 dBm (CE)

Millimeter-Wave Radar System

  • Operating frequencies: 60–64 GHz, 24.0–24.25 GHz
  • EIRP: 60G ≤20 dBm, 24G ≤20 mW
  • Sensing range (60G): Up 0.3–20 m, Down 0.15–80 m, Forward/Backward 0.3–50 m
  • Sensing range (24G): Down 0.8–12 m
  • FOV: Horizontal ±60°/±22°, Vertical ±30°/±20°

Visual Obstacle Sensing

  • Forward: 0.5–31 m
  • Backward: 0.5–25 m
  • Sideward: 0.5–26 m
  • Upward: 0.2–26 m
  • Downward: 0.3–23 m
  • FOV forward/backward: 60° H, 80° V
  • FOV upward/downward: 180° sideward, 120° forward/backward

Autel Smart Controller V3

  • Display: 7.9 inches, 2000 nits, 2048×1536, 60 Hz
  • Battery: 5800 mAh, 11.55 V, 67 Wh
  • Operating time: 2.5 hr (max brightness), 4.0 hr (50%)
  • Charging time: 120 minutes
  • Max transmission distance: 15 km (FCC), 8 km (CE)
  • IP rating: IP43
  • Internal storage: 128 GB
  • Operating temperature: -20°C to 40°C
  • Wi-Fi: 802.11a/b/g/n/ac, 2×2 MIMO
  • Wi-Fi frequencies: 2.4G & 5.8G

Smart Battery

  • Dimensions: 158.4 × 74.3 × 50.7 mm
  • Operating temperature: -20°C to 50°C
  • ABX40 capacity: 8070 mAh, 14.88 V, 120 Wh, 520 g
  • ABX41 capacity: 9248 mAh, 14.76 V, 136.5 Wh, 533 g
  • Battery type: LiPo 4S
  • Charging temperature: 5°C to 45°C
  • Hot swappable: Supported
  • 1x EVO Max 4 Aircraft
  • 1x FusionLight 4T XE Gimbal Camera
  • 1x Smart Controller V3
  • 1x Intelligent Flight Battery
  • 1x Gimbal Cover
  • 1x Battery Charger & Power Cable
  • 1x RC Charger
  • 1x RC Charging Cable
  • 1x Data Cable
  • 3x Clockwise Propellers
  • 3x Counter-Clockwise Propellers
  • 1x Smart Controller Cover
  • 1x Smart Controller Lanyard
  • 1x Pair of Spare Smart Controller Joysticks
  • 1x 64GB MicroSD Card
  • 1x Screwdriver
  • 1x Rugged Hard Case
  • 1x Product Manual & Quick Start Guide Kit
  • 2x Autel EVO Max Smart Flight Battery
  • 1x Autel EVO Max Series Multicharger
What does the Max Power Bundle include that the standard EVO Max 4T XE does not?

The Max Power Bundle adds two additional EVO Max Smart Flight Batteries and one EVO Max Series Multi-Charger on top of the standard EVO Max 4T XE package, bringing total battery count to three. These items are automatically added to your cart during the promotion period, giving fleet programs extended rotation capacity without a separate accessory purchase.

How long does the EVO Max 4T XE fly on a single battery?

Each EVO Max Smart Flight Battery delivers up to 42 minutes of flight time, rated at 8070mAh and 120Wh. With three batteries included in this bundle, programs can rotate packs across consecutive missions to extend total operational time well beyond a single flight, particularly when paired with the included multi-charger.

What is the transmission range of the EVO Max 4T XE?

The EVO Max 4T XE uses Autel SkyLink 3.0 to achieve a maximum transmission distance of 15 km under FCC regulations, paired with the Autel Smart Controller V3. This supports stable video and telemetry links across extended-distance inspection routes and distributed program deployments.

How long does the EVO Max 4T XE fly on a single battery?

The EVO Max 4T XE delivers up to 42 minutes of maximum flight time and 38 minutes of maximum hovering time under windless conditions, using the included hot-swappable Intelligent Flight Battery. Additional batteries and a multi-charger are available separately to support continuous fleet-level rotation across program deployments.

How does the EVO Max 4T XE perform across varied field conditions?

The aircraft uses 720° obstacle avoidance through binocular fisheye vision and millimeter-wave radar sensor fusion, supporting all-weather operation. It carries an IP43 ingress protection rating and high-precision SLAM visual navigation that remains stable even when GPS signals are weak or obstructed, suiting it to diverse program environments.

What does the standard EVO Max 4T XE bundle include?

The standard bundle includes the EVO Max 4T XE aircraft, Fusion 4T XE camera and gimbal, an Intelligent Flight Battery, gimbal cover, battery charger and power cable, three pairs of propellers, an Autel Smart Controller V3 with lanyard, cover, and spare joysticks, an RC charger and charging cable, a rugged carrying case, a 64GB MicroSD card, a screwdriver, a data cable, and printed documentation.

What sensors are included in the EVO Max 4T XE camera payload?

The Fusion 4T XE payload integrates four sensors in a single gimbal: a 48MP camera with 10x optical zoom and up to 160x hybrid zoom, a 48MP wide-angle camera with a low-light scene mode, a 640x512 thermal camera rated from -4°F to 1022°F, and a laser rangefinder measuring up to 1200 meters with centimeter-level accuracy, eliminating payload swaps across program deployments.
