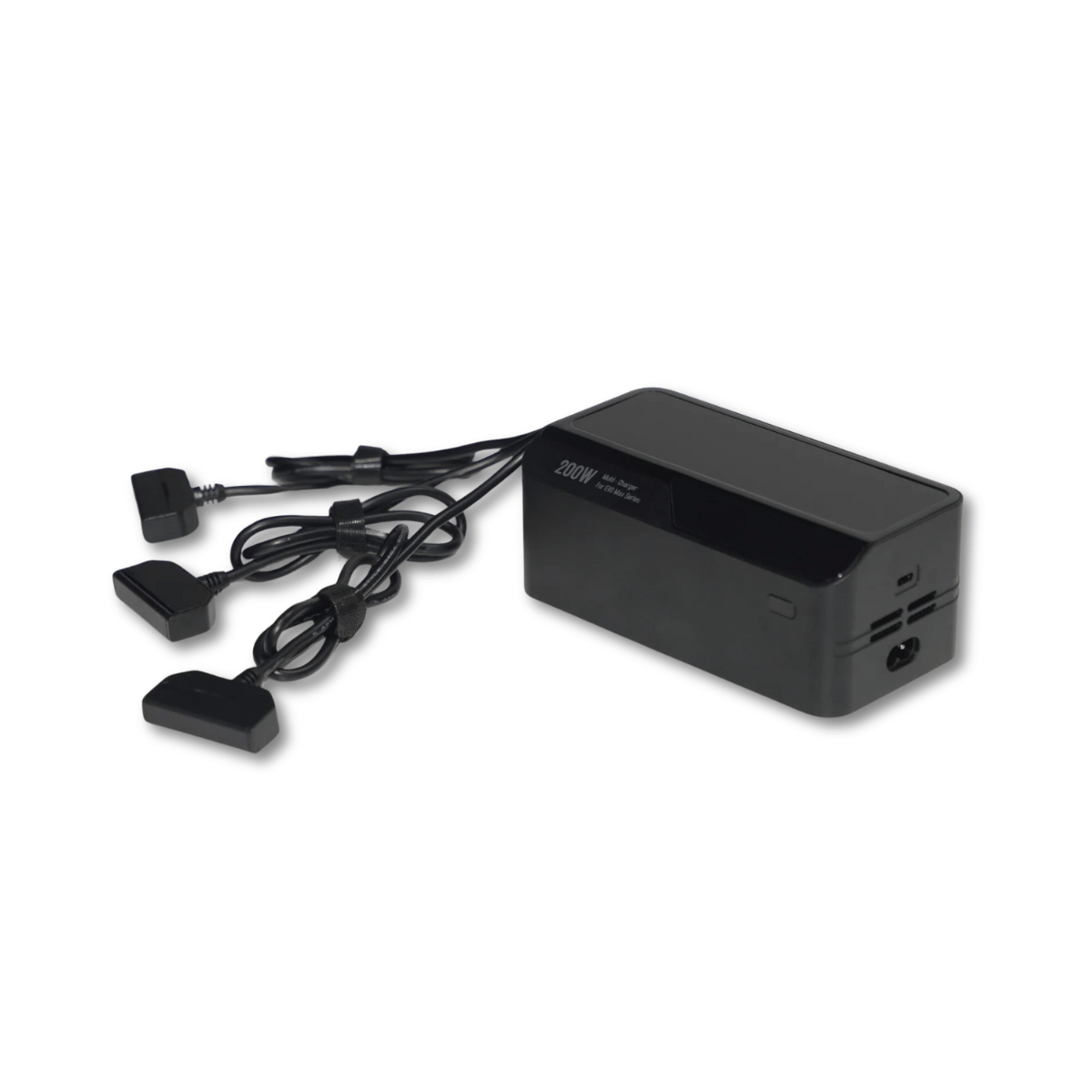

Autel EVO Max Series Multi-Charger

Autel EVO Max Series Multi-Charger

$145.00
$145.00
Sale Sold out
SKU S-AR-MAX-MULTICH MPN 102002546 UPC 190211186560
  • Intelligent priority logic speeds up aircraft mission turnaround
  • Shared power output restores three batteries simultaneously fast
  • Dedicated USB-C port charges remote controllers and phones
  • Triple-bay configuration finishes charging cycles in 110 minutes
  • Advanced safety protocols prevent overcharging and extreme heat
  • Compact chassis design fits mobile field charging stations
  • High-efficiency power delivery maximizes flight battery service life
  • Universal input voltage supports international professional drone operations
  • Simple interface allows for quick battery connection cycles
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max Series Multi-Charger: Centralized charging for professional workflows

The Autel EVO Max Series Multi-Charger offers a comprehensive power solution for professional pilots requiring a streamlined method to maintain their EVO Max 4T or 4N batteries. This versatile charging station allows for the connection of up to three batteries, delivering up to 120 W for a single unit and 200 W of total power when multiple batteries are attached. The charger is engineered with a high-to-low priority logic, meaning it identifies the battery with the most remaining energy and finishes its cycle first to get you back in the air sooner. An additional USB-C port provides a high-speed charging interface for your Smart Controller V3 or other essential field electronics.

Autel EVO Max Series Multi-Charger core features and advantages

  • Efficient multi-charging: Connects up to three intelligent flight batteries for centralized power management.
  • Dynamic wattage output: Scales power from 120 W to 200 W based on connected load.
  • Priority charging system: Automatically charges the most full battery first to minimize waiting periods.
  • Dual-purpose design: Charges both flight batteries and remote controllers via dedicated USB-C output.
  • Advanced thermal safety: Integrated cooling and protection protocols ensure stable operation during high-load charging.
  • Rapid set restoration: Completes a full three-battery charging cycle in approximately 110 minutes.
  • Field-ready portability: Designed to be compact and lightweight for effortless mobile station integration.
  • PPS fast-charging: Delivers optimized power to various third-party mobile devices and tablets.

Implementing this multi-charger into your workflow significantly reduces the cable clutter and complexity of managing a large-scale drone operation. By consolidating your power needs into a single high-output device, you gain better control over your battery rotation and overall fleet readiness. This charger is built to withstand the repetitive use cycles of commercial environments, ensuring that your power infrastructure is as reliable as your aircraft.

Dronefly is dedicated to serving as your exclusive UAV partner by providing the technical infrastructure your organization needs to thrive. We understand that professional-grade equipment requires professional-grade power support, which is why we offer fully integrated charging solutions tailored for the EVO Max series. Enhance your operational efficiency and long-term equipment health by ordering your Autel multi-chargers directly from Dronefly.

Multi-charger overview

  • Operating Temperature:0-40℃
  • AC Input Voltage: 100V-240V～2.5A 50Hz/60Hz 230W
  • USB Type-C Input: 9V～3A; 12V～3A; 15V～3A; 20V～5A
  • USB Type-C Output: 5V⎓2A; 9V⎓3A; 12V⎓3A; 15V⎓3A; 20V⎓5A
    PPS: 3.3V-21V⎓5A
  • Charging Power: Max. 120W (One Battery) / Max. 200W (Multi-battery)

Charging time

  • One battery: 60-70 mins
  • Two batteries: 100-110 mins
  • Three batteries: 100-110 mins

Product dimensions

  • 151×75×60 mm

Compatibility

  • EVO Max Series
  • 1x Autel EVO Max Series Multi-Charger
What is the maximum power output of the USB-C port?

The USB-C port is capable of delivering up to 100 W of power (20V at 5A), depending on the requirements of the connected device. It supports both Power Delivery (PD) and Programmable Power Supply (PPS) protocols. This makes it powerful enough to charge not just remote controllers, but also many modern laptops and high-demand tablets.

Why does the charging time for three batteries take longer than one?

When multiple batteries are connected, the charger shares its 200 W output across the units sequentially. While it prioritizes the most-charged battery, managing multiple high-capacity 8070mAh batteries requires more total energy and time than a single unit. However, the total time of 110 minutes for three batteries is still more efficient than using a lower-wattage single charger for each.

Can I leave batteries on the charger overnight?

The charger’s intelligent power management system is designed to stop the flow of electricity once a battery reaches its full capacity. However, for best safety practices in a professional environment, it is always recommended to disconnect batteries once they are fully charged. This prevents unnecessary stress on the charger’s components and maintains the long-term health of the batteries.

What happens if a battery is too hot when I plug it in?

The charger has built-in thermal protection and will not begin the charging cycle until the battery has cooled to a safe operating temperature. If you have just landed from a flight in a warm environment, the charger may wait a few minutes before starting. This is a critical safety feature that prevents damage to the high-performance lithium polymer cells.

What batteries are compatible with this multicharger?

This multi-charger can charge 3 Autel EVO MAX 4N/4T/4T XE batteries and the Autel V3 Remote Controller at the same time
