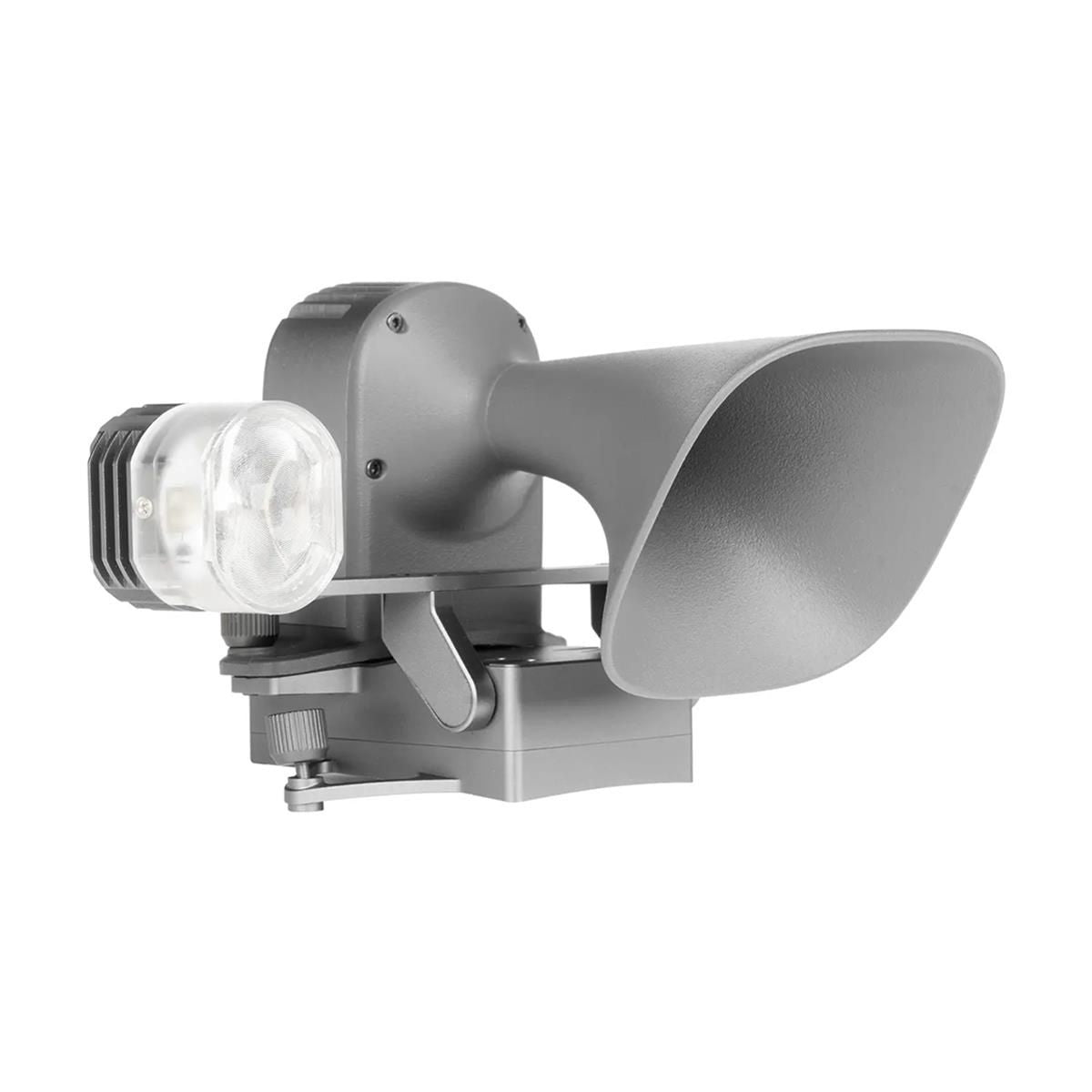

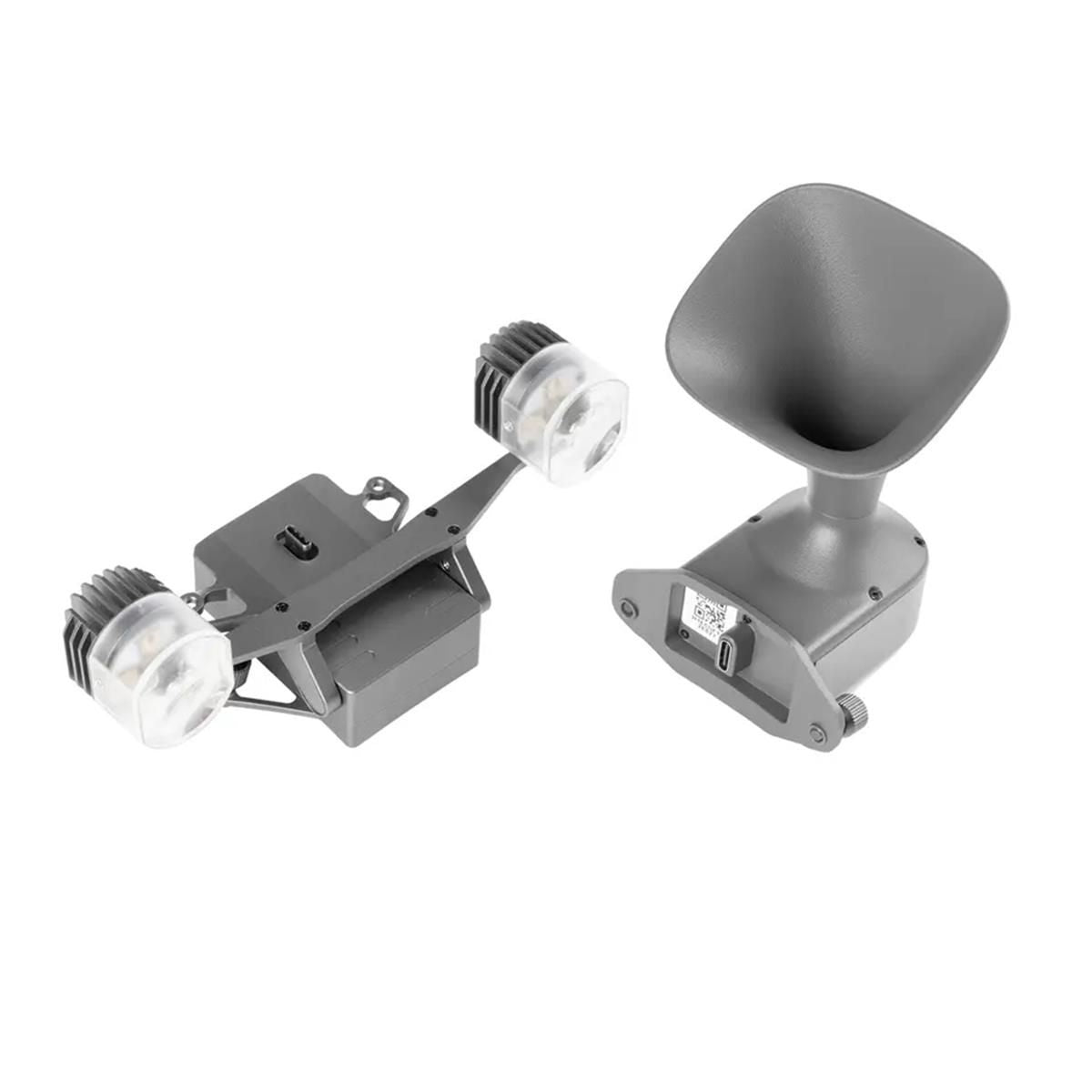

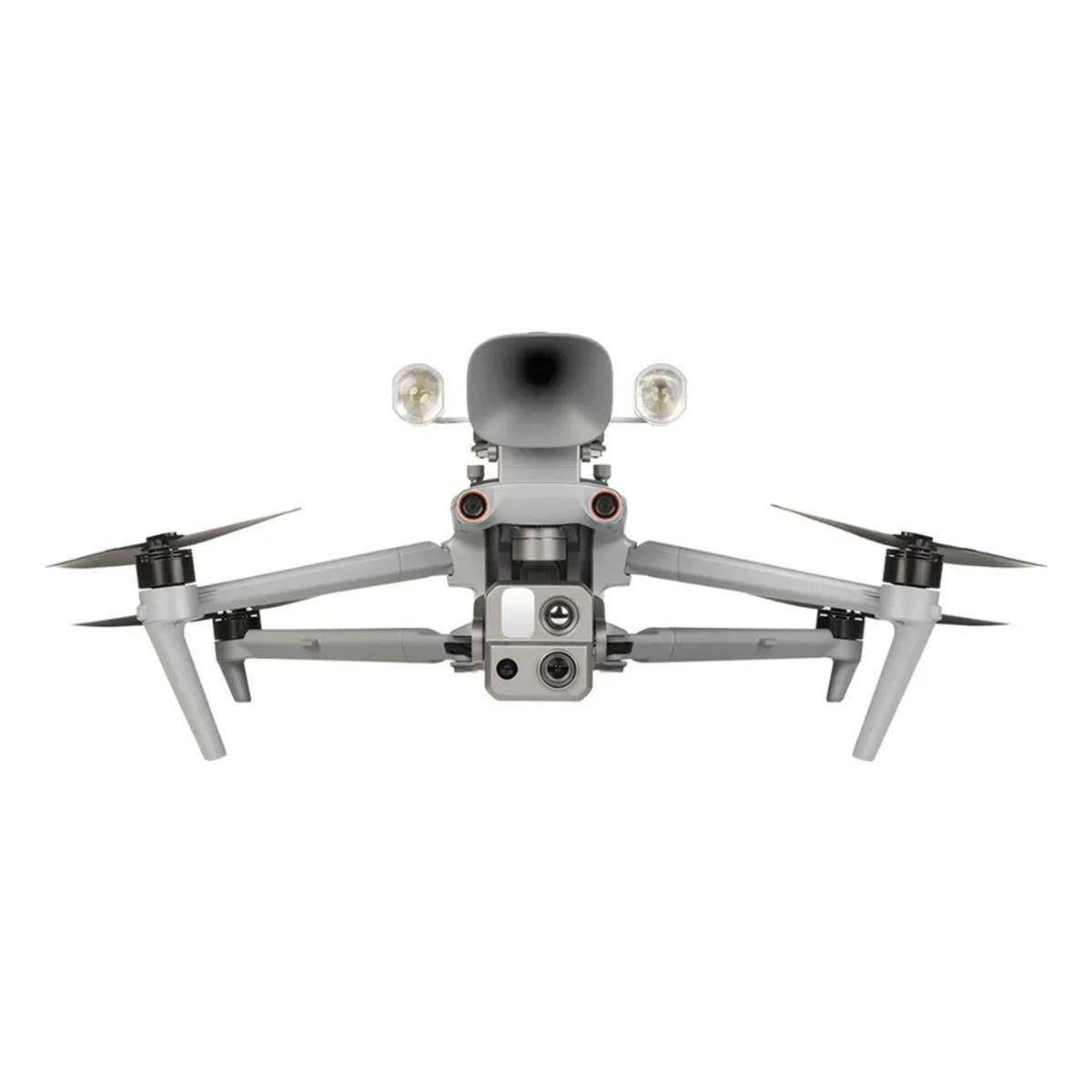

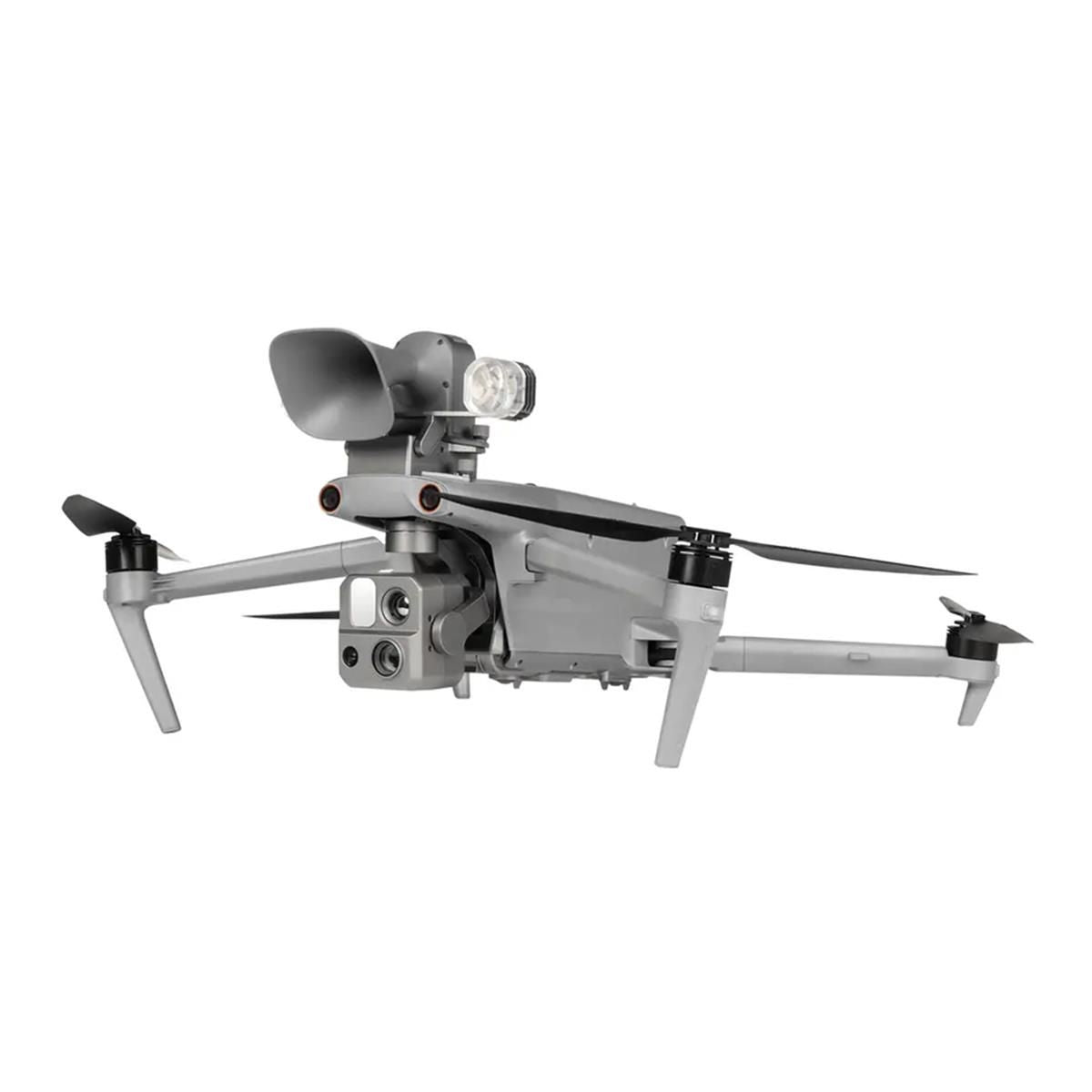

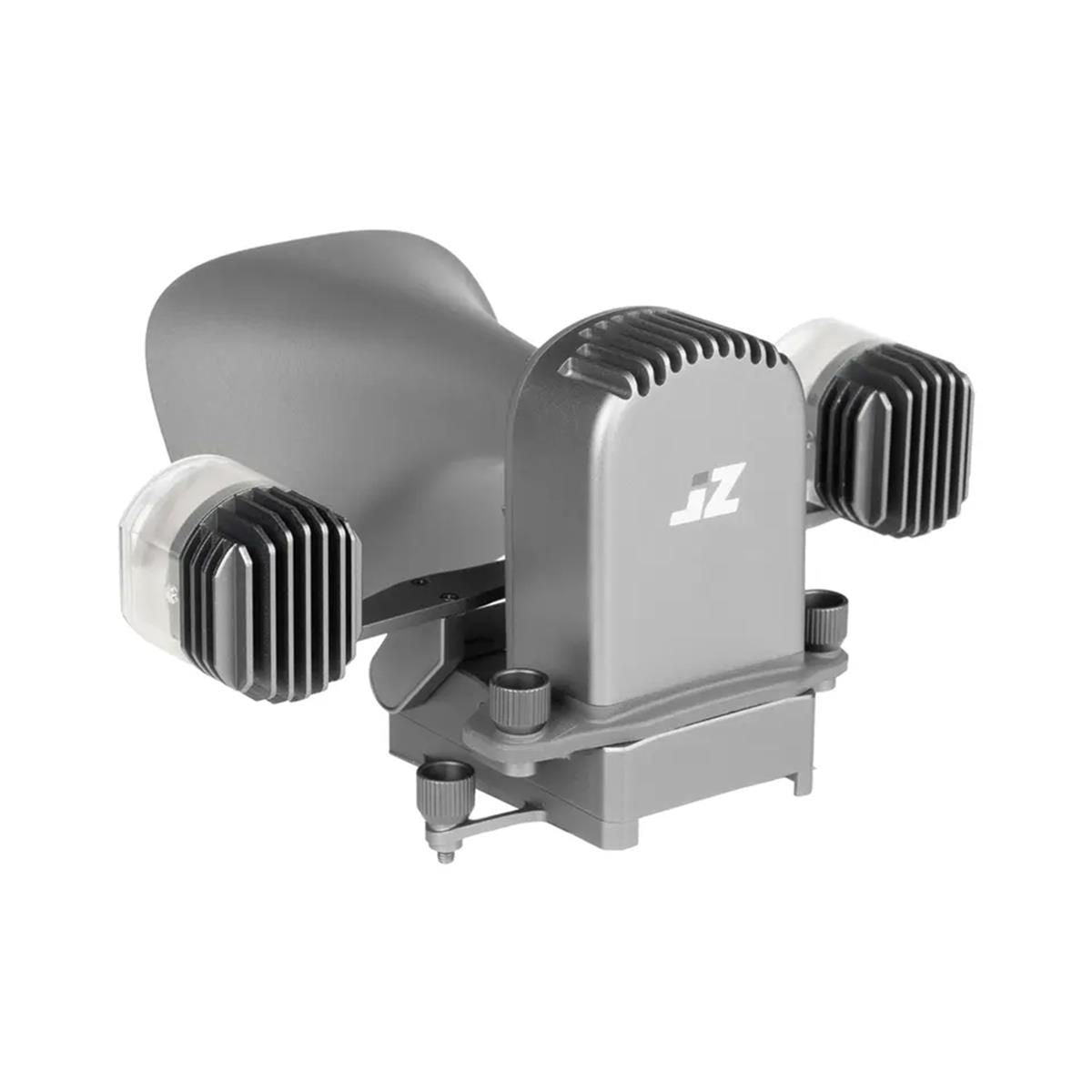

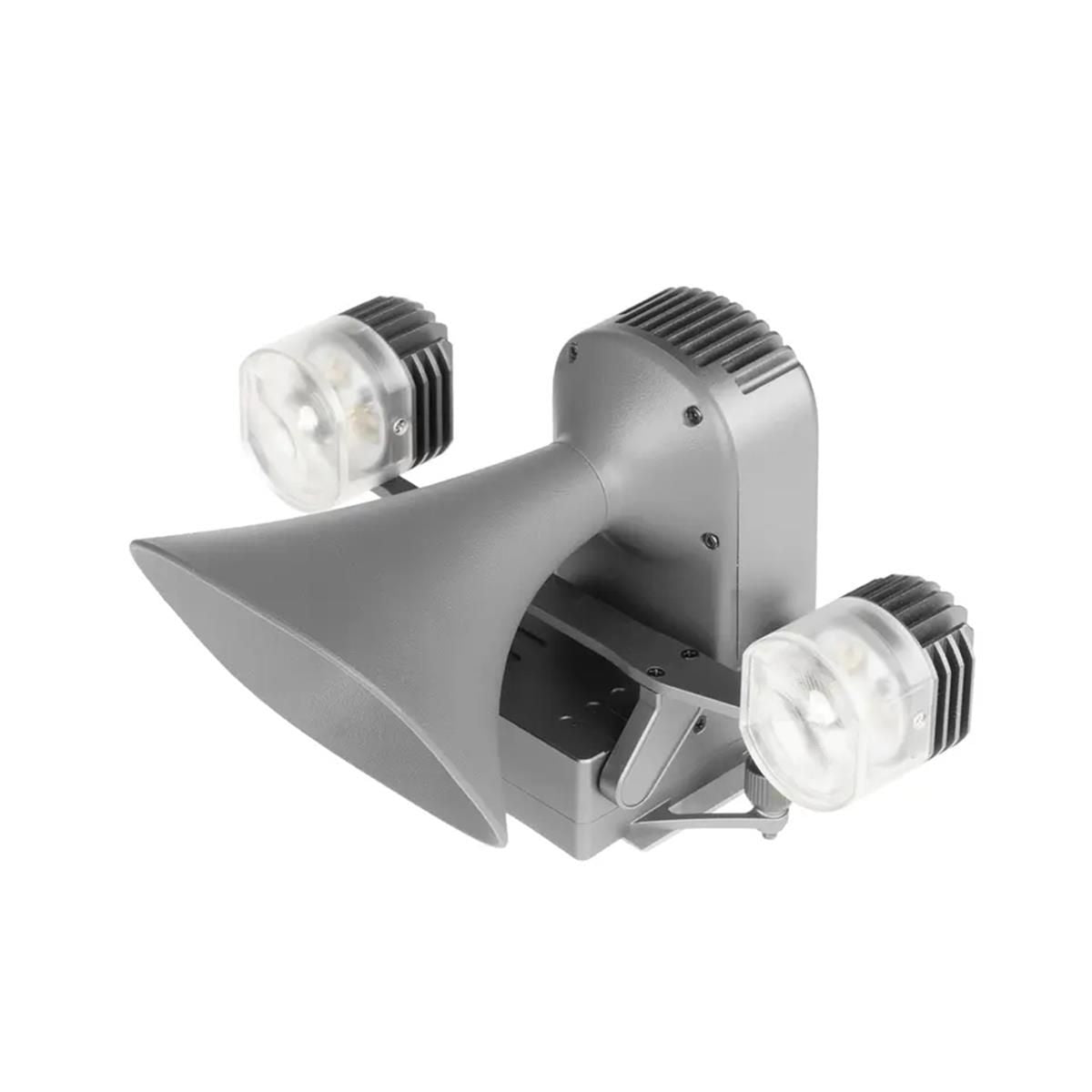

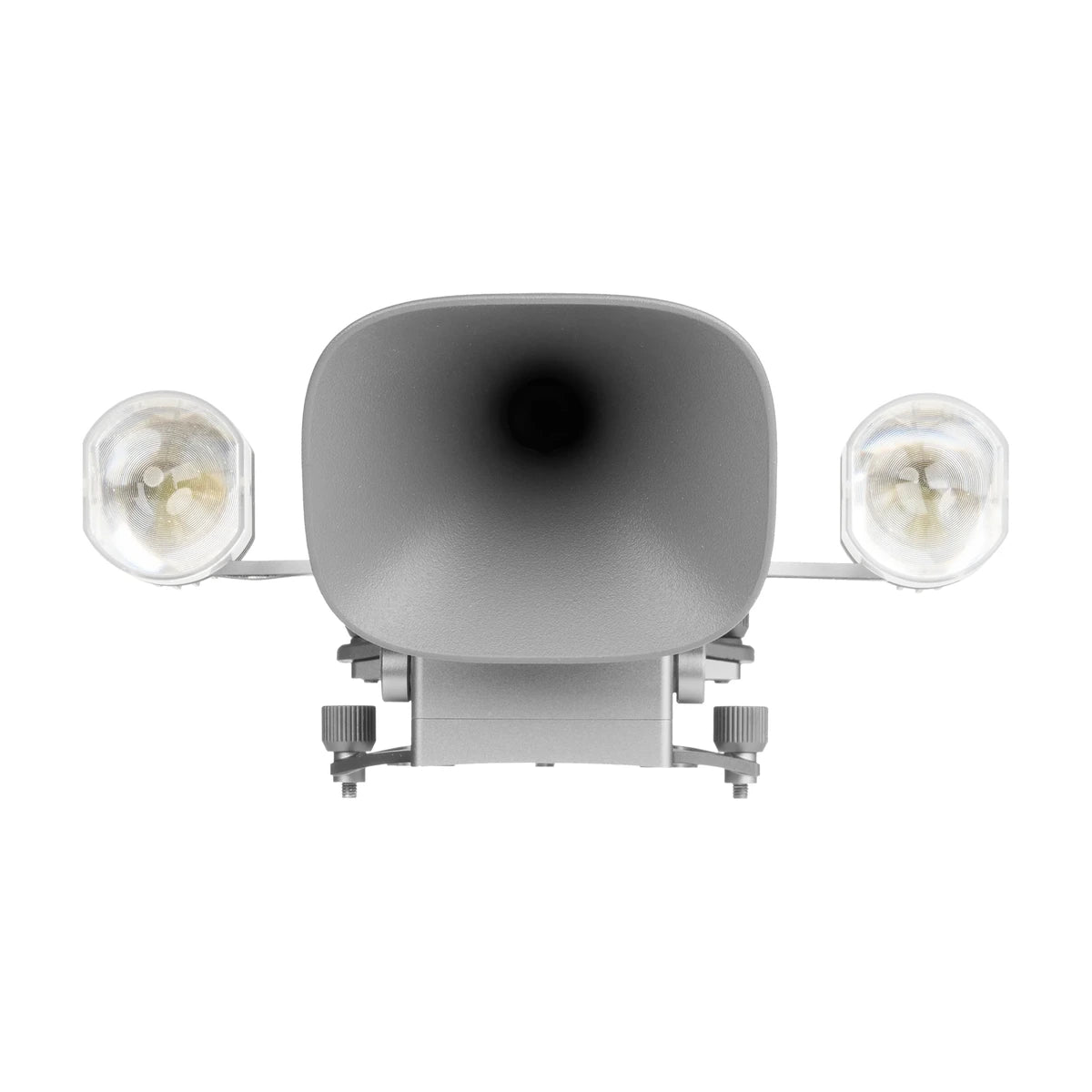

Autel EVO Max Speaker and Spotlight

Autel EVO Max Speaker and Spotlight

$979.00
$979.00
Sale Sold out
SKU S-AR-MAX-SPKR MPN 102002240 UPC 889520208963
  • Integrated spotlight and speaker payload for EVO Max drones
  • Follow gimbal pitch spotlight aligns lighting with camera view
  • 60W spotlight supports nighttime operations and inspections
  • Three brightness levels adjust lighting for changing environments
  • Narrow 14-degree beam focuses illumination on targets
  • Built-in loudspeaker broadcasts messages or warnings
  • 114 dB speaker output ensures clear aerial communication
  • Broadcast range up to 300 meters for public safety operations
  • PSDK interface integrates with EVO Max aircraft systems
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max Speaker and Spotlight: Dual-function lighting and broadcast payload

The Autel EVO Max Speaker and Spotlight is a multifunction aerial payload that combines a powerful spotlight and a remote loudspeaker for the EVO Max series drone platform. Designed for public safety, inspection, and emergency response missions, it provides operators with both illumination and communication capabilities from the air.

The spotlight automatically follows the gimbal pitch to keep the illuminated area aligned with the camera view. With adjustable brightness levels and a high-output broadcast speaker, this accessory helps teams manage nighttime operations and communicate clearly with people on the ground.

Key features and benefits

  • Follow gimbal pitch spotlight keeps illumination aligned with camera movement
  • 60W aerial spotlight supports nighttime operations and inspections
  • Three adjustable brightness levels adapt lighting to field conditions
  • Narrow 14-degree beam focuses illumination on ground targets
  • Up to 150 meter illumination distance for aerial search missions
  • Integrated broadcast speaker supports aerial announcements and warnings
  • 114 dB audio output enables clear communication during operations
  • Up to 300 meter broadcast range for public safety messaging
  • PSDK payload interface ensures compatibility with EVO Max drones

The Autel EVO Max Speaker and Spotlight equips drone teams with both lighting and communication capabilities during critical missions. Its combined payload design allows operators to illuminate targets and broadcast instructions from the same aircraft.

Dronefly customers benefit from end-to-end UAV solutions and expert support for enterprise drone operations. Purchase the Autel EVO Max Speaker and Spotlight from Dronefly to expand your EVO Max drone’s mission capability.

General Specifications

  • Electrical interface: PSDK interface
  • Dimensions: 145 × 116 × 83 mm
  • Installation method: standard quick-release mount
  • Compatible aircraft: Autel EVO Max series

Spotlight System

  • Spotlight power: 60 W
  • Lighting angle: 14°
  • Lighting distance: 50 m / 100 m / 150 m
  • Lighting coverage area: 113 m² / 471 m² / 1063 m²
  • Central illuminance: 30 lux / 7 lux / 3 lux
  • Spotlight function: follow gimbal pitch with adjustable brightness levels
  • Adjustable angle: +30° to -90° controllable gimbal

Speaker System

  • Speaker power: 10 W
  • Sound pressure level: 114 dB at 1 meter
  • Broadcast distance: ≥300 m

Environmental Specifications

  • Operating temperature: -10 °C to 50 °C
  • Storage temperature: -20 °C to 60 °C
  • 1x Autel EVO Max Speaker and Spotlight
What is the Autel EVO Max Speaker and Spotlight used for?

The Autel EVO Max Speaker and Spotlight is used to provide aerial illumination and broadcast messages from the drone. The spotlight lights up areas during nighttime operations. The speaker allows operators to communicate warnings or instructions.

Which drones support the Autel EVO Max Speaker and Spotlight?

The Autel EVO Max Speaker and Spotlight is compatible with the Autel EVO Max series. This includes the EVO Max 4T, EVO Max 4N, and EVO Max 4T XE drones. It connects through the aircraft’s PSDK interface.

How far can the Autel EVO Max Speaker and Spotlight illuminate?

The spotlight on the Autel EVO Max Speaker and Spotlight can illuminate targets up to about 150 meters away. The light uses a focused 14-degree beam to concentrate illumination. Operators can adjust brightness depending on mission conditions.

How far can the Autel EVO Max Speaker and Spotlight broadcast sound?

The Autel EVO Max Speaker and Spotlight can broadcast audio up to approximately 300 meters. The speaker produces up to 114 dB of sound pressure at one meter. This allows operators to communicate clearly during public safety missions.

How does the follow gimbal pitch feature work on the Autel EVO Max Speaker and Spotlight?

The follow gimbal pitch feature synchronizes the spotlight with the drone’s camera movement. As the gimbal tilts up or down, the spotlight automatically adjusts its angle. This keeps the illuminated area aligned with the camera’s view.
