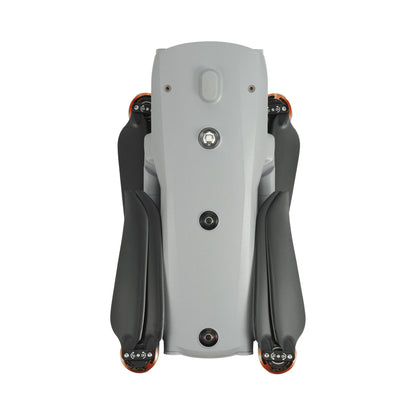

  • Autel EVO Nest + EVO Max 4T XE Image 4

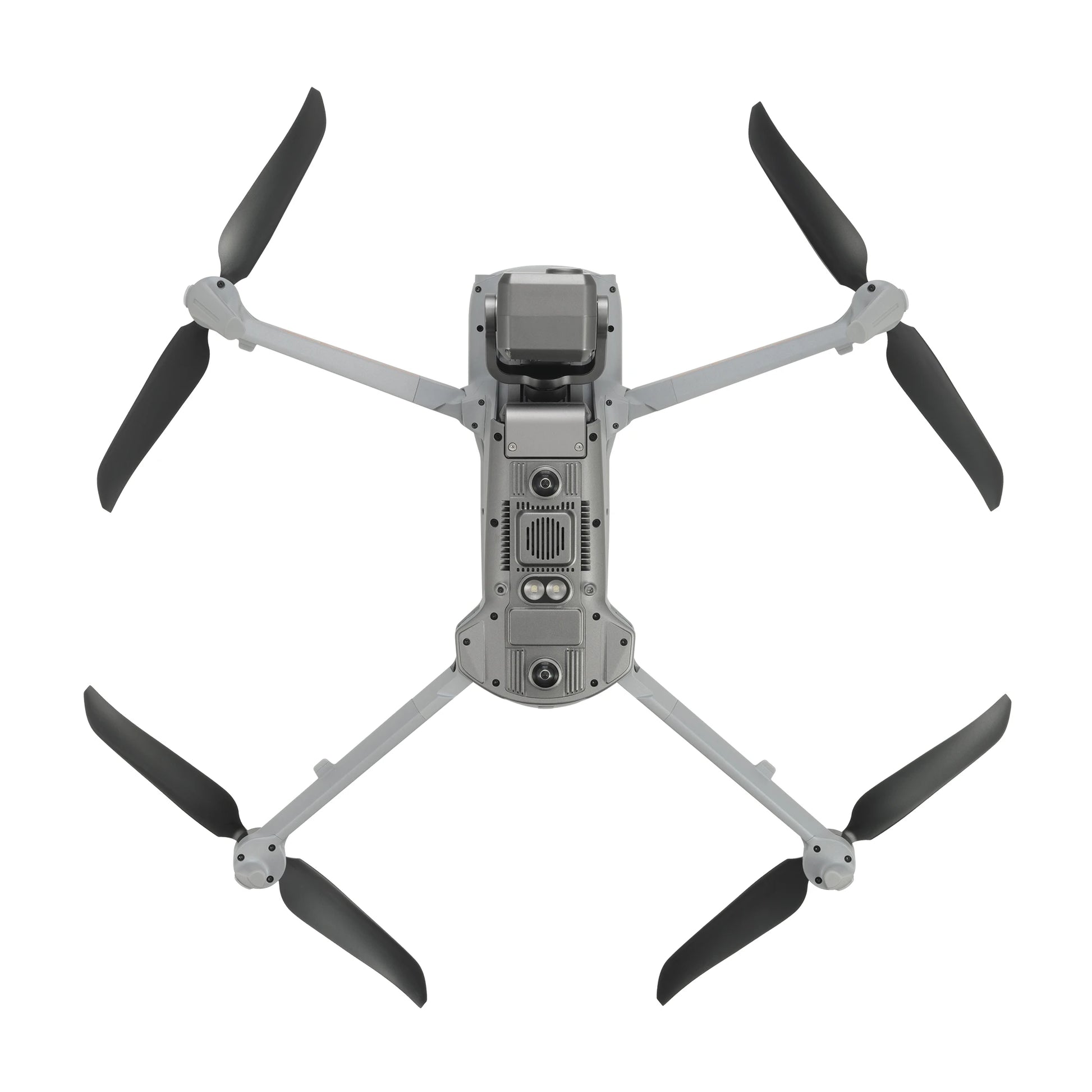

  • Autel EVO Nest + EVO Max 4T XE Image 5
  • Autel EVO Nest + EVO Max 4T XE Image 6

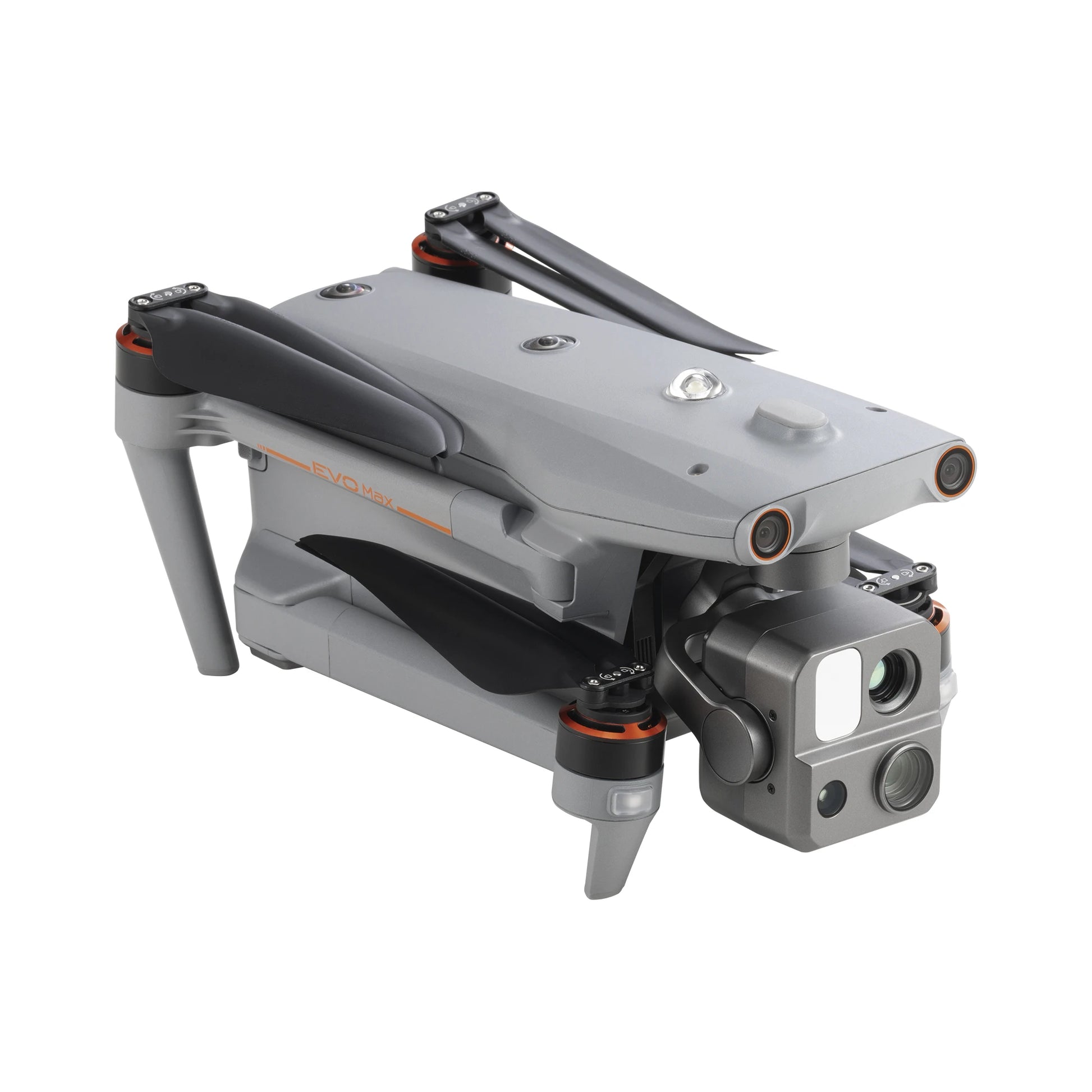

  • Autel EVO Nest + EVO Max 4T XE Image 7
  • Autel EVO Nest + EVO Max 4T XE Image 8
  • Autel EVO Nest + EVO Max 4T XE Image 9

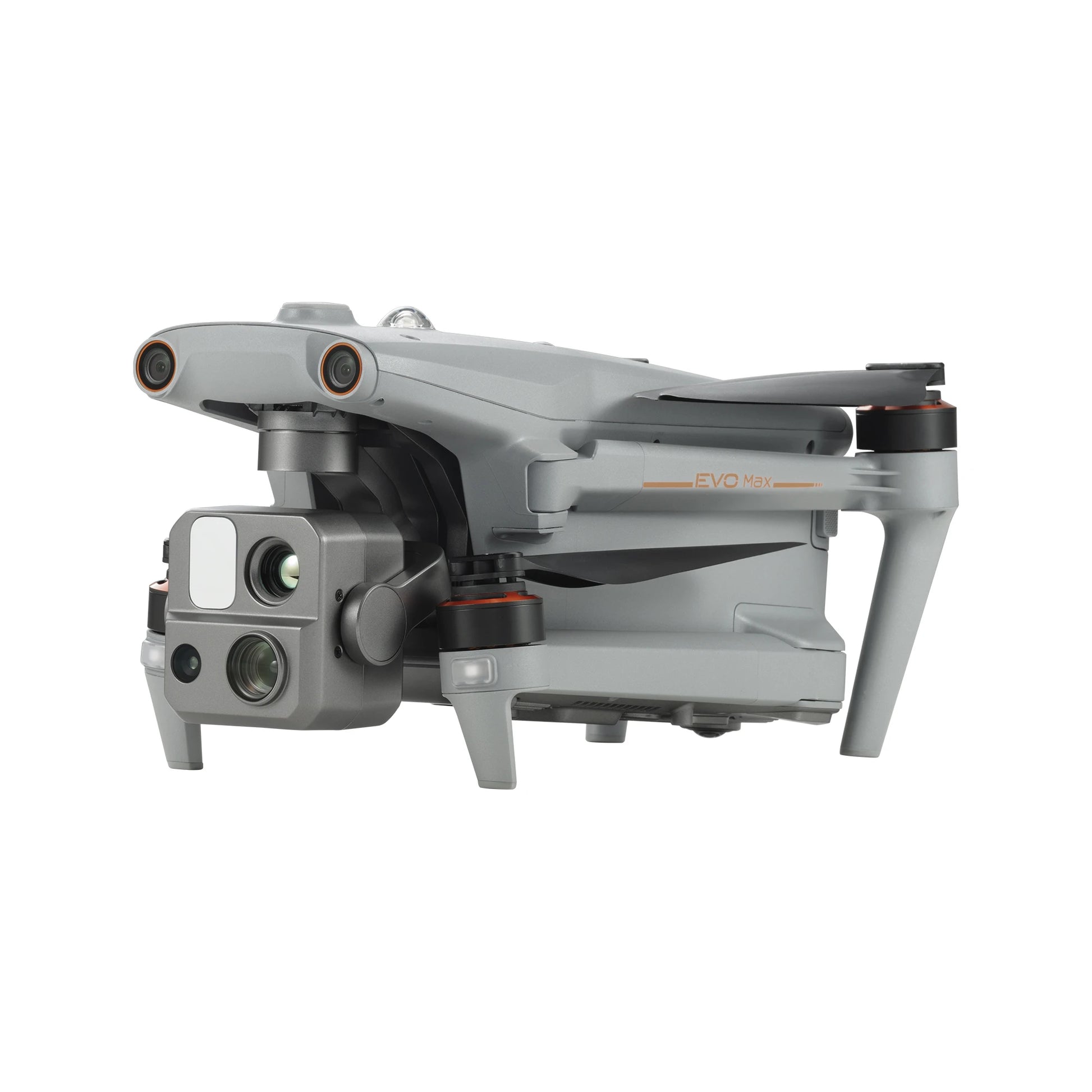

  • Autel EVO Nest + EVO Max 4T XE Image 10
  • Autel EVO Nest + EVO Max 4T XE Image 11

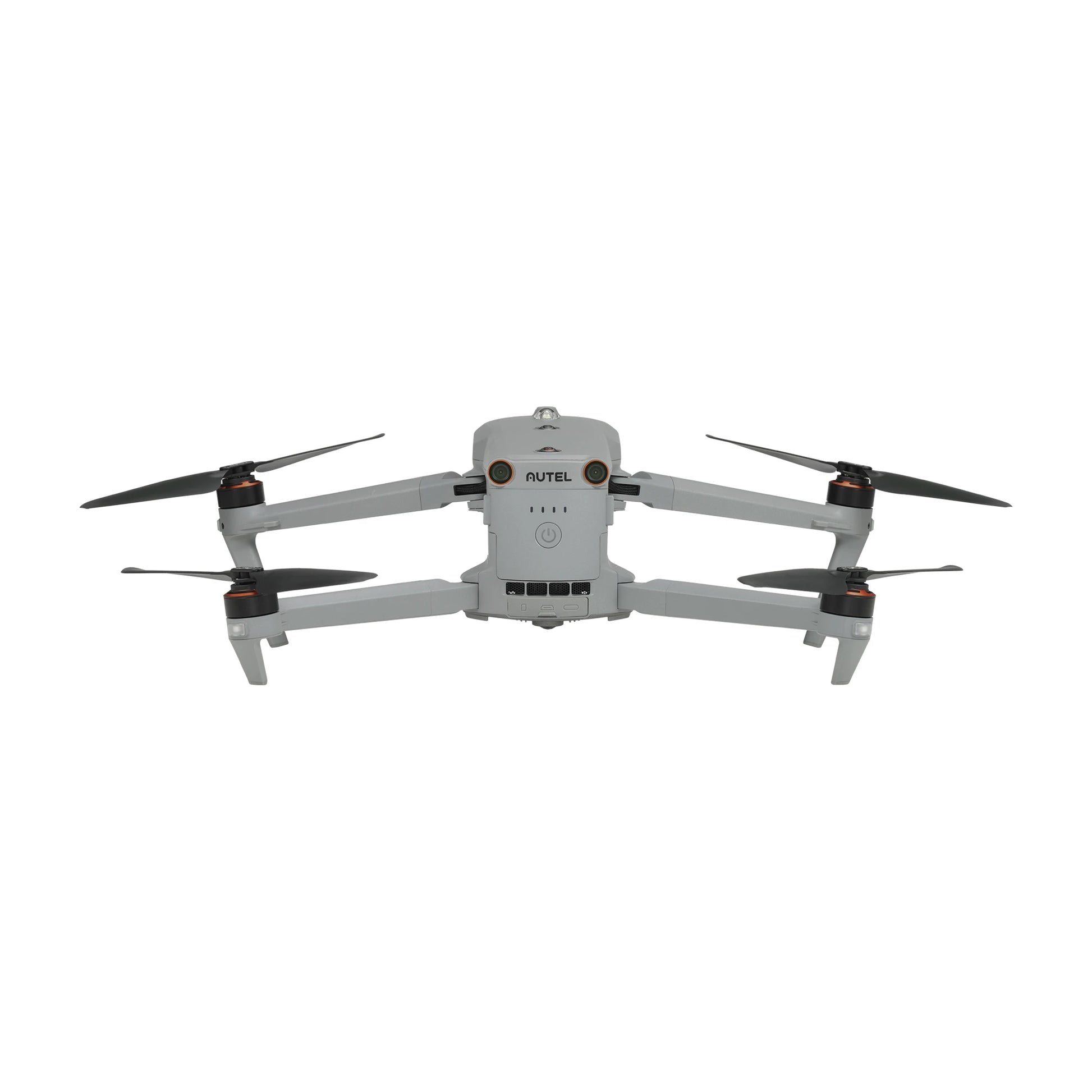

  • Autel EVO Nest + EVO Max 4T XE Image 12
  • Autel EVO Nest + EVO Max 4T XE Image 13

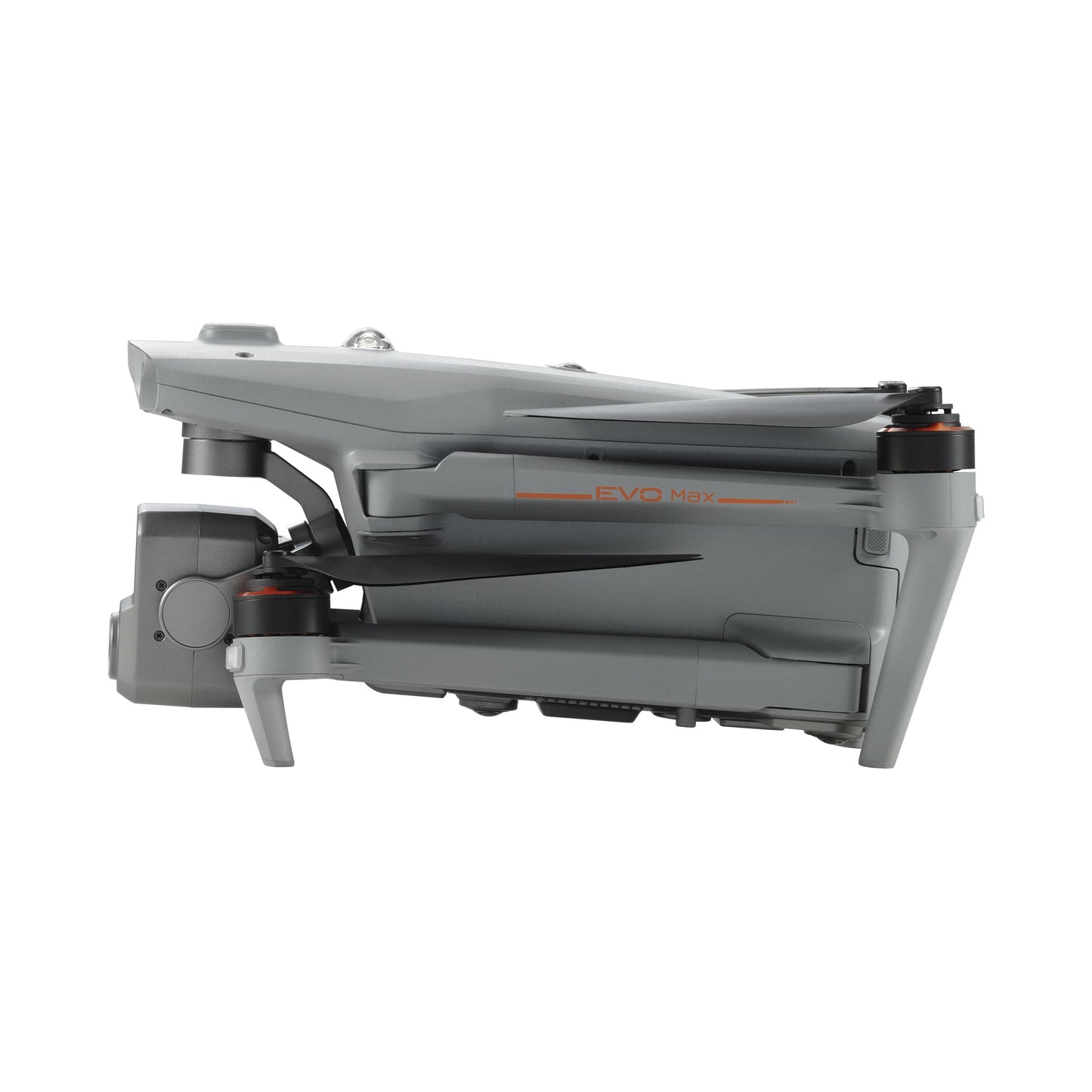

  • Autel EVO Nest + EVO Max 4T XE Image 14
  • Autel EVO Nest + EVO Max 4T XE Image 15
  • Autel EVO Nest + EVO Max 4T XE Image 16
  • Autel EVO Nest + EVO Max 4T XE Image 17
  • Autel EVO Nest + EVO Max 4T XE Image 18

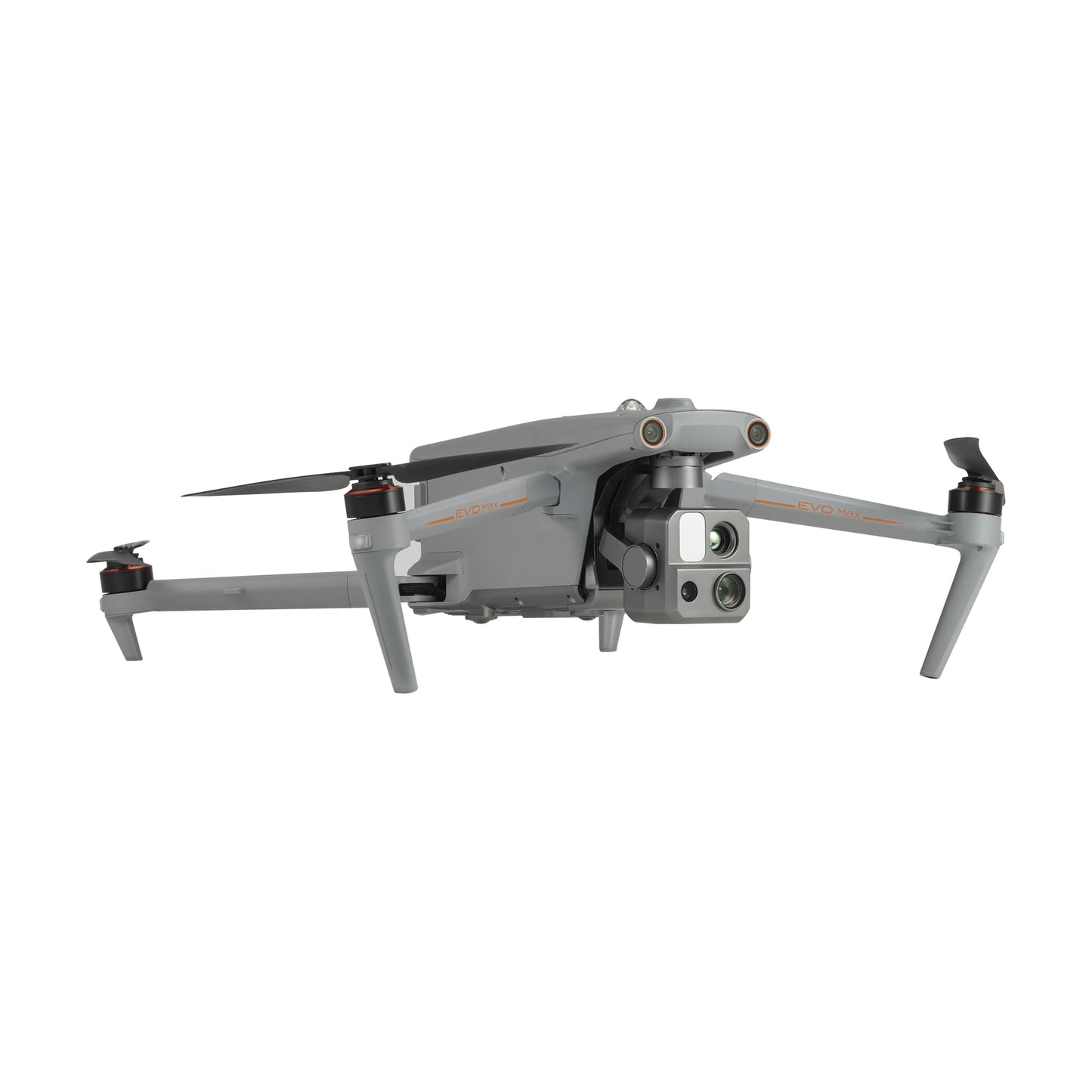

  • Autel EVO Nest + EVO Max 4T XE Image 19
  • Autel EVO Nest + EVO Max 4T XE Image 20
  • Autel EVO Nest + EVO Max 4T XE Image 21
  • Autel EVO Nest + EVO Max 4T XE Image 22

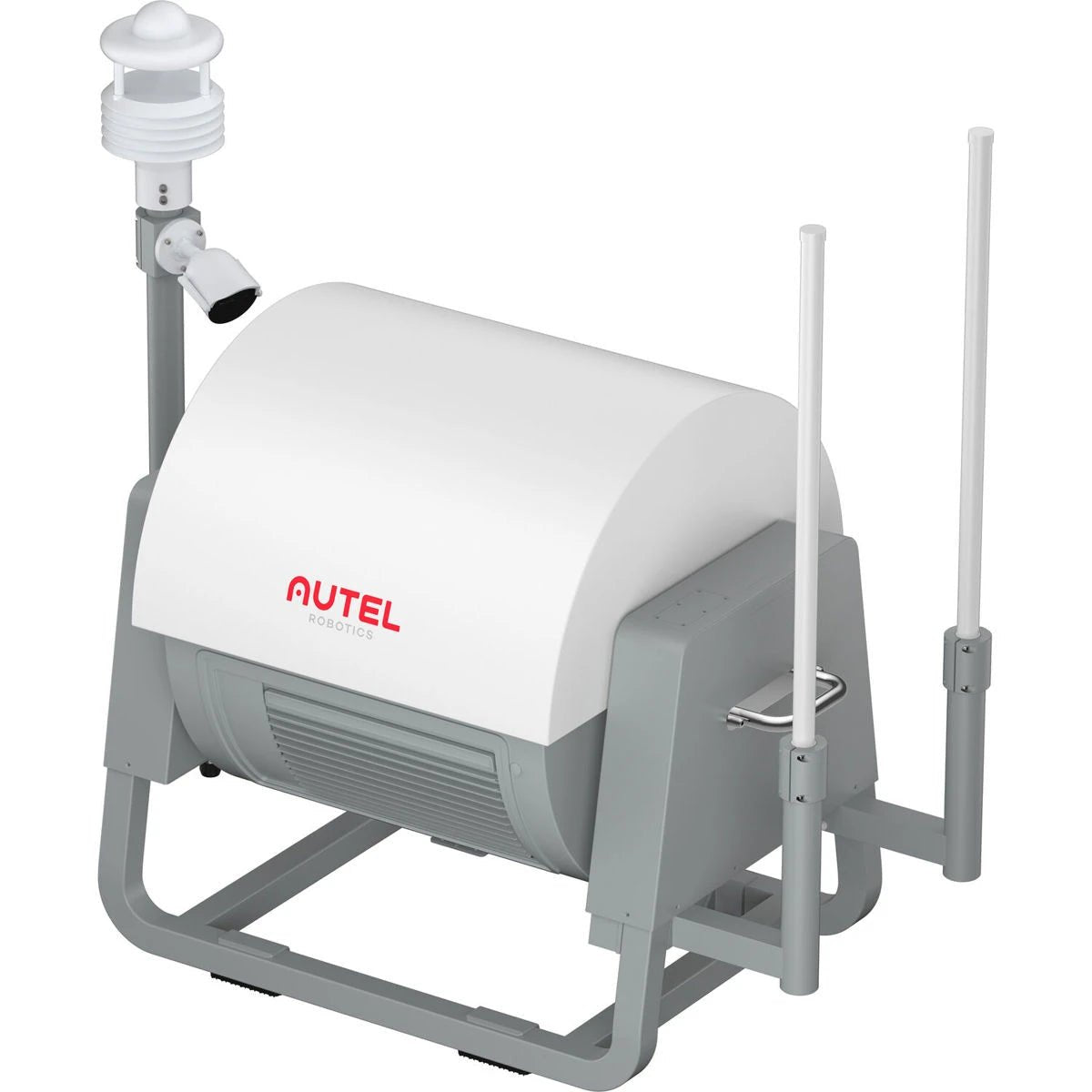

  • Autel EVO Nest + EVO Max 4T XE Image 23
1 23

Autel EVO Nest + EVO Max 4T XE

Autel EVO Nest + EVO Max 4T XE

$31,037.99
$31,037.99
Sale Sold out
SKU B-AR-MAX-NEST MPN 102002213

Autel EVO Max 4T XE (Nest Version)

  • Four-in-one FusionLight gimbal with zoom, wide, thermal, and laser
  • AI-driven object tracking and autonomous flight pathfinding
  • 720° obstacle avoidance for safer autonomous navigation
  • Long-range encrypted video link with SkyLink 3.0
  • 42 minutes of endurance with swappable batteries

Autel EVO Nest

  • Automated docking station with charging and protection
  • Rugged IP55 housing for all-weather operations
  • Integrated weather station for flight planning
  • SkyCommand cloud tools for mission scheduling
  • Expandable network of Nests for regional deployment
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

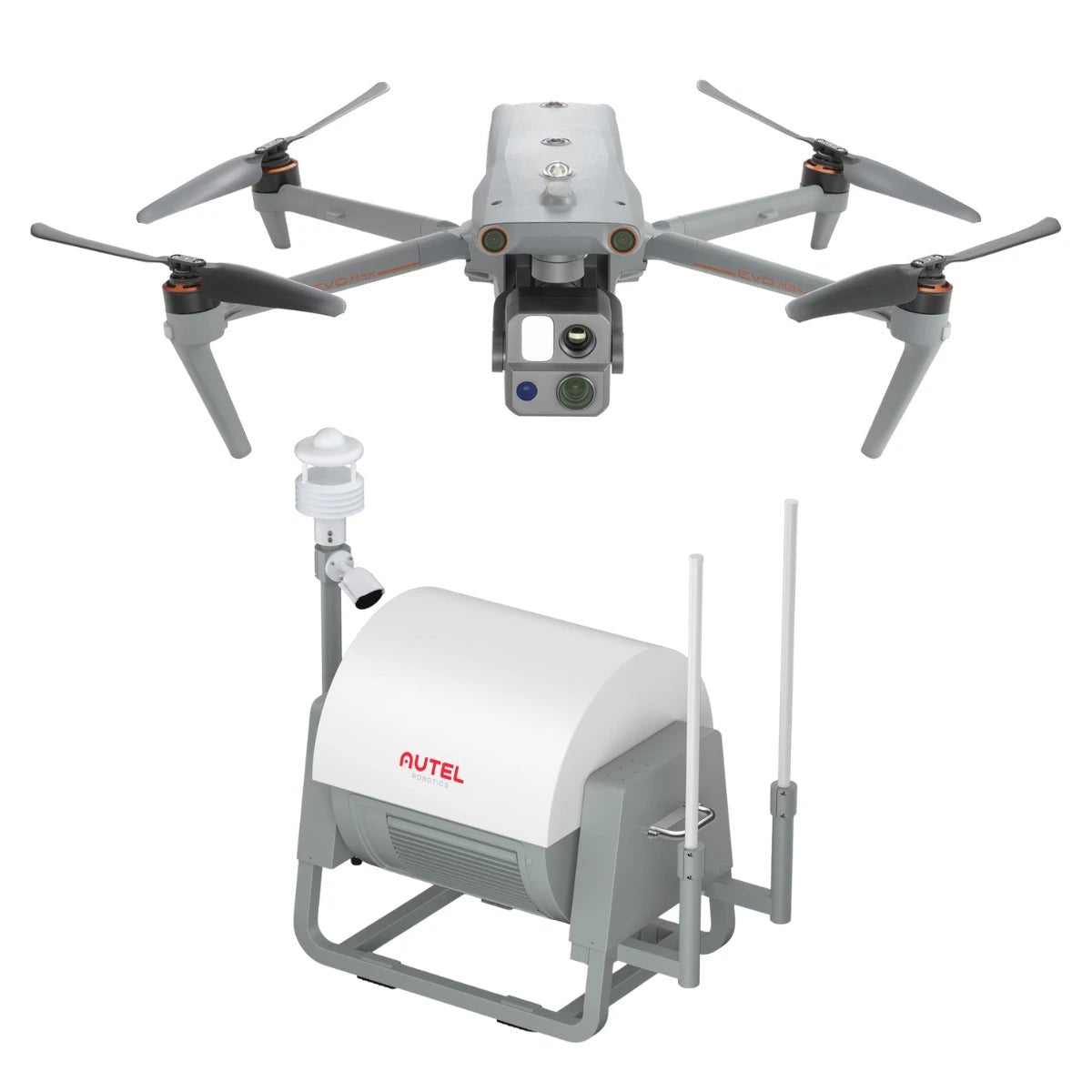

Autel EVO Nest + EVO Max 4T XE: Autonomous Intelligence with Remote-Ready Deployment

The EVO Max 4T XE paired with the EVO Nest delivers an end-to-end autonomous drone solution. Built for enterprise and public sector missions, this bundle combines Autel's most advanced multi-sensor aircraft with a rugged, weatherproof docking station.

The result is a system capable of fully automated deployments, rapid recharging, secure data transmission, and advanced imaging-all managed remotely through Autel's SkyCommand platform.

Core Features and Advantages

Autel EVO Max 4T XE (Nest Version)

  • FusionLight payload: zoom, wide-angle, thermal, and laser in one gimbal
  • 8K imaging and 4K video capture with optical/hybrid zoom
  • Thermal sensor with 640×512 resolution and extended detection range
  • Laser rangefinder with precise distance and coordinate reporting
  • AI object tracking for people, vehicles, and heat sources
  • 720° obstacle avoidance with dual vision and radar support
  • A-Mesh drone-to-drone network for fleet coordination
  • Autonomy Engine with GPS-denied pathfinding and 3D mapping
  • SkyLink 3.0 transmission with AES-256 encryption

Autel EVO Nest

  • Automated launch, landing, and recharging station
  • IP55-rated weather and dust protection
  • Operates in -22°F to 131°F extreme conditions
  • Onboard all-day weather monitoring for mission safety
  • Rapid drone recharge cycle in about 30 minutes
  • Secure cloud-based SkyCommand management platform
  • Supports wired, 4G, and 5G networking options
  • Small footprint, portable by two operators
  • Expandable Nest networks for large-scale deployments

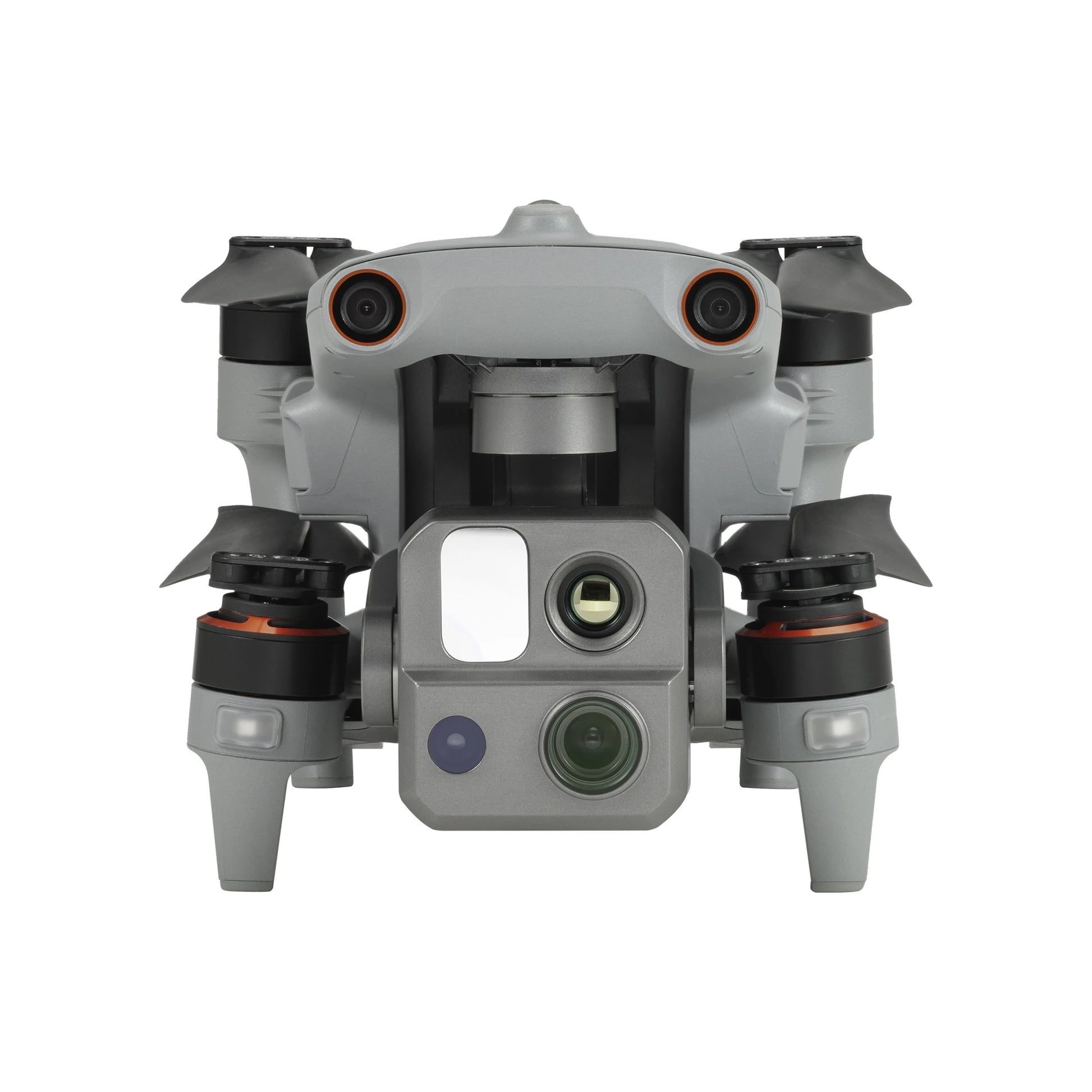

EVO Max 4T XE: Advanced Payload with AI Autonomy

The EVO Max 4T XE is built for versatility. Its FusionLight gimbal provides four sensors in one: high-resolution zoom and wide-angle cameras, a thermal imager, and a laser rangefinder. These tools enable operators to identify, track, and measure targets day or night.

AI object recognition automatically locks onto vehicles, people, or heat sources, while global path planning and SLAM navigation allow the drone to navigate safely in GPS-compromised areas. With 720° obstacle detection, A-Mesh networking for BVLOS missions, and robust anti-jamming protections, the EVO Max 4T XE is equipped for complex industrial and safety operations.

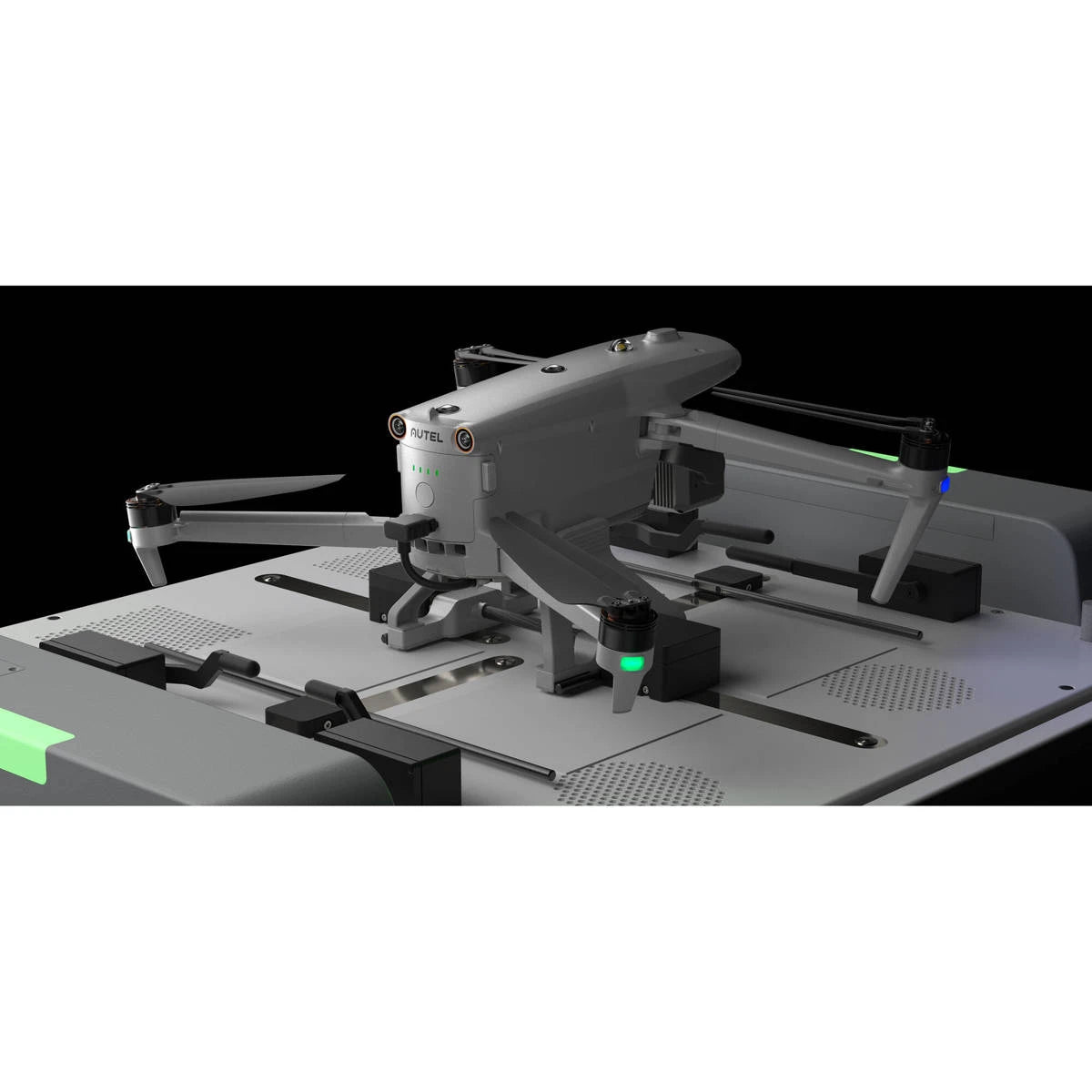

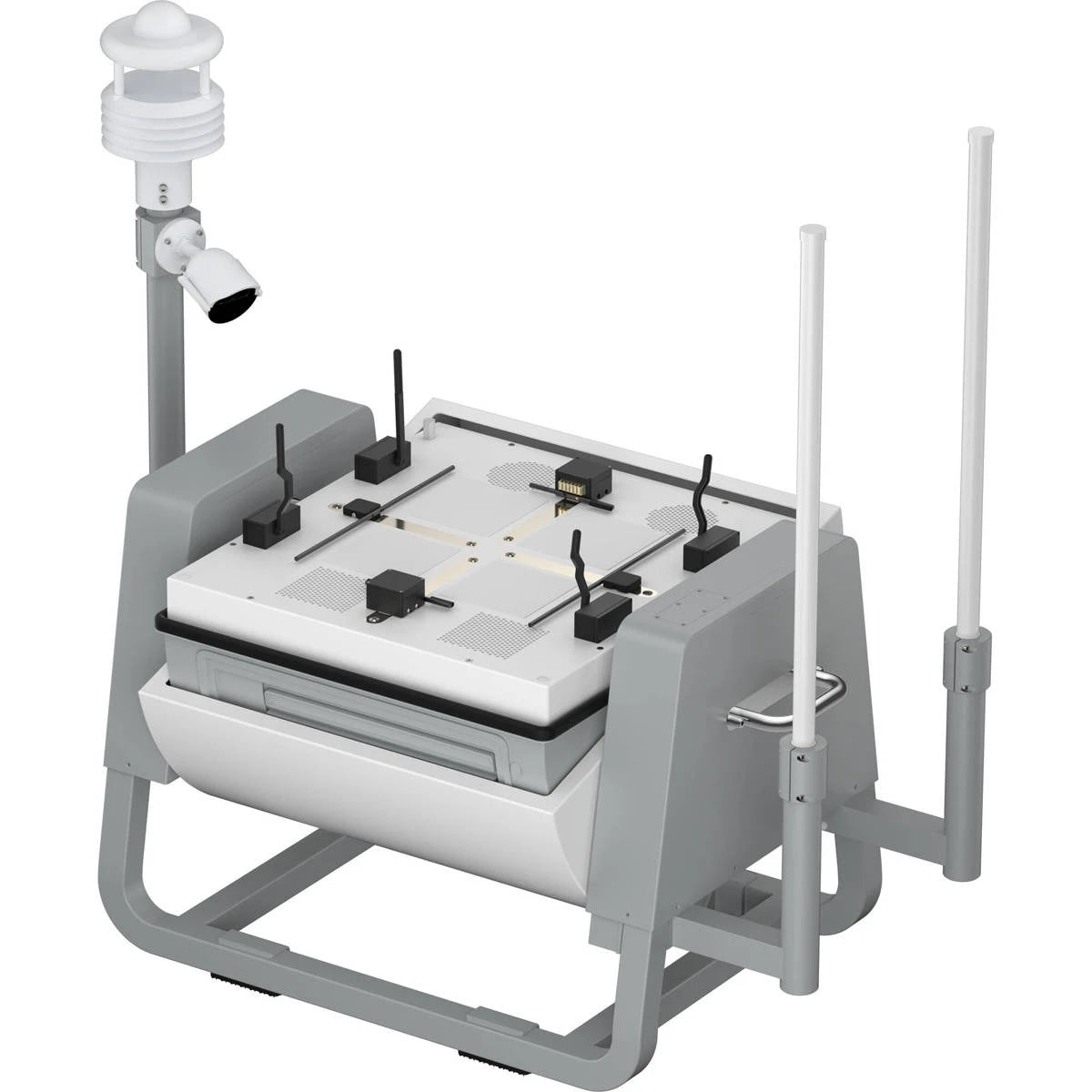

EVO Nest: All-Weather Automation and Cloud Control

The EVO Nest enables the EVO Max 4T XE to function as a fully automated system. This docking station provides secure housing, environmental protection, and intelligent recharging for continuous operations. It can be deployed in remote locations, opening autonomously for launch and closing to recharge and protect the drone upon return.

With IP55-rated durability, resistance to extreme temperatures, and integrated weather monitoring, the Nest ensures operations remain reliable in any climate. Multiple Nests can also be networked for regional coverage, with all data and mission planning managed through the SkyCommand cloud platform.

Hardware and software compatibility

  • EVO Max 4T XE (Nest Model) designed specifically for EVO Nest operation
  • EVO Nest houses, protects, and recharges compatible EVO Max Nest series aircraft
  • SkyCommand cloud platform supports remote mission scheduling and data access
  • SkyLink 3.0 maintains encrypted communication with Smart Controller V3
  • A-Mesh 1.0 enables relay networks and multi-drone coordination
  • Supports wired, 4G, and 5G connectivity for remote access
  • AES-256 encryption protects drone feeds and mission logs
  • Autel SDK enables specialized workflow and industry-specific integrations

Operational scenarios

  • Law Enforcement: Conduct remote missions without on-site pilot presence
  • Utilities: Automate inspections of critical assets with regional Nest coverage
  • Agriculture: Monitor crops through automated mapping flights
  • Surveying: Run repeatable autonomous flight paths for accurate data capture
  • Emergency Response: Station drones regionally for immediate mission launches
  • Industrial Security: Use automated Nests for round-the-clock facility monitoring
  • Public Safety Overwatch: Maintain autonomous coverage over key urban areas
  • Environmental Monitoring: Deploy scheduled flights for ecosystem analysis
  • Construction Tracking: Collect repeat data with consistent flight automation
  • Remote Site Surveillance: Maintain visibility over isolated or unmanned locations

Engineered for enterprise performance

The EVO Max 4T XE and EVO Nest deliver automated capability for organizations that depend on persistent, remote-ready drone coverage. Rugged IP55 protection, extreme temperature tolerance, and encrypted long-range transmission support reliable deployment in demanding environments.

Autonomous navigation, multi-sensor imaging, and A-Mesh collaboration enable continuous mission execution with minimal operator oversight. Paired with SkyCommand for cloud-based oversight, this system provides scalable automation for enterprise operations.

Dronefly is trusted by government agencies, utilities, and enterprises for advanced UAV solutions. As an authorized Autel dealer, we deliver not only the EVO Max + Nest hardware but also expert consultation, program setup, and lifetime support to ensure mission success.

By purchasing from Dronefly, you gain a partner committed to your long-term operational readiness. Deploy autonomy at scale with the EVO Max 4T XE and EVO Nest—designed for nonstop mission capability.

Deploy autonomy at scale with the EVO Max 4T XE and EVO Nest-designed for nonstop mission capability.

Autel EVO Nest

  • Compatibility: Autel Robotics EVO MAX
  • Operating Voltage: AC 110V / 220V

Physical Details

  • Dimensions (Hatch closed): 36.77 x 25.24 x 30.51" (93.39 x 64.10 x 77.49 cm)
  • Dimensions (Hatch open): 36.77 x 25.24 x 21.57" (93.39 x 64.10 x 54.78 cm)
  • Weight: 132 lbs (59.87 kg)

Other

  • UPC Code: 889520204477

Autel EVO Max 4T XE

General

  • Number of Rotors: 4
  • Configuration: Drone with Camera
  • Edition: Standard
  • FAA Registration: Required
  • Features: Camera Included
  • Kit Style: Base
  • Model: EVO Max 4T XE
  • Skill Level: Pro

Aircraft

  • Color: Gray
  • Maximum Flight Time: 42 mins
  • Takeoff Weight: 4.41 lbs (1.9 kg)
  • Max Ascent Speed: 8 m/s
  • Max Descent Speed: 6 m/s
  • Max Horizontal Speed: 22 m/s
  • Max Wind Resistance: 27 mph
  • Max Hovering Time: 40 mins
  • Max Pitch Angle: 300°
  • Max Tilt Angle: 35°
  • Max Flight Distance: FCC: 20 km, CE: 7 km
  • Max Angular Velocity: Pitch: 300°/s; Yaw: 120°/s
  • GNSS: GPS + GLONASS + Galileo + Beidou
  • Hovering Accuracy: ±0.1 m (Vision), ±0.3 m (GPS), ±0.15 m (RTK); Horizontal: ±0.15 m (Vision), ±0.3 m (GPS)
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • IP Rating: IP43
  • Internal Storage: 128 GB

Camera

  • Video Resolution: Zoom: 7680×4320, Wide: 3840×2160, Thermal: 640×512
  • Image Sensor: Zoom: 1/2" CMOS, 48 MP; Wide: 1/1.28 CMOS, 50 MP
  • Lens: Zoom: 11.8–43.3 mm (64–234 mm equiv.), f/2.8–f/4.8; Wide: DFOV 85°, 4.5 mm (23 mm equiv.), f/1.9; Thermal: DFOV 64°, 13 mm, f/1.2
  • ISO Range: Zoom: Auto 100–6400, Manual Photo 100–12800, Video 100–6400; Wide: Auto Photo 100–6400, Video up to 64000 (night mode)
  • Shutter Speed: Zoom: Photo 8s–1/8000s, Video 1s–1/8000s; Wide: Photo 8s–1/8000s, Video 1s–1/8000s
  • Max Image Size: Zoom: 8000×6000; Wide: 8192×6144, 4096×3072; Thermal: 640×512

Gimbal

  • Stabilization: 3-axis mechanical (pitch, tilt, roll)
  • Mechanical Range: Pan -135° to 45°, Tilt -45° to 45°, Roll -100° to 100°
  • Controllable Range: -90° to 45°
  • Max Tilt Speed: 200°/s
  • Angular Vibration: <0.005°

Sensing

  • Type: 60G millimeter-wave radar
  • Forward: 0.3 m
  • Backward: 50 m
  • Upward: 0.3–20 m
  • Downward: 0.15–80 m
  • Environment: 60 GHz: All-weather, glass, water, wires, trees; 24 GHz: Downward sensing varies by surface

Video Transmission

  • Frequencies: 2.4G / 5.2G / 5.8G / 900 MHz
  • Transmitter Power (EIRP): 2.4 GHz <33 dBm (FCC), 20 dBm (CE); 5.8 GHz: 33 dBm (FCC), <30 dBm (SRRC); 5.15–5.35 GHz: <30 dBm
  • Max Distance: 20 km

Battery

  • Capacity: 8070 mAh
  • Voltage: 14.88 V
  • Material: LiPo 4S
  • Energy: 120 Wh
  • Quantity: 1

Remote Controller

  • Display: 7.9-inch smart controller
  • Battery Life: 3 hrs (max brightness), 4.5 hrs (50%)
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C)

Physical

  • Dimensions: Folded w/ props: 22.6×25.9×5.8", Folded no props: 13.3×16×5.8", Unfolded: 10.1×5.3×5.23"
  • Weight: 3.5 lbs (1.6 kg)

Other

  • UPC Code: 889520217996

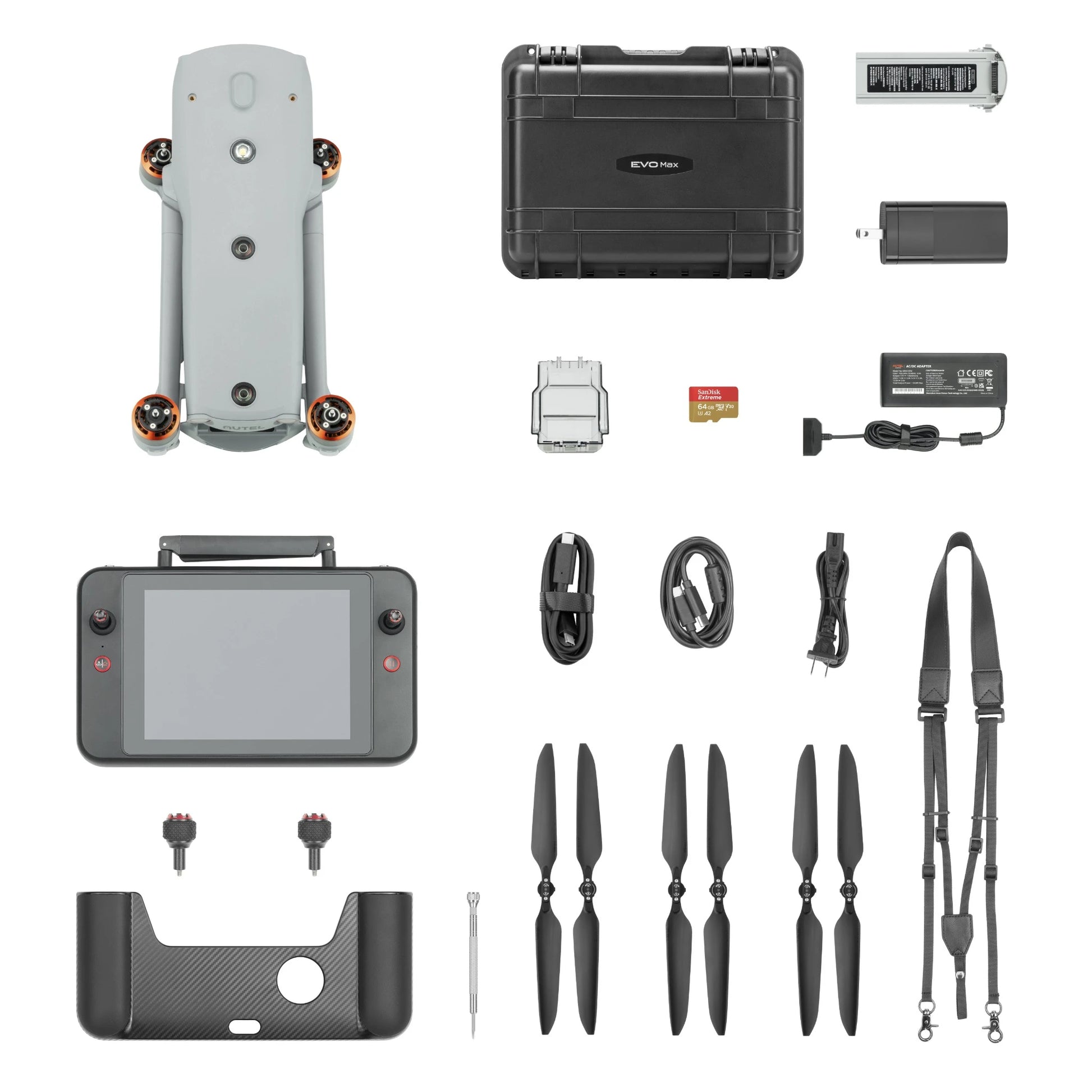

  • 1× Autel Robotics EVO Max 4T XE Bundle for EVO Nest
  • 1× FusionLight 4T XE Gimbal Camera
  • 1× Stand for EVO Nest
  • 1× Smart Controller V3
  • 1× Rugged Case
  • 1× Pair of Spare Propellers
  • 1× Flight Battery
  • 1× Battery Charger
  • 1× RC Charger
  • 1× 64GB SD Card
  • 1× Gimbal Cover
  • 1× Data Cable
  • 1× RC Charging Cable
  • 1× Smart Controller Cover
  • 1× Pair of Spare Smart Controller Joysticks
  • 1× Smart Controller Lanyard
  • 1× Limited 1-Year Manufacturer Warranty
  • 1× Autel Robotics EVO Nest Automatic Charging Station
  • 1× Cables
  • 1× Tools
  • 1× Autel Robotics 1 Year Limited Warranty
What capabilities does the Autel EVO Nest + EVO Max 4T XE provide for remote deployments?

It enables automated launch, landing, and recharging through the EVO Nest, while the EVO Max 4T XE provides multi-sensor imaging, AI tracking, and autonomous navigation.

How weather-resistant is the Autel EVO Nest + EVO Max 4T XE system?

The Nest is IP55-rated and operates from -22°F to 131°F, ensuring stable performance in harsh outdoor environments.

Does the Autel EVO Nest + EVO Max 4T XE support GPS-denied flights?

Yes. SLAM navigation and AI-based pathfinding allow the drone to operate indoors, through corridors, or in areas with GPS disruption.

What communication features does the Autel EVO Nest + EVO Max 4T XE offer?

SkyLink 3.0 provides encrypted 1080p60 video transmission up to 12.4 miles, supported by AES-256 encryption.

Can the Autel EVO Nest + EVO Max 4T XE manage multi-drone operations?

Yes. A-Mesh networking enables drones to act as relays, enabling BVLOS operations and coordinated multi-aircraft missions.
