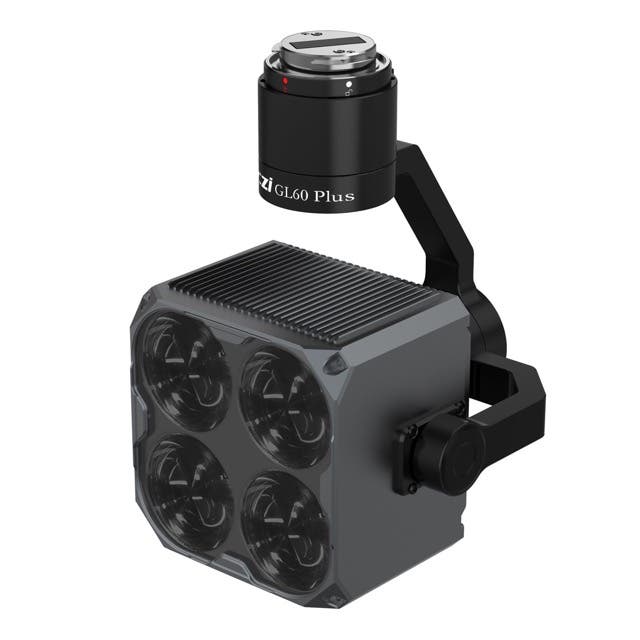

CZI GL60 Plus SDK Gimbal Spotlight for DJI M300/M350 RTK

CZI GL60 Plus Gimbal Spotlight for DJI M300/M350/M400 RTK: High-intensity optical lighting for enterprise missions

The CZI GL60 Plus is a high-output gimbal spotlight engineered for DJI M300, M350, and M400 RTK platforms. Using a 120 W LED module and precision optical lens groups, it produces powerful, uniform illumination suitable for search, inspection, and emergency operations.

Its reflector-free design, linear dimming system, and compact 750 g sealed housing deliver dependable performance when mission visibility is critical.

Key illumination capabilities

• High-power LED output: Produces bright illumination for nighttime mission visibility.
• Linear brightness control: Adjusts intensity precisely for operational requirements.
• Reflector-free optical system: Eliminates sub-spots for clean, uniform lighting.
• Emergency strobe mode: Provides enhanced signaling cues during urgent missions.
• Four-lens imaging module: Delivers improved optical clarity and beam uniformity.
• Fifteen-degree beam angle: Focuses light for long-distance target illumination.
• Fully sealed housing: Protects internal components from harsh environments.
• Lightweight 750 g mass: Supports stable aircraft hovering and maneuverability.

Precision optics with controlled illumination output

Four sets of imaging optical lenses generate a clean 15-degree beam with no reflector sub-spots, ensuring consistent brightness across the illuminated area. At 100 meters, the GL60 Plus provides 24 lux of ground illumination, supporting long-range visibility.

The strong-light strobe mode enhances signaling and safety, while linear dimming allows accurate brightness control during complex nighttime missions.

Compact, lightweight, and operationally efficient

Weighing only 0.7 kg, the GL60 Plus preserves aircraft stability and hover duration for extended night operations. Its fully sealed body increases durability in challenging environments, while SkyPort V2.0 ensures secure mechanical and electrical integration. Supporting multiple power configurations up to 128 W, the GL60 Plus is optimized for enterprise teams requiring strong, consistent light output.

System setup and operational compatibility

• Compatible with DJI M300 RTK, M350 RTK, and M400 RTK platforms.
• Integrated via DJI SkyPort V2.0 mounting interface.
• Supports PSDK 17 V + OSDK 24 V or PSDK 17 V modes.
• Draws up to 128 W total system power depending on configuration.
• Compact dimensions allow flexible payload combinations during missions.

Mission scenarios and industry applications

• Search and rescue: Illuminate terrain and improve target visibility at range.
• Night inspection: Light structures and components for clear nighttime assessment.
• Public safety: Support tactical visibility during coordinated field operations.
• Emergency response: Provide illumination for low-light disaster environments.
• Critical infrastructure: Aid utility and industrial inspection teams at night.
• Environmental monitoring: Support nighttime observation and field sampling tasks.
• Construction surveys: Illuminate work areas for late-hour progress evaluation.
• Training missions: Simulate real-world lighting scenarios for operator development.

Engineered for enterprise performance

Built for demanding nighttime missions, the GL60 Plus enhances operational safety and visibility with precision optics, strong illumination power, and lightweight construction. Its reflector-free design and sealed housing ensure reliability across diverse field conditions. Integrated for the M300, M350, and M400 RTK, it delivers professional-grade lighting performance for enterprise teams.
