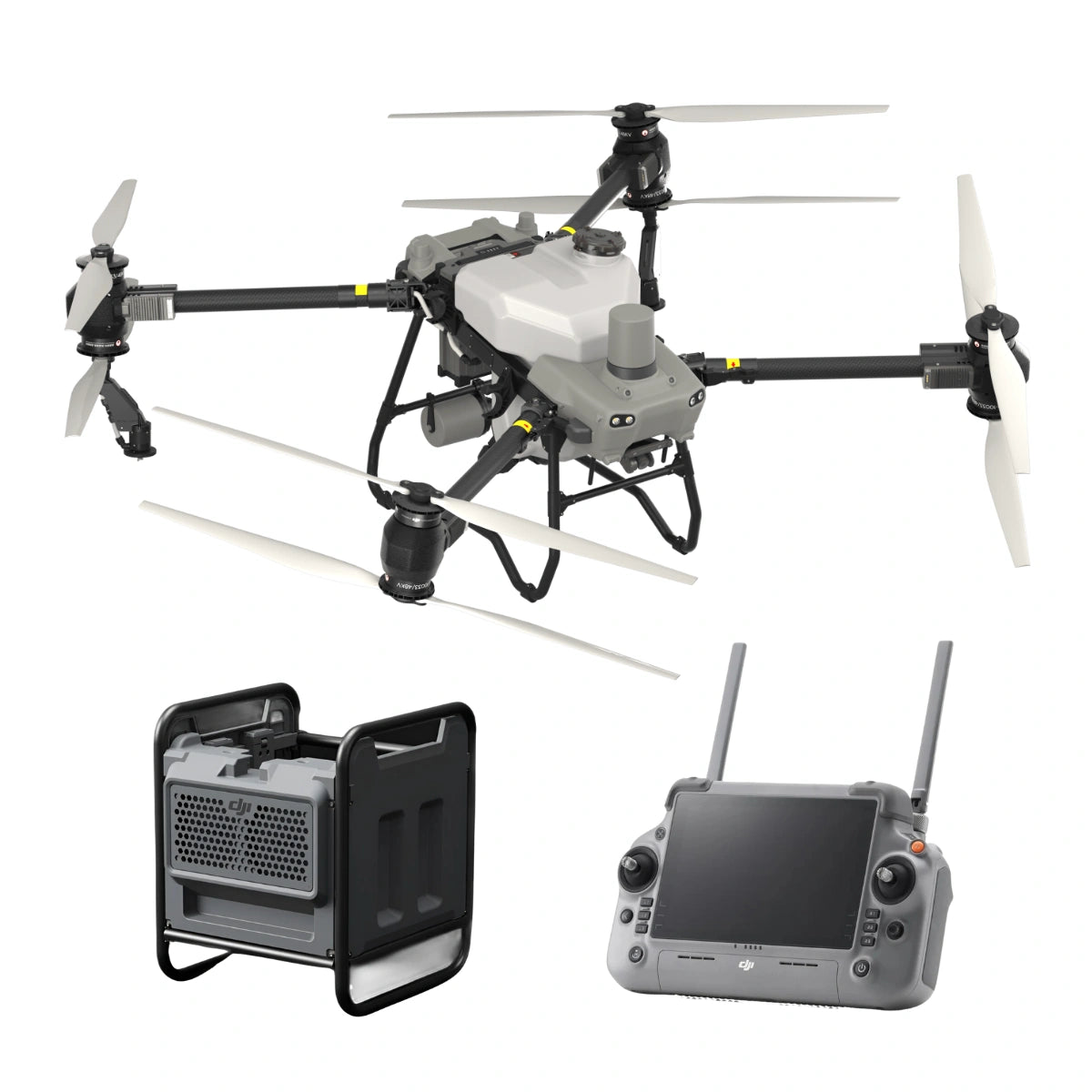

DJI Agras T50 with Heat Sink

DJI Agras T50 with Heat Sink: High-output agricultural spraying with advanced sensing

The DJI Agras T50 with Heat Sink is engineered for agricultural teams that require efficient crop spraying, robust safety systems, and high-volume field coverage. Featuring a 40-liter spray tank, centrifugal nozzles, and a coaxial twin-rotor platform, the system delivers precise droplet application across large acreage.

This package includes the Agras T50 drone, the RC Plus controller, and the T50/T40 Air-Cooled Heat Sink to support continuous operation during busy spraying seasons, making it a field-ready solution for commercial growers and agronomists.

Core features and operational advantages

• Coaxial twin-rotor configuration: maintains lift efficiency under spraying load.
• Forty-liter spray payload capacity: supports significant field coverage per sortie.
• Centrifugal nozzle system: delivers consistent 50–500 µm droplet sizes.
• Up to eleven-meter spray width: improves pass efficiency and coverage rate.
• Integrated 12-MP FPV camera: enhances onboard visibility and alignment.
• Multi-directional radar coverage: improves awareness during low-altitude flights.
• Binocular vision sensing: assists precise distance measurement over crops.
• RTK-added hovering precision: supports repeatable spraying mission patterns.
• Foldable structure: simplifies transportation and seasonal storage.
• Heat sink cooling support: stabilizes battery temperatures during charging.

Advanced spraying capability for high-demand field operations

The Agras T50 achieves extended coverage through a high-volume spray system, a stable dual-rotor lift design, and adjustable droplet control. Its centrifugal nozzles produce consistent droplets ranging from 50–500 µm while the aircraft maintains an effective spray width of up to 11 meters.

Under standard field parameters, operators can reach up to 52 acres per hour, enabling efficient management of large plots or multi-field operations. The coaxial twin-rotor design preserves lift capacity under load and enhances stability during variable wind conditions.

Integrated flight safety, sensing, and control for agricultural missions

The Agras T50 enhances terrain awareness using phased-array radar modules and binocular vision sensors that maintain obstacle detection across forward, rearward, and downward arcs. Operators using D-RTK (sold separately) benefit from a ±10 cm hovering accuracy that supports precise spray path repetition.

The RC Plus controller provides a 7.02-inch daylight-readable display, long battery life, and dual-band transmission for reliable operation in rural environments. Built-in Wi-Fi 6 and Bluetooth 5.1 help maintain connectivity throughout mission workflows, even during extended field operations.

System connectivity and workflow compatibility

• RC Plus controller uses OcuSync for low-latency video transmission.
• Supports DJI D-RTK units for enhanced positioning.
• Heat Sink designed for T50/T40 batteries during charging operations.
• Supports extended storage via microSD through the RC Plus.
• Uses dual-band 2.4/5.8 GHz for reliable link performance.
• Wi-Fi 6 and Bluetooth 5.1 maintain stable device communication.

Agricultural use cases and field-ready missions

• Large-area spraying: accelerates operations in broad-acre farming.
• Precise chemical distribution: supports targeted pesticide application.
• Foliar nutrient spraying: improves uniform nutrition absorption.
• Crop protection cycles: reduces downtime between scheduled treatments.
• Dense vegetation spraying: maintains flow and coverage through canopy.
• Orchard applications: handles varied heights and uneven terrain.
• Seasonal workload management: enhances speed during high-demand periods.
• Soil treatment spraying: supports consistent pre-emergent applications.
• Multi-field operations: reduces labor and repeat passes during cycles.
• Contract-based agricultural spraying: maximizes output for service providers.

Engineered for enterprise performance

The Agras T50 integrates robust flight hardware with a powerful safety and sensing suite suited for consistent agricultural deployment. Its twin-rotor propulsion generates the lift needed for heavy spray loads while maintaining flight stability.

Operators benefit from reliable link performance through the RC Plus controller and extended connectivity options for field workflows. The included Heat Sink supports efficient cooling during battery charging to maintain operational continuity during sustained agricultural missions.

The DJI Agras T50 with Heat Sink offers high-output spraying capability and dependable performance built for modern agricultural requirements. Its robust construction and advanced controls help streamline field operations and support large-scale crop care work.

Dronefly is a trusted West Coast supplier of enterprise UAV solutions, providing professional guidance, post-sale support, and technical expertise for agricultural teams.

Order from Dronefly today — the West Coast’s trusted enterprise UAV source.
