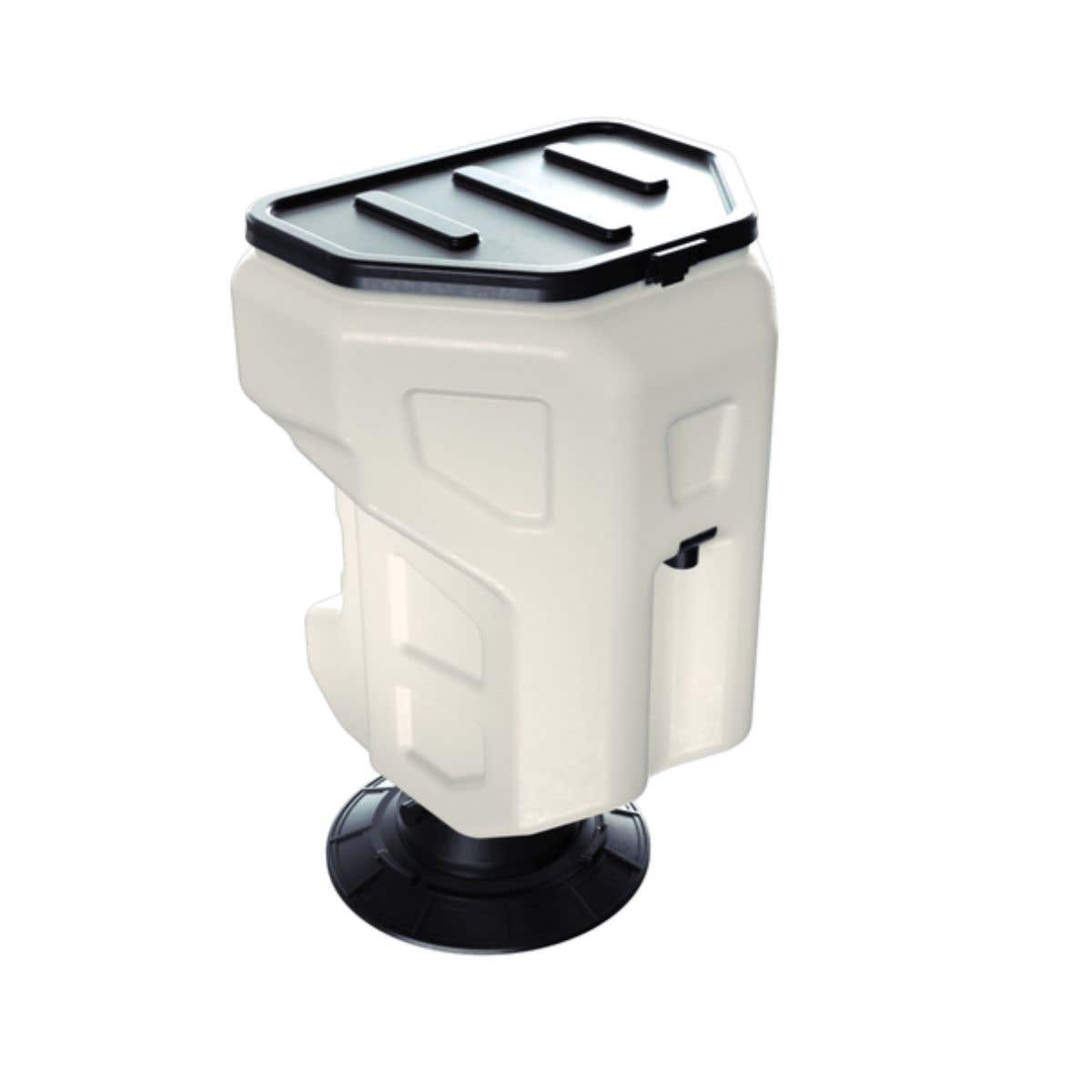

DJI Agras T50 Spreading System

DJI Agras T50 Spreading System

$2,399.00
$2,399.00
Sale Sold out
SKU S-DJI-AG-T50-SS MPN CP.AG.00000780.02 UPC 190021078338
  • High-throughput spreading efficiency of up to 1,500 kg per hour.
  • Massive 75 L spread tank with a 50 kg (110 lbs) internal weight capacity.
  • Maximum flow rate of 108 kg per minute for rapid field application.
  • Spiral channel spinner disk designed for smooth and highly uniform spreading.
  • Integrated weight sensors for real-time payload monitoring and empty tank alerts.
  • Fast-disassembly design for easy cleaning and routine maintenance.
  • Compatible with dry materials ranging from 0.5 to 5 mm in diameter.
  • Protective fenders included to block upward-flying material from the propellers.
  • Dual-hopper gate support for optimized high-rate and low-rate spreading.
  • Robust IP67-rated construction for durability in harsh field conditions.
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Agras T50 Spreading System: Professional High-Throughput Spreading

The DJI Agras T50 Spreading System is an industrial-grade attachment that enables high-speed, uniform distribution of dry agricultural materials. Optimized for the Agras T50 airframe, this system features a double-torque spreader motor and an enlarged discharge hatch to handle the most demanding application rates. The 75 L tank is equipped with an expanded loading gate to facilitate fast refills, while the spiral channel spinner disk significantly improves the smoothness of the spread pattern. This system is essential for agricultural service providers who require a reliable, high-capacity tool for fertilizer application, cover cropping, and pasture seeding.

DJI Agras T50 Spreading System overview

  • High-capacity hardware: supports a 50 kg (110 lbs) payload with a large 75 L tank volume.
  • Optimized spreading: spiral spinning disk technology delivers a more uniform and consistent coverage.
  • Extreme flow performance: handles up to 108 kg per minute for high-speed agricultural applications.
  • Precision weighing: real-time sensors provide accurate material levels and mission status updates.
  • Quick-change maintenance: spreader module can be rapidly disassembled for thorough washing and service.
  • Adjustable output: interchangeable hopper gates allow for both high-flow and low-flow precision.
  • Airframe protection: integrated fenders safeguard propellers from high-velocity granular impact.
  • Weather-ready design: rated at IP67 to withstand the dust and moisture of field operations.
  • Industrial throughput: capable of spreading 1,500 kg of material per hour for maximum field coverage.

The DJI Agras T50 Spreading System provides the structural and electronic foundation for efficient, large-scale dry material application. It effectively solves the challenge of manual or low-capacity spreading by providing a fully automated, high-throughput solution that integrates perfectly with the DJI ecosystem. This accessory ensures your agricultural results are professional, uniform, and delivered with the highest operational speed.

As you look to scale your agricultural fleet, Dronefly offers the technical expertise and hardware support to keep your operations moving forward. We specialize in providing the critical equipment that allows your Agras platform to transition seamlessly between spraying and spreading. Solidify your equipment roadmap and purchase your DJI Agras T50 Spreading System through Dronefly.

  • Weight of spreading system (including spreading tank and fenders): 6.0 kg
  • Spreading tank volume: 75 L
  • Spreading tank internal load: 50 kg
  • Diameter of compatible material: 0.5-5 mm
  • Spreading range: This varies according to material diameter, disk rotation speed, rotating disk rotation speed, hopper outlet size and flight altitude. For optimum performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 4.5-7 meters.
  • 1x DJI Agras T50 Spreading System
How is the T50 Spreading System installed on the aircraft?

The spreading system replaces the standard spray tank on the Agras T50. You must remove the spray tank and hoses, lift the spray tank out, and then insert the spreading system at an angle. Ensure the spreading system cable is securely connected to the aircraft's control port before powering the device back on.

What materials are compatible with this spreading system?

The system is designed for dry, granular materials with a diameter between 0.5 mm and 5 mm. This includes most common fertilizers, seeds, and dry feed. Do not use the system with wet materials or granules outside of this size range, as it may damage the spreader or affect performance.

Is the spinner disk a permanent part or a consumable?

The spinner disk is considered a consumable part because it is subject to wear from high-velocity material contact. You should inspect the disk regularly for signs of severe wear or deformation. If the spread pattern becomes uneven, follow the maintenance guide to replace the disk with a new one.

How do I prevent the spreader from clogging?

To ensure smooth spreading, always use dry, free-flowing materials. After every mission, use the quick-release feature to remove the spreader base and clean out any residual dust or granules. Regular cleaning prevents material buildup that can increase motor torque and lead to clogs.

Does the spreading system affect the drone's flight stability?

The system is designed to mount centrally to maintain the aircraft's balance. Additionally, the DJI Agras app intelligently recommends payload limits based on the current aircraft status. By staying within these recommended limits, the Matrice 350 RTK or Agras T50 will maintain its stability and maneuverability.
