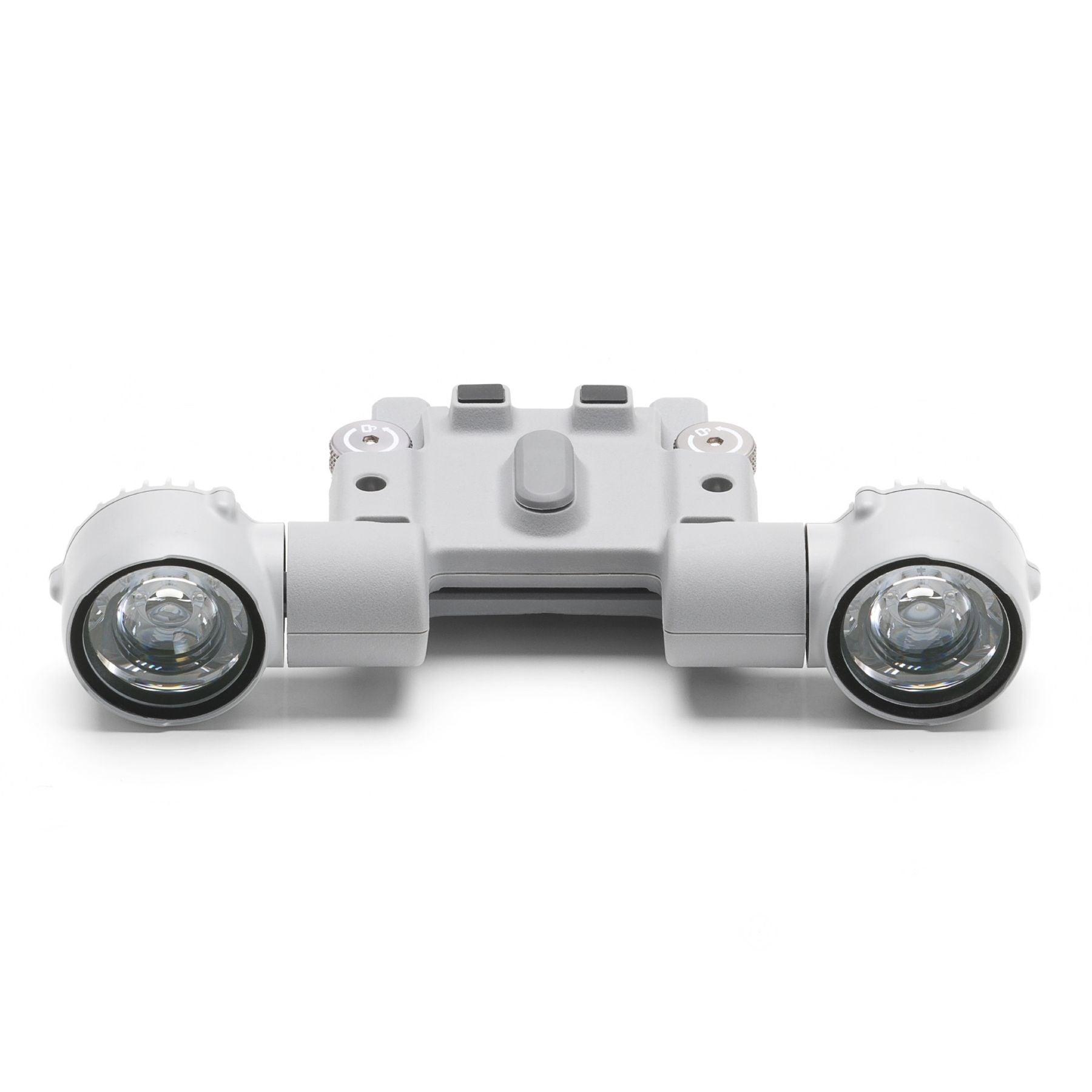

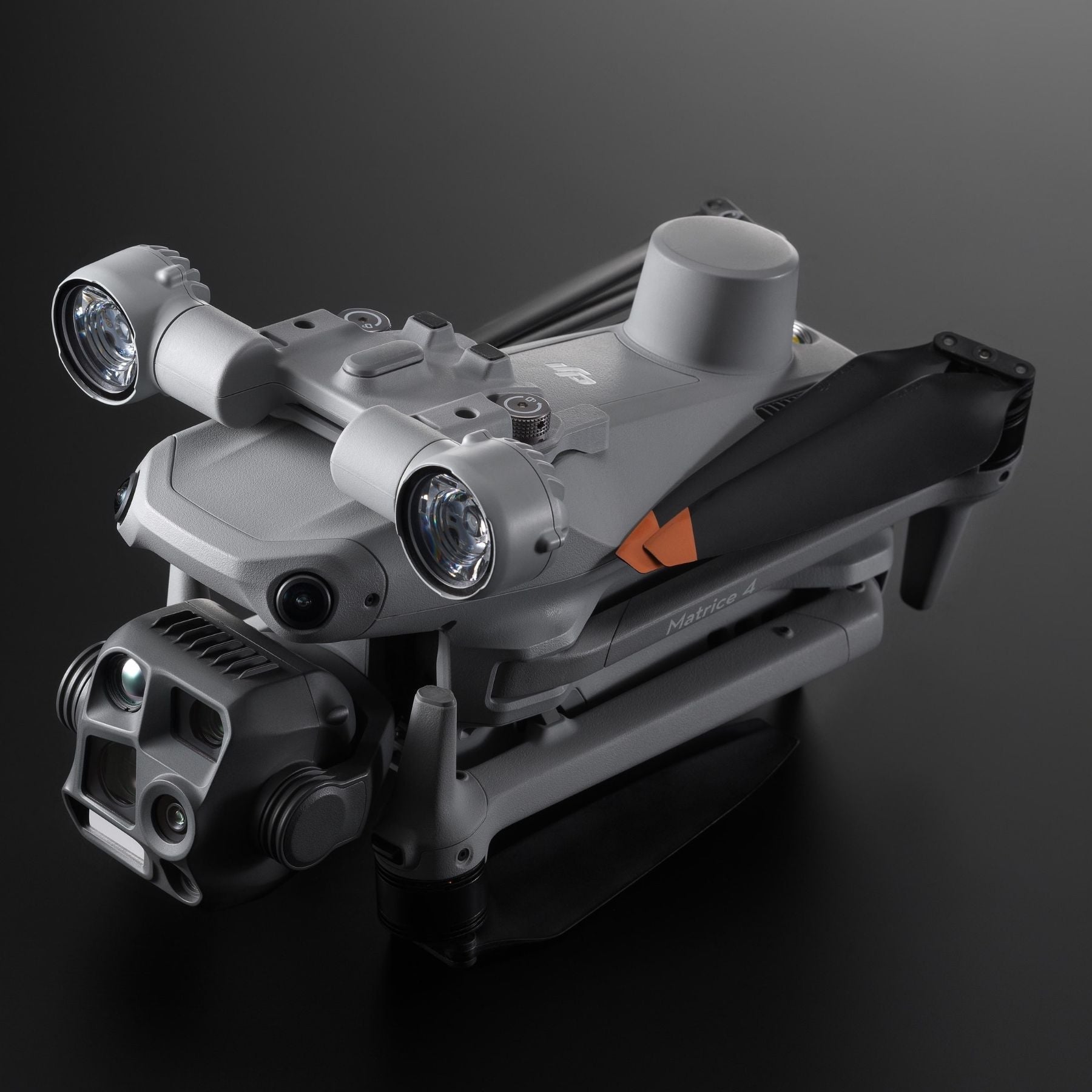

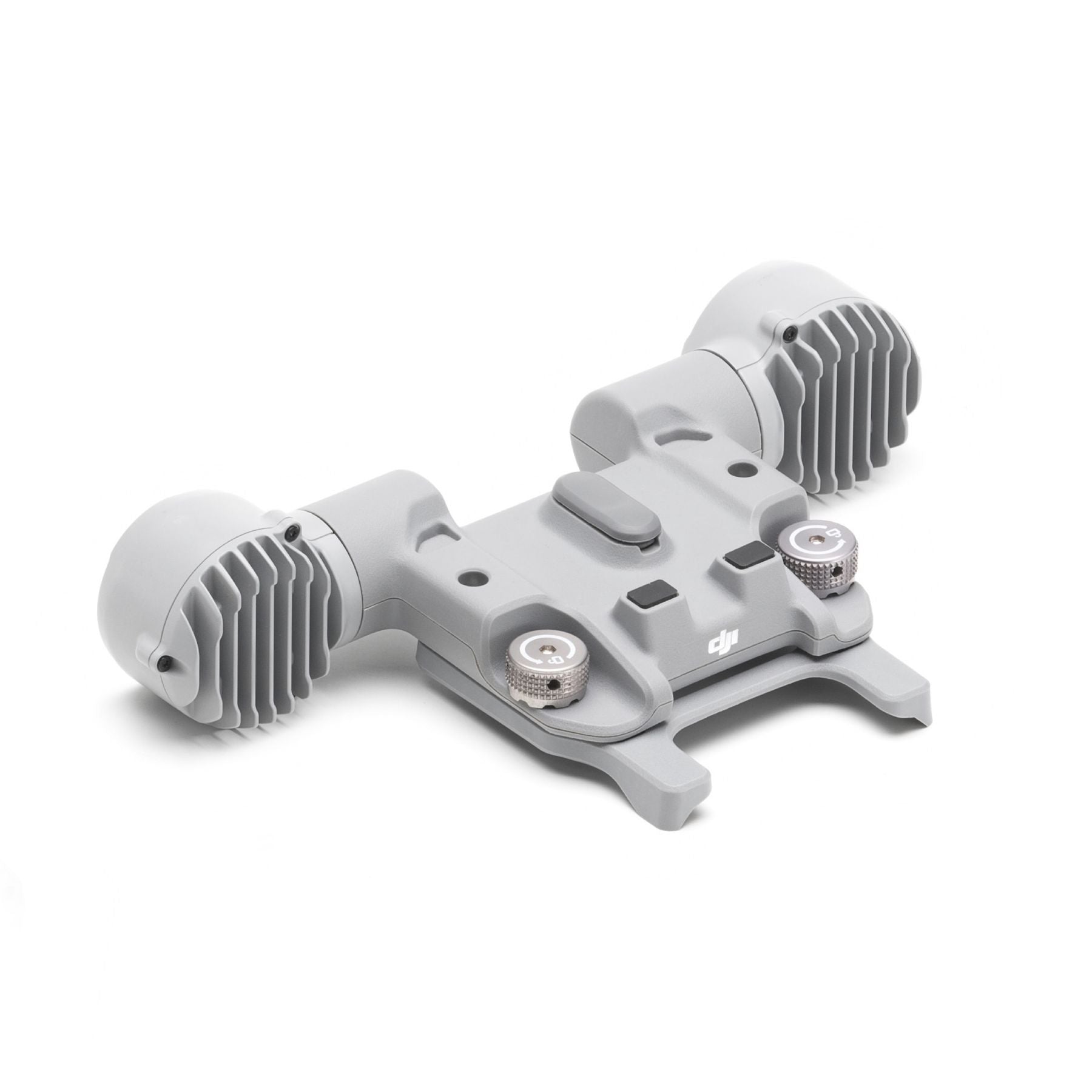

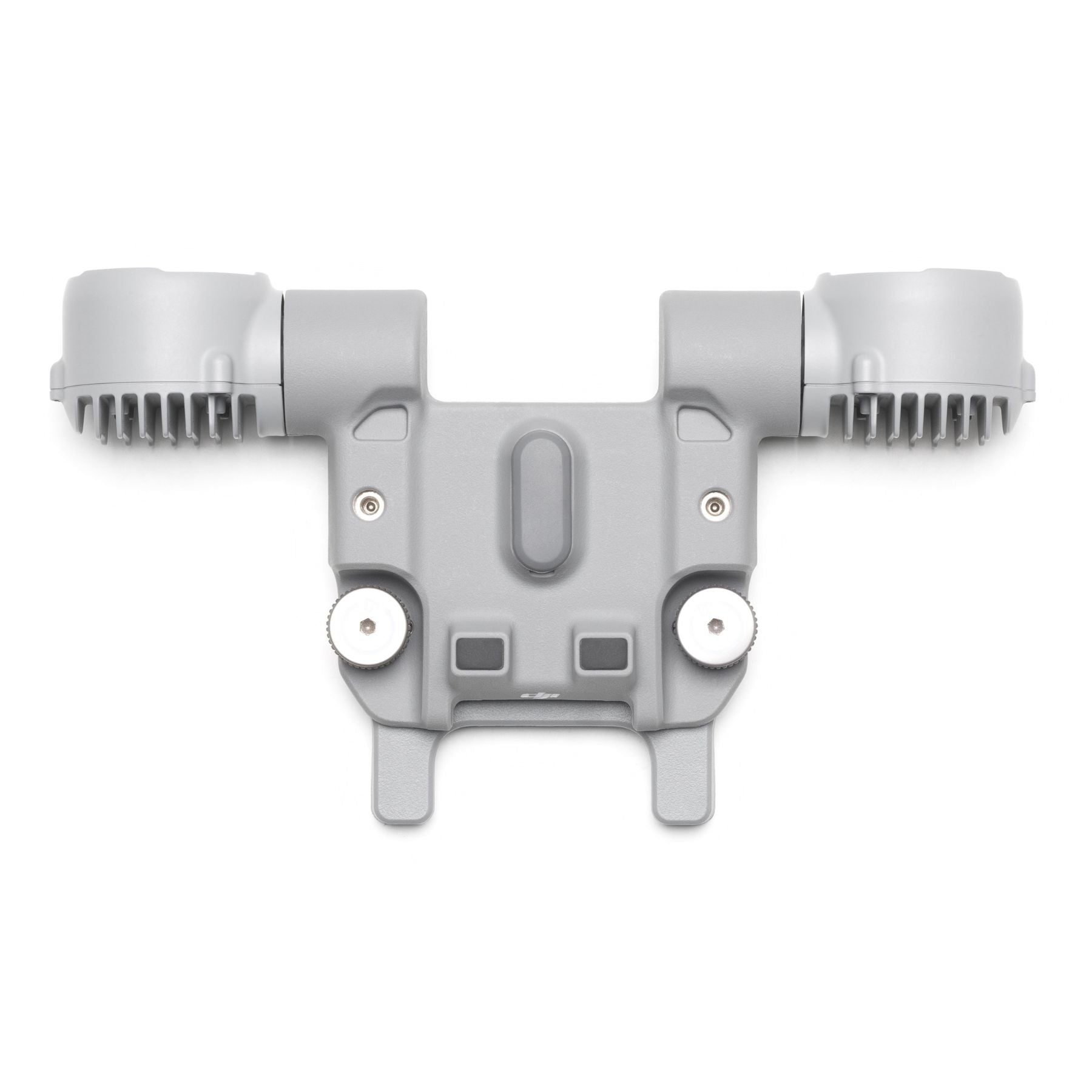

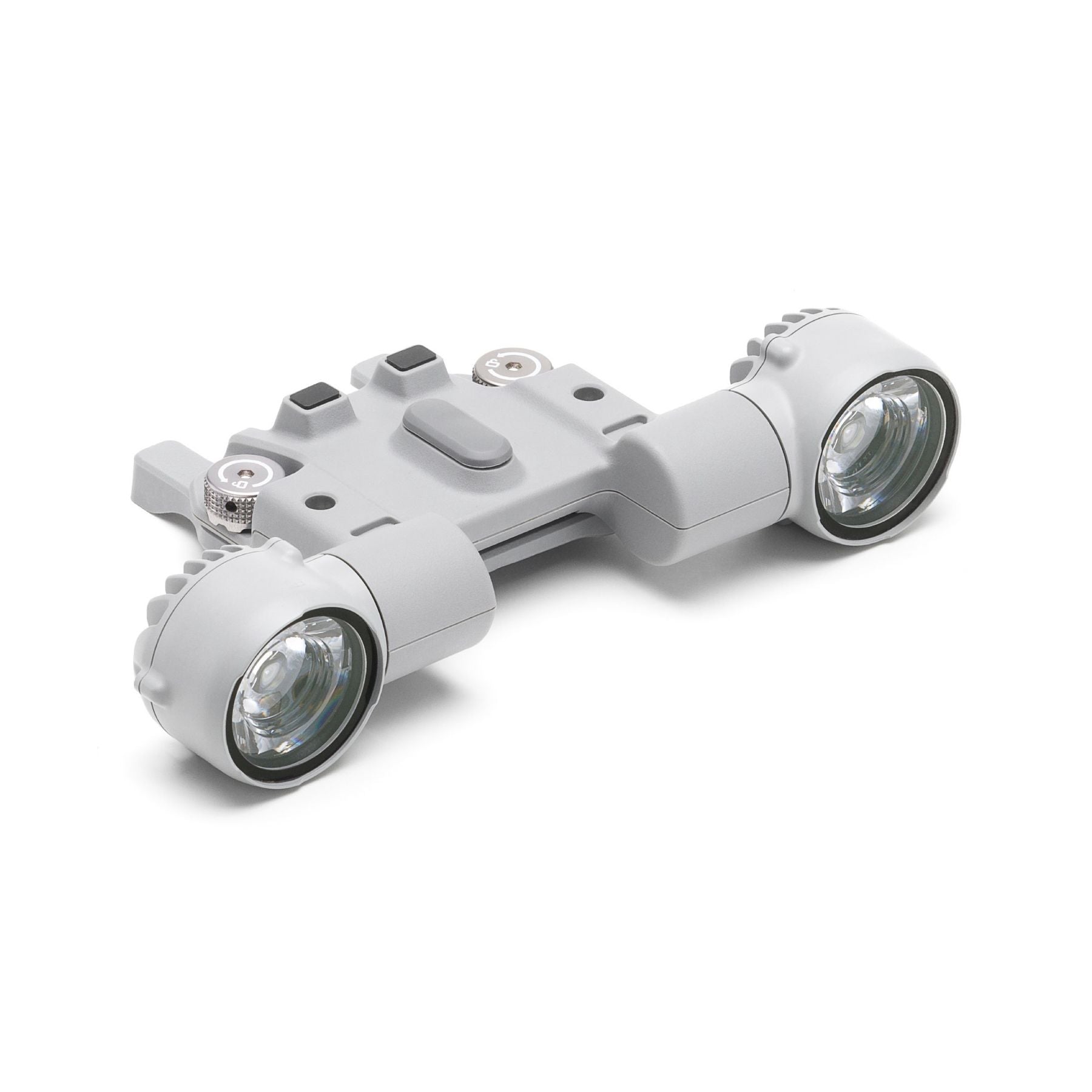

DJI AL1 Spotlight for Matrice 4 Series

DJI AL1 Spotlight for Matrice 4 Series

$449.00
$449.00
Sale Sold out
SKU S-DJI-AL1 MPN CP.EN.00000579.01 EAN 6937224105829
  • Long-range spotlight ensures clarity from up to 100 meters away.
  • Dual lighting modes offer flexibility for every operational scenario.
  • Intelligent gimbal integration for precise camera alignment.
  • Wide-area lighting for expansive coverage up to 2,200 square meters.
  • Easy, quick-release installation with secure, durable mounting.
  • Supported by Dronefly’s trusted expertise and fast delivery options.
Request Info / Quote ☎︎ 1 (805) 480-4033

View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI AL1 Spotlight: High-Intensity Lighting for Matrice 4 Aircraft

The DJI AL1 Spotlight is a high-performance, 32-watt lighting accessory designed to extend the operational capabilities of the DJI Matrice 4 and Matrice 4D Series. This ultra-lightweight payload provides critical illumination for search and rescue, law enforcement, and industrial inspection teams working in low-light or nighttime conditions. With an effective illumination area of up to 2,200 square meters, the AL1 ensures that ground teams and drone operators maintain full situational awareness. Its compact form factor and intelligent software integration make it a must-have tool for any professional Matrice 4 fleet.

Overview and core features

  • Optimized tactical weight: 99 g (3.49 oz) build allows for multi-payload configurations.
  • Intense light output: Achieves 17 lux at 50 m (164 ft) for high-detail visibility.
  • Extended beam distance: Project light up to 100 m (328 ft) with clarity.
  • Dual operating modes: Choose between always-on for steady light or strobe.
  • Rapid system mounting: Hand-tightened quick-release screws for tool-less hardware attachment.
  • All-weather durability: IP55 rated for protection against dust and water ingress.
  • Broad area coverage: Wide FOV mode covers 2,200 square meters at 100 m.
  • Extreme temperature tolerance: Operates from -4°F to 122°F for mission reliability.

High-speed tilt response and target alignment

The AL1 Spotlight utilizes a high-precision gimbal system with an alignment accuracy of ±0.1°, ensuring the beam stays fixed on target. The hardware supports a controllable tilt range of -90° to 35° at speeds up to 120°/s, allowing for rapid response during dynamic missions. This technical precision is paired with a 32-watt power system that maximizes light output without overtaxing the aircraft’s power supply. Its small dimensions (95×164×30 mm) ensure it fits perfectly within the Matrice 4's payload ecosystem without obstructing other sensors.

Intelligent gimbal synchronization and area lighting

For enterprise operators, the AL1 Spotlight offers superior field value through its intelligent gimbal linking feature. When activated, the spotlight moves in perfect synchronization with the aircraft's camera, ensuring the camera’s view is always perfectly lit. This automation is essential for single-operator missions where manual light control is difficult. Additionally, the Wide FOV mode allows for extensive area lighting, making it easier to coordinate ground movements or search large disaster zones effectively from the air.

Platform compatibility and system integration

  • Dedicated aircraft support: Engineered for the DJI Matrice 4 Series platform.
  • Advanced platform sync: Compatible with DJI Matrice 4D Series aircraft systems.
  • Modular payload pairing: Operates independently or alongside the DJI AS1 Speaker.
  • Automated camera following: Synchronizes light position with camera gimbal movements.
  • Enhanced area lighting: Wide FOV mode optimized for wide-angle camera integration.
  • Efficient power management: 32W max power draw designed for enterprise endurance.
  • Tool-less installation: Quick-release design for fast-paced operational deployments.

Industry use cases and operational scenarios

  • Nighttime search: Clear 4.3 lux illumination at 328 ft (100 m) distance.
  • Perimeter security: Use strobe mode to deter intruders or mark locations.
  • Tactical operations: Sync light with camera movements for persistent target tracking.
  • Broad area lighting: Light up 2,200 square meters for emergency ground coordination.
  • Pipeline inspection: Check infrastructure at night with focused 23° illumination angles.
  • Firefighting support: Provide visual clarity for ground crews in dark environments.
  • Marine patrol: Illuminate ship decks and water surfaces from the aircraft.
  • Construction safety: Monitor sites after dark with always-on high-intensity lighting.

Optimized for field deployment

Reliability in the field is guaranteed by the AL1 Spotlight's rugged construction and IP55 ingress protection. The system is built to handle the vibrations and environmental stresses typical of industrial drone operations while maintaining precise beam control. By offering both focused and wide-angle lighting modes, the AL1 provides the flexibility required for everything from precise inspections to large-scale search missions. This balance of power, weight, and intelligence makes it the premier lighting choice for Matrice 4 operators.

The DJI AL1 Spotlight delivers powerful illumination and intelligent tracking in a compact, 99-gram package. It is a critical accessory for Matrice 4 operators who require professional-grade visibility for complex nighttime missions.

Order from Dronefly today — the West Coast’s trusted enterprise UAV source.

  • Weight: 99 g (including bracket)
  • Approx. Weight: 91 g (excluding bracket)
  • Dimensions: 95×164×30 mm (L×W×H, including bracket)
  • Dimensions: 79×164×28 mm (L×W×H, without bracket)
  • Max Power: 32 W
  • Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters
  • Effective Illumination Angle: 23° (10% relative illuminance)
  • Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
  • Effective Illumination Area: 2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)
  • Modes: Always-on and strobe
  • Gimbal Mechanical Range (Tilt): -135° to 45°
  • Gimbal Controllable Range (Tilt): -90° to 35°
  • Max Control Speed (Tilt): 120°/s
  • Gimbal Alignment Accuracy: ±0.1°
  • Operating Temperature: -4° to 122° F (-20° to 50° C)
  • Mounting Method: Quick-release hand-tightened screws
  • 1x AL1 Spotlight
  • 2x Spare Screw
  • 1x Hex Key
How much weight does the AL1 Spotlight add to my drone?

The DJI AL1 Spotlight weighs approximately 99 grams when including the necessary mounting bracket. If the bracket is excluded, the light itself weighs about 91 grams. This extremely low weight ensures that the spotlight has a minimal impact on the overall flight time and performance of the Matrice 4 series aircraft.

What are the different operating modes for the light?

The AL1 Spotlight supports two primary operating modes: Always-on and Strobe. Always-on mode provides a steady, high-intensity beam for continuous visibility during inspections. Strobe mode flashes the light at a high frequency, which can be used for signaling, attracting attention during emergencies, or as a tactical deterrent.

Can I use the spotlight and a speaker at the same time?

Yes, the DJI AL1 Spotlight and the DJI AS1 Speaker are designed to work both independently and in combination. Using them together allows for more complex operational scenarios, such as search and rescue missions where you need to both illuminate a subject and communicate with them simultaneously. They attach to the aircraft’s payload ports easily.

Is there any special software needed to control the spotlight?

No special standalone software is required; the spotlight is controlled directly through the DJI Pilot 2 app used for the Matrice 4 series. From the app, you can toggle the light on and off, switch between always-on and strobe modes, and activate the intelligent gimbal linking to sync the light with your camera.

What are the mounting requirements for the AL1?

The AL1 Spotlight uses a quick-release system with hand-tightened screws for secure mounting to the aircraft's payload ports. No complex tools are required for installation in the field, although a hex key is included for any necessary screw maintenance. This design allows for rapid switching of payloads between missions.
