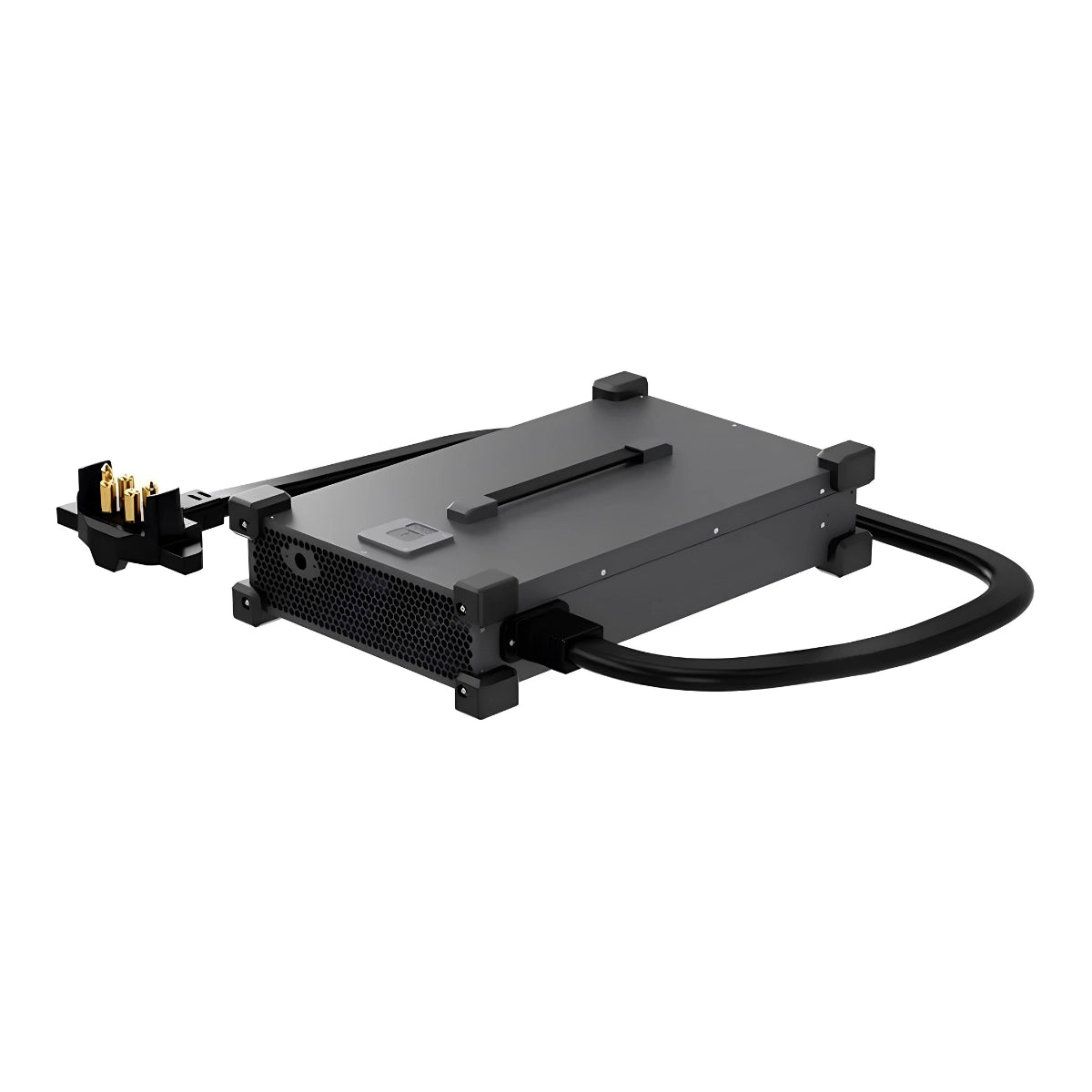

DJI C12000 Intelligent Power Supply (EMC)

DJI C12000 Intelligent Power Supply (EMC)

$2,279.00
$2,279.00
Sale Sold out
SKU S-DJI-C12000 MPN CP.AG.00001012.01 EAN 6937224112087 UPC 190021137578
  • Recharges a battery to 95 percent in under nine minutes
  • Delivers up to 12000 watts through tri-phase input
  • Charges batteries for both AGRAS T100 and FlyCart 100
  • Accepts three-phase or single-phase AC power
  • Guards against over-voltage and short-circuit faults
  • Includes a durable 1.8 meter charging cable
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI C12000 Intelligent Power Supply: 12,000W Charging Recharges a Battery in Minutes

Downtime between flights often comes down to how fast a battery can recharge, and the DJI C12000 Intelligent Power Supply addresses that directly with a tri-phase design delivering up to 12,000W of rated power. It charges both DB1580 and DB2160 Intelligent Flight Batteries, covering the AGRAS T100 and FlyCart 100 platforms from a single charging unit.

Whether supporting a single aircraft or coordinating charging across a broader fleet, a battery can go from 30% to 95% charge in as little as 8 to 9 minutes. Adaptive power protection against over-temperature, over-voltage, under-voltage, short-circuit, and fan stall conditions keeps the unit reliable through repeated, high-output cycles, and single-phase input support adds flexibility when three-phase power isn't available on site.

Key Features and Benefits

  • Ultra fast charging: recharges a battery in 8 to 9 minutes
  • High power output: delivers up to 12000 watts of charging power
  • Cross platform compatibility: charges batteries for AGRAS T100 and FlyCart 100
  • Flexible power input: accepts both three-phase and single-phase AC
  • Layered protection: guards against voltage, temperature, and circuit faults
  • Durable cable: includes a robust 1.8 meter charging cable

Fleet operations scale only as fast as their charging infrastructure allows, and this power supply is built to remove that bottleneck across both delivery and agricultural platforms. One charger covering two aircraft ecosystems simplifies logistics for operators running mixed fleets or growing into a second platform type.

Dronefly equips AGRAS T100 and FlyCart 100 operators with the charging infrastructure that keeps operations moving, whether running one aircraft or several. Our specialists can confirm your power source setup before you check out. Shop the DJI C12000 Intelligent Power Supply at Dronefly now.

Model Designation

  • DJI C12000 Intelligent Power Supply (EMC)
  • Charger Model: CSX901-12000

Product Type / Function

  • High-speed charging station for DJI Intelligent Flight Batteries
  • Tri-phase input design for ultra-fast charging
  • Adaptive power protection
  • Includes a 1.8-meter charging cable

Compatibility

  • DB1580 Intelligent Flight Battery (AGRAS T100)
  • DB2160 Intelligent Flight Battery (FlyCart 100)

Technical Specifications

  • Dimensions: 456mm x 291mm x 107mm
  • Weight: 13.13 kg
  • Input voltage: Three-phase AC 175–520V; Single-phase AC 200–264V
  • Output voltage: 62V
  • Rated output current: 194A
  • Rated power: 12,000W (three-phase 380V input); 3,000W (single-phase 220V input)
  • Recharge time: 8–9 minutes for a DB2160 battery from 30% to 95% charge (measured at sea level, 15–40°C environment; fast recharge supported when battery cell temperature is 15–75°C)
  • Protection functions: over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protections
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Output channels: 1
  • 1x DJI C12000 Intelligent Power Supply (EMC)

What batteries does this charger support?

This charger supports the DB1580 Intelligent Flight Battery used with the AGRAS T100 and the DB2160 Intelligent Flight Battery used with the FlyCart 100. Confirm your specific battery model with Dronefly before ordering.

How quickly can this charger recharge a battery?

With three-phase 380V input, this charger can bring a DB2160 battery from 30% to 95% charge in about 8 to 9 minutes, measured at sea level in a 15 to 40 degree Celsius environment. Actual charging time may vary with battery temperature and input power.

What input power does this charger require?

This charger works with three-phase AC input from 175 to 520V for up to 12,000W of output, or single-phase AC input from 200 to 264V for up to 3,000W. That flexibility lets it adapt to whatever power source is available on site.

How is this charger protected against faults?

It includes protection against over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other fault conditions, supporting safe operation through repeated high-output charging sessions.
