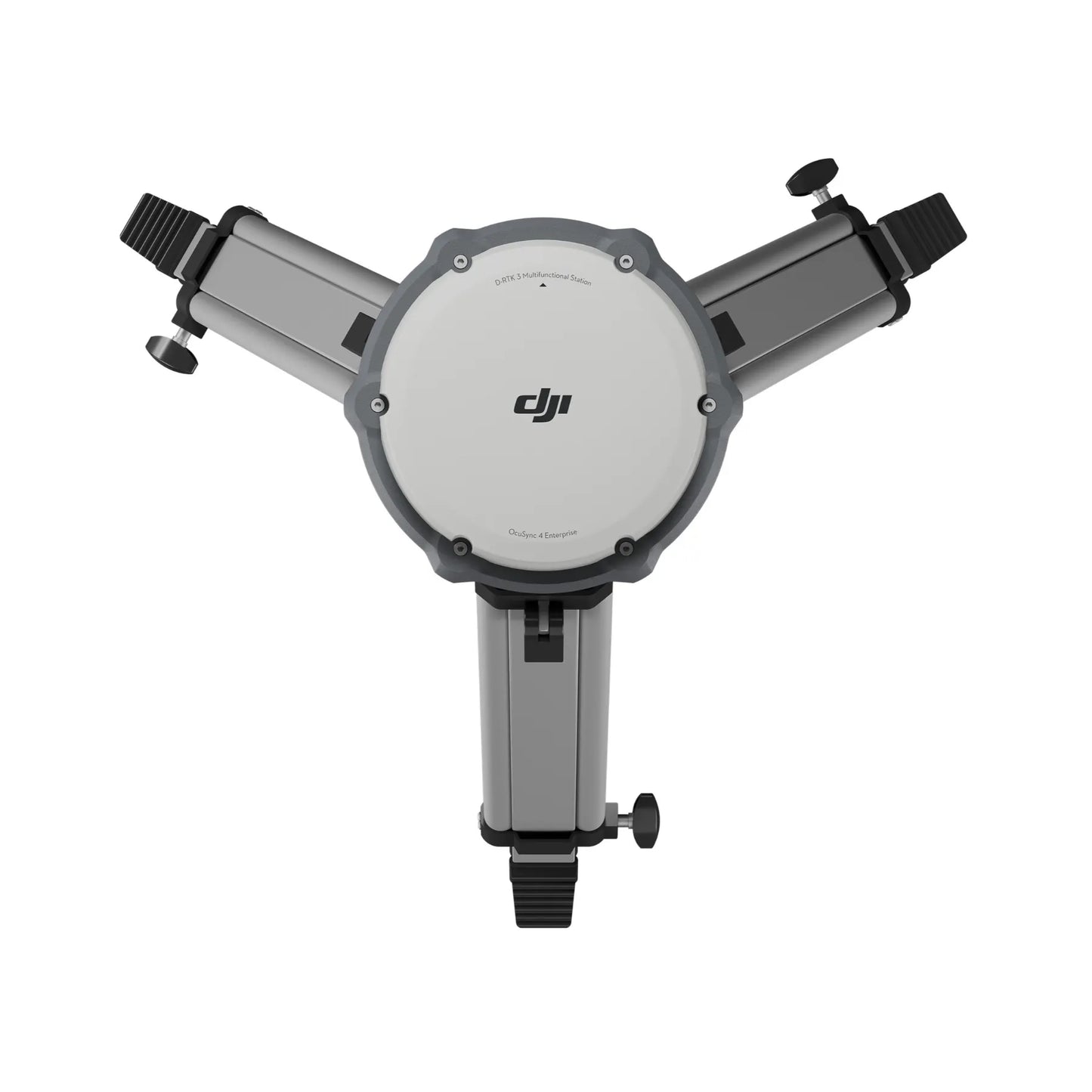

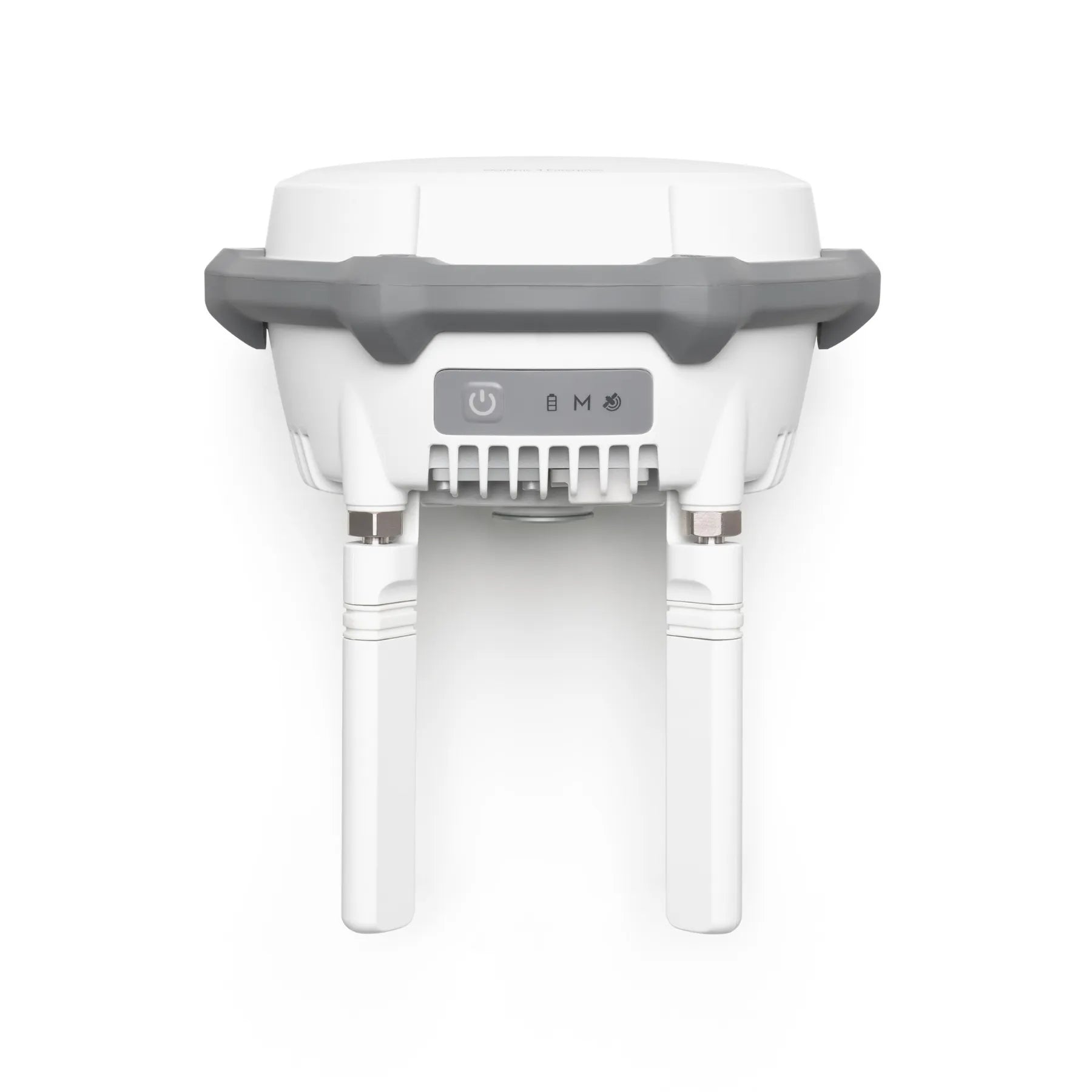

  • DJI D - RTK 3 Multifunctional Station Image 2
  • DJI D - RTK 3 Multifunctional Station Image 1
  • DJI D - RTK 3 Multifunctional Station Image 3
  • DJI D - RTK 3 Multifunctional Station Image 4
  • DJI D - RTK 3 Survey Pole and Tripod Kit Image 1
  • DJI D - RTK 3 Multifunctional Station + Survey Pole and Tripod Kit and Care Basic Image 7
1 7

DJI D-RTK 3 Multifunctional Station + Survey Pole and Tripod Kit and Care Basic

DJI D-RTK 3 Multifunctional Station + Survey Pole and Tripod Kit and Care Basic

$3,177.00
$3,177.00
Sale Sold out
SKU B-DJI-DRTK3-CB MPN CP.EN.00000551.01
  • Complete RTK bundle with deployment hardware included
  • Supports base, relay, and rover workflows
  • Centimeter-level positioning accuracy supported
  • Multi-constellation GNSS tracking capability
  • O4 Enterprise relay improves connectivity
  • Includes DJI Care Enterprise Basic protection
  • IP67-rated station for outdoor use
  • Compatible with DJI enterprise aircraft
Request Info / Quote ☎︎ 1 (805) 480-4033
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI D-RTK 3 Multifunctional Station + Survey Pole and Tripod Kit with Care Basic: Field-ready RTK and protection solution

The DJI D-RTK 3 Multifunctional Station + Survey Pole and Tripod Kit with Care Basic provides a complete RTK positioning package for enterprise drone operations. This bundle combines DJI’s multi-mode D-RTK 3 station with essential deployment hardware and DJI Care Enterprise Basic protection. Supporting base, relay, and rover workflows, it enables precise positioning, reliable connectivity, and flexible deployment across varied environments. The inclusion of Care Basic adds coverage against accidental damage, helping organizations maintain operational continuity during critical missions.

DJI D-RTK 3 Multifunctional Station bundle features

  • Multi-mode RTK station: Supports base, relay, and rover operations.
  • Multi-constellation GNSS: Tracks multiple global satellite systems.
  • Survey pole and tripod: Enable stable and repeatable ground deployment.
  • Centimeter-level accuracy: Supports high-precision positioning workflows.
  • O4 Enterprise relay: Improves communication reliability in complex environments.
  • Internal battery: Supports portable field operation without external power.
  • Care Basic included: Adds accident protection and replacement coverage.
  • Official DJI warranty: Maintains coverage during the service period.

Reliable accuracy for professional surveying and inspection

DJI D-RTK 3 delivers predictable accuracy across its supported modes, allowing teams to plan workflows confidently. DJI specifies single point accuracy at 1.5 m horizontal and 3.0 m vertical RMS when uncalibrated. Network RTK calibration improves performance to centimeter-level accuracy. In rover station mode, fixed RTK survey accuracy reaches 0.8 cm horizontal plus 1 ppm and 1.5 cm vertical plus 1 ppm. These published specifications support professional surveying, mapping, and inspection applications.

Designed for mobile teams and repeatable field deployment

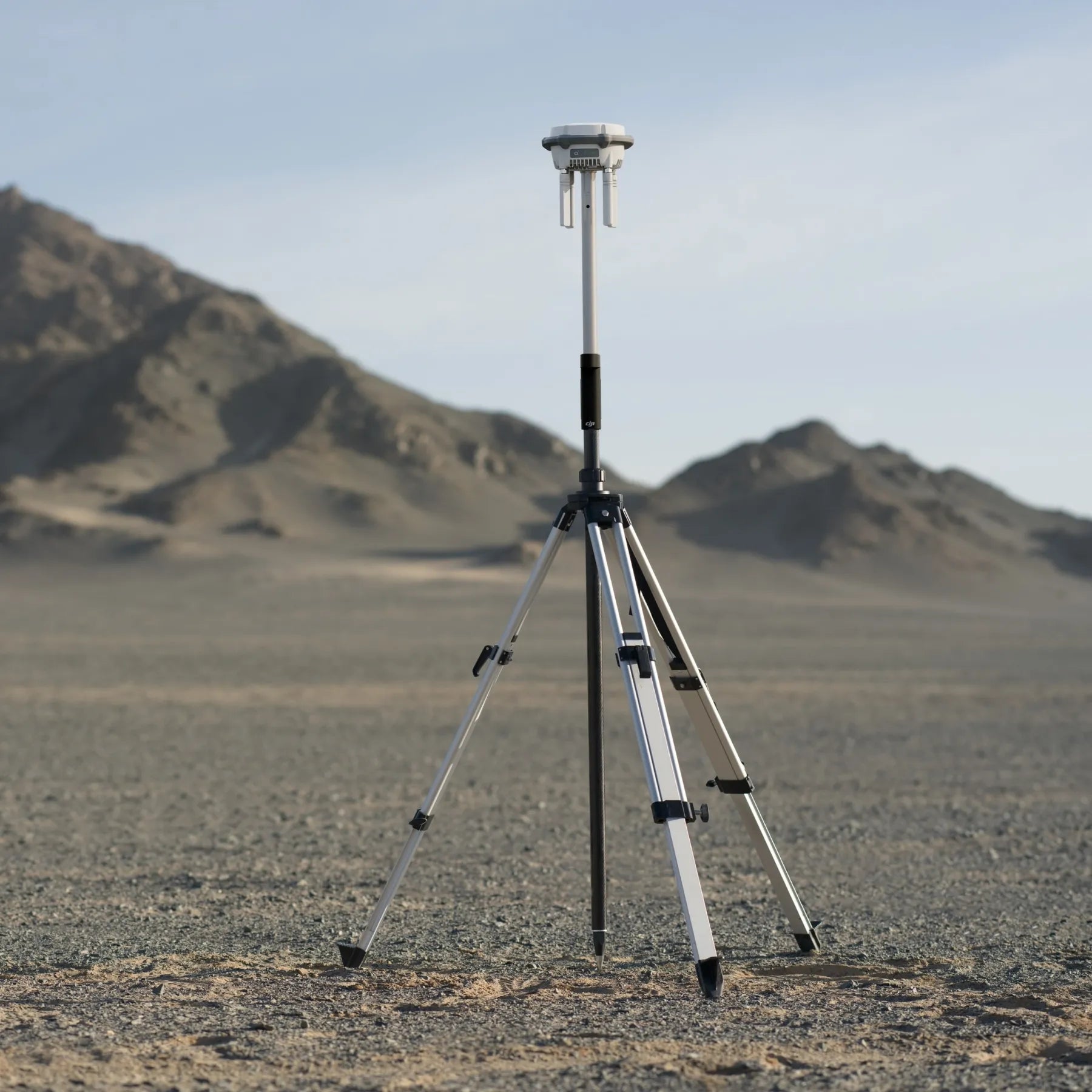

The included survey pole and tripod simplify deployment across job sites, enabling consistent antenna placement and efficient setup. Combined with IP67 protection and internal battery power, the system supports extended outdoor use without complex infrastructure. This makes the bundle suitable for mobile crews, multi-site operations, and environments where permanent installations are not feasible.

Compatible aircraft and modes

  • Key Compatible Drones (Base Station Mode)
    • DJI Matrice 4 Series (Including M4E, M4T, M4D, M4TD)
    • DJI Matrice 400 RTK
    • DJI Matrice 350 RTK
    • DJI Matrice 300 RTK
    • DJI Matrice 30 Series (M30/M30T)
    • DJI Matrice 3D/3TD
    • DJI Mavic 3 Enterprise Series (M3E, M3T, M3M)
    • DJI Inspire 3 (Professional Filmmaking)
    • DJI FlyCart 30
  • Compatible Agricultural Drones
    • DJI Agras T60
    • DJI Agras T50 / T25
    • DJI Agras T40 / T20P
  • Relay Station Mode: Specifically supports the Matrice 4E, Matrice 4T, and FlyCart 100 to extend range.

Professional use cases supported by the bundle

  • RTK base station workflows: Provide precise positioning for enterprise UAV missions.
  • Rover surveying operations: Capture accurate ground points using mobile devices.
  • Relay connectivity support: Extend links in obstructed environments.
  • Mapping and inspection: Support high-accuracy geospatial data collection.
  • Infrastructure monitoring: Maintain positioning reliability around complex structures.
  • Dock deployment planning: Improve site assessments for fixed installations.
  • Mixed fleet operations: Standardize RTK across DJI enterprise platforms.
  • Rugged field missions: Maintain accuracy under challenging conditions.

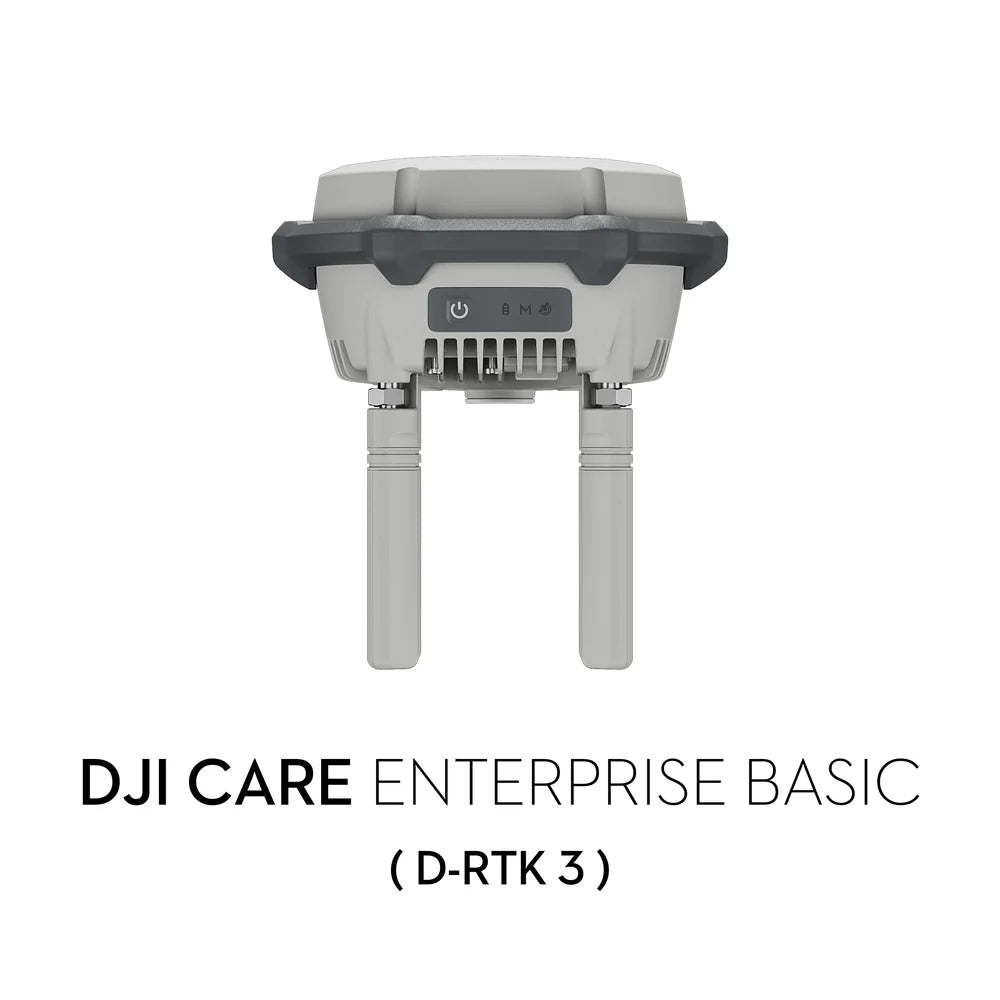

Protection and peace of mind with DJI Care Enterprise Basic

DJI Care Enterprise Basic adds coverage against common accidental damages, including collisions, water damage, flyaway incidents, and misoperation. The plan offers worry-free replacement options at an affordable additional cost and access to DJI Care Express for faster replacement turnaround. During the service period, covered components remain protected under DJI’s official warranty, helping reduce downtime and long-term operational risk.

The DJI D-RTK 3 Multifunctional Station bundle combines accuracy, deployment readiness, and protection.

GNSS Receiver

  • GNSS frequency support
  • GPS: L1C/A, L2C, L5
  • BDS: B1I, B2I, B3I, B1C, B2a, B2b
  • GALILEO: E1, E5a, E5b, E6
  • GLONASS: L1, L2
  • QZSS: L1C/A, L2C, L5
  • L-Band support

System Accuracy*

  • Supported modes: Base Station Mode (Broadcast Mode) and Relay Station Mode
  • Single point accuracy (uncalibrated): Horizontal 1.5 m RMS
  • Single point accuracy (uncalibrated): Vertical 3.0 m RMS
  • Satellite-based differential accuracy convergence time: 20 mins
  • Satellite-based differential accuracy: Horizontal 30 cm RMS
  • Satellite-based differential accuracy: Vertical 40 cm RMS
  • Network RTK calibration accuracy: Horizontal 1.0 cm RMS + 1 ppm
  • Network RTK calibration accuracy: Vertical 3.0 cm RMS + 1 ppm

Rover Station Mode Accuracy

  • RTK fixed survey accuracy: Horizontal 0.8 cm RMS + 1 ppm
  • RTK fixed survey accuracy: Vertical 1.5 cm RMS + 1 ppm
  • RTK tilt survey angle range: 0° to 60°
  • RTK tilt survey accuracy: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)

Satellite-Based Precise Point Positioning*

  • Supported frequencies: BDS B2b, GALILEO E6, L-Band**
  • Convergence time: 20 mins
  • Horizontal accuracy: 30 cm RMS
  • Vertical accuracy: 40 cm RMS

Differential Data Transmission

  • Base station and relay station modes record RTCM 3.2 raw observation data in DAT format
  • Rover station and calibration modes support RTCM v3.0, v3.1, v3.2, v3.3
  • Supported MSM protocols: MSM4, MSM5, MSM6, MSM7
  • Recommended to use receivers supporting four or more GNSS systems

Initialization Reliability

  • Initialization reliability greater than 99.9%

Video Transmission

  • Video transmission system: O4 Enterprise
  • Relay Station Mode operating frequency: 2.4 GHz, 5.2 GHz, 5.8 GHz
  • Base Station Mode operating frequency: 2.4 GHz, 5.8 GHz
  • Rover Station Mode operating frequency: BLE 2.4 GHz
  • Operating frequencies vary by country and region

Transmitter Power (EIRP)

  • 2.4000–2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.150–5.250 GHz: <23 dBm (CE/FCC)
  • 5.725–5.850 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Bluetooth

  • Bluetooth protocol: Bluetooth 5.1
  • Bluetooth frequency: 2.400–2.4835 GHz
  • Bluetooth transmitter power: <10 dBm

Maximum Transmission Distance (Unobstructed, Free of Interference)

  • Base station to Matrice 400: FCC 40 km; SRRC/CE/JP 20 km
  • Base station to other aircraft: FCC 15 km; SRRC 12 km; CE/JP 8 km
  • Rover station to mobile devices: 30 m
  • Measured in unobstructed outdoor environments free of interference
  • Data represents one-way, non-return flight distance under each standard
  • Always pay attention to RTH reminders during flight operations

Relay Station Mode Transmission Distance (Unobstructed, Free of Interference)

  • FCC aircraft to relay station: 25 km
  • SRRC aircraft to relay station: 12 km
  • CE aircraft to relay station: 10 km
  • Relay station to remote controller or DJI Dock 3: Recommended within 1 km; maximum 3 km
  • CE relay station to remote controller or DJI Dock 3: Recommended within 300 m; maximum 1 km
  • Relay station deployment requires prior field survey
  • Sites marked as unsuitable for dock deployment or RTK positioning are not recommended
  • Improper deployment may affect relay upgrades and log downloads
  • Recommended installation on rooftops, towers, or elevated, unobstructed locations

Transmission Distance (Unobstructed, With Interference)

  • Strong interference (urban): approx. 1.5–5 km
  • Medium interference (suburban): approx. 5–15 km
  • Low interference (remote or seaside): approx. 15–25 km
  • Tested under FCC standards; provided for reference only

Transmission Distance (Obstructed, With Interference)

  • Low interference obstructed by buildings: approx. 0–0.5 km
  • Low interference obstructed by trees: approx. 0.5–3 km
  • Tested under FCC standards; provided for reference only

Relay Station Range Extension Effect

  • Severe obstruction (buildings or mountains): 3x to 5x performance improvement
  • Mild obstruction (trees or glass): 1x to 3x performance improvement
  • Relay station must be deployed in elevated, unobstructed locations

Antenna

  • OcuSync 4 directional antennas ×4, 2T4R
  • Standard reverse-polarity SMA antenna connector

Other

  • D-RTK 3 Relay Fixed Deployment Version compatible with DJI Cellular Dongle 2

Electrical Properties

  • Relay Station power consumption: 14.5 W
  • Base Station power consumption: 7 W
  • Rover Station power consumption: 6.2 W
  • Maximum power consumption with heating: 36.5 W
  • Multifunctional Station power port: USB Type-C
  • Relay Fixed Deployment Version ports: USB Type-C and Ethernet (PoE)
  • Supported adapter: USB PD 3.0, 9–15 V output
  • Non-recommended 5 V chargers require device to be powered off before charging
  • Supported PoE supplies: IEEE 802.3bt Type 4 (52–57 V, 99.9 W max)
  • Supported PoE supplies: IEEE 802.3bt Type 3 (50–57 V, 60 W max)
  • Supported PoE supplies: IEEE 802.3at Type 2 (50–57 V, 30 W max)

Battery Operating Time (Normal Temperature)*

  • Relay Station runtime: approx. 4 hours
  • Base Station runtime: approx. 7 hours
  • Rover Station runtime: approx. 10 hours
  • Relay Fixed Deployment Version runtime: approx. 4 hours
  • When powered by PoE, battery enters preservation mode and does not fully charge
  • After PoE disconnection, internal battery provides up to 2 hours of runtime
  • Battery performance may decrease in low-temperature environments

Ethernet Cable Requirements

  • Multifunctional Station does not support Ethernet
  • Relay Fixed Deployment Version requires Cat 6 twisted-pair cable
  • Maximum Ethernet cable length: 100 m
  • Supported cable outer diameter: 6–9 mm

Battery

  • Battery type: LiPo
  • Capacity: 6500 mAh
  • Energy: 46.8 Wh

Physical Characteristics

  • Operating temperature (multifunctional): -20° to 55° C (-4° to 131° F)
  • Operating temperature (relay deployment): -30° to 55° C (-22° to 131° F)
  • Charging power is limited when shell temperature exceeds 48° C
  • Cold-stored devices must warm until internal battery exceeds 0° C before charging
  • Hot-stored devices must cool until internal battery is below 45° C before charging
  • Type 4 PoE enables heating for low-temperature startup on relay deployment version
  • Maximum operating altitude: 6000 m
  • Ingress protection rating: IP67
  • PoE port provides IPX5 protection; IP67 requires dedicated PoE connector and cable
  • Drop resistance: 2 m with pole
  • Dimensions (multifunctional): 163 × 89 mm
  • Dimensions (relay deployment): 163 × 344 mm
  • Weight (multifunctional): approx. 1.26 kg
  • Weight (relay deployment): approx. 2.24 kg

Survey Pole

  • Height range: 125 cm to 200 cm (without 5/8" thread)
  • Weight: 900 g

Tripod

  • Height: 92 cm
  • Weight: 2800 g

Compatibility

  • D-RTK 3 Multifunctional Station
  • D-RTK 3 AG

Footnotes

  • * Measurement accuracy depends on satellite visibility, ionospheric conditions, electromagnetic environment, and multipath interference
  • ** Satellite-based PPP L-band support will be enabled in later versions
  • *** Intense vibration or rapid rotation may affect inertial measurement accuracy

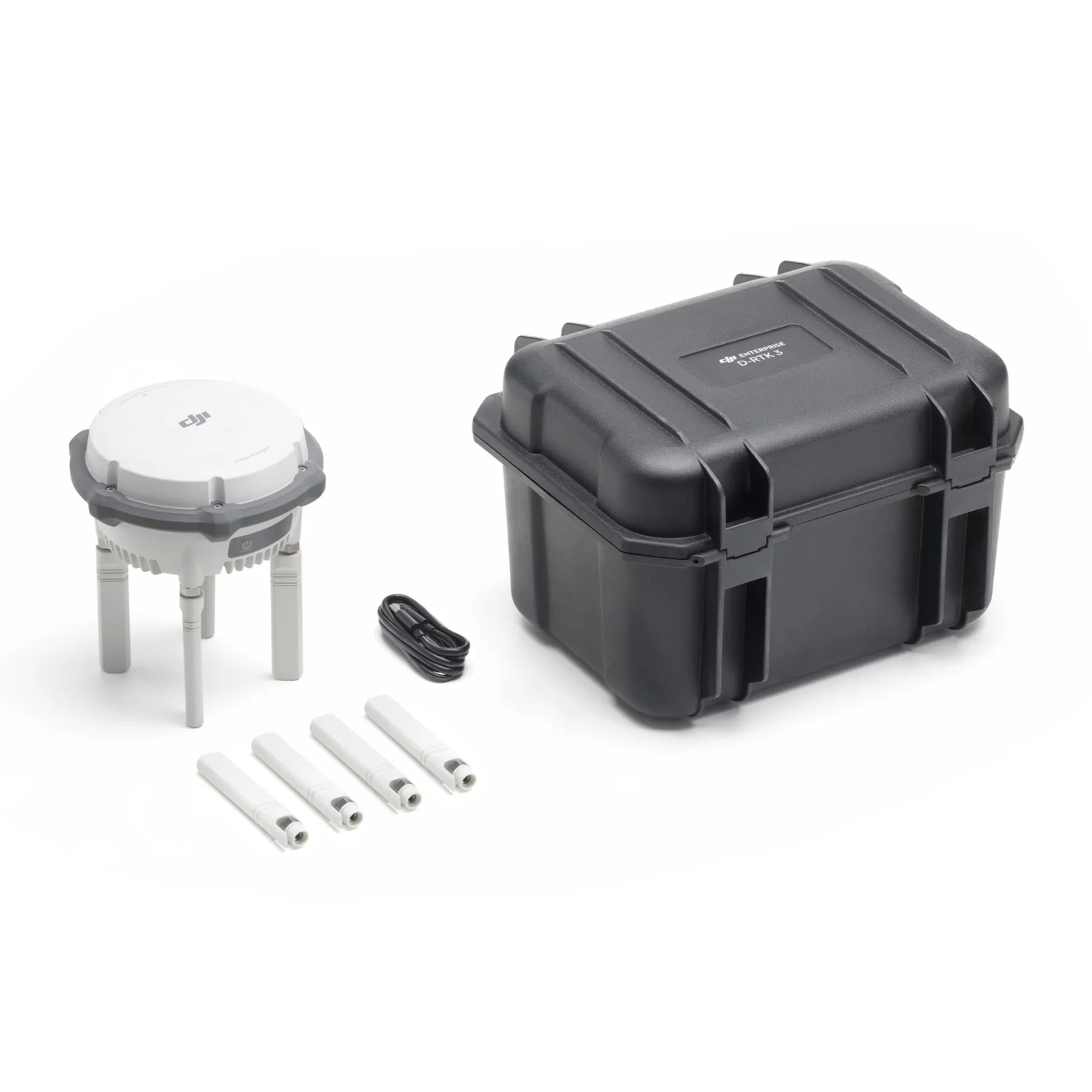

  • 1x D-RTK 3 Multifunctional Station
  • 4x Spare OcuSync Directional Antennas
  • 1x USB-A to USB-C Cable
  • 1x Battery
  • 1x D-RTK 3 Survey Pole and Tripod Kit
  • 1x DJI Care Enterprise Basic D-RTK 3
What does this DJI D-RTK 3 bundle include?

It includes the D-RTK 3 station, survey pole and tripod kit, and DJI Care Enterprise Basic.

What accidents are covered by DJI Care Enterprise Basic?

Coverage includes collision damage, water damage, flyaway incidents, and misoperation.

Can the D-RTK 3 be used in rover mode?

Yes. Rover station mode supports Bluetooth connectivity with Android devices for surveying.

Which drones work with this D-RTK 3 bundle?
  • DJI Matrice 4 Series (Including M4E, M4T, M4D, M4TD)
  • DJI Matrice 400 RTK
  • DJI Matrice 350 RTK
  • DJI Matrice 300 RTK
  • DJI Matrice 30 Series (M30/M30T)
  • DJI Matrice 3D/3TD
  • DJI Mavic 3 Enterprise Series (M3E, M3T, M3M)
  • DJI Inspire 3 (Professional Filmmaking)
  • DJI FlyCart 30
  • DJI Agras T60
  • DJI Agras T50 / T25
  • DJI Agras T40 / T20P
  • Relay Station Mode: Specifically supports the Matrice 4E, Matrice 4T, and FlyCart 100 to extend range.
Does DJI Care Express apply to this bundle?

Yes. DJI Care Express provides faster replacement service for eligible claims.
