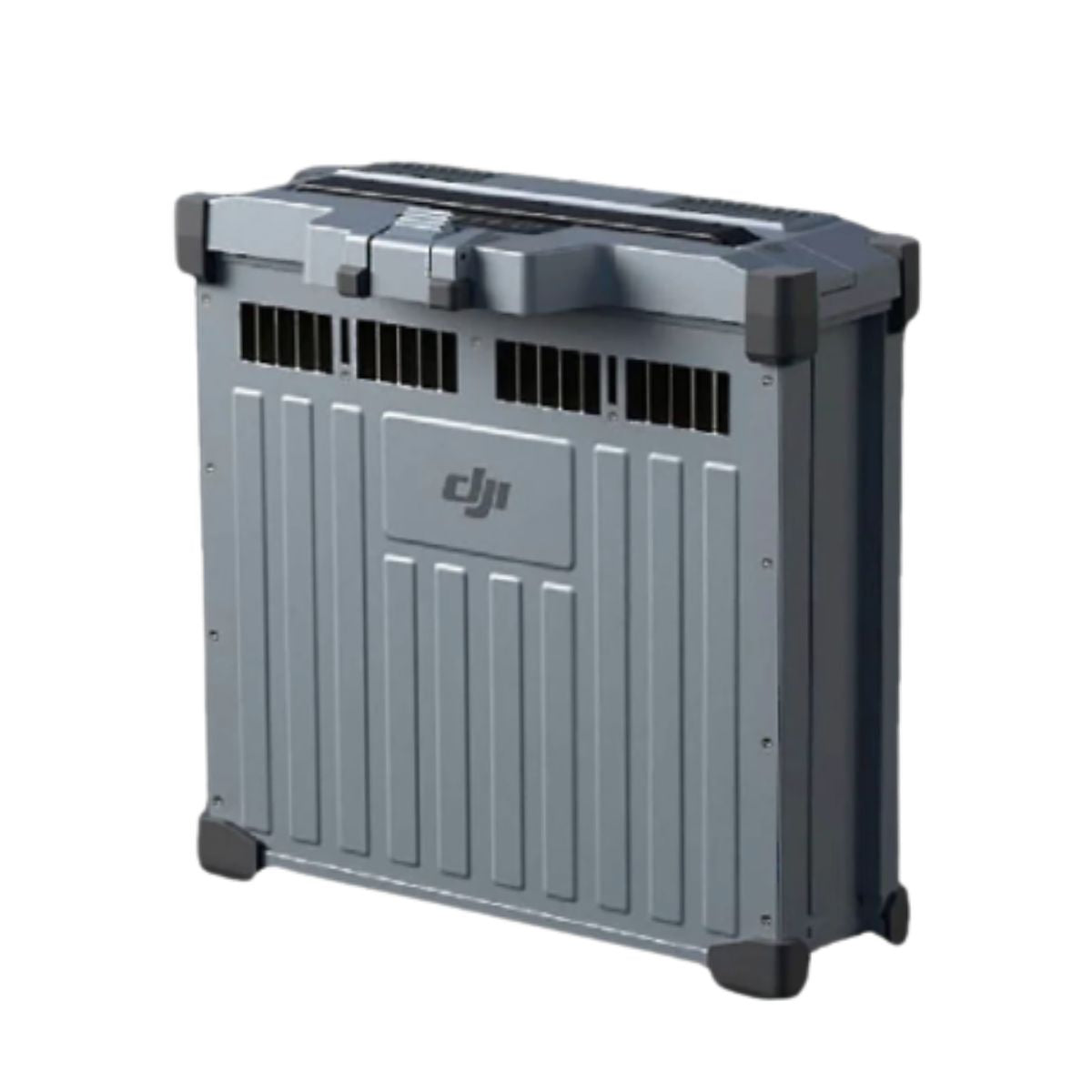

DJI DB1560 Intelligent Flight Battery: Power consistency for Agras missions
The DJI DB1560 Intelligent Flight Battery provides the endurance and reliability essential for modern agricultural operations. With a 30,000 mAh capacity and 52.22 V output, it supports extended missions and consistent power delivery for Agras platforms. Built for fast rotations, the DB1560 recharges in as little as 9-12 minutes using compatible generators or charging stations, enabling longer operation windows and fewer interruptions. It's compatible with DJI Agras T50, T40, T25, T20P, and T30 aircraft.
Designed for field efficiency
Every detail of the DB1560 supports operational continuity. Its 11.5 C discharge rate provides stable output even during heavy spraying, while built-in cell balancing maintains uniform performance. Advanced thermal design and IP54-rated protection guard against heat, moisture, and dust, ensuring dependable performance through long, hot workdays. Intelligent monitoring continuously tracks cell temperature, voltage, and capacity, optimizing performance and safety across the battery's lifespan.
Built for safety and longevity
The DB1560 integrates over-voltage, short-circuit, and over-temperature protection, along with automatic discharge and diagnostic features that extend battery life and prevent power-related issues in the field. It's engineered for up to 1,500 charging cycles, offering a strong return on investment for growers and contractors. Quick-swap installation and a sealed, durable housing make this intelligent battery a trusted power source for demanding agricultural workloads.
Key features and benefits
- 30,000 mAh capacity delivers longer flight durations per mission
- 52.22 V nominal voltage ensures steady power output
- Up to 1,500 charge cycles for extended service life
- 9-12 minute recharge time minimizes operational downtime
- 11.5 C discharge rate supports heavy agricultural payloads
- Intelligent management monitors temperature, current, and voltage
- IP54-rated housing protects against moisture and dust intrusion
- Self-diagnostic system enhances safety and battery health
- Automatic discharge preserves capacity during long-term storage
- Plug-and-play interface simplifies battery swapping in the field
Applications and use cases
- Agricultural spraying and seeding missions requiring consistent power
- Crop treatment and fertilizer application across large acreages
- Precision mapping and field analysis operations
- Generator-assisted charging for multi-battery rotations
- Extended operations in hot, humid, or dusty field environments
- Farming cooperatives and service contractors with multiple Agras units
- Long-duration spraying programs needing fast battery turnover
- Mission-critical operations where uptime and reliability are essential
The DJI DB1560 Intelligent Flight Battery combines high capacity, fast charging, and intelligent safety features to keep Agras missions running efficiently and reliably in any condition.
Dronefly, an authorized DJI enterprise dealer on the West Coast, provides complete after-sale support and expert consultation to keep your agricultural fleet flying. Buy your DB1560 today to ensure peak Agras performance with every flight.
Specifications
- Model: DB1560 (BAX702-30000mAh-52.22V)
- Capacity: 30,000 mAh
- Nominal voltage: 52.22 V
- Battery type: Li-ion (LiNiMnCoO₂)
- Energy: Approximately 1,567 Wh
- Maximum discharge rate: 11.5 C
- Maximum charge rate: 6 C
- Typical recharge time: 9-12 minutes (with compatible generator or charger)
- Cycle life: Up to 1,500 charge cycles
- Operating temperature: −5 °C to 45 °C (23 °F to 113 °F)
- Charging temperature range: 0 °C to 60 °C (32 °F to 140 °F)
- Protection features: Over-voltage, over-current, short-circuit, and over-temperature protection
- Protection rating: IP54 with board-level potting
- Intelligent features: Real-time monitoring, cell balancing, auto-discharge, and self-diagnostics
- Installation: Plug-in design for quick field replacement
- Compatible aircraft: DJI Agras T50, T40, T25, T20P, and T30
- Weight: Approximately 12.1 kg
In The Box
- 1x DJI DB1560 Intelligent Flight Battery
